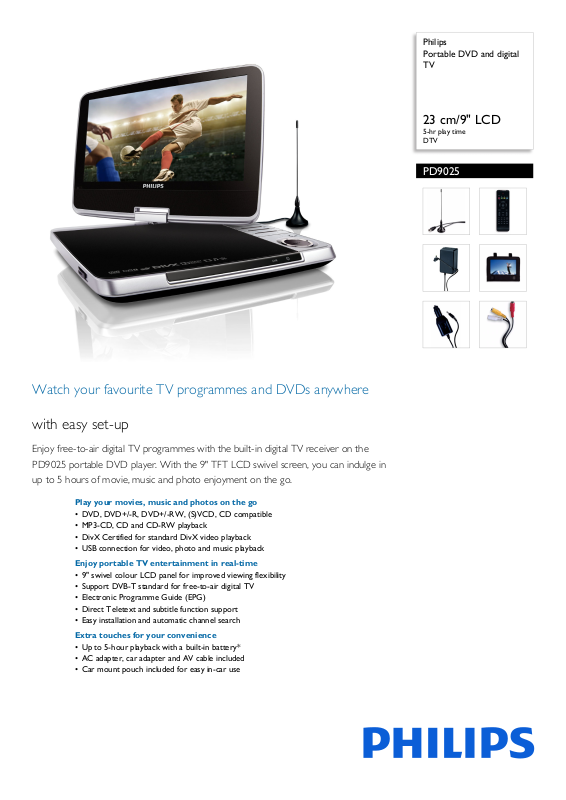

Page 1
Philips
Portable DVD and digital
TV
23 cm/9" LCD
5-hr play time
DTV
PD9025
Watch your favourite TV programmes and DVDs anywhere
with easy set-up
Enjoy free-to-air digital TV programmes with the built-in digital TV receiver on the
PD9025 portable DVD player. With the 9" TFT LCD swivel screen, you can indulge in
up to 5 hours of movie, music and photo enjoyment on the go.
Play your movies, music and photos on the go
• DVD, DVD+/-R, DVD+/-RW, (S)VCD, CD compatible
• MP3-CD, CD and CD-RW playback
• DivX Certified for standard DivX video playback
• USB connection for video, photo and music playback
Enjoy portable TV entertainment in real-time
• 9" swivel colour LCD panel for improved viewing flexibility
• Support DVB-T standard for free-to-air digital TV
• Electronic Programme Guide (EPG)
• Direct Teletext and subtitle function support
• Easy installation and automatic channel search
Extra touches for your convenience
• Up to 5-hour playback with a built-in battery*
• AC adapter, car adapter and AV cable included
• Car mount pouch included for easy in-car use
Page 2
PD9025/12
Portable DVD and digital TV
7
DAYS
EPG
23 cm/9" LCD 5-hr play time, DTV
Highlights
5-hour built-in battery*
This Philips player comes with a compact builtin rechargeable battery for long-lasting power.
Up to 5 hours of continuous movie, photo and
music playback enjoyment can be achieved on
a single charge. Just plug in the power cable to
recharge the player - it's that simple.
30cm/9" swivel col. LCD panel
The screen swivels 180 degrees to give you the
optimum viewing angle for watching movies
and photos. Rotate the screen or adjust it up
and down to cut down on glare and get the
best viewing angle possible.
DVD, DVD+/-RW, (S)VCD, CD
The Philips Portable DVD player is compatible
with most DVD and CD discs available in the
market. DVD, DVD+/-R, DVD+/-RW, (S)VCD
and CD – all of them can play on the DVD
player. DVD+/-R is a shorthand term for a
DVD drive that can accept both of the
common recordable DVD formats. Likewise,
DVD+/-RW handles both common rewritable
disc types.
Support DVB-T (free-to-air)
Support DVB-T standard for free-to-air digital
TV
DivX Certified
With DivX
DivX encoded videos and movies from the
Internet, including purchased Hollywood films.
The DivX media format is an MPEG-4-based
video compression technology that enables
you to save large files like movies, trailers and
music videos on media like CD-R/RW and
DVD recordable discs, USB storage and other
memory cards for playback on your DivX
Certified
USB connection
Simply plug in your portable USB device to the
USB connector on your Philips portable DVD
player and playback your digital videos, music
or photos directly. Now you can share your
favourite moments with family and friends.
®
support, you are able to enjoy
®
Philips device.
Page 3
PD9025/12
Portable DVD and digital TV
23 cm/9" LCD 5-hr play time, DTV
Specifications
Picture/Display
• Diagonal screen size: 9 inch / 23 cm
• Resolution: 640 (w) x 220 (H) x 3 (RGB)
• Display screen type: LCD TFT
Video Playback
• Playback Media: DVD, SVCD, Video CD, DVD-R/RW, CD-R/CD-RW, DVD+R/+RW, CD
• Disc Playback Modes: Disc Menu, Fast Reverse,
t Forward, OSD, Repeat, Shuffle Play, Zoom,
Fas
Resume Playback from Stop
• Video disc playback system: PAL, NTSC
• Compression formats: Divx, MPEG4
Audio Playback
• MP3 bit rates: 32 - 320 kbps
• Compression format: Dolby Digital, MP3
• Playback Media: CD, CD-R/RW, DVD+R DL,
R/+RW, DVD-R DL, DVD-R/-RW
DVD+
• File systems supported: ISO-9660, Jolliet
Connectivity
• DC in: 9 V, 1 A
• Headphone jack: 3.5 mm Stereo Headphone x 1
• TV connection: Antenna jack
• AV output: Composite (CVBS) x 1
•USB
Convenience
• Battery charging indication
•Shock proof
Tuner/Reception/Transmission
• Digital TV: DVB Terrestrial*
Video Decoding
• Reception-Demodulation: COFDM 2K/8K, MPEG2 DVB compliant, Network: MFN/SFN, QPSK
Accessories
• AC/DC Adapter: DC 9 V, 1 A, 110-240 v, 50/60 Hz
• Cables: 1 x AV Cables
•Remote control
• User Manual: Multi-language
• Car kit: cigarette outlet adapter, 12
• Included accessories: Aerial antenna
• Pouch: Car mounting pouch
vDC
Power
• Battery Type: Built-in battery
• Battery lifetime: Up to 5 hrs*
Outer Carton
• Gross weight: 5.79 kg
• GTIN: 1 48 95185 60515 6
•Outer carton (L x W x H): 29.1 x 25 x 31 cm
• Net weight: 4.53 kg
• Number of consumer packages: 3
• Tare weight: 1.26 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
27.2 x 28.5 x 7.3 cm
• EAN: 48 95185 60515 9
•Gross weight: 1.8 kg
• Net weight: 1.51 kg
• Number of products included: 1
• Packaging type: Soother
• Tare weight: 0.29 kg
• Type of shelf placement: Soother
Product dimensions
• Product dimensions (W x H x D):
24.04 x 3.84 x 17.84 cm
• Weight: 1.021 kg
•
Issue date 2017-04-05
Version: 1.2.8
12 NC: 8670 000 75734
EAN: 48 95185 60515 9
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* DivX, DivX Certified and associated logos are trademarks of
DivXNetworks, Inc. and are used under licence.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Battery life varies by use and settings.
* Battery life of playtime is approximate and may vary depending on
application condition. To optimise battery life, user should turn LCD
backlight to minimum, connect to headphones (not built-in speakers)
and listen at medium volume level and use the product at room
temperature.
* DVB-T, supported in selected countries only
