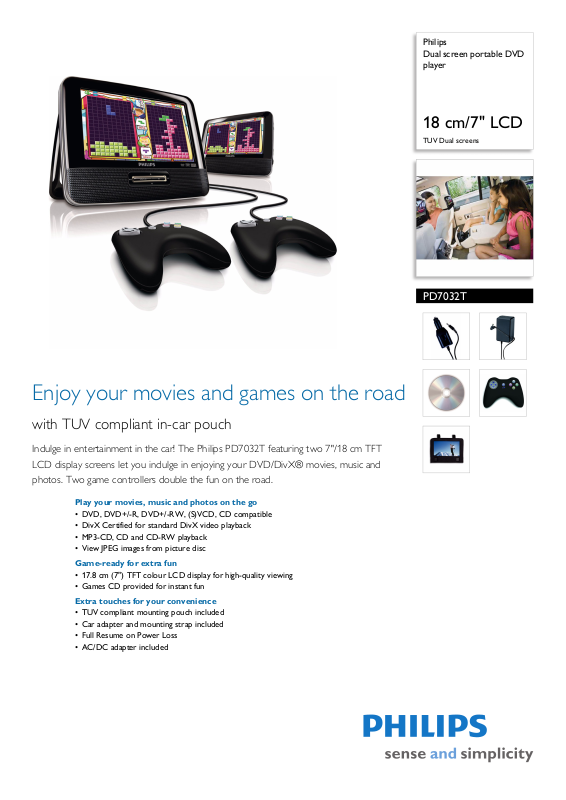

Page 1
Philips
Dual screen portable DVD
player
18 cm/7" LCD
TUV Dual screens
PD7032T
Enjoy your movies and games on the road
with TUV compliant in-car pouch
Indulge in entertainment in the car! The Philips PD7032T featuring two 7"/18 cm TFT
LCD display screens let you indulge in enjoying your DVD/DivX® movies, music and
photos. Two game controllers double the fun on the road.
Play your movies, music and photos on the go
• DVD, DVD+/-R, DVD+/-RW, (S)VCD, CD compatible
• DivX Certified for standard DivX video playback
• MP3-CD, CD and CD-RW playback
• View JPEG images from picture disc
Game-ready for extra fun
• 17.8 cm (7") TFT colour LCD display for high-quality viewing
• Games CD provided for instant fun
Extra touches for your convenience
• TUV compliant mounting pouch included
• Car adapter and mounting strap included
• Full Resume on Power Loss
• AC/DC adapter included
Page 2
Dual screen portable DVD player
18 cm/7" LCD TUV Dual screens
Highlights
PD7032T/05
DVD, DVD+/-RW, (S)VCD, CD
The Philips Portable DVD player is compatible
with most DVD and CD discs available in the
market. DVD, DVD+/-R, DVD+/-RW, (S)VCD
and CD – all of them can play on the DVD
player. DVD+/-R is a shorthand term for a
DVD drive that can accept both of the
common recordable DVD formats. Likewise,
DVD+/-RW handles both common rewritable
disc types.
DivX Certified
With DivX® support, you are able to enjoy
DivX encoded
Internet, including purchased Hollywood films.
The DivX media format is an MPEG-4-based
video compression technology that enables
you to save large files like movies, trailers and
music videos on media like CD-R/RW and
DVD recordable discs, USB storage and other
memory cards for playback on your DivX
Certified® Philips device.
videos and movies from the
Power Resume
The DVD-Video player remembers where you
l
ast stopped watching both if it is powered off
directly and if the power supply is
discontinued. If you did not change to another
disc, your player will resume play where you
last stopped the movie just by reloading the
disc—making your life a lot easier!
Games CD
This player comes pre-packed with a bonus
games CD for extra
the disk drive and start having added
enjoyment on the go.
TUV mounting pouch
TUV compliant mounting pouch included
fun. Just put a game CD in
Pow er
Resume
Page 3
Dual screen portable DVD player
18 cm/7" LCD TUV Dual screens
Specifications
PD7032T/05
Picture/Display
• Display screen type: LCD TFT
• Diagonal screen size: 7 inch / 18 cm
• Resolution: 480(w) x 234(H) x 3(RGB)
Sound
• Output Power: 250 mW RMS (built-in speakers)
• Output power (RMS): 10 mW RMS (earphone)
• Signal to noise ratio: >80 dB (earphone), >62 dB
(built-in speaker
s)
Video Playback
• Playback Media: DVD, Picture CD, SVCD, Video
CD, DVD-R/-RW, MP3-CD, CD-R/CD-RW,
DVD+R/+RW, CD
• Disc Playback Modes: Disc Menu, Fast Reverse,
t Forward, OSD, Repeat, Shuffle Play, Zoom,
Fas
Resume Playback from Stop
• Video disc playback system: NTSC, PAL
• Compression formats: Divx, MPEG4
Audio Playback
• Compression format: Dolby Digital, MP3
• MP3 bit rates: 32 - 320 kbps
• Playback Media: CD, CD-RW, MP3-CD, CD-R
• File systems supported: ISO-9660, Jolliet
Connectivity
• DC in: 9 V, 0.8 A
• Headphone jack: 3.5 mm Stereo Headphone x 2
• AV output: Composite (CVBS) x 1
Accessories
• AC/DC Adapter: DC-in 9 V, 0.8 A (110-240 v, 50/
60 Hz)
• Cables: 3.5 mm AV cable
• Car kit: cigarette charger, headrest mounting
traps x 2
s
• User Manual: English
• Second LCD screen: 7" TFT LCD x 1 pcs
• Remote control: Game controllers x 2
• Pouch: TUV compliant
Convenience
•Shock proof
Outer Carton
• Gross weight: 6.48 kg
• GTIN: 1 87 12581 63864 8
•Outer carton (L x W x H): 35 x 25.5 x 27.5 cm
• Net weight: 5.28 kg
• Number of consumer packages: 3
• Tare weight: 1.2 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
24 x 25.5 x 11 cm
• EAN: 87 12581 63864 1
• Gross weight: 2.01 kg
• Net weight: 1.76 kg
• Number of products included: 1
• Packaging type: Carton
• Tare weight: 0.25 kg
Product dimensions
• Cable length: 0 cm
• Product dimensions (W x H x D):
20 x 15.5 x 3.9
•Weight: 0.7 kg
cm
Dimensions
• Product dimensions (WxDxH): 2nd screen (20 x
15.5 x 2.1 cm)
•
Issue date 2013-03-03
Version: 1.1.6
12 NC: 8670 000 88216
EAN: 87 12581 63864 1
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* DivX, DivX Certified and associated logos are trademarks of
DivXNetworks, Inc. and are used under licence.
* Packaging inside pouch is compliant with sample, which complies
with Annex IV of ECE R21.01 regulation conducted by TUV
Rheinland (test report no.: 85-R21-1410/11)
