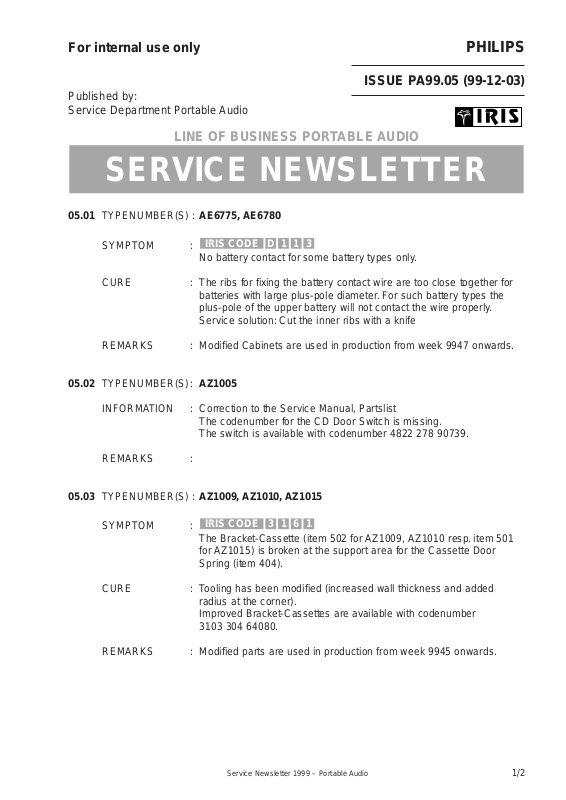

Page 1
For internal use only PHILIPS
ISSUE PA99.05 (99-12-03)
Published by:
Service Depar tment Portable Audio
LINE OF BUSINESS PORTABLE AUDIO
05.01 TYPENUMBER(S) : AE6775, AE6780
SYMPTOM :
No battery contact for some battery types only.
CURE : The ribs for fixing the battery contact wire are too close together for
batteries with large plus-pole diameter.For such batter y types the
plus-pole of the upper battery will not contact the wire properly.
Service solution: Cut the inner ribs with a knife
REMARKS : Modified Cabinets are used in production from week 9947 onwards.
05.02 TYPENUMBER(S): AZ1005
INFORMATION : Correction to the Service Manual, Partslist
The codenumber for the CD Door Switch is missing.
The switch is available with codenumber 4822 278 90739.
REMARKS :
05.03 TYPENUMBER(S) : AZ1009, AZ1010, AZ1015
SYMPTOM :
The Bracket-Cassette (item 502 for AZ1009, AZ1010 resp. item 501
for AZ1015) is broken at the support area for the Cassette Door
Spring (item 404).
CURE : Tooling has been modified (increased wall thickness and added
radius at the corner).
Improved Bracket-Cassettes are available with codenumber
3103 304 64080.
REMARKS : Modified parts are used in production from week 9945 onwards.
1613IRIS CODE
311DIRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1999 – Portable Audio 1/2
Page 2
05.04 TYPENUMBER(S): AZ1100, AZ1101, AZ1102, AZ1103, AZ1104
INFORMATION : Correction to the Service Manual, Mechanical Partslist
Position number 26 is listed twice. Correct is:
24 4822 410 10634 Band/Function Knob
26 4822 410 10632 Volume Knob
REMARKS :
05.05 TYPENUMBER(S) : AZ1560, AZ1565
INFORMATION : Correction to the Service Manual, Electrical Partslist
On Control board:
2400 5322 126 10223 47nF 10% X7R 63V
3422 4822 051 20332 3.3kΩ 5% 0.1W
3483 4822 051 20105 1MΩ 5% 0.1W
3487 4822 051 20124 120kΩ 5% 0.1W
On Feature board:
2556 4822 126 14585 100nF 20% X7R 16V
2557 4822 126 14585 100nF 20% X7R 16V
2574 4822 126 13188 15nF 20% X7R 50V
2575 4822 126 13188 15nF 20% X7R 50V
3593 4822 051 20683 68kΩ 5% 0.1W
3594 4822 051 20683 68kΩ 5% 0.1W
3612 4822 117 12521 68Ω 5% 0.1W
REMARKS :
05.06 TYPENUMBER(S) : AZ2750, AZ2755
INFORMATION : Correction to the Service Manual, Mechanical Partslist
The codenumber for the Motor Pulley (item 116 on tape deck assy)
should read 4822 528 81493.
REMARKS :
Service Newsletter 1999 – Portable Audio 2/2
