Philips PA9027C199 User Manual

Instructions for use PA9019C1 PA9027C1 PA9032C1 PPC927C1 PPC932C1

Institutional

Television

TELEVISION

IndustryStandards

™

INTRODUCTION

Your Philips Institutional Television tuning system is set to operate in either "Consumer" or "Commercial" type product modes. In the Consumer mode the tuning system operates as a standard TV, allowing normal initial power ON, channel selection, and volume control (as well as a variety of select Menu features). Use the supplied remote control to adjust the TV in the Consumer mode. Refer to the "On-Screen Features (Consumer)" section in this manual for descriptions on the use and operation of Consumer mode Menu controls. Use a T374AH (RG4172-BK03) remote with its TV Setup, Guest, and Data Communication Mode capabilities to set the TV for the various Commercial mode settings. (Note: On some select Institutional TV models you may also be able to use the buttons at the set to select a Setup Mode. Again, this may not apply or be available on your current model. Commercial setup and verification procedures may be performed which are backward compatible with previous Commercial chassis setup remotes. (See T374AH Remote Control Instructions, part # IB7166E002, for specific operating details.)

Within the TV SETUP MENU (as selected with the T374AH remote control) use the “PROPLUS SETUP MENU ACCESS LEVEL” control to place the television in either the CONSUMER, COMMERCIAL, LOCKED, or UNLOCKED mode.

When CONSUMER is the selected mode, the TV functions as a standard consumer television (Philips RC-5 system) and accepts standard remote control commands. Events are ignored and the television is used for normal TV viewing (in place of any commercial /professional special event applications).

When UNLOCKED is the selected mode, the TV functions the same as in the Consumer Mode. When an event is active, no menu is available unless the Setup Code or Setup Remote is used. (Channel selection either is not allowed or is restricted to the event channel ring - depending upon the event programming.)

When COMMERCIAL is the selected mode, the Consumer menu is limited to three Menu items - CLOSED CAPTION (CC); SLEEPTIMER; and V-CHIP SETUP. Channel selection and tuning are also restricted to channels in the standard channel ring. When an event is active, no menu is available unless the Setup Code or Setup Remote is used. (Channel selection either is not allowed or is restricted to the event channel ring - depending upon the event programming.)

When LOCKED is the selected mode, the TV may be used only during an event. If no event is active, the TV cannot be turned ON (unless the Setup Code is used to enter the Setup Menu or the Setup Remote is used). When an event is active, no menu is available unless the Setup Code or Setup Remote is used. (Channel selection either is not allowed or is restricted to the event channel ring - depending upon the event programming.)

Note: Use of various Audio/Video connection jacks, or other input modes on the rear of the set, is dependent on whether the TV has a ProVideo Kit1 Expansion, or other Smart Card Assembly, jackpanel installed. Please refer to the separate setup and use information that will detail the various Audio and Video connections possible with these type modules. Also, please be aware that dependent upon the type of Smart Card module installed with the set that certain select “event” program features may be affected or not be operable.

CONSUMER ONSCREEN MENU

(For basic television Menu and supplied remote operation instructions, refer to the Onscreen Features (Consumer) section of this owner’s manual.)

COMMERCIAL SETUP MENU

(For Menu control operations and use, refer to the OnScreen Features

(Commercial) section of this owner’s manual.)

CC V-CHIP SETUP SLEEPTIMER SET TIME CLOCK DISPLAY EXIT

OFF

ON 12:00 PM ON

LANGUAGE CHANNEL INSTALL CABLE TUNING BRIGHTNESS COLOR CONTRAST SHARPNESS TINT NOISE REDUCTION SOUND MODE SAP AUDIO OUT

MAIN MENU

ENGLISH

34 22 29 40 0 OF F STEREO OF F

FIXED BALANCE TREBLE BASS ULTRA BASS INCRED STEREO AVL VOLUME BAR AUDIO/VIDEO MUTE REMINDER

OF F

BLUE

OF F

TV SETUP MENU LANGUAGE CHANNEL INSTALL PROPLUS SETUP CABLE TUNING BRIGHTNESS COLOR CONTRAST SHARPNESS TINT NOISE REDUCTION SOUND MODE SAP AUDIO OUT

ENGLISH

ON 34 22 29 40 0 OF F STEREO OF F FIXED

SET TIME SET DAY CLOCK DISPLAY

ACCESS LEVEL

EDIT EVENTS EXIT

PROPLUS SETUP MENU

3:30 PM

FRIDAY ON LOCKED

COMMERCIAL

CONSUMER

UNLOCKED

CC SAVE CC V-CHIP MENU ITEM SAVE V-CHIP V-CHIP SETUP SLEEPTIMER SECURITY EXIT

OFF

OF F ON ON ON OF F

BALANCE TREBLE BASS ULTRA BASS INCRED STEREO AVL VOLUME BAR MIN VOLUME MAX VOLUME SWITCH ON VOLUME SWITCH ON CHANNEL POWER ON CHANNEL DISPLAY KEYBOARD LOCK ESP AUDIO/VIDEO MUTE WELCOME MESSAGE CHANNEL GUIDE REMINDER 3 DIGIT ENTRY A/CH A/V SWITCH

0 31 31 ON OF F OF F ON 0

63 STANDARD STANDARD STANDARD AL L OF F OF F BLUE

OF F ON OF F ON

STANDARD

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended inter-

national global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a builtin installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10 . Power Sources - The appliance should be connected to a power sup-

ply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16 . Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance;

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to ser vice the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

ELECTRIC SERVICE EQUIPMENT

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

(NEC SECTION 810-20)

Introduction

Consumer and Commercial Menus.............2

Safety/Precautions.......................................3

Table of Contents.......................................................4

Features......................................................................5

Hooking Up Your TV................................................6

Basic TV and Remote Control Operation .................7

Using the TV Remote Control ...................................8

Onscreen Features (Consumer)

How to Use the On-Screen Menu..........................9

How to Set the TV for Cable TV Operation........10

Channel Installation Control Features:

- Adding Channels in Memory (Auto Program).11

- Adding Channels in Memory (Manually)..........12

- Using the Input Mode Control...........................13

- Using the Channel Label Control......................13

How to Adjust the TV Color................................14

Using the Stereo (& SAP) Control.......................14

Using the Bass, Treble, Balance Controls............15

How to Set the Incredible Stereo Control ............15

Using the Automatic Volume Limiter Control.....16

How to Set the Volume Bar Control....................16

How to Set the Audio/Video Mute Control .........17

How to Set the Channel Reminder.......................17

How to Select the Closed Caption Feature .........18

Using the V-Chip or Content Advisory Control...19

- V-Chip TV Ratings Guidelines..........................20

- V-Chip Movie Ratings Guidelines.....................21

Setting the Sleep Timer .......................................22

Using the Set Time Control..................................22

Using the Clock Display Control.........................22

How to Set the On-Screen Language Control .....23

Using the External Speaker Terminals.................23

Using the Audio Output Jacks .............................24

Using the Front Audio/Video Input Jacks ...........24

Remote Control Operation with Accessory Devices (VCRs, Cable TV Converters, DVDs, etc.)

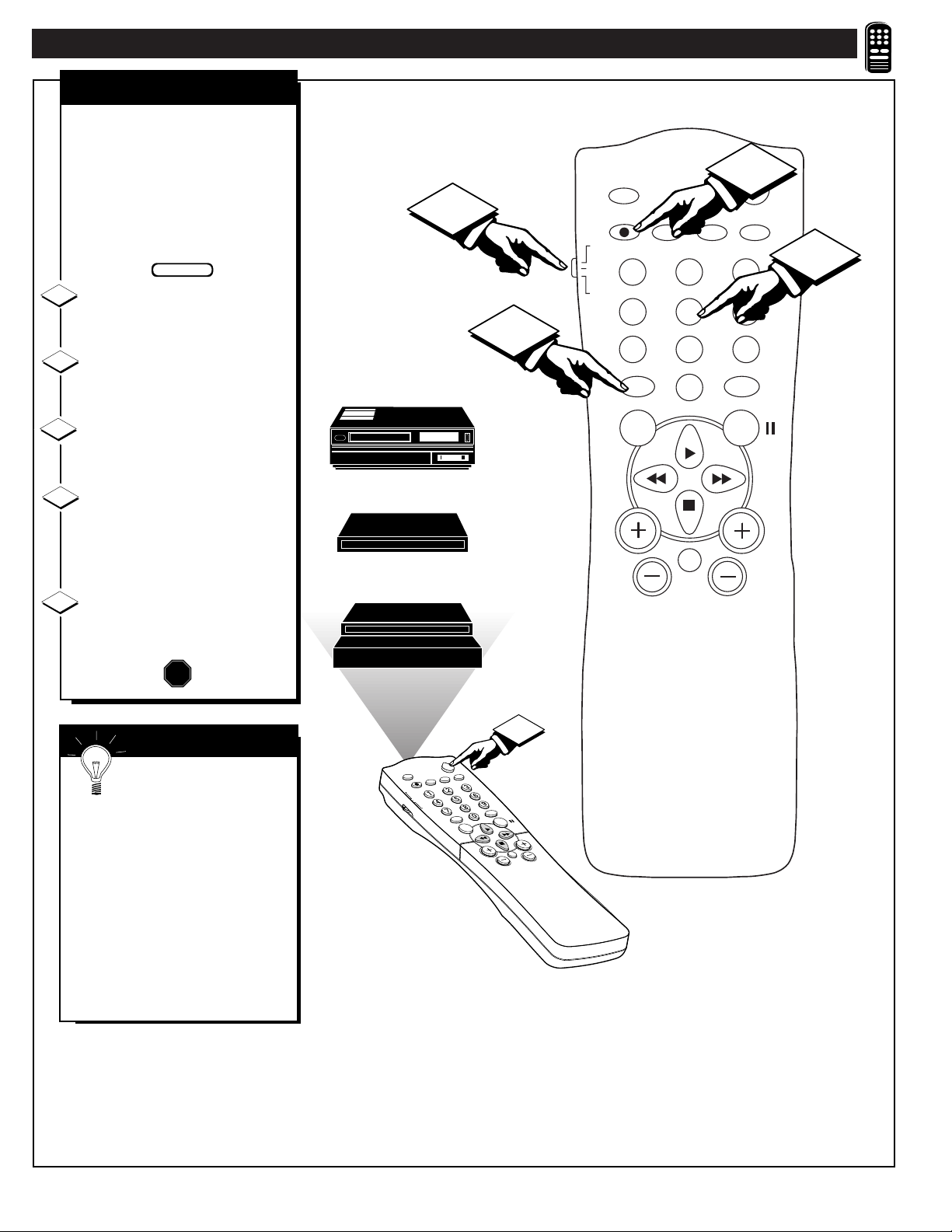

Setting the Remote to Work Other Devices ............25

- Direct Number Entry Method ...............................26

- Search Method.......................................................27

- Direct Entry Remote Control Code Numbers..28-29

Using the Remote’s VCR Buttons...........................30

Onscreen Features (Commercial)

Description of Onscreen Controls......................31-33

General Information

Tips if Something Isn’t Working.............................34

Glossary of Television Terms..................................35

Index ........................................................................35

Limited Warranty ....................................................36

TABLE OF CONTENTS

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical shock. For

the safety of everyone in your household, please do not remove the product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to

prevent operating and maintenance problems. WARNING: TO PREVENTFIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENTTO RAIN OR MOIS-

TURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspon-

dante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting service.

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

Visit our World Wide Web Site at http://www.philipspro.com

Philips exclusive "Pro Video" control tuning software which allows operation of the TV in either "Consumer" or "Commercial" modes (depending upon its applied purpose and use).

Audio/Video jack panel for direct connections with VCRs (or other video accessories) for quality TV picture and sound playback. Note: Use of various Audio/Video connection jacks, or input modes (i.e., S-VIDEO, etc.), is dependent on whether the TV has a ProVideo Kit1 Expansion, or other Smart Card Assembly, jackpanel installed. Please refer to the separate setup and use information that will detail the various Audio and Video connections possible with these type modules. Also, please be aware that dependent upon the type of Smart Card module installed with the set that certain select “event” program features may be affected or not be operable.

Infrared Remote Control which operates your TV set and a variety of Infrared (IR) wireless remote control VCRs, Cable TV Converters, DVDs, and other accessory equipment.

Standard broadcast (VHF/UHF) or Cable TV (CATV) channel capability.

Stereo Ready TV with built-in audio amplifier and

twin speaker system for receiving TV programs broadcast in stereo sound.

Closed Captioning which allows the viewer to read TV program dialogue or voice conversations as onscreen text.

Automatic Programming of channels for quick and easy selection of favorite stations available in your area.

On-Screen Features (in either English, French, or Spanish) which show helpful messages for setting of TV controls.

Parental Control for “Censoring” or blocking out channels to keep children from watching undesirable programming. Parental guideline and Movie Rating settings can also be used as part of the new Content Advisory Data system available with TV programming.

Automatic Volume Limiter for the control of TV volume levels during program changes or commercial breaks.

Sleep Timer which automatically turns off the TV at preset times.

FEATURES

As you unpack your TV please note that the following items have been included with your set:

• Owner's Manual

- Safety Tip Information

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use Please take a few minutes to complete your regis-

tration card. The serial number for the TV is on the back of the set.

Refer to the back of this manual for instructions on the cleaning and care of the TV.

End-of-Life disposal

Your new institutional television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.

Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

Please find out about the local regulations on how to dispose of your old television, batteries, and packaging materials whenever you replace existing equipment.

our Cable TV signal

may be a single (75 ohm) cable or a Cable Converter Box installation. In either case, the connection to the TV is easy.

CABLE INPUT/CONVERTER

If your Cable TV sig-

nal is a single round cable (75

ohm), you're ready to connect to the TV. Go to step 2.

If you have a Cable Converter Box: Connect the

Cable TV signal to the IN plug on the Cable Converter Box.

Connect the Cable TV signal to

the 75Ω ANT/CABLE plug on the TV.

If you have a Cable Converter Box:

Use a round cable (75Ω) to connect the OUT plug on the Cable Converter Box to the 75Ω ANT/CABLE plug on the TV.

STOP

HOOKING UP YOUR TV

combination (outdoor

or indoor) antenna receives normal broadcast channels 2-13 (VHF) and 14-69 (UHF). Your connection to such an antenna is easy since there is only one antenna plug (75Ω ANT/CABLE) on the back of your TV - and that’s where the antenna goes.

OUTDOOR/INDOOR

Remember, set the TV for the type signal you've connected (see page

9). Note: For homes

with separate UHF and VHF antennas, you will need an optional combiner to connect to the TV. To order any optional accessory, contact your dealer or call the toll-free accessory ordering number (1-800-851-

8885).

SMART

HELP

If your antenna has a

round cable (75 ohm) on the

end, then you're ready to connect it to the TV.

If your antenna has flat twinlead wire (300 ohm), you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter.

Push the round end of the

adapter (or antenna) onto the 75Ω ANT/CABLE plug on the rear of the TV. If the round end of the antenna wire is threaded, screw it down tight.

STOP

300 to 75Ω

Adapter

Twin Lead Wire

BEGIN

Round Cable 75Ω

Combination VHF/UHF Antenna

(Outdoor or Indoor)

Back of TV

Round Cable

75Ω

Cable Converter Box

Cable TV Signal

he basic Antenna, or

Cable, to VCR to TV connection is shown to the right. For more information on hookups with Cable Converter Boxes, refer to your VCR and Cable Converter Box Owner's Manuals.

BASIC CONNECTION

Connect your Antenna or Cable TV signal to the IN FROM ANT(enna)

plug on the VCR.

Connect the OUT TO TV plug

on the VCR to the 75ΩANT/CABLE

plug on the TV (connecting cable supplied with the VCR).

Round Cable

75Ω (supplied

with VCR)

VCR

Outdoor VHF/UHF

Antenna

300 to 75Ω

Adapter

Cable TV signal

Back of TV

VCR TO TV

ABLE TV

ANTENNA

Note: Rear view of the model TV is shown with an optional ProKit 1 type module installed for RF Input plug connections.

Back of TV

BEGIN

OUT

EXTERNAL SPEAKERS

SMART

EXTERNAL

PLUG

SPEAKER

75Ω

ANT/ CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

VIDEO

R AUDIO LOOP L

OUT

+ R – – L +

INT

SPEAKERS VARIABLE AUDIO OUTAUDIO OUT

AUDIO LOOP

EXTERNAL SPEAKER

OUT VIDEO LOOP IN

R AUDIO LOOP L

OUT

EXT

SMART PLUG

75Ω ANT/ CABLE

OUT S-VIDEO LOOP IN

VIDEO

R AUDIO LOOP L

OUT

EXTERNAL SPEAKERS

+ R + R – – L +

EXT

INT

SPEAKERS VARIABLEARIABLE AUDIO OUTAUDIO OUT

BEGIN

IN FROM ANT.

OUT TO TV

SMART

EXTERNAL

PLUG

SPEAKER

75Ω ANT/ CABLE

OUT VIDEO LOOP IN

OUT S-VIDEO LOOP IN

VIDEO

R AUDIO LOOP L

OUT

EXTERNALEXTERNAL SPEAKERS

+ R + R – – L +

EXT

INT

SPEAKERSSPEAKERS VARIABLE AUDIO OUTAUDIO OUT

Press the POWER button to

turn on the TV.

Press the VOL(ume) ▲/▼

buttons to adjust the sound level.

Press the CH(annel) ▲/ ▼

buttons to select TV channels.

Point the remote control

toward the remote sensor on

the TV when operating the TV

with the remote. Note: Always press two number

buttons on the remote when selecting channels. For example: press "0," then "6," for channel 6.

To load the supplied batteries

into the remote:

1. Remove the battery compartment lid on the

back of the remote.

2. Place the batteries (two AA) in the remote. Be

sure the (+) and (-) ends of the batteries line up as marked inside the case.

3. Reattach the battery compartment lid.

STOP

BASIC TV AND REMOTE CONTROL OPERATION

Remember, the tuned

channel number will appear when you change the channel. You also may press the STATUS button on the remote control to see the current channel number.

SMART HELP

BEGIN

Note: The ▼VOLUME▲ buttons can be used as an AV SWITCH source control to quickly select the FRONT Auxiliary Input jacks on the TV for operation. (The ▼VOLUME▲ buttons can also be pressed simultaneously to switch the set between Auxiliary and Antenna input modes or, in Commercial mode, to display the Features menu.)

6 CH WXYZ

12:00 PM

VOLUME

POWER

VIDEO L AUDIO R

CHANNEL

A V SWITCH

VOLUME

POWER

STATUS/EXIT

SURF

SMART


CLOCK

TV/VCR

SLEEP

A/CH

RECORD

VCR

ACC

SMART

SOUND

MUTE

VOL

POWER

VIDEO L AUDIO R

A V SWITCH

CHANNEL

USING THE TV REMOTE CONTROL

Remember, always point

the remote control toward

the remote sensor on the TV when operating the TV with the remote.

SMART HELP

POWER

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

VCR

ACC

SMART

SMARTSMART

SOUND


MENU SURF

VOL

MUTE

89 0

TV/VCR

Power Button

Press to turn the TV (or select VCR, Cable Converter, etc.) ON and OFF.

CC Button

Press to select Closed Caption options within the menu. (Refer to the Owner’s Manual for details.)

Clock-TV/VCR Button

Available on select models only, may not operate or apply to your set. Press to select TV Clock menu options With remote switch in the VCR position press to view the playback of a tape (VCR indicator will light on front of VCR). Press again to place the VCR in the TV mode to view one program while recording another program (VCR indicator will go off on the VCR).

Number Buttons

Press the number buttons to select TV channels. When selecting single digit channels, press the number of the desired channel. The TV will pause for a few seconds then tune to the selected channel. (Note: you can also press "0" first, then the desired number.) For channels "100" and above, you must program the desired channels into the TV’s channel memory.

SmartPicture™ Button

Available on select models only, may not operate or apply to your set. Press to select from a list of SmartPicture controls (which are factory preset picture levels set for different types of viewing sources and programs.)

Surf Button

Available on select models only, may not operate or apply to your set. Press to quickly select from a series of previously viewed channels. When the remote control is in the VCR mode, press the Surf button to pause the playback of a video tape.

Channel (+), (–) Buttons

Press to change the tuned channel. Only channels “saved” into the TV’s program channel memory ring will be available for selection.

Sleep Button

Press to set the TV to automatically turn itself OFF. Also can be used as an Enter button when sending channel commands to remote controlled cable converters or VCRs.

Status/Exit Button

Press to see the current channel number on the TV screen. Also press to clear the TV screen after control adjustments.

A/CH-Record Button

Press to toggle between the currently viewed channel and the previously viewed channel. When in the VCR mode, press to start the recording of a video tape.

TV/VCR/ACC Mode Switch

Slide to TV position to control TVfunctions; VCR to control VCR functions; and ACC for Cable Converter, DBS, DVD, etc. functions.

Smar

tSound™ Button

Available on select models only, may not operate or apply to your set. Press to select from a list of SmartSound controls (which are factory preset sound control levels set for different types of listening modes and types of programming.)

Menu Button

Press for the onscreen menu to appear. Press the Menu button repeatedly to move forward through the current onscreen feature control selections.

Cursor Buttons

Use these buttons to select and adjust the TV's onscreen menu. Also used with a VCR for PLAY, FASTFORWARD, REWIND, and STOP functions.

Volume (+), (–) Buttons

Press to adjust the TV sound level up and down.

Mute Button

Press to turn the sound OFF on the TV. “MUTE” appears onscreen to confirm that no sound will be heard through through the TV speakers. Press the Mute button again to return TV sound to its previous listening level.

eatures for your TV can be

adjusted from a Menu screen shown on the TV. Each Menu item can be adjusted by viewing the screen and pressing a button.

Press the Menu button on the

remote. The on-screen menu

appears.

Press Menu button repeated-

ly, or use the Cursor (▲) Up and Down (▼) buttons on the remote, to select a feature control.

A highlight bar will show the selected feature.

Press the Cursor Right

(©)

and Left (§ )buttons on the remote to adjust the selected

onscreen feature control.

Press the STATUS/EXITbut-

ton on the remote to remove the

on-screen menu. (You can also use the EXIT control within the onscreen Menu to remove the Menu from the TV screen, or wait for the Menu screen to time out.)

STOP

HOW TO USE THE ON-SCREEN MENU

BEGIN

If the on-screen menu

disappears and you are not finished, press the MENU button. The on-screen menu will return.

Note: Selection and use for both the Consumer and Commercial mode onscreen Menu feature controls will work in basically the same manner.

SMART HELP

- Consumer Onscreen Menu Mode -

(In other Commercial mode settings (i.e., Unlocked, etc.) not all select control items will appear as shown above.)

LANGUAGE

CHANNEL INSTALL

CABLE TUNING BRIGHTNESS COLOR CONTRAST SHARPNESS TINT NOISE REDUCTION

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

VCR

ACC

5 89

SMART

SOUND

MENU SURF

ENGLISH ON

34 22 29 40 0 OF F

VOLUME

A V SWITCH

POWER

TV/VCR

SMARTSMART


CHANNEL INSTALLATION

CHANNEL

CHANNEL RING INPUT LABEL

CHANNEL

AUTO PROGRAM EXIT

TV 4

DELETED ANTENNA ( )

VOL

MUTE

ake sure the TV is set to

pick up either Cable TV stations or Antenna signals. In other words, the TV needs to know whether you’ve connected a Cable TV signal or a normal antenna to its 75Ω ANT/CABLE plug.

With the Menu onscreen

press the Menu button repeatedly , or use the Cursor (▲) Up and Down (▼) buttons, to select

CABLE TUNING with the TV’s highlight control bar.

Press the Cursor Right

(©)

or Left (§ )button on the remote to select:

ON - If you DO have Cable

TV connected to the TV.

Channels 1-125 may be selected. Or, select

OFF -If you have an Antenna

connected to the TV. Channels 2-69 may be selected.

Press STATUS/EXITto

remove the on-screen menu.

STOP

HOW TO SET THE TV FOR CABLE TV OPERATION

Try it out. Press the

CH(annel) +, - buttons to

scan the channels. Remember, the TV has been set at the factory to select certain channel numbers. See the next page to set the TV to select the channels in your area.

SMART HELP

BEGIN

LANGUAGE CHANNEL INSTALL

CABLE TUNING

BRIGHTNESS COLOR CONTRAST SHARPNESS TINT NOISE REDUCTION

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

VCR

ACC

5 89

SMART

SOUND

MENU SURF

ENGLISH ON

34 22 29 40 0 OF F

VOLUME

A V SWITCH

POWER

TV/VCR

SMARTSMART


OFF

CHANNEL

VOL

MUTE

CHANNEL INSTALLATION: ADDING CHANNELS (AUTOPROGRAM)

our TV can automatically set

itself for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when you use the CH(annel) +, - buttons.

With the Main Menu onscreen press the Menu button repeatedly , or use the Cursor (▲) Up and Down (▼) buttons,

to select CHANNEL INSTALL with the TV’s highlight control bar.

Press the Cursor Right

(©) or

Left (§ )button on the remote

to select the Channel Installation control Menu.

Press the Menu, or Cursor

Down (▼), button to select

AUTO PROGRAM with the highlight control bar.

or Left (§ )button on the

remote to start the TV’s automat-

ic search for area channels. Flashing channel numbers will

count upward on the screen as the TV looks for channels to "SAVE.” Press any button (on the TV or the remote) to stop the channel search at any time. When the channel search is completed, the TV will return to normal channel viewing and operation.

Press the STATUS button to

remove the on-screen menu.

STOP

“RED” channel numbers have been SAVED to the TV’s program memory.

“WHITE” channel numbers are not present in

the TV’s program scan memory.

SMART HELP

Remember, if you want

to drop any unwanted channels from the TV's memory, see the next page to "Manually" add and delete channels.

Note: As the TV searches for channels to "SAVE" into memory, the on-screen display may move (or jitter slightly). This is normal operation and does not indicate a need for service.

BEGIN

LANGUAGE

CHANNEL INSTALL

CABLE TUNING BRIGHTNESS COLOR CONTRAST SHARPNESS TINT NOISE REDUCTION

MAIN MENU

POWER

VIDEO L AUDIO R

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

VCR

ACC

5 89

SMART

SOUND

MENU SURF

VOL

MUTE

ENGLISH ON

34 22 29 40 0 OF F

VOLUME

A V SWITCH

POWER

TV/VCR

SMARTSMART


CHANNEL INSTALLATION

CHANNEL CHANNEL RING INPUT LABEL

CHANNEL

AUTO PROGRAM

EXIT

AUTO - PROGRAMMING ACTIVE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70

71 72 73 74 75 76 77 78 79 80 81 82 83 84

PRESS ANY KEY TO STOP

TV 4

DELETED ANTENNA ( )

+ 25 hidden pages
