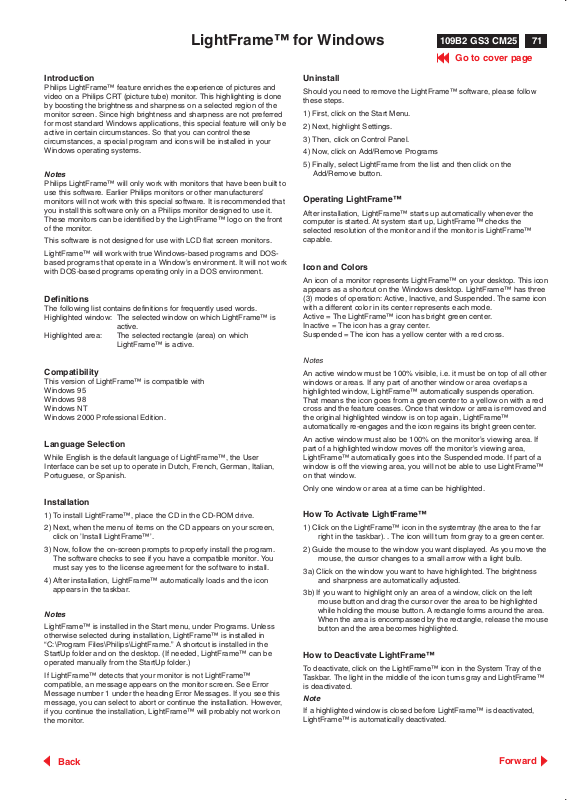

LightFrame for Windows™
109B2 GS3 CM25
Go to cover page
71
Introduction
Philips LightFrame feature enriches the experience of pictures and
video on a Philips CRT (picture tube) monitor. This highlighting is done
by boosting the brightness and sharpness on a selected region of the
monitor screen. Since high brightness and sharpness are not preferred
for most standard Windows applications, this special feature will only be
active in certain circumstances. So that you can control these
circumstances, a special program and icons will be installed in your
Windows operating systems.
Notes
Philips LightFrame will only work with monitors that have been built to
use this software. Earlier Philips monitors or other manufacturers’
monitors will not work with this special software. It is recommended that
you install this software only on a Philips monitor designed to use it.
These monitors can be identified by the LightFrame™ logo on the front
of the monitor.
This software is not designed for use with LCD flat screen monitors.
LightFrame will work with true Windows-based programs and DOSbased programs that operate in a Window’s environment. It will not work
with DOS-based programs operating only in a DOS environment.
™
™
™
Definitions
The following list contains definitions for frequently used words.
Highlighted window: The selected window on which LightFrame is
active.
Highlighted area: The selected rectangle (area) on which
LightFrame™ is active.
™
Compatibility
This version of LightFrame™ is compatible with
Windows 95
Windows 98
Windows NT
Windows 2000 Professional Edition.
Language Selection
While English is the default language of LightFrame™, the User
Interface can be set up to operate in Dutch, French, German, Italian,
Portuguese, or Spanish.
Installation
1) To install LightFrame™, place the CD in the CD-ROM drive.
2) Next, when the menu of items on the CD appears on your screen,
click on 'Install LightFrame '.
3) Now, follow the on-screen prompts to properly install the program.
The software checks to see if you have a compatible monitor. You
must say yes to the license agreement for the software to install.
4) After installation, LightFrame automatically loads and the icon
appears in the taskbar.
Notes
LightFrame is installed in the Start menu, under Programs. Unless
otherwise selected during installation, LightFrame is installed in
“C:\Program Files\Philips\LightFrame.” A shortcut is installed in the
StartUp folder and on the desktop. (If needed, LightFrame can be
operated manually from the StartUp folder.)
If LightFrame detects that your monitor is not LightFrame
compatible, an message appears on the monitor screen. See Error
Message number 1 under the heading Error Messages. If you see this
message, you can select to abort or continue the installation. However,
if you continue the installation, LightFrame will probably not work on
the monitor.
™
™™
™
™
™
™
™
Uninstall
Should you need to remove the LightFrame software, please follow
these steps.
1) First, click on the Start Menu.
2) Next, highlight Settings.
3) Then, click on Control Panel.
4) Now, click on Add/Remove Programs
5) Finally, select LightFrame from the list and then click on the
Add/Remove button.
Operating LightFrame
After installation, LightFrame starts up automatically whenever the
computer is started. At system start up, LightFrame checks the
selected resolution of the monitor and if the monitor is LightFrame
capable.
™
™
™
™
™
Icon and Colors
An icon of a monitor represents LightFrame on your desktop. This icon
appears as a shortcut on the Windows desktop. LightFrame has three
(3) modes of operation: Active, Inactive, and Suspended. The same icon
with a different color in its center represents each mode.
Active = The LightFrame icon has bright green center.
Inactive = The icon has a gray center.
Suspended = The icon has a yellow center with a red cross.
Notes
An active window must be 100% visible, i.e. it must be on top of all other
windows or areas. If any part of another window or area overlaps a
highlighted window, LightFrame automatically suspends operation.
That means the icon goes from a green center to a yellow on with a red
cross and the feature ceases. Once that window or area is removed and
the original highlighted window is on top again, LightFrame
automatically re-engages and the icon regains its bright green center.
An active window must also be 100% on the monitor’s viewing area. If
part of a highlighted window moves off the monitor’s viewing area,
LightFrame automatically goes into the Suspended mode. If part of a
window is off the viewing area, you will not be able to use LightFrame
on that window.
Only one window or area at a time can be highlighted.
™
How To Activate LightFrame
1) Click on the LightFrame icon in the systemtray (the area to the far
right in the taskbar). . The icon will turn from gray to a green center.
2) Guide the mouse to the window you want displayed. As you move the
mouse, the cursor changes to a small arrow with a light bulb.
3a) Click on the window you want to have highlighted. The brightness
and sharpness are automatically adjusted.
3b) If you want to highlight only an area of a window, click on the left
mouse button and drag the cursor over the area to be highlighted
while holding the mouse button. A rectangle forms around the area.
When the area is encompassed by the rectangle, release the mouse
button and the area becomes highlighted.
™
™
™
™
How to Deactivate LightFrame
To deactivate, click on the LightFrame icon in the System Tray of the
Taskbar. The light in the middle of the icon turns gray and LightFrame
is deactivated.
Note
If a highlighted window is closed before LightFrame is deactivated,
LightFrame is automatically deactivated.
™
™
™
™
™
™
™
™
™
Back
Forward
Page 2
72
109B2 GS3 CM25
Go to cover page
LightFrame for Windows (Continued)™
Right-Click Features
On the LightFrame icon in the taskbar, click the right-side mouse
About...
Help
Exit
If you select exit and the color in the center of the icon is green, it will
turn gray and LightFrame is deactivated. If you select exit an Exit
message appears asking you if are sure you want to exit. Select "Yes" to
exit or “No” to abort the exit. If you select Yes, you can always restart
LightFrame by clicking on the desktop shortcut icon.
button to bring up a menu from which you can select:
which tells you something about LightFrame
which takes you to the Help screen where you can find additional
information
which exits the LightFrame Program.
LightFrame is Suspended When...
Screensaver, Sleep mode, Deep Sleep (Power Off) mode is
Activated
LightFrame goes into the Suspended mode as soon as a screensaver
becomes active on your computer. This is true even though the monitor
icon may still have a green center. LightFrame becomes active again
as soon as the screen is reawakened and the screensaver quits.
The same is true when the computer goes into Sleep mode or Deep
Sleep (Power Off) mode. LightFrame goes into Suspended mode and
reawakens when the monitor is reawakened.
Screen or Area is Minimized
LightFrame suspends when a highlighted window is minimized.
LightFrame reactivates when the highlighted window is again
maximized or restored to its previous size.
™
™
™
™
™
™
™
™
™
™
™
Error Message 2 dialog box here
LightFrame™ cannot detect a monitor which supports this feature. You
can still start the software but LightFrame™ may not work.
Another Window or Area Overlaps Highlighted Window or Area
LightFrame suspends if a window that is not highlighted overlaps a
highlighted window. LightFrame reactivates once the highlighted
window is again on top.
Miscellaneous
Monitor Turned Off
If the monitor is “hard powered off” while a window or area is highlighted
and then hard powered on again, LightFrame is no longer active. The
icon may still show the feature as still active. In this case, you have to
exit LightFrame and restart it via the icon on the desktop or the Start
menu.
If the Monitor is Detached and Another Monitor is Attached
If the monitor is detached from the computer while a highlighted window
or area is displayed and then another monitor is attached, the system
will have to be rebooted so that Philips’ LightFrame™ can detect the
monitor’s LightFrame™ capabilities and store the setup information
about the new monitor. If the monitor is not LightFrame™ capable, an
Error message appears. See Error Message 2 under the heading Error
Messages. You can abort or continue the set up. However, if you
continue, LightFrame™ may not work with the monitor.
™
™
™
™
Error Messages
You may see this message when you install LightFrame .
™
Error Message 1 dialog box here
LightFrame™ cannot detect a monitor which supports this feature. You
can still proceed with the software installation but LightFrame™ might
not run on your system.
You may see this message when you try to switch monitors.
