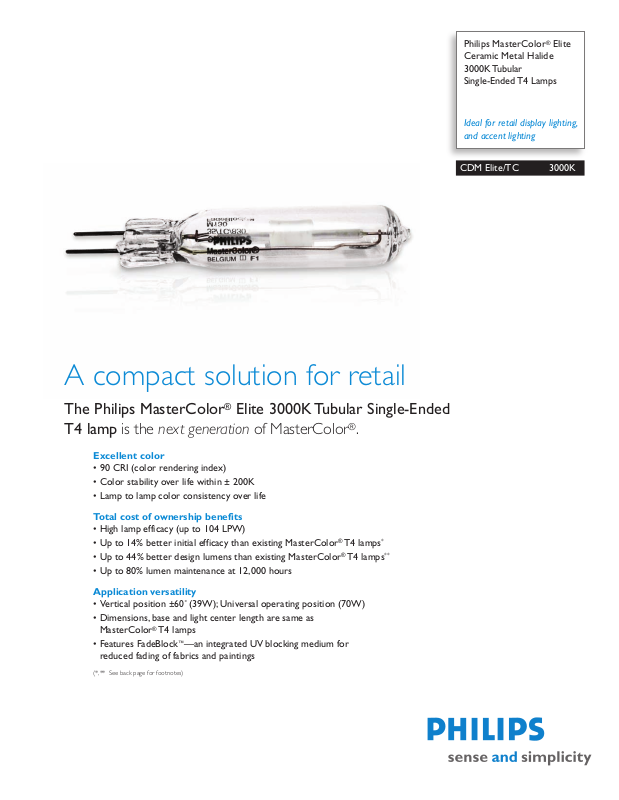

CDM Elite/TC 3000K

Philips MasterColor®Elite Ceramic Metal Halide 3000K Tubular Single-Ended T4 Lamps

Ideal for retail display lighting, and accent lighting

A compact solution for retail

The Philips MasterColor®Elite 3000K Tubular Single-Ended T4 lamp is the next generation of MasterColor®.

Excellent color

• 90 CRI (color rendering index)

• Color stability over life within ± 200K

• Lamp to lamp color consistency over life

Total cost of ownership benefits

• High lamp efficacy (up to 104 LPW)

• Up to 14% better initial efficacy than existing MasterColor

T4 lamps

• Up to 44% better design lumens than existing MasterColor®T4 lamps

• Up to 80% lumen maintenance at 12,000 hours

Application versatility

• Vertical position

±60

˚ (39W); Universal operating position (70W)

• Dimensions, base and light center length are same as MasterColor

T4 lamps

• Features FadeBlock™—an integrated UV blocking medium for reduced fading of fabrics and paintings

(*,** See back page for footnotes)

CDM Elite/TC

Philips MasterColor®Elite Ceramic Metal Halide 3000K Tubular Single-Ended T4 Lamps

Ordering Data

ANSI Approx. Approx. Product Pkg. Nom. Ballast Initial Mean Number Ordering Code Qty. Watt. Code Lumens1Lumens2CRI

40484-8 CDM Elite35/TC/930 12 39 C130/E 3500 3150 90 14837-9 CDM Elite70/TC/930 12 70 C139/E 7300 6500 90

WARNINGS,CAUTIONS AND OPERATING INSTRUCTIONS for MasterColor

Ceramic Metal Halide Lamps:Single-Ended CDM-T G12 and CDM-TCG8.5 (Universal); except CDM Elite TC/35/930 and CDM Elite T6/35/930 (

Vertical position

± 60

˚);

Double-Ended

CDM-TD RX7 (Horizontal ± 45º, Enclosed Fixtures Only)

“WARNING:These lamps can cause serious skin burn and

eye inflammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.”This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21CFR

1040.30 Canada:SOR/DORS/80-381)

If the outer bulb is broken or punctured, turn off at once and replace the lamp to avoid possible injury from hazardous short wave ultraviolet radiation. Do not scratch the outer bulb or subject it to pressure as this could cause the outer bulb to crack or shatter.A partial vacuum in the outer bulb may cause glass to fly if the envelope is struck. WARNING:The arc-tube of metal halide lamps are designed to

operate under high pressure and at temperatures up to 1000˚C and can unexpectedly rupture due to internal or external factors such as a ballast failure or misapplication If the arc-tube r uptures for any reason, the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such

a rupture were to

happen,THERE IS A RISK OF PERSONAL

INJURY, PROPERTY DAMAGE,BURNS AND FIRE. Certain lamps that will retain all the glass particles should inner arc-tube rupture occur are commercially available from Philips Lighting Company. RELAMP FIXTURESAT OR BEFORETHE END OF RATED LIFE.Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture. This lamp contains an arc tube with a filling gas containing less than 10 nCi of Kr-85 and is distributed by Philips Lighting Company, a division of Philips Electronics North America Corporation, Somerset, New Jersey,08875. CAUTION: TO REDUCE THE RISK OF PERSONAL INJURY,

PROPERTY DAMAGE,BURNS AND FIRE RESULTING FROM AN ARC-TUBE RUPTURE THE FOLLOWING LAMP

OPERATING INSTRUCTIONS MUST BE FOLLOWED: LAMP OPERATING INSTRUCTIONS:

1. RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE.

Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube r upture.

2. Use only in fully enclosed fixtures capable of withstanding par ticles

of glass having temperatures up to 1000˚C. Lens/diffuser mater ial must be heat resistant. Consult fixture manufacturer regarding the suitability of the fixture for this lamp.

3. Do not operate a fixture with a missing or broken lens/diffuser.

4. Operate lamp only within specified limits of operating position.

5. Before lamp installation/replacement, shut power off and allow lamp

and fixture to cool to avoid electrical shock and potential burn hazards.

6. Use only auxiliary equipment meeting Philips and/or ANSI standards.

Use within voltage limits recommended by ballast manufacturer.

A. Operate lamp only within specified limits of operation. B. For total supply load refer to ballast manufacturers electrical data.

C. Operate CDM-T (G12 base) lamps only on thermally

protected ballasts.

D.Operate CDM-TC lamps (G8.5 base), CDM-T6 Elite

lamps, and CDM-T6 39W/842 lamps only on thermally protected electronic

ballasts.

7. Periodically inspect the outer envelope. Replace any lamps that

show scratches, cracks or damage.

8. If a lamp bulb support is used, be sure to insulate the suppor t

electrically to avoid possible decomposition of the bulb glass.

9. Protect lamp base, socket and wiring against moisture, corrosive

atmospheres and excessive heat.

10. Time should be allowed for lamps to stabilize in color when

turned on for the first time. This may require several hours of operation, with more than one star t. Lamp color is also subject to change under conditions of excess vibration or shock and color appearance may vary between individual lamps.

11. Lamps may require 4 to 8 minutes to re-light if there is a

power interruption.

12. Take care in handling and disposing of lamps. If an arc tube is

broken, avoid skin contact with any of the contents or fr agments.

1) Measured at 100 hrs. life. Approximate lumen values listed are for vertical operation of the lamp.

2) Approximate lumen output at 40% of lamp rated average life.

3) Measured at rated lamp watts on a linear reactor. LPW does not include ballast losses.

4) Measured with the lamp operating at rated watts.

5) Option-Pulse Width @ 90% Peak, 1 micro second minimum with 2 pulses per half cycle.

6) Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per star t. It is based on sur vival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.

Footnotes from front page:

* Based on a MasterColor Elite 3000K Tubular Single-Ended T4 70 W lamp with 7,300 initial lumens

vs. a CDM T4 70W lamp with 6,400 initial lumens.

** Based on a MasterColor Elite 3000K Tubular Single-Ended T4 70 W lamp with 6,500 design lumens

vs. a CDM T4 70W lamp with 4,500 design lumens.

Electrical andTechnical Data

Lamp Operating Voltage (rms)(Nominal)3––85 (39W)

–––––––––––––––––––––––––––––––––––86 (70W)

Initial Lamp Voltage Range (rms)

–––––––––––80-100

Lamp Operating Current (Amps) Nominal (rms) ––––––––0.53 (39W)

––––––––––––––––––––––––––––––––––0.98 (70W) Lamp Current Crest Factor (Maximum)–––––––––1.8 Warm-up to 80% Full Brightness –––––––––3 minutes RestrikeTime for Hot Lamps –––––––––– 4-8 minutes Ballast Open Circuit Voltage––––209 RMS Min. (39W)

––––––––––––––––––––––––––198 RMS Min. (70W) Pulse Peak Volts––––––––––––––––––––––3000-4000 Pulse Width @ 90% Peak –––––2 Micro Sec. Minimum Pulse Repetition Rate (Minimum)

–––1 per Half Cycle

Minimum Operating Temp.––––––––––– -30˚C (-22˚F)

Physical Characteristics

Bulb Size –––––––––––––––––––––––––––––––––T-4 Bulb Finish ––––––––––––––––––––––––––––––Clear Base––––––––––––––––––––––––––––––G-8.5 Bi-Pin Max. Overall Length (MOL) ––––––––––3.35'' (85mm) Light Center Length (LCL) ––––––––––––2.0'' (52mm) Arc Length ––––––––––––––––––0.17 (4.3mm)(39W)

–––––––––––––––––––––––––0.23'' (5.75mm)(70W) Arc Tube Material ––––––––––Polycrystalline Alumina Max. BulbTemp. –––––––––––––500˚C (932˚F)(39W)

–––––––––––––––––––––––––550˚C (1022˚F)(70W) Max. PinchTemp. ––––––––––––––––––300˚C (572˚F) Max.Arc Tube to Base Eccentricity ––––––––––––––3˚

Operating Characteristics

Rated Average Life, Hours.6––––––––––––––––12,000 Correlated Color Temp. (CCT)

––––––––––––3000K

CIE Chromaticity Approx.

–––––x-.434, y-.396 (39W)

––––––––––––––––––––––––––x-.438, y-.395 (70W) Efficacy (lpw)–––––––––––––––––––––––––90 (39W)

––––––––––––––––––––––––––––––––––104 (70W)

Operating Position

Universal (70W); Vertical position

± 60

˚ (39W)

Enclosed luminaires only.

Note: Use on thermally protected electronic

ballast only.

Above specifications subject to change without notice.

Representative Spectral Power Distribution of MasterColor®3000K Lamps

350

300

200

100

400 450 500 550 600 650 700

Relative Energy

avelength (Nanometers)

P-5899-A
