Philips P-5456-J User Manual

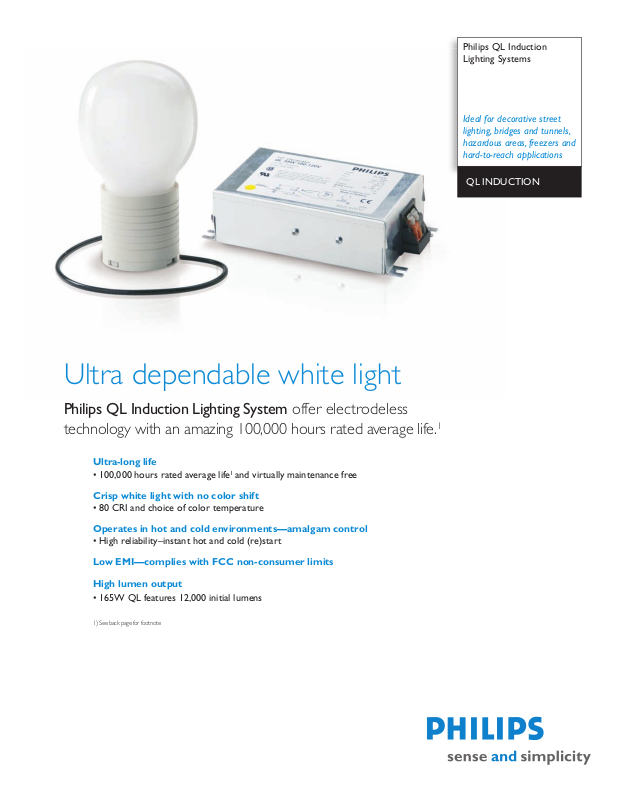

Philips QL Induction Lighting Systems

Ideal for decorative street lighting, bridges and tunnels, hazardous areas, freezers and hard-to-reach applications

QL INDUCTION

Ultra dependable white light

Philips QL Induction Lighting System offer electrodeless technology with an amazing 100,000 hours rated average life.

Ultra-long life

• 100,000 hours rated average life

Crisp white light with no color shift

• 80 CRI and choice of color temperature

Operates in hot and cold environments—amalgam control

• High reliability–instant hot and cold (re)start

Low EMI—complies with FCC non-consumer limits

High lumen output

• 165W QL features 12,000 initial lumens

1) Seeback page forfootnote

and virtually maintenance free

Philips QL Induction Lighting Systems: 55, 85 and 165 Watt Systems

190/7.47''

210/8.25''

128/5.01

=154/6.06

Generator Width

6/2.97

41.5/1.63"

41.3/1.62"

32.8/1.29"

75.5/2.97"

128/5.01

L=154/6.06

enerator Width

6/2.97

41.5/1.63"

Ordering, Electrical and Technical Data

Product Ordering Pack. MOL Average Initial Mean CCT

Rated Approx. Approx

Number Code Watts Qty. Description (In.) Life (Hrs.)1Lumens2Lumens3CRI (K)

13542-6 QL 55W/GEN100-120V 55 6 Generator, 120V 6 100,000 ———— 13543-4 QL 55W/GEN200-277V 55 6 Generator, 277V 6 100,000 ———— 13544-2 QL 55W/PC 55 6 Power Coupler 6 13545-9 QL 55W/830 55 6 Lamp 3K 5 13546-7 QL 55W/840 55 6 Lamp 4K 5 20095-6 QL 55W/850 55 6 Lamp 5K 5

⁄3 100,000 ————

⁄2 100,000 3500 2800 80 3000

⁄2 100,000 3500 2800 80 4000

⁄2 100,000 3500 2800 80 5000 13547-5 QL 85W/GEN100-120V 85 6 Generator, 120V 6 100,000 ———— 13548-3 QL 85W/GEN200-277V 85 6 Generator, 277V 6 100,000 ———— 13549-1 QL 85W/PC 85 6 Power Coupler 7 13550-9 QL 85W/830 85 6 Lamp 3K 7 13551-7 QL 85W/840 85 6 Lamp 4K 7 20096-4 QL 85W/850 85 6 Lamp 5K 7 14991-4 QL 165W/GEN100-120V 165 6 Generator, 120V 7 14990-6 QL 165W/GEN200-277V 165 6 Generator, 277V 7 36916-5 QL 165W/PC 165 6 Power Coupler 8 36917-3 QL 165W/830 165 6 Lamp 3K 8 36918-1 QL 165W/840 165 6 Lamp 4K 8 20097-2 QL 165W/850 165 6 Lamp 5K 8

1) Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more oper ating hours per start. It is based on sur vival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.

2) Approximate lumen values listed are for ver tical operation of the lamp.

3) Approximate lumen output at 60% of lamp r ated average life.

Note: QL System requires all three components to operate (order 3 product number s).

Power Factor > .9, THD < 10% QL System Listings: UL, CSA, FCC Class A

Above specifications subject to change without notice.

⁄2 100,000 ————

⁄8 100,000 6000 4800 80 3000

⁄8 100,000 6000 4800 80 4000

⁄8 100,000 6000 4800 80 5000

⁄2 100,000 ————

⁄3 100,000 ————

⁄8 100,000 12,000 9600 80 3000

⁄8 100,000 12,000 9600 80 4000

⁄8 100,000 12,000 9600 80 5000

165W System 55W System 85W System

Note: The lamp system is UL,FCC and CSA approved. A booklet, Philips induction lamp systems—Information for Original

Equipment Manufacturers, is available on request. Luminaire design and temperature parameters will be found in this booklet.

P-5456-J
