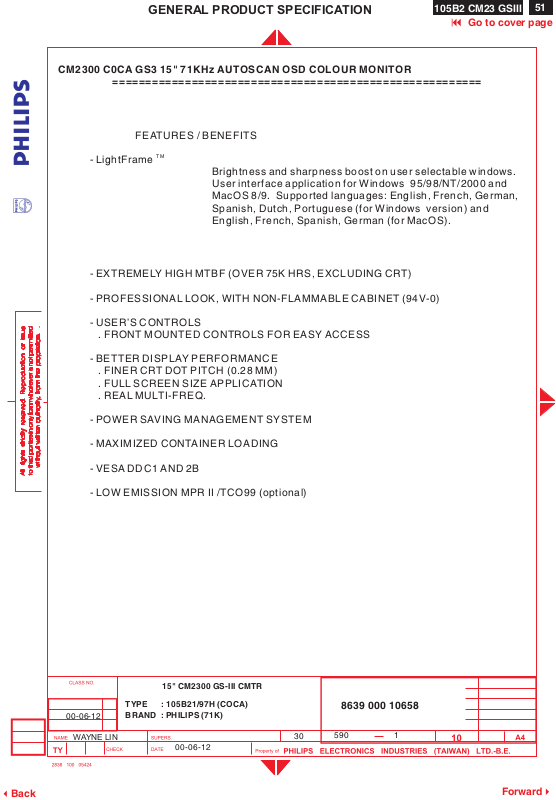

GENERAL PRODUCT SPECIFICATION

CM2300 C0CA GS3 15" 71KHz AUTOSCAN OSD COLOUR MONITOR

========================================================

FEATURES / BENEFITS

105B2 CM23 GSIII

Go to cover page

- LightFrame

Brightness and sharpness boost on user selectable windows. User interface application for Windows 95/98/NT/2000 and MacOS 8/9. Supported languages: English, French, German, Spanish, Dutch, Portuguese (for Windows version) and English, French, Spanish, German (for MacOS).

- EXTREMELY HIGH MTBF (OVER 75K HRS, EXCLUDING CRT)

- PROFESSIONAL LOOK, WITH NON-FLAMMABLE CABINET (94V-0)

- USER'S CONTROLS . FRONT MOUNTED CONTROLS FOR EASY ACCESS

- BETTER DISPLAY PERFORMANCE . FINER CRT DOT PITCH (0.28 MM) . FULL SCREEN SIZE APPLICATION . REAL MULTI-FREQ.

- POWER SAVING MANAGEMENT SYSTEM

- MAXIMIZED CONTAINER LOADING

- VESA DDC1 AND 2B

- LOW EMISSION MPR II /TCO99 (optional)

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

00-06-12

WAYNE LIN

BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

3Back

Forward4

Page 2

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

INDEX

=========

1.0 Introduction

2.0 General description

2.1 General condition

3.0 Electrical characteristics

3.1 Signal interface

3.1.1 Input requirements

3.1.2 Signals input

3.1.3 Factory preset modes

3.2 Timing requirements

3.2.1 Horizontal scanning

3.2.2 Vertical scanning

3.3 Power supply

3.4 Power saving management system

3.5 CRT description

3.6 RGB amplifier

3.6.1 Video amplifier

3.6.2 Brightness and Contrast

3.7 Variation of image size

3.8 Degaussing

3.9 Phosphor protection

3.10 Low emission requirements

3.11 Display data channel : DDC1/2B (VESA STANDARD)

4.0 Display

4.1 Display resolution

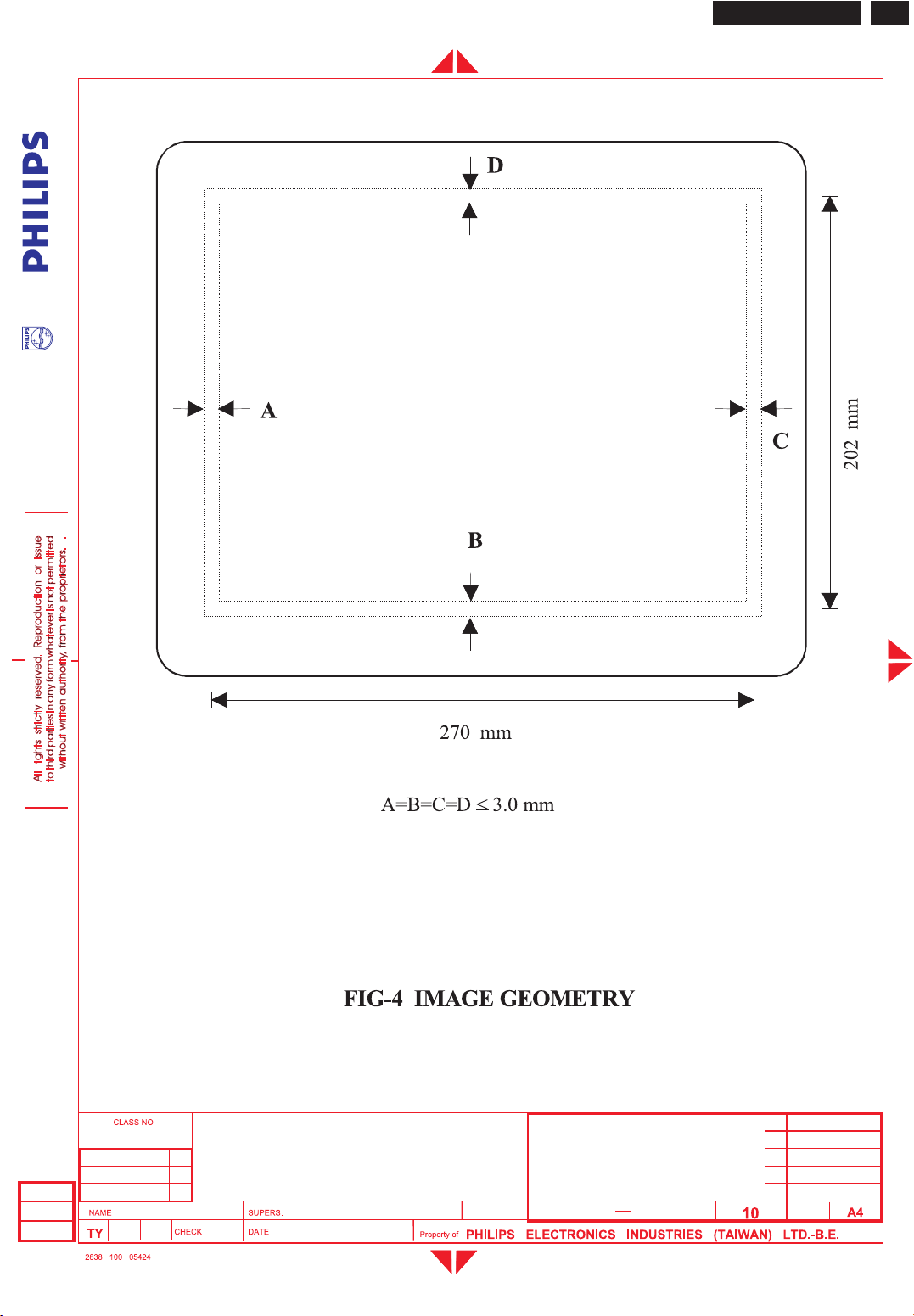

4.2 Image size

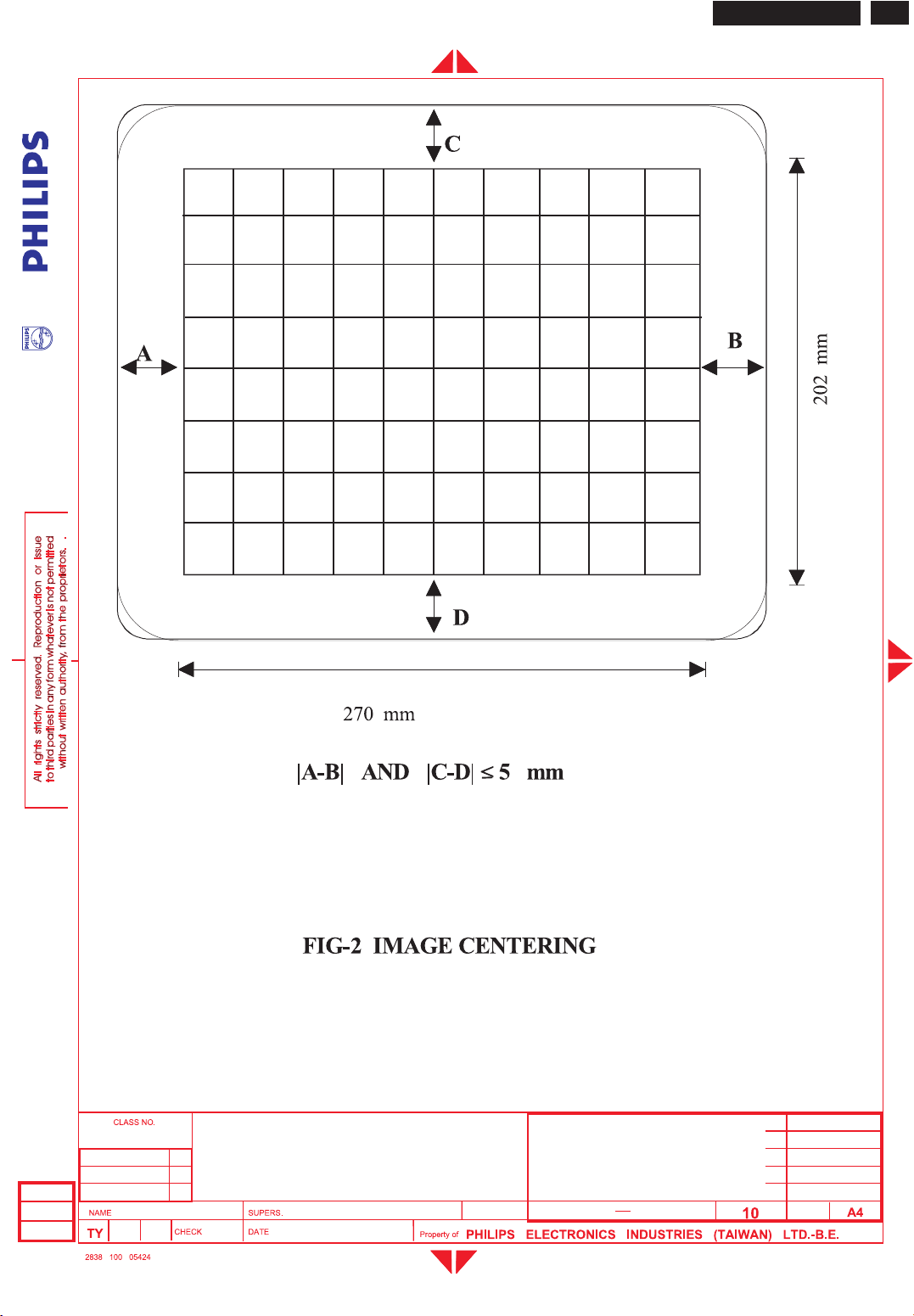

4.3 Image centering deviation

4.4 Picture shift control range

4.5 Picture tilt

4.6 Geometrical distortion

4.7 Image non-linearity

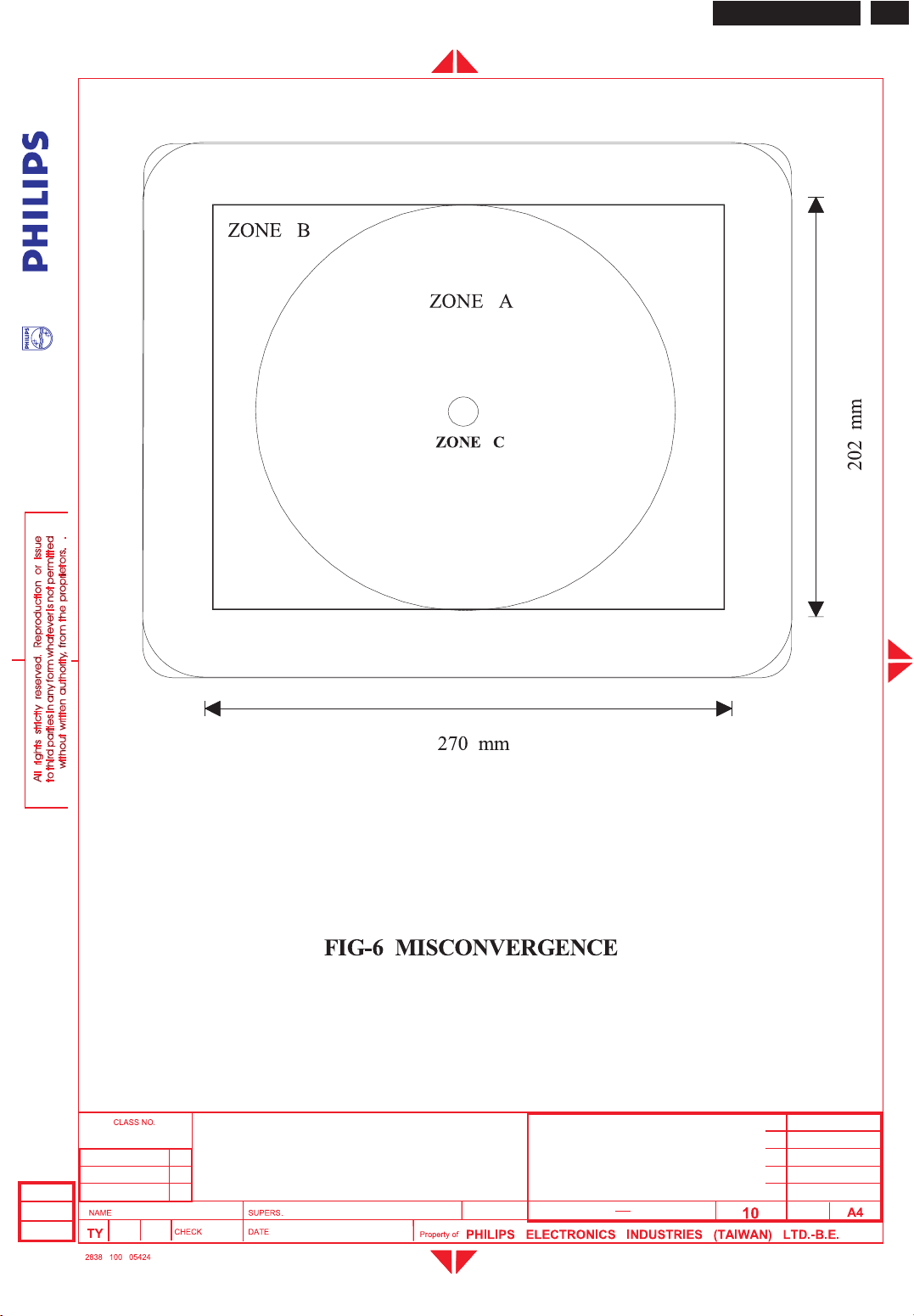

4.8 Mis-covergence

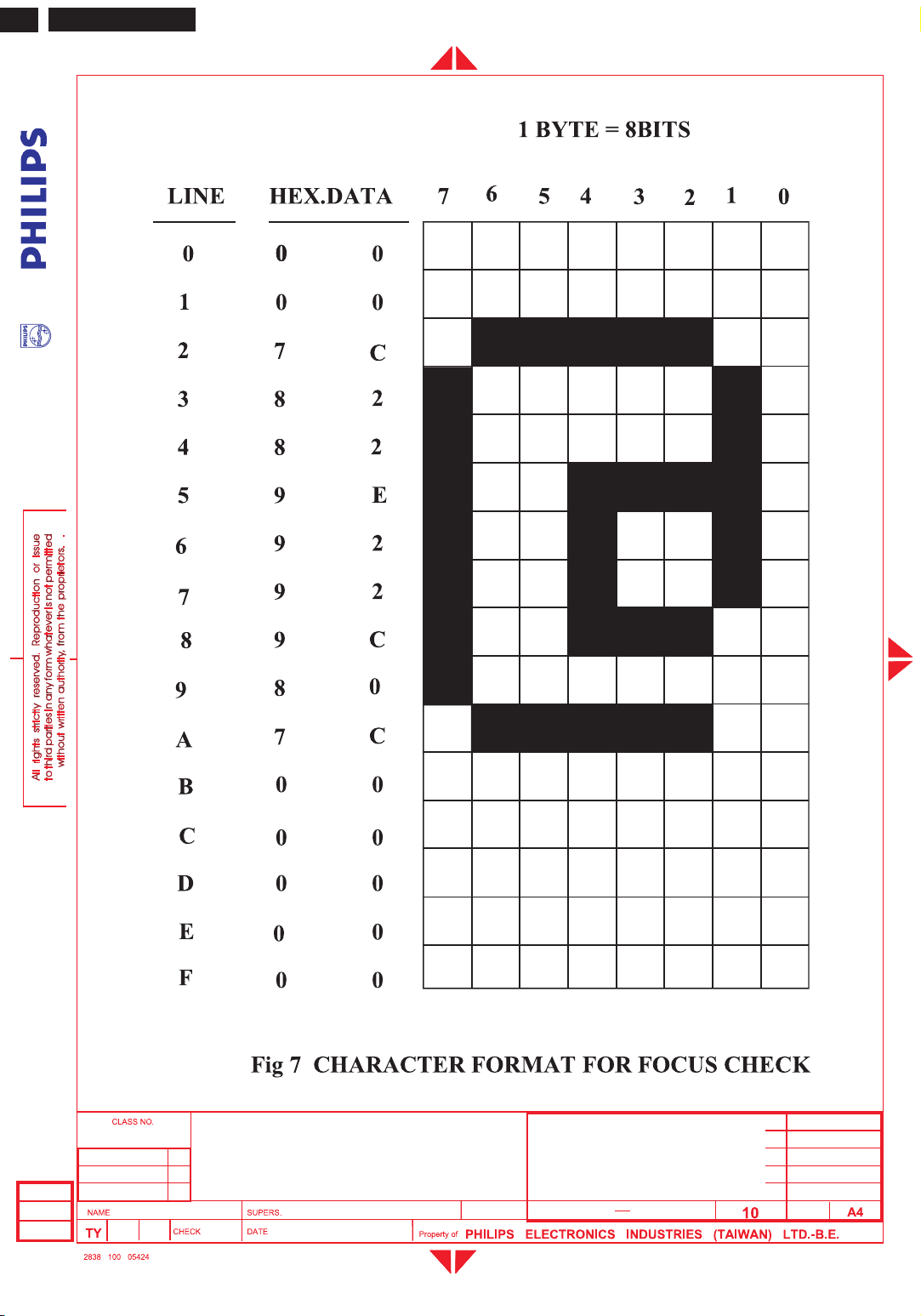

4.9 Focus check

4.10 Luminance uniformity

4.11 White color adjustment

4.12 Color tracking on full white pattern

4.13 Purity

4.14 Moir

4.15 Blemish

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

00-06-12

BRAND : PHILIPS (71K)

8639 000 10658

3Back

WAYNE LIN

00-06-12

590

Forward4

Page 3

GENERAL PRODUCT SPECIFICATION

5.0 Mechanical characteristics

5.1 User controls ( at front)

5.2 Connector and cables

5.2.1 Power Cord

5.2.2 Signal Cable

5.3 Tilt and swivel base

6.0 Environmental characteristics

6.1 Susceptibility of display to external environment

6.1.1 Operation limits

6.1.2 Transportation packages

6.2 Display disturbance from external environment

6.2.1 ESD disturbances

6.3 Display disturbance to external environment

6.3.1 Ionizetic radiation

6.3.2 EMI

7.0 Safety tests

7.1 Dielectric strength

7.2 Resistance for protective earthing

7.3 Leakage current

7.4 Grounding

105B2 CM23 GSIII

Go to cover page

8.0 Certifications

8.1 Safety

8.2 EMI

8.3 Fulfil approbation requirements

9.0 Reliability

9.1 Mean time between failures

10.0 Quality assurance requirements

10.1 Acceptance test

11.0 Serviceability

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 4

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

1.0 Introduction

This document is related to the 15" AUTOSCAN (VGA above and Max.

resolution 1280X1024 by 60HZ refresh) color monitor for world-wide destination.

2.0 General description

The AUTOSCAN analog color monitor is specified as a display peripheral within

an IBM PC, PS/2 ,VGA and advance VGA compatible system.

The AUTOSCAN analog color monitor is to operate at horizontal line rates

between 30 to 71 KHz and refreshment rate between 50 to 160 Hz, can be applied to all RGB analog computers within this scanning frequencies.

The AUTOSCAN analog color monitor is intended to be a finished product, basically a display device mounted inside a plastic enclosure which provides the

aesthetic mechanical, ergonomic and safety requirements.

2.1 General condition

The unit will produce a usable image after switching-on, measurements are to be carried out with a full stabilized set after 30 minutes warm-up at room temperature of 25 C.

Repetitive power on/off cycles are allowed though should be avoided within 4 sec.

3.0 Electrical characteristics

3.1 Signal interface

The AUTOSCAN analog color display has an analog video interface to operates at a multi- frequencies timing in several display modes.

3.1.1 Input requirements

A. Input signals

Video : Analog level

Sync. : Separated sync. with TTL level

Polarity : Positive or negative

B. Signal input level

Video : 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not

deviate 0.015 Vp-p from each other for balance of white pattern)

Sync : TTL level

(between 0 and 0.6 V to be considered as low level ,between 2.3 and 5.0 V

as high level)

3Back

C. Impedance

00-06-12

WAYNE LIN

Video : Terminated with 75 ohms

Sync : Terminated with 4.7K ohms pull down resistors.

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 5

GENERAL PRODUCT SPECIFICATION

105B2 CM23 GSIII

3.1.2 Signals input

The input video signals are applied to the display device through a video cable

which is fixed to the monitor (standard cable length 1.5M).

Video input cable : 15 pin D-shell male connector type AMP 211350-1(3 rows) or equivalent, with pin assignment as follows :

Pin assignment of 15P D-SUB connector

Pin nbr. Assignment

P1 Red video input P2 Green video input P3 Blue video input P4 GND P5 For selftest (PC Ground) P6 Red video ground P7 Green video ground P8 Blue video ground P9 Not connected -- No pin P10 Sync ground P11 GND P12 Bi-directional Data (SDA) P13 H SYNC P14 V SYNC (VCLK) P15 Data clock (SCL)

Go to cover page

3.1.3 Factory preset modes:

Factory preset modes : 8

Resolution H. freq. V. freq. H. V.

1. 720 x 400 31.5 KHz 70Hz (VGA) _ +

2. 640 x 480 31.5 KHz 60Hz (VGA) _ _

3. 640 x 480 43.3 KHz 85Hz (VESA) _ _

4. 800 x 600 46.9 KHz 75Hz (VESA) + +

5. 800 x 600 53.8 KHz 85Hz (VESA) + +

6. 1024 x 768 60.0 KHz 75Hz (VESA) + +

7. 1280 x 1024 64.0 KHz 60Hz (VESA) + +

8. 1024 x 768 68.7 KHz 85Hz (VESA) + +

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

00-06-12

BRAND : PHILIPS (71K)

8639 000 10658

3Back

WAYNE LIN

00-06-12

590

Forward4

Page 6

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

Factory preload modes : 14

Resolution H. freq. V. freq. H. V.

9. 640 x 350 31.5 KHz 70Hz + _

10. 640 x 350 37.9 KHz 85Hz + _

11. 640 x 480 37.5 KHz 75Hz _ _

12. 640 x 480 37.9 KHz 73Hz _ _

13. 640 x 480 50.6 KHz 100Hz _ _

14. 720 x 400 37.9 KHz 85Hz _ +

15. 800 x 600 37.9 KHz 60Hz + +

16. 800 x 600 48.1 KHz 72Hz + +

17. 800 x 600 63.9 KHz 100Hz + +

18. 832 x 624 49.7 KHz 75Hz + +

19. 1024 x 768 48.4 KHz 60Hz _ _

20. 1024 x 768 56.5 KHz 70Hz _ _

21. 1152 x 864 67.5 KHz 75Hz + +

22. 1280 x 960 60.0 KHz 60Hz + +

3.2 Timing requirements

The AUTOSCAN color monitor must be capable of displaying standard

resolutions within the vertical(refresh) frequency range of 50 to 160 Hz and

horizontal scan range of 30 - 71 KHz.

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 7

GENERAL PRODUCT SPECIFICATION

TIMING FOR CM2300 COCA GS3 105B 71K MODELS

REFERENCE PATTERN GENERATOR : CHROMA 2135 * According to VESA Version 1.0 Revision 0.8

Factory preset modes

TABLE 1: 31.469 KHz/70.087 Hz, 720 X 400, pixel=28.325MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 31.774 us Total size = 14.268 ms Display size = 25.422 us Display size = 12.711 ms Rear porch = 1.907 us Rear porch = 1.112 ms Sync width = 3.813 us Sync width = 0.064 ms Sync.polarity = - Sync.polarity = +

TABLE 2: 31.469KHz/59.940 Hz, 640 X 480, pixel=25.175 MHz

Horizontal Vertical

105B2 CM23 GSIII

Go to cover page

Frame border = 0 Frame border = 0 Total size = 31.778 us Total size = 16.683 ms Display size = 25.422 us Display size = 15.253 ms Rear porch = 1.907 us Rear porch = 1.049 ms Sync width = 3.813 us Sync width = 0.064 ms Sync.polarity = - Sync.polarity = -

TABLE 3: 43.269KHz/85.008 Hz, 640 X 480, pixel=36.000 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 23.111 us Total size = 11.764 ms Display size = 17.778 us Display size = 11.093 ms Rear porch = 2.222 us Rear porch = 0.578 ms Sync width = 1.556 us Sync width = 0.069 ms Sync.polarity = - Sync.polarity = -

TABLE 4: 46.875 KHz/75 Hz, 800 X 600, pixel=49.500 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 21.333 us Total size = 13.333 ms Display size = 16.162 us Display size = 12.800 ms Rear porch = 3.232 us Rear porch = 0.448 ms Sync width = 1.616 us Sync width = 0.064 ms Sync.polarity = + Sync.polarity = +

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 8

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

TABLE 5: 53.674 KHz/85.061 Hz, 800 X 600, pixel=56.250 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 18.631 us Total size = 11.756 ms Display size = 14.222 us Display size = 11.179 ms Rear porch = 2.702 us Rear porch = 0.503 ms Sync width = 1.138 us Sync width = 0.056 ms Sync.polarity = + Sync.polarity = +

TABLE 6: 60.03 KHz/75.029 Hz, 1024 X 768, pixel=78.750 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 16.660 us Total size = 13.328 ms Display size = 13.003 us Display size = 12.795 ms Rear porch = 2.235 us Rear porch = 0.466 ms Sync width = 1.219 us Sync width = 0.050 ms Sync.polarity = + Sync.polarity = +

TABLE 7: 63.981 KHz/60.020 Hz, 1280 X 1024, pixel=108 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 15.630 us Total size = 16.661 ms Display size = 11.852 us Display size = 16.005 ms Rear porch = 2.296 us Rear porch = 0.594 ms Sync width = 1.037 us Sync width = 0.047 ms Sync.polarity = + Sync.polarity = +

TABLE 8: 68.677 KHz/84.997 Hz, 1024 X 768, pixel=94.500 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 14.561 us Total size = 11.765 ms Display size = 10.836 us Display size = 11.183 ms Rear porch = 2.201 us Rear porch = 0.524 ms Sync width = 1.016 us Sync width = 0.044 ms Sync.polarity = + Sync.polarity = +

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 9

GENERAL PRODUCT SPECIFICATION

Factory preload modes

TABLE 9: 31.469KHz/70.087 Hz, 640 X 350, pixel=25.175MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 31.778 us Total size = 14.268 ms Display size = 25.422 us Display size = 11.122 ms Rear porch = 1.907 us Rear porch = 1.907 ms Sync width = 3.813 us Sync width = 0.064 ms Sync.polarity = + Sync.polarity = -

TABLE 10: 37.861KHz/85.08 Hz, 640 X 350, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 26.413 us Total size = 11.754 ms Display size = 20.317 us Display size = 9.244 ms Rear porch = 3.048 us Rear porch = 1.585 ms Sync width = 2.032 us Sync width = 0.079 ms Sync.polarity = + Sync.polarity = -

105B2 CM23 GSIII

Go to cover page

TABLE 11: 37.5KHz/75 Hz, 640 X 480, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 26.667 us Total size = 13.333 ms Display size = 20.317 us Display size = 12.8 ms Rear porch = 3.810 us Rear porch = 0.427 ms Sync width = 2.032 us Sync width = 0.08 ms Sync.polarity = - Sync.polarity = -

TABLE 12: 37.861KHz/72.809 Hz, 640 X 480, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 26.413 us Total size = 13.735 ms Display size = 20.317 us Display size = 12.678 ms Rear porch = 4.064 us Rear porch = 0.739 ms Sync width = 1.270 us Sync width = 0.079 ms Sync.polarity = - Sync.polarity = -

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 10

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

TABLE 13: 50.625 KHz/100.049 Hz, 640 X 480, pixel=40.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 19.752 us Total size = 9.995 ms Display size = 15.802 us Display size = 9.481 ms Rear porch = 1.975 us Rear porch = 0.435 ms Sync width = 1.580 us Sync width = 0.059 ms Sync.polarity = - Sync.polarity = -

TABLE 14: 37.927 KHz/85.039 Hz, 720 X 400, pixel=35.5 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 26.366 us Total size = 11.759 ms Display size = 20.282 us Display size = 10.546 ms Rear porch = 3.042 us Rear porch = 1.107 ms Sync width = 2.028 us Sync width = 0.079 ms Sync.polarity = - Sync.polarity = +

TABLE 15: 37.879 KHz/60.317 Hz, 800 X 600, pixel=40MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 26.400 us Total size = 16.579 ms Display size = 20.000 us Display size = 15.840 ms Rear porch = 2.200 us Rear porch = 0.607 ms Sync width = 3.200 us Sync width = 0.106 ms Sync.polarity = + Sync.polarity = +

TABLE 16: 48.077 KHz/72.188 Hz, 800 X 600, pixel=50MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 20.800 us Total size = 13.853 ms Display size = 16.000 us Display size = 12.480 ms Rear porch = 1.280 us Rear porch = 0.478 ms Sync width = 2.400 us Sync width = 0.125 ms Sync.polarity = + Sync.polarity = +

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 11

GENERAL PRODUCT SPECIFICATION

TABLE 17: 63.92KHz/100 Hz, 800 X 600, pixel=67.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 15.644 us Total size = 9.997 ms Display size = 11.852 us Display size = 9.387 ms Rear porch = 2.370 us Rear porch = 0.548 ms Sync width = 0.948 us Sync width = 0.047 ms Sync.polarity = + Sync.polarity = +

TABLE 18: 49.714KHz/74.534 Hz, 832 X 624, pixel=57.27MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 20.115 us Total size = 13.417 ms Display size = 14.528 us Display size = 12.552 ms Rear porch = 3.911 us Rear porch = 0.784 ms Sync width = 1.118 us Sync width = 0.060 ms Sync.polarity = - Sync.polarity = -

105B2 CM23 GSIII

Go to cover page

TABLE 19: 48.363 KHz/60.004 Hz, 1024 X 768, pixel=65MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 20.677 us Total size = 16.666 ms Display size = 15.754 us Display size = 15.880 ms Rear porch = 2.462 us Rear porch = 0.600 ms Sync width = 2.092 us Sync width = 0.124 ms Sync.polarity = - Sync.polarity = -

TABLE 20: 56.476KHz/70.069 Hz, 1024 X 768, pixel=75MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 17.707 us Total size = 14.272 ms Display size = 13.653 us Display size = 13.599 ms Rear porch = 1.920 us Rear porch = 0.513 ms Sync width = 1.813 us Sync width = 0.106 ms Sync.polarity = - Sync.polarity = -

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 12

105B2 CM23 GSIII

Go to cover page

TABLE 21: 67.5 KHz/75Hz, 1152 X 864, pixel=108MHz

GENERAL PRODUCT SPECIFICATION

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 14.815 us Total size = 13.333 ms Display size = 10.667 us Display size = 12.8 ms Rear porch = 2.370 us Rear porch = 0.474 ms Sync width = 1.185 us Sync width = 0.044 ms Sync.polarity = + Sync.polarity = +

TABLE 22: 60 KHz/60 Hz, 1280 X 960, pixel=108MHz

Horizontal Vertical

Frame border = 0 Frame border = 0 Total size = 16.667 us Total size = 16.667 ms Display size = 11.852 us Display size = 16.000 ms Rear porch = 2.889 us Rear porch = 0.600 ms Sync width = 1.037 us Sync width = 0.050 ms Sync.polarity = + Sync.polarity = +

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 13

GENERAL PRODUCT SPECIFICATION

3.2.1 Horizontal scanning

Scanning frequency : 30 - 71 KHz H-shift range : 10 mm Min. (for preset modes only)

3.2.2 Vertical scanning

Scanning frequency : 50 - 160 Hz V-shift range : 10 mm min. (for preset modes only)

3.3 Power supply

The display device maintains the specified performance

in the range described as bellows :

Type Mains current Mains Voltage Mains freq.

Universal 1.5A Max. 90 - 264 VAC 47 - 63 Hz

230V version 0.7A Max. 195 - 264 VAC 47 - 63 Hz

105B2 CM23 GSIII

Go to cover page

115V version 1.5A Max. 90 - 132 VAC 60 3 Hz

Power consumption : 90 Watts Max. 70W typical. Power cord length : 1.5M Power cord type : 3 leads plug power cord

with protective earth plug or IBM Hooded

3.4 Power saving management system

Signal Compliance Power Recovery

Mode

H-Sync V-Sync Video Requirement Time

On Active Active Active Mandatory 90w N/A

Stand-by Inactive Active Blanked Mandatory 10w 3 sec.

Suspend Active Inactive Blanked Mandatory 10w 3 sec.

Off Inactive Inactive Blanked Mandatory 8w (MPRII) Normal

5w (TCO99)

Remark: Transition time from "ON" to any power saving mode will have 5 seconds delay.

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 14

105B2 CM23 GSIII

Go to cover page

3.5 CRT Description

3.6 RGB Amplifier

3.6.1 Video amplifiers

GENERAL PRODUCT SPECIFICATION

This display unit employs a high resolution CRT complying with the following specifications : Dimensions : 15 inches, 29.4mm neck diameter,

flat/square screen Pitch : 0.28mm dotted with black matrix Deflection angle : 90 degrees Light transmission : 57% (dark glass) Face treatment : Anti-glare, anti-static Implosion protection : By P-Mini-rim-band. EHT : 24.5 +/- 1 KV (Ib=0) Visible screen area : 284.34 mm x 213.24mm CRT Source : PHL, CPT tube

Dot Rate : 110 MHz Over / undershoot : 10% Max.

(Transient response) Sag : 5% Max.(pulses of 0.70H) Black level shift : 5% Max.

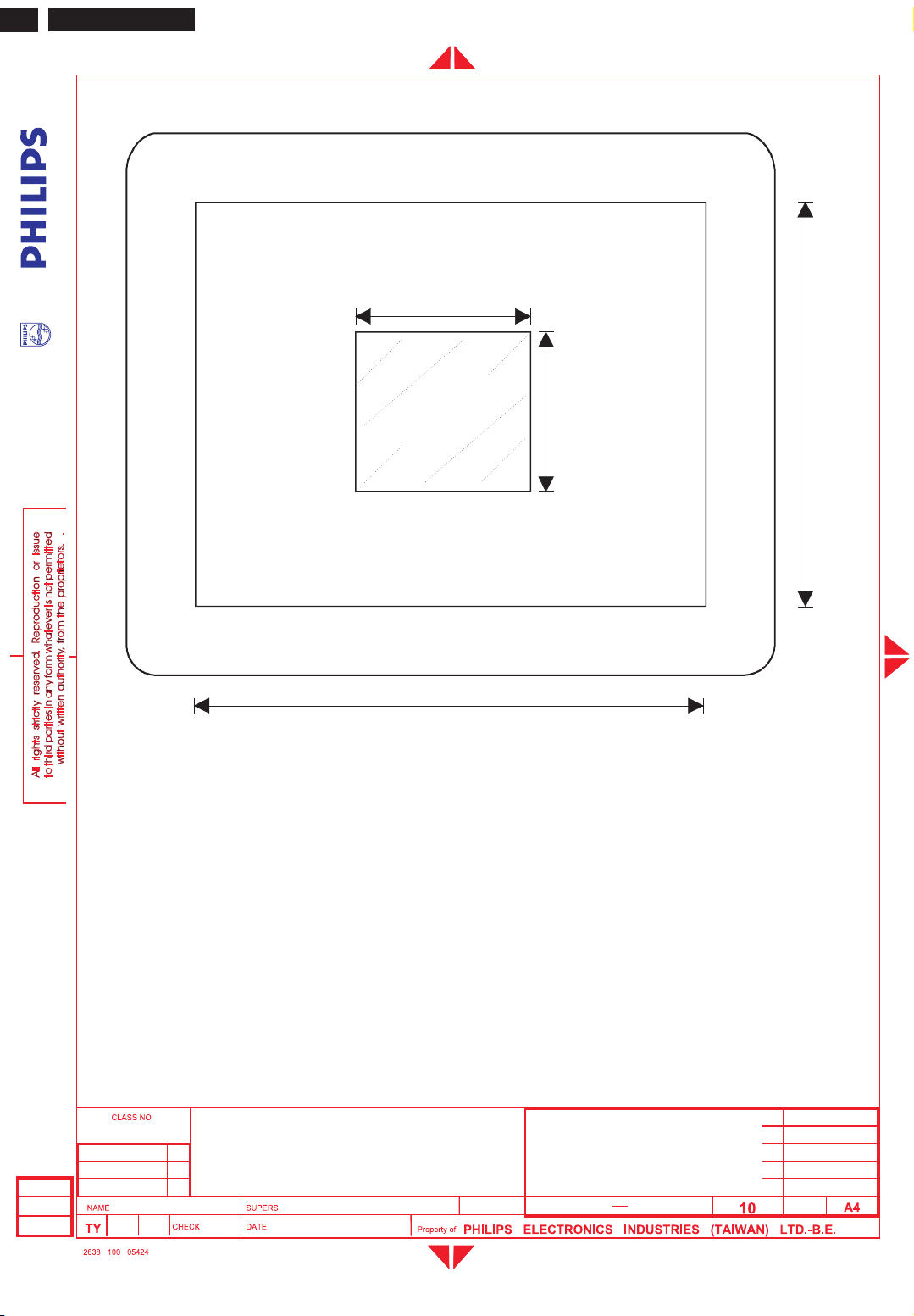

3.6.2 Brightness and Contrast Reference mode 68.7 KHZ/85 HZ full white pattern.

DISPLAY LIGHT OUTPUT

Light output

Brightness Contrast (full white)

Minimum Minimum Non visible

Center Maximum 30+/- 5 FL.

50mmx50mm block

Brightness at center and contrast at maximum light output is 41+/-6 FL.

3.6.3 Raster light output Apply 68.7KHz/85Hz mode with no video pattern, set brightness at center click and contrast control at minimum. The light output on the screen center should < 0.2FL.

3.7 Variation of image size ( For preset modes only )

Due to brightness change : 1.0 % (Set brightness control at center click, turn contrast control from Min. to Max.)

Due to aging (25 C, 300 hrs) : 2.0 %

Due to mains voltage variation ( 10% ) : 1.0 %

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 15

GENERAL PRODUCT SPECIFICATION

3.8 Degaussing

An automatic degaussing circuit is provided which requires no intervention. The degaussing activated at the time of switch on or switch on again after

switching off degaussing circuits for longer than 30 minutes.

3.9 Phosphor protection The display device is sufficiently protected against the burning of phosphors in

case of repetitive power cycling or absence of horizontal deflection.

3.10 Low emission requirements (MPR-II / TCO )

-------------------------------------------------------

Items Band I Band II

ELF (rms) VLF (rms)

Alternating Electric MPR-II < 25 V/M MPR-II < 2.5V/M Field TCO < 10 V/M TCO < 1.0 V/M

Magnetic Field MPR-II < 250 nT MPR-II < 25 nT

TCO < 200 nT TCO < 25 nT

105B2 CM23 GSIII

Go to cover page

Electrostatic

Potential < +/- 500 V

Band I : 5 to 2K HZ. Band II : 2K to 400K HZ.

MPR model : Test procedure according to MPR-II and E.S.P. test method.

TCO model : Test procedure according to TCO and E.S.P. test method.

3.11 Display data channel : DDC1/2B (VESA STANDARD)

The DDC HEX Data (refer to sheet 190) should be written into the

MCU EEPROM, PAGE A0, bytes 0 to 127.

4.0 Display image (CRT facing east)

The monitor is aligned in a magnetic cage having the following magnetic field components : Northern Hemisphere:H=0,V= 450mG,Z=0 Southern Hemisphere:H=0,V=-500 mG,Z=0

3Back

00-06-12

WAYNE LIN

Conditions for visual testing, unless otherwise stated: Input video signal - 700 mVpp cross hatch Brightness control - center position Contrast control - maximum position

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 16

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

4.1 Display resolutions See 3.1.3

4.2 Image size (For preset modes only)

The dimensions of guaranteed display area to be measured along the picture

center of horizontal and vertical axis of the screen as listed below: (preset

modes only, refer to FIG-1) Width : 270 +/- 3 mm Height : 202 +/- 3 mm

4.3 Image centering deviation (For preset modes only)

With respect to FIG-2, the target relationships are

the following :

|A-B|<5mm |C-D|< 5mm

Note : This centering is adjustable by the end-user.

4.4 Picture shift control range (For preset modes only) H-shift range : +/- 10 mm min. V-shift range : +/- 10 mm min.

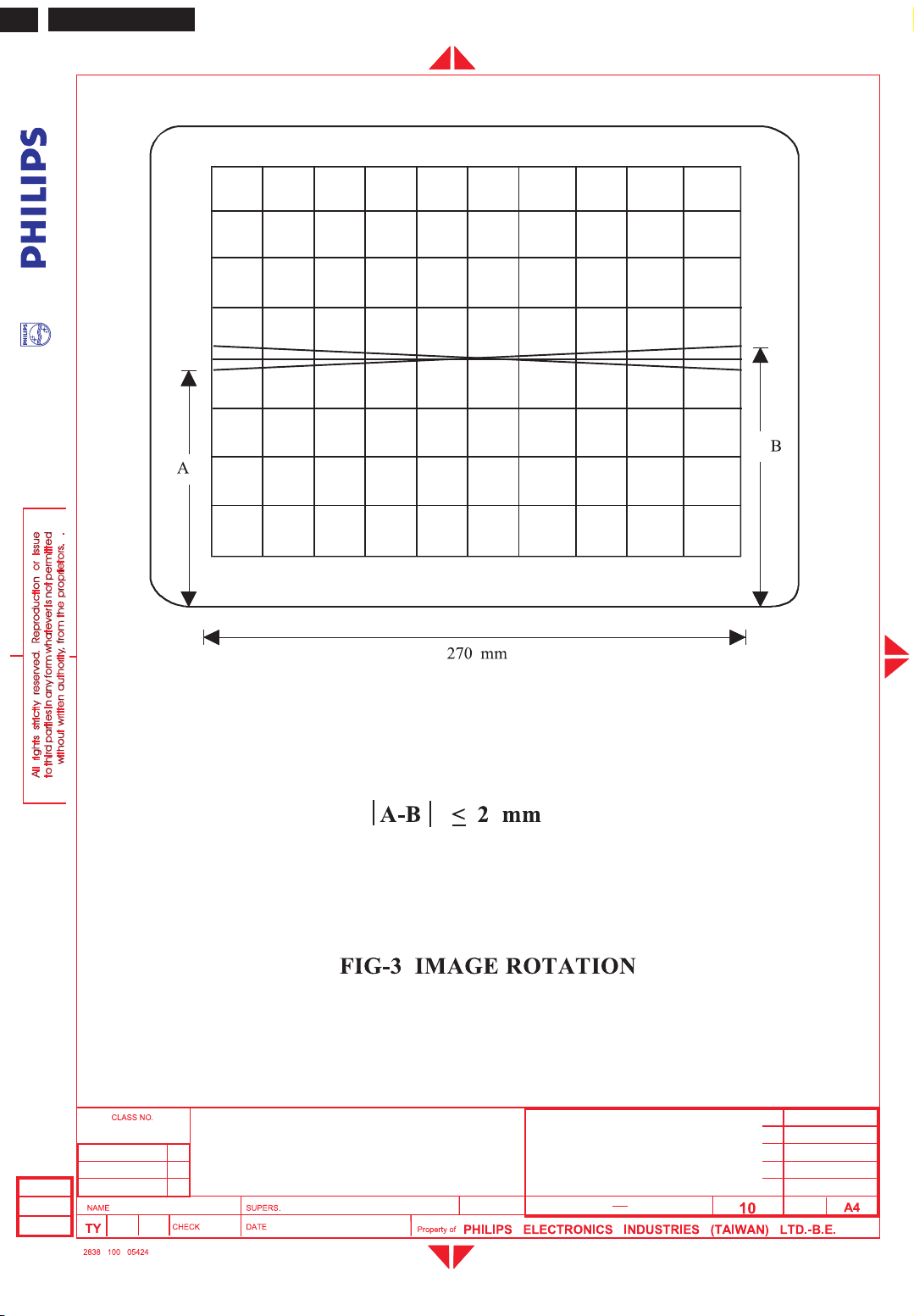

4.5 Picture tilt With respect to FIG-3, Tilt to be measured on extremes of center line from bezel.

|A-B| :<2mm

4.6 Geometrical distortions (For preset modes only)

It is acceptable that pincushion, trapezoid, rhomboid, rotation and various waves distortions must remain within the limits of tolerance as in FIG-4, where A = B = 3.0 mm.

C=D=3.0mm.

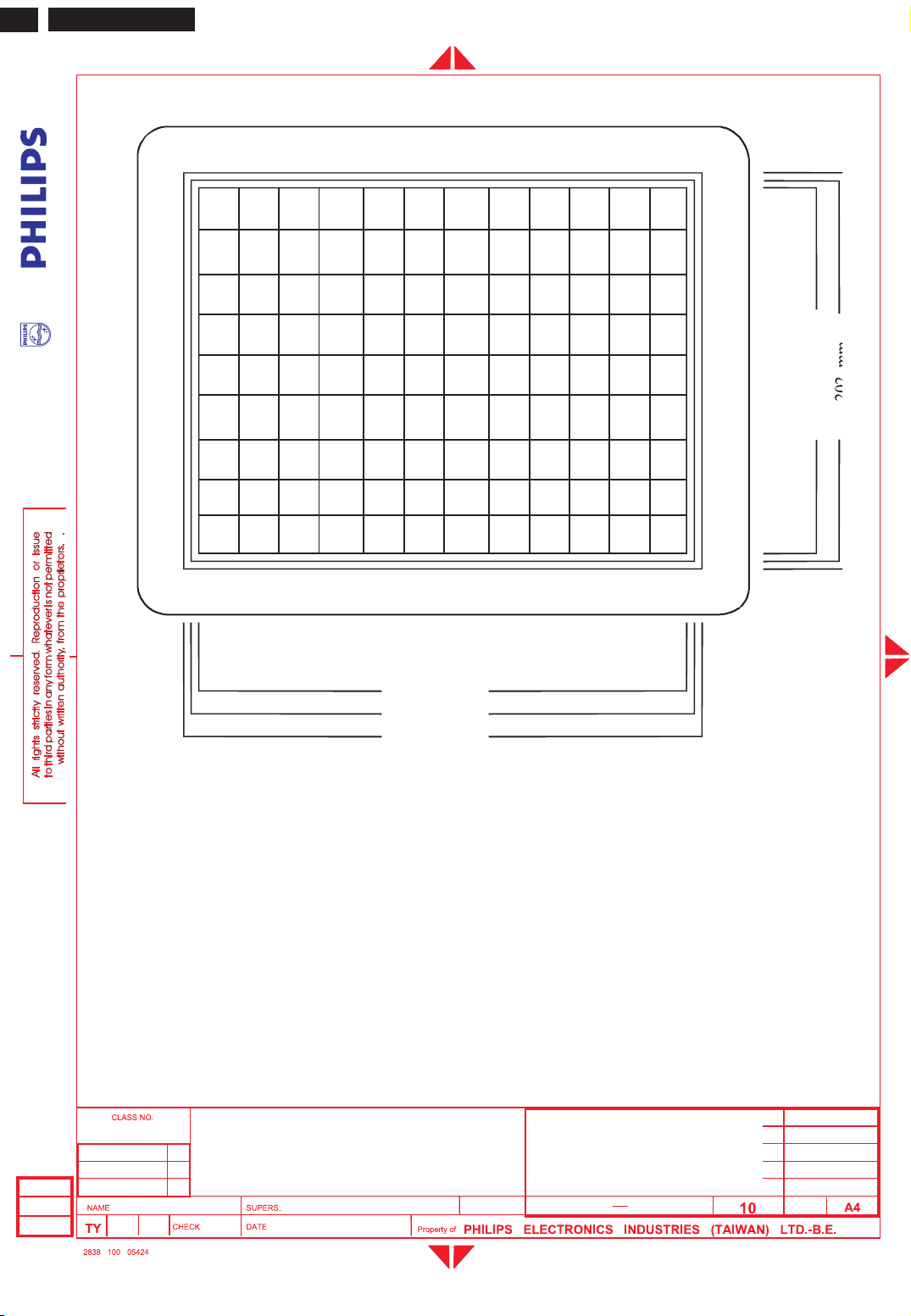

4.7 Image non-linearity pattern with 12 equal blocks along horizontal axis, 9 equal blocks along vertical axis. (see FIG-1) (For preset modes only) Overall : < 10 % (each horizontal and vertical)

Deviation of Two adjacent block : < 6 %

H. Max. - H. min.

H. non-linearity = x 100%

H. Max.

V. Max. - V. min.

V. non-linearity = x 100%

V. Max.

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 17

GENERAL PRODUCT SPECIFICATION

4.8 Mis-convergence The maximum convergence error to be measured on a white spot or white display l

ine to represents the maximum distance between the energy centers of any two primary colors. (See FIG-6)

CONVERGENCE SPEC.

Zones 0.28 mm CRT

Zone C 0.15 mm

Zone A 0.25 mm

Zone B 0.35 mm

4.9 Focus check ( 68.7 KHZ / 85 HZ )

Adjust brightness control to 50% and contrast control to get 25 FL at full white pattern , then generate "@" characters to cover entire of the picture the characters

should be clearly identified in all display area. (See FIG-7)

105B2 CM23 GSIII

Go to cover page

4.10 Luminance uniformity

condition : With full white pattern, set contrast control at 100%

and brightness control at 50%. The center of the display is 30 FL+/-5. The Max. deviation of the

screen should not exceed 25% .

4.11 White color adjustment

Based on the 1931 CIE chromatic diagram (x,y) coordinates of white display on screen center should be:

For 9300 K X = 0.283 0.015

Y = 0.297 0.015

For 6500 K X = 0.313 0.015

Y = 0.329 0.015

Check conditions : Set brightness control at 50% and contrast at 100%.

4.12 Color tracking on full white pattern

Adjust the luminance output from 3 to 30 FL by adjusting the contrast control

at 100% (brightness control at 50%), the color co-ordinates should not deviate more than the following tolerance when

compare to display center:

3Back

00-06-12

WAYNE LIN

X= X (center) 0.015 Y= Y (center) 0.015

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 18

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

4.13 Purity

Test patterns : Full white / Red / Green / Blue. Conditions : As stated in item 4.0, the purity must be checked under specific

destinations of earth magnetic environments and the monitor to be well degaussed.

After warming-up time of 30 min. , no color stains may occur in above four

patterns.

4.14 Moir

Condition: Displaying a full white pattern, at any preset mode ,

the display size to be set as Fig.1

The clouding effect must not rise to disturbing levels in 1/3 of the screen with

luminance setting from 15 to 30 FL.

4.15 Blemish Blemish shall be in accordance with CRT specification.

5.0 Mechanical characteristics

5.1 User controls (all at front) right to left

- Power ON/OFF switch

- 5 Key digital user control

. OSD MENU ('OK')

. Up / Down (direct access contrast) . Right / Left (direct access brightness)

5.1.1 OSD user functions

Contrast / Brightness (direct access)

Language menu: (Chinese)/English / Spanish / French / German / Italian

Zoom menu: Zoom

Adjust Horizontal menu: Horizontal shift / size

Adjust Vertical menu: V-shift / V-size

Adjust Geometry menu: Adjust side curve: Pincushion / Balanced pincushion

Adjust side angles: Trapezoid / Parallelogram Rotate image: Rotation

Adjust Color Menu: 9300K / 6500K / User color preset R/G/B

3Back

00-06-12

WAYNE LIN

Reset to factory settings: Reset: Yes / No

Extra controls menu: Degauss (TCO models only)

Adjust Moir : Horizontal Moir / Vertical Moir Serial number

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 19

GENERAL PRODUCT SPECIFICATION

* Selftest message in case of disconnected I/F cable * Signal out of range message in case of too low/too high input frequencies * Power LED (Green = On / Yellow = standby & suspend / Amber = Off)

Special service/factory functions:

Enter factory Mode: Press Contrast and Brightness simultaneously while power-on

With video signal connected (all factory preset and subfunctions can be accessed) A counter value is visible in main menu that shows monitor on-time in hours.

Enter Burn-in mode: Press Contrast and Brightness simultaneously while power-on without video signal connected (CPU will generate white pattern 48kHz/72Hz)

5.2 Connectors and cables

5.2.1 Power cord type : 3 leads plugable power cord with protective earthed plug or IBM Hooded

Length : 1.5 m 50 mm (exc. connector) Safety requirements : See following.

105B2 CM23 GSIII

Go to cover page

Approval

Countries Mains plug Wire Connector

Germany VDE VDE VDE Switzerland -- SVE SVE Belgium CEBEC -- -Sweden SEMKO SEMKO SEMKO Finland EI -- EI Norway NEMKO NEMKO --

Denmark DEMKO DEMKO DEMKO

Italy OVE -- OVE Netherlands KEMA KEMA KEMA U.K. ASTA HAR ASTA U.S.A. UL UL UL Canada CSA CSA CSA Australia SAA SAA SAA

5.2.2 Signal cable

Length of video : 1.5 m +/- 50 mm flying with 15 pin PS/2

D-shell socket

5.3 Tilt and swivel base Tilt angle : 5 forward and 15 Max. backward Swivel rotation : 90 leftward or rightward

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 20

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

6.0 Environmental characteristics

The following sections to define the interference and susceptibility condition limits that might occur between external environment and the display device.

6.1 Susceptibility of display to external environment

6.1.1 (A) Operating limits Temperature : 0C to 40C Humidity : 10 to 90% (W/O condensation) Air pressure : 700 ~ 1100 mbar

( B) Non-operating limits (storage)

Temperature : -25C to 60C Humidity : 5 to 95 % (W/O condensation) Altitude : 300 to 1100 mbar

6.1.2 Transportation packages A) Carton box

A-1 Size (with pedestal)

432(W)456(D)419(H)

A-2 Carton paper : double wall AB fute corrugate

board, color brown

Bursting : 19.3 kg/cm min

Compression : 600 kg min

B) Transportation conditions

B-1 Container loading (separated pedestal)

Container size

40' 20'

Q'ty

W/ palette W/ palette

Yes No Yes No

Layers 5 5 5 5 Sets per layer 6 6 6 6 Sets per block 30 30 30 30 Blocks per container 22 22 10 10 Total sets 660 660 300 300

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 21

GENERAL PRODUCT SPECIFICATION

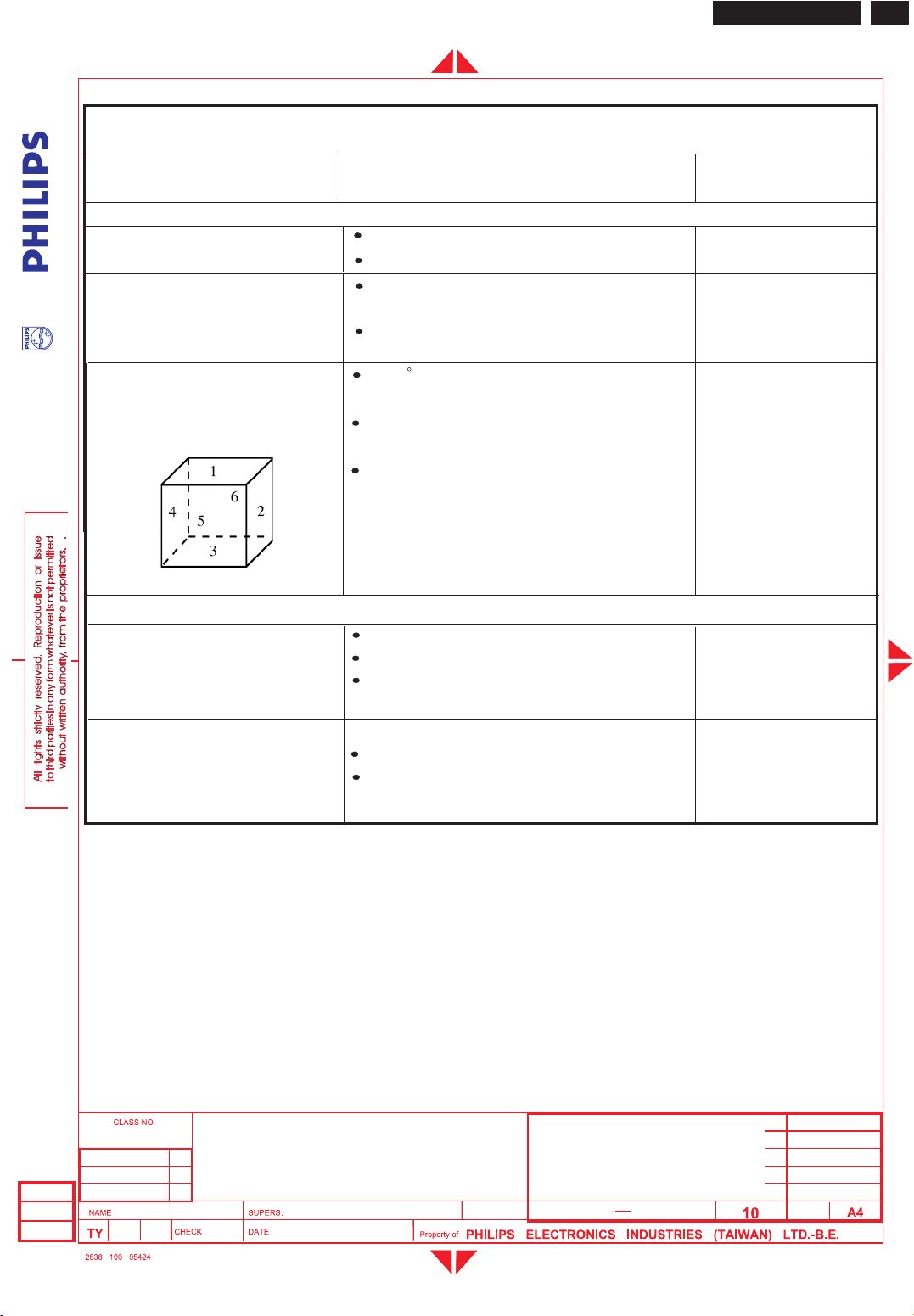

B-2 Transportation standards

TRANSPORTATION TEST OF BU-MONITORS

1999/1/27

TEST ITEM TEST CONDITION

1. PACKAGED TEST:

1.1 Packaged random vibra. test

5~200 Hz, 0.73 Grms, 30 MIN/ AXIS, 3 AXES.,

1.2 Drop test Gross weight drop height:

9.53~18.59 kg 61 cm Sequence: 1C-3E-6F, 10 drops,

105B2 CM23 GSIII

Go to cover page

STANDARD

REFERENCE

Ref. ASTMD-4169

NSTA

1.3 Cold drop test (Only for reference)

-10 C for 16 hours, recovery time after cold test: (during 5 minutes)

Gross weight drop height:

9.53~18.59 kg 61cm Sequence: 1C-3F, 4drops, 1 set: C345-F4-F5-F3, 1 set: C261-F2-F6-F1

2. UN-PACKAGED VIBRATION TEST:

2.1 Operating random vibra. test

5~500Hz, 0.25 Grms, 30 min/axis 3 axes. Frequency: (Hz): 5,350,500 G^2/ Hz: 0.001, 0.0001, 0.00005

2.2 Shock test (half sine) a. 120G, <3 msec, 6 shocks G value measurement filter: 330Hz Exclude CRT impurity

6.2 Display disturbances from external environment

UN-D1400

NSTA

Ref. OEM spec.

3Back

6.2.1 ESD Disturbances According to EN50082-1 (also refer to IEC801-2 for detail).

6.3 Display disturbances to external environment The disturbances induced by the display and tolerated by the environment are defined as follows :

6.3.1 Ionizetic radiation Completely fulfilled International Commission of Radio logical Protection (ICRP) requirement 0.5 mR/Hr. Actually the set can reach 0.1 mR/Hr.

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA)

00-06-12

WAYNE LIN

BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 22

105B2 CM23 GSIII

Go to cover page

6.3.2 EMI

GENERAL PRODUCT SPECIFICATION

Can comply with FCC part 15, DOC C108.8 and EN55022

7.0 Safety tests

7.1 Dielectric strength (Hi-pot test) According to IEC950, UL1950 and CSA 22.2 No 950

7.2 Resistance for protective earthing According to IEC950

7.3 Leakage current According to IEC950, UL1950 and CSA22.2 No. 950

7.4 Grounding According to IEC950, UL1950 and CSA22.2 No. 950

8.0 Certifications

8.1 Safety The monitors comply with the following safety standards:

- IEC950

- UL1950

- DHHS 21 CFR, subchapter J

- CSA-22.2 NO. 950

- GERMANY ZH1/618(GS), ISO 9241-3,-8

8.2 EMI (Electromagnetic Interference) The monitor comply with the following EMI standards :

- EN55022

- FCC Part 15

- DOC C108.8

8.3 Fulfil approbation requirements Destination basis, set can fulfil following requirements:

Countries Safety EMI

Germany TUV,GS CE Sweden SEMKO ---Norway NEMKO ---Denmark DEMKO ---Finland FIMKO ---Spain HOMOLOGATION CE UK BEAB CE U.S.A. UL , DHHS FCC Canada CSA DOC Japan ---- VCCI

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 23

GENERAL PRODUCT SPECIFICATION

9.0 Reliability

9.1 Mean time between failures MTBF to be calculated according to Military standard MIL-HDBK-217C.

MTBF 75,000 Hours (Excluding CRT)

TOTAL HRS (POWER ON) X TOTAL SETS

PRACTICE of MTBF = -------------------------------------------------------

NBR. OF FAILURE SETS

10.0 Quality assurance requirements

10.1 Acceptance test

According to MIL-STD-105D level II, AQL : 0.4 (Major)

: 1.0 (Minor)

105B2 CM23 GSIII

Go to cover page

Customer acceptance : UAW 0377/40 criteria

11.0 Serviceability

The serviceability of this monitor should fulfil the requirements which are prescribed

UAW-0346 and must be checked with the check list UAT - 0361

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 24

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

199 mm

00-06-12

FIG-1 IMAGE DIMENSION

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

267 mm 270 mm

273 mm

8639 000 10658

3Back

WAYNE LIN

00-06-12

590

Forward4

Page 25

GENERAL PRODUCT SPECIFICATION

105B2 CM23 GSIII

Go to cover page

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 26

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 27

GENERAL PRODUCT SPECIFICATION

105B2 CM23 GSIII

Go to cover page

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 28

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

50 mm

ZONE A

ZONE B

270 mm

202 mm

50 mm

3Back

00-06-12

WAYNE LIN

FIG-5 CONTRAST AND BRIGHTNESS

MEASUREMENT AREA

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 29

GENERAL PRODUCT SPECIFICATION

105B2 CM23 GSIII

Go to cover page

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4

Page 30

105B2 CM23 GSIII

Go to cover page

GENERAL PRODUCT SPECIFICATION

3Back

00-06-12

WAYNE LIN

15" CM2300 GS-III CMTR

TYPE : 105B21/97H (COCA) BRAND : PHILIPS (71K)

00-06-12

8639 000 10658

590

Forward4
