CM2300 105S2 (GS3 COCA Chassis) 60KHz General Specification (Sheet 590)
===========================================================
FEATURES / BENEFITS
- EXTREMELY HIGH MTBF (OVER 75K HRS, EXCLUDING CRT)
- PROFESSIONAL LOOK, WITH NON-FLAMMABLE CABINET (94V-0)
- USER'S CONTROLS
. FRONT MOUNTED CONTROLS FOR EASY ACCESS
- BETTER DISPLAY PERFORMANCE
. FINER CRT DOT PITCH (0.28 MM)
. FULL SCREEN SIZE APPLICATION
. REAL MULTI-FREQ.
49
- POWER SAVING MANAGEMENT SYSTEM
- MAXIMIZED CONTAINER LOADING
- VESA DDC1 AND 2B
- LOW EMISSION MPR II /TCO99 (optional)
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
1
Forward4
Page 2
105S2 CM23 GSIII
50
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
INDEX
=========
1.0 Introduction
2.0 General description
2.1 General condition
3.0 Electrical characteristics
3.1 Signal interface
3.1.1 Input requirements
3.1.2 Signals input
3.1.3 Factory preset modes
3.2 Timing requirements
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
3.4 Power saving management system
3.5 CRT description
3.6 RGB amplifier
3.6.1 Video amplifier
3.6.2 Brightness and Contrast
3.7 Variation of image size
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements (MPR-II )
3.11 Display data channel : DDC1/2B (VESA STANDARD)
4.0 Display
4.1 Display resolution
4.2 Image size
4.3 Image centering deviation
4.4 Picture shift control range
4.5 Picture tilt
4.6 Geometrical distortion
4.7 Image non-linearity
4.8 Mis-covergence
4.9 Focus check
4.10 Luminance uniformity
4.11 White color adjustment
4.12 Color tracking on full white pattern
4.13 Purity
4.14 Moire'e
4.15 Blemish
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
00-05-12
BRAND : PHILIPS (60K)
8639 000 10601
3Back
MAY YU
00-05-12
28
590
2
Forward4
Page 3
GENERAL PRODUCT SPECIFICATION
5.0 Mechanical characteristics
5.1 User controls ( at front)
5.2 Connector and cables
5.2.1 Power Cord
5.2.2 Signal Cable
5.3 Tilt and swivel base
6.0 Environmental characteristics
6.1 Susceptibility of display to external environment
6.1.1 Operation limits
6.1.2 Transportation packages
6.2 Display disturbance from external environment
6.2.1 ESD disturbances
6.3 Display disturbance to external environment
6.3.1 Ionizetic radiation
6.3.2 EMI
7.0 Safety tests
7.1 Dielectric strength
7.2 Resistance for protective earthing
7.3 Leakage current
7.4 Grounding
105S2 CM23 GSIII
9
Go to cover page
51
8.0 Certifications
8.1 Safety
8.2 EMI
8.3 Fulfil approbation requirements
9.0 Reliability
9.1 Mean time between failures
10.0 Quality assurance requirements
10.1 Acceptance test
11.0 Service ability
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
3
Forward4
Page 4
52
9
Go to cover page
105S2 CM23 GSIII
1.0 Introduction
2.0 General description
2.1 General condition
GENERAL PRODUCT SPECIFICATION
This document is related to the 15" AUTOSCAN (VGA above and Max. resolution
1280X960 by 60HZ refresh) color monitor for world-wide destination.
The AUTOSCAN analog color monitor is specified as a display peripheral within
an IBM PC, PS/2 ,VGA and advance VGA compatible system.
The AUTOSCAN analog color monitor is to operate at horizontal line rates between 30 to
60 KHz and refreshment rate between 50 to 120 Hz, can be applied to all
RGB analog computers within this scanning frequencies.
The AUTOSCAN analog color monitor is intended to be a finished product, basically a
display device mounted inside a plastic enclosure which provides the aesthetic
mechanical, ergonomic and safety requirements.
The unit will produce a usable image after switching-on, measurements are to be carried
out with a full stabilized set after 30 minutes warm-up at room temperature of 25 C.
Repetitive power on/off cycles are allowed though should be avoided within 4 sec.
3.0 Electrical characteristics
3.1 Signal interface
The AUTOSCAN analog color display has an analog video interface to operates at a
multi-frequencies timing in several display modes.
3.1.1 Input requirements
A. Input signals
Video : Analog level
Sync. : Separated sync. with TTL level
Polarity : Positive or negative
B. Signal input level
Video : 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not
deviate 0.015 Vp-p from each other for balance of white pattern)
Sync : TTL level
(between 0 and 0.6 V to be considered as low level ,between 2.3 and 5.0 V as
high level)
3Back
00-05-12
MAY YU
C. Impedance
Video : Terminated with 75 ohms
Sync : Terminated with 4.7K ohms pull down resistors.
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
28
00-05-12
8639 000 10601
590
4
Forward4
Page 5
GENERAL PRODUCT SPECIFICATION
3.1.2 Signals input
The input video signals are applied to the display device through a video cable which is
fixed to the monitor (standard cable length 1.5M).
Video input cable :
15 pin D-shell male connector type AMP 211350-1(3 rows)
or equivalent, with pin assignment as follows :
Pin assignment of 15P D-SUB connector
Pin nbr. Assignment
P1 Red video input
P2 Green video input
P3 Blue video input
P4 GND
P5 For selftest (PC Ground)
P6 Red video ground
P7 Green video ground
P8 Blue video ground
P9 Not connected -- No pin
P10 Sync ground
P11 GND
P12 Bi-directional Data (SDA)
P13 H SYNC
P14 V SYNC (VCLK)
P15 Data clock (SCL)
105S2 CM23 GSIII
9
Go to cover page
53
3.1.3 Factory preset modes:
Factory preset modes : 6
Resolution H. freq. V. freq. H. V.
1. 720 x 400 31.5 KHz 70Hz (VGA) - +
2. 640 x 480 31.47 KHz 60Hz (VGA) - -
3. 640 x 480 43.3 KHz 85Hz (VESA)
4. 800 x 600 46.9 KHz 75Hz (VESA)
5. 800 x 600 53.674KHz 85Hz (VESA)
6. 1024 x 768 60.0 KHz 75Hz (VESA)
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
00-05-12
MAY YU
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
5
3Back
Forward4
Page 6
54
9
Go to cover page
105S2 CM23 GSIII
Resolution H. freq. V. freq.
3.2 Timing requirements
GENERAL PRODUCT SPECIFICATION
Factory preload modes : 12
7. 640 x 350 31.5 KHz 70 Hz
8. 640 x 350 37.9 KHz 85 Hz
9. 640 x 480 37.5 KHz 75 Hz
10. 640 x 480 37.9 KHz 72.8 Hz
11. 800 x 600 37.9 KHz 60 Hz
12. 720 x 400 37.9 KHz 85 Hz
13. 1024 x 768 48.3 KHz 60 Hz
14. 832 x 624 49.7 KHz 74.5 Hz
15. 1024 x 768 56.5 KHz 70 Hz
16. 1280 x 960 60 KHz 60 Hz
17. 800 x 600 48.1 KHz 72 Hz
18. 640 x 480 50.6 KHz 100 Hz
The AUTOSCAN color monitor must be capable of displaying standard
resolutions within the vertical(refresh) frequency range of 50 to 120 Hz and horizontal
scan range of 30 - 60 KHz.
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
6
Forward4
Page 7
GENERAL PRODUCT SPECIFICATION
TIMING FOR CM2300-15" 60KHz 105S2 AUTOSCAN CMTR
(VESA monitor timing standard Version 1.0, Release 0.6a)
REFERENCE PATTERN GENERATOR : CHROMA 2135 or 2250
Factory preset modes
TABLE 1: 31.469 KHz/70.087 Hz, 720 X 400, pixel=28.325MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 31.774 us Total size = 14.268 ms
Display size = 25.422 us Display size = 12.711 ms
Rear porch = 1.907 us Rear porch = 1.112 ms
Sync width = 3.813 us Sync width = 0.064 ms
Sync.polarity = - Sync.polarity = +
105S2 CM23 GSIII
9
Go to cover page
55
TABLE 2: 31.469KHz/59.940 Hz, 640 X 480, pixel=25.175 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 31.778 us Total size = 16.683 ms
Display size = 25.422 us Display size = 15.253 ms
Rear porch = 1.907 us Rear porch = 1.049 ms
Sync width = 3.813 us Sync width = 0.064 ms
Sync.polarity = - Sync.polarity = -
TABLE 3: 43.269KHz/85.008 Hz, 640 X 480, pixel=36.000 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 23.111 us Total size = 11.764 ms
Display size = 17.778 us Display size = 11.093 ms
Rear porch = 2.222 us Rear porch = 0.578 ms
Sync width = 1.556 us Sync width = 0.069 ms
Sync.polarity = - Sync.polarity = -
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
7
Forward4
Page 8
56
9
Go to cover page
105S2 CM23 GSIII
TABLE 4: 46.875 KHz/75 Hz, 800 X 600, pixel=49.500 MHz
Frame border = 0 Frame border = 0
Total size = 21.333 us Total size = 13.333 ms
Display size = 16.162 us Display size = 12.800 ms
Rear porch = 3.232 us Rear porch = 0.448 ms
Sync width = 1.616 us Sync width = 0.064 ms
Sync.polarity = + Sync.polarity = +
TABLE 5: 53.674 KHz/85.061 Hz, 800 X 600, pixel=56.250 MHz
Frame border = 0 Frame border = 0
Total size = 18.631 us Total size = 11.756 ms
Display size = 14.222 us Display size = 11.179 ms
Rear porch = 2.702 us Rear porch = 0.503 ms
Sync width = 1.138 us Sync width = 0.056 ms
Sync.polarity = + Sync.polarity = +
GENERAL PRODUCT SPECIFICATION
Horizontal Vertical
Horizontal Vertical
TABLE 6: 60.03 KHz/75.029 Hz, 1024 X 768, pixel=78.750 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 16.660 us Total size = 13.328 ms
Display size = 13.003 us Display size = 12.795 ms
Rear porch = 2.235 us Rear porch = 0.466 ms
Sync width = 1.219 us Sync width = 0.050 ms
Sync.polarity = + Sync.polarity = +
Factory preload modes
TABLE 7: 31.469KHz/70.087 Hz, 640 X 350, pixel=25.175MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 31.778 us Total size = 14.268 ms
Display size = 25.422 us Display size = 11.122 ms
Rear porch = 1.907 us Rear porch = 1.907 ms
Sync width = 3.813 us Sync width = 0.064 ms
Sync.polarity = + Sync.polarity = -
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
8
Forward4
Page 9
GENERAL PRODUCT SPECIFICATION
TABLE 8: 37.861KHz/85.08 Hz, 640 X 350, pixel=31.5MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 26.413 us Total size = 11.754 ms
Display size = 20.317 us Display size = 9.244 ms
Rear porch = 3.048 us Rear porch = 1.585 ms
Sync width = 2.032 us Sync width = 0.079 ms
Sync.polarity = + Sync.polarity = -
TABLE 9: 37.5KHz/75 Hz, 640 X 480, pixel=31.5MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 26.667 us Total size = 13.333 ms
Display size = 20.317 us Display size = 12.8 ms
Rear porch = 3.810 us Rear porch = 0.427 ms
Sync width = 2.032 us Sync width = 0.08 ms
Sync.polarity = - Sync.polarity = -
105S2 CM23 GSIII
9
Go to cover page
57
TABLE 10: 37.861KHz/72.809 Hz, 640 X 480, pixel=31.5MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 26.413 us Total size = 13.735 ms
Display size = 20.317 us Display size = 12.678 ms
Rear porch = 4.064 us Rear porch = 0.739 ms
Sync width = 1.270 us Sync width = 0.079 ms
Sync.polarity = - Sync.polarity = -
TABLE 11: 50.625 KHz/100.049 Hz, 640 X 480, pixel=40.5MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 19.752 us Total size = 9.995 ms
Display size = 15.802 us Display size = 9.481 ms
Rear porch = 1.975 us Rear porch = 0.435 ms
Sync width = 1.580 us Sync width = 0.059 ms
Sync.polarity = - Sync.polarity = -
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
9
Forward4
Page 10
58
9
Go to cover page
105S2 CM23 GSIII
TABLE 12: 37.927 KHz/85.039 Hz, 720 X 400, pixel=35.5 MHz
Frame border = 0 Frame border = 0
Total size = 26.366 us Total size = 11.759 ms
Display size = 20.282 us Display size = 10.546 ms
Rear porch = 3.042 us Rear porch = 1.107 ms
Sync width = 2.028 us Sync width = 0.079 ms
Sync.polarity = - Sync.polarity = +
TABLE 13: 37.879 KHz/60.317 Hz, 800 X 600, pixel=40MHz
Frame border = 0 Frame border = 0
Total size = 26.400 us Total size = 16.579 ms
Display size = 20.000 us Display size = 15.840 ms
Rear porch = 2.200 us Rear porch = 0.607 ms
Sync width = 3.200 us Sync width = 0.106 ms
Sync.polarity = + Sync.polarity = +
GENERAL PRODUCT SPECIFICATION
Horizontal Vertical
Horizontal Vertical
TABLE 14: 48.077 KHz/72.188 Hz, 800 X 600, pixel=50MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 20.800 us Total size = 13.853 ms
Display size = 16.000 us Display size = 12.480 ms
Rear porch = 1.280 us Rear porch = 0.478 ms
Sync width = 2.400 us Sync width = 0.125 ms
Sync.polarity = + Sync.polarity = +
TABLE 15: 49.714KHz/74.534 Hz, 832 X 624, pixel=57.27MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 20.115 us Total size = 13.417 ms
Display size = 14.528 us Display size = 12.552 ms
Rear porch = 3.911 us Rear porch = 0.784 ms
Sync width = 1.118 us Sync width = 0.060 ms
Sync.polarity = - Sync.polarity = -
15" CM2300 GS-III CMTR
3Back
00-05-12
MAY YU
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
10
Forward4
Page 11
GENERAL PRODUCT SPECIFICATION
TABLE 16: 48.363 KHz/60.004 Hz, 1024 X 768, pixel=65MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 20.677 us Total size = 16.666 ms
Display size = 15.754 us Display size = 15.880 ms
Rear porch = 2.462 us Rear porch = 0.600 ms
Sync width = 2.092 us Sync width = 0.124 ms
Sync.polarity = - Sync.polarity = -
TABLE 17: 56.476KHz/70.069 Hz, 1024 X 768, pixel=75MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 17.707 us Total size = 14.272 ms
Display size = 13.653 us Display size = 13.599 ms
Rear porch = 1.920 us Rear porch = 0.513 ms
Sync width = 1.813 us Sync width = 0.106 ms
Sync.polarity = - Sync.polarity = -
105S2 CM23 GSIII
9
Go to cover page
59
TABLE 18: 60 KHz/60 Hz, 1280 X 960, pixel=108MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 16.667 us Total size = 16.667 ms
Display size = 11.852 us Display size = 16.000 ms
Rear porch = 2.889 us Rear porch = 0.600 ms
Sync width = 1.037 us Sync width = 0.050 ms
Sync.polarity = + Sync.polarity = +
15" CM2300 GS-III CMTR
3Back
00-05-12
MAY YU
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
11
Forward4
Page 12
60
9
Go to cover page
105S2 CM23 GSIII
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
Universal 1.5A Max. 90 - 264 VAC 47 - 63 Hz
GENERAL PRODUCT SPECIFICATION
Scanning frequency : 30 - 60 KHz
H-shift range : 10 mm Min. (for preset modes only)
Scanning frequency : 50 - 120 Hz
V-shift range : 10 mm min. (for preset modes only)
The display device maintains the specified performance in the range described as bellows :
Type Mains current Mains Voltage Mains freq.
230V version 0.7A Max. 195 - 264 VAC 47 - 63 Hz
115V version 1.5A Max. 90 - 132 VAC 60 3 Hz
Power consumption : 75 Watts Max.
Power cord length : 1.5M
Power cord type : 3 leads plug power cord
with protective earth plug or IBM Hooded
3.4 Power saving management system
Signal Compliance Power Recovery
Mode
H-Sync V-Sync Video Requirement Time
On Active Active Active Mandatory 75w N/A
Stand-by Inactive Active Blanked Mandatory 10w 3 sec.
Suspend Active Inactive Blanked Mandatory 10w 3 sec.
Off Inactive Inactive Blanked Mandatory 8 w Normal
3Back
Remark: Transition time from "ON" to any power saving mode will have 5 seconds delay.
15" CM2300 GS-III CMTR
00-05-12
MAY YU
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
28
00-05-12
8639 000 10601
590
12
Forward4
Page 13
GENERAL PRODUCT SPECIFICATION
3.5 CRT Description
This display unit employs a high resolution CRT complying with the following
specifications :
Dimensions : 15 inches, 29.4mm neck diameter
Pitch : 0.28mm dotted with black matrix
Deflection angle : 90 degrees
Light transmission : 57% (dark glass)
Face treatment : Anti-glare, anti-static
Implosion protection : By P-Mini-rim-band.
EHT : 24.5 1 KV (Ib=0)
Visible screen area : 284.34 mm x 213.24mm
CRT Source : PHL; CPT tube
3.6 RGB Amplifier
3.6.1 Video amplifiers
Dot Rate : 110 MHz
Over / undershoot : 10% Max.
Sag : 5% Max.(pulses of 0.70H)
Black level shift : 5% Max.
flat/square screen
+
-
(Transient response)
105S2 CM23 GSIII
9
Go to cover page
61
3.6.2 Brightness and Contrast
Reference mode 53.7 KHZ/85 HZ full white pattern.
DISPLAY LIGHT OUTPUT
Light output
Brightness Contrast (full white)
Minimum Minimum 0.1 FL
Center Maximum 30 5 FL.
<
-
+
-
50mmX50mm square pattern
Brightness at center , Contrast at Max. The light output is 41 6 FL
3.7 Variation of image size ( For preset modes only )
Due to brightness change : 1.0 %
<
-
(Set brightness control at center click, turn contrast control from Min. to Max.)
Due to aging
(25 C, 300 hrs) : 2.0 %
<
-
Due to mains voltage
<
-
00-05-12
variation ( 10% ) : 1.0 %
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
+
-
+
8639 000 10601
-
3Back
MAY YU
00-05-12
28
590
13
Forward4
Page 14
62
9
Go to cover page
105S2 CM23 GSIII
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements (MPR-II )
Alternating Electric MPR-II < 25 V/M MPR-II < 2.5V/M
Field
Magnetic Field MPR-II < 250 nT MPR-II < 25 nT
GENERAL PRODUCT SPECIFICATION
An automatic degaussing circuit is provided which requires no intervention.
The degaussing activated at the time of switch on or switch on again after
switching off degaussing circuits for longer than 30 minutes.
The display device is sufficiently protected against the burning of phosphors in
case of repetitive power cycling or absence of horizontal deflection.
-----------------------------------------------
Items Band I Band II
ELF (rms) VLF (rms)
Electrostatic
Potential < 500 V
+
-
Band I : 5 to 2K HZ.
Band II : 2K to 400K HZ.
Test procedure according to MPR-II and E.S.P. test method.
3.11 Display data channel : DDC1/2B (VESA STANDARD)
The DDC HEX Data (refer sheet 190) should be written into the
DDC IC (24LC21 or equivalent)
4.0 Display image (CRT facing east)
The monitor is aligned in a magnetic cage having the following magnetic field
components :
Northern Hemisphere:H=0,V= 450mG,Z=0
Southern Hemisphere:H=0,V=-500 mG,Z=0
Conditions for visual testing, unless otherwise stated:
<
-
Input video signal - 700 mVpp cross hatch
Brightness control - center position
Contrast control - maximum position
3Back
4.1 Display resolutions
See 3.1.3
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
00-05-12
MAY YU
BRAND : PHILIPS (60K)
00-05-12
28
+
8639 000 10601
590
-
14
Forward4
Page 15
GENERAL PRODUCT SPECIFICATION

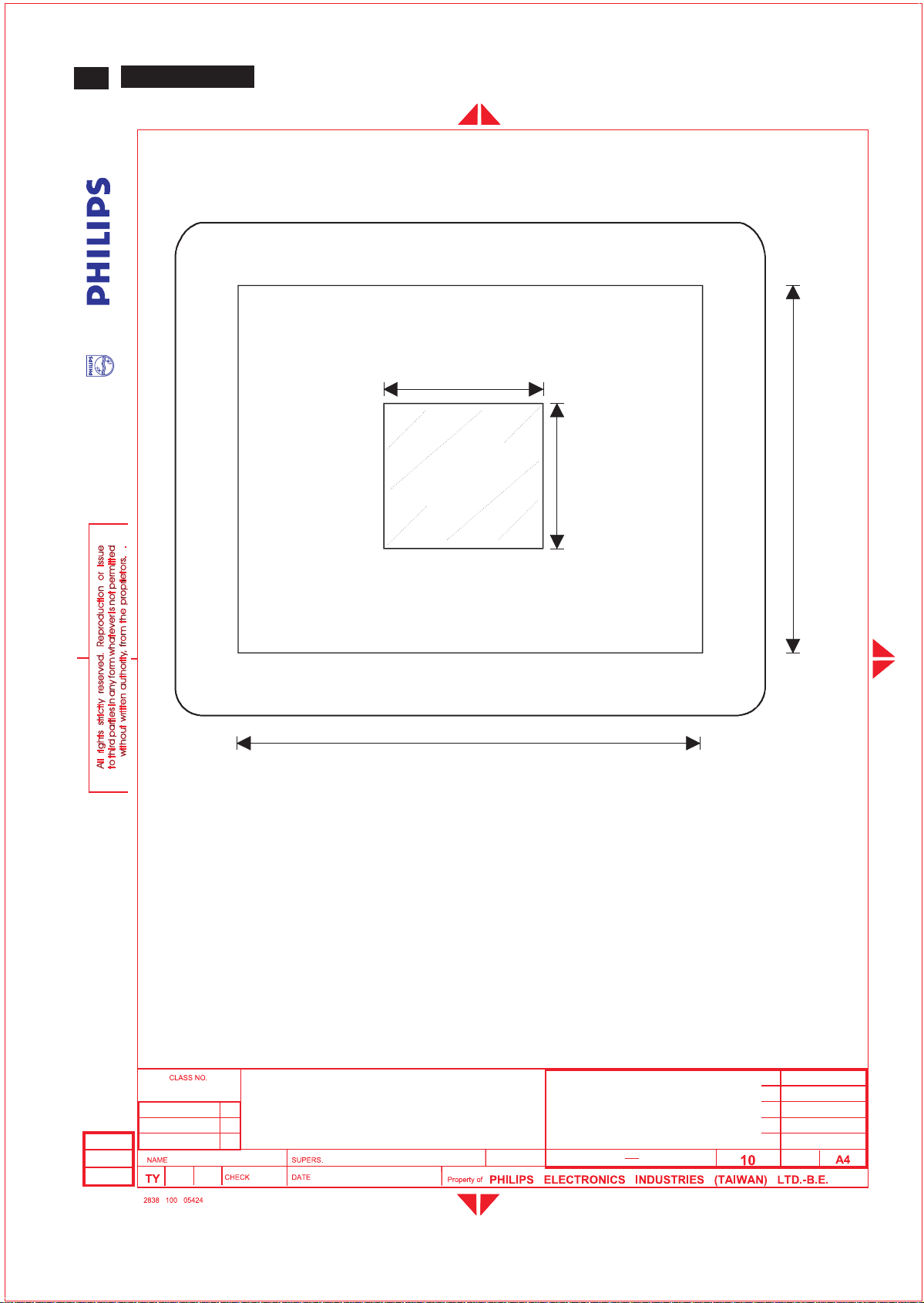

4.2 Image size (For preset modes only)
The dimensions of guaranteed display area to be measured along the picture center of
horizontal and vertical axis of the screen as listed below: (preset modes only, refer
to fig. 1)
105S2 CM23 GSIII
9
Go to cover page
63
Width : 270 3 mm
Height : 202 3 mm
+
+
-
4.3 Image centering deviation (For preset modes only)

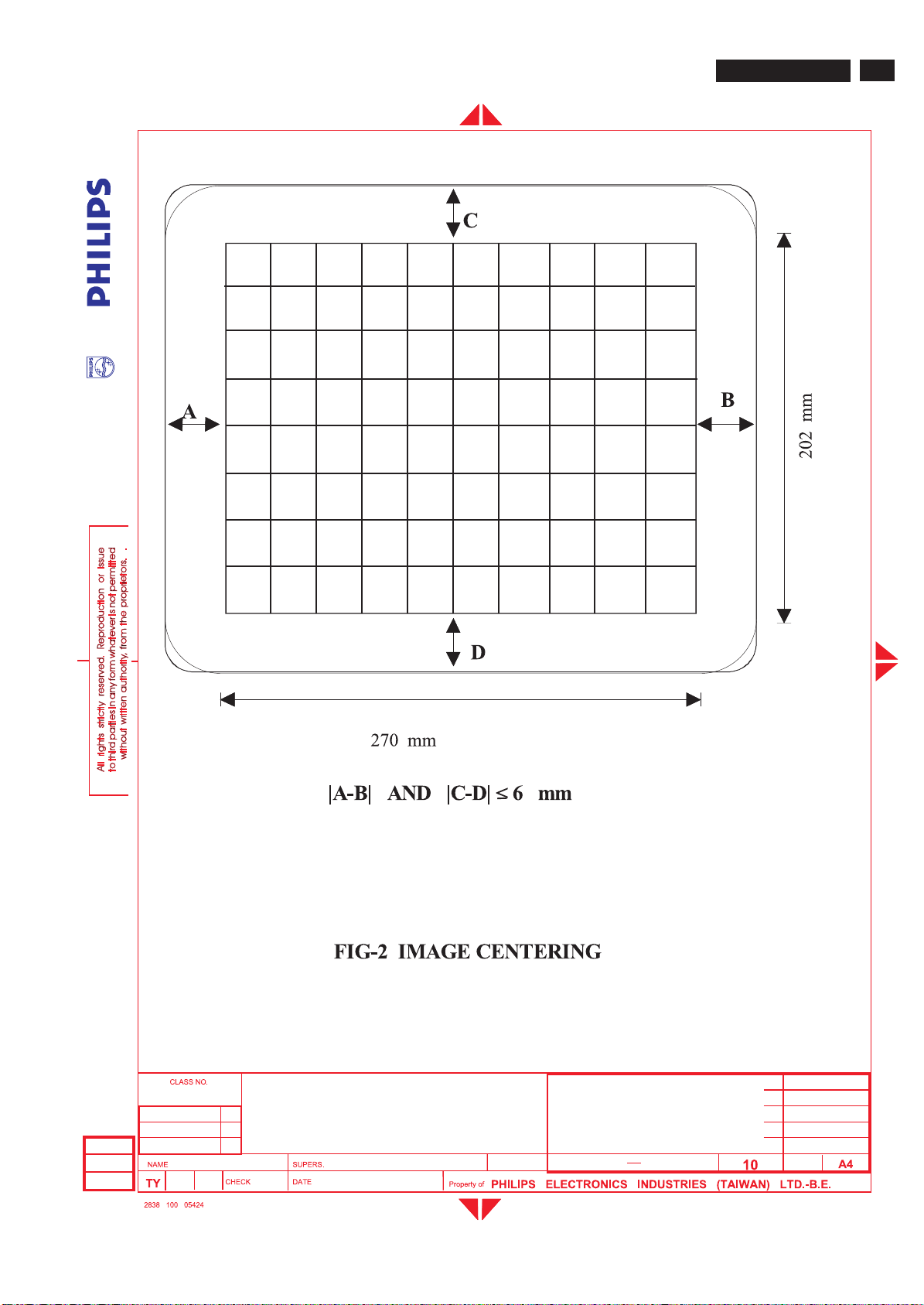

With respect to fig. 2, the target relationships are the following :
|A- B| 6 mm |C- D| 6 mm
<
-
<
-
Note : This centering is adjustable by the end-user.
4.4 Picture shift control range (For preset modes only)
H-shift range : 10 mm min.
V-shift range : 10 mm min.
+
-
+
-

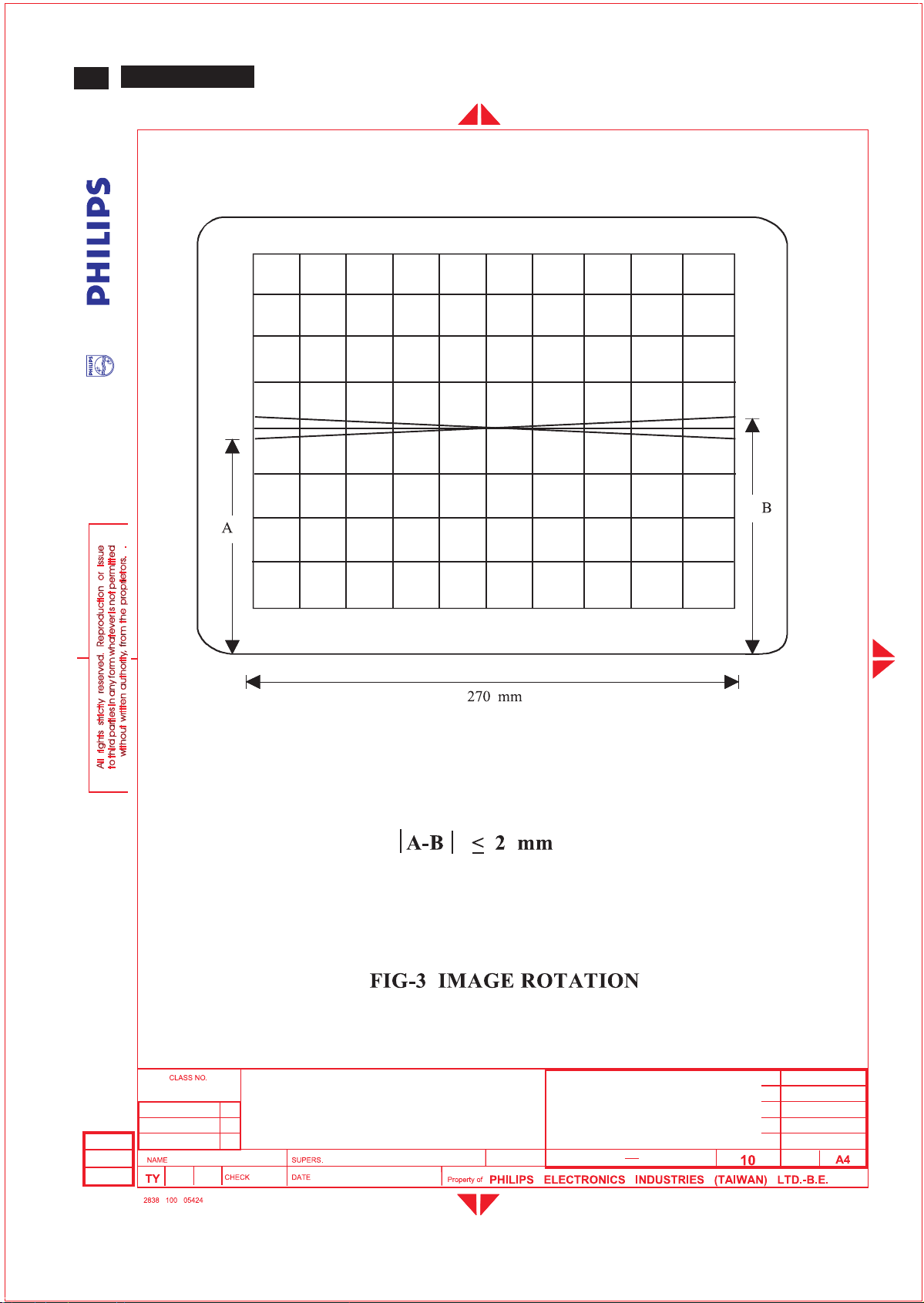

4.5 Picture tilt
With respect to Fig. 3, Tilt to be measured on extremes of center line from bezel.
|A- B| : 2 mm
<
-

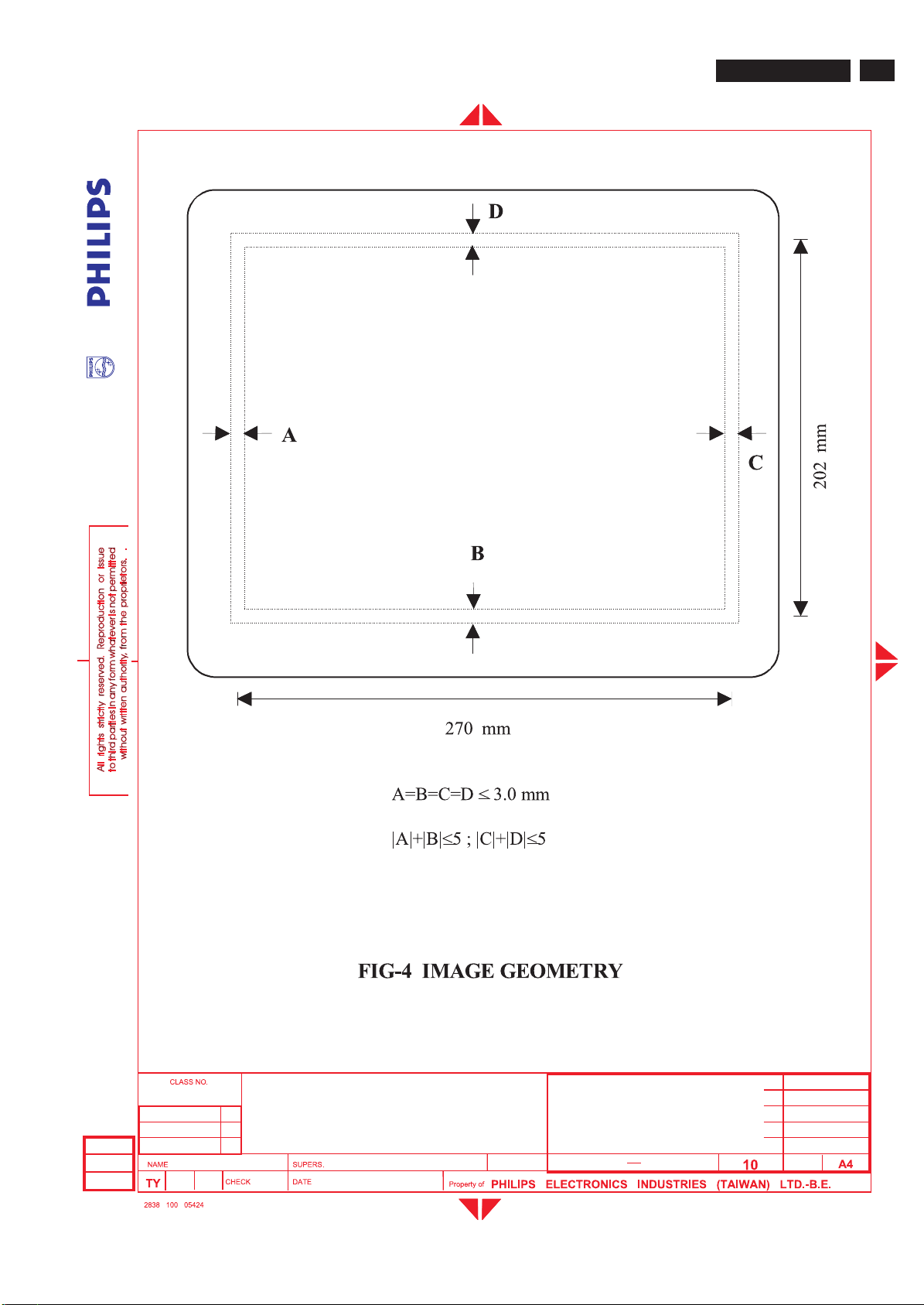

4.6 Geometrical distortions (For preset modes only)
It is acceptable that pincushion, trapezoid, rhomboid, rotation and various waves
distortions must remain within the limits of tolerance as in fig. 4,
where A = B < 3.0 mm.
C=D<3.0mm.
|A|+|B|<5;|C |+ |D | <5mm
The waviness of any vertical or horizontal shall be less than 1.0 mm over a 50 mm
distance.
4.7 Image non-linearity pattern with
12 equal blocks along horizontal axis,
10 equal blocks along vertical axis. (see Fig. 1) (For preset modes only)
Overall : 10 % (each horizontal and vertical)
<
-
Deviation of Two adjacent block : 6 %
X. Max. - X. average.
H. non-linearity = x 100%
X. Max.
Y. Max. - Y. average.
V. non-linearity = x 100%
Y. Max.
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
00-05-12
MAY YU
BRAND : PHILIPS (60K)
00-05-12
<
-
+
-
15
28
8639 000 10601
590
3Back
Forward4
Page 16
64
9
Go to cover page
105S2 CM23 GSIII
4.8 Mis-convergence
4.9 Focus check ( 53.7 KHZ / 85 HZ )
GENERAL PRODUCT SPECIFICATION

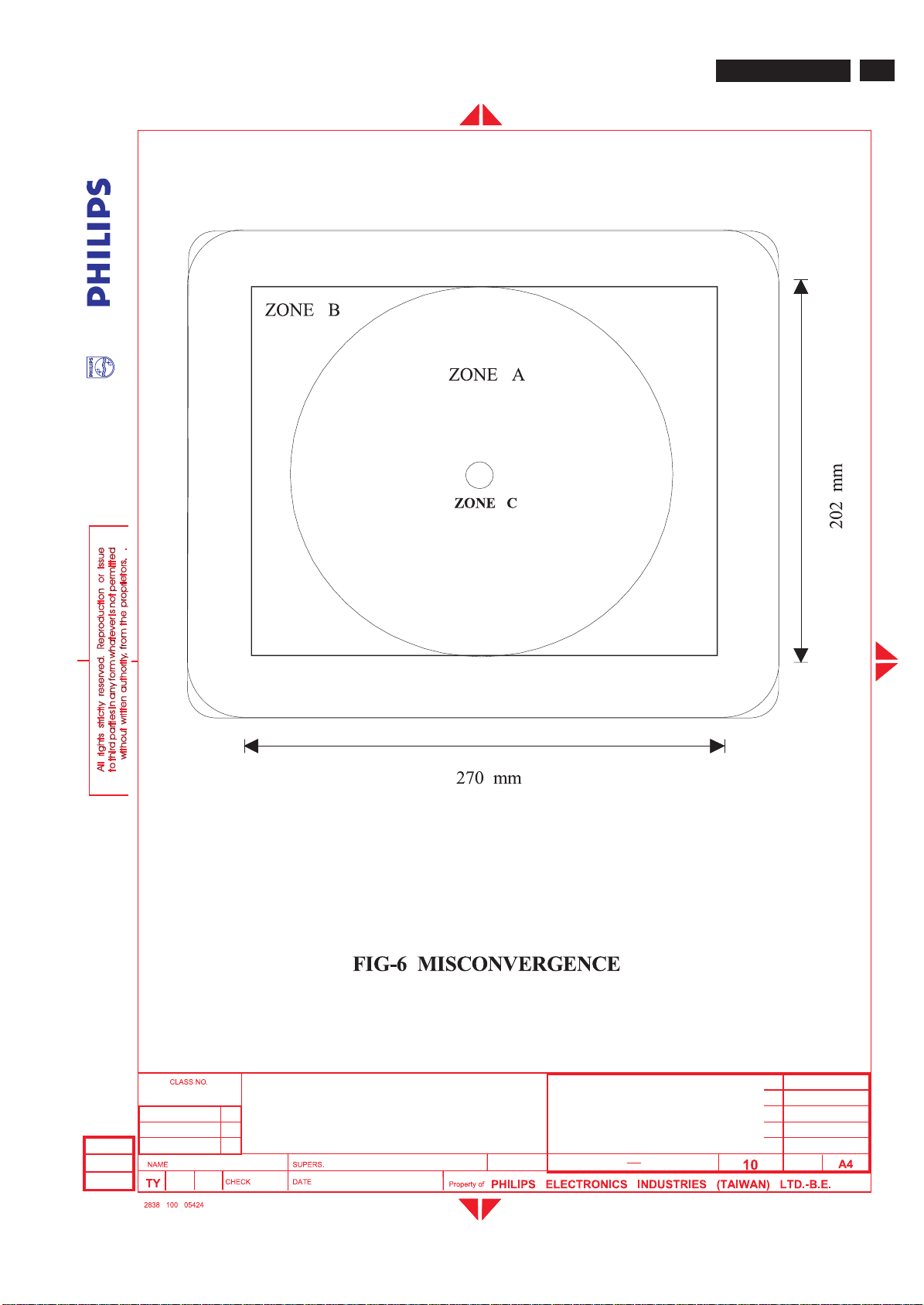

The maximum convergence error to be measured on a white spot or white display line to
represents the maximum distance between the energy centers of any two primary
colors. (See Fig. 6)
CONVERGENCE SPEC.
Zones 0.28 mm CRT
Zone C 0.15 mm
Zone A 0.25 mm
Zone B 0.35 mm
Adjust brightness control to center click and contrast control to get 25 FL at full white

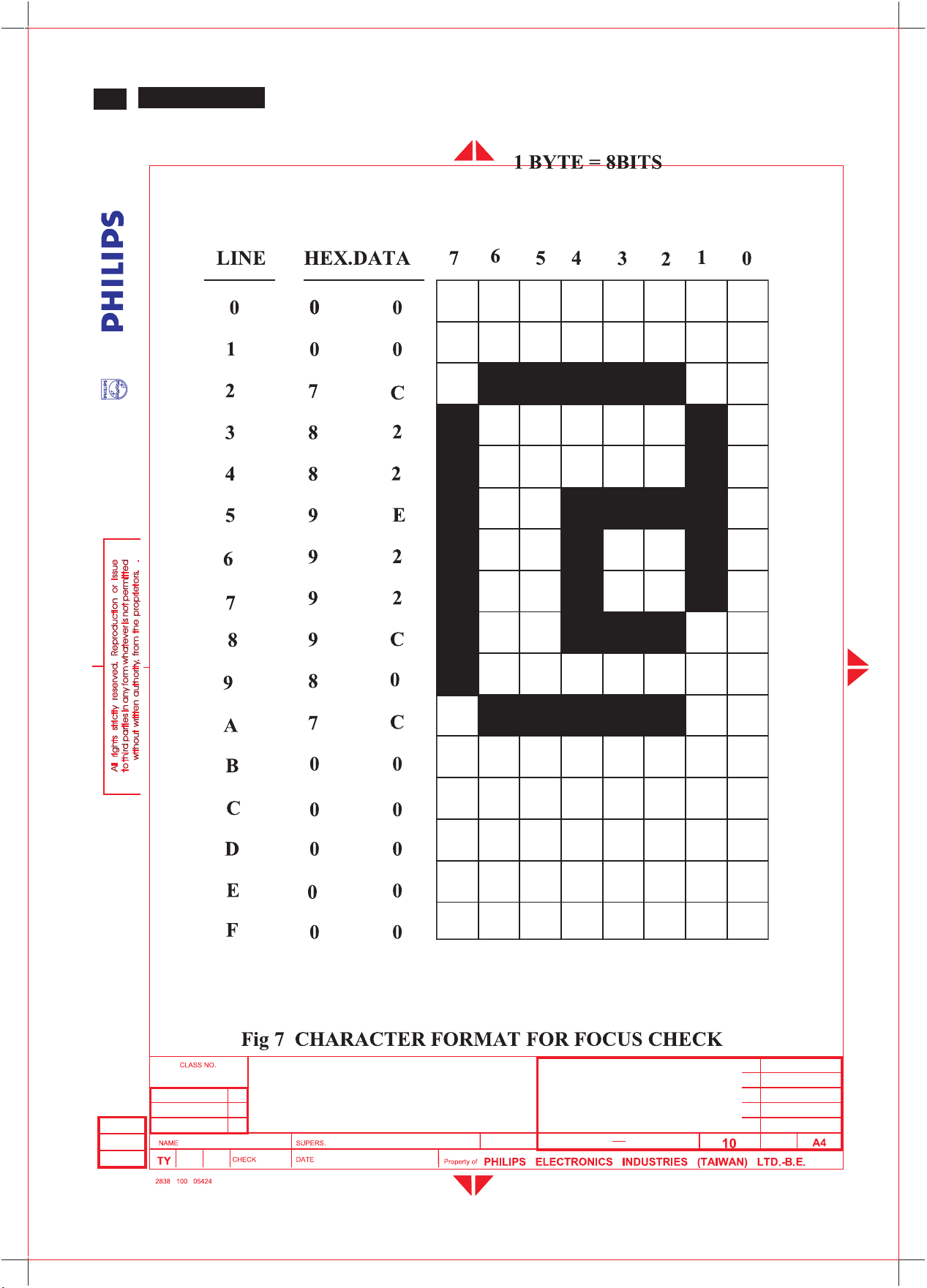

pattern , then generate "@" characters to cover entire of the picture the characters should
be clearly identified in all display area. (See Fig. 7)
4.10 Luminance uniformity
condition : With full white pattern, set contrast control at maximum position and
brightness control at center click position.
The center of the display is 30 FL 5 FL, the Max. deviation of the screen
should not exceed 25% .
4.11 White color adjustment
Based on the 1931 CIE chromatic diagram (x,y) coordinates of white display on screen
center should be:
For 9300 K X = 0.283 0.015
Y = 0.297 0.015
For 6500 K X = 0.313 0.015
Y = 0.329 0.015
+
+
-
+
-
+
-
Check conditions :
Set brightness control at center click position and contrast at maximum position.
4.12 Color tracking on full white pattern
To adjust the luminance output from 3 to 30 FL. By turning the contrast control
(brightness control at center click position),
the color co-ordinates should not deviate more than the following tolerance when
compare to display center:
+
-
3Back
00-05-12
MAY YU
X= X (center) 0.015
Y= Y (center) 0.015
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
+
-
+
-
+
-
15" CM2300 GS-III CMTR
00-05-12
28
8639 000 10601
590
16
Forward4
Page 17
GENERAL PRODUCT SPECIFICATION
4.13 Purity
Test patterns : Full white / Red / Green / Blue.
Conditions : As stated in item 4.0, the purity must be checked under specific
destinations of earth magnetic environments and the monitor to be well
degaussed.
After warming-up time of 30 min. , no color stains may occur in above four patterns.
4.14 Moire'e
Condition: Displaying a full white pattern, at any preset mode , the display size to be set
as Fig.1
The clouding effect must not rise to disturbing levels in 1/3 area of the screen with
luminance setting from 15 to 30 FL.
4.15 Blemish
Blemish shall be in accordance with CRT specification.
5.0 Mechanical characteristics
105S2 CM23 GSIII
9
Go to cover page
65
5.1 User controls
- Power ON/OFF switch
- 5 Key digital user control
5.2 Connectors and cables
5.2.1 Power cord type : 3 leads plugable power cord with
protective earthed plug or IBM Hooded
Length : 1.5 m 50 mm (exc. connector)
+
-
+
-
Safety requirements : See following.
Approval
Countries Mains plug Wire Connector
Germany VDE VDE VDE
Switzerland -- SVE SVE
Belgium CEBEC -- -Sweden SEMKO SEMKO SEMKO
Finland EI -- EI
Norway NEMKO NEMKO --
Denmark DEMKO DEMKO DEMKO
Italy OVE -- OVE
Netherlands KEMA KEMA KEMA
U.K. ASTA HAR ASTA
U.S.A. UL UL UL
Canada CSA CSA CSA
Australia SAA SAA SAA
+
-
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
17
Forward4
Page 18
66
9
Go to cover page
105S2 CM23 GSIII
5.2.2 Signal cable
GENERAL PRODUCT SPECIFICATION
Length of video : 1.5 m 50 mm flying with 15 pin PS/2
+
-
D-shell socket
5.3 Tilt and swivel base
Tilt angle : 5 forward and 15 backward
Swivel rotation : 90 leftward or rightward
6.0 Environmental characteristics
The following sections to define the interference and susceptibility condition limits that
might occur between external environment and the display device.
6.1 Susceptibility of display to external environment
6.1.1 (A) Operating limits
Temperature : 0C to 40C
Humidity : 10 to 90% (W/O condensation)
Air pressure : 700 ~ 1100 mbar
( B) Non-operating limits (storage)
Temperature : -25C to 60C
Humidity : 5 to 95 % (W/O condensation)
Altitude : 300 to 1100 mbar
6.1.2 Transportation packages
A) Carton box
A-1 Size (with pedestal)
432(W)456(D)419(H)
A-2 Carton paper : double wall AB fute corrugate board, color brown
Bursting : 19.3 kg/cm min
2
Compression : 600 kg min
B) Transportation conditions
B-1 Container loading (separated pedestal)
Container size
40' 20'
Q'ty
W/ palette W/ palette
Yes No Yes No
Layers 5 5 5 5
Sets per layer 6 6 6 6
Sets per block 30 30 30 30
Blocks per container 22 22 10 10
Total sets 660 660 300 300
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
00-05-12
BRAND : PHILIPS (60K)
8639 000 10601
3Back
MAY YU
00-05-12
28
590
18
Forward4
Page 19
GENERAL PRODUCT SPECIFICATION

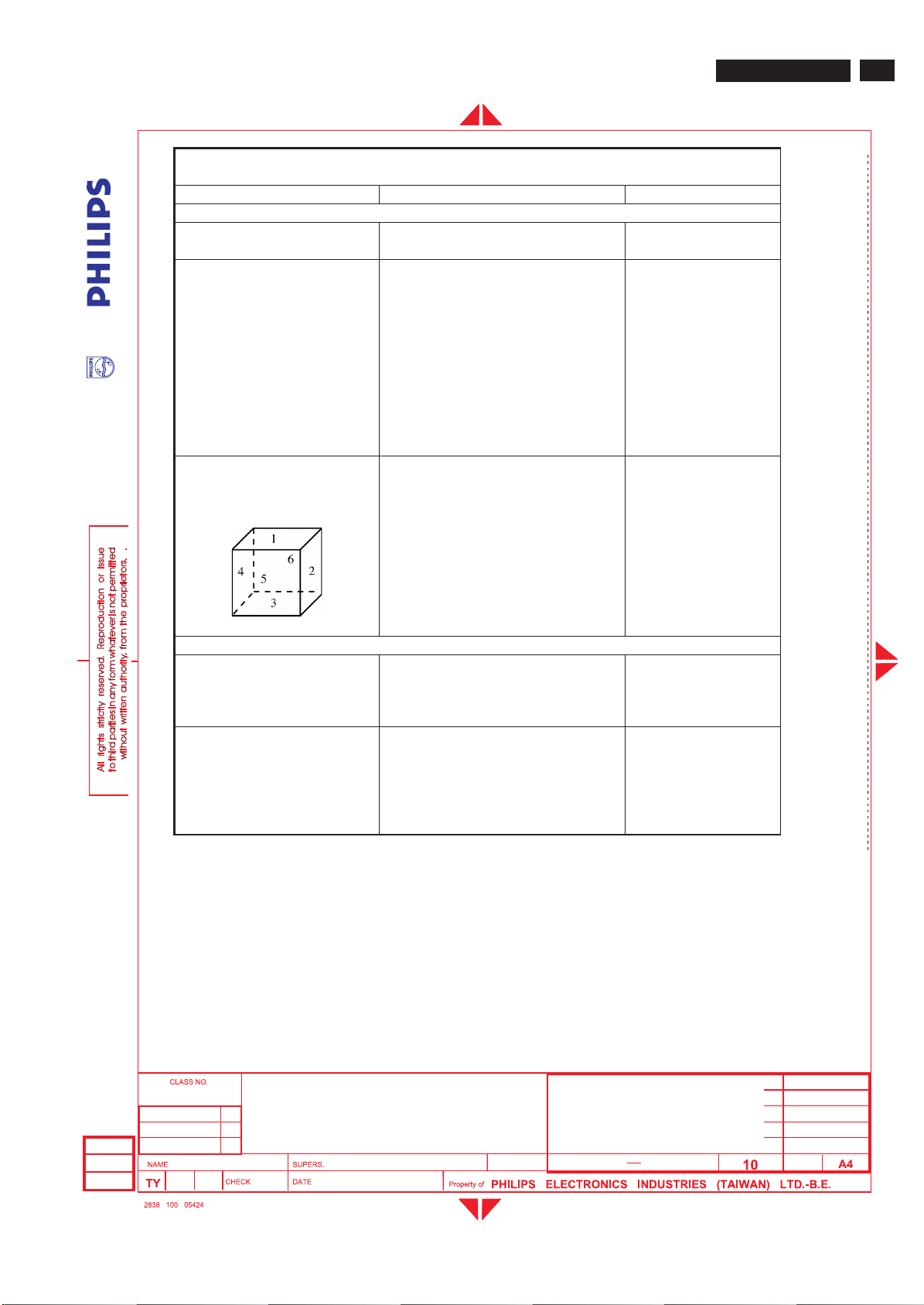

B-2 Transportation standards
TRANSPORTATION TEST OF BU-MONITORS
1999/1/27
TEST ITEM TEST CONDITION STANDARD REFERENCE
1. PACKAGED TEST:
1.1 Packaged random vibra. test l 5~200 Hz, 0.73 Grms,
l 30 MIN/ AXIS, 3 AXES.,
1.2Droptest l Gross weight drop height:
9.53~18.59 kg 61 cm
l Sequence: 1C-3E-6F, 10 drops,
For main land China:
(exclude local for local)
l Sequence: 1C-3E6F-
bottom side:30cm-
bottom side: 70cm-bottom side: 30cmbottom side: 80cm, 14drops,
105S2 CM23 GSIII
9
Go to cover page
Ref. ASTMD-4169
NSTA
NSTA
NSTA + bottom 4 drops
67
1.3 Cold drop test
(Only for reference)
!
2. UN-PACKAGED VIBRATION TEST:
!
2.1 Operating random vibra. test l 5~500Hz, 0.25 Grms,
!
!
!
!
2.2 Shock test (half sine) a. 120G, <3 msec, 6 shocks
!
!
!
!
!
l -10 C for 16 hours, recovery time after
cold test: +/- 5minutes
l Gross weight drop height:
9.53~18.59 kg 61cm
l Sequence: 1C-3F, 4drops,
1 set: C345-F4-F5-F3,
1 set: C261-F2-F6-F1
l 30 min/axis 3 axes.
l Frequency: (Hz): 5,350,500
G^2/ Hz: 0.001, 0.0001, 0.00005
l G value measurement filter: 1000Hz
l Exclude CRT impurity
b. 140 G, <3 msec, 6 shocks
(Only for reference)
!
!
6.2 Display disturbances from external environment
6.2.1ESD Disturbances
According to EN50082-1 (also refer to IEC801-2 for detail).
UN-D1400
NSTA
Ref. OEM spec.
Ref. OEM spec.
3Back
6.3 Display disturbances to external environment
The disturbances induced by the display and tolerated by the environment are defined as follows :
6.3.1 Ionizetic radiation
Completely fulfilled International Commission of
Radio logical Protection (ICRP) requirement 0.5 mR/Hr.
Actually the set can reach 0.1 mR/Hr.
6.3.2 EMI
Can comply with FCC part 15, DOC C108.8 and EN55022
15" CM2300 GS-III CMTR
00-05-12
MAY YU
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
28
00-05-12
8639 000 10601
590
19
Forward4
Page 20
68
9
Go to cover page
105S2 CM23 GSIII
GENERAL PRODUCT SPECIFICATION
6.3.2 EMI
Can comply with FCC part 15, DOC C108.8 and EN55022
7.0 Safety tests
7.1 Dielectric strength (Hi-pot test)
According to IEC950, UL1950 and CSA 22.2 No 950
7.2 Resistance for protective earthing
According to IEC950
7.3 Leakage current
According to IEC950, UL1950 and CSA22.2 No. 950
7.4 Grounding
According to IEC950, UL1950 and CSA22.2 No. 950
8.0 Certifications
8.1 Safety
The monitors comply with the following safety standards:
- IEC950
- UL1950
- DHHS 21 CFR, subchapter J
- CSA-22.2 NO. 950
- GERMANY ZH1/618(GS), ISO 9241-3,-8
8.2 EMI (Electromagnetic Interference)
The monitor comply with the following EMI standards :
- EN55022
- FCC Part 15
- DOC C108.8
8.3 Fulfil approbation requirements
Destination basis, set can fulfil following requirements:
Countries Safety EMI
Germany TUV,GS CE
Sweden SEMKO ---Norway NEMKO ---Denmark DEMKO ---Finland FIMKO ---Spain HOMOLOGATION CE
UK BEAB CE
U.S.A. UL , DHHS FCC
Canada CSA DOC
Japan ---- VCCI
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
20
Forward4
Page 21
GENERAL PRODUCT SPECIFICATION
9.0 Reliability
9.1 Mean time between failures
MTBF to be calculated according to Military standard
MIL-HDBK-217C.
MTBF 75,000 Hours (Excluding CRT)
TOTAL HRS (POWER ON) X TOTAL SETS
PRACTICE of MTBF = -------------------------------------------------------
NBR. OF FAILURE SETS
10.0 Quality assurance requirements
10.1 Acceptance test
According to MIL-STD-105D level II,
AQL : 0.4 (Major)
: 1.0 (Minor)
105S2 CM23 GSIII
9
Go to cover page
69
Customer acceptance : UAW 0377/40
criteria
11.0 Service ability
The service ability of this monitor should fulfil the requirements which are
prescribed in UAW-0346 and must be checked with the check list UAT - 0361
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
21
Forward4
Page 22
70
9
Go to cover page
105S2 CM23 GSIII
GENERAL PRODUCT SPECIFICATION
199 mm
202 mm
205 mm
00-05-12
MAY YU
267 mm
270 mm
273 mm

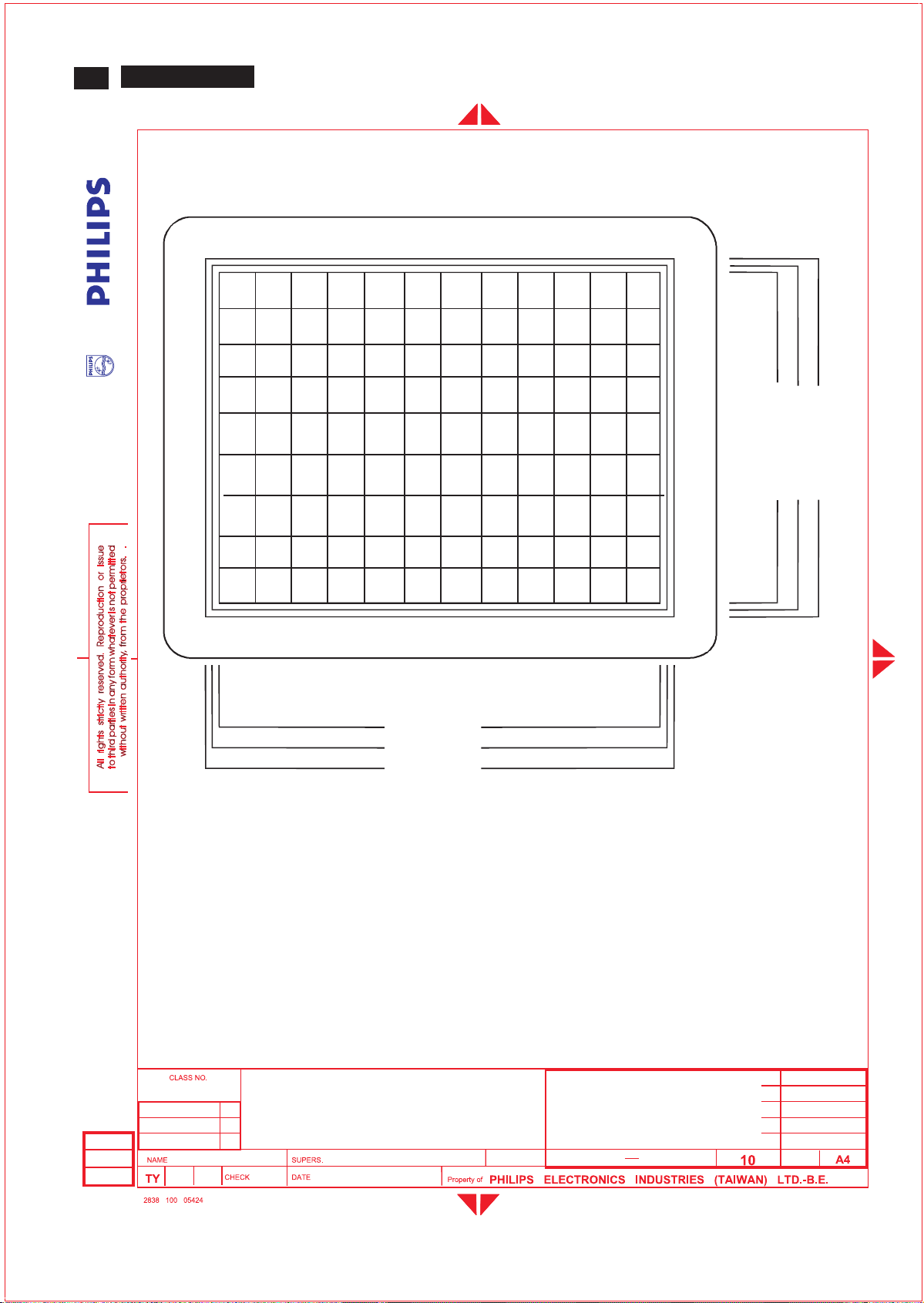

FIG-1 IMAGE DIMENSION
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
22
3Back
Forward4
Page 23
GENERAL PRODUCT SPECIFICATION
105S2 CM23 GSIII
9
Go to cover page
71
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
23
Forward4
Page 24
72
9
Go to cover page
105S2 CM23 GSIII
GENERAL PRODUCT SPECIFICATION
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
24
Forward4
Page 25
GENERAL PRODUCT SPECIFICATION
105S2 CM23 GSIII
9
Go to cover page
73
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
25
Forward4
Page 26
74
9
Go to cover page
105S2 CM23 GSIII
GENERAL PRODUCT SPECIFICATION
50 mm
ZONE A
ZONE B
270 mm
202 mm
50 mm
3Back
00-05-12
MAY YU
FIG-5 CONTRAST AND BRIGHTNESS
MEASUREMENT AREA
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
28
00-05-12
8639 000 10601
590
26
Forward4
Page 27
GENERAL PRODUCT SPECIFICATION
105S2 CM23 GSIII
9
Go to cover page
75
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
27
Forward4
Page 28
76
9
Go to cover page
105S2 CM23 GSIII
GENERAL PRODUCT SPECIFICATION
3Back
00-05-12
MAY YU
15" CM2300 GS-III CMTR
TYPE : 105S21/89H (COCA)
BRAND : PHILIPS (60K)
00-05-12
28
8639 000 10601
590
28
Forward4
Loading...
