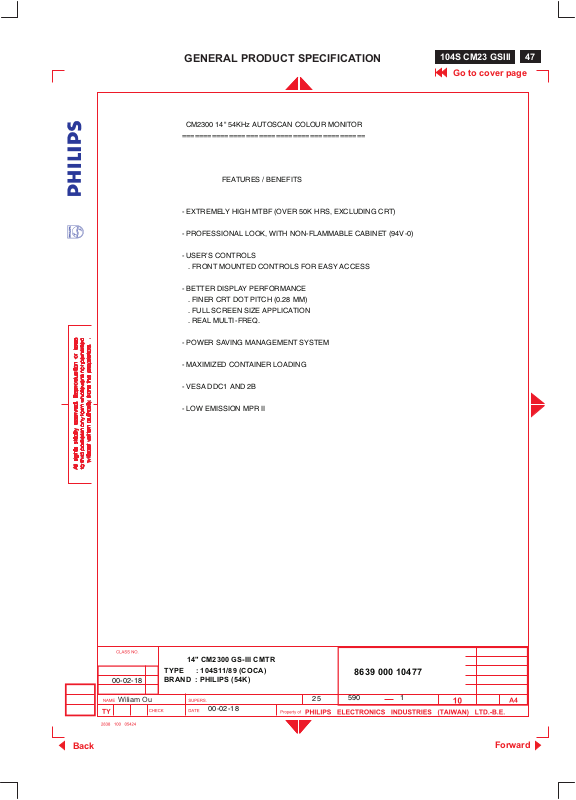

Page 1
GENERAL PRODUCT SPECIFICATION
CM2300 14" 54KHz AUTOSCAN COLOUR MONITOR
===========================================
FEATURES / BENEFITS
- EXTREMELY HIGH MTBF (OVER 50K HRS, EXCLUDING CRT)
- PROFESSIONAL LOOK, WITH NON-FLAMMABLE CABINET (94V-0)
- USER'S CONTROLS
. FRONT MOUNTED CONTROLS FOR EASY ACCESS
- BETTER DISPLAY PERFORMANCE
. FINER CRT DOT PITCH (0.28 MM)
. FULL SCREEN SIZE APPLICATION
. REAL MULTI -FREQ.
104S CM23 GSIII
Go to cover page
47
- POWER SAVING MANAGEMENT SYSTEM
- MAXIMIZED CONTAINER LOADING
- VESA DDC1 AND 2B
- LOW EMISSION MPR II
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
1
Forward
Page 2
48
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
INDEX
=========
1.0 Introduction
2.0 General description
2.1 General condition
3.0 Electrical characteristics
3.1 Signal interface
3.1.1 Input requirements
3.1.2 Signals input
3.1.3 Factory preset modes
3.2 Timing requirements
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
3.4 Power saving management system
3.5 CRT description
3.6 RGB amplifier
3.6.1 Video amplifier
3.6.2 Brightness and Contrast
3.7 Variation of image size
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements (MPR-II )
3.11 Display data channel : DDC1/2B (VESA STANDARD)
00-02-18
Wiliam Ou
4.0 Display
4.1 Display resolution
4.2 Image size
4.3 Image centering deviation
4.4 Picture shift control range
4.5 Picture tilt
4.6 Geometrical distortion
4.7 Image non-linearity
4.8 Mis-covergence
4.9 Focus check
4.10 Luminance uniformity
4.11 White color adjustment
4.12 Color tracking on full white pattern
4.13 Purity
4.14 Moire'e
4.15 Blemish
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
2
Back
Forward
Page 3
GENERAL PRODUCT SPECIFICATION
5.0 Mechanical characteristics
5.1 User controls ( at front)
5.2 Connector and cables
5.2.1 Power Cord
5.2.2 Signal Cable
5.3 Tilt and swivel base
6.0 Environmental characteristics
6.1 Susceptibility of display to external environment
6.1.1 Operation limits
6.1.2 Transportation packages
6.2 Display disturbance from external environment
6.2.1 ESD disturbances
6.3 Display disturbance to external environment
6.3.1 Ionizetic radiation
6.3.2 EMI
7.0 Safety tests
7.1 Dielectric strength
7.2 Resistance for protective earthing
7.3 Leakage current
7.4 Grounding
104S CM23 GSIII
Go to cover page
49
8.0 Certifications
8.1 Safety
8.2 EMI
8.3 Fulfil approbation requirements
9.0 Reliability
9.1 Mean time between failures
10.0 Quality assurance requirements
10.1 Acceptance test
11.0 Service ability
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
3
Forward
Page 4
50
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
1.0 Introduction
This document is related to the 14" AUTOSCAN (VGA above and Max.
resolution 1024X768 by 60HZ refresh) color monitor for world-wide destination.
2.0 General description
The AUTOSCAN analog color monitor is specified as a display peripheral within
an IBM PC, PS/2 ,VGA and advance VGA compatible system.
The AUTOSCAN analog color monitor is to operate at horizontal line rates
between 30 to 54 KHz and refreshment rate between 50 to 120 Hz, can be applied to all
RGB analog computers within this scanning frequencies.
The AUTOSCAN analog color monitor is intended to be a finished product,
basically a display device mounted inside a plastic enclosure which provides the aesthetic
mechanical, ergonomic and safety requirements.
2.1 General condition
The unit will produce a usable image after switching-on,
measurements are to be carried out with a full stabilized
set after 30 minutes warm-up at room temperature of 25° C.
Repetitive power on/off cycles are allowed though should be avoided within 4 sec.
3.0 Electrical characteristics
3.1 Signal interface
The AUTOSCAN analog color display has an analog video
interface to operates at a multi-frequencies timing in several display modes.
3.1.1 Input requirements
A. Input signals
Video : Analog level
Sync. : Separated sync. with TTL level
Polarity : Positive or negative
B. Signal input level
Video : 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not
deviate 0.015 Vp-p from each other for balance of white pattern)
Sync : TTL level
(between 0 and 0.6 V to be considered as low level ,between 2.3 and 5.0 V as
high level)
Back
00-02-18
Wiliam Ou
C. Impedance
Video : Terminated with 75 ohms
Sync : Terminated with 4.7K ohms pull down resistors.
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
4
Forward
Page 5
3.1.2 Signals input
The input video signals are applied to the display device
through a video cable which is fixed to the monitor
(standard cable length 1.5M).
Video input cable :
15 pin D-shell male connector type AMP 211350 -1(3 rows)
or equivalent, with pin assignment as follows :
Pin assignment of 15P D-SUB connector
Pin nbr. Assignment
P1 Red video input
P2 Green video input
P3 Blue video input
P4 GND
P5 For selftest (PC Ground)
P6 Red video ground
P7 Green video ground
P8 Blue video ground
P9 Not connected -- No pin
P10 Sync ground
P11 GND
P12 Bi-directional Data (SDA)
P13 H SYNC
P14 V SYNC (VCLK)
P15 Data clock (SCL)
GENERAL PRODUCT SPECIFICATION
104S CM23 GSIII
Go to cover page
51
00-02-18
3.1.3 Factory preset modes:
PRESET VIDEO RESOLUTION AND SYNC POLARITIES
Preset modes H - Freq. V - Freq. H-sync V-sync
640 x 400 31.47K 70(VGA) - +
640 x 480 31.47K 60(VGA) - -
640 x 480 37.5 K 75(VESA) - -
800 x 600 46.875K 75(VESA) + +
800 x 600 53.674K 85(VESA) + +
1024 x 768 48.363K 60(VESA) - -
3.2 Timing requirements
The AUTOSCAN color monitor must be capable of displaying standard
resolutions within the vertical(refresh) frequency range of 50 to 120 Hz and horizontal
scan range of 30 - 54 KHz.
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
8639 000 10477
Back
Wiliam Ou
00-02-18
25
590
5
Forward
Page 6
52
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
TIMING FOR CM2300 104S
REFERENCE PATTERN GENERATOR : CHROMA 2135
* According VESA version 1.0 release 0.6p
TABLE 1: 31.5 KHz/70 Hz, 640 X 400, pixel=25.175 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size
Display size = 25.422 us Display size = 12.711 ms
Rear porch = 1.907 us Rear porch = 1.112 ms
Sync width = 3.813 us Sync width = 0.064 ms
Sync.polarity = - Sync.polarity = +
=
31.778
us
Total size
=
14.268
ms
TABLE 2: 31.469KHz/59.940 Hz, 640 X 480, pixel=25.175 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size
Display size = 25.422 us Display size = 15.253 ms
Rear porch = 1.907 us Rear porch = 1.049 ms
Sync width = 3.813 us Sync width = 0.064 ms
Sync.polarity = - Sync.polarity = -
TABLE 3: 37.5KHz/75 Hz, 640 X 480, pixel=31.5 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size
Display size = 20.317 us Display size = 12.800 ms
Rear porch = 3.810 us Rear porch = 0.427 ms
Sync width = 2.032 us Sync width = 0.080 ms
Sync.polarity = - Sync.polarity = -
=
=
31.778
26.667
us
us Total size
Total size
=
= 13.333
16.683 ms
ms
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
6
Forward
Page 7
GENERAL PRODUCT SPECIFICATION
TABLE 4: 46.875 KHz/75 Hz, 800 X 600, pixel=49.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size =
Display size = 16.162 us Display size = 12.800 ms
Rear porch = 3.232 us Rear porch = 0.448 ms
Sync width = 1.616 us Sync width = 0.064 ms
Sync.polarity = + Sync.polarity = +
TABLE 5: 48.363 KHz/60 Hz, 1024 X 768, pixel=65 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size
Display size = 15.754 us Display size = 15.880 ms
Rear porch = 2.462 us Rear porch = 0.600 ms
Sync width = 2.092 us Sync width = 0.124 ms
Sync.polarity = - Sync.polarity = -
=
21.333 us
20.677
us
Total size
Total size
=
=
104S CM23 GSIII
13.333 ms
16.666
53
Go to cover page
ms
00-02-18
TABLE 6: 53.674 KHz/85.061 Hz, 800 X 600, pixel=56.250 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size
Display size = 14.222 us Display size = 11.179 ms
Rear porch = 2.702 us Rear porch = 0.503 ms
Sync width = 1.138 us Sync width = 0.056 ms
Sync.polarity = + Sync.polarity = +
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
=
18.631 us
Total size
=
8639 000 10477
11.756 ms
Back
Wiliam Ou
00-02-18
25
590
7
Forward
Page 8
54
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
3.2.1 Horizontal scanning
Scanning frequency : 30 - 54 KHz
H-shift range : ± 10 mm Min. (for preset modes only)
3.2.2 Vertical scanning
Scanning frequency : 50 - 120 Hz
V-shift range : ± 8 mm min. (for preset modes only)
3.3 Power supply
The display device maintains the specified performance
in the range described as bellows :
Type Mains current Mains Voltage Mains freq.
Universal 1.5A Max. 90 - 264 VAC 47 - 63 Hz
230V version 0.7A Max. 195 - 264 VAC 47 - 63 Hz
115V version 1.5A Max. 90 - 132 VAC 60±3Hz
Power consumption : 72 Watts Max.
Power cord length : 1.5M
Power cord type : 3 leads plug power cord
with protective earth plug or IBM Hooded
3.4 Power saving management system
Signal Compliance Power Recovery
Mode
H -Sync V-Sync Video Requirement Time
On Active Active Active Mandatory £
Stand-by Inactive Active Blanked Mandatory 15w £ 3 sec.
Suspend Active Inactive Blanked Mandatory 15w £ 3 sec.
Off Inactive Inactive Blanked Mandatory 8w Normal
Remark: Transition time from “ON” to any power saving mode will have 5 seconds delay.
72w N/A
£
£
£
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
8
Forward
Page 9
GENERAL PRODUCT SPECIFICATION
3.5 CRT Description
This display unit employs a high resolution CRT complying
with the following specifications :
104S CM23 GSIII
Go to cover page
55
Dimensions : 14 inches, 29.1mm neck diameter,
Pitch : 0.28mm dotted with black matrix
Deflection angle : 90 degrees
Light transmission : 57% (dark glass)
Face treatment : Anti -glare, anti-static
Implosion protection : By P -Mini-rim-band.
EHT : 24.5 ± 1 KV (Ib=0)
Visible screen area : 280 +/-3 mm x 210 +/- 3mm
3.6 RGB Amplifier
3.6.1 Video amplifiers
Dot Rate : 65 MHz
Over / undershoot : 10% Max.
Sag : 5% Max.(pulses of 0.70H)
Black level shift : 5% Max.
3.6.2 Brightness and Contrast
Reference mode 53.674 KHZ/85 HZ full white pattern.
DISPLAY LIGHT OUTPUT
Brightness Contrast (full white)
Minimum Minimum £ 0.3 FL
Cente r Maximum 30 ± 5 FL.
flat/square screen
(Transient response)
Light output
00-02-18
Wiliam Ou
Maximum Maximum 37 ± 5 FL.
3.7 Variation of image size ( For preset modes only )
Due to brightness change : £ 1.0 %
(Set brightness control at center click, turn contrast control from Min. to Max.)
Due to aging
(25° C, 300 hrs) : £ 2.0 %
Due to mains voltage
variation ( ± 10% ) : £ 1.0 %
3.8 Degaussing
An automatic degaussing circuit is provided which requires no intervention.
The degaussing activated at the time of switch on or switch on again after
switching off degaussing circuits for longer than 30 minutes.
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
9
Back
Forward
Page 10
56
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
3.9 Phosphor protection
The display device is sufficiently protected against the burning of phosphors in
case of repetitive power cycling or absence of horizontal deflection.
3.10 Low emission requirements (MPR-II )
-----------------------------------------------
Items Band I Band I I
ELF (rms) VLF (rms)
Alternating Electric MPR -II < 25 V/M MPR-II < 2.5V/M
Field
Magnetic Field MPR-II < 250 nT MPR-II < 25 nT
Electrostatic
Potential < ± 500 V
Band I : 5 to 2K HZ.
Band II : 2K to 400K HZ.
Test procedure according to MPR-II and E.S.P. test method.
3.11 Display data channel : DDC1/2B (VESA STANDARD)
The DDC HEX Data (refer sheet 190) should be written into the
DDC IC (24LC21 or equivalent) Hard ware DDC or EEPROM page2,0~127bytes
(Soft ware DDC) by EEPROM writer or equivalent method.
00-02-18
4.0 Display image (CRT facing east)
The monitor is aligned in a magnetic cage having the
following magnetic field components :
Northern Hemisphere:H=0,V= 450mG,Z=0
Southern Hemisphere:H=0,V=-500mG,Z=0
Conditions for visual testing, unless otherwise stated:
Input video signal - 700 mVpp cross hatch
Brightness control - center click position
Contrast control - maximum position
4.1 Display resolutions
See 3.1.3
4.2 Image size (For preset modes only)
The dimensions of guaranteed display area to be measured along the picture center of
horizontal and vertical axis of the screen as listed below: (preset modes only, refer
to fig. 1)
Width : 250 ± 3mm
±
Height :188
3mm
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
8639 000 10477
Back
Wiliam Ou
00-02-18
25
590
10
Forward
Page 11
GENERAL PRODUCT SPECIFICATION

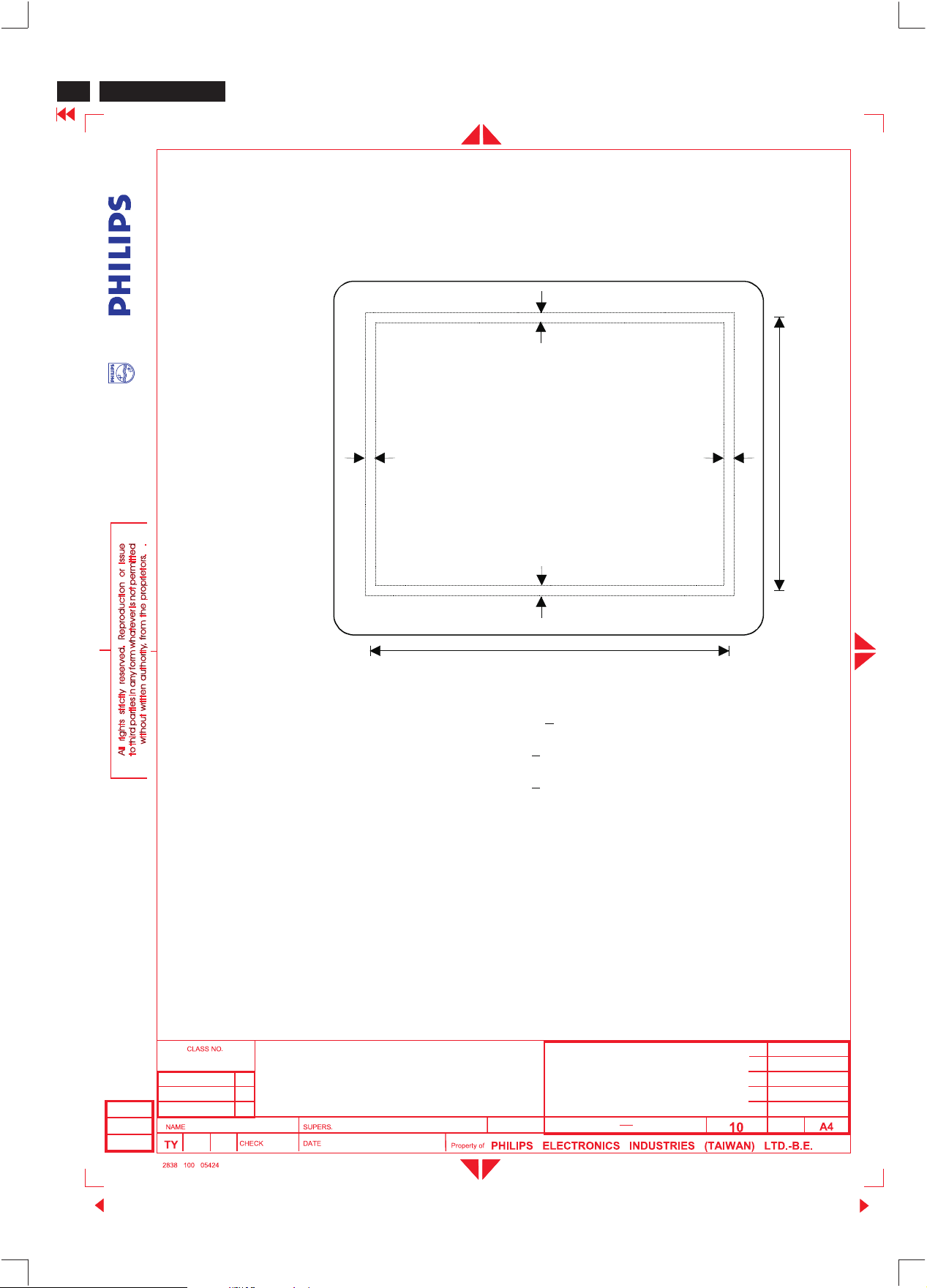

4.3 Image centering deviation (For preset modes only)
With respect to fig. 2, the target relationships are
the following :
|A- B| £ 6mm |C-D| £ 6mm
Note : This centering is adjustable by the end-user.
4.4 Picture shift control range (For preset modes only)
H-shift range : ± 10 mm min.
V-shift range : ± 8 mm min.

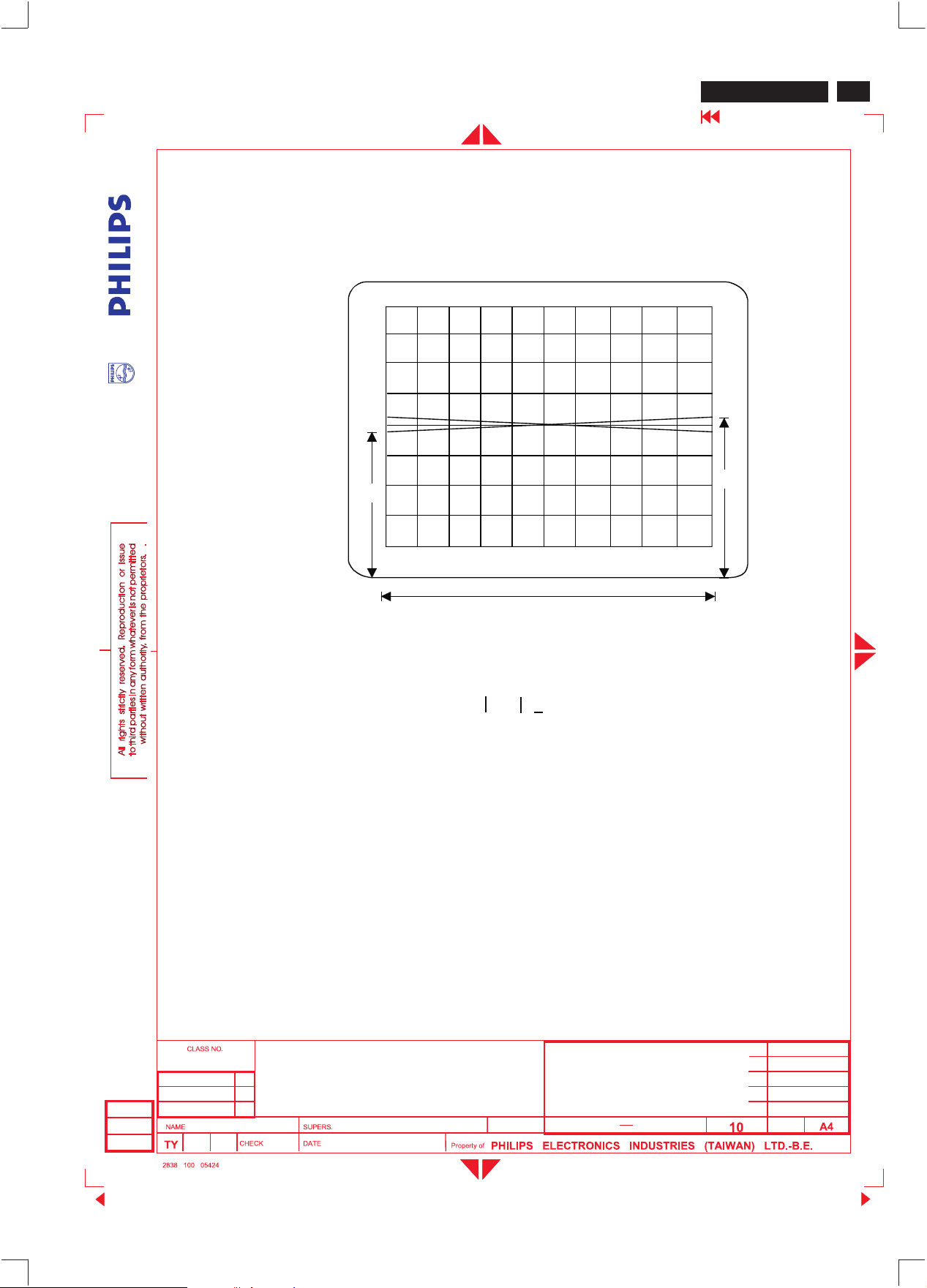

4.5 Picture tilt
With respect to Fig. 3, Tilt to be measured on extremes of center line from bezel.
|A- B| : £ 2mm
104S CM23 GSIII
Go to cover page
57
4.6 Geometrical distortions (For preset modes only)
It is acceptable that pincushion, trapezoid, rhomboid,
rotation and various waves distortions must remain within
the limits of tolerance as in fig. 4,
where A = B = 3.0 mm. A+B <5 mm
C=D=3.0mm.C+D<5mm
The waviness of any vertical or horizontal shall be less than 1.0 mm over a 50 mm distance.

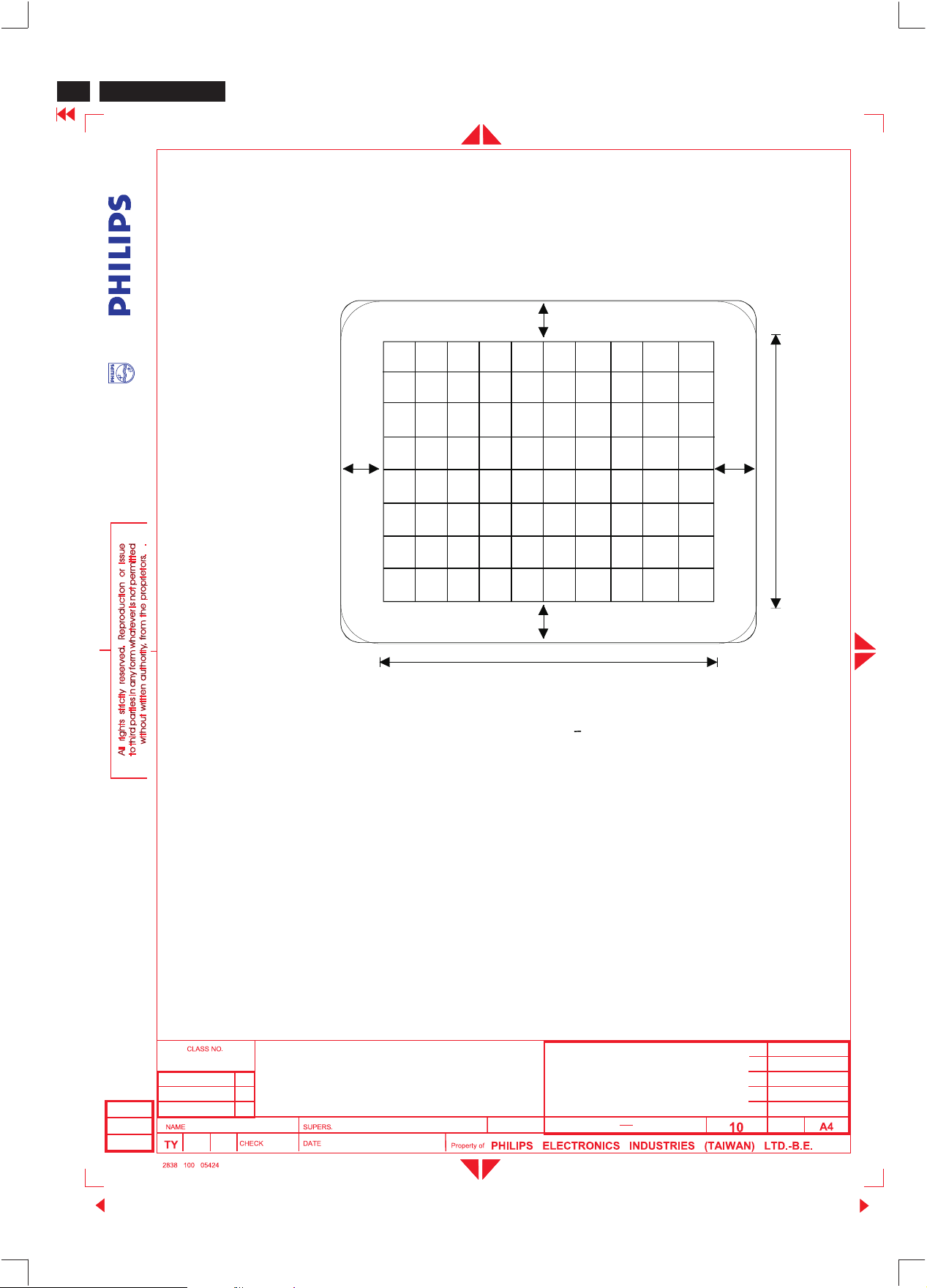

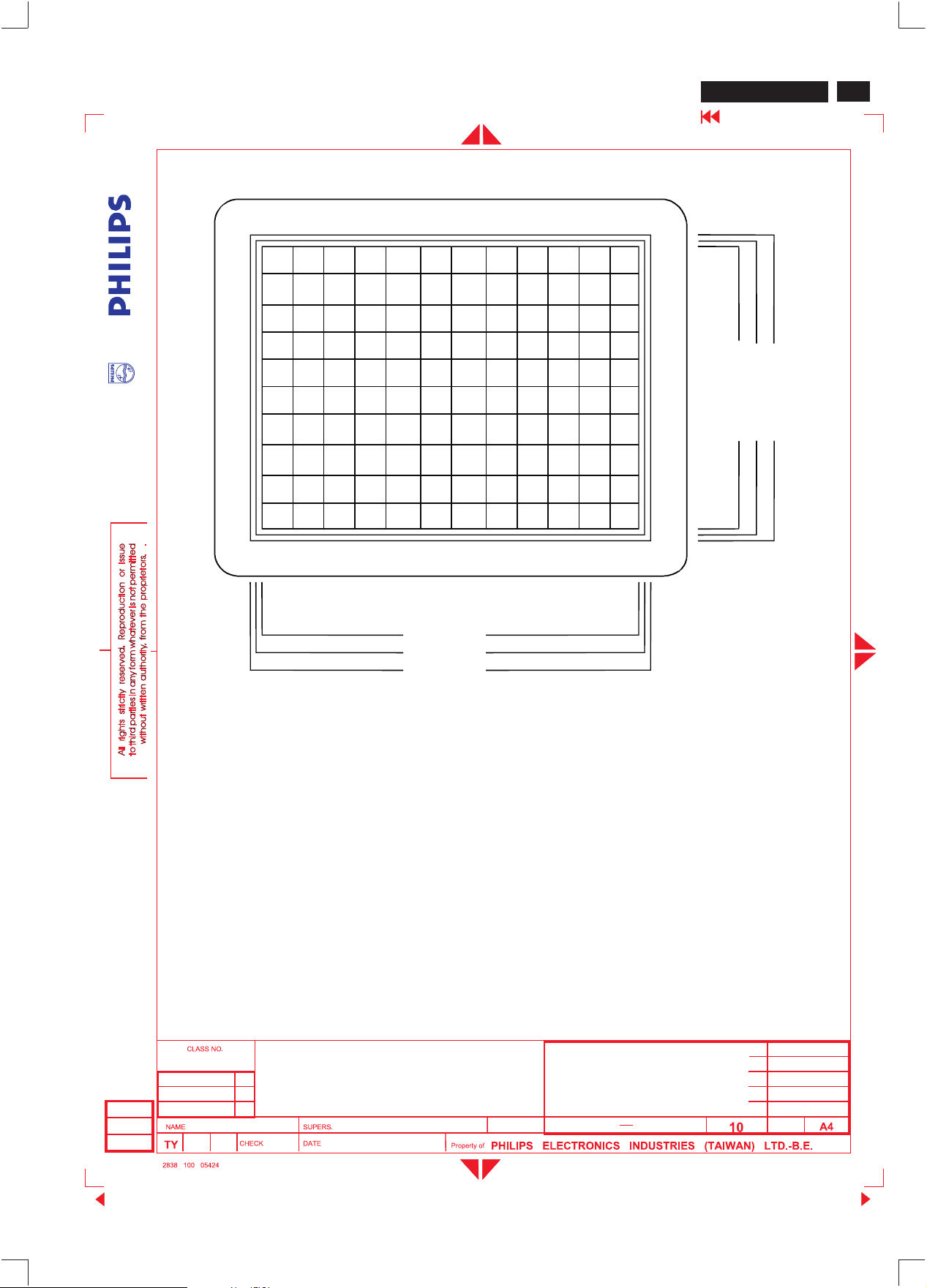

4.7 Image non-linearity pattern with
12 equal blocks along horizontal axis,
9 equal blocks along vertical axis. (see Fig. 1) (For preset modes only)
Overall : £ 10 % (each horizontal and vertical)
Deviation of Two adjacent block : £ 6%
-
X. Max.
H. non-linearity = x 100%
Y. Max. -
V. non-linearity = x 100%
X. ave.
X. Max.
Y. ave.
Y. Max.
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
11
Forward
Page 12
58
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
4.8 Mis-convergence
The maximum convergence error to be measured on a white
spot or white display line to represents the maximum
distance between the energy centers of any two primary
colors. (See Fig. 6)
CONVERGENCE SPEC.
Zones 0.28 mm CRT
Zone C 0.15 mm
Zone A 0.25 mm
Zone B 0.35 mm

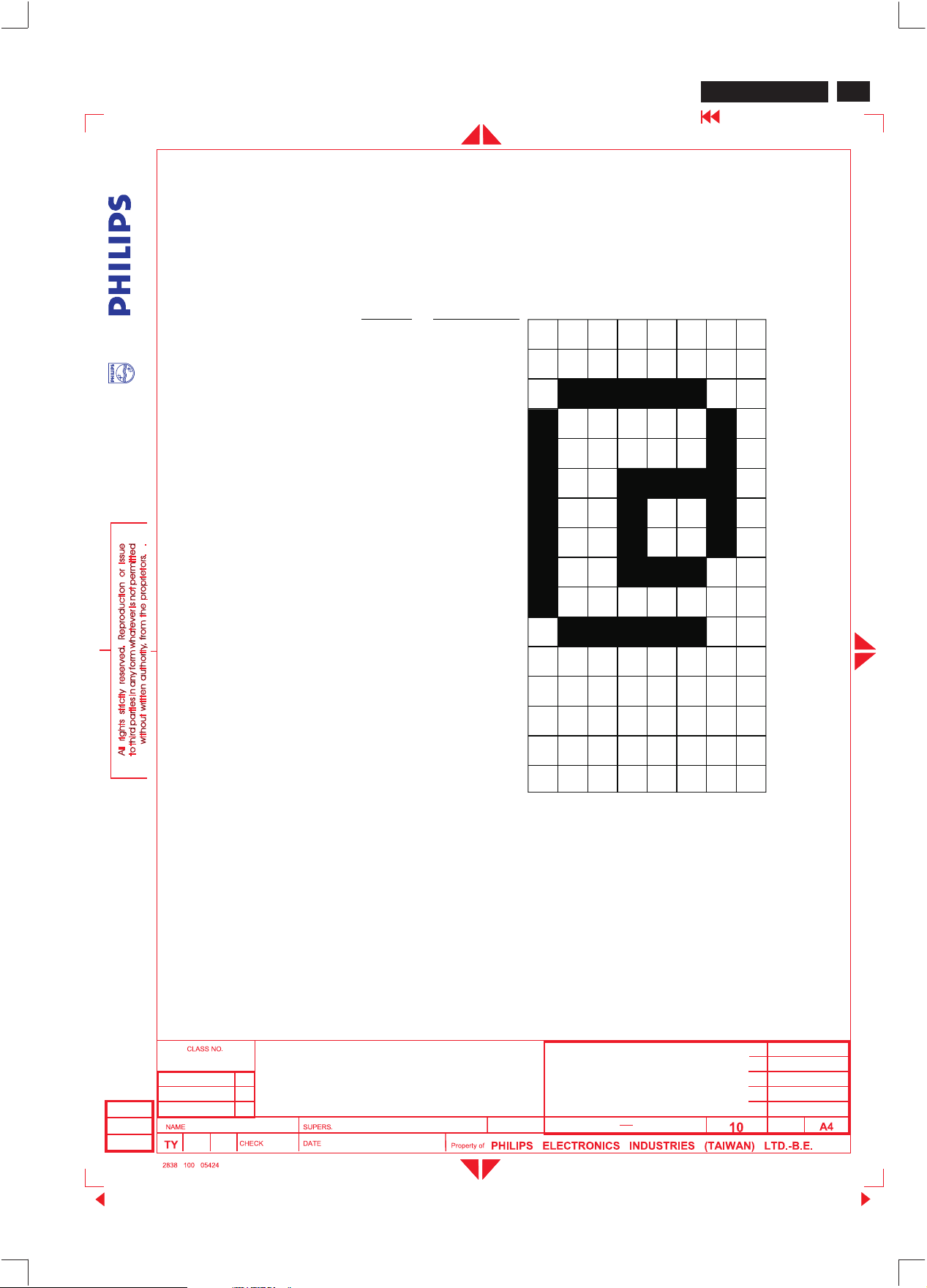

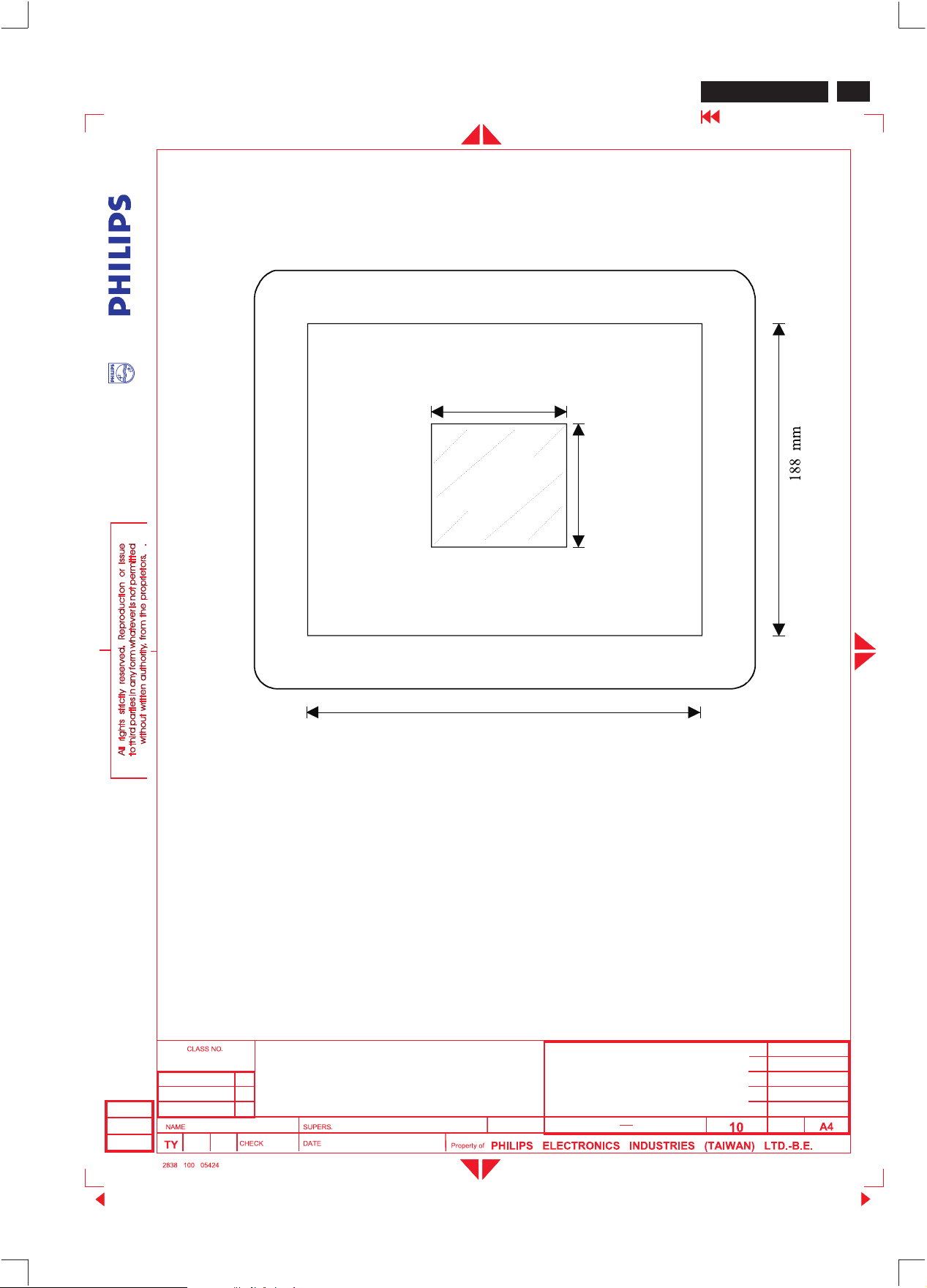

4.9 Focus check ( 53.674 KHZ / 85.061 HZ )
Adjust brightness control to center click and contrast control to
get 25 FL at full white pattern , then generate “@”
characters to cover entire of the picture
the characters should be clearly identified in
all display area. (See Fig. 7)

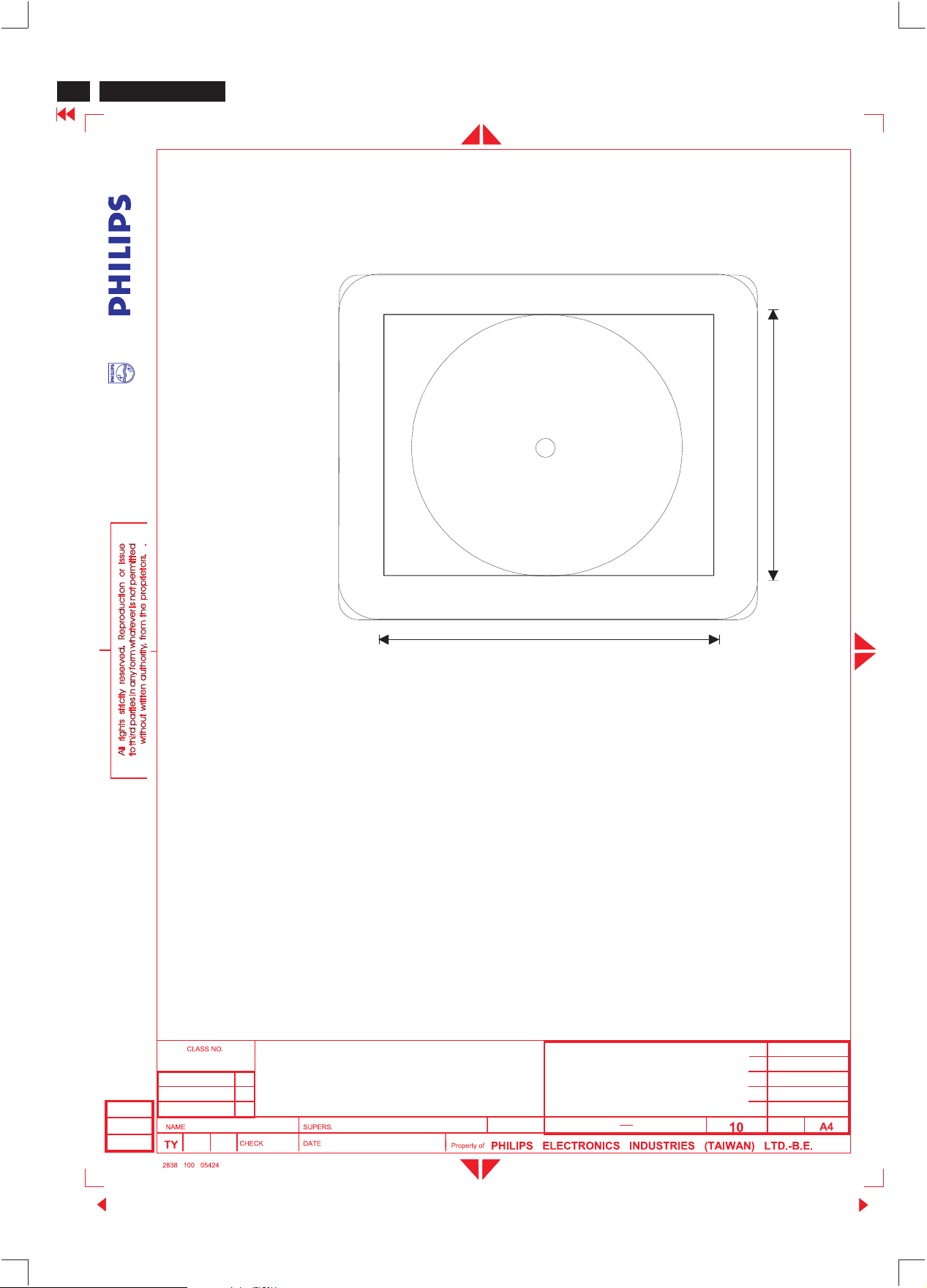

4.10 Luminance uniformity
00-02-18
condition : With full white pattern, set contrast control at maximum position
and brightness control at center c lick position.
The center of the display is 30 FL. , the Max. deviation of the
screen should not exceed 25% .
4.11 White color adjustment
Based on the 1931 CIE chromaticity
diagram (x,y)
coordinates of white display on screen center should be:
For 9300° K X = 0.281 ± 0.015
Y = 0.311 ± 0.015
Check conditions :
Set brightness control at center click position and
contrast at maximum position.
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
8639 000 10477
Back
Wiliam Ou
00-02-18
25
590
12
Forward
Page 13
GENERAL PRODUCT SPECIFICATION
4.12 Color tracking on full white pattern
To adjust the luminance output from 3 to 30 FL. By turning the contrast control
(brightness control at center click position),
the color co-ordinates should not deviate more than the following tolerance when
compare to display center:
X= X (center) ± 0.015
Y= Y (center) ± 0.015
4.13 Purity
Test patterns : Full white / Red / Green / Blue.
Conditions : As stated in item 4.0, the purity must be checked under specific
destinations of earth magnetic environments and the monitor
to be well degaussed.
After warming-up time of 30 min. , no color stains may occur in above four patterns.
104S CM23 GSIII
Go to cover page
59
4.14 Moire’e
Condition: Displaying a full white pattern, at any preset mode ,
the display size to be set as Fig.1
The clouding effect must not rise to disturbing levels in anywhere of the screen with
luminance setting from 15 to 35 FL.
4.15 Blemish
Blemish shall be in accordance with CRT specification.
5.0 Mechanical characteristics
5.1 User controls
- Power ON/OFF switch
- Contrast
- Brightness
Digital control buttons :
- Shift function ( function select of 1st and 2nd level controls)
- 1st level : H-Shift , H-Size , V-Shift , V-Size
- 2nd level : Trapezoid , Pincushion , Recall (Store)
(H -Shift) (H-Size) (V-Size)
- ”+” or “-” key : Increase or decrease setting
- H-Shift + V-Size : Factory mode entry. At Power on, simultaneously pressed
3 seconds, shift LED will flash 3 times.
* Power off/on return to user mode
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
13
Forward
Page 14
60
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
REMARK:
1. When “Shift” LED is off, control is at 1st level, and when LED is on, control is at 2nd level.
Press H-shift + V-shift keys simultaneously 2 seconds for “Shift” function .
2. “Shift” LED will flash 0.1 second at one time when
function keys (E.G. H- Shift , H-Size,...etc.) are pressed,
and it should flash continuously when adjusting “+” or “-” key
is at end of range, releasing “+” or “ -” key, all adjusted
values will be stored automatically after 10 seconds. (at user mode)
3. “Selftest function” disconnect the I/F cable to enter the selftest mode.
At this mode we can see raster displayed .brightness at Max. (Pin 5 at PC should be ground)
4. At factory adjust mode, press Shift key (shift LED on) then press V-size,
the modified data will be stored in factory preset areas on EEPROM and
shift LED will flash two times.
5.2 Connectors and cables
5.2.1 Power cord type : 3 leads plugable power cord with
protective earthed plug or IBM Hooded
Length : 1.5 m ± 50 mm (exc. connector)
Safety requirements : See following.
Approval
plug
Countries
Germany VDE VDE VDE
Switzerland -- SVE SVE
Belgium CEBEC -- --
Sweden SEMKO SEMKO SEMK O
Finland EI -- EI
Norway NEMKO NEMKO --
Denmark DEMKO DEMKO DEMKO
Italy OVE -- OVE
Netherlands KEMA KEMA KEMA
U.K.
U.S.A. UL UL UL
Canada CSA CSA CSA
Australia SAA SAA SAA
5.2.2 Signal cable
Length of video : 1.5 m ± 50 mm flying with 15 pin PS/2
Mains
ASTA
Wire
HAR
D -shell socket
Connector
ASTA
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
14
Forward
Page 15
GENERAL PRODUCT SPECIFICATION
5.3 Tilt and swivel base
Tilt angle : 5 ° forward and 15° backward
Swivel rotation : 90 ° leftward or rightward
6.0 Environmental characteristics
The following sections to define the interference and
susceptibility condition limits that might occur between
external environment and the display device.
6.1 Susceptibility of display to external environment
6.1.1 (A) Operating limits
Temperature : 0°Cto40°C
Humidity : 20 to 80% (W/O condensation)
Air pressure : 700 ~ 1100 mbar
( B) Non-operating limits (storage)
Temperature : -25°Cto65°C
Humidity : 20 to 90 % (W/O condensation)
Altitude : 300 to 1100 mbar
104S CM23 GSIII
Go to cover page
61
6.1.2 Transportation packages
A) Carton box
A-1 Size (with pedestal)
432(W)´456(D)´419(H)
A-2 Carton paper : double wall AB fute corrugate
board, color brown
Bursting : 19.3 kg/cm
Compression : 550 kg min
B) Transportation conditions
B-1 Container loading (separated pedestal)
40' 20'
Q'ty
W/ palette W/ palette
Yes No Yes No
Layers 5 5 5 5
Sets per layer 6 6 6 6
Sets per block 30 30 30 30
Blocks per container 22 22 10 10
Total sets 660 660 300 300
2
min
Container size
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
15
Forward
Page 16
62
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
B-2 Transportation standards
Standards PHILIPS's UAN-D1400 NSTA
Height 61 cm 30 inch
Sequence Right/Back/Top faces 1 corner.
Drop
test Result - Electrical function OK.
Sequence a . 5~200Hz. 0.25G operating random
Vibration
test
Result - Electrical function OK.
For design evaluation only.
Half sine shock : 100G, <3m sec. 6 shocks
Shock Temp. : 23 C
test Humidity : 60 %
Air pressure : 100 kpa
Standard : PHILIPS's UAN-D636
EU / Asia versions U.S.A. version
3 edges.
6 faces
- Mechanical function OK.
- No serious damage in set.
vibration 30 min/axis, 3 axes
b. 5~200Hz. 0.73 packing random
vibration 30 min/axis, 3 axes
- Mechanical function OK.
- No serious damage in
set.
°
6.2 Display disturbances from external environment
6.2.1 ESD Disturbances
According to EN50082-1 (also refer to IEC801-2 for detail).
6.3 Display disturbances to external environment
The disturbances induced by the display and tolerated
by the environment are defined as follows :
6.3.1 Ionizetic radiation
Completely fulfilled International Commission of
Radio logical Protection (ICRP) requirement 0.5 mR/Hr.
Actually the set can reach 0.1 mR/Hr.
14” CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
00-02-18
Wiliam Ou
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
16
Back
Forward
Page 17
GENERAL PRODUCT SPECIFICATION
6.3.2 EMI
Can comply with FCC part 15, DOC C108.8 and EN55022
7. Safety tests
7.1 Dielectric strength (Hi-pot test)
According to IEC950, UL1950 and CSA 22.2 No 950
7.2 Resistance for protective earthing
According to IEC950
7.3 Leakage current
According to IEC950, UL1950 and CSA22.2 No. 950
7.4 Grounding
According to IEC950, UL1950 and CSA22.2 No. 950
8.0 Certifications
104S CM23 GSIII
Go to cover page
63
8.1 Safety
The monitors comply with the following safety standards:
- IEC950
- UL1950
- DHHS 21 CFR, subchapter J
- CSA-22.2 NO. 950
- GERMANY ZH1/618(GS), ISO 9241-3,-8
8.2 EMI (Electromagnetic Interference)
The monitor comply with the following EMI standards :
- EN55022
- FCC Part 15
- DOC C108.8
8.3 Fulfil approbation requirements
Destination basis, set can fulfil following requirements:
Countries Safety EMI
Germany TUV,GS CE
Sweden SEMKO ----
Norway NEMKO ----
Denmark DEMKO ----
Finland FIMKO ----
Spain HOMOLOGATION CE
UK BEAB CE
U.S.A. UL , DHHS FCC
Canada CSA DOC
Japan ---- VCCI
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
17
Forward
Page 18
64
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
9.0 Reliability
9.1 Mean time between failures
MTBF to be calculated according to Military standard
MIL-HDBK-217C.
MTBF ³ 50,000 Hours (Excluding CRT)
TOTAL HRS (POWER ON) X TOTAL SETS
PRACTICE of MTBF = -------------------------------------------------------
NBR. OF FAILURED SETS
10.0 Quality assurance requirements
10.1 Acceptance test
According to MIL-STD-105D level II,
AQL : 0.4 (Major)
Customer acceptance : UAW 0377/40
criteria
11.0 Service ability
The service ability of this monitor should fulfil the
requirements which are prescribed in UAW-0346 and
must be checked with the check list UAT - 0361
: 1.0 (Minor)
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
18
Forward
Page 19
GENERAL PRODUCT SPECIFICATION
104S CM23 GSIII
Go to cover page
188 mm
185 mm
191 mm
65
247 mm
250 mm
253 mm
FIG-1 IMAGE DIMENSION
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
19
Forward
Page 20
66
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
C
A
B
188 mm
D
250 mm
|A-B| AND |C-D| < 6 mm
FIG-2 IMAGE CENTERING
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
20
Forward
Page 21
GENERAL PRODUCT SPECIFICATION
104S CM23 GSIII
Go to cover page
67
A
250 mm
B
A-B < 2 mm
FIG-3 IMAGE ROTATION
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
21
Forward
Page 22
68
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
D
A
C
188 mm
B
250 mm
A=B=C=D < 3.0 mm
|A| + |C| < 5 mm
|B| + |D| < 5 mm
FIG-4 IMAGE GEOMETRY
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
22
Forward
Page 23
GENERAL PRODUCT SPECIFICATION
50 mm
104S CM23 GSIII
Go to cover page
69
ZONE B
50 mm
ZONE A
250 mm
FIG-5 CONTRAST AND BRIGHTNESS
MEASUREMENT AREA
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
23
Forward
Page 24
70
104S CM23 GSIII
Go to cover page
GENERAL PRODUCT SPECIFICATION
ZONE B
ZONE A
ZONE C
250 mm
FIG-6 MISCONVERGENCE
188 mm
Back
00-02-18
Wiliam Ou
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
25
8639 000 10477
590
24
Forward
Page 25
GENERAL PRODUCT SPECIFICATION
1 BYTE = 8BITS
104S CM23 GSIII
Go to cover page
71
LINE HEX.DATA
0
0000
1
2
3
4
7
C
8
8
95
6
7
8
9
A
B
C
9
9
9
8
7
C
0
C
0
00
6
7
54
3
1
2
0
0
00
2
2
E
2
2
0
00-02-18
Wiliam Ou
D
E
F
Fig 7 CHARACTER FORMAT FOR FOCUS CHECK
14" CM2300 GS-III CMTR
TYPE : 104S11/89 (COCA)
BRAND : PHILIPS (54K)
00-02-18
00
0
0
00
8639 000 10477
25
590
25
Back
Forward
Loading...
