General Specifications

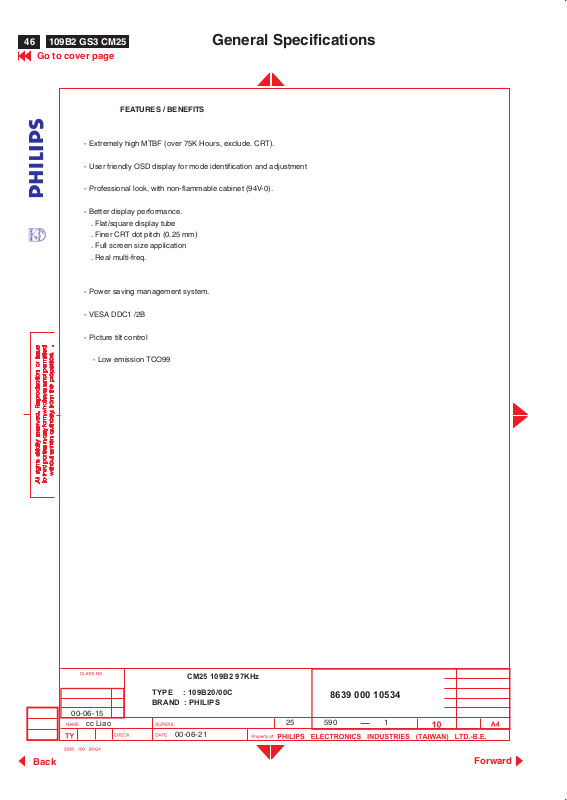

FEATURES / BENEFITS
- Extremely high MTBF (over 75K Hours, exclude. CRT).
- User friendly OSD display for mode identification and adjustment
- Professional look, with non-flammable cabinet (94V-0).
- Better display performance.
. Flat/square display tube
. Finer CRT dot pitch (0.25 mm)
. Full screen size application
. Real multi-freq.
- Power saving management system.
- VESA DDC1 /2B
- Picture tilt control
- Low emission TCO99
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
1
Forward
Page 2
General Specifications (Continued)
INDEX
=========
1.0 Introduction
2.0 General description
2.1 General condition
3.0 Electrical characteristics
3.1 Signal interface
3.1.1 Input requirements
3.1.2 Signals input.
3.1.3 Factory pre-set modes
3.2 Timing requirements
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
109B2 GS3 CM25
Go to cover page
47
3.4 Power saving management system
3.5 CRT description
3.6 RGB amplifier
3.6.1 Video amplifier
3.6.2 Brightness and contrast
3.7 Variation of image size
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements (TCO-99)
3.11 Display data channel : DDC1/2B (VESA STANDARD)
4.0 Display
4.1 Display resolution
4.2 Image size
4.3 Image centering deviation
Back
4.4 Picture shift control range
4.5 Geometric distortions
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-15
cc Liao
CM25 109B2 97KHz
00-06-21
25
8639 000 10534
590
2
Forward
Page 3
48
109B2 GS3 CM25
Go to cover page
4.6 Picture tilt
4.7 Image non-linearity
4.8 Mis-covergence
4.9 Focus check
4.10 Luminance uniformity
4.11 White color adjustment
4.12 Color tracking on full white pattern
4.13 Purity
4.14 Moire
5.0 Mechanical characteristics
5.1 User controls ( at front)
5.2 Connector and cables
5.2.1 Power Cord
5.2.2 Signal Cable
General Specifications (Continued)
5.3 Foot Assembly
6.0 Connector and cable
7.0 Environmental characteristics
7.1 Susceptibility of display to external environment
7.1.1 Operation limits
7.1.2 Transportation packages
7.2 Display disturbance from external environment
7.2.1 ESD disturbances
7.3 Display disturbance to external environment
7.3.1 Ionizetic radiation
7.3.2 EMI
8.0 Reliability
8.1 Mean time between failures
9.0 Quality assurance requirements
9.1 Acceptance test
10.0 Serviceability
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
3
Forward
Page 4
General Specifications (Continued)
1.0 Introduction
This document is related to the 19" AUTOSCAN color monitor and max. resolution:
1920 X 1440 by 60HZ refresh rate
2.0 General description
This AUTOSCAN analog colour monitor is specified as a
display peripheral within an IBM compatible PC.
The AUTOSCAN analog colour monitor is to operate at
H: 30 to 97 KHz V: 50 to 160 Hz
can be applied to all RGB analog computers within this scanning frequencies.
The AUTOSCAN analog colour monitor is intended to be a
finished product, basically a display device mounted inside
a plastic enclosure which provides the aesthetic, mechanical,
ergonomic and safety requirements.
2.1 General condition
109B2 GS3 CM25
Go to cover page
49
The unit will produce a usable image after switching-on,
measurements are to be carried out with a full stabilised
set after about 30 minutes warm-up at room ambient
temp. of 25C.
Repetitive power on/off cycles are allowed though should
be avoided within 4 sec.
3.0 Electrical characteristics
3.1 Signal interface
This AUTOSCAN analog colour display has an analog video
interface to operates at a multi-frequencies timing in
several display modes.
3.1.1 Input requirements
A. Input signals
Video - 0.7 Vp-p 75 ohms (for individual of R,G and B
signals must not deviate 0.015 Vp-p from each
other for balance of white pattern)
Sync - TTL level
(between 0 and 0.6 V to be considered as low
level, between 2.3 and 5.0 V as high level)
Back
00-06-15
cc Liao
B. Impedance
Video - Terminated with 75 ohms
Sync - Terminated with 4.7K ohms pull-down resistors.
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
4
Forward
Page 5
50
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
3.1.2 Signals input
The input video signals are applied to the display device
through a video cable which is fixed to the monitor
(flying cable length 1.5M).
Video input cable :
15 pin D-shell connector type with pin assignment
as follows :
Pin assignment of 15P D-SUB connector
Pin No. Assignment
P 1 Red video input
P 2 Green video input
P 3 Blue video input
P 4 Ground
P 5 Self-test
P 6 Red video ground
P 7 Green video ground
P 8 Blue video ground
P 9 Not connect
P10 Ground
P11 Ground
P12 Bi-directional data (SDA)
P13 H SYNC
P14 V SYNC
P15 DDC Data CLOCK (SCL)
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
5
Forward
Page 6
General Specifications (Continued)
3.1.3 Factory pre-set modes:
Factory modes : 35
User modes : 16
Item Resolution Freq. V x H Pixel rate(Mhz) Remark
1 640x350 85(37.861k) 31.500 VESA
2 640x350 70(31.469k) 25.175 VGA
3 640x480 60(31.469k) 25.175 VGA
4 72.8(37.861k) 31.500 VESA
5 75(37.500k) 31.500 VESA
6 85(43.269k) 36.000 VESA
7 100.1(50.60k) 40.500 SNI
8 720x400 70(31.469k) 28.321 VGA
9 85(37.927k) 35.500 VESA
10 800x600 60.3(37.879k) 40.000 VESA
11 72.12(48.077k) 50.000 VESA
12 75(46.875k) 49.500 VESA
@ 13 85(53.674k) 56.250 VESA
14 100.1(63.90k) 67.500 SNI
15 832x624 74.6(49.725k) 57.280 MAC
16 1024x768 60(48.363k) 65.000 VESA
17 70(56.476k) 75.000 VESA
@ 18 75(60.000k) 78.750 VESA
@ 19 84.997(68.677k) 94.500 VESA
20 1152x864 75(67.500k) 108.000 VESA
21 85(77.100k) 121.500 VESA/P
22 1152x870 75(68.681k) 100.000 MAC
23 1152x900 76(71.800k) 108.000 SUN
24 1280x960 60(60.000k) 108.000 VESA
25 85(85.938k) 148.500 VESA
26 1280x1024 60(63.981k) 108.000 VESA
@ 27 75(79.976k) 135.000 VESA
@ 28 85(91.146k) 157.500 VESA
29 1600x1200 60(75.000k) 162.000 VESA
30 65(81.250k) 175.500 VESA
31 70(87.500k) 189.000 VESA
@ 32 75(93.750k) 202.500 VESA
33 1792x1344 60(83.640k) 204.750 VESA/P
34 1856x1392 60(86.333k) 218.250 VESA/P
35 1920x1440 60(90.000k) 234.000 VESA/P
109B2 GS3 CM25
Go to cover page
51
Back
00-06-15
cc Liao
"@" denote it is a main preset timing
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
6
Forward
Page 7
109B2 GS3 CM25
52
Go to cover page
3 .2 Timing requirements
General Specifications (Continued)
The main pre-set timing table are shown as below
Timing Table : 1- 6
TIMING FOR CM25-109B2” AUTOSCAN COLOR MONITOR
REFERENCE PATTERN GENERATOR : CHROMA 2250
TABLE 1: 53.674KHz/85.061Hz, 800 X 600, pixel=56.250MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 18.631 us Total size = 11.756 ms
Display size = 14.222 us Display size = 11.179 ms
Rear porch = 2.702 us Rear porch = 0.503 ms
Sync width = 1.138 us Sync width = 0.056 ms
Sync polarity = + Sync polarity = +
TABLE 2: 60.023KHz/75.029Hz, 1024 X 768, pixel=78.750MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 16.660 us Total size = 13.328 ms
Display size = 13.003 us Display size = 12.795 ms
Rear porch = 2.235 us Rear porch = 0.466 ms
Sync width = 1.219 us Sync width = 0.050 ms
Sync. polarity = + Sync. polarity = +
TABLE 3: 68.677KHz/84.997Hz, 1024 X 768, pixel=94.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 14.561 us Total size = 11.765 ms
Display size = 10.836 us Display size = 11.183 ms
Rear porch = 2.201 us Rear porch = 0.524 ms
Sync width = 1.016 us Sync width = 0.044 ms
Sync polarity = + Sync polarity = +
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
7
Forward
Page 8
General Specifications (Continued)
TABLE 4: 79.976KHz/75.025Hz, 1280 X 1024, pixel=135.00MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 12.504 us Total size = 13.329 ms
Display size = 9.481 us Display size = 12.804 ms
Rear porch = 1.837 us Rear porch = 0.475 ms
Sync width = 1.067 us Sync width = 0.038 ms
Sync polarity = + Sync polarity = +
TABLE 5:91.146 KHz/75.024Hz, 1280 X 1024, pixel=157.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 10.971 s Total size = 11.761 ms
Display size = 8.127 s Display size = 11.234 ms
Rear porch = 1.422 s Rear porch = 0.483 ms
Sync width = 1.016 s Sync width = 0.033 ms
Sync polarity = + Sync polarity = +
109B2 GS3 CM25
53
Go to cover page
TABLE 6:93.750 KHz/75.000Hz, 1600 X 1200, pixel=202.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 10.667 s Total size = 13.334 ms
Display size = 7.901 s Display size = 12.800 ms
Rear porch = 1.501 s Rear porch = 0.491 ms
Sync width = 0.948 s Sync width = 0.032 ms
Sync polarity = + Sync polarity = +
3.2.1 Horizontal scanning
Scanning frequency : 30 - 97 KHz,
H-shift range : 10 mm min.
Retrace time : Less than 2.30 us.
3.2.2 Vertical scanning
Scanning frequency : 50 - 160 Hz
V-shift range : 8 mm Min.
CM25 109B2 97KHz
00-06-15
cc Liao
TYPE : 109B20/00C
BRAND : PHILIPS
25
00-06-21
8639 000 10534
590
8
Back
Forward
Page 9
54
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
3.3 Power supply
The display device maintains the specified performance
in the range described as below :
Type Mains current Mains Voltage Mains freq.
1.6A max. 90 - 264 VAC 47-63Hz
Power consumption : 120 Watts Max.( 100W Typ.)
Power cord length : 1.5M
Power cord type : 3 leads detachable power cord with
protective earth plug .
3.4 Power saving management system
SIGNAL POWER RECOVERY
MODE
H-SYNC V-SYNC VIDEO TIME
ON ACTIVE ACTIVE ACTIVE < 100W NA
STAND-BY INACTIVE ACTIVE BLANKED < 15W ~ 3 SEC.
SUSPEND ACTIVE INACTIVE BLANKED < 15W ~ 3 SEC.
OFF INACTIVE INACTIVE BLANKED < 3W ~ 7 SEC
3.5 CRT Description
This display unit employs a high resolution CRT complying
with the following specifications :
Dimensions : 19 inches
Flat, S/M.
Diagonal VIS : 18 inches
Pitch : 0.25mm dotted
Horizontal pitch : 0.21mm
Deflection angle : 90 degrees
Light transmission : 44%
Face treatment : AR-ASC (HTC), AR Filming (SDI) coating
Phosphors : P22
EHT : 26.5KV
Visible screen area : 360 mm x 270 mm
Magnetic field : North
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
9
Forward
Page 10
General Specifications (Continued)
3.6 RGB Amplifier
3.6.1 Video amplifiers
Dot Rate : 202.5 Mhz
Rise/fall time :5/6ns
Over / undershoot : 15% Max.
Sag (background : 5% Max. (pulses of 0.70H)
uniformity)
3.6.2 Brightness and contrast
Reference mode 68.7K/85Hz full white pattern.
Brightness Contrast Light output
Minimum Minimum < 0.5 FL
Center Maximum 30 +3/-5 FL
(full white)
(Transient response)
109B2 GS3 CM25
Go to cover page
55
3.7 Variation of image size
Due to brightness change
from 3 to 30 FL (Max.) : < 1.0 %
Due to aging
(0 to 40 C) : < 1.0 %
°
Due to mains voltage
variation : < 1.0 %
3.8 Degaussing
An automatic degaussing circuit is provided which requires
no intervention. The degaussing activated at the
time of switch-on or switch-on again or pressing manual
degaussing key after switching-off degaussing circuits
for longer than 30 minutes.
3.9 Phosphor protection
The display device is sufficiently protected against the
burning of phosphors in case of repetitive power cycling
or absence of horizontal deflection.
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
10
Forward
Page 11
56
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
3.10 Low emission requirements (MPRII, TCO99)
Items Band I Band II
ELF (rms) VLF (rms)
Alternating Electric MPR-II 25 V/M MPR-II 2.5V/M
Field TCO-95/99 10 TCO-95/99 1.0
Magnetic Field MPR-II 250 nT MPR-II 25 nT
E.S.P 500 V
Band I : 5 to 2K Hz.
Band II : 2K to 400K Hz.
Test procedure according to Low emission test method.
3.11 Display data channel : DDC1/2B (VESA STANDARD)
The DDC HEX Data should be written into software DDC memory inside
by EEPROM writer or equivalent method.
4.0 Display image (CRT facing east)
The monitor is aligned in a magnetic cage having the
following magnetic field components :
Northern Hemisphere:H=0,V= +0.43 0.05G,Z=0
££
££
££
TCO-95/99 200 nT TCO-95/99 25 nT
££
£±
Southern Hemisphere:H=0,V= -0.52 0.05G,Z=0
Conditions for visual testing, unless otherwise stated:
Input video signal - 700 mVp-p cross hatch
Brightness control - 50%
Contrast control - Adjusted to 30 3 FL of luminance
4.1 Display resolutions
See 3.1.3
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
with full white pattern
25
8639 000 10534
590
11
Back
Forward
Page 12
General Specifications (Continued)
4.2 Image size (Factory pre-set modes only)

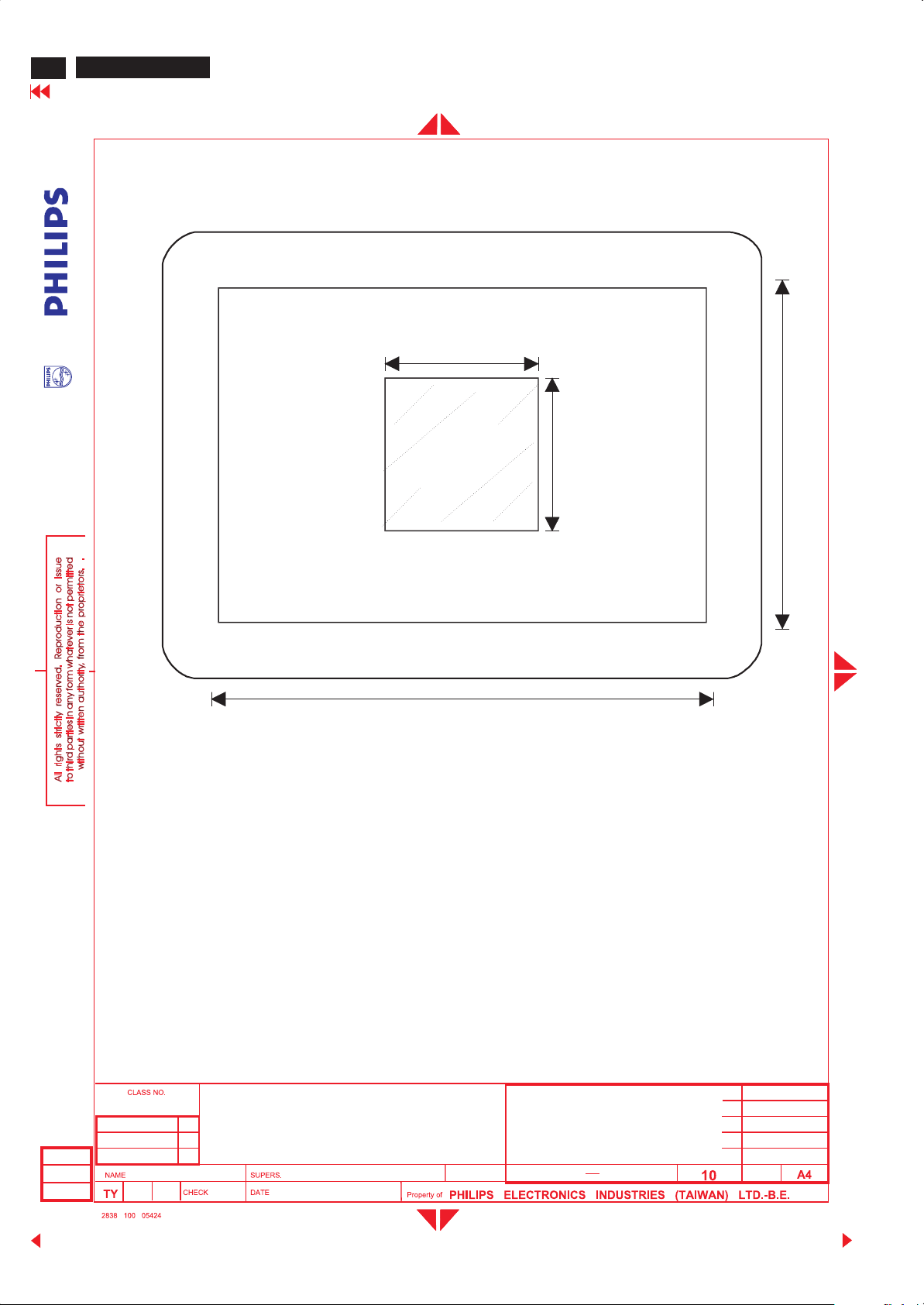

The dimensions of guaranteed display area to be measured
along the picture center of horizontal and vertical axis
of the screen as listed below: (preset modes only, refer
to fig. 1/fig 2)

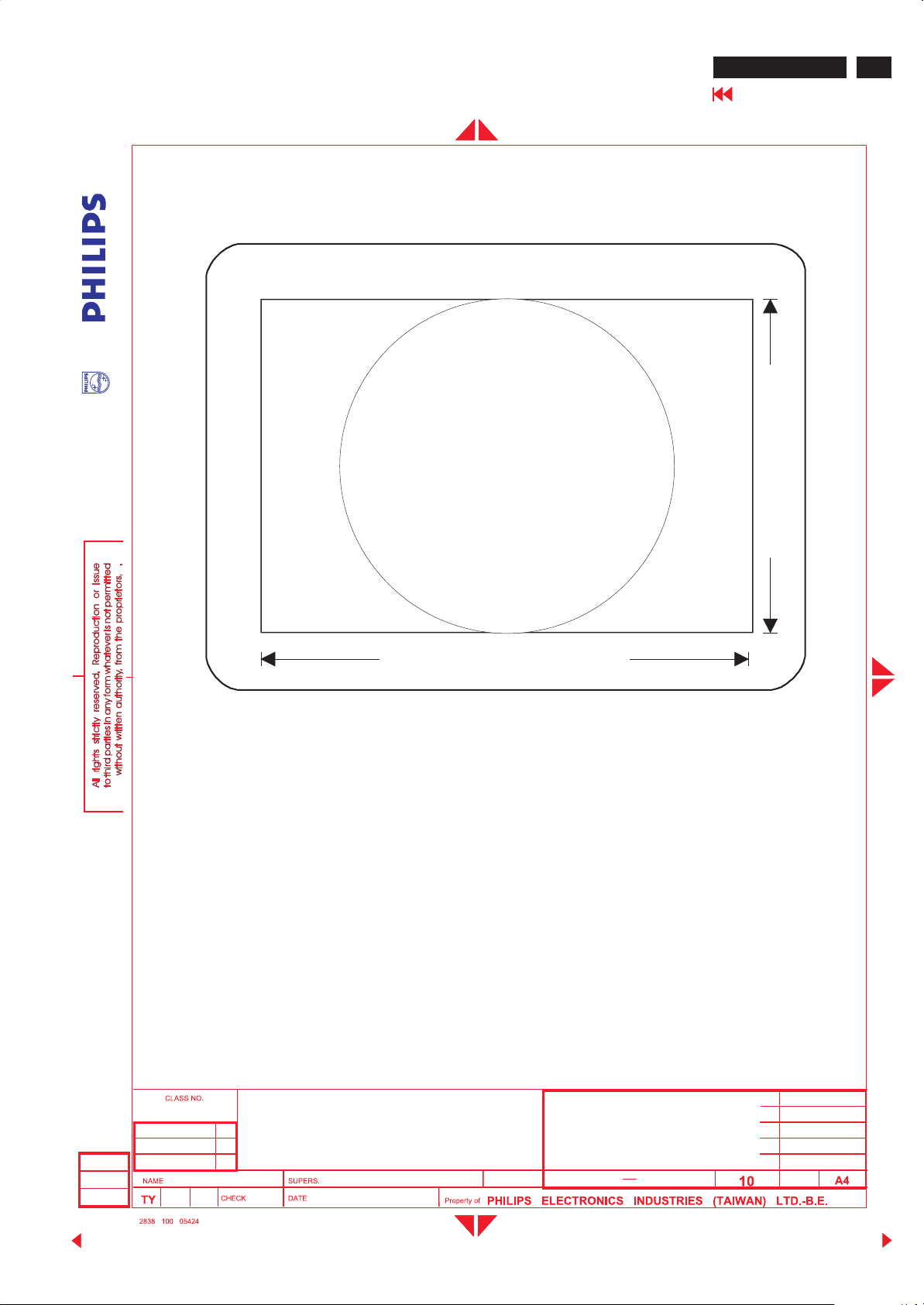

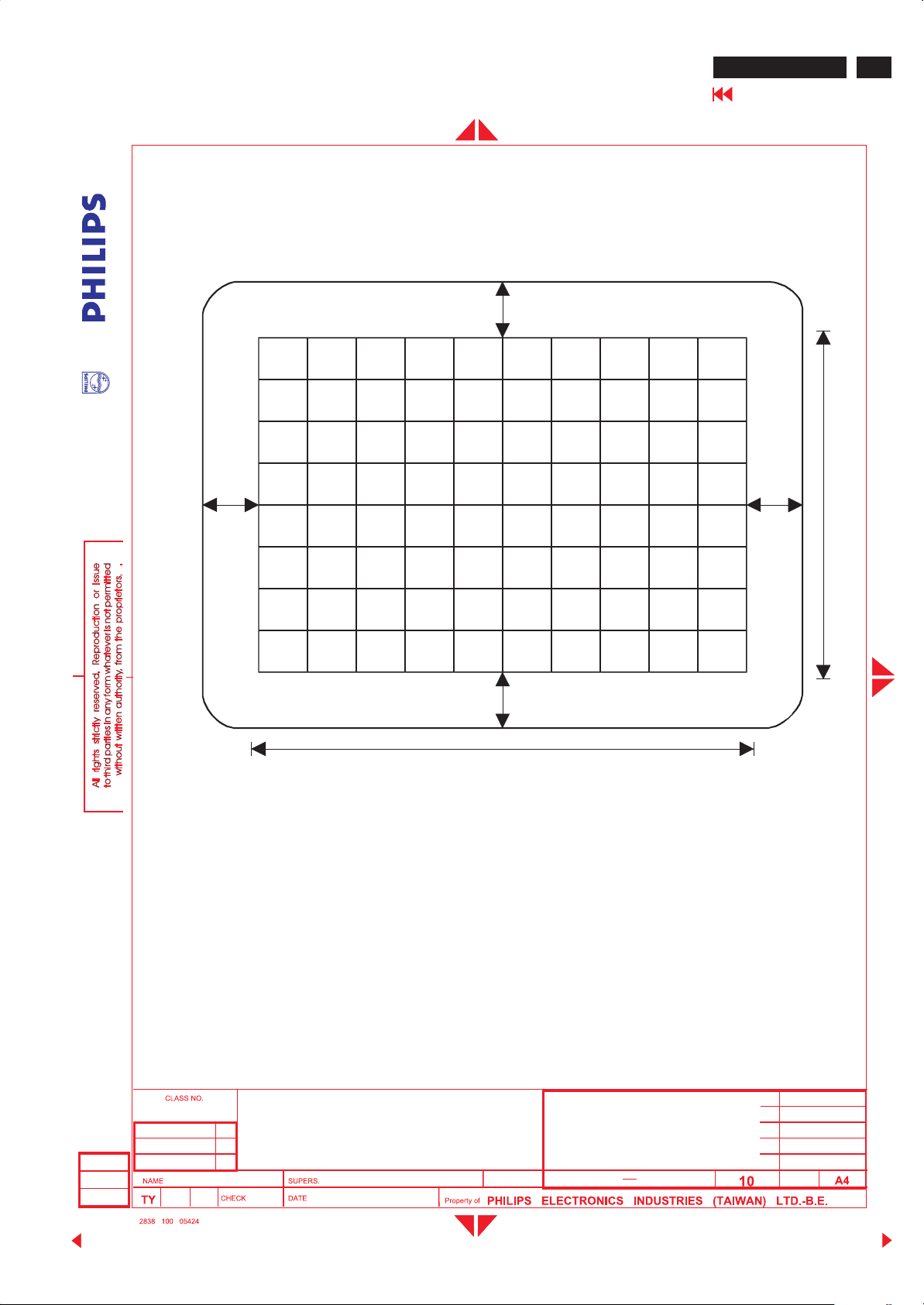

Width : 355 +/- 3 mm .(fig 1)
Height : 265 +/- 3 mm .(fig 1)
4.3 Image centering deviation (Factory mian preset modes only)
With respect to fig. 2, the target relationships are
the following :
|A-B|<=6mm |C-D| <=6mm
Note : This centering is adjustable by the end-user.
109B2 GS3 CM25
Go to cover page
57

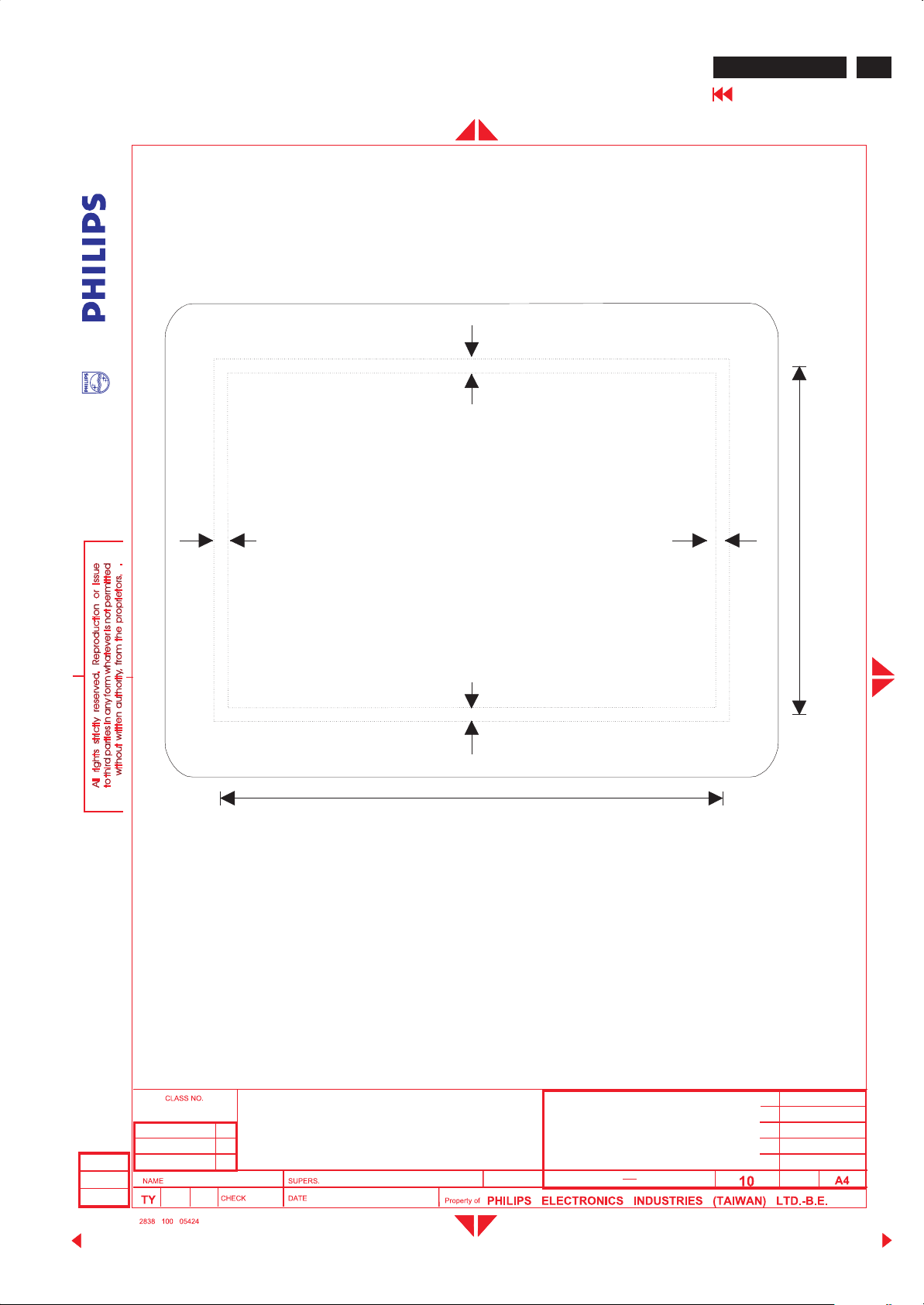

4.4 Picture shift control range
H-shift range : 10 mm min. (+/- 3mm,from center to each side)
V-shift range : 8 mm min. (+/- 2mm,from center to each side)
4.5 Picture tilt
With respect to Fig. 3, Tilt to be measured on extremes
of center line from bezel.
Tilt :<=2mm
4.6 Geometric distortions
It is acceptable that pincushion, trapezoid, rhomboid,
rotation and various waves distortions must remain within
the limits of tolerance as in fig. 4,

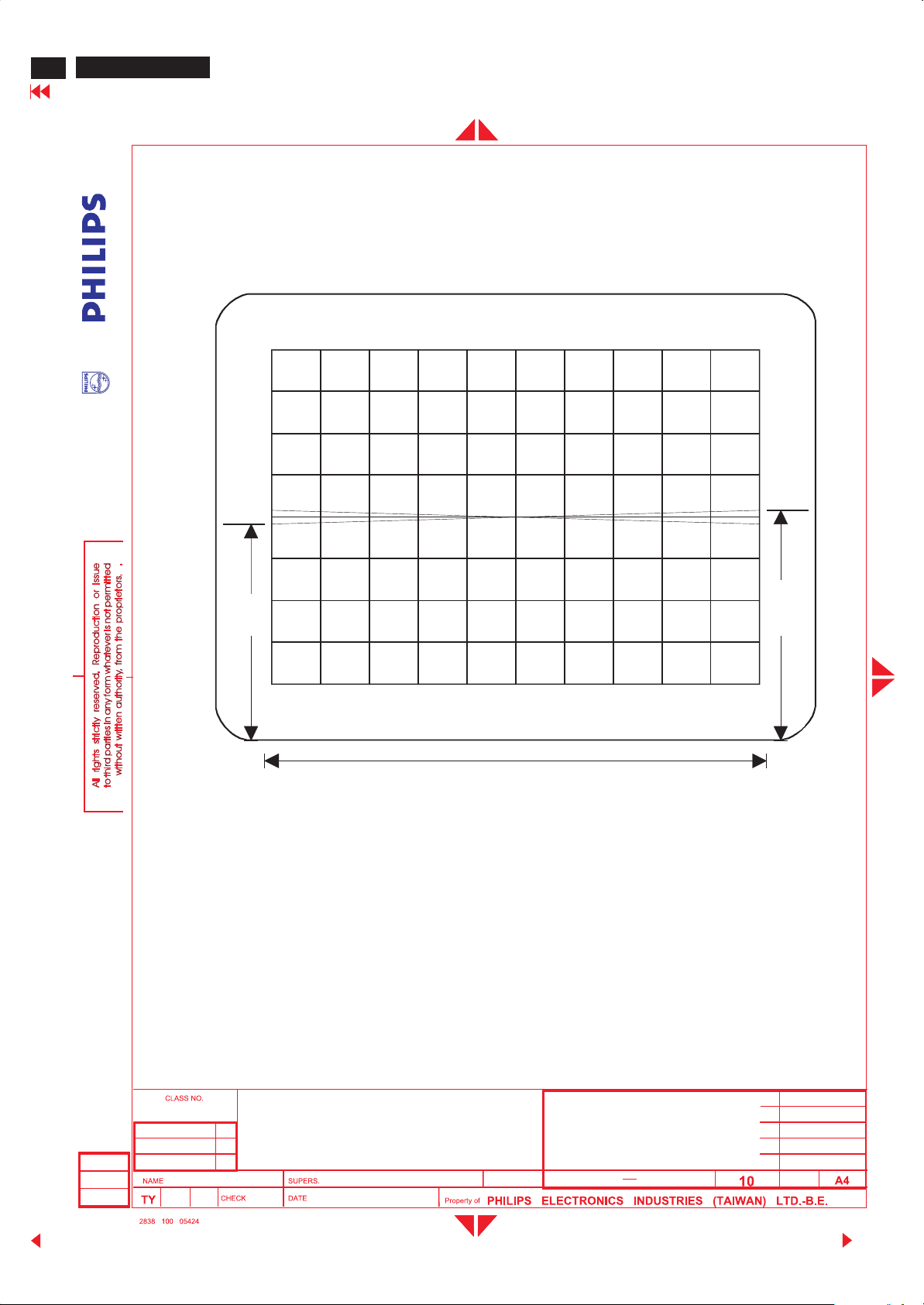

|A| , |B| 2.0mm
|C| , |D| 2.0mm
|A + B| 3.5mm
|C+D|
3.5mm
Back
00-06-15
cc Liao
The waviness of any vertical or horizontal shall be less
than 1.0 mm over a 50 mm distance.
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
25
00-06-21
8639 000 10534
590
12
Forward
Page 13
58
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)

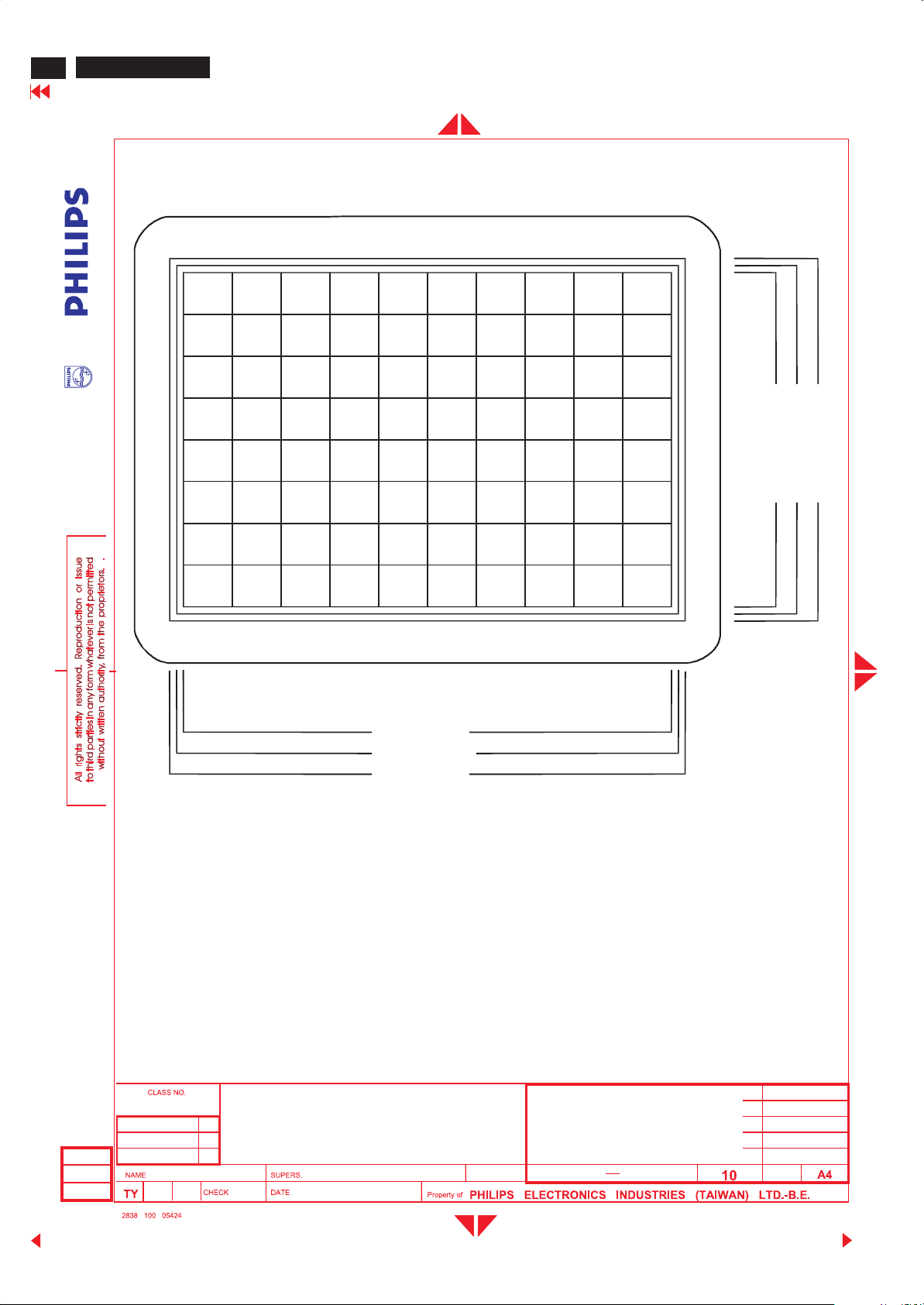

4.7 Image non-linearity pattern with
10 equal blocks along horizontal axis,
8 equal blocks along vertical axis.
Overall : 10 % (each horizontal and vertical)
Deviation of Two adjacent : 6 % (Adjacent block)
Xmax. - Xmin
H. linearity = ----------------------- x 100%
Xmax.
Ymax. - Ymin
V. linearity = ------------------------ x 100%
Ymax.
4.8 Mis-convergence
The maximum convergence error to be measured on a white
spot or white display line to represents the maximum distance
between the energy centers of any two primary colors. (See Fig. 6)

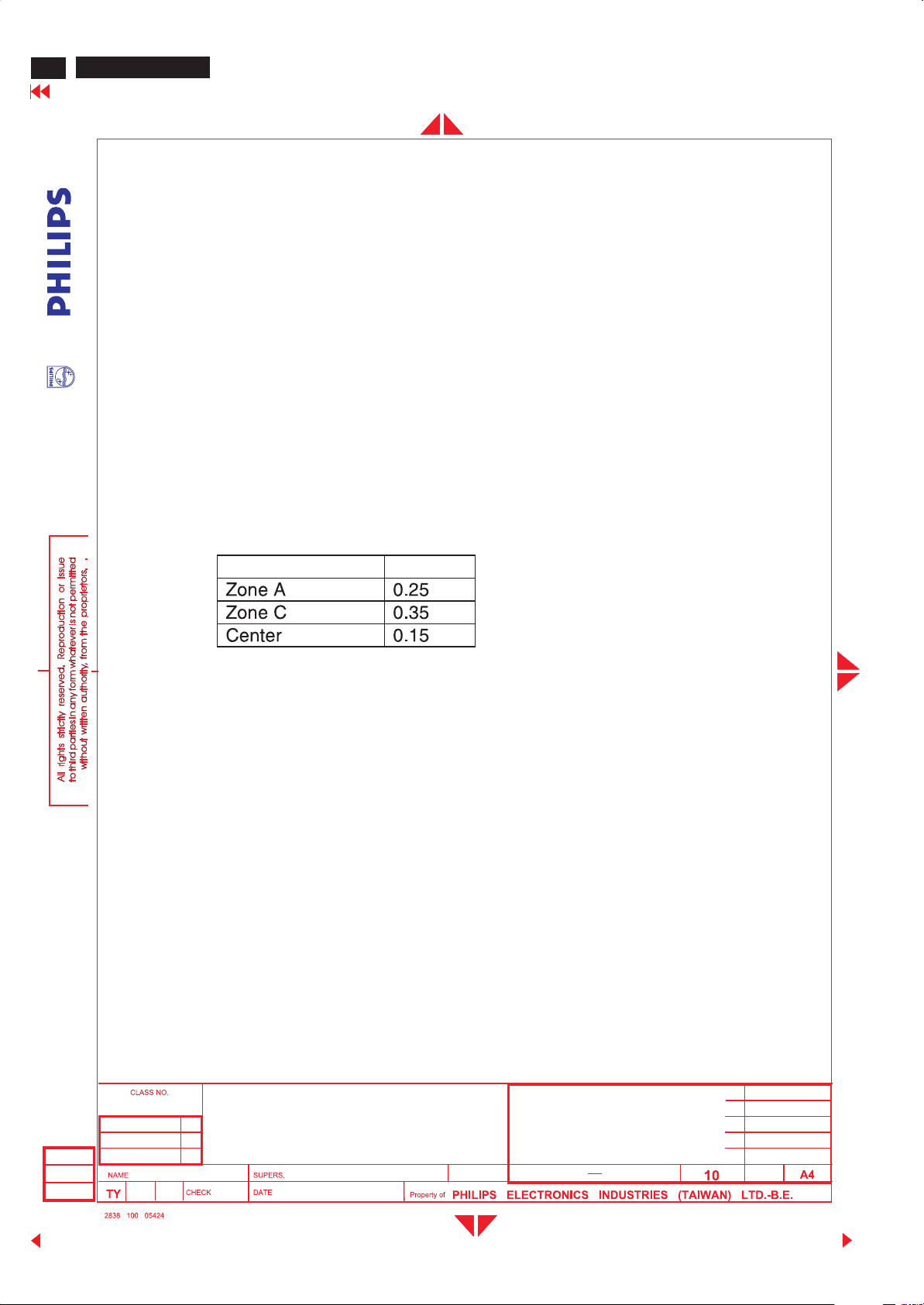

Mis-Convergence SPEC.
CRT Pitch 0.25mm
4.9 Focus check (with 93.8KHz/75Hz,1600 x 1200 mode)
Generate "@" characters (pattern as fig 7) to cover entire of the picture
area (display size respect to fig. 1), adjust brightness control to 50% and
contrast control to obtain 25 FL @ 5-block pattern, the characters should
be clearly identified in all display area.
4.10 Luminance uniformity
condition : With full white pattern, set contrast control
at max. and adjust brightness control
to get 30FL in center..
the max. deviation to the rest of the screen shall not exceed 25% of entire
screen with any point.
4.11 White color adjustment
Back
00-06-15
cc Liao
Based on the 1931 CIE chromaticity (colour triangle)
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
25
00-06-21
8639 000 10534
590
13
Forward
Page 14
General Specifications (Continued)
diagram (x,y coordination).
coordination of white display on screen center should be:
for 9300 degreeK X = 0.283 +/- 0.015
Y = 0.297 +/- 0.015
for 6500 degreeK X = 0.313 +/- 0.015
Y = 0.329 +/- 0.015
for 5500 degreeK X = 0.332 +/- 0.015
Y = 0.347 +/- 0.015
Check conditions :
Set brightness control at 50% position and contrast at maximum.
4.12 Color tracking on full white pattern
Ref. to white balance alignment result and set brightness at 50%, adjust
contrast control from 5FL to max. position, the colour coordinate
should not deviate more than following tolerance when compare to display center:
X= X nominal +/- 0.015
Y= Y nominal +/- 0.015
109B2 GS3 CM25
Go to cover page
59
4.13 Purity
Test patterns : Full White / Red / Green / Blue.
Conditions: As stated in item 4.0, the purity must be
checked under specific destinations of earth
magnetic environments and the monitor to be well degaussed.
After warming-up time of 30 min., no coloured stains may
occur in above four patterns.
4.14 Moire
Condition: Displaying a full white pattern, at any pre-set
mode the display size of the sets to be set
as stated in "Fig. 1".
Moire area should be less than 1/3 area @15FL via moire control.
However the OSD moire data of V-moire should have a default value
(mode dependent) for product outgoing. Increasing the moire control value
will have side effect on resolution (degrade focus),and phenomenon of flicker
and sawtooth.
5.0 Mechanical characteristics
5.1 User controls (all at front) left to right
Brightness tact switch control
(With Decrease and Increse)
Back
00-06-15
cc Liao
Contrast tact switch control
(With Decrease and Increase)
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
14
Forward
Page 15
60
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
OSD menu tact switch control
Power on/off button
6 .0 Connectors and cables
6.1.1 Power cord (pluggible) type : Wall Plug ,non shielded and non-attached.
Length : 1.5 m +/- 50 mm . Plug curved at 90.
6.1.2 Signal cable
Length of video : 1.5 m +/- 50 mm flying in 15pins D-shell.
7.0 Environmental characteristics
The following sections to define the interference and
susceptibility condition limits that might occur between
external environment and the display device.
7.1 Susceptibility of display to external environment
7.1.1 Operating limits
7.1.2
A). Temperature : 0 C to 40 C
Humidity : 10 to 90% (W/O condensation)
Air pressure : 10000 to 39000 ft
B). Non-operating limits (storage)
Temperature : -25 C to 65 C
Humidity : 5 to 95 % (W/O condensation)
Altitude : 10000 to 39000 ft
7.1.3 Transportation packages
A) Carton box (outside dimension)
°°
°°
: 556(W) x 520 (H) x 590 (D) mm.
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
15
Forward
Page 16
General Specifications (Continued)
B) Transportation conditions
(see table, shown as below)
B-1 Transportation standards
TEST Standard reference Philips severity Remarks
Drop Gross weight Drop height *W/O 10% drop
1C-3E-6F (Kg) (cm) height increment
NSTA
24.8 61
Random vibration Truck spectrum, 0.73 Grms,
30 min/axis, 3 axes
Shock - 1/2 sine pulse: Design stage
(non-oper) 120G<3ms, 6 shocks only.
- Damage boundary curve:
* CRT supplier spec. is used
to define maximum
acceptable CRT fragility.
109B2 GS3 CM25
Go to cover page
61
B-2 Container loading
Container size
40Feet 20Feet High cube 40 Feet
Q'ty W/Pallet W/Pallet W/Pallet
Yes No Yes No Yes No
Layers 4 4 4 4 4 4
Sets per layer 4 4 4 4 4 4
Sets per block 16 16 16 16 16 16
Blocks per container 20 20 10 10 20 20
Total set 320 320 160 160 320 320
7.2 Display disturbances from external environment
7.2.1 ESD Disturbances
According to IEC65 (also refer to IEC801-2 for detail).
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-15
cc Liao
00-06-21
25
8639 000 10534
590
16
Back
Forward
Page 17
109B2 GS3 CM25
62
Go to cover page
7.3 Display disturbances to external environment
7.3.1 Ionizetic radiation
7.3.2 Safety and EMI requirements
General Specifications (Continued)
The disturbances induced by the display and tolerated
by the environment are defined as follows :
Completely fulfilled International Commission of
Radio logical Protection (ICRP) requirement 0.5 mr/hrs.
Actually the set can reach 0.1 mr/hrs.
------------------------------------
Safety - USA :UL 1950
-CANADA :CSA C22.2 NO.950-M89
-NORDIC :IEC950
:EN60950
:SEMKO TSE (74SEC) 207/94
-EUROPE :CE
-Poland :PCBC
-Singapore :PSB
-Germany :TUV
EMI -USA :FCC PART 15 Class B
-CANADA :D.O.C. Class B
-CE :EN55022 CLASS B
:C-tick
Ergonomics :E2000, EPA, MPRII, Nutek
ISO 9241-3&8, 9241-7, TCO-99
Compatibility :PC99, Windows2000
LOW EMISSION :TCO99
7.3.3 X-RAY radiation requirement /regulation
-USA/CANADA :DHHS 21 CFR, CHAPTER 1,SUBCHAPTER J
-GERMANY :RONTGEN VERORDNUNG ROV 1987.01.08
X-ray explosure at 5cm distance from any point of the external surface must not exceed
0.1 mR/H.
8.0 Reliability
8.1 Mean time between failures
MTBF to be calculated according to Military standard
MIL-HDBK-217C.
Back
MTBF >=75,000 Hours (Excluding CRT)
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-15
cc Liao
CM25 109B2 97KHz
00-06-21
25
8639 000 10534
590
17
Forward
Page 18
General Specifications (Continued)
TOTAL HRS (POWER ON) X TOTAL SETS
PRACTICE of MTBF = ---------------------------------------------------------
NBR. OF FAILURED SETS
9.0 Quality assurance requirements
9.1 Acceptance test
According to MIL-STD-105D level II,
AQL : 0.65 (Major)
2.5 (Minor)
Customer acceptance :
criteria : UAW0377/00
Target Field repair rate:<2%
109B2 GS3 CM25
Go to cover page
63
10.0 Serviceability
The service ability of this monitor should fulfill the
requirements which are prescribed in UAW-0346 and
must be checked with the check list UAT-0361.
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
18
Forward
Page 19
64
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
268 mm
265 mm
262 mm
00-06-15
cc Liao
352 mm
355 mm
358 mm
FIG-1 IMAGE DIMENSION
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
19
Back
Forward
Page 20
General Specifications (Continued)
C
109B2 GS3 CM25
Go to cover page
65
A
B
265 mm
D
355 mm
|A-B| AND |C-D| < 6 mm
Back
00-06-15
cc Liao
FIG-2 IMAGE CENTERING
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
20
Forward
Page 21
66
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
A
B
355 mm
|A-B| < 2 mm
FIG-3 IMAGE ROTATION
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
21
Forward
Page 22
General Specifications (Continued)
C
109B2 GS3 CM25
Go to cover page
67
A
B
265 mm
D
355 mm
A, B < 2.0 mm C, D < 2.0 mm
FIG-4 IMAGE GEOMETRY
Back
00-06-15
cc Liao
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
25
8639 000 10534
590
22
Forward
Page 23
68
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
100 mm
Pattern A
Pattern B
355 mm
100 mm
265 mm
Back
00-06-15
cc Liao
FIG-5 CONTRAST AND BRIGHTNESS
MEASUREMENT PATTERNS
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
25
00-06-21
8639 000 10534
590
23
Forward
Page 24
General Specifications (Continued)
ZONE C
ZONE A
109B2 GS3 CM25
Go to cover page
265 mm
69
00-06-15
cc Liao
FIG-6 MISCONVERGENCE
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
00-06-21
355 mm
MEASUREMENT AREA
8639 000 10534
25
590
24
Back
Forward
Page 25
70
109B2 GS3 CM25
Go to cover page
General Specifications (Continued)
Back
00-06-15
cc Liao

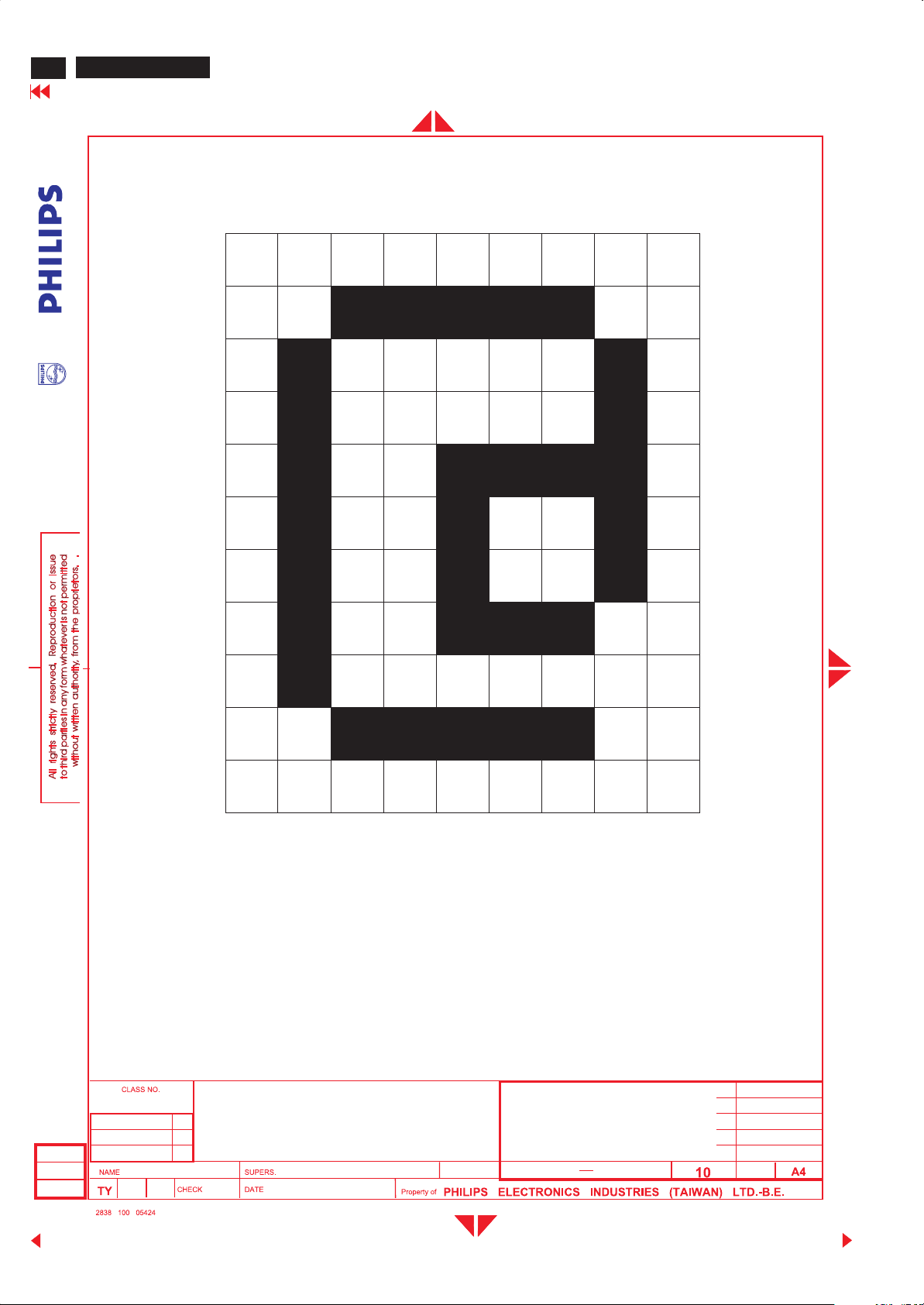

CHARACTERCHARACTER
FOR FOCUS
( CHROMA 2200/2250 CHR NO. 56 )
FIG - 7
CM25 109B2 97KHz
TYPE : 109B20/00C
BRAND : PHILIPS
25
00-06-21
8639 000 10534
590
25
Forward
Loading...
