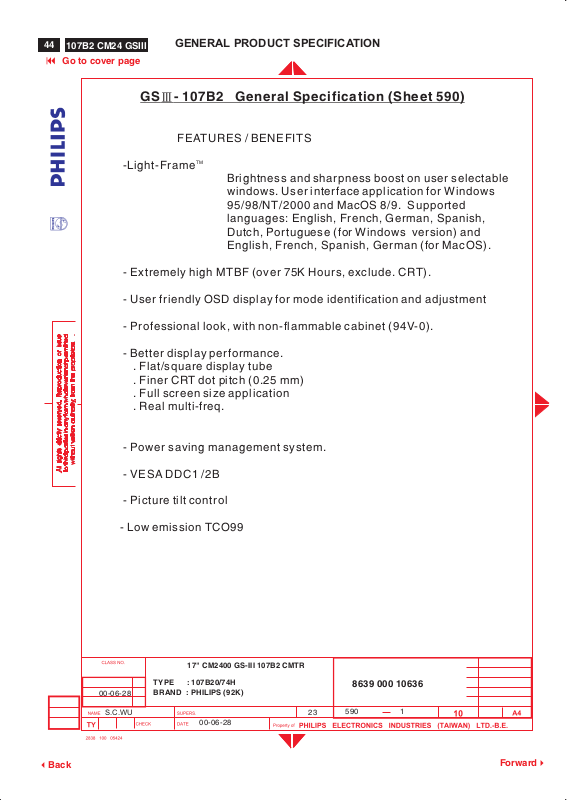

GENERAL PRODUCT SPECIFICATION
GS - 107B2 General Specification (Sheet 590)
FEATURES / BENEFITS
-Light-Frame
TM
Brightness and sharpness boost on user selectable
windows. User interface application for Windows
95/98/NT/2000 and MacOS 8/9. Supported
languages: English, French, German, Spanish,
Dutch, Portuguese (for Windows version) and
English, French, Spanish, German (for MacOS).
- Extremely high MTBF (over 75K Hours, exclude. CRT).
- User friendly OSD display for mode identification and adjustment
- Professional look, with non-flammable cabinet (94V-0).
- Better display performance.
. Flat/square display tube
. Finer CRT dot pitch (0.25 mm)
. Full screen size application
. Real multi-freq.
- Power saving management system.
- VESA DDC1 /2B
- Picture tilt control
- Low emission TCO99
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
00-06-28
S.C.WU
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
1
3Back
Forward4
Page 2
GENERAL PRODUCT SPECIFICATION
INDEX
=========
1.0 Introduction
2.0 General description
2.1 General condition
3.0 Electrical characteristics
3.1 Signal interface
3.1.1 Input requirements
3.1.2 Signals input.
3.1.3 Factory pre-set modes
3.2 Timing requirements
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
3.4 Power saving management system
107B2 CM24 GSIII
9
Go to cover page
45
3.5 CRT description
3.6 RGB amplifier
3.6.1 Video amplifier
3.6.2 Brightness and contrast
3.7 Variation of image size
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements ( TCO-99 )
3.11 Display data channel : DDC1/2B (VESA STANDARD)
4.0 Display
4.1 Display resolution
4.2 Image size

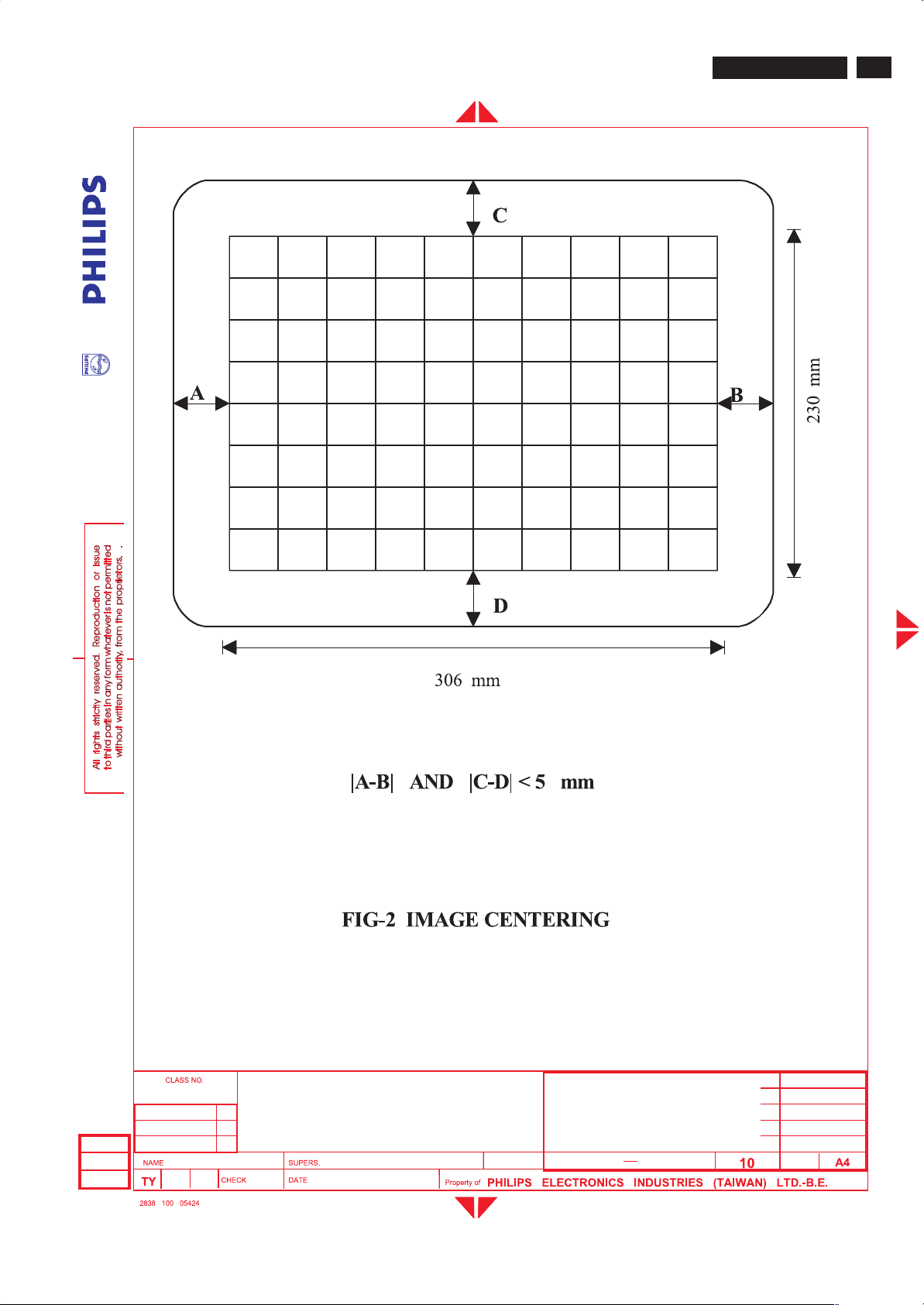

4.3 Image centering deviation
4.4 Picture shift control range
3Back
4.5 Geometric distortions

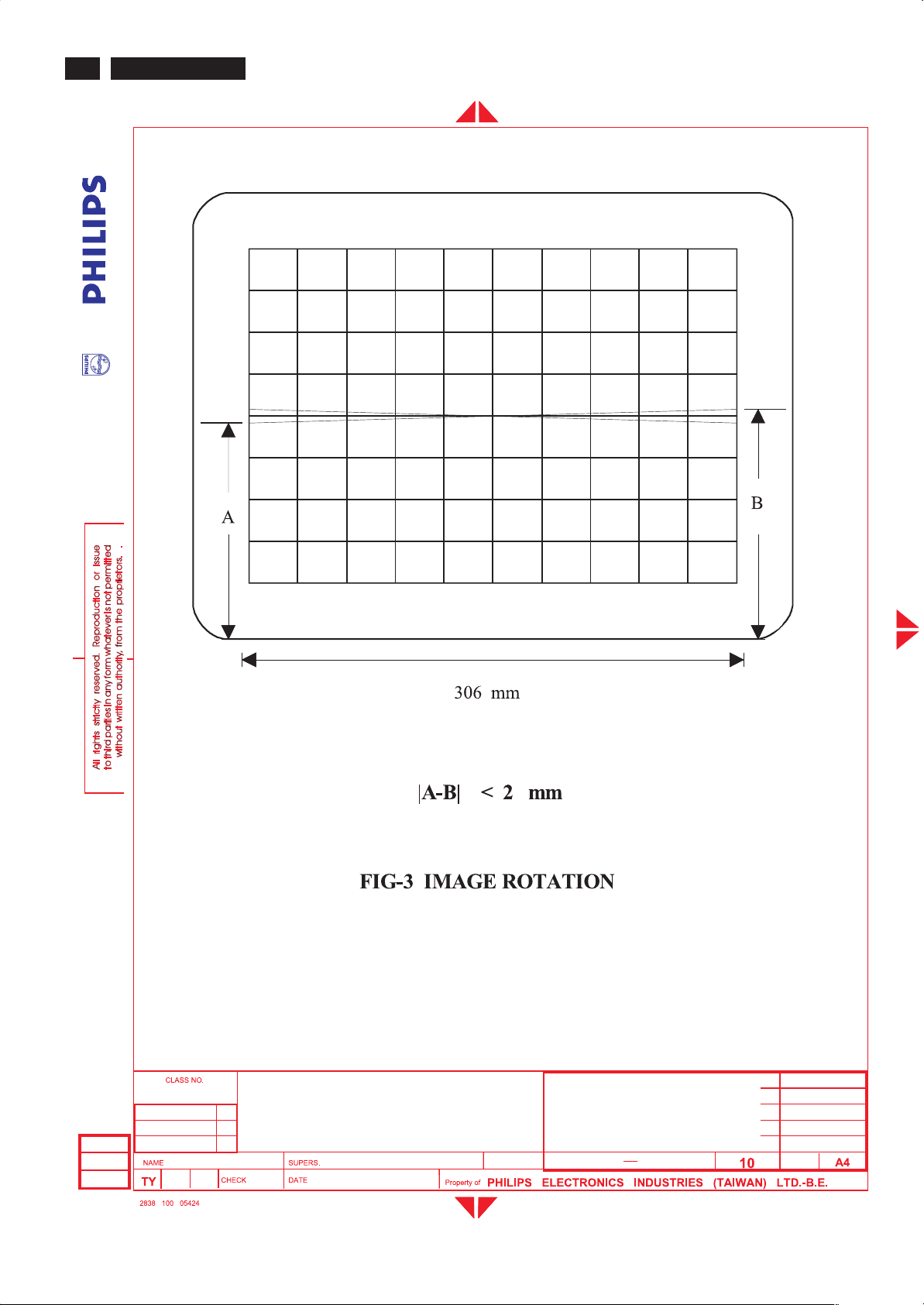

4.6 Picture tilt
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
00-06-28
S.C.WU
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
2
Forward4
Page 3
46
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
4.7 Image non-linearity

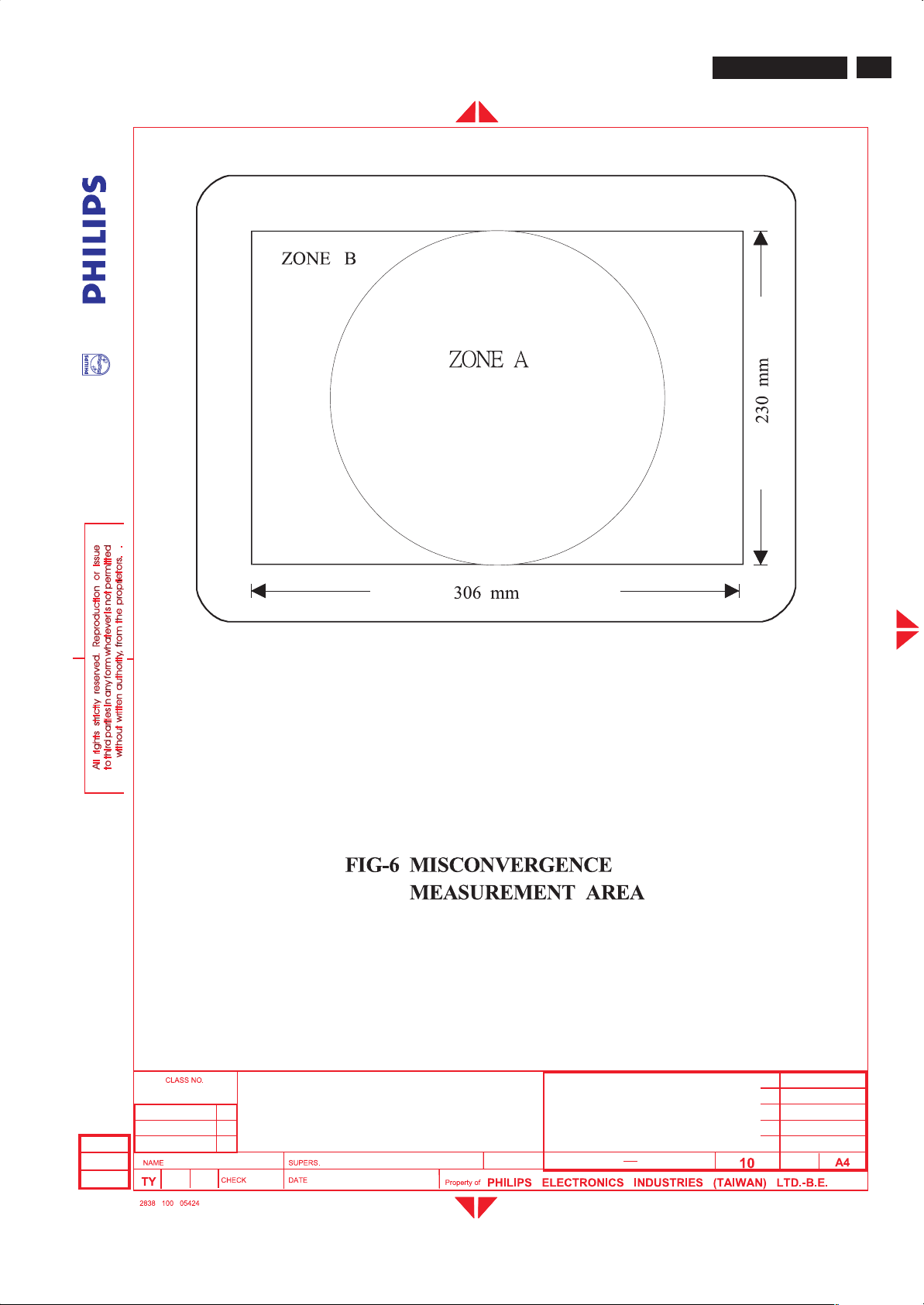

4.8 Mis-covergence

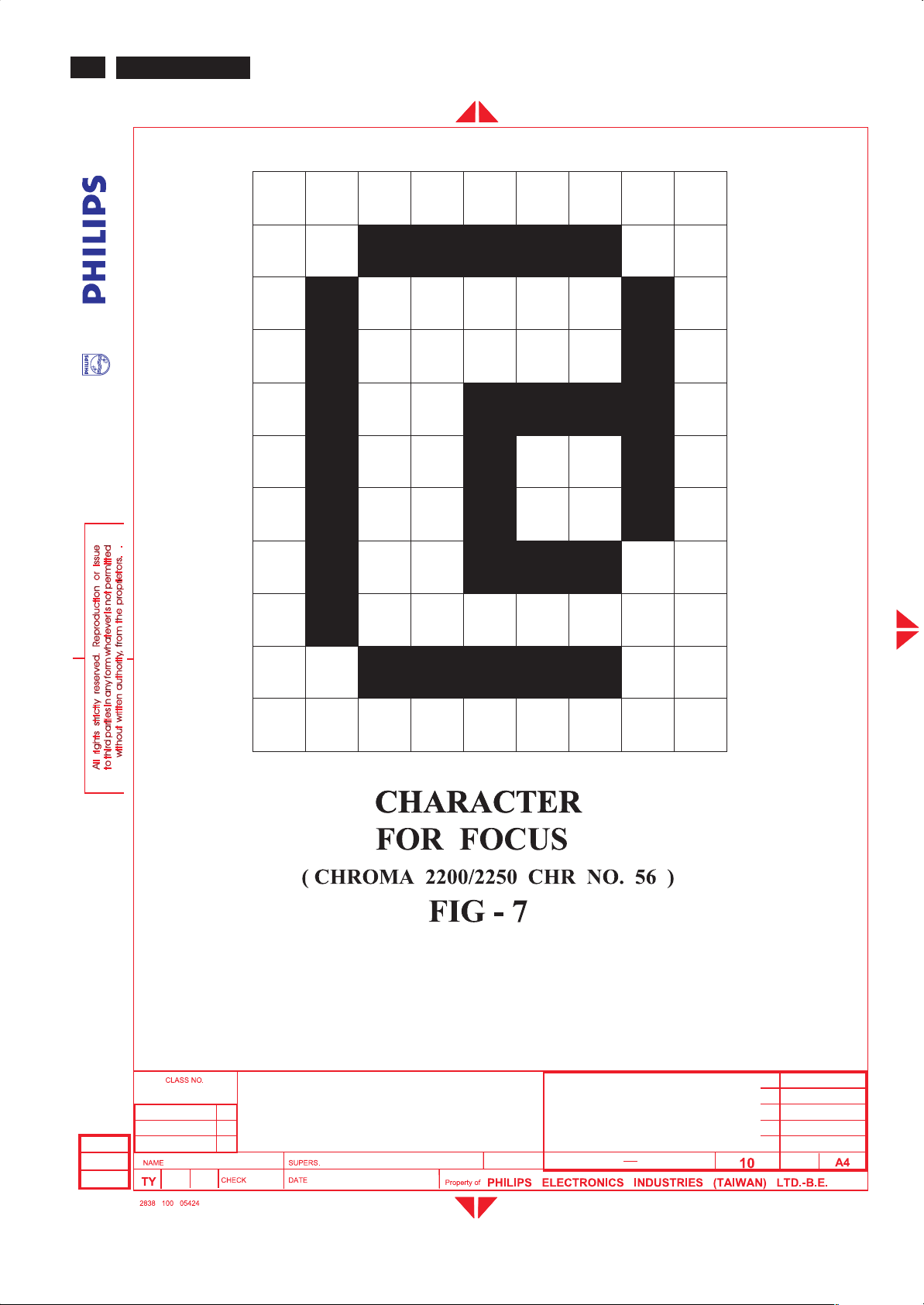

4.9 Focus check
4.10 Luminance uniformity
4.11 White color adjustment
4.12 Color tracking on full white pattern
4.13 Purity
4.14 Moir
5.0 Mechanical characteristics
5.1 User controls ( at front)
5.2 Connector and cables
5.2.1 Power Cord
5.2.2 Signal Cable
5.3 Foot Assembly
6.0 Connector and cable
7.0 Environmental characteristics
7.1 Susceptibility of display to external environment
7.1.1 Operation limits
7.1.2 Transportation packages
7.2 Display disturbance from external environment
7.2.1 ESD disturbances
7.3 Display disturbance to external environment
7.3.1 Ionizetic radiation
7.3.2 EMI
8.0 Reliability
8.1 Mean time between failures
9.0 Quality assurance requirements
9.1 Acceptance test
3Back
10.0 Serviceability
TYPE : 107B20/74H
00-06-28
S.C.WU
BRAND : PHILIPS (92K)
17" CM2400 GS-III 107B2 CMTR
00-06-28
23
8639 000 10636
590
3
Forward4
Page 4
GENERAL PRODUCT SPECIFICATION
1.0 Introduction
This document is related to the 17" AUTOSCAN color monitor and
max. resolution:1280 X 1024 by 85HZ refresh rate
2.0 General description
This AUTOSCAN analog colour monitor is specified as a display
peripheral within an IBM compatible PC.
The AUTOSCAN analog colour monitor is to operate at
H: 30 to 92.0 KHz V: 50 to 160 Hz
can be applied to all RGB analog computers within this scanning
frequencies.
The AUTOSCAN analog colour monitor is intended to be a finished
product, basically adisplay device mounted inside a plastic enclosure
which provides the aesthetic, mechanical,ergonomic and safety
requirements.
2.1 General condition
107B2 CM24 GSIII
9
Go to cover page
47
The unit will produce a usable image after switching-on, measurements are
to be carried out with a full stabilised set after about 30 minutes warm-up at
room ambient temp. of 25C.
Repetitive power on/off cycles are allowed though should be avoided
within 4 sec.
3.0 Electrical characteristics
3.1 Signal interface
This AUTOSCAN analog colour display has an analog video interface to
operates at a multi-frequencies timing in several display modes.
3.1.1 Input requirements
A. Input signals
Video - 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not
deviate 0.015 Vp-p from each other for balance of white pattern)
Sync - TTL level
(between 0 and 0.6 V to be considered as low level, between 2.3 and 5.0 V
as high level)
B. Impedance
Video - Terminated with 75 ohms
Sync - Terminated with 4.7K ohms pull-down resistors.
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
4
Forward4
Page 5
48
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3.1.2 Signals input
The input video signals are applied to the display device through a video cable
which isfixed to the monitor (flying cable length 1.5M).
Video input cable :
15 pin D-shell connector type with pin assignment as follows :
Pin assignment of 15P D-SUB connector
Pin No. Assignment
P 1 Red video input
P 2 Green video input
P 3 Blue video input
P 4 Ground
P 5 Self-test
P 6 Red video ground
P 7 Green video ground
P 8 Blue video ground
P 9 Not connected
P10 Ground
P11 Ground
P12 Bi-directional data (SDA)
P13 H SYNC
P14 V SYNC
P15 DDC Data CLOCK (SCL)
3.1.3 Factory pre-set modes:
PRESET VIDEO RESOLUTION AND SYNC. POLARITIES
Resolution modes V. freq. H. freq. H. V.
1. 720 x 400 75.087 Hz 31.469 KHz - +
2. 800 x 600 75.000 Hz 46.875 KHz + +
3. 800 x 600 85.061 Hz 53.674 KH + +
4. 1024 x 768 70.069 Hz 56.476 KHz -
5. 1024 x 768 75.029 Hz 60.023 KHz
6. 1024 x 768 84.997 Hz 68.677 KHz
7. 1280 x 1024 75.025 Hz 79.976 KHz
8. 1280 x 1024 85.024 Hz 91.146 KHz
++
++
++
++
3 .2 Timing requirements
The pre-set timing table are shown as below
Timing Table : 1- 8
17" CM2400 GS-III 107B2 CMTR
-
3Back
00-06-28
S.C.WU
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
5
Forward4
Page 6
GENERAL PRODUCT SPECIFICATION
107B2 CM24 GSIII
9
Go to cover page
TIMING FOR GS 107B2 " 92KHz
(VESA monitor timing standard Version 1.0 Release 0.8)
REFERENCE PATTERN GENERATOR : CHROMA 2200 or2250
TABLE 1: 31.8465 KHz/75.087Hz, 720 X 400, pixel=28.325 MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 31.744us Total size = 14.268 ms
Display size= 25.422us Display size = 12.711 ms
Rear porch = 1.907us Rear porch = 1.112 ms
Sync width = 3.813us Sync width = 0.064 ms
Sync polarity= Sync polarity= +
-
TABLE 2: 46.875 KHz/75.000Hz, 800 X 600, pixel=49.500 MHz
Horizontal Vertical
Frame border= 0 Frame border = 0
Total size = 21.333us Total size = 13.333 ms
Display size= 16.162us Display size = 12.800 ms
Rear porch = 3.232us Rear porch = 0.448 ms
Sync width = 1.616us Sync width = 0.064 ms
Sync polarity= + Sync polarity= +
49
00-06-28
TABLE 3: 53.674 KHz/85.061Hz, 800 X 600, pixel=56.250 MHz
Horizontal Vertical
Frame border= 0 Frame border = 0
Total size = 18.631us Total size = 11.756 ms
Display size= 14.222us Display size = 11.179 ms
Rear porch = 2.702us Rear porch = 0.503 ms
Sync width = 1.138us Sync width = 0.056 ms
Sync polarity= + Sync polarity= +
TABLE 4: 56.476 KHz/70.069Hz, 1024X 768, pixel=75.000 MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 17.707us Total size = 14.272 ms
Display size= 13.653us Display size = 13.599 ms
Rear porch = 1.920us Rear porch = 0.513 ms
Sync width = 1.813us Sync width = 0.106 ms
Sync polarity= - Sync polarity= -
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
8639 000 10636
3Back
S.C.WU
00-06-28
23
590
6
Forward4
Page 7
50
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
TABLE 5: 60.023 KHz/75.029Hz, 1024X 768, pixel=78.750 MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 16.660us Total size = 13.328 ms
Display size= 13.003us Display size = 12.795 ms
Rear porch = 2.235us Rear porch = 0.466 ms
Sync width = 1.219us Sync width = 0.050 ms
Sync polarity= + Sync polarity= +
TABLE 6: 68.677 KHz/84.997Hz, 1024X 768, pixel=94.500 MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 14.561us Total size = 11.756 ms
Display size= 10.836us Display size = 11.183 ms
Rear porch = 2.201us Rear porch = 0.524 ms
Sync width = 1.016us Sync width = 0.044 ms
Sync polarity= + Sync polarity= +
TABLE 7: 79.976 KHz/75.025Hz, 1280 X1024, pixel=135.000MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 12.504us Total size = 13.329 ms
Display size= 9.481us Display size = 12.804 ms
Rear porch = 1.837us Rear porch = 0.475 ms
Sync width = 1.067us Sync width = 0.038 ms
Sync polarity= + Sync polarity= +
TABLE 8: 91.146 KHz/85.024Hz, 1280 X 1024, pixel=157.500 MHz
Horizontal Vertical
Frame border= 0 Frame border= 0
Total size = 10.971us Total size = 11.761 ms
Display size= 8.127us Display size = 11.235 ms
Rear porch = 1.422us Rear porch = 0.483 ms
Sync width = 1.016us Sync width = 0.033 ms
Sync polarity= + Sync polarity= +
17" CM2400 GS-III 107B2 CMTR
3Back
00-06-28
S.C.WU
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
7
Forward4
Page 8
GENERAL PRODUCT SPECIFICATION
Preload modes: 34
1. 1792 1334 60 Hz 83.64 K
2. 1856 60 Hz 86.33 K
1392
3. 1920 1440 60 Hz 90.00 K
4. 640 350 70 Hz 31.469K
5. 640 350 85 Hz 37.861K
6. 640 480 Hz 50.6 K (SNI)
100.1
7. 640 480 60 Hz 31.469K
8. 640 480 72.8Hz 37.861K
9. 640 480 75 Hz 37.5 K
10. 640 85 Hz 43.269K
480
11. 720 400 70 Hz 31.469K
12. 720 400 85 Hz 37.927K
13. 800 600 100.1Hz 63.9 K (SNI)
14. 800 60.3Hz 37.879K
600
15. 800 600 72.12Hz 48.077K
16. 800 600 75 Hz 46.875K
17. 800 600 85 Hz 53.674K
18. 832 Hz 49.725K (MAC)
624 74.6
19. 1024 768 60 Hz 48.363K
20. 1024 768 70 Hz 56.476K
21. 1024 768 75 Hz 60.0 K
22. 1024 768 84.99Hz 68.677K
23. 1152 Hz 67.5 K
864 75
24. 1152 864 85 Hz 77.1 K
25. 1152 870 75 Hz 68.681K (MAC)
26. 1152 900 76 Hz 71.8 K (SUN)
27. 1280 60 Hz 63.981K
1024
28. 1280 1024 75 Hz 79.976K
29. 1280 1024 85 Hz 91.146K
30. 1280 960 60 Hz 60.0 K
31. 1280 Hz 85.938K
960 85
32. 1600 1200 60 Hz 75.00 K
33. 1600 1200 65 Hz 81.25 K
34. 1600 1200 70 Hz 87.5 K
107B2 CM24 GSIII
9
Go to cover page
51
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
8
Forward4
Page 9
52
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3.2.1 Horizontal scanning
Scanning frequency : 30 - 92 KHz,
H-shift range : 20 mm min.
Retrace time : Less than 2.50 us.
3.2.2 Vertical scanning
Scanning frequency : 50 - 160 Hz
V-shift range : 10 mm Min.
3.3 Power supply
The display device maintains the specified performance in the range described as
below :
Type Mains current Mains Voltage Mains freq.
1.6A max. 90 - 264 VAC 47-63Hz
Power consumption : 100 Watts Max.
Power cord length : 1.5M
Power cord type : 3 leads detachable power cord with protective earth plug
3.4 Power saving management system
SIGNAL POWER RECOVERY
MODE
H-SYNC V-SYNC VIDEO TIME
ON ACTIVE ACTIVE ACTIVE < 100W NA
STAND-BY INACTIVE ACTIVE BLANKED < 15W ~ 3 SEC.
SUSPEND ACTIVE INACTIVE BLANKED < 15W ~ 3 SEC.
OFF INACTIVE INACTIVE BLANKED < 3W ~ 7 SEC
3.5 CRT Description
This display unit employs a high resolution CRT complying with the following
specifications :
Dimensions : 17 inches
flat/square screen.
Pitch : 0.25mm dotted
Deflection angle : 90 degrees
Light transmission : 53.5%
Face treatment : IRIS HC coating
2
-
Implosion protection: CRT Pre-stressed banded Mini-P shrunk rimband
EHT : 26.0KV
Visible screen area: 325 mm x 245 mm
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
9
Forward4
Page 10
GENERAL PRODUCT SPECIFICATION
3.6 RGB Amplifier
3.6.1 Video amplifiers
Dot Rate : 157.5 MHz
Over / undershoot : 10% Max.
(Transient response)
Sag (background : 5% Max. (pulses of 0.70H)
uniformity)
3.6.2 Brightness and contrast

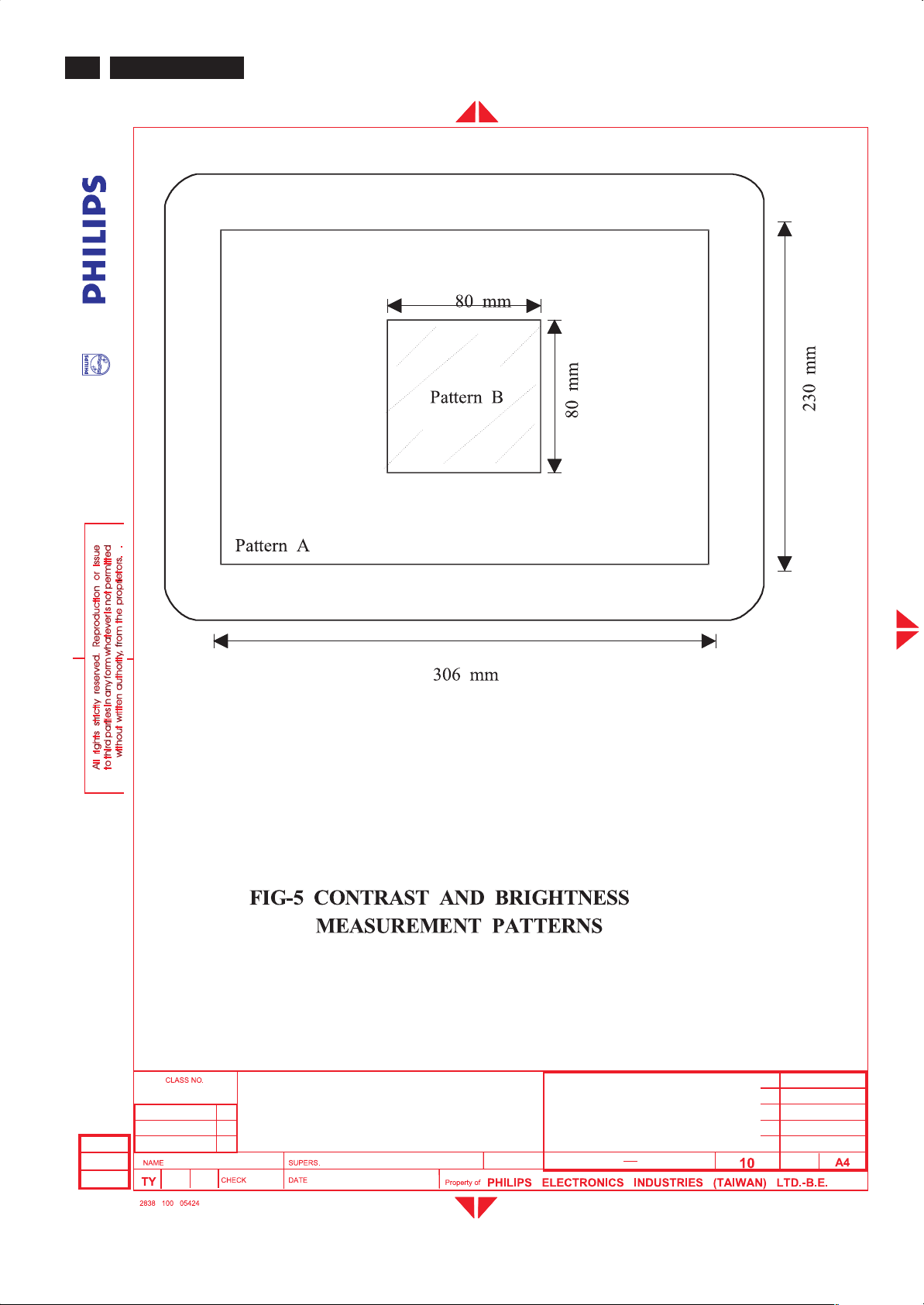

Reference mode 68.7K/85Hz full white pattern.
Brightness Contrast Light output
Minimum Minimum < 1.0 FL
Center Maximum 30+/- 5 FL
3.7 Variation of image size
Due to brightness change
from 3 to 30 FL (Max.) : < 1.0 mm
Due to aging
(0 to 40C) : < 1.0 %
Due to mains voltage
variation : < 1.0 %
(full white)
107B2 CM24 GSIII
9
Go to cover page
53
3.8 Degaussing
An automatic degaussing circuit is provided which requires no
intervention. The degaussing activated at the time of switch-on or
switch-on again or pressing manual degaussing key after switchingÂoff degaussing circuits for longer than 30 minutes.
3.9 Phosphor protection
The display device is sufficiently protected against the burning of
phosphors in case of repetitive power cycling or absence of
horizontal deflection.
3.10 Low emission requirements (TCO-99)
Items Band I Band II
ELF (rms) VLF (rms)
Alternating Electric
Field
Magnetic Field
MPR-II 25 V/M MPR-II 2.5V/M
TCO-9910 TCO-991.0
MPR-II 250 nT MPR-II 25 nT
TCO-99 200 nT TCO-9925 nT
E.S.P
Band I : 5 to 2K Hz.
Band II : 2K to 400K Hz.
Test procedure according to Low emission test method.
< +/-500 V
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
10
Forward4
Page 11
54
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3.11 Display data channel : DDC1/2B (VESA STANDARD)
The DDC HEX Data should be written into DDC memory inside the CPU IC (7802) by
EEPROM writer or equivalent method.
4.0 Display image (CRT facing east)
The monitor is aligned in a magnetic cage having the following magnetic field
components :
Northern Hemisphere :H=0,V= +0.43 +/- 0.05G,Z=0
Southern Hemisphere:H=0,V= -0.52 +/- 0.05G,Z=0
Conditions for visual testing, unless otherwise stated:
Input video signal - 700 mVp-p cross hatch
Brightness control - 50%
Contrast control - Adjusted to 30+/- 5 FL of luminance with full white pattern
4.1 Display resolutions
See 3.1.3

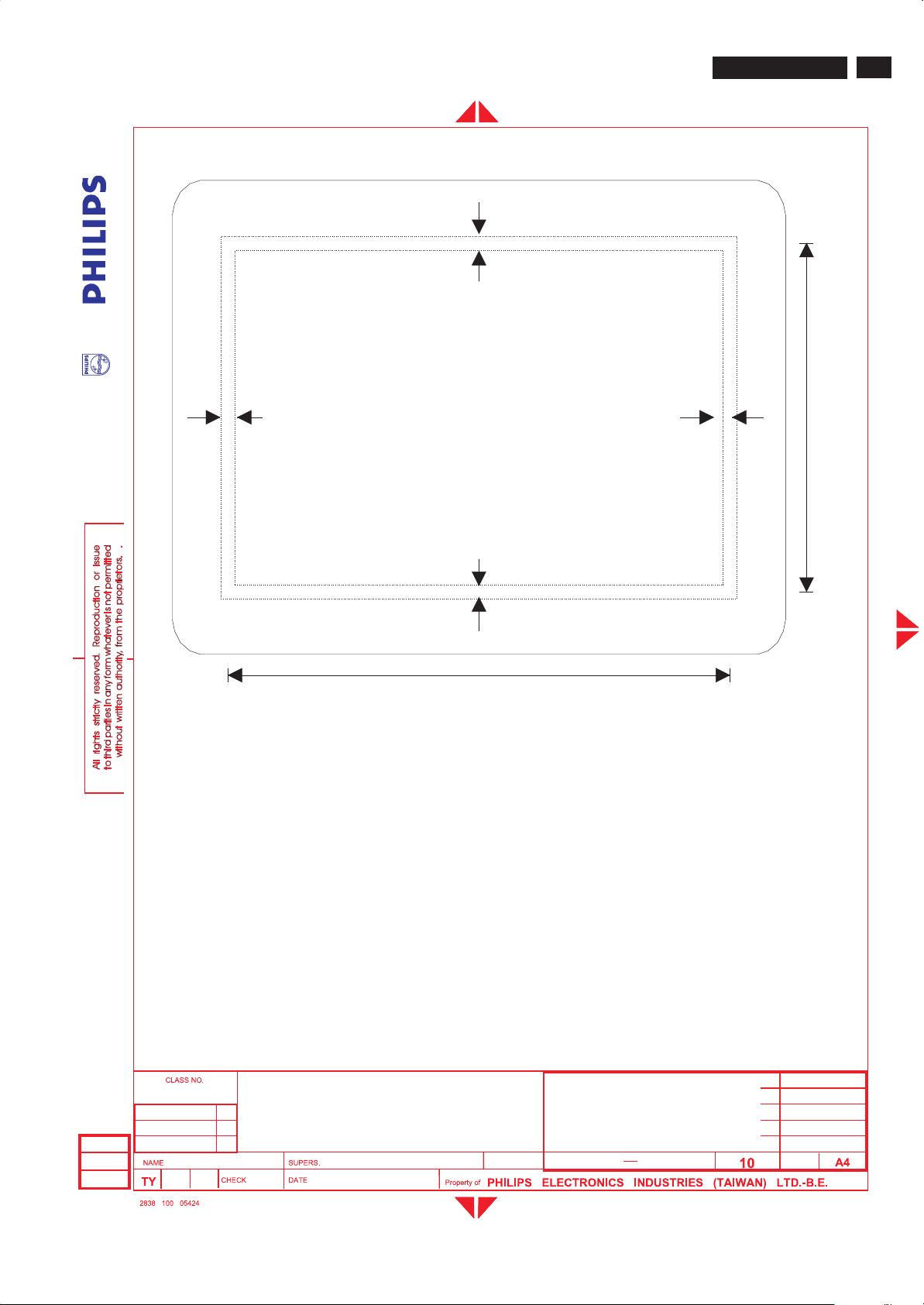

4.2 Image size (Factory pre-set modes only)

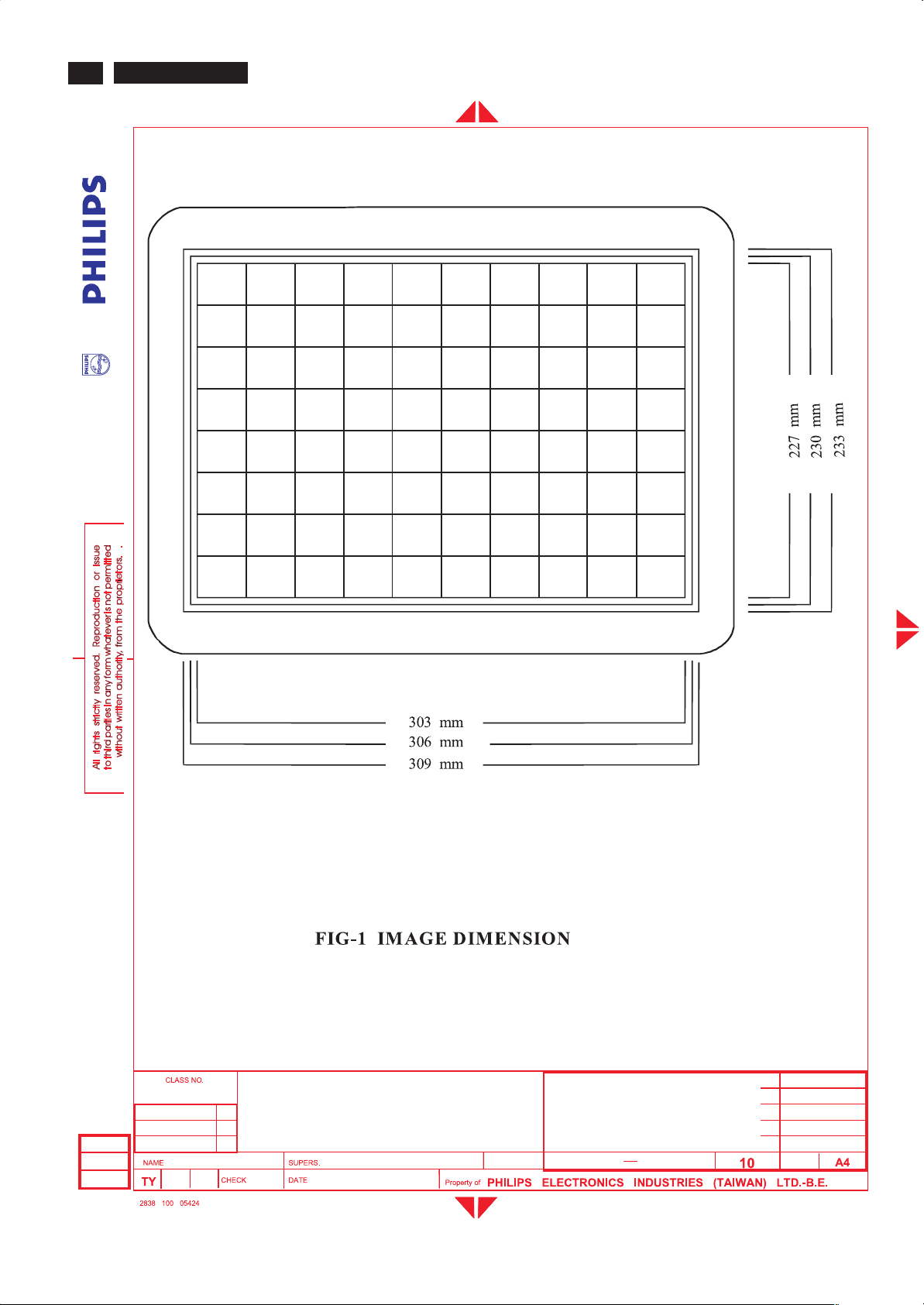

The dimensions of guaranteed display area to be measured along the picture center of
horizontal and vertical axis of the screen as listed below: (preset modes only, refer
to fig. 1/fig 2)
Width : 306 +/- 3 mm .(fig 1)
Height : 230 +/- 3 mm .(fig 1)
4.3 Image centering deviation (Factory preset modes only)
With respect to fig. 2, the target relationships are the following :
|A-B|<=5mm |C-D| <=5mm
Note : This centering is adjustable by the end-user.
4.4 Picture shift control range
H-shift range : 20 mm min. (+/- 5mm,from center to each side)
V-shift range : 10 mm min. (+/- 2mm,from center to each side)
4.5 Picture tilt
3Back
00-06-28
S.C.WU
With respect to Fig. 3, Tilt to be measured on extremes of center line from bezel.
Tilt :<=2mm
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
23
00-06-28
8639 000 10636
590
11
Forward4
Page 12
GENERAL PRODUCT SPECIFICATION
107B2 CM24 GSIII
4.6 Geometric distortions
It is acceptable that pincushion, trapezoid, rhomboid, rotation and various waves
distortions must remain within the limits of tolerance as in fig. 4,
A , B 2.0mm
C , D 2.0mm
The waviness of any vertical or horizontal shall be less than 1.0 mm over a 50 mm
distance.
4.7 Image non-linearity pattern with
10 equal blocks along horizontal axis,
8 equal blocks along vertical axis.
Two Adjacent block : 6 % Max (each horizontal and vertical)
Overall : 10 % Max (each horizontal and vertical)
Xmax. - Xmin
H. linearity = ----------------------- x 100%
Xmax.
9
Go to cover page
55
Ymax. - Ymin
V. linearity = ------------------------ x 100%
Ymax.
4.8 Mis-convergence
The maximum convergence error to be measured on a white spot or white display line
to represents the maximum distance between the energy centers of any two primary
colors.
(See Fig. 6)
Mis-Convergence SPEC.
CRT Pitch 0.25mm
Zone A 0.25
Zone B 0.35
Center 0.15
4.9 Focus check (with 79.99KHz/75Hz,1280 x 1024 mode)
Generate "@" characters (pattern as fig 7)to cover entire of the picture area (display
size respect to fig. 1), adjust brightness control to click and contrast near center
(~ 30FL full white ) the characters should be clearly identified in all display area.
4.10 Luminance uniformity
3Back
00-06-28
S.C.WU
condition : With full white pattern, set contrast control at max. and adjust brightness
control to get 30FL in center.the max. deviation to the rest of the screen shall not
exceed 25% of entire screen with any point.
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
23
00-06-28
8639 000 10636
590
12
Forward4
Page 13
56
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
4.11 White color adjustment
Based on the 1931 CIE chromaticity (colour triangle) diagram (x,y coordination).
coordination of white display on screen center should be:
for 9300 degreeK X = 0.283 +/- 0.015
Y = 0.297 +/- 0.015
for 6500 degreeK X = 0.313 +/- 0.015
Y = 0.329 +/- 0.015
Check conditions :
Set brightness control at 50% position and contrass at maximum.
4.12 Color tracking on full white pattern
Ref. to white balance alignment result and set brightness at 50%, adjust contrast
control from 5FL to max. position, the colour coordinate should not deviate more
than following tolerance when compare to display center:
X= X nominal +/- 0.015
Y= Y nominal +/- 0.015
4.13 Purity
Test patterns : Full White
Conditions:As stated in item 4.0, the purity must be checked under specific
destinations of earth magnetic environments and the monitor to be
well degaussed.
After warming-up time of 30 min., no coloured stains may occur in
above four patterns.
4.14 Moir
Condition: Displaying a , at any pre-set mode the display size of
full white pattern
the sets to be set as stated in "Fig. 1".
No serious moir'e is visible
after adjustment via OSD moir control function and
test is toset brightness at center(50%),contrast at Max
. However the OSD moir data of V-moir should be default 30 for outgoing
Increasing the moir control value will have side effect on resolution (degrade
focus),and phenomenon of flicker and sawtooth.
5.0 Mechanical characteristics
5.1 User controls (all at front) Right to left
- Power ON/OFF
- Enter
- Up/Down
- Right
- Left
6 .0 Connectors and cables
6.1.1 Power cord (plugable) type : Wall Plug ,non shielded and non-attached.
Length : 1.5 m +/- 50 mm . Plug curved at 90.
17" CM2400 GS-III 107B2 CMTR
3Back
00-06-28
S.C.WU
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
13
Forward4
Page 14
GENERAL PRODUCT SPECIFICATION
107B2 CM24 GSIII
6.1.2 Signal cable
Length of video : 1.5 m +/- 50 mm flying in 15pins D-shell.
7.0 Environmental characteristics
The following sections to define the interference and susceptibility condition limits
that might occur between external environment and the display device.
7.1 Susceptibility of display to external environment
7.1.1 Operating limits
A). Temperature : 0C to 40C
Humidity : 10 to 90% (W/O condensation)
Air pressure : 700 ~ 1100 mbar
B). Non-operating limits (storage)
Temperature : -25C to 65C
Humidity : 5 to 95 % (W/O condensation)
Altitude : 300 to 1100 mbar
9
Go to cover page
57
7.1.2 Transportation packages
A) Carton box
: 496(W) x 518 (D) x 495 (H) mm.
B) Transportation conditions
(see table, shown as below)
B-1 Transportation standards
TEST Standard reference Philips severity
Drop Gross weight Drop height
1C-3E-6F (Kg) (cm)
NSTA
18.1 Kg 76 cm
Random vibration Truck spectrum, 0.73 Grms,
30 min/axis, 3 axes
Shock 120G<3msec, 6 shocks.
(non-oper) * G value measurement filter:
1000Hz
half sine * Exclude CRT impurity.
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
14
Forward4
Page 15
58
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
B-2 Container loading
Container size
40Feet 20Feet High cube 40 Feet
Q'ty W/Pallet W/Pallet W/Pallet
Yes No Yes No Yes No
Layers 4444 4 4
Sets per layer 4444 4 4
Sets per block 16 16 16 16 16 16
Blocks per container 24 24 10 10 24 24
Total set 384 384 160 160 384 384
7.2 Display disturbances from external environment
7.2.1 ESD Disturbances
According to IEC65 (also refer to IEC801-2 for detail).
7.3 Display disturbances to external environment
The disturbances induced by the display and tolerated by the environment are
defined as follows :
7.3.1 Ionizetic radiation
Completely fulfilled International Commission of
Radio logical Protection (ICRP) requirement 0.5 mr/hrs.
Actually the set can reach 0.1 mr/hrs.
7.3.2 Safety and EMI requirements
------------------------------------
Safety - USA :UL 1950
-CANADA :CSA C22.2 NO.950-M89
-NORDIC :IEC60950
:EN60950
:EMKO TSE (74SEC) 207/94
-GERMANY :ZHI/618 (GS)
:ISO 9241-3, 9241-7, 9241-8
EMI -USA :FCC PART 15 Class B
-CANADA :D.O.C. Class B
-CE :EN55022 CLASS B
-JAPAN :VCCI Class B
EMS -CE :EN50082-1
:EN60555-2
3Back
00-06-28
S.C.WU
LOW EMISSION :TCO-99
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
15
Forward4
Page 16
GENERAL PRODUCT SPECIFICATION
7.3.3 X-RAY radiation requirement /regulation
-USA/CANADA :DHHS 21 CFR, CHAPTER 1,SUBCHAPTER J
-GERMANY :RONTGEN VERORDNUNG ROV 1987.01.08
X-ray explosure at 5cm distance from any point of the external surface must not
exceed 0.1 mR/H.
8.0 Reliability
8.1 Mean time between failures
MTBF to be calculated according to Military standard
MIL-HDBK-217C.
MTBF >=75,000 Hours (Excluding CRT)
TOTAL HRS (POWER ON) X TOTAL SETS
PRACTICE of MTBF = ---------------------------------------------------------
NBR. OF FAILURED SETS
107B2 CM24 GSIII
9
Go to cover page
59
9.0 Quality assurance requirements
9.1 Acceptance test
According to MIL-STD-105D level II,
AQL : 0.65 (Major)
2.5 (Minor)
Customer acceptance :
criteria : UAW0377/00
10.0 Serviceability
The service ability of this monitor should fulfill the requirements which are
prescribed in UAW-0346 and must be checked with the check list UAT-0361.
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
16
Forward4
Page 17
60
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
17
Forward4
Page 18
GENERAL PRODUCT SPECIFICATION
107B2 CM24 GSIII
9
Go to cover page
61
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
18
Forward4
Page 19
62
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
19
Forward4
Page 20
GENERAL PRODUCT SPECIFICATION
C
107B2 CM24 GSIII
9
Go to cover page
63
A
B
230 mm
D
306 mm
A, B <= 2.0 mm C, D <= 2.0 mm
FIG-4 IMAGE GEOMETRY
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
20
Forward4
Page 21
64
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
21
Forward4
Page 22
GENERAL PRODUCT SPECIFICATION
107B2 CM24 GSIII
9
Go to cover page
65
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
22
Forward4
Page 23
66
107B2 CM24 GSIII
9
Go to cover page
GENERAL PRODUCT SPECIFICATION
3Back
00-06-28
S.C.WU
17" CM2400 GS-III 107B2 CMTR
TYPE : 107B20/74H
BRAND : PHILIPS (92K)
00-06-28
23
8639 000 10636
590
23
Forward4
Loading...
