Page 1
42
107P CM25 GSIII
9 Go to cover page

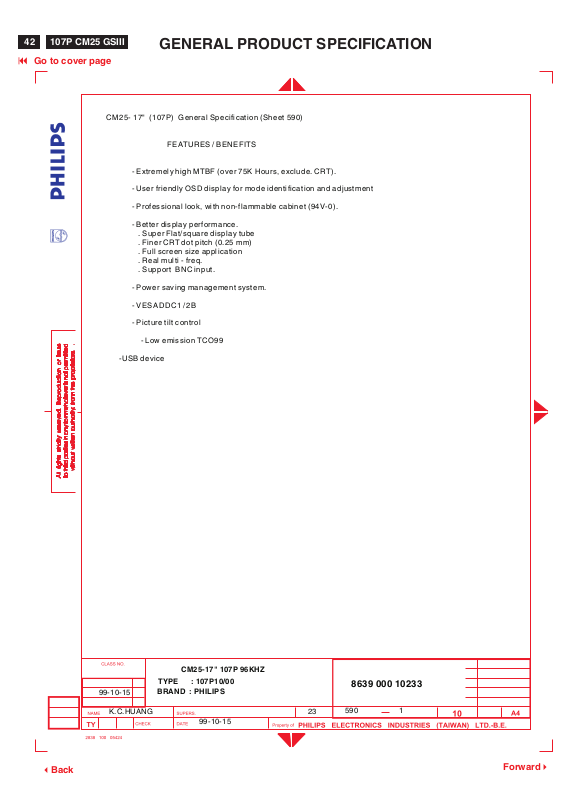

GENERAL PRODUCT SPECIFICATION
CM25- 17" (107P) General Specification (Sheet 590)
FEATURES / BENEFITS
- Extremely high MTBF (over 75K Hours, exclude. CRT).
- User friendly OSD display for mode identification and adjustment
- Professional look, with non-flammable cabinet (94V-0).
- Better display performance.
. Super Flat/square display tube
. Finer CRTdot pitch (0.25 mm)
. Full screen size application
. Real multi - freq.
. Support BNC input.
- Power saving management system.
- VESA DDC1 /2B
- Picture tilt control
- Low emission TCO99
-USB device
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
1
Forward4
Page 2
GENERAL PRODUCT SPECIFICATION
INDEX
=========
1.0 Introduction
2.0 General description
2.1 General condition
3.0 Electrical characteristics
3.1 Signal interface
3.1.1 Input requirements
3.1.2 Signals input.
3.1.3 Factory pre-set modes
3.2 Timing requirements
3.2.1 Horizontal scanning
3.2.2 Vertical scanning
3.3 Power supply
3.4 Power saving management system
107B CM24 GSIII
9 Go to cover page
43
3.5 CRT description
3.6 RGB amplifier
3.6.1 Video amplifier
3.6.2 Brightness and contrast
3.7 Variation of image size
3.8 Degaussing
3.9 Phosphor protection
3.10 Low emission requirements (TCO-99)
3.11 Display data channel : DDC1/2B (VESA STANDARD)
3.12 USB device
4.0 Display
4.1 Display resolution
4.2 Image size
4.3 Image centering deviation
4.4 Picture shift control range
4.5 Geometric distortions
4.6 Picture tilt
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
1
Forward4
Page 3
44
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
4.7 Image non-linearity
4.8 Mis-covergence
4.9 Focus check
4.10 Luminance uniformity
4.11 White color adjustment
4.12 Color tracking on full white pattern
4.13 Purity
4.14 Moire
5.0 Mechanical characteristics
5.1 User controls ( at front)
5.2 Connector and cables
5.2.1 Power Cord
5.2.2 Signal Cable
5.3 Foot Assembly
6.0 Connector and cable
7.0 Environmental characteristics
7.1 Susceptibility of display to external environment
7.1.1 Operation limits
7.1.2 Transportation packages
7.2 Display disturbance from external environment
7.2.1 ESD disturbances
7.3 Display disturbance to external environment
7.3.1 Ionizetic radiation
7.3.2 EMI
8.0 Reliability
8.1 Mean time between failures
9.0 Quality assurance requirements
9.1 Acceptance test
10.0 Serviceability
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
1
Forward4
Page 4
GENERAL PRODUCT SPECIFICATION
1.0
Introduction
This document is related to the 17" AUTOSCAN color monitor
and max. resolution:
1920 X 1440 by 60Hz refresh rate
2.0
General description
This AUTOSCAN analog colour monitor is specified as a
display peripheral within an IBM compatible PC.
The AUTOSCAN analog colour monitor is to operate at
H: 30 to 96.0 KHz V: 50 to 160 Hz
can be applied to all RGB analog computers within this scanning frequencies.
The AUTOSCAN analog colour monitor is intended to be a
finished product, basically a display device mounted inside
a plastic enclosure which provides the aesthetic, mechanical,
ergonomic and safety requirements.
2.1 General condition
107P CM25 GSIII
9 Go to cover page
45
The unit will produce a usable image after switching-on,
measurements are to be carried out with a full stabilized
set after about 30 minutes warm-up at room ambient
temperature of 25C.
Repetitive power on/off cycles are allowed though should
be avoided within 4 sec.
3.0
Electrical characteristics
3.1 Signal interface
This AUTOSCAN analog colour display has an analog video
interface to operates at a multi-frequencies timing in
several display modes.
3.1.1 Input requirements
A. Input signals
Video - 0.7 Vp-p 75 ohms (for individual of R,G and B
signals must not deviate 0.015 Vp-p from each
other for balance of white pattern)
Sync - TTL level
(between 0 and 0.6 V to be considered as low
level, between 2.3 and 5.0 V as high level)
B. Impedance
Video - Terminated with 75 ohms
Sync - Terminated with 4.7K ohms pull-down resistors.
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
1
Forward4
Page 5
46
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
3.1.2 Signals input
The input video signals are applied to the display device
through a video cable which is fixed to the monitor
(flying cable length 1.5M).
Video input cable :
15 pin D-shell connector type with pin assignment
as follows :
Pin assignment of 15P D-SUB connector
Pin No. Assignment
P 1 Red video input
P 2 Green video input
P 3 Blue video input
P 4 Ground
P5 GND
P 6 Red video ground
P 7 Green video ground
P 8 Blue video ground
P 9 Not connect
P10 Ground
P11 Ground
P12 Bi-directional data (SDA)
P13 H SYNC
P14 V SYNC
P15 DDC Data CLOCK (SCL)
3.1.3 Factory pre-set modes:
PRESET VIDEO RESOLUTION AND SYNC. POLARITIES
Resolution modes H. freq. V. freq. H. V.
1. 800 x 600 46.9 Khz 75 HZ(VESA) + +
2. 800 x 600 53.7 Khz 85 HZ(VESA) + +
3. 1024 x 768 60.0 Khz 75 HZ(VESA) + +
4 1024 x 768 68.7 Khz 85 HZ(VESA) + +
5. 1280 x 960 85.0 Khz 85 Hz (VESA) + +
6. 1280 x 1024 80.0 Khz 75 Hz (VESA) + +
7. 1280 x 1024 91.1 Khz 85 Hz (VESA) + +
8. 1600 x 1200 93.8 Khz 75 Hz (VESA) + +
3 .2 Timing requirements
The pre-set timing table are shown as below
Timing Table : 1- 8
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
1
Forward4
Page 6
GENERAL PRODUCT SPECIFICATION
TIMING FOR CM25-17 107P AUTOSCAN COLOR MONITOR
REFERENCE PATTERN GENERATOR : CHROMA 2250
TABLE 1: 46.875KHz/75.000Hz, 800 X 600, pixel=49.500MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 21.333 us Total size = 13.333 ms
Display size = 16.162 us Display size = 12.800 ms
Rear porch = 3.232 us Rear porch = 0.448 ms
Sync width = 1.616 us Sync width = 0.064 ms
Sync polarity = + Sync polarity = +
TABLE 2: 53.674KHz/85.061Hz, 800 X 600, pixel=56.250MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 18.631 us Total size = 11.756 ms
Display size = 14.222 us Display size = 11.179 ms
Rear porch = 2.702 us Rear porch = 0.503 ms
Sync width = 1.138 us Sync width = 0.056 ms
Sync polarity = + Sync polarity = +
107P CM25 GSIII
9 Go to cover page
47
TABLE 3: 60.023KHz/75.029Hz, 1024 X 768, pixel=78.750MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 16.660 us Total size = 13.328 ms
Display size = 13.003 us Display size = 12.795 ms
Rear porch = 2.235 us Rear porch = 0.466 ms
Sync width = 1.219 us Sync width = 0.050 ms
Sync. polarity = + Sync. polarity= +
TABLE 4: 68.677KHz/84.997Hz, 1024 X 768, pixel=94.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 14.561 us Total size = 11.765 ms
Display size = 10.836 us Display size = 11.183 ms
Rear porch = 2.201 us Rear porch = 0.524 ms
Sync width = 1.016 us Sync width = 0.044 ms
Sync polarity = + Sync polarity = +
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
6
Forward4
Page 7
48
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
TABLE 5: 85.938KHz/85.002Hz, 1280 X 960, pixel=148.500MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 11.636 us Total size = 11.764 ms
Display size = 8.620 us Display size = 11.171 ms
Rear porch = 1.508 us Rear porch = 0.547 ms
Sync width = 1.077 us Sync width = 0.035 ms
Sync polarity = + Sync polarity = +
TABLE 6: 79.976KHz/75.025Hz, 1280 X 1024, pixel=135.00MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 12.504 us Total size = 13.329 ms
Display size = 9.481 us Display size = 12.804 ms
Rear porch = 1.837 us Rear porch = 0.475 ms
Sync width = 1.067 us Sync width = 0.038 ms
Sync polarity = + Sync polarity = +
TABLE 7 :91.146 KHz/85.024Hz, 1280 X 1024, pixel=157.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 10.971 s Total size = 11.761 ms
Display size = 8.127 s Display size= 11.234 ms
Rear porch = 1.422 s Rear porch = 0.483 ms
Sync width = 1.016 s Sync width = 0.033 ms
Sync polarity = + Sync polarity= +
TABLE 8: 93.750 KHz/75.000Hz, 1600 X 1200, pixel=202.500 MHz
Horizontal Vertical
Frame border = 0 Frame border = 0
Total size = 10.667 s Total size = 13.334 ms
Display size = 7.901 s Display size= 12.800 ms
Rear porch = 1.501 s Rear porch = 0.491 ms
Sync width = 0.948 s Sync width = 0.032 ms
Sync polarity = + Sync polarity= +
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
7
Forward4
Page 8
GENERAL PRODUCT SPECIFICATION
3.2.1 Horizontal scanning
Scanning frequency: 30 - 96.0 KHz,
H-shift range : 20 mm min.
Retrace time : Typical 2.30 us.
3.2.2 Vertical scanning
Scanning frequency: 50 - 160 Hz
V-shift range : 10 mm Min.
3.3 Power supply
The display device maintains the specified performance
in the range described as below :
Type Mains current Mains Voltage Mains freq.
1.8A max. 90 - 264 VAC 47-63Hz
Power consumption : 110 Watts Max.
Power cord length : 1.5M
Power cord type : 3 leads detachable power cord with
protective earth plug .
107P CM25 GSIII
9 Go to cover page
49
3.4 Power saving management system
A
MODE
H-SYNC V-SYNC VIDEO TIME
ON ACTIVE ACTIVE ACTIVE < 110W NA
STAND-BY INACTIVE ACTIVE BLANKED < 15W ~ 3 SEC.
SUSPEND ACTIVE INACTIVE BLANKED < 15W ~ 3 SEC.
OFF INACTIVE INACTIVE BLANKED < 3W ~ 7 SEC
3.5 CRT Description
This display unit employs a high resolution CRT complying
with the following specifications :
Dimensions : 17 inches
Pitch : 0.25mm dotted
SIGNAL POWER RECOVERY
Super flat/square screen.
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
8
Forward4
Page 9
50
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
Deflection angle : 90 degrees
Light transmission : 41.5%
Face treatment : AR film
Implosion protection : CRT is provided with P-mini-rim-band
EHT :25KV
Visible screen area : 325 mm x 244 mm
3.6 RGB Amplifier
3.6.1 Video amplifiers
Dot Rate : 202.5 MHz
Over / undershoot : 10% Max.
(Transient response)
Sag (background : 5% Max. (pulses of 0.70H)
uniformity)
3.6.2 Brightness and contrast
Reference mode 68.7K/85Hz full white pattern at 9300K.
Brightness Contrast Light output
Minimum Minimum < 0.5 FL
Center Maximum 30 +/- 5 FL
3.7 Variation of image size
Due to brightness change
from 3 to 30 FL (Max.) : < 1.0 %
Due to aging
(0 to 40C) : < 1.0 %
Due to mains voltage
variation : < 1.0 %
3.8 Degaussing
An automatic degaussing circuit is provided which reqÂuires no intervention. The degaussing activated at the
time of switch-on or switch-on again or pressing manual
degaussing key after switching-off degaussing circuits
for longer than 30 minutes.
3.9 Phosphor protection
The display device is sufficiently protected against the
burning of phosphors in case of repetitive power cycling
or absence of horizontal deflection.
(full white)
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
9
Forward4
Page 10
GENERAL PRODUCT SPECIFICATION
3.10 Low emission requirements (MPRII, TCO95, TCO99)
107P CM25 GSIII
9 Go to cover page
51
Items Band I Band II
Alternating Electric
Field
Magnetic Field
E.S.P
Band I : 5 to 2K Hz.
Band II : 2K to 400K Hz.
Test procedure according to Low emission test method.
3.11 Display data channel : DDC1/2B (VESA STANDARD)
The DDC HEX Data should be written into DDC memory inside
the IC (7802) by EEPROM writer or equivalent method.
3.12 USB device
The control funtion of monitor can be operated by Customax in WINDOW
enviroment via USB.
4.0
Display image (CRT facing east)
The monitor is aligned in a magnetic cage having the
following magnetic field components :
ELF (rms) VLF (rms)
MPR-II 25 V/M MPR-II 2.5V/M
TCO-95/9910 TCO-95/991.0
MPR-II 250 nT MPR-II 25 nT
TCO-95/99 200 nT TCO-95/9925 nT
500 V
Northern Hemisphere:H=0,V= +0.43 0.05G,Z=0
Southern Hemisphere:H=0,V= -0.52 0.05G,Z=0
Conditions for visual testing, unless otherwise stated:
Input video signal - 700 mVp-p cross hatch
Brightness control - 50%
Contrast control - Adjusted to 30 5 FL of luminance
4.1 Display resolutions
See 3.1.3

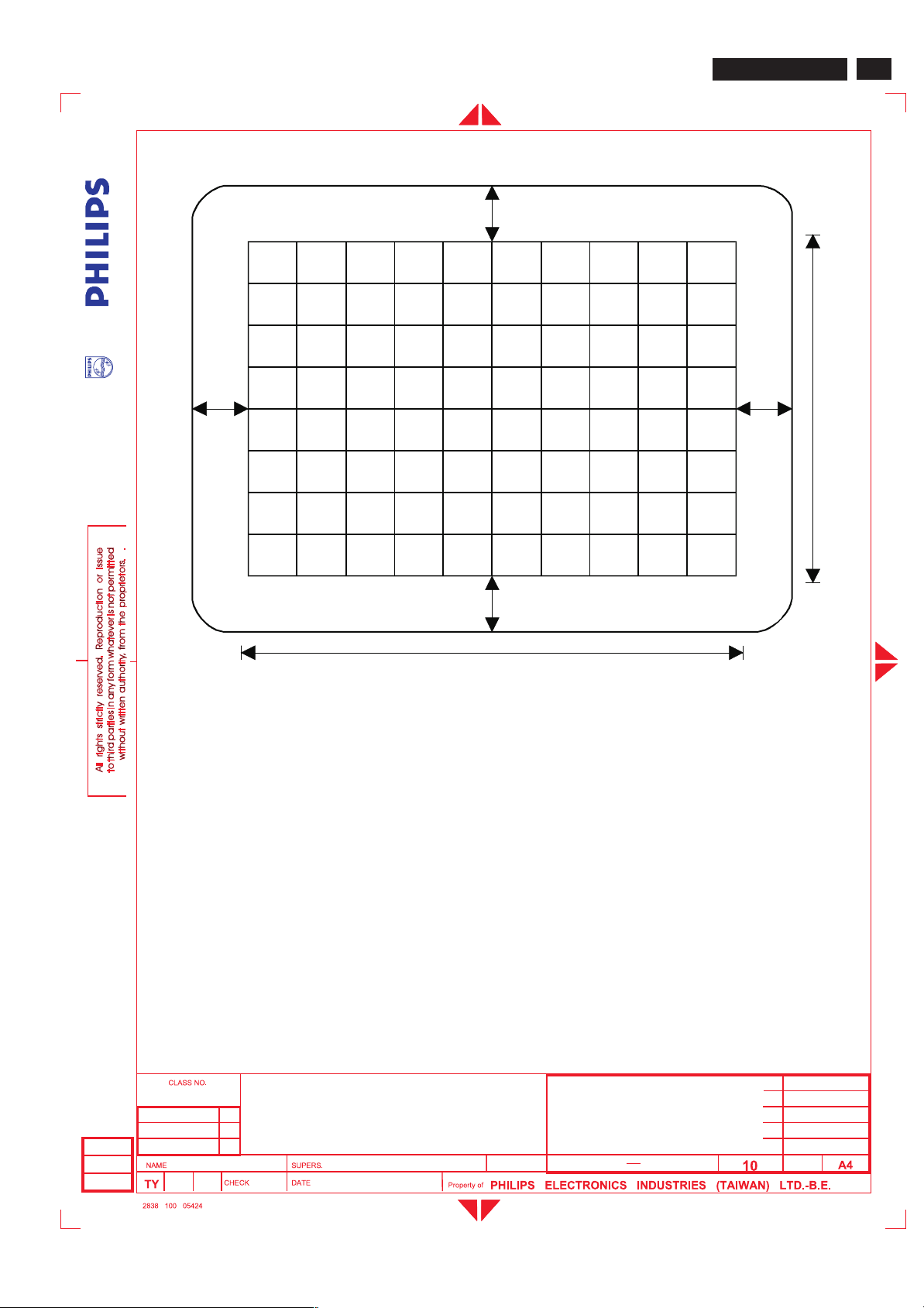

4.2 Image size (Factory pre-set modes only)
The dimensions of guaranteed display area to be measured
along the picture center of horizontal and vertical axis
of the screen as listed below: (preset modes only, refer
to fig. 1/fig 2)
TYPE : 107P10/00
99-10-15
BRAND : PHILIPS
with full white pattern
CM25-17" 107P 96KHZ
8639 000 10233
3Back
K.C.HUANG
99-10-15
23
590
10
Forward4
Page 11
52
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
Width : 306 +/- 3 mm .(fig 1)
Height : 230 +/- 3 mm .(fig 1)

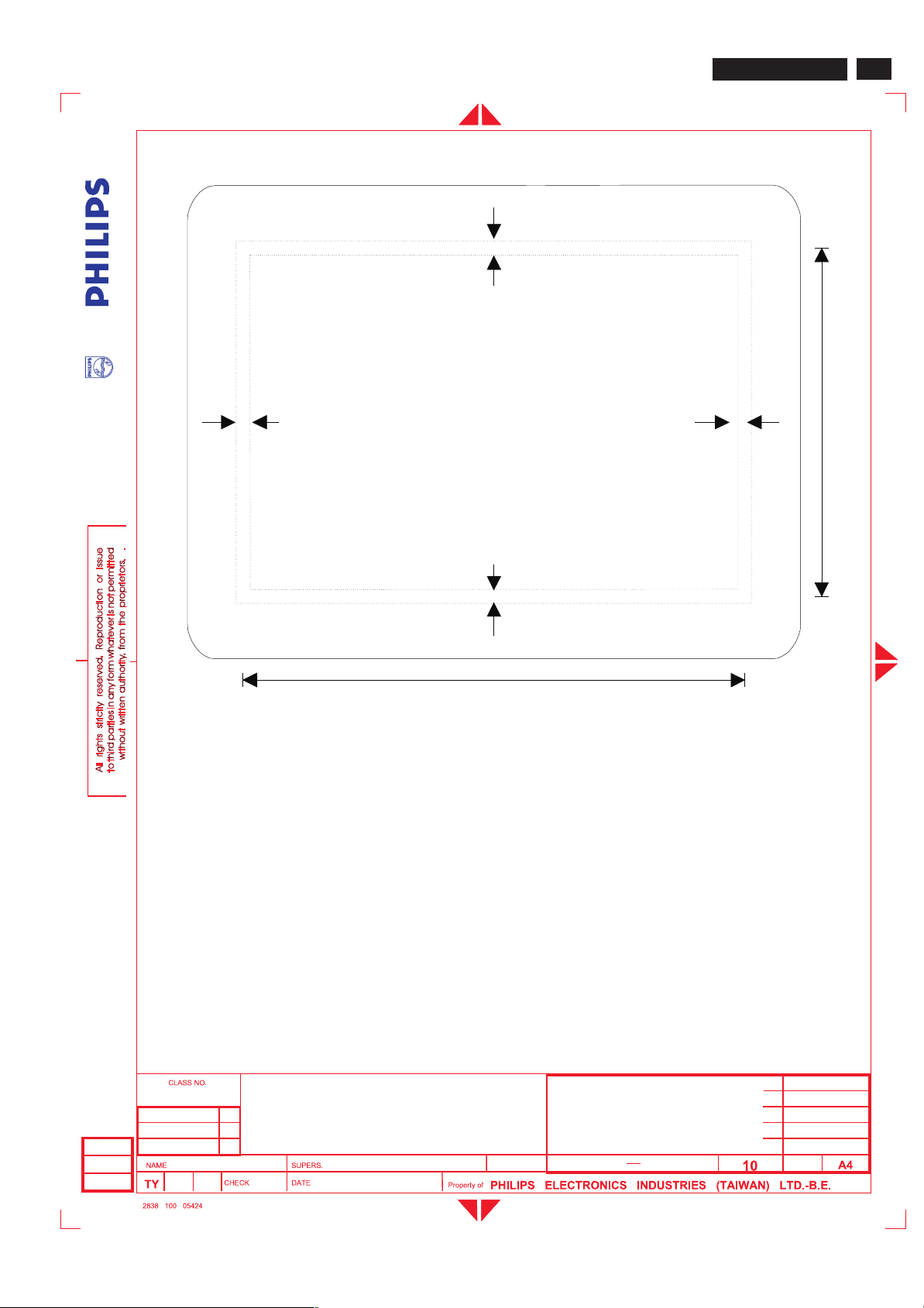

4.3 Image centering deviation (Factory preset modes only)
With respect to fig. 2, the target relationships are
the following :
|A-B|<=5mm |C-D| <=5mm
Note : This centering is adjustable by the end-user.
4.4 Picture shift control range
H-shift range : 20 mm min. (+/- 5mm,from center to each side)
V-shift range : 10 mm min. (+/- 2mm,from center to each side)
4.5 Picture tilt
With respect to Fig. 3, Tilt to be measured on extremes
of center line from bezel.
Tilt :<=2mm
4.6 Geometric distortions
It is acceptable that pincushion, trapezoid, rhomboid,
rotation and various waves distortions must remain within
the limits of tolerance as in fig. 4,
A , B 2.0mm
C , D 2.0mm
The waviness of any vertical or horizontal shall be less
than 1.0 mm over a 50 mm distance.

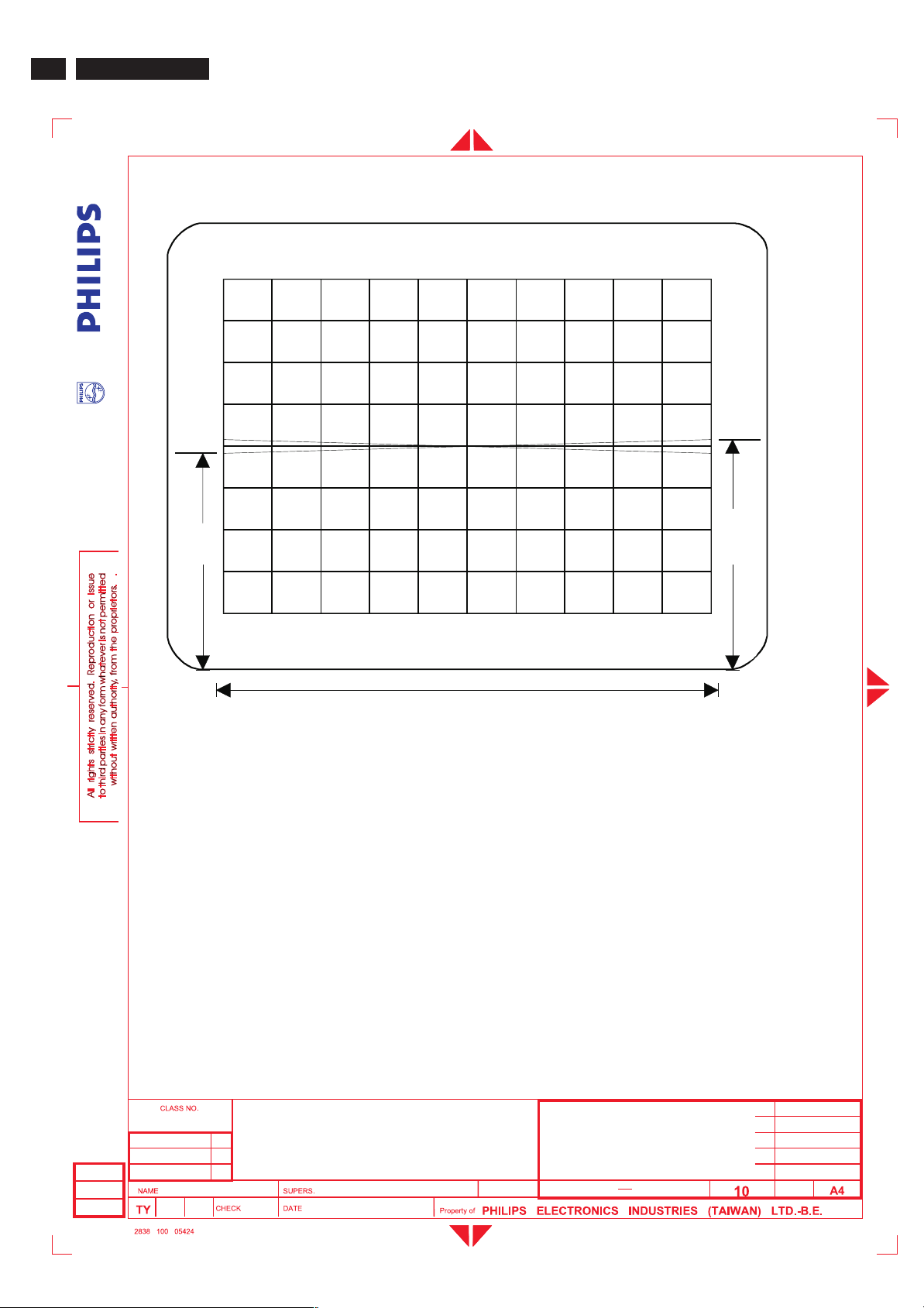

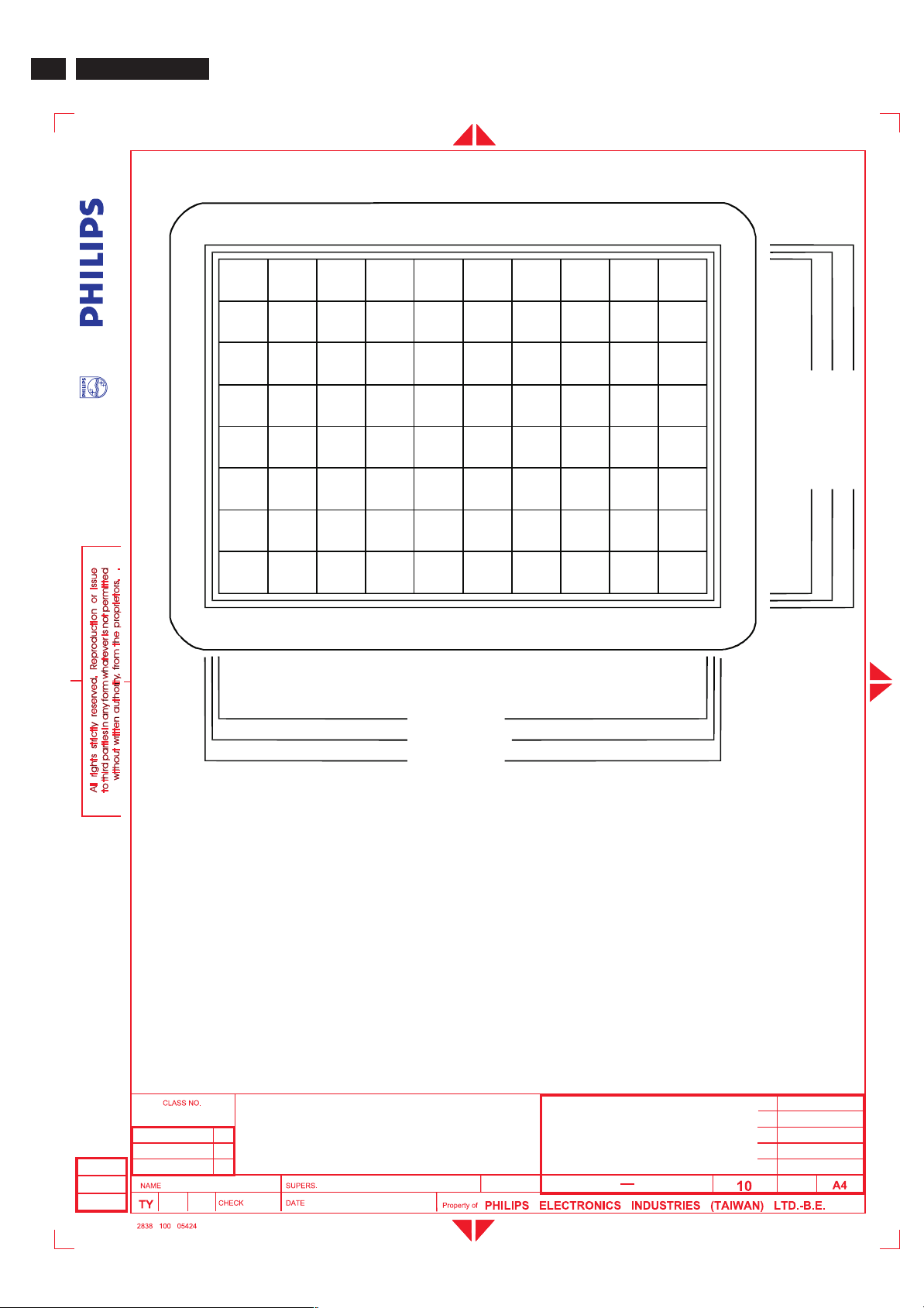

4.7 Image non-linearity pattern with
10 equal blocks along horizontal axis,
8 equal blocks along vertical axis.
Overall : <=10 % (each horizontal and vertical)
Deviation of Two adjacent : <= 6 % (Adjacent block)
H. linearity = ----------------------- x 100%
V. linearity = ------------------------ x 100%
: <=12 % (31.5KHz)
<= 7 % (31.5KHz)
Xmax. - Xmin
Xmax.
Ymax. - Ymin
Ymax.
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
11
Forward4
Page 12
GENERAL PRODUCT SPECIFICATION
4.8 Mis-convergence
The maximum convergence error to be measured on a white
spot or white display line to represents the maximum distance
between the energy centers of any two primary colors. (See Fig. 6)
Mis-Convergence SPEC.
CRT Pitch 0.25mm
Zone A 0.25
Zone C 0.35
Center 0.15

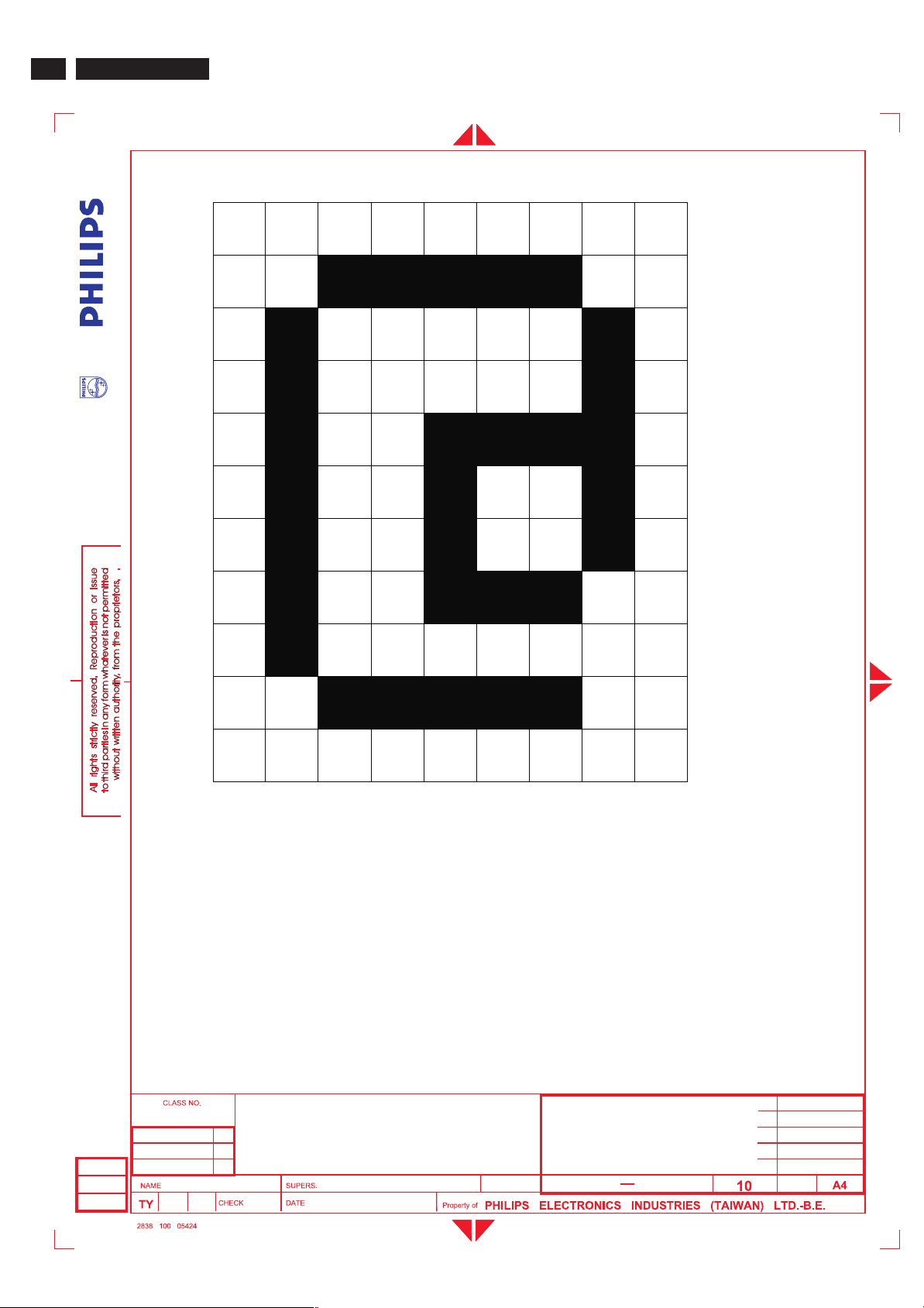

4.9 Focus check (with 68.7K/85Hz,1024 x 768 mode)
Generate "@" characters (pattern as fig 7) to cover entire of the picture
area (display size respect to fig. 1), adjust brightness control to 50% and
contrast control to obtain 25 FL @ 5-block pattern, the characters should
be clearly identified in all display area.

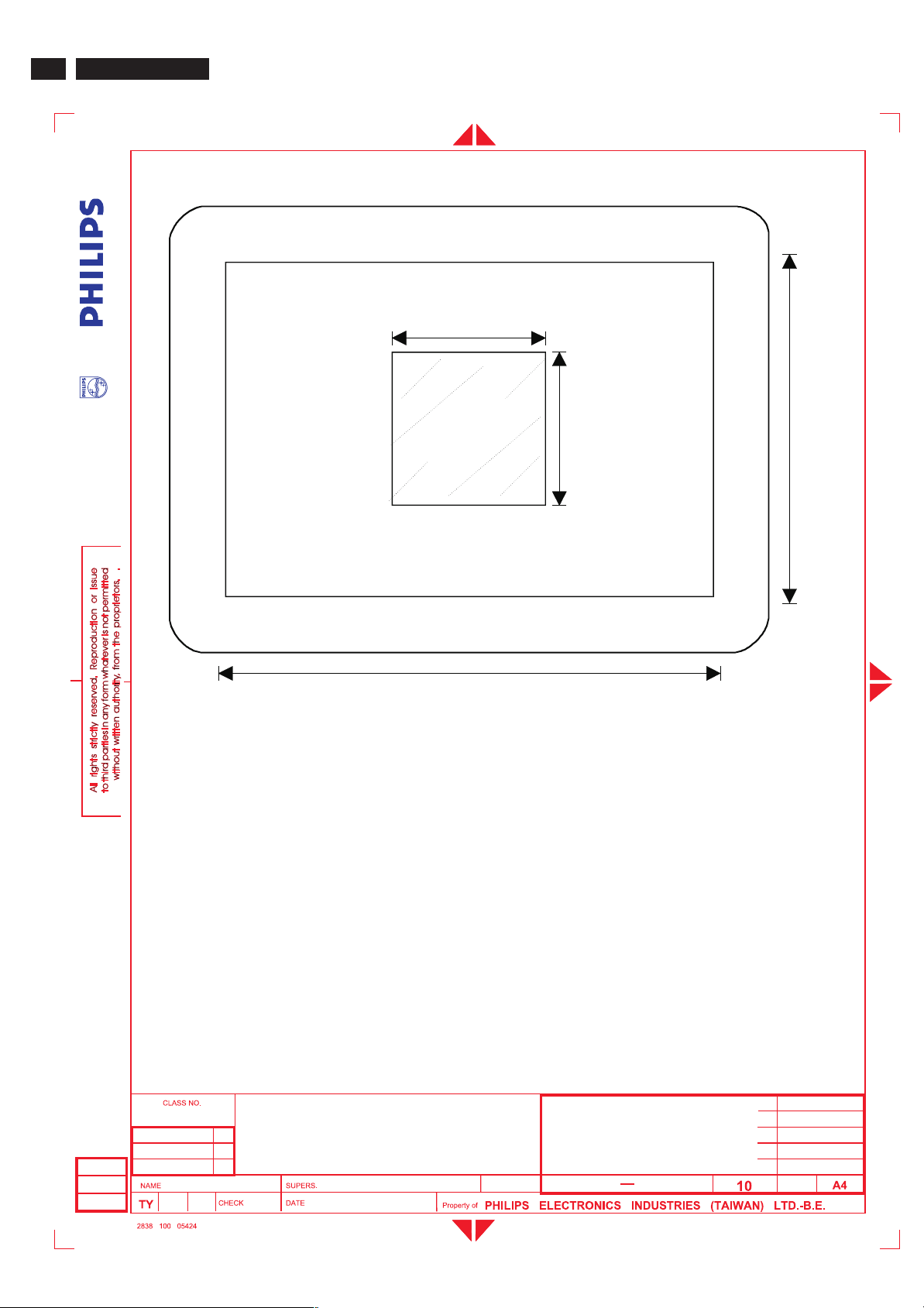

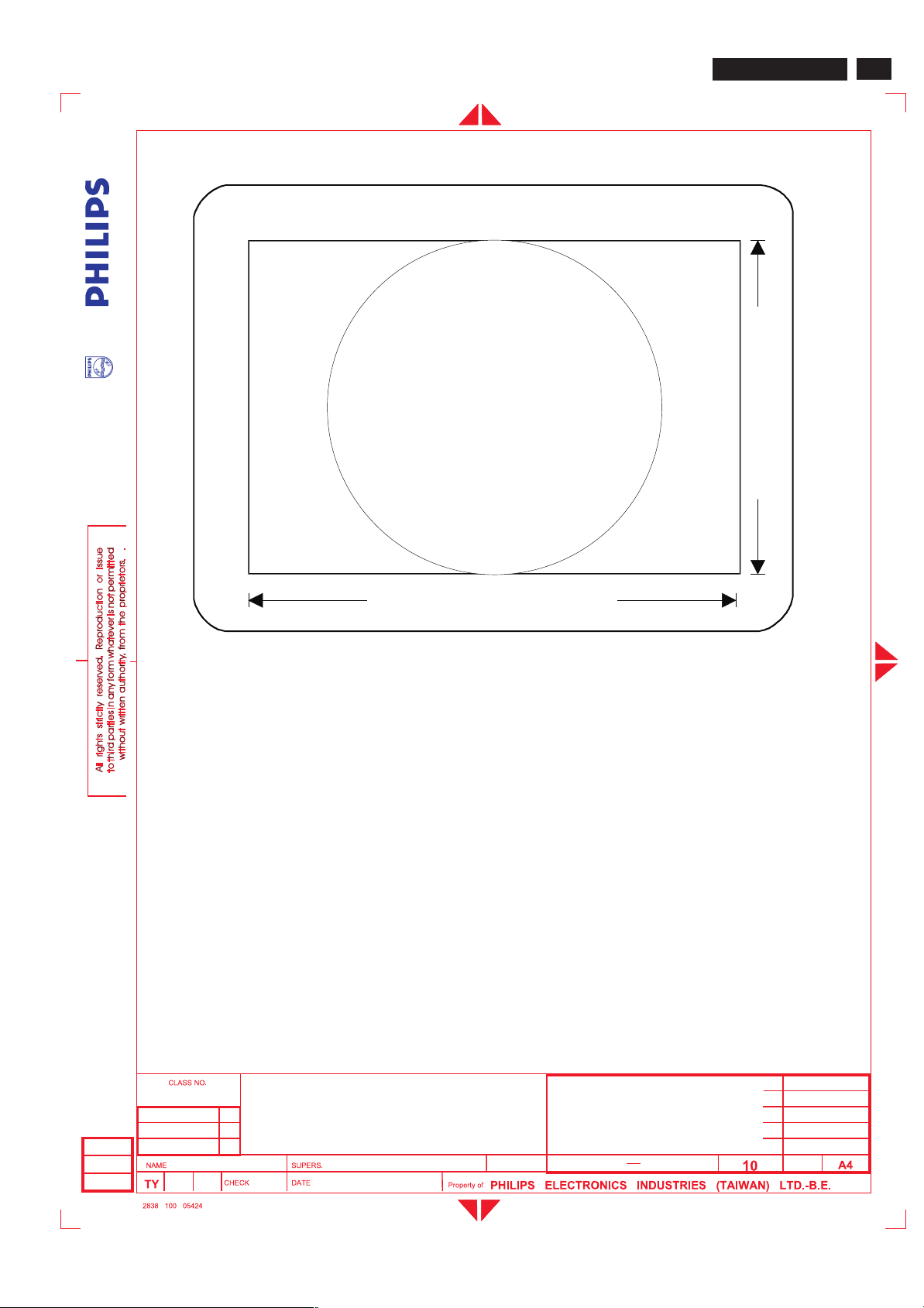

4.10 Luminance uniformity
107P CM25 GSIII
9 Go to cover page
53
condition : With full white pattern, set contrast control
4.11 White color adjustment
Based on the 1931 CIE chromaticity (colour triangle)
diagram (x,y coordination).
coordination of white display on screen center should be:
for 9300 degreeK X = 0.283 +/- 0.015
for 6500 degreeK X = 0.313 +/- 0.015
for 5500 degreeK X = 0.332 +/- 0.015
Check conditions :
Set brightness control at 50% position and contrast at maximum.
4.12 Color tracking on full white pattern
Ref. to white balance alignment result and set brightness at 50%, adjust
contrast control from 5FL to max. position, the colour coordinate
should not deviate more than following tolerance when
compare to display center:
X= X nominal +/- 0.015
Y= Y nominal +/- 0.015
at max. and adjust brightness control
to get 30FLin center..
the max. deviation to the rest of the screen shall not exceed 25% of entire
screen with any point.
Y = 0.297 +/- 0.015
Y = 0.329 +/- 0.015
Y = 0.347 +/- 0.015
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
12
Forward4
Page 13
54
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
4.13 Purity
Test patterns : Full White / Red / Green / Blue.
Conditions:As stated in item 4.0, the purity must be
4.14 Moire
Condition: Displaying a , at any pre-set
M
oire area should be less than 1/3 area @15FL via moire control.
However the OSD moire data of V-moire should have a default value
(mode dependent) for product outgoing .Increasing the moire control value
will have side effect on resolution (degrade focus),and phenomenon of flicker
and sawtooth.
5.0
Mechanical characteristics
checked under specific destinations of earth
magnetic environments and the monitor to be
well degaussed.
After warming-up time of 30 min., no coloured stains may
occur in above four patterns.
full white pattern
mode the display size of the sets to be set
as stated in "Fig. 1".
5.1 User controls (all at front) Right to left
- Power ON/OFF
- OSD Menu
- Up (Brightness)
- Down (Brightness)
- Right (Contrast)
- Left (Contrast)
6.0
Connectors and cables
6.1.1 Power cord (plugable) type : Wall Plug ,non shielded and non-attached.
Length : 1.5 m +/- 50 mm . Plug curved at 90.
6.1.2 Signal cable
Length of video : 1.5 m +/- 50 mm flying in 15pins D-shell.
6. 1.3 USB Cable : 1.5 m +/- 50 mm
7.0
Environmental characteristics
The following sections to define the interference and
susceptibility condition limits that might occur between
external environment and the display device.
7.1 Susceptibility of display to external environment
7.1.1 Operating limits
A). Temperature : 0C to 40C
Humidity : 10 to 90% (W/O condensation)
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
13
Forward4
Page 14
GENERAL PRODUCT SPECIFICATION
Air pressure : 700 ~ 1100 mbar
B). Non-operating limits (storage)
Temperature : -25C to 65C
Humidity : 5 to 95 % (W/O condensation)
Altitude : 300 to 1100 mbar
7.1.2 Transportation packages
A) Carton box (inside dimension)
: 496(W) x 520 (H) x 518 (D) mm.
B) Transportation conditions
(see table, shown as below)
B-1 Transportation standards
TEST Standard reference Philips severity Remarks
Drop Gross weight Drop height *W/O 10% drop
1C-3E-6F (Kg) (cm) height increment
NSTA
21.5 61
107P CM25 GSIII
9 Go to cover page
55
Random vibration Truck spectrum, 0.73 Grms,
Shock - 1/2 sine pulse: Design stage
(non-oper) 100G<3ms, 6 shocks only.
B-2 Container loading
40Feet 20Feet High cube 40 Feet
Q'ty W/Pallet W/Pallet W/Pallet
Yes No Yes N o Yes No
Layers 4 4 4 4 4 4
Sets per layer 4 4 4 4 4 4
Sets per block 16 16 16 16 16 16
Blocks per container 20 20 10 10 24 24
Total set 384 384 160 160 384 384
30 min/axis, 3 axes
- Square pulse:
35G, 4.2mps, 6 shocks for
screen size up to 15 ,
30G for 17 mointor.
- Damage boundary curve:
* CRT supplier spec. is used
to define maximum
acceptable CRT fragility.
Container size
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
14
Forward4
Page 15
56
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
7.2 Display disturbances from external environment
7.2.1 ESD Disturbances
According to IEC65 (also refer to IEC801-2 for detail).
7.3 Display disturbances to external environment
The disturbances induced by the display and tolerated
by the environment are defined as follows :
7.3.1 Ionizetic radiation
Completely fulfilled International Commission of
Radio logical Protection (ICRP) requirement 0.5 mr/hrs.
Actually the set can reach 0.1 mr/hrs.
7.3.2 Safety and EMI requirements
------------------------------------
Safety - USA :UL 1950
-CANADA :CSA C22.2 NO.950-M89
-NORDIC :IEC950
:EN60950
:EMKO TSE (74SEC) 207/94
-GERMANY :ZHI/618 (GS)
:ISO 9241-3, 9241-8
EMI -USA :FCC PART 15 Class B
EMS -CE :EN50082-1
LOW EMISSION :TCO99
7.3.3 X-RAY radiation requirement /regulation
-USA/CANADA :DHHS 21 CFR, CHAPTER 1,SUBCHAPTER J
-GERMANY :RONTGEN VERORDNUNG ROV 1987.01.08
8.0
8.1 Mean time between failures
-CANADA :D.O.C. Class B
-CE :EN55022 CLASS B
-JAPAN :VCCI Class B
:EN60555-2
X-ray explosure at 5cm distance from any point of the external surface must not exceed
0.1 mR/H.
Reliability
MTBF to be calculated according to Military standard
MIL-HDBK-217C.
MTBF >=75,000 Hours (Excluding CRT)
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
15
Forward4
Page 16
GENERAL PRODUCT SPECIFICATION
107P CM25 GSIII
9 Go to cover page
57
PRACTICE of MTBF = ---------------------------------------------------------
9.0
Quality assurance requirements
9.1 Acceptance test
According to MIL-STD-105D level II,
AQL : 0.65 (Major)
Customer acceptance :
criteria : UAW0377/00
10.0
Serviceability
The service ability of this monitor should fulfill the
requirements which are prescribed in UAW-0346 and
must be checked with the check list UAT-0361.
2.5 (Minor)
TOTAL HRS (POWER ON) X TOTAL SETS
NBR. OF FAILURED SETS
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
16
Forward4
Page 17
58
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
233 mm
230 mm
227 mm
99-10-15
FIG-1 IMAGE DIMENSION
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
303 mm
306 mm
309 mm
8639 000 10233
3Back
K.C.HUANG
99-10-15
23
590
17
Forward4
Page 18
GENERAL PRODUCT SPECIFICATION
C
107P CM25 GSIII
9 Go to cover page
59
A
B
230 mm
D
306 mm
|A-B| AND |C-D| < 5 mm
3Back
99-10-15
K.C.HUANG
FIG-2 IMAGE CENTERING
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
18
Forward4
Page 19
60
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
A
B
306 mm
|A-B| < 2 mm
FIG-3 IMAGE ROTATION
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
19
Forward4
Page 20
GENERAL PRODUCT SPECIFICATION
C
107P CM25 GSIII
9 Go to cover page
61
A
B
230 mm
D
306 mm
A, B < 2.0 mm C, D < 2.0 mm
FIG-4 IMAGE GEOMETRY
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
20
Forward4
Page 21
62
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
100 mm
Pattern A
Pattern B
306 mm
100 mm
230 mm
3Back
99-10-15
K.C.HUANG
FIG-5 CONTRAST AND BRIGHTNESS
MEASUREMENT PATTERNS
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
23
99-10-15
8639 000 10233
590
21
Forward4
Page 22
GENERAL PRODUCT SPECIFICATION
ZONE C
ZONE A
107P CM25 GSIII
9 Go to cover page
230 mm
63
306 mm
FIG-6 MISCONVERGENCE
MEASUREMENT AREA
3Back
99-10-15
K.C.HUANG
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
99-10-15
23
8639 000 10233
590
22
Forward4
Page 23
64
107P CM25 GSIII
9 Go to cover page
GENERAL PRODUCT SPECIFICATION
3Back
99-10-15
K.C.HUANG
CHARACTERCHARACTER
FOR FOCUS
( CHROMA 2200/2250 CHR NO. 56 )
FIG - 7
CM25-17" 107P 96KHZ
TYPE : 107P10/00
BRAND : PHILIPS
23
99-10-15
8639 000 10233
590
23
Forward4
Loading...
