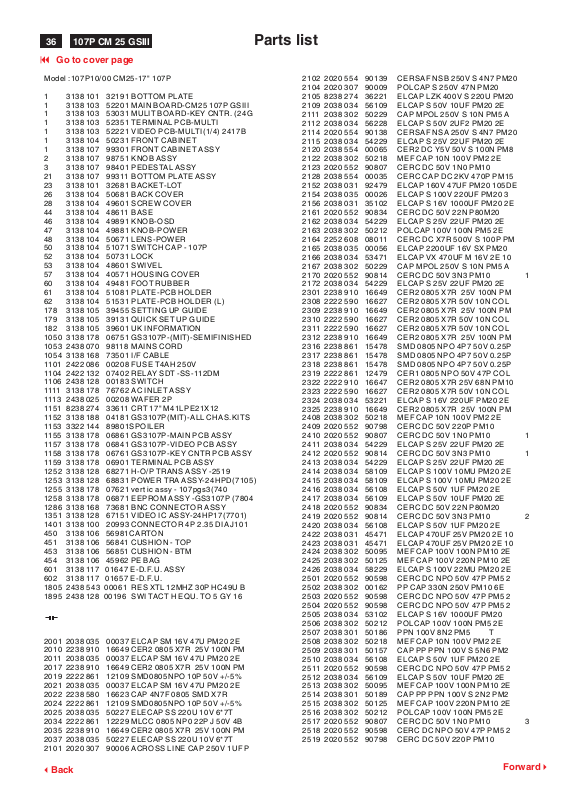

Page 1
36
107P CM 25 GSIII
9 Go to cover page
Parts list
Model :107P10/00 CM25-17" 107P
1 3138 101 32191 BOTTOM PLATE 1 3138 103 52201 MAIN BOARD-CM25 107P GSIII 1 3138 103 53031 MULIT BOARD-KEY CNTR. (24G 1 3138 103 52351 TERMINAL PCB-MULTI 1 3138 103 52221 VIDEO PCB-MULTI(1/4) 2417B 1 3138 104 50231 FRONT CABINET 1 3138 107 99301 FRONT CABINET ASSY 2 3138 107 98751 KNOB ASSY 3 3138 107 98401 PEDESTAL ASSY 21 3138 107 99311 BOTTOM PLATE ASSY 23 3138 101 32681 BACKET-LOT 26 3138 104 50681 BACK COVER 28 3138 104 49601 SCREW COVER 44 3138 104 48611 BASE 46 3138 104 49891 KNOB-OSD 47 3138 104 49881 KNOB-POWER 48 3138 104 50671 LENS-POWER 50 3138 104 51071 SWITCH CAP - 107P 52 3138 104 50731 LOCK 53 3138 104 48601 SWIVEL 57 3138 104 40571 HOUSING COVER 60 3138 104 49481 FOOT RUBBER 61 3138 104 51081 PLATE-PCB HOLDER 62 3138 104 51531 PLATE-PCB HOLDER (L) 178 3138 105 39455 SETTING UP GUIDE 179 3138 105 39131 QUICK SET UP GUIDE 182 3138 105 39601 UK INFORMATION 1050 3138 178 06751 GS3107P-(MIT)-SEMIFINISHED 1053 2438 070 98118 MAINS CORD 1054 3138 168 73501 I/F CABLE 1101 2422 086 00208 FUSE T4AH 250V 1104 2422 132 07402 RELAY SDT -SS-112DM 1106 2438 128 00183 SWITCH 1111 3138 178 76762 AC INLET ASSY 1113 2438 025 00208 WAFER 2P 1151 8238 274 33611 CRT 17" M41LPE21X12 1152 3138 188 04181 GS3107P(MIT)-ALL CHAS.KITS 1153 3322 144 89801SPOILER 1155 3138 178 06861 GS3107P-MAIN PCB ASSY 1157 3138 178 06841 GS3107P-VIDEO PCB ASSY 1158 3138 178 06761 GS3107P-KEY CNTR PCB ASSY 1159 3138 178 06901 TERMINAL PCB ASSY 1252 3138 128 68271 H-O/P TRANS ASSY -2519 1253 3138 128 68831 POWER TRA ASSY-24HPD(7105) 1255 3138 178 07621 vert ic assy - 107pgs3(740 1258 3138 178 06871 EEPROM ASSY -GS3107P (7804 1286 3138 168 73681 BNC CONNECTOR ASSY 1351 3138 128 67151 VIDEO IC ASSY-24HP17(7701) 1401 3138 100 20993 CONNECTOR 4P 2.35 DIA J101 450 3138 106 56981CARTON 451 3138 106 56841 CUSHION - TOP 453 3138 106 56851 CUSHION - BTM 454 3138 106 45962 PE BAG 601 3138 117 01647 E-D.F.U. ASSY 602 3138 117 01657 E-D.F.U. 1805 2438 543 00061 RES XTL 12MHZ 30P HC49U B 1895 2438 128 00196 SWI TACT H EQU. TO 5 GY 16
2001 2038 035 00037 ELCAP SM 16V 47U PM20 2E 2010 2238 910 16649 CER2 0805 X7R 25V 100N PM 2011 2038 035 00037 ELCAP SM 16V 47U PM20 2E 2017 2238 910 16649 CER2 0805 X7R 25V 100N PM 2019 2222 861 12109 SMD0805NPO 10P 50V +/-5% 2021 2038 035 00037 ELCAP SM 16V 47U PM20 2E 2022 2238 580 16623 CAP 4N7F 0805 SMD X7R 2024 2222 861 12109 SMD0805NPO 10P 50V +/-5% 2025 2038 035 50227 ELECAP SS 220U 10V 6*7T 2034 2222 861 12229 MLCC 0805 NP0 22P J 50V 4B 2035 2238 910 16649 CER2 0805 X7R 25V 100N PM 2037 2038 035 50227 ELECAP SS 220U 10V 6*7T 2101 2020 307 90006 ACROSS LINE CAP 250V 1UF P
2102 2020 554 90139 CERSAF NSB 250V S 4N7 PM20 2104 2020 307 90009 POLCAP S 250V 47N PM20 2105 8238 274 36221 ELCAP LZK 400V S 220U PM20 2109 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2111 2038 302 50229 CAP MPOL 250V S 10N PM5 A 2112 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E 2114 2020 554 90138 CERSAF NSA 250V S 4N7 PM20 2115 2038 034 54229 ELCAP S 25V 22UF PM20 2E 2120 2038 554 00065 CER2 DC Y5V 50V S 100N PM8 2122 2038 302 50218 MEF CAP 10N 100V PM2 2E 2123 2020 552 90807 CERC DC 50V 1N0 PM10 2128 2038 554 00035 CERC CAP DC 2KV 470P PM15 2152 2038 031 92479 ELCAP 160V 47UF PM20 105DE 2154 2038 035 00026 ELCAP S 100V 220UF PM20 3 2156 2038 031 35102 ELCAP S 16V 1000UF PM20 2E 2161 2020 552 90834 CERC DC 50V 22N P80M20 2162 2038 034 54229 ELCAP S 25V 22UF PM20 2E 2163 2038 302 50212 POLCAP 100V 100N PM5 2E 2164 2252 608 08011 CERC DC X7R 500V S 100P PM 2165 2038 035 00056 ELCAP 2200UF 16V SX PM20 2166 2038 034 53471 ELCAP VX 470UF M 16V 2E 10 2167 2038 302 50229 CAP MPOL 250V S 10N PM5 A 2170 2020 552 90814 CERC DC 50V 3N3 PM10 1 2172 2038 034 54229 ELCAP S 25V 22UF PM20 2E 2301 2238 910 16649 CER2 0805 X7R 25V 100N PM 2308 2222 590 16627 CER2 0805 X7R 50V 10N COL 2309 2238 910 16649 CER2 0805 X7R 25V 100N PM 2310 2222 590 16627 CER2 0805 X7R 50V 10N COL 2311 2222 590 16627 CER2 0805 X7R 50V 10N COL 2312 2238 910 16649 CER2 0805 X7R 25V 100N PM 2316 2238 861 15478 SMD 0805 NPO 4P7 50V 0.25P 2317 2238 861 15478 SMD 0805 NPO 4P7 50V 0.25P 2318 2238 861 15478 SMD 0805 NPO 4P7 50V 0.25P 2319 2222 861 12479 CER1 0805 NPO 50V 47P COL 2322 2222 910 16647 CER2 0805 X7R 25V 68N PM10 2323 2222 590 16627 CER2 0805 X7R 50V 10N COL 2324 2038 034 53221 ELCAP S 16V 220UF PM20 2E 2325 2238 910 16649 CER2 0805 X7R 25V 100N PM 2408 2038 302 50218 MEF CAP 10N 100V PM2 2E 2409 2020 552 90798 CERC DC 50V 220P PM10 2410 2020 552 90807 CERC DC 50V 1N0 PM10 1 2411 2038 034 54229 ELCAP S 25V 22UF PM20 2E 2412 2020 552 90814 CERC DC 50V 3N3 PM10 1 2413 2038 034 54229 ELCAP S 25V 22UF PM20 2E 2414 2038 034 58109 ELCAP S 100V 10MU PM20 2E 2415 2038 034 58109 ELCAP S 100V 10MU PM20 2E 2416 2038 034 56108 ELCAP S 50V 1UF PM20 2E 2417 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2418 2020 552 90834 CERC DC 50V 22N P80M20 2419 2020 552 90814 CERC DC 50V 3N3 PM10 2 2420 2038 034 56108 ELCAP S 50V 1UF PM20 2E 2422 2038 031 45471 ELCAP 470UF 25V PM20 2E 10 2423 2038 031 45471 ELCAP 470UF 25V PM20 2E 10 2424 2038 302 50095 MEF CAP 100V 100N PM10 2E 2425 2038 302 50125 MEF CAP 100V 220N PM10 2E 2426 2038 034 58229 ELCAP S 100V 22MU PM20 2E 2501 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2502 2038 302 00162 PP CAP 330N 250V PM10 6E 2503 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2504 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2505 2038 034 53102 ELCAP S 16V 1000UF PM20 2506 2038 302 50212 POLCAP 100V 100N PM5 2E 2507 2038 301 50186 PPN 100V 8N2 PM5 T 2508 2038 302 50218 MEF CAP 10N 100V PM2 2E 2509 2038 301 50157 CAP PP PPN 100V S 5N6 PM2 2510 2038 034 56108 ELCAP S 50V 1UF PM20 2E 2511 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2512 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2513 2038 302 50095 MEF CAP 100V 100N PM10 2E 2514 2038 301 50189 CAP PP PPN 100V S 2N2 PM2 2515 2038 302 50125 MEF CAP 100V 220N PM10 2E 2516 2038 302 50212 POLCAP 100V 100N PM5 2E 2517 2020 552 90807 CERC DC 50V 1N0 PM10 3 2518 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2519 2020 552 90798 CERC DC 50V 220P PM10
3Back
Forward4
Page 2
Parts list
107P CM25 GSIII
9 Go to cover page
37
2520 2020 552 90798 CERC DC 50V 220P PM10 2521 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2523 2252 608 08221 CER2 DC X7R 500V S 2N2 PM1 2526 2038 554 00065 CER2 DC Y5V 50V S 100N PM8 2527 2020 552 90807 CERC DC 50V 1N0 PM10 2528 2222 365 25104 POLCAP S 100V 100N PM10 2E 2601 2020 552 90834 CERC DC 50V 22N P80M20 2602 2038 302 50099 POLCAP 100V 470N PM10 2E 2603 2038 035 22801 ECAP NP 1U 160V 105C NK 2604 2038 031 92003 ELCAP S 250V 33UF PM20 2E 2605 2038 302 50229 CAP MPOL 250V S 10N PM5 A 2606 2038 302 00162 PP CAP 330N 250V PM10 6E 2607 2038 031 45101 ELCAP S 25V 100UF PM20 2E 2608 2038 031 45101 ELCAP S 25V 100UF PM20 2E 2609 2252 608 08221 CER2 DC X7R 500V S 2N2 PM1 2610 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2611 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2612 2252 608 08221 CER2 DC X7R 500V S 2N2 PM1 2613 2038 301 00308 PPS CAP 2KV 4N7 2614 2038 302 50125 MEF CAP 100V 220N PM10 2E 2615 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2616 2038 035 21501 ECAP GS 50V 10UF M 2E A 2618 2038 302 50212 POLCAP 100V 100N PM5 2E 2619 2038 302 50218 MEF CAP 10N 100V PM2 2E 2620 2020 552 90834 CERC DC 50V 22N P80M20 2621 2020 552 90834 CERC DC 50V 22N P80M20 2622 2038 301 00188 CAP PP PPN 250V S 68N PM5 2623 2038 301 00225 MPS CAP 270N 250V PM5 2624 2038 301 00409 MPS CAP 240N 250V PM5 7E 2625 2038 301 00312 CAP MPP MPS 250V S 1U2 PM5 2626 2038 301 00304 MPS CAP 560N/250V PM5 7E 2627 2038 302 50095 MEF CAP 100V 100N PM10 2E 2628 2020 552 90834 CERC DC 50V 22N P80M20 2629 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2640 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2641 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2644 2020 552 90834 CERC DC 50V 22N P80M20 2645 2020 552 90834 CERC DC 50V 22N P80M20 2646 2038 302 50212 POLCAP 100V 100N PM5 2E 2651 2038 301 00307 MPS CAP 120N 250V PM5 7E 2652 2020 552 90834 CERC DC 50V 22N P80M20 2653 2038 302 00102 MEF CAP 400V 47N PM10 6E 2654 2038 035 00026 ELCAP S 100V 220UF PM20 3 2655 2020 301 90197 CAP DTW 2N7 630V PM5 4E 2656 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2657 2222 347 41473 POLCAP S 250V 47N PM10 6E 2658 2038 302 00209 MEF CAP 1U 100V 6E 2659 2038 302 50099 POLCAP 100V 470N PM10 2E 2660 2038 031 95007 ELCAP VT 10U M 250V 2E T 1 2661 2038 034 56108 ELCAP S 50V 1UF PM20 2E 2665 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2666 2252 601 08026 CER2 DC X7R 1KV S 1N0 PM10 2667 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2668 2252 602 08116 CER2 DC X7R 2KV S 150P PM1 2702 2238 910 16649 CER2 0805 X7R 25V 100N PM 2721 2038 031 85109 ELCAP S 100V 10UF PM20 2E 2722 2238 910 16649 CER2 0805 X7R 25V 100N PM 2723 2038 035 22801 ECAP NP 1U 160V 105C NK 2724 2038 034 58108 ELCAP S 100V 1U PM20 2E 2725 2422 549 44346 SPARK GAP DSP-201m 2726 2238 910 16649 CER2 0805 X7R 25V 100N PM 2731 2038 035 22801 ECAP NP 1U 160V 105C NK 2732 2038 034 58108 ELCAP S 100V 1U PM20 2E 2733 2422 549 44346 SPARK GAP DSP-201m 2751 2038 035 22801 ECAP NP 1U 160V 105C NK 2752 2038 034 58108 ELCAP S 100V 1U PM20 2E 2753 2422 549 44346 SPARK GAP DSP-201m 2760 2238 861 15471 CMC 0805 NPO 470P 50V J 2761 2238 910 16649 CER2 0805 X7R 25V 100N PM 2762 2235 559 00099 CERC CAP 2KV 10N PM10 4E 2763 2238 580 16623 CAP 4N7F 0805 SMD X7R 2764 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2771 2238 910 16649 CER2 0805 X7R 25V 100N PM 2772 2252 608 08021 CERC DC X7R 500V 1N0 PM10 2773 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2776 8238 274 33081 ELCAP VT 100V47UF PM20 a
3Back
2777 2238 910 16649 CER2 0805 X7R 25V 100N PM 2778 2038 031 35331 ELCAP S 16V 330UF PM20 2E 2779 2222 861 12479 CER1 0805 NPO 50V 47P COL 2780 2222 861 12479 CER1 0805 NPO 50V 47P COL 2783 2038 031 45479 ELCAP VT 25V 47UF PM20 2E 2785 2038 031 45479 ELCAP VT 25V 47UF PM20 2E 2801 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E 2802 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E 2803 2020 552 90596 CERC DC NPO 50V 33P PM5 2E 2804 2020 552 90596 CERC DC NPO 50V 33P PM5 2E 2805 2020 552 90798 CERC DC 50V 220P PM10 2806 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2807 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2808 2038 554 00065 CER2 DC Y5V 50V S 100N PM8 2809 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2810 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2811 2020 552 90834 CERC DC 50V 22N P80M20 2812 2020 552 90834 CERC DC 50V 22N P80M20 2813 2020 552 90596 CERC DC NPO 50V 33P PM5 2E 2814 2038 034 53221 ELCAP S 16V 220UF PM20 2E 2815 2020 552 90596 CERC DC NPO 50V 33P PM5 2E 2816 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2817 2020 552 90834 CERC DC 50V 22N P80M20 2818 2038 554 00065 CER2 DC Y5V 50V S 100N PM8 2819 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E 2820 2038 034 53471 ELCAP VX 470UF M 16V 2E 10 2821 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2823 2038 034 53221 ELCAP S 16V 220UF PM20 2E 2824 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E 2826 2020 552 90834 CERC DC 50V 22N P80M20 2827 2038 034 56109 ELCAP S 50V 10UF PM20 2E
3001 2322 730 61222 RST SM 0805 RC11 2K2 PM5 3004 2322 730 61222 RST SM 0805 RC11 2K2 PM5 3006 2322 730 61479 RES 47R 0805 SMD RC-11 3008 2322 730 61479 RES 47R 0805 SMD RC-11 3010 2322 730 61479 RES 47R 0805 SMD RC-11 3012 2322 730 61471 RST SM 0805 RC11 470R PM5 3013 2138 101 13471 RST CRB CR12 A 470R PM 3014 2138 101 13471 RST CRB CR12 A 470R PM 3015 2322 730 61471 RST SM 0805 RC11 470R PM5 3016 2322 730 61479 RES 47R 0805 SMD RC-11 3017 2322 730 61759 RST SM 0805 RC11 75R PM5 3018 2322 730 61222 RST SM 0805 RC11 2K2 PM5 3019 2322 730 61479 RES 47R 0805 SMD RC-11 3021 2322 730 61479 RES 47R 0805 SMD RC-11 3022 2322 730 61759 RST SM 0805 RC11 75R PM5 3023 2322 730 61222 RST SM 0805 RC11 2K2 PM5 3028 2322 730 61759 RST SM 0805 RC11 75R PM5 3031 2322 730 61473 RST SM 0805 RC11 47K PM5 3032 2322 730 61103 RES 10K RC-11 SMD 0805 3033 2138 101 13564 RST CRB CR12 A 560K PM 3034 2322 730 61223 RES 22K 0805 SMD 3036 2322 730 61103 RES 10K RC-11 SMD 0805 3037 2322 730 61564 SMD R0805 560K PM5 3038 2322 730 61223 RES 22K 0805 SMD 3039 2322 730 61473 RST SM 0805 RC11 47K PM5 3041 2120 105 92137 MET FLM RST 1W 150R PM5 3042 2138 101 13222 RST CRB CR12 A 2K2 P 3045 2138 101 13222 RST CRB CR12 A 2K2 P 3046 2120 105 92137 MET FLM RST 1W 150R PM5 3101 2322 242 13684 METGLAZ RST A VR37 680K PM 3102 2322 662 96758 DEGAUSSING PTC THERMISTOR 3104 2322 205 33109 RST FUSE NFR25 10R PM5 3105 2138 116 14704 RST MFLM MF50S A 470K PM 3106 2138 116 14704 RST MFLM MF50S A 470K PM 3107 2322 205 33221 RST FUSE NFR25 S 220R PM5 3108 2322 205 33221 RST FUSE NFR25 S 220R PM5 3109 2138 660 00024 NTC THERMISTOR 5R0 PM15 SC 3111 2120 105 92452 RST MOX 3W RSS S 27K PM5 B 3112 2138 105 00111 PWR RES 820R 5W 3113 2322 205 33109 RST FUSE NFR25 10R PM5 3114 2138 101 13103 RST CRB CR12 A 10K P 3115 2138 112 73477 CARBRST R25 0.47R PM5
Forward4
Page 3
38
107P CM25 GSIII
9 Go to cover page
Parts list
3116 2138 112 73477 CARBRST R25 0.47R PM5 3117 2138 112 73477 CARBRST R25 0.47R PM5 3118 2138 112 73477 CARBRST R25 0.47R PM5 3119 2322 205 33221 RST FUSE NFR25 S 220R PM5 3120 2138 112 73477 CARBRST R25 0.47R PM5 3121 2138 116 04475 RST MFLM MF50S A 4M7 PM5 3122 2138 116 04475 RST MFLM MF50S A 4M7 PM5 3123 2138 101 13104 RST CRB CR12 A 100K P 3124 2138 101 13334 RST CRB CR12 A 330K PM 3125 2138 101 13331 RST CRB CR12 A 330R PM5 3126 2138 101 13102 RST CRB CR12 A 1K PM5 3127 2322 205 33221 RST FUSE NFR25 S 220R PM5 3128 2138 101 13229 RST CRB CR12 A 22R PM5 3129 2138 101 13101 RST CRB CR12 A 100R PM5 3130 2138 101 13333 RST CRB CR12 A 33K PM 3131 2138 116 12403 RST MFLM MF50S A 24K PM 3132 2138 101 13109 RST CRB CR12 A 10R P 3133 2138 101 13331 RST CRB CR12 A 330R PM5 3135 2138 101 13102 RST CRB CR12 A 1K PM5 3139 2138 101 13103 RST CRB CR12 A 10K P 3151 2138 116 17503 RST MFLM MF50S A 75K PM 3153 2138 116 12202 RST MFLM MF50S A 2K2 PM 3154 2138 116 17503 RST MFLM MF50S A 75K PM 3156 2138 101 13333 RST CRB CR12 A 33K PM 3159 2138 116 11504 RST MFLM MF50S A 150K PM 3160 2120 105 90956 MET FLM RST 15K 2W PM5 3161 2138 101 13102 RST CRB CR12 A 1K PM5 3162 2138 101 13102 RST CRB CR12 A 1K PM5 3163 2138 116 13902 RST MFLM MF50S A 3K9 PM 3164 2138 116 15601 RST MFLM MF50S A 560R PM 3165 2138 365 00061 RTRM CER LIN 500R H VG068T 3166 2138 101 13333 RST CRB CR12 A 33K PM 3167 2138 101 13102 RST CRB CR12 A 1K PM5 3168 2138 101 13472 RST CRB CR12 A 4K7 PM 3170 2138 101 13101 RST CRB CR12 A 100R PM5 3171 2138 101 13102 RST CRB CR12 A 1K PM5 3172 2138 116 11504 RST MFLM MF50S A 150K PM 3173 2138 101 13102 RST CRB CR12 A 1K PM5 3301 2138 116 17509 RST MFLM MF50S A 75R PM 3302 2138 116 17509 RST MFLM MF50S A 75R PM 3303 2138 116 17509 RST MFLM MF50S A 75R PM 3309 2138 101 13102 RST CRB CR12 A 1K PM5 3310 2322 730 61102 RST SMC 0805 RC11 1K PM5 3311 2138 101 13102 RST CRB CR12 A 1K PM5 3312 2322 730 61479 RES 47R 0805 SMD RC-11 3313 2322 730 61479 RES 47R 0805 SMD RC-11 3314 2322 730 61479 RES 47R 0805 SMD RC-11 3315 2322 730 61222 RST SM 0805 RC11 2K2 PM5 3316 2138 112 73221 CARBRST FLM CR25 220R PM5 3317 2138 101 00369 CABON RES. CR-12 1/6W 0 OH 3324 2322 730 61332 RES 3K3 0805 SMD 3325 2322 730 61103 RES 10K RC-11 SMD 0805 3326 2322 730 61103 RES 10K RC-11 SMD 0805 3327 2322 730 61562 RES 5.6K RC-11 SMD 0805 3328 2322 730 61562 RES 5.6K RC-11 SMD 0805 3329 2322 730 61562 RES 5.6K RC-11 SMD 0805 3330 2322 730 61394 SMD R0805 390K PM5 3332 2138 101 13101 RST CRB CR12 A 100R PM5 3333 2138 101 13101 RST CRB CR12 A 100R PM5 3334 2322 730 61151 RST SM 0805 RC11 150R PM 3336 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 3341 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 3401 2138 116 12202 RST MFLM MF50S A 2K2 PM 3402 2138 101 13471 RST CRB CR12 A 470R PM 3403 2138 101 13471 RST CRB CR12 A 470R PM 3404 2138 116 12202 RST MFLM MF50S A 2K2 PM 3405 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3406 2138 116 04188 RST MFLM MF50S A 1R8 P 3407 2138 101 13479 RST CRB CR12 A 47R PM 3408 2138 116 04188 RST MFLM MF50S A 1R8 P 3409 2322 205 33221 RST FUSE NFR25 S 220R PM5 3410 2138 116 04158 RST MFLM MF50S A 1R5 PM 3411 2322 207 33101 RST MFLM NFR25H 100R PM5 3412 2138 116 17503 RST MFLM MF50S A 75K PM 3413 2138 116 15602 RST MFLM MF50S A 5K6 PM 3414 2138 101 13333 RST CRB CR12 A 33K PM
3415 2138 101 13102 RST CRB CR12 A 1K PM5 3416 2138 101 13154 RST CRB CR12 A 150K P 3417 2138 101 13103 RST CRB CR12 A 10K P 3418 2138 101 13223 RST CRB CR12 A 22K P 3419 2138 101 13104 RST CRB CR12 A 100K P 3420 2138 101 13473 RST CRB CR12 A 47K PM 3421 2138 101 13102 RST CRB CR12 A 1K PM5 3423 2138 101 13103 RST CRB CR12 A 10K P 3424 2138 101 13479 RST CRB CR12 A 47R PM 3425 2138 101 13472 RST CRB CR12 A 4K7 PM 3426 2138 101 13102 RST CRB CR12 A 1K PM5 3427 2138 101 13334 RST CRB CR12 A 330K PM 3428 2138 101 13102 RST CRB CR12 A 1K PM5 3429 2138 101 13564 RST CRB CR12 A 560K PM 3430 2138 101 13105 RST CRB CR12 A 1M P 3431 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3432 2138 101 13682 RST CRB CR12 A 6K8 PM 3433 2138 101 13472 RST CRB CR12 A 4K7 PM 3437 2138 101 13472 RST CRB CR12 A 4K7 PM 3456 2138 101 13103 RST CRB CR12 A 10K P 3457 2138 101 13103 RST CRB CR12 A 10K P 3501 2138 116 12202 RST MFLM MF50S A 2K2 PM 3502 2138 101 13103 RST CRB CR12 A 10K P 3503 2138 101 13223 RST CRB CR12 A 22K P 3504 2138 116 12203 RST MFLM MF50S A 22K PM 3505 2138 116 11003 RST MFLM MF50S A 10K P 3506 2138 101 13103 RST CRB CR12 A 10K P 3507 2138 101 13471 RST CRB CR12 A 470R PM 3508 2138 116 12203 RST MFLM MF50S A 22K PM 3509 2138 101 13102 RST CRB CR12 A 1K PM5 3510 2138 116 13304 RST MFLM MF50S A 330K PM 3511 2138 101 13472 RST CRB CR12 A 4K7 PM 3513 2138 101 13473 RST CRB CR12 A 47K PM 3514 2138 101 13331 RST CRB CR12 A 330R PM5 3515 2138 116 15601 RST MFLM MF50S A 560R PM 3516 2138 101 13472 RST CRB CR12 A 4K7 PM 3517 2138 101 13333 RST CRB CR12 A 33K PM 3518 2138 101 13222 RST CRB CR12 A 2K2 P 3519 2138 101 13682 RST CRB CR12 A 6K8 PM 3520 2138 101 13103 RST CRB CR12 A 10K P 3521 2138 116 14703 RST MFLM MF50S A 47K PM 3522 2138 101 13101 RST CRB CR12 A 100R PM5 3523 2138 116 12702 RST MFLM MF50S A 2K7 PM 3524 2138 116 17321 RST MFLM MF50S A 732R PM 3525 2138 101 13332 RST CRB CR12 A 3K3 PM5 3526 2138 101 13154 RST CRB CR12 A 150K P 3527 2138 101 13101 RST CRB CR12 A 100R PM5 3528 2138 101 13101 RST CRB CR12 A 100R PM5 3529 2138 101 13101 RST CRB CR12 A 100R PM5 3530 2138 101 13101 RST CRB CR12 A 100R PM5 3531 2138 101 13101 RST CRB CR12 A 100R PM5 3533 2138 116 17503 RST MFLM MF50S A 75K PM 3534 2138 101 13104 RST CRB CR12 A 100K P 3535 2138 101 13123 RST CRB CR12 A 12K P 3536 2138 101 13154 RST CRB CR12 A 150K P 3537 2138 101 13224 RST CRB CR12 A 220K P 3540 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3541 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3542 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3543 2138 101 13105 RST CRB CR12 A 1M P 3597 2138 116 11005 RST MFLM MF50S A 1M P 3599 2138 116 17503 RST MFLM MF50S A 75K PM 3601 2138 101 13101 RST CRB CR12 A 100R PM5 3602 2138 101 13103 RST CRB CR12 A 10K P 3603 2322 205 33109 RST FUSE NFR25 10R PM5 3604 2120 105 92191 METOX FLM RST 5K6 3W PM5 3605 2138 105 00119 RST MOX 5W RSS S 1R2 PM5 3606 2322 205 33109 RST FUSE NFR25 10R PM5 3607 2322 207 33101 RST MFLM NFR25H 100R PM5 3608 2138 101 13223 RST CRB CR12 A 22K P 3609 2322 207 33101 RST MFLM NFR25H 100R PM5 3610 2138 105 00095 RST MOX 7W RSH S 33R PM5 0 3611 2322 205 33109 RST FUSE NFR25 10R PM5 0 3612 2138 101 13681 RST CRB CR12 A 680R PM 3613 2322 207 33108 MET FLM RST NFR25H 1R0 PM5
3Back
Forward4
Page 4
Parts list
107P CM25 GSIII
9 Go to cover page
39
3614 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 3615 2322 205 33221 RST FUSE NFR25 S 220R PM5 3616 2138 101 13103 RST CRB CR12 A 10K P 3617 2138 101 13681 RST CRB CR12 A 680R PM 3618 2138 116 15602 RST MFLM MF50S A 5K6 PM 3619 2138 101 13332 RST CRB CR12 A 3K3 PM5 3620 2138 116 17503 RST MFLM MF50S A 75K PM 3621 2138 101 13229 RST CRB CR12 A 22R PM5 3622 2138 101 13104 RST CRB CR12 A 100K P 3623 2138 101 13105 RST CRB CR12 A 1M P 3624 2138 101 13103 RST CRB CR12 A 10K P 3626 2138 101 13229 RST CRB CR12 A 22R PM5 3627 2120 105 92388 METOX FLM RST 2W 33R PM5 3628 2138 116 04188 RST MFLM MF50S A 1R8 P 3629 2138 101 13333 RST CRB CR12 A 33K PM 3630 2138 116 15601 RST MFLM MF50S A 560R PM 3631 2138 105 00093 RES RSH-7W/150 OHM 3632 2138 101 13682 RST CRB CR12 A 6K8 PM 3633 2138 101 13682 RST CRB CR12 A 6K8 PM 3634 2138 101 13103 RST CRB CR12 A 10K P 3635 2138 101 13103 RST CRB CR12 A 10K P 3636 2138 101 13473 RST CRB CR12 A 47K PM 3637 2138 101 13473 RST CRB CR12 A 47K PM 3638 2138 101 13154 RST CRB CR12 A 150K P 3639 2138 101 13154 RST CRB CR12 A 150K P 3640 2138 101 13154 RST CRB CR12 A 150K P 3641 2138 101 13154 RST CRB CR12 A 150K P 3642 2138 101 13473 RST CRB CR12 A 47K PM 3643 2138 101 13473 RST CRB CR12 A 47K PM 3644 2138 101 13473 RST CRB CR12 A 47K PM 3645 2138 101 13104 RST CRB CR12 A 100K P 3646 2138 101 13682 RST CRB CR12 A 6K8 PM 3647 2138 101 13682 RST CRB CR12 A 6K8 PM 3648 2138 101 13222 RST CRB CR12 A 2K2 P 3649 2322 205 33109 RST FUSE NFR25 10R PM5 3650 2138 101 13331 RST CRB CR12 A 330R PM5 3652 2322 242 13224 METGLAZ RST A VR37 220K PM 3653 2138 116 15601 RST MFLM MF50S A 560R PM 3654 2138 101 13472 RST CRB CR12 A 4K7 PM 3655 2138 101 13472 RST CRB CR12 A 4K7 PM 3657 2322 205 33109 RST FUSE NFR25 10R PM5 3658 2138 101 13229 RST CRB CR12 A 22R PM5 3659 2322 205 33109 RST FUSE NFR25 10R PM5 3660 2138 101 13333 RST CRB CR12 A 33K PM 3661 2138 101 13123 RST CRB CR12 A 12K P 3662 2138 116 11005 RST MFLM MF50S A 1M P 3663 2120 101 28222 RST CMP ERC12 A 2K2 PM1 3664 2322 242 13224 METGLAZ RST A VR37 220K PM 3665 2322 242 13224 METGLAZ RST A VR37 220K PM 3666 2138 116 04475 RST MFLM MF50S A 4M7 PM5 3667 2322 242 13104 METGLAZ RST A VR37 100K 3668 2138 101 13681 RST CRB CR12 A 680R PM 3669 2138 101 13333 RST CRB CR12 A 33K PM 3670 2138 101 13223 RST CRB CR12 A 22K P 3671 2138 101 13222 RST CRB CR12 A 2K2 P 3672 2138 101 13101 RST CRB CR12 A 100R PM5 3673 2138 101 13332 RST CRB CR12 A 3K3 PM5 3674 2138 101 13223 RST CRB CR12 A 22K P 3675 2138 116 15602 RST MFLM MF50S A 5K6 PM 3676 2138 101 13334 RST CRB CR12 A 330K PM 3677 2138 101 13229 RST CRB CR12 A 22R PM5 3678 2138 101 13224 RST CRB CR12 A 220K P 3679 2138 101 13682 RST CRB CR12 A 6K8 PM 3680 2138 101 13335 RST CRB CR12 A 3M3 PM 3681 2120 105 92392 MET FLM RST 1W 47R PM5 RSS 3682 2138 116 12202 RST MFLM MF50S A 2K2 PM 3684 2138 101 13333 RST CRB CR12 A 33K PM 3685 2138 101 13154 RST CRB CR12 A 150K P 3686 2138 101 13333 RST CRB CR12 A 33K PM 3687 2138 105 00208 RST MOX 7W 330R RSS PM5 3691 2138 101 13473 RST CRB CR12 A 47K PM 3692 2138 101 13103 RST CRB CR12 A 10K P 3693 2138 101 13154 RST CRB CR12 A 150K P 3694 2138 101 13229 RST CRB CR12 A 22R PM5 3696 2138 101 13105 RST CRB CR12 A 1M P 3697 2322 205 33109 RST FUSE NFR25 10R PM5
3698 2138 365 00084 RTRM CER LIN 20K V VG067TH 3703 2322 730 61339 RES 33R 0805 SMD RC-11 3704 2138 101 13471 RST CRB CR12 A 470R PM 3705 2138 101 13471 RST CRB CR12 A 470R PM 3706 2138 101 13471 RST CRB CR12 A 470R PM 3707 2138 101 00369 CABON RES. CR-12 1/6W 0 OH 3713 2322 730 61339 RES 33R 0805 SMD RC-11 3716 2322 730 61339 RES 33R 0805 SMD RC-11 3718 2138 101 13479 RST CRB CR12 A 47R PM 3719 2138 101 13479 RST CRB CR12 A 47R PM 3721 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3722 2138 101 13224 RST CRB CR12 A 220K P 3723 2138 101 13182 RST CRB CR12 A 1K8 P 3724 2138 116 11503 RST MFLM MF50S A 15K PM 3725 2322 730 61274 SMD R0805 270K PM5 3726 2138 112 73683 CARBRST FLM CR25 68K PM5 0 3727 2138 101 13303 RST CRB CR12 A 30K P 3728 2138 112 73109 CARBRST FLM CR25 10R PM5 0 3730 2322 730 61105 RES 1M RC-11 SMD 0805 3731 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3732 2138 101 13224 RST CRB CR12 A 220K P 3733 2138 101 13182 RST CRB CR12 A 1K8 P 3734 2138 116 11503 RST MFLM MF50S A 15K PM 3735 2322 730 61274 SMD R0805 270K PM5 3736 2138 112 73683 CARBRST FLM CR25 68K PM5 0 3737 2138 101 13303 RST CRB CR12 A 30K P 3738 2138 112 73109 CARBRST FLM CR25 10R PM5 0 3741 2322 730 61105 RES 1M RC-11 SMD 0805 3742 2322 730 61105 RES 1M RC-11 SMD 0805 3743 2322 730 61759 RST SM 0805 RC11 75R PM5 3744 2322 730 61759 RST SM 0805 RC11 75R PM5 3745 2322 730 61759 RST SM 0805 RC11 75R PM5 3751 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3752 2138 101 13224 RST CRB CR12 A 220K P 3753 2138 101 13182 RST CRB CR12 A 1K8 P 3754 2138 116 11503 RST MFLM MF50S A 15K PM 3755 2322 730 61274 SMD R0805 270K PM5 3756 2138 112 73683 CARBRST FLM CR25 68K PM5 0 3757 2138 101 13303 RST CRB CR12 A 30K P 3758 2138 112 73109 CARBRST FLM CR25 10R PM5 0 3761 2322 730 61102 RST SMC 0805 RC11 1K PM5 3762 2322 730 61103 RES 10K RC-11 SMD 0805 3763 2322 730 61332 RES 3K3 0805 SMD 0 3764 2322 730 61472 RST SM 0805 RC11 4K7 PM5 3765 2322 730 61682 RES 6K8 0805 SMD 0 3766 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 3767 2322 730 61472 RST SM 0805 RC11 4K7 PM5 3768 2138 116 11201 RST MFLM MF50S A 120R PM 3771 2120 101 28152 CARBRST COMP 1/2W 1K5 PM10 3772 2120 101 28153 CARBRST COMP 1/2W 15K PM10 3773 2138 116 11802 RST MFLM MF50S A 1K8 PM 3774 2138 101 13102 RST CRB CR12 A 1K PM5 3775 2138 112 73479 CARBRST FLM CR25 47R PM5 0 3776 2322 730 61101 RST SM 0805 RC11 100R PM 3777 2322 730 61101 RST SM 0805 RC11 100R PM 3778 2322 730 61102 RST SMC 0805 RC11 1K PM5 3779 2138 112 73221 CARBRST FLM CR25 220R PM5 0 3780 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 3781 2138 101 13332 RST CRB CR12 A 3K3 PM5 3786 2138 101 00369 CABON RES. CR-12 1/6W 0 OH 3802 2138 112 03007 RES ARRAY 4K7 9A 0 3803 2138 112 03006 RES ARRAY 4K7 6A 0 3804 2138 101 13101 RST CRB CR12 A100R PM5 3805 2138 101 13101 RST CRB CR12 A100R PM5 3806 2138 101 13101 RST CRB CR12 A100R PM5 3807 2138 101 13101 RST CRB CR12 A100R PM5 3809 2138 101 13101 RST CRB CR12 A100R PM5 3810 2138 101 13103 RST CRB CR12 A 10K P 3811 2138 101 13103 RST CRB CR12 A 10K P 3812 2138 101 13103 RST CRB CR12 A 10K P 3813 2138 101 13101 RST CRB CR12 A100R PM5 3814 2138 101 13101 RST CRB CR12 A100R PM5 3815 2138 101 13101 RST CRB CR12 A 100R PM5 3816 2138 101 13101 RST CRB CR12 A 100R PM5 3817 2138 116 11003 RST MFLM MF50S A 10K P
3Back
Forward4
Page 5
40
107P CM25 GSIII
9 Go to cover page
Parts list
3818 2138 116 11003 RST MFLM MF50S A 10K P 3819 2138 112 03006 RES ARRAY 4K7 6A 3820 2138 101 13103 RST CRB CR12 A 10K P 3821 2138 101 13101 RST CRB CR12 A 100R PM5 3822 2138 101 13101 RST CRB CR12 A 100R PM5 3823 2138 101 13331 RST CRB CR12 A 330R PM5 3824 2138 101 13105 RST CRB CR12 A 1M P 3825 2138 101 13101 RST CRB CR12 A 100R PM5 3826 2138 101 13331 RST CRB CR12 A 330R PM5 3827 2138 101 13472 RST CRB CR12 A 4K7 PM 3828 2138 101 13103 RST CRB CR12 A 10K P 3829 2138 101 13332 RST CRB CR12 A 3K3 PM5 3830 2138 101 13101 RST CRB CR12 A 100R PM5 3831 2138 101 13472 RST CRB CR12 A 4K7 PM 3832 2322 730 61759 RST SM 0805 RC11 75R PM5 3832 2138 101 13123 RST CRB CR12 A 12K P 3833 2138 101 13101 RST CRB CR12 A 100R PM5 3833 2322 730 61759 RST SM 0805 RC11 75R PM5 3834 2322 730 61759 RST SM 0805 RC11 75R PM5 3834 2138 101 13103 RST CRB CR12 A 10K P 3835 2138 101 13472 RST CRB CR12 A 4K7 PM 3836 2138 101 13472 RST CRB CR12 A 4K7 PM 3837 2138 101 13123 RST CRB CR12 A 12K P 3838 2138 101 13101 RST CRB CR12 A 100R PM5 3839 2138 101 13101 RST CRB CR12 A 100R PM5 3840 2138 101 13101 RST CRB CR12 A 100R PM5 3841 2138 101 13102 RST CRB CR12 A 1K PM5 3842 2138 101 13102 RST CRB CR12 A 1K PM5 3843 2138 101 13102 RST CRB CR12 A 1K PM5 3844 2138 101 13102 RST CRB CR12 A 1K PM5 3845 2138 101 13102 RST CRB CR12 A 1K PM5 3847 2138 101 13103 RST CRB CR12 A 10K P 3848 2138 101 13103 RST CRB CR12 A 10K P 3849 2138 101 13479 RST CRB CR12 A 47R PM 3850 2138 101 13479 RST CRB CR12 A 47R PM 3856 2138 101 13101 RST CRB CR12 A 100R PM5 3857 2138 101 13101 RST CRB CR12 A 100R PM5 3858 2138 101 13101 RST CRB CR12 A 100R PM5 3859 2138 101 13101 RST CRB CR12 A 100R PM5 3860 2138 101 13101 RST CRB CR12 A 100R PM5 3861 2138 101 13101 RST CRB CR12 A 100R PM5 3862 2138 116 13901 RST MFLM MF50S A 390R PM 3891 2138 116 15603 RST MFLM MF50S A 56K PM 3892 2138 116 11204 RST MFLM MF50S A 120K PM 3893 2138 116 11503 RST MFLM MF50S A 15K PM 3894 2138 116 12003 RST MFLM MF50S A 20K PM 3895 2138 116 12403 RST MFLM MF50S A 24K PM
5001 2422 535 97069 COIL 4U7 PM10 5002 2422 535 97069 COIL 4U7 PM10 5003 2422 535 97069 COIL 4U7 PM10 5007 3138 168 75601 DEGAUSSING COIL 5101 3138 178 72231 POWER TRANSFORMER 5102 3138 178 70891 LINE FILTER 15 mH MIN. 5106 3138 178 79161 BAR COIL 7U5H PM10 5107 3138 178 79161 BAR COIL 7U5H PM10 5112 2438 535 98028 IND FXD BEAD EMI 100 MHZ 7 5151 2422 535 94971 DRUM CHOKE COIL 100UH T 5152 2422 535 94971 DRUM CHOKE COIL 100UH T 5153 2422 535 94971 DRUM CHOKE COIL 100UH T 5155 2422 535 94971 DRUM CHOKE COIL 100UH T 5156 2422 535 94971 DRUM CHOKE COIL 100UH T 5301 2422 535 97608 COIL 1MUH8 PM10 5303 2438 535 98026 IND FXD BEAD EMI 100MHZ 35 5601 3138 178 71331 DRIVER TRANSF. 5602 3138 178 71732 DRUM COIL 20MH 5603 3138 168 75481 CENTERING TRANSFORMER 5604 3138 178 75991 DRUM CHOKE COIL 6MH 5606 3138 168 75211 LINEARITY COIL 5608 2438 535 98026 IND FXD BEAD EMI 100MHZ 35 5610 2438 535 98026 IND FXD BEAD EMI 100MHZ 35 5611 3138 178 77501 DAF TRANSFORMER 5612 3138 168 75591 L.O.T. 5613 2422 535 94973 DRUM CHOKE COIL 3.7MHB
5701 2422 535 97608 COIL 1MUH8 PM10 5702 2422 535 97608 COIL 1MUH8 PM10 5721 3138 178 77951 COIL 0.33UH PM10 5732 3138 178 77951 COIL 0.33UH PM10 5752 3138 178 77951 COIL 0.33UH PM10 5771 3138 108 74951 BAR COIL 5UH PM10 5779 2422 535 97608 COIL 1MUH8 PM10 5781 2422 535 94971 DRUM CHOKE COIL 100UH T 5784 2422 535 97608 COIL 1MUH8 PM10 5786 2422 535 97608 COIL 1MUH8 PM10 5801 2422 535 97416 COIL 33MUH PM10 5802 2422 535 97416 COIL 33MUH PM10 5804 2438 535 98026 IND FXD BEAD EMI 100MHZ 35 5805 2438 535 98026 IND FXD BEAD EMI 100MHZ 35
6102 9319 002 63671 BRIDGE GBU6J 6103 9334 979 50683 DIODE RGP10J (GI) 6106 3198 010 10011 DIODE 1N4148 (UAW) 6107 3198 010 10071 DIODE BAV21 (UAW) 6108 9334 979 50683 DIODE RGP10J (GI) 6109 9337 516 60683 DIODE RGP10D (GI) 6113 3198 010 10011 DIODE 1N4148 (UAW) 6116 3198 010 27591 DIODE BZX79-C75(UAW) 6121 3198 010 10011 DIODE 1N4148 (UAW) 6125 3198 010 10011 DIODE 1N4148 (UAW) 6148 9335 435 00133 DIO REC BYV27-100 6151 9338 185 20133 DIO REC BYM26E A(PHSE) A 6152 9338 185 00133 DIODE BYM26C 6153 9335 435 00133 DIO REC BYV27-100 6154 3198 010 10071 DIODE BAV21 (UAW) 6155 9335 435 00133 DIO REC BYV27-100 6157 9334 979 50683 DIODE RGP10J (GI) 6158 3198 010 10071 DIODE BAV21 (UAW) 6159 3198 010 10011 DIODE 1N4148 (UAW) 6161 3198 010 10011 DIODE 1N4148 (UAW) 6162 3198 010 21291 DIODE BZX79-C12 (UAW) 6163 3198 010 10011 DIODE 1N4148 (UAW) 6164 3198 010 10071 DIODE BAV21 (UAW) 6165 3198 010 21591 DIODE BZX79-C15 (UAW) 6166 3198 010 10011 DIODE 1N4148 (UAW) 6402 3198 010 21891 DIODE BZX79-C18 (UAW) 6403 3198 010 21591 DIODE BZX79-C15 (UAW) 6405 9337 516 60683 DIODE RGP10D (GI) 6421 3198 010 25181 DIODE BZX79-C5V1 (UAW) 6423 3198 010 10011 DIODE 1N4148 (UAW) 6425 3198 010 10011 DIODE 1N4148 (UAW) 6426 3198 010 21591 DIODE BZX79-C15 (UAW) 6427 3198 010 23391 DIODE BZX79-C33 6428 3198 010 10011 DIODE 1N4148 (UAW) 6429 3198 010 10011 DIODE 1N4148 (UAW) 6430 9337 516 60683 DIODE RGP10D (GI) 6501 3198 010 10011 DIODE 1N4148 (UAW) 6502 3198 010 10011 DIODE 1N4148 (UAW) 6503 3198 010 10011 DIODE 1N4148 (UAW) 6505 3198 010 10071 DIODE BAV21 (UAW) 6507 3198 010 21291 DIODE BZX79-C12 (UAW) 6508 3198 010 10011 DIODE 1N4148 (UAW) 6509 3198 010 10011 DIODE 1N4148 (UAW) 6510 3198 010 10011 DIODE 1N4148 (UAW) 6511 3198 010 10011 DIODE 1N4148 (UAW) 6512 3198 010 21591 DIODE BZX79-C15 (UAW) 6513 3198 010 23391 DIODE BZX79-C33 6601 9339 577 60683 DIODE SB140 (GI) 6602 9340 312 20127 DIO REC BY459-1500 S (ELC 6603 3198 010 21591 DIODE BZX79-C15 (UAW) 6604 9322 115 74682 DIODE 31DF4 6605 9337 516 60683 DIODE RGP10D (GI) 6606 9337 516 60683 DIODE RGP10D (GI) 6609 3198 010 24781 DIODE BZX79-C4V7 (UAW) 6611 9334 979 50683 DIODE RGP10J (GI) 6621 9322 126 36682 DIODE 31DF6 6E 6624 3198 010 21291 DIODE BZX79-C12 (UAW) 6626 9334 979 50683 DIODE RGP10J (GI) 6627 3198 010 10011 DIODE 1N4148 (UAW)
3Back
Forward4
Page 6
Parts list
107P CM25 GSIII
9 Go to cover page
41
6628 3198 010 10071 DIODE BAV21 (UAW) 6629 3198 010 21291 DIODE BZX79-C12 (UAW) 6630 3198 010 10011 DIODE 1N4148 (UAW) 6631 3198 010 21291 DIODE BZX79-C12 (UAW) 6632 3198 010 10011 DIODE 1N4148 (UAW) 6633 3198 010 10011 DIODE 1N4148 (UAW) 6634 9334 979 50683 DIODE RGP10J (GI) 6703 3198 010 25181 DIODE BZX79-C5V1 (UAW) 6721 3198 010 10531 SMD DIODE BAV103 6722 3198 010 10071 DIODE BAV21 (UAW) 6724 3198 010 10531 SMD DIODE BAV103 6731 3198 010 10531 SMD DIODE BAV103 6732 3198 010 10071 DIODE BAV21 (UAW) 6734 3198 010 10531 SMD DIODE BAV103 6751 3198 010 10071 DIODE BAV21 (UAW) 6752 3198 010 10071 DIODE BAV21 (UAW) 6754 3198 010 10531 SMD DIODE BAV103 6771 9334 939 60683 DIODE RGP10G (GI) 6801 3198 010 10011 DIODE 1N4148 (UAW) 6802 9339 577 60683 DIODE SB140 (GI) 6803 3198 010 10011 DIODE 1N4148 (UAW) 6805 3198 010 25181 DIODE BZX79-C5V1 (UAW) 6891 9322 146 03682 LED L-3WYGW
7001 8238 277 03311 AN5870K VIDEO SWITCH 7002 9351 920 50112 IC TDA7073A/N3 16P 7102 3198 020 43591 TRANS. BC338-40 7103 9322 140 14667 PHOTOCOUPLER TCET1103G 4P 7105 9322 117 41687 FET POW STW8NA60 7105 9322 092 42687 FET POW 2SK 1940-01 7106 9352 645 03112 IC TEA1504AP/N2 14P 7113 9337 711 00686 IC TL431CLPRE 3P 7152 9335 282 90682 IC MC7808CT 3P 7153 9334 536 00682 IC MC7805CT 3P 7154 9338 268 50126 TRANS BT169B 7155 3198 020 43011 TRANS BF422 (UAW) 7156 3198 020 40041 TRANS BC547C (UAW) 7157 3198 020 40041 TRANS BC547C (UAW) 7158 3198 020 43811 TRANS BC638 (UAW) 7159 3198 020 40041 TRANS BC547C (UAW) 7301 9352 616 28112 IC TDA4886A/V1 24P 7304 8238 274 34421 OSD IC MTV018-27 7322 3198 020 40081 TRANS BC548C (UAW) 7404 9322 144 36687 IC TDA8177F 7P 7410 9322 121 52682 IC LM358N 8P 7411 3198 020 40041 TRANS BC547C (UAW) 7412 3198 020 40041 TRANS BC547C (UAW) 7413 3198 020 43311 TRANS PH2369 (UAW) 7414 3198 020 40161 TRANS BC558C (UAW) 7501 3198 020 40041 TRANS BC547C (UAW) 7502 3198 020 43021 TRANS BF423 (UAW) 7503 9352 637 56112 IC TDA4841PS-V2 32P 7504 9332 377 80126 TRANS BC546B (UAW) 7505 3198 020 40161 TRANS BC558C (UAW) 7506 3198 020 40161 TRANS BC558C (UAW) 7507 3198 020 40041 TRANS BC547C (UAW) 7601 9340 039 60126 TRANS BSN254A 7602 9340 551 07127 TRANS POW BU4530AL 7603 3198 020 43591 TRANS. BC338-40 7604 3198 020 43491 TRANS BC328-40 7605 9322 110 31687 FET POW MTP5P25 (MOTAO L 7606 9332 514 50127 TRANS BD330 7607 9332 514 40127 TRANS BD329 7608 3198 020 43011 TRANS BF422 (UAW) 7609 9332 514 40127 TRANS BD329 7610 3198 020 40161 TRANS BC558C (UAW) 7611 9333 935 10602 IC LM358N 8P 7612 3198 020 40041 TRANS BC547C (UAW) 7613 3198 020 40041 TRANS BC547C (UAW) 7615 9322 145 62667 TRAN SLA5058 7618 3198 020 40041 TRANS BC547C (UAW) 7619 3198 020 40041 TRANS BC547C (UAW) 7621 9322 054 09687 MOS TRANSTER MTP6N60 7622 9337 739 70687 MOSFET IRF640
7626 3198 020 43591 TRANS. BC338-40 7627 3198 020 43491 TRANS BC328-40 7629 3198 020 40041 TRANS BC547C (UAW) 7630 3198 020 40041 TRANS BC547C (UAW) 7631 3198 020 43021 TRANS BF423 (UAW) 7636 3198 020 40041 TRANS BC547C (UAW) 7640 3198 020 43311 TRANS PH2369 (UAW) 7641 3198 020 40161 TRANS BC558C (UAW) 7642 9340 258 70126 TRA SIG MPSA44 7701 9322 112 34687 IC LM2405T 11P 7702 9336 056 80678 IC LM317LZRP 3P 7721 3198 020 43011 TRANS BF422 (UAW) 7722 3198 020 43011 TRANS BF422 (UAW) 7731 3198 020 43011 TRANS BF422 (UAW) 7732 3198 020 43011 TRANS BF422 (UAW) 7751 3198 020 43011 TRANS BF422 (UAW) 7752 3198 020 43011 TRANS BF422 (UAW) 7761 3198 020 40081 TRANS BC548C (UAW) 7801 9352 606 76112 IC P87C380AER/F 42P 7801 9352 644 28112 IC P83C380AER/078 42P 7802 9322 107 16682 IC ST24FC21B6 8P 7803 3198 020 40161 TRANS BC558C (UAW) 7804 9322 126 62682 IC M24C16-BN6 8P 7805 3198 020 40041 TRANS BC547C (UAW) 7806 9352 608 01112 IC PDIUSBD11N 16P 7807 9322 106 11676 IC LE33CZ-AP 3P
