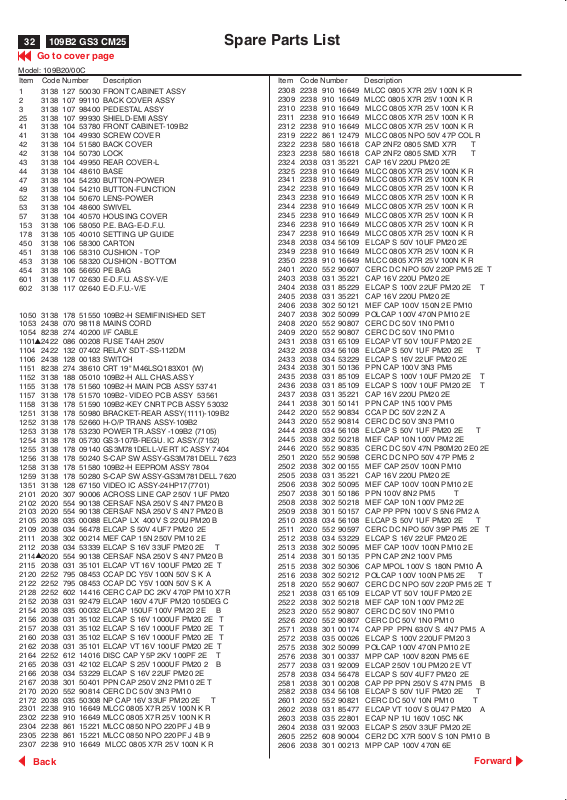

Page 1

109B2 GS3 CM25

Spare Parts List

Go to cover page

Model: 109B20/00C Item Code Number Description

1 3138 127 50030 FRONT CABINET ASSY 2 3138 107 99110 BACK COVER ASSY 3 3138 107 98400 PEDESTAL ASSY

25 3138 107 99930 SHIELD-EMI ASSY 41 3138 104 53780 FRONT CABINET-109B2 41 3138 104 49930 SCREW COVER 42 3138 104 51580 BACK COVER 42 3138 104 50730 LOCK 43 3138 104 49950 REAR COVER-L 44 3138 104 48610 BASE 47 3138 104 54230 BUTTON-POWER 49 3138 104 54210 BUTTON-FUNCTION 52 3138 104 50670 LENS-POWER 53 3138 104 48600 SWIVEL 57 3138 104 40570 HOUSING COVER 153 3138 106 58050 P.E. BAG-E-D.F.U. 178 3138 105 40010 SETTING UP GUIDE 450 3138 106 58300 CARTON 451 3138 106 58310 CUSHION - TOP 453 3138 106 58320 CUSHION - BOTTOM 454 3138 106 56650 PE BAG 601 3138 117 02630 E-D.F.U. ASSY-V/E 602 3138 117 02640 E-D.F.U.-V/E

1050 3138 178 51550 109B2-H SEMIFINISHED SET 1053 2438 070 98118 MAINS CORD 1054 8238 274 40200 I/F CABLE

1101 2422 086 00208 FUSE T4AH 250V 1104 2422 132 07402 RELAY SDT -SS-112DM 1106 2438 128 00183 SWITCH 1151 8238 274 38610 CRT 19" M46LSQ183X01 (W) 1152 3138 188 05010 109B2-H ALL CHAS.ASSY 1155 3138 178 51560 109B2-H MAIN PCB ASSY 53741 1157 3138 178 51570 109B2- VIDEO PCB ASSY 53561 1158 3138 178 51590 109B2-KEY CNRT PCB ASSY 53032 1251 3138 178 50980 BRACKET-REAR ASSY(1111)-109B2 1252 3138 178 52660 H-O/P TRANS ASSY-109B2 1253 3138 178 53230 POWER TR.ASSY -109B2 (7105) 1254 3138 178 05730 GS3-107B-REGU. IC ASSY.(7152) 1255 3138 178 09140 GS3M781DELL-VERT IC ASSY 7404 1256 3138 178 50240 S-CAP SW ASSY-GS3M781DELL 7623 1258 3138 178 51580 109B2-H EEPROM ASSY 7804 1259 3138 178 50280 S-CAP SW ASSY-GS3M781DELL 7620 1351 3138 128 67150 VIDEO IC ASSY-24HP17(7701) 2101 2020 307 90006 ACROSS LINE CAP 250V 1UF PM20 2102 2020 554 90138 CERSAF NSA 250V S 4N7 PM20 B 2103 2020 554 90138 CERSAF NSA 250V S 4N7 PM20 B 2105 2038 035 00088 ELCAP LX 400V S 220U PM20 B 2109 2038 034 56478 ELCAP S 50V 4UF7 PM20 2E 2111 2038 302 00214 MEF CAP 15N 250V PM10 2E 2112 2038 034 53339 ELCAP S 16V 33UF PM20 2E T

2114 2020 554 90138 CERSAF NSA 250V S 4N7 PM20 B 2115 2038 031 35101 ELCAP VT 16V 100UF PM20 2E T

2120 2252 795 08453 CCAP DC Y5V 100N 50VSKA 2122 2252 795 08453 CCAP DC Y5V 100N 50VSKA 2128 2252 602 14416 CERC CAP DC 2KV 470P PM10 X7R 2152 2038 031 92479 ELCAP 160V 47UF PM20 105DEG C 2154 2038 035 00032 ELCAP 150UF 100V PM20 2E B 2156 2038 031 35102 ELCAP S 16V 1000UF PM20 2E T 2157 2038 031 35102 ELCAP S 16V 1000UF PM20 2E T 2160 2038 031 35102 ELCAP S 16V 1000UF PM20 2E T 2162 2038 031 35101 ELCAP VT 16V 100UF PM20 2E T 2164 2252 612 14016 DISC CAP Y5P 2KV 100PF 2E T 2165 2038 031 42102 ELCAP S 25V 1000UF PM20 2 B 2166 2038 034 53229 ELCAP S 16V 22UF PM20 2E 2167 2038 301 50401 PPN CAP 250V 2N2 PM10 2E T 2170 2020 552 90814 CERC DC 50V 3N3 PM10 2172 2038 035 50308 NP CAP 16V 33UF PM20 2E T 2301 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2302 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2304 2238 861 15221 MLCC 0850 NPO 220PF J 4B 9 2305 2238 861 15221 MLCC 0850 NPO 220PF J 4B 9 2307 2238 910 16649 MLCC 0805 X7R 25V 100N K R

Back

Item Code Number Description 2308 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2309 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2310 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2311 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2312 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2319 2222 861 12479 MLCC 0805 NPO 50V 47P COL R 2322 2238 580 16618 CAP 2NF2 0805 SMD X7R T 2323 2238 580 16618 CAP 2NF2 0805 SMD X7R T 2324 2038 031 35221 CAP 16V 220U PM20 2E 2325 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2341 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2342 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2343 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2344 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2345 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2346 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2347 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2348 2038 034 56109 ELCAP S 50V 10UF PM20 2E 2349 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2350 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2401 2020 552 90607 CERC DC NPO 50V 220P PM5 2E T 2403 2038 031 35221 CAP 16V 220U PM20 2E 2404 2038 031 85229 ELCAP S 100V 22UF PM20 2E T 2405 2038 031 35221 CAP 16V 220U PM20 2E 2406 2038 302 50121 MEF CAP 100V 150N 2E PM10 2407 2038 302 50099 POLCAP 100V 470N PM10 2E 2408 2020 552 90807 CERC DC 50V 1N0 PM10 2409 2020 552 90807 CERC DC 50V 1N0 PM10 2431 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2432 2038 034 56108 ELCAP S 50V 1UF PM20 2E T 2433 2038 034 53229 ELCAP S 16V 22UF PM20 2E 2434 2038 301 50136 PPN CAP 100V 3N3 PM5 2435 2038 031 85109 ELCAP S 100V 10UF PM20 2E T 2436 2038 031 85109 ELCAP S 100V 10UF PM20 2E T 2437 2038 031 35221 CAP 16V 220U PM20 2E 2441 2038 301 50141 PPN CAP 1N5 100V PM5 2442 2020 552 90834 CCAP DC 50V 22N Z A 2443 2020 552 90814 CERC DC 50V 3N3 PM10 2444 2038 034 56108 ELCAP S 50V 1UF PM20 2E T

2445 2038 302 50218 MEF CAP 10N 100V PM2 2E 2446 2020 552 90835 CERC DC 50V 47N P80M20 2E0 2E

2501 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2502 2038 302 00155 MEF CAP 250V 100N PM10 2505 2038 031 35221 CAP 16V 220U PM20 2E 2506 2038 302 50095 MEF CAP 100V 100N PM10 2E 2507 2038 301 50186 PPN 100V 8N2 PM5 T 2508 2038 302 50218 MEF CAP 10N 100V PM2 2E 2509 2038 301 50157 CAP PP PPN 100V S 5N6 PM2 A 2510 2038 034 56108 ELCAP S 50V 1UF PM20 2E T 2511 2020 552 90597 CERC DC NPO 50V 39P PM5 2E T 2512 2038 034 53229 ELCAP S 16V 22UF PM20 2E 2513 2038 302 50095 MEF CAP 100V 100N PM10 2E 2514 2038 301 50135 PPN CAP 2N2 100V PM5

2515 2038 302 50306 CAP MPOL 100V S 180N PM10

2516 2038 302 50212 POLCAP 100V 100N PM5 2E T

2518 2020 552 90607 CERC DC NPO 50V 220P PM5 2E T 2521 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2522 2038 302 50218 MEF CAP 10N 100V PM2 2E 2523 2020 552 90807 CERC DC 50V 1N0 PM10 2526 2020 552 90807 CERC DC 50V 1N0 PM10 2571 2038 301 00174 CAP PP PPN 630V S 4N7 PM5 A 2572 2038 035 00026 ELCAP S 100V 220UF PM20 3 2575 2038 302 50099 POLCAP 100V 470N PM10 2E 2576 2038 301 00337 MPP CAP 100V 820N PM5 6E 2577 2038 031 92009 ELCAP 250V 10U PM20 2E VT 2578 2038 034 56478 ELCAP S 50V 4UF7 PM20 2E 2581 2038 301 00208 CAP PP PPN 250V S 47N PM5 B 2582 2038 034 56108 ELCAP S 50V 1UF PM20 2E T 2601 2020 552 90821 CERC DC 50V 10N PM10 T 2602 2038 031 85477 ELCAP VT 100V S 0U47 PM20 A 2603 2038 035 22801 ECAP NP 1U 160V 105C NK 2604 2038 031 92003 ELCAP S 250V 33UF PM20 2E 2605 2252 608 90004 CER2 DC X7R 500V S 10N PM10 B 2606 2038 301 00213 MPP CAP 100V 470N 6E

Forward

Page 2

Spare Parts List (Continued)

109B2 GS3 CM25

Go to cover page

Item Code Number Description 2607 2038 031 65109 ELCAP VT 50V 10UF PM20 2E

2608 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2610 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2611 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2612 2038 301 50191 PPN 100V 3N3 PM2 T 2613 2038 301 00335 PPN CAP 1600V 4N3 PM5 2614 2038 302 50121 MEF CAP 100V 150N 2E PM10 2616 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2618 2038 302 50095 MEF CAP 100V 100N PM10 2E 2619 2038 302 00214 MEF CAP 15N 250V PM10 2E 2620 2020 552 90834 CCAP DC 50V 22N Z A 2621 2020 552 90834 CCAP DC 50V 22N Z A 2624 2252 612 14016 DISC CAP Y5P 2KV 100PF 2E T 2626 2038 301 00304 MPS CAP 560N/250V PM5 7E 2627 2252 562 14256 CERCAP SLO 2KV 27P K 2E T 2628 2020 552 90834 CCAP DC 50V 22N Z A 2629 2252 602 14216 CERCAP DC 2KV 220P K X7R T 2631 2038 034 56478 ELCAP S 50V 4UF7 PM20 2E 2632 2038 302 00213 MEF CAP 100V 68N PM5 2E 2633 2252 641 33527 CERC Z5U 1KV 5N6 3E B 2634 2038 301 00224 MPS CAP 220N 250V PM5 7E 2636 2038 301 00208 CAP PP PPN 250V S 47N PM5 B 2638 2020 301 90157 CAP PP DTW 250V 100N PM5 2639 2038 301 00224 MPS CAP 220N 250V PM5 7E 2640 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2641 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2642 2038 301 00312 CAP MPP MPS 250V S 1U2 PM5 B 2644 2020 552 90821 CERC DC 50V 10N PM10 T 2645 2020 552 90834 CCAP DC 50V 22N Z A 2646 2252 795 08453 CCAP DC Y5V 100N 50VSKA 2652 2020 552 90834 CCAP DC 50V 22N Z A 2702 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2721 2038 031 85109 ELCAP S 100V 10UF PM20 2E T 2722 2222 580 15649 CER2 0805 X7R 50V 100N PM10 R 2723 2038 035 22801 ECAP NP 1U 160V 105C NK 2724 2038 031 85108 ELCAP S 100V 1UF PM20 2E T 2725 2422 549 44346 SPARK GAP DSP-201m 2726 2222 580 15649 CER2 0805 X7R 50V 100N PM10 R 2731 2038 035 22801 ECAP NP 1U 160V 105C NK 2732 2038 031 85108 ELCAP S 100V 1UF PM20 2E T 2733 2422 549 44346 SPARK GAP DSP-201m 2751 2038 035 22801 ECAP NP 1U 160V 105C NK 2752 2038 031 85108 ELCAP S 100V 1UF PM20 2E T 2753 2422 549 44346 SPARK GAP DSP-201m 2760 2238 861 15471 CMC 0805 NPO 470P 50V J 2761 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2762 2235 559 00099 CERC CAP 2KV 10N PM10 4E 2763 2238 580 16623 MLCC 0805 X7R 4N7F K 4B 9 2771 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2772 2252 608 08021 CERC DC X7R 500V 1N0 PM10 A 2773 2038 031 65109 ELCAP VT 50V 10UF PM20 2E 2775 2038 031 85109 ELCAP S 100V 10UF PM20 2E T 2776 2038 031 85479 ELCAP VT 100V S 47U PM20 B 2777 2238 910 16649 MLCC 0805 X7R 25V 100N K R 2778 2038 031 45479 ELCAP VT 25V 47UF PM20 2E T 2779 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2780 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2781 2222 861 12479 MLCC 0805 NPO 50V 47P COL R 2782 2222 861 12479 MLCC 0805 NPO 50V 47P COL R 2783 2038 031 45479 ELCAP VT 25V 47UF PM20 2E T 2785 2038 031 45479 ELCAP VT 25V 47UF PM20 2E T 2786 2235 559 00099 CERC CAP 2KV 10N PM10 4E 2801 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T 2802 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T 2803 2038 034 54479 ELCAP S 25V 47UF PM20 2E T 2804 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T 2805 2020 552 90589 CERC DC NPO 50V 10P PM5 2E T 2806 2020 552 90589 CERC DC NPO 50V 10P PM5 2E T 2808 2038 302 50095 MEF CAP 100V 100N PM10 2E 2816 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2817 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2819 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2820 2020 552 90598 CERC DC NPO 50V 47P PM5 2 2821 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T 2822 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T

Back

Item Code Number Description

2823 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T 2824 2020 552 90835 CERC DC 50V 47N P80M20 2E0 2E 2825 2020 552 90834 CCAP DC 50V 22N Z A 3101 2322 242 13684 METGLAZ RST A VR37 680K PM5 3106 2138 660 00038 SCK -055 NTC

3107 2322 205 33221 RST FUSE NFR25 S 220R PM5

3108 2322 205 33221 RST FUSE NFR25 S 220R PM5 3111 2138 105 00085 RST MOX 3W RSS S 22K PM5 B 3112 2138 105 00111 PWR RES 820R 5W

3113 2322 205 33109 RST FUSE NFR25 10R PM5 3114 2138 101 13103 RST CRB CR12 A 10K PM5 A 3115 2138 112 73477 CARBRST R25 0.47R PM5 3116 2138 112 73477 CARBRST R25 0.47R PM5 3117 2138 112 73477 CARBRST R25 0.47R PM5 3118 2138 112 73477 CARBRST R25 0.47R PM5 3120 2138 112 73827 CARBRST FLM CR25 0.82R PM5 3121 2322 242 13475 METGLAZ RST A VR37 4M7 PM5 T 3122 2322 242 13475 METGLAZ RST A VR37 4M7 PM5 T 3123 2138 101 13104 RST CRB CR12 A 100K PM5 A 3124 2138 101 13334 RST CRB CR12 A 330K PM5 A 3125 2138 101 13102 RST CRB CR12 A 1K PM5 A 3126 2138 101 13102 RST CRB CR12 A 1K PM5 A

3127 2322 205 33101 MET FLM RST A NFR25 100R P 3128 2138 112 73229 CARBRST FLM CR25 22R PM5 3130 2138 101 13223 RST CRB CR12 A 22K PM5 A 3131 2138 116 12403 RST MFLM MF50S A 24K PM1 A 3133 2138 101 13331 RST CRB CR12 A 330R PM5 A 3135 2138 101 13122 RST CRB CR12 A 1K2 PM5 A 3138 2138 660 00036 PTC 9 OHM 3139 2138 101 13103 RST CRB CR12 A 10K PM5 A 3151 2138 116 14704 RST MFLM MF50S A 470K PM1 A

3153 2322 205 33102 RST FUSE NFR25 A 1K PM5 3154 2138 116 11004 RST MFLM MF50S A 100K PM1 A 3156 2138 101 13223 RST CRB CR12 A 22K PM5 A 3159 2138 116 00158 MET FLM RST MF25 240K PM1 3160 2120 105 92372 RST MOX 1W RSS S 15K PM5 B 3161 2138 101 13102 RST CRB CR12 A 1K PM5 A 3162 2138 116 12204 RST MFLM MF50S A 220K PM1 A 3163 2138 116 15602 RST MFLM MF50S A 5K6 PM1 A 3165 2138 365 00081 RTRM CER LIN 1K H VG067TL1 B 3166 2138 101 13333 RST CRB CR12 A 33K PM5 A 3167 2138 101 13102 RST CRB CR12 A 1K PM5 A 3168 2138 101 13332 RST CRB CR12 A 3K3 PM5 A 3170 2138 101 13101 RST CRB CR12 A 100R PM5 A 3171 2138 101 13102 RST CRB CR12 A 1K PM5 A 3172 2138 101 13102 RST CRB CR12 A 1K PM5 A 3173 2138 101 13471 RST CRB CR12 A 470R PM5 A 3301 2322 734 67509 RST SM 0805 RC11 75R PM1 T 3302 2322 734 67509 RST SM 0805 RC11 75R PM1 T 3303 2322 734 67509 RST SM 0805 RC11 75R PM1 T 3305 2322 730 61472 RST SM 0805 RC11 4K7 PM5 R 3306 2322 730 61472 RST SM 0805 RC11 4K7 PM5 R 3307 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3309 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3310 2138 101 13102 RST CRB CR12 A 1K PM5 A 3311 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3312 2322 730 61479 RES 47R 0805 SMD RC-11 T 3313 2322 730 61479 RES 47R 0805 SMD RC-11 T 3314 2322 730 61479 RES 47R 0805 SMD RC-11 T 3315 2322 730 61222 RST SM 0805 RC11 2K2 PM5 R 3316 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3324 2322 730 61332 RES 3K3 0805 SMD 3325 2138 101 13103 RST CRB CR12 A 10K PM5 A 3326 2322 730 61103 RES 10K RC-11 SMD 0805 T 3327 2322 730 61562 RES 5.6K RC-11 SMD 0805 T 3328 2322 730 61512 RES 5.1K RC-11 SMD 0805 T 3329 2322 730 61562 RES 5.6K RC-11 SMD 0805 T 3330 2322 730 61394 SMD R0805 390K PM5 3332 2138 101 13101 RST CRB CR12 A 100R PM5 A 3333 2138 101 13101 RST CRB CR12 A 100R PM5 A 3334 2322 730 61829 RST SM 0805 RC11 82R PM5 R 3335 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3336 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3337 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3341 2322 730 61101 RST SM 0805 RC11 100R PM5 R

Forward

Page 3

109B2 GS3 CM25

Go to cover page

Spare Parts List (Continued)

Item Code Number Description 3342 2322 730 61101 RST SM 0805 RC11 100R PM5 R

3343 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3344 2138 101 13101 RST CRB CR12 A 100R PM5 A 3345 2138 101 13101 RST CRB CR12 A 100R PM5 A 3346 2138 101 13101 RST CRB CR12 A 100R PM5 A 3347 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3348 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3349 2138 101 13101 RST CRB CR12 A 100R PM5 A 3350 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3351 2138 101 13101 RST CRB CR12 A 100R PM5 A 3352 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3353 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3354 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3359 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3360 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3361 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3362 2322 730 61228 RES 2R2 SMD 0805 3363 2322 730 61228 RES 2R2 SMD 0805 3372 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3376 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3378 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3379 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3380 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3401 2138 101 13471 RST CRB CR12 A 470R PM5 A 3402 2138 101 13471 RST CRB CR12 A 470R PM5 A 3403 2138 101 13222 RST CRB CR12 A 2K2 PM5 A 3404 2138 116 12202 RST MFLM MF50S A 2K2 PM1 A 3405 2322 205 33109 RST FUSE NFR25 10R PM5 3406 2322 205 33109 RST FUSE NFR25 10R PM5 3407 2138 116 11009 RST MFLM MF50S A 10R PM1 A 3408 2138 116 04228 RST MFLM MF50S A 2R2 PM5 A 3409 2138 105 00414 METOX FLM RST 150R 1W PM5 3410 2138 116 04208 RST MFLM MF-50S A 2R PM5 A

3411 2322 205 33479 MET FLM RST NFR25 47R PM5PM5 T 3412 2138 116 04208 RST MFLM MF-50S A 2R PM5 A 3415 2138 660 00047 NTC 220R TTC-0522 PM5 T 3430 2138 101 13223 RST CRB CR12 A 22K PM5 A 3431 2138 101 13102 RST CRB CR12 A 1K PM5 A 3432 2138 101 13103 RST CRB CR12 A 10K PM5 A 3433 2138 101 13473 RST CRB CR12 A 47K PM5 A 3434 2138 101 13104 RST CRB CR12 A 100K PM5 A

3435 2138 101 00368 RST JUMP CR-25 A MAX R005 A 3436 2138 101 13103 RST CRB CR12 A 10K PM5 A 3437 2138 101 13479 RST CRB CR12 A 47R PM5 A 3438 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3441 2138 101 13102 RST CRB CR12 A 1K PM5 A 3442 2138 101 13105 RST CRB CR12 A 1M PM5 A 3443 2138 101 13684 RST CRB CR12 A 680K PM5 A 3444 2138 101 13332 RST CRB CR12 A 3K3 PM5 A 3445 2138 101 13103 RST CRB CR12 A 10K PM5 A 3446 2138 116 15102 RST MFLM MF50S A 5K1 PM1 A 3447 2138 101 13103 RST CRB CR12 A 10K PM5 A 3448 2138 101 13103 RST CRB CR12 A 10K PM5 A 3449 2138 101 13272 RST CRB CR12 A 2K7 PM5 A 3451 2138 101 13154 RST CRB CR12 A 150K PM5 A 3452 2138 101 13333 RST CRB CR12 A 33K PM5 A 3453 2138 101 13102 RST CRB CR12 A 1K PM5 A 3454 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3455 2138 101 13562 RST CRB CR12 A 5K6 PM5 A 3501 2138 112 73152 CARBRST FLM CR25 1K5 PM5 3502 2138 101 13103 RST CRB CR12 A 10K PM5 A 3503 2138 101 13473 RST CRB CR12 A 47K PM5 A 3504 2138 116 14703 RST MFLM MF50S A 47K PM1 A 3505 2138 112 73333 CARBRST FLM CR25 33K PM5 3506 2138 101 13103 RST CRB CR12 A 10K PM5 A 3507 2138 112 73101 CARBRST FLM CR25 100R PM5 3508 2138 116 12203 RST MFLM MF50S A 22K PM1 A 3509 2138 101 13102 RST CRB CR12 A 1K PM5 A 3510 2138 116 12204 RST MFLM MF50S A 220K PM1 A 3511 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3512 2138 101 13103 RST CRB CR12 A 10K PM5 A 3513 2138 101 13683 RST CRB CR12 A 68K PM5 A 3514 2138 116 14703 RST MFLM MF50S A 47K PM1 A 3515 2138 116 15601 RST MFLM MF50S A 560R PM1 A 3516 2138 112 73472 CARBRST FLM CR25 4K7 PM5

Back

Item Code Number Description

3517 2138 101 13333 RST CRB CR12 A 33K PM5 A 3518 2138 101 13222 RST CRB CR12 A 2K2 PM5 A 3519 2138 101 13822 RST CRB CR12 A 8K2 PM5 A 3520 2138 101 13123 RST CRB CR12 A 12K PM5 A 3521 2138 116 11204 RST MFLM MF50S A 120K PM1 A 3522 2138 101 13102 RST CRB CR12 A 1K PM5 A 3523 2138 116 12702 RST MFLM MF50S A 2K7 PM1 A 3524 2138 116 17321 RST MFLM MF50S A 732R PM1 A 3525 2138 101 13332 RST CRB CR12 A 3K3 PM5 A 3527 2138 112 73221 CARBRST FLM CR25 220R PM5 3530 2138 101 13102 RST CRB CR12 A 1K PM5 A 3531 2138 101 13102 RST CRB CR12 A 1K PM5 A 3533 2138 116 11804 RST MFLM MF50S A 180K PM1 A 3534 2138 101 13104 RST CRB CR12 A 100K PM5 A 3536 2138 101 13154 RST CRB CR12 A 150K PM5 A 3537 2138 101 13224 RST CRB CR12 A 220K PM5 A 3538 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3571 2138 112 73331 CARBRST FLM CR25 330R PM5 T

3572 2322 205 33109 RST FUSE NFR25 10R PM5 3573 2138 101 13122 RST CRB CR12 A 1K2 PM5 A 3574 2138 101 13821 RST CRB CR12 A 820R PM5 A

3575 2322 205 33109 RST FUSE NFR25 10R PM5 3576 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3577 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3578 2322 205 33108 MST FUSE NFR25 S 1R PM5 5 T

3581 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 T

p p

3582 2322 205 33108 MST FUSE NFR25 S 1R PM5 5 T 3583 2322 242 13105 METGLAZ RST A VR37 1M PM5 T 3585 2322 242 13155 METGLAZ RST A VR37 1M5 PM5 6E 3586 2138 116 16803 RST MFLM MF50S A 68K PM1 A 3587 2138 365 00084 RTRM CER LIN 20K V VG067TH1 B 3590 2138 112 73153 CARBRST FLM CR25 15K PM5 3591 2138 116 18204 RST MFLM MF50S A 820K PM1 A 3592 2138 112 73273 CARBRST FLM CR25 27K PM5 3593 2138 101 13223 RST CRB CR12 A 22K PM5 A 3594 2138 101 13392 RST CRB CR12 A 3K9 PM5 A 3595 2138 101 13224 RST CRB CR12 A 220K PM5 A 3596 2138 101 13473 RST CRB CR12 A 47K PM5 A 3597 2138 101 13562 RST CRB CR12 A 5K6 PM5 A 3598 2138 101 13334 RST CRB CR12 A 330K PM5 A 3601 2138 101 13102 RST CRB CR12 A 1K PM5 A 3602 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3603 2322 207 33339 RST FUSE NFR25H S 33R PM5 A

3604 2120 105 92191 METOX FLM RST 5K6 3W PM5 T 3605 2138 105 00415 RST MOX 5W RSS S 1R8 PM5 3606 2138 116 11009 RST MFLM MF50S A 10R PM1 A 3607 2138 116 12701 RST MFLM MF50S A 270R PM1 A 3608 2138 101 13223 RST CRB CR12 A 22K PM5 A

3609 2322 207 33101 RST MFLM NFR25H 100R PM5 3610 2138 105 00095 RST MOX 7W RSH S 33R PM5

3611 2322 205 33108 MST FUSE NFR25 S 1R PM5 5 T 3612 2138 101 13223 RST CRB CR12 A 22K PM5 A

3613 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 T 3614 2120 105 90722 MET FLM RNS(OXIDE)1R0 1W PM5

3615 2322 205 33221 RST FUSE NFR25 S 220R PM5 3616 2138 101 13103 RST CRB CR12 A 10K PM5 A 3617 2138 101 13123 RST CRB CR12 A 12K PM5 A 3618 2138 116 11004 RST MFLM MF50S A 100K PM1 A 3619 2138 101 13102 RST CRB CR12 A 1K PM5 A 3620 2138 116 16803 RST MFLM MF50S A 68K PM1 A

3621 2138 101 13229 RST CRB CR12 A 22R PM5 A 3622 2138 101 13104 RST CRB CR12 A 100K PM5 A 3624 2138 101 13103 RST CRB CR12 A 10K PM5 A 3626 2138 101 13229 RST CRB CR12 A 22R PM5 A 3627 2138 116 11509 RST MFLM MF50S A 15R PM1 A 3628 2138 116 04228 RST MFLM MF50S A 2R2 PM5 A 3629 2138 101 13333 RST CRB CR12 A 33K PM5 A 3630 2138 116 11001 RST MFLM MF50S A 100R PM1 A 3631 2138 105 00074 TST MOX5W RSM5WL S 150R PM5 B 3632 2138 101 13682 RST CRB CR12 A 6K8 PM5 A 3633 2138 101 13682 RST CRB CR12 A 6K8 PM5 A 3634 2138 101 13103 RST CRB CR12 A 10K PM5 A 3635 2138 101 13103 RST CRB CR12 A 10K PM5 A 3636 2138 101 13393 RST CRB CR12 A 39K PM5 A 3637 2138 101 13393 RST CRB CR12 A 39K PM5 A

Forward

Page 4

Spare Parts List (Continued)

109B2 GS3 CM25

Go to cover page

Item Code Number Description

3638 2138 112 73154 CARBRST FLM CR25 150K PM5 3639 2138 112 73154 CARBRST FLM CR25 150K PM5 3640 2138 112 73154 CARBRST FLM CR25 150K PM5 3641 2138 112 73154 CARBRST FLM CR25 150K PM5 3642 2138 101 13393 RST CRB CR12 A 39K PM5 A 3643 2138 101 13393 RST CRB CR12 A 39K PM5 A 3644 2138 101 13473 RST CRB CR12 A 47K PM5 A 3645 2138 101 13104 RST CRB CR12 A 100K PM5 A 3646 2138 101 13682 RST CRB CR12 A 6K8 PM5 A 3647 2138 101 13682 RST CRB CR12 A 6K8 PM5 A 3648 2138 116 11009 RST MFLM MF50S A 10R PM1 A 3653 2322 242 13224 METGLAZ RST A VR37 220K PM5 T 3654 2120 101 28222 RST CMP ERC12 A 2K2 PM10 A 3655 2322 242 13104 METGLAZ RST A VR37 100K 3657 2322 242 13224 METGLAZ RST A VR37 220K PM5 T 3658 2138 101 13229 RST CRB CR12 A 22R PM5 A 3659 2322 242 13224 METGLAZ RST A VR37 220K PM5 T 3660 2138 101 13473 RST CRB CR12 A 47K PM5 A 3661 2138 101 13475 RST CRB CR12 A 4M7 PM5 A 3662 2138 101 13182 RST CRB CR12 A 1K8 PM5 A 3669 2138 101 13102 RST CRB CR12 A 1K PM5 A 3672 2138 101 13101 RST CRB CR12 A 100R PM5 A 3673 2138 116 04478 RST MFLM MF50S A 4R7 PM5 A 3677 2138 101 13229 RST CRB CR12 A 22R PM5 A 3681 2120 105 92392 MET FLM RST 1W 47R PM5 RSS B 3682 2138 116 11002 RST MFLM MF50S A 1K PM1 A 3684 2138 101 13223 RST CRB CR12 A 22K PM5 A 3685 2138 101 13473 RST CRB CR12 A 47K PM5 A 3686 2138 112 73273 CARBRST FLM CR25 27K PM5 3687 2138 105 00076 RST MOX 5W 330R RSS PM5 3691 2138 101 13393 RST CRB CR12 A 39K PM5 A 3692 2138 101 13103 RST CRB CR12 A 10K PM5 A

3693 2138 112 73154 CARBRST FLM CR25 150K PM5 3694 2138 101 13229 RST CRB CR12 A 22R PM5 A 3699 2138 101 13682 RST CRB CR12 A 6K8 PM5 A 3703 2138 101 13339 RST CRB CR12 A 33R PM5 A 3704 2138 101 13471 RST CRB CR12 A 470R PM5 A 3705 2138 101 13471 RST CRB CR12 A 470R PM5 A 3706 2138 101 13471 RST CRB CR12 A 470R PM5 A 3707 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3713 2138 101 13339 RST CRB CR12 A 33R PM5 A 3716 2138 101 13339 RST CRB CR12 A 33R PM5 A 3718 2138 101 13479 RST CRB CR12 A 47R PM5 A 3719 2138 101 13479 RST CRB CR12 A 47R PM5 A 3720 2138 101 13479 RST CRB CR12 A 47R PM5 A 3721 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3722 2138 112 73274 CARBRST FLM CR25 270K PM5 3723 2138 101 13821 RST CRB CR12 A 820R PM5 A 3724 2138 116 11503 RST MFLM MF50S A 15K PM1 A 3725 2322 730 61274 SMD R0805 270K PM5 R 3726 2138 112 73683 CARBRST FLM CR25 68K PM5 3727 2138 101 13303 RST CRB CR12 A 30K PM5 A 3728 2138 112 73109 CARBRST FLM CR25 10R PM5 3729 2138 101 13479 RST CRB CR12 A 47R PM5 A 3731 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3732 2138 112 73274 CARBRST FLM CR25 270K PM5 3733 2138 101 13821 RST CRB CR12 A 820R PM5 A 3734 2138 116 11503 RST MFLM MF50S A 15K PM1 A 3735 2322 730 61274 SMD R0805 270K PM5 R 3736 2138 112 73683 CARBRST FLM CR25 68K PM5 3737 2138 101 13303 RST CRB CR12 A 30K PM5 A 3738 2138 112 73109 CARBRST FLM CR25 10R PM5 3740 2322 730 91002 RST SM 0805 JUMP. MAX 0R05 T 3741 2322 730 61105 RES 1M RC-11 SMD 0805 T 3742 2322 730 61105 RES 1M RC-11 SMD 0805 T 3743 2322 730 61829 RST SM 0805 RC11 82R PM5 R 3744 2322 730 61829 RST SM 0805 RC11 82R PM5 R 3745 2322 730 61829 RST SM 0805 RC11 82R PM5 R 3751 2120 101 28479 CARBRST COMP 1/2W 47R PM10 3752 2138 112 73274 CARBRST FLM CR25 270K PM5 3753 2138 101 13821 RST CRB CR12 A 820R PM5 A 3754 2138 116 11503 RST MFLM MF50S A 15K PM1 A 3755 2322 730 61274 SMD R0805 270K PM5 R 3756 2138 112 73683 CARBRST FLM CR25 68K PM5 3757 2138 101 13303 RST CRB CR12 A 30K PM5 A

Back

Item Code Number Description

3758 2138 112 73109 CARBRST FLM CR25 10R PM5 3760 2138 116 13001 RST MFLM MF50S A 300R PM1 A 3761 2322 730 61102 RST SMC 0805 RC11 1K PM5 T 3762 2322 730 61103 RES 10K RC-11 SMD 0805 T 3763 2322 730 61332 RES 3K3 0805 SMD 3764 2322 730 61472 RST SM 0805 RC11 4K7 PM5 R 3765 2322 730 61682 RES 6K8 0805 SMD 3767 2322 730 61472 RST SM 0805 RC11 4K7 PM5 R 3771 2120 101 28152 CARBRST COMP 1/2W 1K5 PM10 3772 2120 101 28153 CARBRST COMP 1/2W 15K PM10 3773 2138 116 12002 RST MFLM MF50S A 2K PM1 A 3775 2138 112 73479 CARBRST FLM CR25 47R PM5 3776 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3777 2322 730 61101 RST SM 0805 RC11 100R PM5 R 3778 2322 730 61102 RST SMC 0805 RC11 1K PM5 T

3779 2138 112 73271 CARBRST FLM CR25 270R PM5 3781 2138 101 13332 RST CRB CR12 A 3K3 PM5 A

3784 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3785 2138 101 00369 CABON RES. CR-12 1/6W 0 OHM 3801 2138 112 03006 RES ARRAY 4K7 6A 3802 2138 101 13223 RST CRB CR12 A 22K PM5 A 3803 2138 101 13223 RST CRB CR12 A 22K PM5 A 3804 2138 101 13102 RST CRB CR12 A 1K PM5 A 3805 2138 101 13223 RST CRB CR12 A 22K PM5 A 3806 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3807 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3808 2138 101 13472 RST CRB CR12 A 4K7 PM5 A

3809 2138 101 13102 RST CRB CR12 A 1K PM5

3810 2138 101 13102 RST CRB CR12 A 1K PM5 A 3811 2138 101 13102 RST CRB CR12 A 1K PM5 A 3812 2138 101 13102 RST CRB CR12 A 1K PM5 A 3813 2138 101 13102 RST CRB CR12 A 1K PM5 A 3818 2138 101 13332 RST CRB CR12 A 3K3 PM5 A 3819 2138 101 13103 RST CRB CR12 A 10K PM5 A 3821 2138 101 13101 RST CRB CR12 A 100R PM5 A 3822 2138 101 13101 RST CRB CR12 A 100R PM5 A 3824 2138 101 13221 RST CRB CR12 A 220R PM5 A

3825 2138 101 13101 RST CRB CR12 A 100R PM5 A 3826 2138 101 13101 RST CRB CR12 A 100R PM5 A 3833 2138 101 13222 RST CRB CR12 A 2K2 PM5 A 3834 2138 101 13223 RST CRB CR12 A 22K PM5 A 3835 2138 101 13223 RST CRB CR12 A 22K PM5 A 3836 2138 101 13103 RST CRB CR12 A 10K PM5 A 3838 2138 101 13102 RST CRB CR12 A 1K PM5 A 3841 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3842 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3844 2138 101 13123 RST CRB CR12 A 12K PM5 A 3845 2138 101 13392 RST CRB CR12 A 3K9 PM5 A 3846 2138 101 13121 RST CRB CR12 A 120R PM5 A 3847 2138 101 13121 RST CRB CR12 A 120R PM5 A 3848 2138 101 13101 RST CRB CR12 A 100R PM5 A 3849 2138 101 13101 RST CRB CR12 A 100R PM5 A 3850 2138 101 13101 RST CRB CR12 A 100R PM5 A 3851 2138 101 13333 RST CRB CR12 A 33K PM5 A 3852 2138 101 13123 RST CRB CR12 A 12K PM5 A 3853 2138 101 13472 RST CRB CR12 A 4K7 PM5 A 3891 2138 116 11004 RST MFLM MF50S A 100K PM1 A 3892 2138 116 15603 RST MFLM MF50S A 56K PM1 A 3893 2138 116 14702 RST MFLM MF50S A 4K7 PM1 A 3894 2138 116 11503 RST MFLM MF50S A 15K PM1 A 3895 2138 116 12403 RST MFLM MF50S A 24K PM1 A 5007 8238 274 39980 DEGAUSSING COIL ("O" TYPE) 5101 3138 168 75540 POWER TRANSFORMER

p p

5102 3138 168 72810 LINE FILTER (143Y1R5) 5103 3138 178 75210 FERRITE BEAD 5106 3138 178 79160 BAR COIL 7U5H PM10 5107 3138 178 79160 BAR COIL 7U5H PM10 5112 2438 535 98028 IND FXD BEAD EMI 100 MHZ 75R R 5153 2422 535 94971 DRUM CHOKE COIL 100UH T 5154 2438 535 98025 IND FXD BEAD EMI 100MHZ 60R R 5155 2422 535 94971 DRUM CHOKE COIL 100UH T 5156 2422 535 94971 DRUM CHOKE COIL 100UH T 5157 3138 118 78770 CHOCK COIL 20UH 5158 3138 118 78770 CHOCK COIL 20UH 5301 2422 535 97608 COIL 1MUH8 Pm10

Forward

Page 5

109B2 GS3 CM25

Go to cover page

Spare Parts List (Continued)

Item Code Number Description 5303 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R

5571 2422 535 94972 DRUM COIL 180UH PM10 T 5572 3138 178 75850 L.O.T 5601 3138 178 71330 DRIVER TRANSF. 5602 3138 178 71730 DRUM COIL 20MH 5603 3138 168 73460 CENTERING X'FMR 5604 3138 178 75990 DRUM CHOKE COIL 6MH 5606 3138 178 77760 LINEARITY COIL HL2455H-02 5608 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R 5609 3138 128 74410 DAF TRANSFORMER 5610 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R 5701 2422 535 97608 COIL 1MUH8 PM10 5702 2422 535 97608 COIL 1MUH8 PM10 5721 2422 535 94941 COIL 1/2W 0.33U K T 5732 2422 535 94941 COIL 1/2W 0.33U K T 5752 2422 535 94941 COIL 1/2W 0.33U K T 5771 3138 108 74950 BAR COIL 5UH PM10 5779 2422 535 97608 COIL 1MUH8 PM10 5781 2422 535 94971 DRUM CHOKE COIL 100UH T 5786 2422 535 97608 COIL 1MUH8 PM10 5801 2422 535 97416 COIL 33MUH PM10 6102 9322 058 14682 BRIDGE GBU4K 6103 9334 979 50683 DIODE RGP10J (GI) 6107 3198 010 10071 DIODE BAV21 (UAW) 6108 9334 979 50683 DIODE RGP10J (GI) 6109 9337 516 60683 DIODE RGP10D (GI) 6113 3198 010 10011 DIODE 1N4148 (UAW) 6115 3198 010 10011 DIODE 1N4148 (UAW) 6117 3198 010 10011 DIODE 1N4148 (UAW) 6118 3198 010 10011 DIODE 1N4148 (UAW) 6121 3198 010 10011 DIODE 1N4148 (UAW) 6123 3198 010 10011 DIODE 1N4148 (UAW) 6124 3198 010 10011 DIODE 1N4148 (UAW) 6125 3198 010 10011 DIODE 1N4148 (UAW) 6148 9335 435 00133 DIO REC BYV27-100 6151 9338 185 20133 DIO REC BYM26E A(PHSE) A 6152 9322 126 36682 DIODE 31DF6 6E 6153 9335 435 00133 DIO REC BYV27-100 6155 9335 435 00133 DIO REC BYV27-100 6157 9334 979 50683 DIODE RGP10J (GI) 6158 3198 010 10071 DIODE BAV21 (UAW) 6159 3198 010 10011 DIODE 1N4148 (UAW) 6161 3198 010 10011 DIODE 1N4148 (UAW) 6162 3198 010 21591 DIODE BZX79-C15 (UAW) 6163 3198 010 10011 DIODE 1N4148 (UAW) 6165 3198 010 21591 DIODE BZX79-C15 (UAW) 6301 3198 010 25681 DIODE BZX79-C5V6 (UAW) 6302 3198 010 25681 DIODE BZX79-C5V6 (UAW) 6303 3198 010 25681 DIODE BZX79-C5V6 (UAW) 6304 3198 010 25681 DIODE BZX79-C5V6 (UAW) 6401 9335 526 80133 DIODE BYV27-200 6402 9335 007 10133 DIODE BZV85-C18 6403 9335 007 10133 DIODE BZV85-C18 6431 3198 010 10011 DIODE 1N4148 (UAW) 6433 3198 010 10011 DIODE 1N4148 (UAW) 6434 9331 669 70133 DIODE BZX79B27V 6435 9331 669 50133 DIODE BZX79-B22 6436 9337 516 60683 DIODE RGP10D (GI) 6437 3198 010 25181 DIODE BZX79-C5V1 (UAW) 6438 3198 010 10011 DIODE 1N4148 (UAW) 6439 3198 010 10011 DIODE 1N4148 (UAW) 6501 3198 010 10011 DIODE 1N4148 (UAW) 6502 3198 010 10011 DIODE 1N4148 (UAW) 6503 3198 010 10011 DIODE 1N4148 (UAW) 6504 3198 010 25681 DIODE BZX79-C5V6 (UAW) 6505 3198 010 10071 DIODE BAV21 (UAW) 6507 3198 010 10071 DIODE BAV21 (UAW) 6508 9336 247 40113 DIODE BAT82 6509 3198 010 10011 DIODE 1N4148 (UAW) 6511 3198 010 10011 DIODE 1N4148 (UAW) 6571 3198 010 10071 DIODE BAV21 (UAW) 6572 3198 010 10011 DIODE 1N4148 (UAW) 6573 9322 126 36682 DIODE 31DF6 6E 6574 9337 516 50683 DIODE RGP15K (GI) 6575 9334 939 60683 DIODE RGP10G (GI)

Back

Item Code Number Description

6581 3198 010 10011 DIODE 1N4148 (UAW) 6582 3198 010 10011 DIODE 1N4148 (UAW) 6583 3198 010 21291 DIODE BZX79-C12 (UAW) 6584 3198 010 10011 DIODE 1N4148 (UAW) 6585 3198 010 28281 DIODE BZX79-C8V2 (UAW) 6601 9335 435 00133 DIO REC BYV27-100 6602 9340 312 20127 DIO REC BY459-1500 S (ELCO) L 6603 3198 010 21591 DIODE BZX79-C15 (UAW) 6604 9322 115 74682 DIODE 31DF4 6605 9339 577 60683 DIODE SB140 (GI) 6606 9339 577 60683 DIODE SB140 (GI) 6609 3198 010 24781 DIODE BZX79-C4V7 (UAW) 6611 9334 979 50683 DIODE RGP10J (GI) 6623 9337 773 20683 DIO REG P6KE39A A(MOTA) R 6624 3198 010 21291 DIODE BZX79-C12 (UAW) 6711 3198 010 25181 DIODE BZX79-C5V1 (UAW) 6721 3198 010 10531 SMD DIODE BAV103 6722 3198 010 10071 DIODE BAV21 (UAW) 6724 3198 010 10531 SMD DIODE BAV103 6731 3198 010 10531 SMD DIODE BAV103 6732 3198 010 10071 DIODE BAV21 (UAW) 6734 3198 010 10531 SMD DIODE BAV103 6751 3198 010 10071 DIODE BAV21 (UAW) 6752 3198 010 10071 DIODE BAV21 (UAW) 6754 3198 010 10531 SMD DIODE BAV103 6771 9334 939 60683 DIODE RGP10G (GI) 6801 3198 010 10011 DIODE 1N4148 (UAW) 6891 9322 146 03682 LED L-3WYGW 7102 3198 020 43591 TRANS. BC338-40 7103 9322 140 14667 PHOTOCOUPLER TCET1103G 4P

7105 9322 142 36687 FET POW SSP7N60 (FSCO) L 7106 9352 645 03112 IC TEA1504AP/N2 14P 7113 9337 711 00686 IC TL431CLPRP 3P 7152 9339 208 10682 IC L7808CV 3P 7153 9334 536 00682 IC MC7805CT 3P 7154 9338 268 50126 TRANS BT169B T 7155 3198 020 43011 TRANS BF422 (UAW) 7156 3198 020 40041 TRANS BC547C (UAW) 7157 3198 020 40081 TRANS BC548C (UAW) 7301 9352 616 28112 IC TDA4886A/V1 24P 7302 9352 679 38112 V/E IC TDA4822PS/V1/M5 7303 9322 106 11676 IC LE33CZ-AP 3P 7304 8238 274 34420 OSD IC MTV018-27 7322 3198 020 40081 TRANS BC548C (UAW) 7404 9322 144 36687 IC TDA8177F 7P 7431 3198 020 40081 TRANS BC548C (UAW) 7432 3198 020 40081 TRANS BC548C (UAW) 7433 9322 121 52682 IC L4990A 16P 7434 3198 020 43311 TRANS PH2369 (UAW) 7435 3198 020 40161 TRANS BC558C (UAW) 7501 3198 020 40081 TRANS BC548C (UAW) 7502 3198 020 43021 TRANS BF423 (UAW) 7503 9352 637 56112 IC TDA4841PS-V2 32P 7504 9332 377 80126 TRANS BC546B (UAW) 7505 3198 020 40161 TRANS BC558C (UAW) 7506 3198 020 40161 TRANS BC558C (UAW) 7507 3198 020 40081 TRANS BC548C (UAW) 7571 9322 054 09687 TRAN.MOS MTP6N60 7572 3198 020 43311 TRANS PH2369 (UAW) 7573 9322 031 68687 TRANS. IRF640 7575 3198 020 40161 TRANS BC558C (UAW) 7601 9340 039 60126 TRANS BSN254A 7602 9340 263 00127 TRANS POW BU2527AF 7603 3198 020 43591 TRANS. BC338-40 7604 3198 020 43491 TRANS BC328-40 7605 9322 110 31687 FET POW MTP5P25 (MOTAO L) 7606 9335 671 30126 TRANS BC517 7607 9335 671 20126 TRANS BC516 7608 3198 020 43011 TRANS BF422 (UAW) 7609 3198 020 43591 TRANS. BC338-40 7610 3198 020 40161 TRANS BC558C (UAW) 7611 9333 935 10602 IC LM358N 8P (PHILIPS) 7612 3198 020 40041 TRANS BC547C (UAW) 7613 3198 020 40041 TRANS BC547C (UAW) 7615 9322 031 68687 TRANS. IRF640

Forward

Page 6

Spare Parts List (Continued)

Item Code Number Description 7618 3198 020 40041 TRANS BC547C (UAW)

7619 3198 020 40041 TRANS BC547C (UAW) 7620 9322 031 68687 TRANS. IRF640 7621 9322 031 68687 TRANS. IRF640 7622 9322 031 68687 TRANS. IRF640 7623 9322 031 68687 TRANS. IRF640 7624 9340 258 70126 TRA SIG MPSA44 7626 3198 020 43541 TRANS BC337-40 (UAW) R 7627 3198 020 43411 TRANS BC327 (UAW) 7629 3198 020 40081 TRANS BC548C (UAW) 7630 3198 020 40081 TRANS BC548C (UAW) 7631 3198 020 43021 TRANS BF423 (UAW) 7636 3198 020 40041 TRANS BC547C (UAW) 7701 9322 112 34687 IC LM2405T 11P 7702 9336 056 80678 IC LM317LZRP 3P 7721 3198 020 43011 TRANS BF422 (UAW) 7722 3198 020 43011 TRANS BF422 (UAW) 7731 3198 020 43011 TRANS BF422 (UAW) 7732 3198 020 43011 TRANS BF422 (UAW) 7751 3198 020 43011 TRANS BF422 (UAW) 7752 3198 020 43011 TRANS BF422 (UAW) 7761 3198 020 40081 TRANS BC548C (UAW) 7801 8238 274 39620 IC, CPU 6148-K420PH-06A 7805 3198 020 40081 TRANS BC548C (UAW) 7808 3198 020 40161 TRANS BC558C (UAW)
