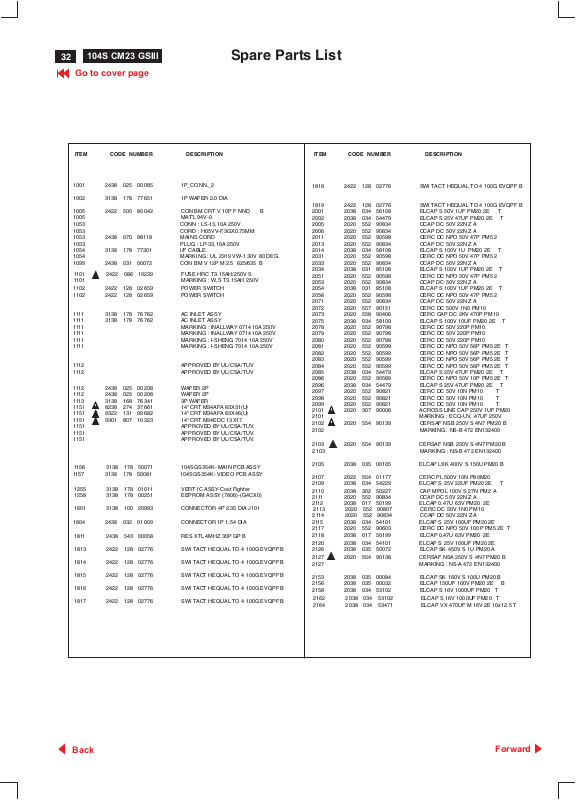

Page 1
104S CM23 GSIII
32
Go to cover page
Spare Parts List
ITEM
1001 2438 025 00085 1P_CONN._2
1002 3138 178 77651 1P WAFER 2.0 DIA
1005 2422 500 80042 CON BM CRT V 10P F NND B
1005 MAT'L 94V-0
1053 CONN : LS-13,10A 250V
1053 CORD : H05VV-F,3GX0.75MM
1053 2438 070 98118 MAINS CORD
1053 PLUG : LP-33,10A 250V
1054 3138 178 77301 I/F CABLE
1054 MARKING : UL 2919 VW-1 30V 80 DEG.
1099 2438 031 00072 CON BM V 12P M 2.5 625/635 B
1101 2422 086 10239 FUSE HRC T3.15AH/250V S
1101 MARKING : W,S T3.15AH 250V
1102 2422 128 02659 POWER SWITCH
1102 2422 128 02659 POWER SWITCH
1111 3138 178 76762 AC INLET ASSY
1111 3138 178 76762 AC INLET ASSY
1111 MARKING : INALLWAY 0714 10A 250V
1111 MARKING : INALLWAY 0714 10A 250V
1111 MARKING : I-SHENG 7014 10A 250V
1111 MARKING : I-SHENG 7014 10A 250V
1112 APPROVED BY UL/CSA/TUV
1112 APPROVED BY UL/CSA/TUV
1112 2438 025 00208 WAFER 2P
1112 2438 025 00208 WAFER 2P
1113 3138 168 76341 3P WAFER
1151 8238 274 37661 14" CRT M34AFA 83X31(U)
1151 9322 131 99682 14" CRT M34AFA 83X46(U)
1151 9301 807 10323 14" CRT M34EDC 13X17
1151 APPROVED BY UL/CSA/TUV.
1151 APPROVED BY UL/CSA/TUV.
1151 APPROVED BY UL/CSA/TUV.
1156 3138 178 50071 104SGS354K- MAIN PCB ASSY
1157 3138 178 50081 104SGS354K- VIDEO PCB ASSY
1255 3138 178 01011 VERT IC ASSY-Cost Fighter
1258 3138 178 00251 EEPROM ASSY (7806)-(G4CX0)
1601 3138 100 20993 CONNECTOR 4P 2.35 DIA J101
1604 2438 032 01009 CONNECTOR 1P 1.54 DIA
1811 2438 543 00058 RES XTL 4MHZ 30P GP B
1813 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
1814 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
1815 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
1816 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
1817 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
CODE NUMBER
DESCRIPTION
ITEM
1818 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
1819 2422 128 02776 SWI TACT HEQUAL TO 4 100G EVQPF B
2001 2038 034 56108 ELCAP S 50V 1UF PM20 2E T
2002 2038 034 54479 ELCAP S 25V 47UF PM20 2E T
2005 2020 552 90834 CCAP DC 50V 22N Z A
2006 2020 552 90834 CCAP DC 50V 22N Z A
2011 2020 552 90598 CERC DC NPO 50V 47P PM5 2
2013 2020 552 90834 CCAP DC 50V 22N Z A
2014 2038 034 58108 ELCAP S 100V 1U PM20 2E T
2031 2020 552 90598 CERC DC NPO 50V 47P PM5 2
2033 2020 552 90834 CCAP DC 50V 22N Z A
2034 2038 031 85108 ELCAP S 100V 1UF PM20 2E T
2051 2020 552 90598 CERC DC NPO 50V 47P PM5 2
2053 2020 552 90834 CCAP DC 50V 22N Z A
2054 2038 031 85108 ELCAP S 100V 1UF PM20 2E T
2056 2020 552 90598 CERC DC NPO 50V 47P PM5 2
2071 2020 552 90834 CCAP DC 50V 22N Z A
2072 2020 557 90151 CERC DC 500V 1N0 PM10
2073 2020 558 90406 CERC CAP DC 2KV 470P PM10
2075 2038 034 58109 ELCAP S 100V 10UF PM20 2E T
2078 2020 552 90798 CERC DC 50V 220P PM10
2079 2020 552 90798 CERC DC 50V 220P PM10
2080 2020 552 90798 CERC DC 50V 220P PM10
2081 2020 552 90599 CERC DC NPO 50V 56P PM5 2E T
2082 2020 552 90599 CERC DC NPO 50V 56P PM5 2E T
2083 2020 552 90599 CERC DC NPO 50V 56P PM5 2E T
2084 2020 552 90599 CERC DC NPO 50V 56P PM5 2E T
2085 2038 034 54479 ELCAP S 25V 47UF PM20 2E T
2086 2020 552 90589 CERC DC NPO 50V 10P PM5 2E T
2096 2038 034 54479 ELCAP S 25V 47UF PM20 2E T
2097 2020 552 90821 CERC DC 50V 10N PM10 T
2098 2020 552 90821 CERC DC 50V 10N PM10 T
2099 2020 552 90821 CERC DC 50V 10N PM10 T
2101 2020 307 90006 ACROSS LINE CAP 250V 1UF PM20
2101 MARKING : ECQ-UV, .47UF 250V
2102 2020 554 90139 CERSAF NSB 250V S 4N7 PM20 B
2102 MARKING : NS-B 472 EN132400
2103 2020 554 90139 CERSAF NSB 250V S 4N7 PM20 B
2103 MARKING : NS-B 472 EN132400
2105 2038 035 00105 ELCAP LXK 400V S 150U PM20 B
2107 2022 554 01177 CERC PL 500V 10N P80M20
2109 2038 034 54229 ELCAP S 25V 22UF PM20 2E T
2110 2038 302 50227 CAP MPOL 100V S 27N PM2 A
2111 2020 552 90834 CCAP DC 50V 22N Z A
2112 2038 017 50199 ELCAP 0.47U 63V PM20 2E
2113 2020 552 90807 CERC DC 50V 1N0 PM10
2114 2020 552 90834 CCAP DC 50V 22N Z A
2115 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2117 2020 552 90603 CERC DC NPO 50V 100P PM5 2E T
2118 2038 017 50199 ELCAP 0.47U 63V PM20 2E
2120 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2126 2038 035 50072 ELCAP SK 450V S 1U PM20 A
2127 2020 554 90138 CERSAF NSA 250V S 4N7 PM20 B
2127 MARKING : NS-A 472 EN132400
2153 2038 035 00084 ELCAP SK 160V S 100U PM20 B
2156 2038 035 00032 ELCAP 150UF 100V PM20 2E B
2158 2038 034 53102 ELCAP S 16V 1000UF PM20 T
2162 2038 034 53102 ELCAP S 16V 1000UF PM20 T
2164 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T
CODE NUMBER DESCRIPTION
Back
Forward
Page 2
Spare Parts List
104S CM23 GSIII
Go to cover page
33
ITEM
2164 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T
2171 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T
2172 2038 034 53221 ELCAP S 16V 220UF PM20 2E
2181 2020 552 90809 CERC PL 50V 1N5 PM10 T
2182 2020 552 90816 CERC DC 50V 4N7 PM10
2403 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T
2404 2038 031 85109 ELCAP S 100V 10UF PM20 2E T
2405 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T
2406 2020 552 90834 CCAP DC 50V 22N Z A
2407 2020 552 90807 CERC DC 50V 1N0 PM10
2408 2020 552 90807 CERC DC 50V 1N0 PM10
2412 2020 552 90834 CCAP DC 50V 22N Z A
2413 2038 302 50095 MEF CAP 100V 100N PM10 2E
2414 2020 552 90803 CERC DC 50V 470P PM10 2E
2502 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2503 2038 034 50477 ELCAP 0.47UF 200V PM20 2E
2506 2038 034 53471 ELCAP VX 470UF M 16V 2E 10x12.5 T
2507 2038 302 50095 MEF CAP 100V 100N PM10 2E
2508 2038 301 50186 PPN 100V 8N2 PM5 T
2509 2038 302 50218 MEF CAP 10N 100V PM2 2E
2510 2038 301 00177 CAP PP PPN 100V S 12N PM2 2E
2511 2020 552 90596 CERC DC NPO 50V 33P PM5 2E T
2513 2038 034 56109 ELCAP S 50V 10UF PM20 2E
2514 2038 034 54229 ELCAP S 25V 22UF PM20 2E T
2515 2020 552 90834 CCAP DC 50V 22N Z A
2516 2038 034 58109 ELCAP S 100V 10UF PM20 2E T
2517 2020 552 90834 CCAP DC 50V 22N Z A
2518 2038 034 56109 ELCAP S 50V 10UF PM20 2E
2519 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2520 2038 301 50136 PPN CAP 100V 3N3 PM5
2522 2038 302 50121 MEF CAP 100V 150N 2E PM10
2523 2038 302 50095 MEF CAP 100V 100N PM10 2E
2526 2038 017 50199 ELCAP 0.47U 63V PM20 2E
2527 2020 552 90834 CCAP DC 50V 22N Z A
2528 2020 552 90835 CERC DC 50V 47N P80M20 2E0 2E
2601 2020 552 90821 CERC DC 50V 10N PM10 T
2602 2038 302 50125 MEF CAP 100V 220N PM10 2E
2603 2038 031 95005 ELCAP S 160V 1UF PM20 2E T
2605 2252 612 14016 DISC CAP Y5P 2KV 100PF 2E T
2607 2020 557 90153 CERC DC 500V 2N2 PM10
2608 2038 302 50121 MEF CAP 100V 150N 2E PM10
2609 2038 301 00119 PPS CAP 1K6V 4N7 PM5
2610 2020 552 90834 CCAP DC 50V 22N Z A
2611 2020 301 90212 CAP PP DTW 630V S 5N6 PM5 B
2616 2020 552 90821 CERC DC 50V 10N PM10 T
CODE NUMBER
DESCRIPTION
ELCAP S 100V 10UF PM20 2E T
ITEM
2616 2020 552 90821 CERC DC 50V 10N PM10 T
2617 2020 552 90821 CERC DC 50V 10N PM10 T
2618 2038 301 00221 MPS CAP 750N 250V PM5 8E
2618
2619 2038 301 00222 MPS CAP 820N 250V PM5 8E
2621 2020 552 90834 CCAP DC 50V 22N Z A
2622 2020 557 90151 CERC DC 500V 1N0 PM10
2629 2038 033 00008 ELCAP BP 63V S 3U3 PM20 B
2631 2020 557 90122 CERC 500V 330P PM2 2E T
2639 2038 034 54479 ELCAP S 25V 47UF PM20 2E T
2642 2038 302 50229 CAP MPOL 250V S 10N PM5 A
2643 2038 035 00007 ELCAP 47U 200V P50 M10
2647 2038 035 50209 ELCAP SH 250V S 3U3 PM20 A
2648 2038 301 50301 PPN CAP 250V 10N PM5 2E
2651 2020 552 90812 CERC CAP 50V 2N2 PM10
2812 2020 552 90594 CERC DC NPO 50V 22P PM5 2E T
2813 2020 552 90594 CERC DC NPO 50V 22P PM5 2E T
2814 2020 552 90599 CERC DC NPO 50V 56P PM5 2E T
2819 2038 034 56228 ELCAP S 50V 2UF2 PM20 2E T
2820 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2821 2038 034 54101 ELCAP S 25V 100UF PM20 2E
2822 2038 017 50199 ELCAP 0.47U 63V PM20 2E
2823 2020 552 90834 CCAP DC 50V 22N Z A
3001 2138 101 13159 RST CRB CR12 A 15R PM5 A
3002 2138 101 13159 RST CRB CR12 A 15R PM5 A
3003 2138 101 13159 RST CRB CR12 A 15R PM5 A
3011 2138 101 13181 RST CRB CR12 A 180R PM5 A
3012 2138 101 13271 RST CRB CR12 A 270R PM5 A
3014 2138 101 13479 RST CRB CR12 A 47R PM5 A
3015 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3017 2138 105 00206 TST MOX5W RSM5WL 2K2
3019 2322 207 33479 RST MFLM NFR25H 47R PM5
3019 SAFETY RESISTOR
3020 2138 116 18203 RST MFLM MF50S A 82K PM1 A
3021 2138 101 13682 RST CRB CR12 A 6K8 PM5 A
3022 2120 101 28339 CARBRST COMP 1/2W 33R PM10 T
3023 2322 207 33479 RST MFLM NFR25H 47R PM5
3023 SAFETY RESISTOR
3031 2138 101 13181 RST CRB CR12 A 180R PM5 A
3032 2138 101 13471 RST CRB CR12 A 470R PM5 A
3034 2138 101 13479 RST CRB CR12 A 47R PM5 A
3035 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3037 2138 105 00206 TST MOX5W RSM5WL 2K2
3038 2322 207 33479 RST MFLM NFR25H 47R PM5
3038 SAFETY RESISTOR
3039 2322 207 33479 RST MFLM NFR25H 47R PM5
3039 SAFETY RESISTOR
3040 2138 116 18203 RST MFLM MF50S A 82K PM1 A
3041 2138 101 13682 RST CRB CR12 A 6K8 PM5 A
3042 2120 101 28339 CARBRST COMP 1/2W 33R PM10 T
3051 2138 101 13181 RST CRB CR12 A 180R PM5 A
3052 2138 101 13181 RST CRB CR12 A 180R PM5 A
3054 2138 101 13479 RST CRB CR12 A 47R PM5 A
3055 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3057 2138 105 00206 TST MOX5W RSM5WL 2K2
3058 2322 207 33479 RST MFLM NFR25H 47R PM5
3058 SAFETY RESISTOR
3059 2322 207 33479 RST MFLM NFR25H 47R PM5
3059 SAFETY RESISTOR
3060 2138 116 18203 RST MFLM MF50S A 82K PM1 A
3061 2120 101 28339 CARBRST COMP 1/2W 33R PM10 T
3062 2138 101 13682 RST CRB CR12 A 6K8 PM5 A
3063 2138 101 13153 RST CRB CR12 A 15K PM5 A
3071 2120 101 28152 CARBRST COMP 1/2W 1K5 PM10
3072 2120 101 28153 CARBRST COMP 1/2W 15K PM10
CODE NUMBER
DESCRIPTION
Back
Forward
Page 3
104S CM23 GSIII
34
Go to cover page
Spare Parts List
ITEM
3073 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 T
3073 SAFETY RESISTOR
3075 2138 101 13101 RST CRB CR12 A 100R PM5 A
3076 2138 101 13101 RST CRB CR12 A 100R PM5 A
3077 2138 101 13101 RST CRB CR12 A 100R PM5 A
3088 2138 101 13101 RST CRB CR12 A 100R PM5 A
3089 2138 101 13339 RST CRB CR12 A 33R PM5 A
3090 2138 101 13339 RST CRB CR12 A 33R PM5 A
3091 2138 101 13339 RST CRB CR12 A 33R PM5 A
3092 2138 101 13339 RST CRB CR12 A 33R PM5 A
3093 2138 101 13103 RST CRB CR12 A 10K PM5 A
3094 2138 101 13101 RST CRB CR12 A 100R PM5 A
3095 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3096 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3097 2138 101 13759 RST CRB CR12 A 75R PM5 A
3098 2138 101 13759 RST CRB CR12 A 75R PM5 A
3099 2138 101 13759 RST CRB CR12 A 75R PM5 A
3101 2322 242 13684 METGLAZ RST A VR37 680K PM5
3102 MARKING : T104
3102 2122 663 00003 PTC 14R T104-B80-A10
3109 2138 660 00025 NTC SCK104 10R PM15
3110 2138 116 11004 RST MFLM MF50S A 100K PM1 A
3111 2138 105 00207 RST MOX 2W RSS S 56K PM5 B
3115 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3116 2138 112 73158 CARBRST FLM A 1/4W 1R5 PM5
3117 2138 112 73108 CARBRST FLM CR25 1R PM5 T
3118 2138 112 73108 CARBRST FLM CR25 1R PM5 T
3120 2138 101 13332 RST CRB CR12 A 3K3 PM5 A
3121 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3122 2138 101 13102 RST CRB CR12 A 1K PM5 A
3123 2138 101 13683 RST CRB CR12 A 68K PM5 A
3124 2138 101 13152 RST CRB CR12 A 1K5 PM5 A
3125 2322 207 33479 RST MFLM NFR25H 47R PM5
3125 SAFETY RESISTOR
3126 2138 101 13121 RST CRB CR12 A 120R PM5 A
3127 2138 101 13103 RST CRB CR12 A 10K PM5 A
3128 2138 101 13103 RST CRB CR12 A 10K PM5 A
3129 2138 101 13102 RST CRB CR12 A 1K PM5 A
3130 2138 101 13332 RST CRB CR12 A 3K3 PM5 A
3131 2138 116 11302 RST MFLM MF50S A 1K3 PM1 A
3133 2322 207 33228 RST FUSE NFR25H 2R2 PM5
3133 SAFETY RESISTOR
3134 2138 116 11004 RST MFLM MF50S A 100K PM1 A
3135 3138 100 50481 METOX FLM RST 3W 100K PM5
3140 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3143 2138 101 13104 RST CRB CR12 A 100K PM5 A
3144 2138 101 13473 RST CRB CR12 A 47K PM5 A
CODE NUMBER
DESCRIPTION
ITEM
3145 2138 101 13681 RST CRB CR12 A 680R PM5 A
3154 2138 116 11503 RST MFLM MF50S A 15K PM1 A
3155 2138 116 11503 RST MFLM MF50S A 15K PM1 A
3156 2138 101 13104 RST CRB CR12 A 100K PM5 A
3157 2138 101 13273 RST CRB CR12 A 27K PM5 A
3158 2138 101 13473 RST CRB CR12 A 47K PM5 A
3160 2138 101 13153 RST CRB CR12 A 15K PM5 A
3166 2138 116 11001 RST MFLM MF50S A 100R PM1 A
3171 2138 101 13152 RST CRB CR12 A 1K5 PM5 A
3173 2138 101 13104 RST CRB CR12 A 100K PM5 A
3176 2138 116 17503 RST MFLM MF50S A 75K PM1 A
3177 2138 116 18203 RST MFLM MF50S A 82K PM1 A
3178 2138 365 00077 RTRM CER LIN 500R H VG067TL1 B
3180 2138 101 13202 RST CRB CR12 A 2K0 PM5 A
3184 2138 101 13821 RST CRB CR12 A 820R PM5 A
3186 2138 116 14301 RST MFLM MF50S A 430R PM1 A
3401 2138 116 11802 RST MFLM MF50S A 1K8 PM1 A
3403 2322 207 33228 RST FUSE NFR25H 2R2 PM5
3403 SAFETY RESISTOR
3405 2322 207 33221 RST NFR25H 220R PM5
3405 SAFETY RESISTOR
3406 2138 116 11802 RST MFLM MF50S A 1K8 PM1 A
3407 2322 207 33228 RST FUSE NFR25H 2R2 PM5
3407 SAFETY RESISTOR
3409 2138 116 12401 RST MFLM MF50S A 240R PM1 A
3410 2322 207 33228 RST FUSE NFR25H 2R2 PM5
3410 SAFETY RESISTOR
3411 2138 116 04158 RST MFLM MF50S A 1R5 PM5 A
3412 2138 116 04208 RST MFLM MF-50S A 2R PM5 A
3413 2138 101 13471 RST CRB CR12 A 470R PM5 A
3414 2138 101 13471 RST CRB CR12 A 470R PM5 A
3421 2138 101 13221 RST CRB CR12 A 220R PM5 A
3501 2138 101 13471 RST CRB CR12 A 470R PM5 A
3502 2138 101 13473 RST CRB CR12 A 47K PM5 A
3503 2138 101 13154 RST CRB CR12 A 150K PM5 A
3504 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3505 2138 101 13683 RST CRB CR12 A 68K PM5 A
3506 2138 101 13103 RST CRB CR12 A 10K PM5 A
3507 2138 116 12704 RST MFLM MF50S A 270K PM1 A
3508 2138 116 14703 RST MFLM MF50S A 47K PM1 A
3510 2138 116 14303 RST MFLM MF50S A 43K PM1 A
3511 2120 366 90218 CARBPOT 0.05W 10K PM20 W/
3513 2138 101 13153 RST CRB CR12 A 15K PM5 A
3514 2138 101 13101 RST CRB CR12 A 100R PM5 A
3515 2138 101 13101 RST CRB CR12 A 100R PM5 A
CODE NUMBER
13273 RST CRB CR12 A 27K PM5 A
DESCRIPTION
Back
Forward
Page 4
Spare Parts List
104S CM23 GSIII
Go to cover page
35
ITEM
3515 2138 101 13101 RST CRB CR12 A 100R PM5 A
3516 2138 101 13471 RST CRB CR12 A 470R PM5 A
3517 2322 207 33568 MET FLM NFR25H 5R6 PM5
3517 SAFETY RESISTOR
3518 2138 101 13332 RST CRB CR12 A 3K3 PM5 A
3519 2138 116 11602 RST MFLM MF50S A 1K6 PM1 A
3520 2138 116 12802 RST MFLM MF50S A 2K8 PM1 A
3521 2138 116 11203 RST MFLM MF50S A 12K PM1 A
3522 2138 101 13822 RST CRB CR12 A 8K2 PM5 A
3523 2138 101 13103 RST CRB CR12 A 10K PM5 A
3524 2138 101 13271 RST CRB CR12 A 270R PM5 A
3525 2138 101 13681 RST CRB CR12 A 680R PM5 A
3526 2138 101 13333 RST CRB CR12 A 33K PM5 A
3527 2138 101 13183 RST CRB CR12 A 18K PM5 A
3528 2138 101 13473 RST CRB CR12 A 47K PM5 A
3529 2138 101 13183 RST CRB CR12 A 18K PM5 A
3530 2138 101 13563 RST CRB CR12 A 56K PM5 A
3531 2138 101 13154 RST CRB CR12 A 150K PM5 A
3532 2138 101 13104 RST CRB CR12 A 100K PM5 A
3533 2138 116 11004 RST MFLM MF50S A 100K PM1 A
3534 2138 116 12703 RST MFLM MF50S A 27K PM1 A
3535 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3536 2138 101 13333 RST CRB CR12 A 33K PM5 A
3537 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3538 2138 101 13752 RST CRB CR12 A 7K5 PM5 A
3539 2138 101 13104 RST CRB CR12 A 100K PM5 A
3540 2138 365 00076 RTRM CER LIN 10K H VG067TL1 B
3541 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3542 2138 116 18204 RST MFLM MF50S A 820K PM1 A
3543 2138 112 73102 CARBRST FLM CR25 1K0 PM5 5
3544 2138 112 73102 CARBRST FLM CR25 1K0 PM5 5
3545 2138 101 13204 RST CRB CR12 A 200K PM5 A
3546 2138 101 13823 RST CRB CR12 A 82K PM5 A
3547 2138 116 12203 RST MFLM MF50S A 22K PM1 A
3548 2138 101 13564 RST CRB CR12 A 560K PM5 A
3549 2138 101 13104 RST CRB CR12 A 100K PM5 A
3550 2138 116 11204 RST MFLM MF50S A 120K PM1 A
3551 2138 101 13102 RST CRB CR12 A 1K PM5 A
3552 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3561 2138 101 13101 RST CRB CR12 A 100R PM5 A
3562 2138 101 13102 RST CRB CR12 A 1K PM5 A
3563 2138 101 13272 RST CRB CR12 A 2K7 PM5 A
3564 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3565 2120 366 90218 CARBPOT 0.05W 10K PM20 W/
CODE NUMBER
DESCRIPTION
ITEM
3566 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3602 2138 101 13202 RST CRB CR12 A 2K0 PM5 A
3603 2138 105 00411 RSS 2W 8.2K PM5
3605 2120 105 92157 MET FLM RST 2W 150R PM5 6E B
3606 2138 105 00081 RST MOX 3W RSU S 2R2 PM5 B
3607 2138 116 11009 RST MFLM MF50S A 10R PM1 A
3608 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3611 2120 105 92403 MET FLM RSS1J 1W 180R PM5 L125
3619 2138 116 11004 RST MFLM MF50S A 100K PM1 A
3621 2138 101 13154 RST CRB CR12 A 150K PM5 A
3622 2138 101 13473 RST CRB CR12 A 47K PM5 A
3623 2138 101 13103 RST CRB CR12 A 10K PM5 A
3624 2138 101 13333 RST CRB CR12 A 33K PM5 A
3636 2138 101 13223 RST CRB CR12 A 22K PM5 A
3637 2138 101 13432 RST CRB CR12 A 4K3 PM5 A
3638 2138 101 13103 RST CRB CR12 A 10K PM5 A
3639 2138 101 13102 RST CRB CR12 A 1K PM5 A
3640 2138 101 13102 RST CRB CR12 A 1K PM5 A
3641 2138 101 13102 RST CRB CR12 A 1K PM5 A
3642 2138 101 13223 RST CRB CR12 A 22K PM5 A
3643 2322 207 33689 RST FUSE NFR25H S 68R PM5 T
3643 SAFETY RESISTOR
3644 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 T
3644 SAFETY RESISTOR
3646 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3650 2138 116 04475 RST MFLM MF50S A 4M7 PM5
3651 2322 207 33108 MET FLM RST NFR25H 1R0 PM5 T
3651 SAFETY RESISTOR
3652 2322 207 33101 RST MFLM NFR25H 100R PM5
3652 SAFETY RESISTOR
3653 2138 116 11503 RST MFLM MF50S A 15K PM1 A
3654 2138 116 18204 RST MFLM MF50S A 820K PM1 A
3656 2138 101 13562 RST CRB CR12 A 5K6 PM5 A
3657 2138 101 13391 RST CRB CR12 A 390R PM5 A
3658 2138 101 13223 RST CRB CR12 A 22K PM5 A
3662 2138 101 13471 RST CRB CR12 A 470R PM5 A
3685 2138 101 13474 RST CRB CR12 A 470K PM5 A
3812 2138 101 13103 RST CRB CR12 A 10K PM5 A
3813 2138 101 13272 RST CRB CR12 A 2K7 PM5 A
3814 2138 101 13563 RST CRB CR12 A 56K PM5 A
3816 2138 101 13103 RST CRB CR12 A 10K PM5 A
3817 2138 101 13221 RST CRB CR12 A 220R PM5 A
3818 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
CODE NUMBER
DESCRIPTION
Back
Forward
Page 5
104S CM23 GSIII
36
Go to cover page
Spare Parts List
ITEM
3818 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3825 2138 101 13153 RST CRB CR12 A 15K PM5 A
3826 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3827 2138 101 13221 RST CRB CR12 A 220R PM5 A
3828 2138 101 13221 RST CRB CR12 A 220R PM5 A
3829 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3830 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3831 2138 101 13101 RST CRB CR12 A 100R PM5 A
3832 2138 101 13101 RST CRB CR12 A 100R PM5 A
3833 2138 101 13221 RST CRB CR12 A 220R PM5 A
3834 2138 101 13101 RST CRB CR12 A 100R PM5 A
3835 2138 101 13101 RST CRB CR12 A 100R PM5 A
3837 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3838 2138 101 13473 RST CRB CR12 A 47K PM5 A
3839 2138 101 13223 RST CRB CR12 A 22K PM5 A
3840 2138 101 13103 RST CRB CR12 A 10K PM5 A
3841 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3842 2138 101 13103 RST CRB CR12 A 10K PM5 A
3843 2138 101 13272 RST CRB CR12 A 2K7 PM5 A
3844 2138 101 13102 RST CRB CR12 A 1K PM5 A
3845 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3847 2138 101 13101 RST CRB CR12 A 100R PM5 A
3848 2138 101 13473 RST CRB CR12 A 47K PM5 A
3849 2138 101 13183 RST CRB CR12 A 18K PM5 A
3850 2138 101 13472 RST CRB CR12 A 4K7 PM5 A
3851 2138 101 13223 RST CRB CR12 A 22K PM5 A
3852 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
3853 2138 101 13103 RST CRB CR12 A 10K PM5 A
3854 2138 101 13103 RST CRB CR12 A 10K PM5 A
3855 2138 101 13222 RST CRB CR12 A 2K2 PM5 A
5007 3138 178 76321 DEGAUSSING COIL
5011 2422 535 97069 COIL 4U7 PM10
5012 2422 535 97608 COIL 1MUH8 PM10
5014 2422 535 94971 DRUM CHOKE COIL 100UH T
5031 2422 535 97069 COIL 4U7 PM10
5032 2422 535 97608 COIL 1MUH8 PM10
5051 2422 535 97073 COIL 8U2H PM10
5052 2422 535 97608 COIL 1MUH8 PM10
5071 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5096 2422 535 97608 COIL 1MUH8 PM10
5097 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R
5098 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R
5099 2438 535 98026 IND FXD BEAD EMI 100MHZ 35R R
5101 3138 128 71291 LINE FILTER
5101 MARKING : 54A-4075
CODE NUMBER
101 13101
DESCRIPTION
ITEM
5155 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5601 3138 128 75441 HOR. DRIVER TRANSFORMER
5605 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5608 3138 178 75721 LINEARITY COIL
5609 3138 128 71701 BRIDG COIL 110UH
5610 2422 535 97416 COIL 33MUH PM10
5611 3138 168 76611 L.O.T. (LCE)
5612 3138 178 75991 DRUM CHOKE COIL 6MH
5614 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5615 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
6011 3198 010 10011 DIODE 1N4148 (UAW)
6012 3198 010 10011 DIODE 1N4148 (UAW)
6013 3198 010 10071 DIODE BAV21 (UAW)
6031 3198 010 10011 DIODE 1N4148 (UAW)
6032 3198 010 10011 DIODE 1N4148 (UAW)
6033 3198 010 10071 DIODE BAV21 (UAW)
6051 3198 010 10011 DIODE 1N4148 (UAW)
6052 3198 010 10011 DIODE 1N4148 (UAW)
6053 3198 010 10071 DIODE BAV21 (UAW)
6071 9337 234 10133 DIO REC BYD33G
6072 9337 234 10133 DIO REC BYD33G
6094 3198 010 10011 DIODE 1N4148 (UAW)
6095 3198 010 10011 DIODE 1N4148 (UAW)
6096 3198 010 25681 DIODE BZX79-C5V6 (UAW)
6097 3198 010 25681 DIODE BZX79-C5V6 (UAW)
6098 3198 010 25681 DIODE BZX79-C5V6 (UAW)
6099 3198 010 25681 DIODE BZX79-C5V6 (UAW)
6101 9322 058 14682 BRIDGE GBU4K
6105 9334 979 50683 DIODE RGP10J (GI)
6106 3198 010 10011 DIODE 1N4148 (UAW)
6108 9334 979 50683 DIODE RGP10J (GI)
6109 3198 010 10071 DIODE BAV21 (UAW)
6110 3198 010 10071 DIODE BAV21 (UAW)
6111 3198 010 10011 DIODE 1N4148 (UAW)
6112 9337 516 60683 DIODE RGP10D (GI)
6115 3198 010 21591 DIODE BZX79-C15 (UAW)
6117 3198 010 10011 DIODE 1N4148 (UAW)
6123 3198 010 10071 DIODE BAV21 (UAW)
6157 9338 185 00133 DIODE BYM26C
6158 9335 435 00133 DIO REC BYV27-100
6160 9335 187 60683 DIODE RGP15D (GI)
6161 9339 577 60683 DIODE SB140 (GI)
6172 9338 185 00133 DIODE BYM26C
CODE NUMBER
DESCRIPTION
5103 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5108 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
5110 MARKING :SRW35EC-T51V118
5110 3138 178 76061 POWER XFORMER
5155 2438 535 98058 IND FXD BEAD EMI 100 MHZ 80R R
Back
6401 9335 435 00133 DIO REC BYV27-100
6403 9335 007 30133 DIODE BZV85-C22
6512 3198 010 10011 DIODE 1N4148 (UAW)
6513 9337 516 60683 DIODE RGP10D (GI)
6514 9331 668 50133 DIODE BZX79-B8V2 T
6515 3198 010 10011 DIODE 1N4148 (UAW)
Forward
Page 6
Spare Parts List
104S CM23 GSIII
Go to cover page
37
ITEM
6516 3198 010 10011 DIODE 1N4148 (UAW)
6517 3198 010 10011 DIODE 1N4148 (UAW)
6519 3198 010 10011 DIODE 1N4148 (UAW)
6603 3198 010 10071 DIODE BAV21 (UAW)
6604 9337 516 60683 DIODE RGP10D (GI)
6605 3198 010 10011 DIODE 1N4148 (UAW)
6606 9335 434 90133 DIO REC BYV27-50
6608 9322 103 88682 DIO REC 31DF6 A (INRO) B
6614 3198 010 21591 DIODE BZX79-C15 (UAW)
6631 3198 010 21591 DIODE BZX79-C15 (UAW)
6632 9322 057 87683 DIODE EGP20G
6636 3198 010 10011 DIODE 1N4148 (UAW)
6637 9334 939 60683 DIODE RGP10G (GI)
6811 9322 053 50682 LED GREEN LTL-4234
6812 2438 265 00014 LED L-59YGC
6813 3198 010 23381 DIODE BZX79-C3V3 (UAW)
7011 3198 020 43311 TRANS PH2369 (UAW)
7012 9322 002 50682 TRANS. 2SC3953D
7013 9340 415 10126 TRANSISTORS BFV420
7014 9340 415 20126 TRANSISTORS BFV421
7031 3198 020 43311 TRANS PH2369 (UAW)
7032 9322 002 50682 TRANS. 2SC3953D
7033 9340 415 10126 TRANSISTORS BFV420
7034 9340 415 20126 TRANSISTORS BFV421
7051 3198 020 43311 TRANS PH2369 (UAW)
7052 9322 002 50682 TRANS. 2SC3953D
7053 9340 415 10126 TRANSISTORS BFV420
7054 9340 415 20126 TRANSISTORS BFV421
7099 9352 613 72112 IC TDA4886/V1 24P
7103 9322 062 77682 IC UC3842BN 8P
7104 3198 020 40161 TRANS BC558C (UAW)
7105 3198 020 40081 TRANS BC548C (UAW)
7106 3198 020 40161 TRANS BC558C (UAW)
7107 3198 020 40081 TRANS BC548C (UAW)
7108 3198 020 40081 TRANS BC548C (UAW)
CODE NUMBER
DESCRIPTION
ITEM
7506 3198 020 40081 TRANS BC548C (UAW)
7507 3198 020 40161 TRANS BC558C (UAW)
7508 3198 020 40161 TRANS BC558C (UAW)
7605 9340 039 60126 TRANS BSN254A
7611 3198 020 40161 TRANS BC558C (UAW)
7612 3198 020 40081 TRANS BC548C (UAW)
7615 9322 133 09687 IRF640A
7801 9322 136 41682 IC LSC501985P 28P
7806 9322 097 23682 IC ST24W04B6 8P
60 3138 104 49481 FOOT RUBBER
47 3138 104 52991 BUTTON-POWER SWITCH
49 3138 104 53001 BUTTON-FUNCTION
53 3138 104 53021 LENS-POWER
54 3138 104 53011 LENS-FUNCTION
127 3138 101 26651 SPRING - POWER
62 3138 104 50701 SPONGE
153 3138 106 58051 P.E. BAG-E-D.F.U.
178 3138 105 39455 SETTING UP GUIDE
57 3138 104 52821 HOLDER
58 3138 104 44011 RUBBER PAD
71 3138 101 62261 I/F CABLE BRACKET
73 3138 101 30871 SPRING (FUSE HOLDER)
57 3138 104 52821 HOLDER
58 3138 104 44011 RUBBER PAD
73 3138 101 30871 SPRING (FUSE HOLDER)
CODE NUMBER
DESCRIPTION
7112 9338 847 00127 IC PHOTOCOUPLER CNX62A 6P
7123 9337 711 00686 IC TL431CLPRP 3P
7153 9322 067 50676 TRA SIG BF420 S (TOSJ)
7154 9335 107 20686 IC MC78L05ACPRP 3P
7156 9335 282 90682 IC MC7808CT 3P
7160 9332 514 50127 TRANS BD330
7161 3198 020 40081 TRANS BC548C (UAW)
7401 9350 679 60112 IC TDA4860/V2 9P
7501 9352 631 49112 IC TDA4857PS/V1 32P
7502 3198 020 40081 TRANS BC548C (UAW)
7503 3198 020 43021 TRANS BF423 (UAW)
7504 9332 377 80126 TRANS BC546B (UAW)
7505 3198 020 43311 TRANS PH2369 (UAW)
Back
Forward
Page 7
104S CM23 GSIII
38
Go to cover page
Spare Parts List
ITEM
1 3138 107 99811 FRONT CABINET ASSY
2 3138 107 99821 BACK COVER ASSY
3 3138 107 99751 PEDESTAL ASSY
51 3138 104 53051 SCREW COVER
52 3138 104 53501 KNOB-CONTRAST & (BRIGHTNESS)
57 3138 104 40571 HOUSING COVER
104 3138 103 20263 CABLE TIE
105 3138 103 21651 CABLE TIE (142MM)
113 3138 101 31941 PLATE
152 2838 062 90083 RUBBER BAND
179 3138 105 39133 QUICK SET UP GUIDE
CODE NUMBER
DESCRIPTION
602 3138 117 02111 E-D.F.U. (S/E/G/X SERIES)
601 3138 117 02101 E-D.F.U. ASSY(S/E/G/X SERIES)
Back
Forward
Loading...
