Page 1
20
104S CM23 GSIII
Go to cover page

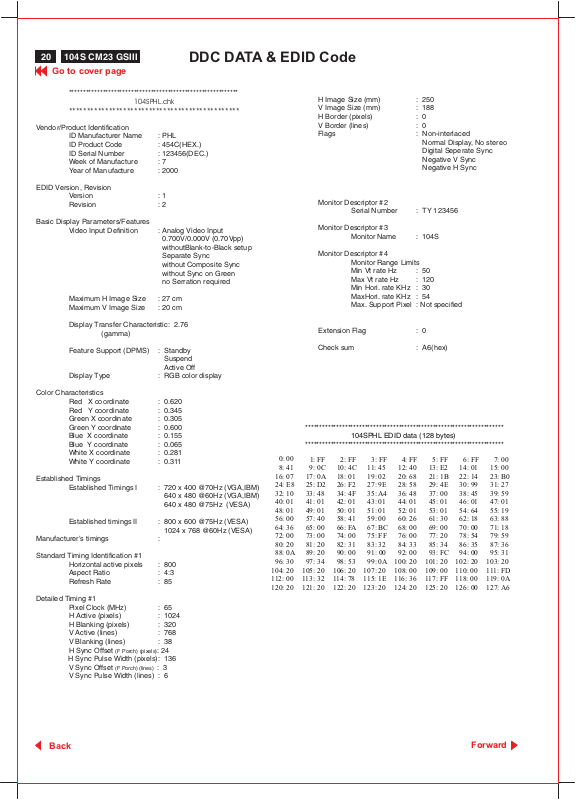

DDC DATA & EDID Code
************************************************************
104SPHL.chk
***********************************************
Vendor/Product Identification
ID Manufacturer Name : PHL
ID Product Code : 454C(HEX.)
ID Serial Number : 123456(DEC.)
Week of Manufacture : 7
Year of Manufacture : 2000
EDID Version, Revision
Version : 1
Revision : 2
Basic Display Parameters/Features
Video Input Definition : Analog Video Input
Maximum H Image Size : 27 cm
Maximum V Image Size : 20 cm
Display Transfer Characteristic: 2.76
(gamma)
Feature Support (DPMS) : Standby
Display Type : RGB color display
0.700V/0.000V (0.70Vpp)
withoutBlank-to-Black setup
Separate Sync
without Composite Sync
without Sync on Green
no Serration required
Suspend
Active Off
H Image Size (mm) : 250
V Image Size (mm) : 188
H Border (pixels) : 0
V Border (lines) : 0
Flags : Non-interlaced
Normal Display, No stereo
Digital Seperate Sync
Negative V Sync
Negative H Sync
Monitor Descriptor #2
Serial Number : TY 123456
Monitor Descriptor #3
Monitor Name : 104S
Monitor Descriptor #4
Monitor Range Limits
Min Vt rate Hz : 50
Max Vt rate Hz : 120
Min Hori. rate KHz : 30
MaxHori. rate KHz : 54
Max. Support Pixel : Not specified
Extension Flag : 0
Check sum : A6(hex)
Color Characteristics
Established Timings
Manufacturer's timings :
Standard Timing Identification #1
Detailed Timing #1
Red X coordinate : 0.620
Red Y coordinate : 0.345
Green X coordinate : 0.305
Green Y coordinate : 0.600
Blue X coordinate : 0.155
Blue Y coordinate : 0.065
White X coordinate : 0.281
White Y coordinate : 0.311
Established Timings I : 720 x 400 @70Hz (VGA,IBM)
Established timings II : 800 x 600 @75Hz (VESA)
Horizontal active pixels : 800
Aspect Ratio : 4:3
Refresh Rate : 85
Pixel Clock (MHz) : 65
H Active (pixels) : 1024
H Blanking (pixels) : 320
V Active (lines) : 768
V Blanking (lines) : 38
H Sync Offset : 24
H Sync Pulse Width (pixels): 136
V Sync Offset : 3
V Sync Pulse Width (lines) : 6
(F Porch) (pixels)
(F Porch) (lines)
640 x 480 @60Hz (VGA,IBM)
640 x 480 @75Hz (VESA)
1024 x 768 @60Hz (VESA)
**********************************************************************
**********************************************************************
0: 00
1: FF 2: FF 3: FF 4: FF 5: FF 6: FF 7: 00
104SPHL EDID data (128 bytes)
8: 41 9: 0C 10: 4C 11: 45 12: 40 13: E2 14: 01 15: 00
16: 07 17: 0A 18: 01 19: 02 20: 68 21: 1B 22: 14 23: B0
24: E8 25: D2 26: F2 27: 9E 28: 58 29: 4E 30: 99 31: 27
32: 10 33: 48 34: 4F 35: A4 36: 48 37: 00 38: 45 39: 59
40: 01 41: 01 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01
48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 64 55: 19
56: 00 57: 40 58: 41 59: 00 60: 26 61: 30 62: 18 63: 88
64: 36 65: 00 66: FA 67: BC 68: 00 69: 00 70: 00 71: 18
72: 00 73: 00 74: 00 75: FF 76: 00 77: 20 78: 54 79: 59
80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36
88: 0A 89: 20 90: 00 91: 00 92: 00 93: FC 94: 00 95: 31
96: 30 97: 34 98: 53 99: 0A 100: 20 101: 20 102: 20 103: 20
104: 20 105: 20 106: 20 107: 20 108: 00 109: 00 110: 00 111: FD
112: 00 113: 32 114: 78 115: 1E 116: 36 117: FF 118: 00 119: 0A
120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: A6
Back
Forward
Page 2
DDC DATA & EDID Code
104S CM23 GSIII
Go to cover page
21
************************************************************
104SCPT.chk
***********************************************
Vendor/Product Identification
ID Manufacturer Name : PHL
ID Product Code : 454C(HEX.)
ID Serial Number : 123456(DEC.)
Week of Manufacture : 7
Year of Manufacture : 2000
EDID Version, Revision
Version : 1
Revision : 2
Basic Display Parameters/Features
Video Input Definition : Analog Video Input
Maximum H Image Size : 27 cm
Maximum V Image Size : 20 cm
Display Transfer Characteristic: 2.85
(gamma)
Feature Support (DPMS) : Standby
Display Type : RGB color display
0.700V/0.000V (0.70Vpp)
withoutBlank-to-Black setup
Separate Sync
without Composite Sync
without Sync on Green
no Serration required
Suspend
Active Off
H Image Size (mm) : 250
V Image Size (mm) : 188
H Border (pixels) : 0
V Border (lines) : 0
Flags : Non-interlaced
Normal Display, No stereo
Digital Seperate Sync
Negative V Sync
Negative H Sync
Monitor Descriptor #2
Serial Number : TY 123456
Monitor Descriptor #3
Monitor Name : 104S
Monitor Descriptor #4
Monitor Range Limits
Min Vt rate Hz : 50
Max Vt rate Hz : 120
Min Hori. rate KHz : 30
MaxHori. rate KHz : 54
Max. Support Pixel : Not specified
Extension Flag : 0
Check sum : EB (hex.)
Color Characteristics
Established Timings
Manufacturer's timings :
Standard Timing Identification #1
Detailed Timing #1
Red X coordinate : 0.619
Red Y coordinate : 0.347
Green X coordinate : 0.280
Green Y coordinate : 0.601
Blue X coordinate : 0.144
Blue Y coordinate : 0.059
White X coordinate : 0.281
White Y coordinate : 0.311
Established Timings I : 720 x 400 @70Hz (VGA,IBM)
Established timings II : 800 x 600 @75Hz (VESA)
Horizontal active pixels : 800
Aspect Ratio : 4:3
Refresh Rate : 85
Pixel Clock (MHz) : 65
H Active (pixels) : 1024
H Blanking (pixels) : 320
V Active (lines) : 768
V Blanking (lines) : 38
H Sync Offset : 24
H Sync Pulse Width (pixels): 136
V Sync Offset : 3
V Sync Pulse Width (lines) : 6
(F Porch) (pixels)
(F Porch) (lines)
640 x 480 @60Hz (VGA,IBM)
640 x 480 @75Hz (VESA)
1024 x 768 @60Hz (VESA)
**********************************************************************
104SCPT EDID data (128 bytes)
**********************************************************************
0: 00 1: FF 2: FF 3: FF 4: FF 5: FF 6: FF 7: 00
8: 41 9: 0C 10: 4C 11: 45 12: 40 13: E2 14: 01 15: 00
16: 07 17: 0A 18: 01 19: 02 20: 68 21: 1B 22: 14 23: B9
24: E8 25: BF 26: C2 27: 9E 28: 58 29: 47 30: 99 31: 24
32: 0F 33: 48 34: 4F 35: A4 36: 48 37: 00 38: 45 39: 59
40: 01 41: 01 42: 01 43: 01 44: 01 45: 01 46: 01 47: 01
48: 01 49: 01 50: 01 51: 01 52: 01 53: 01 54: 64 55: 19
56: 00 57: 40 58: 41 59: 00 60: 26 61: 30 62: 18 63: 88
64: 36 65: 00 66: FA 67: BC 68: 00 69: 00 70: 00 71: 18
72: 00 73: 00 74: 00 75: FF 76: 00 77: 20 78: 54 79: 59
80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36
88: 0A 89: 20 90: 00 91: 00 92: 00 93: FC 94: 00 95: 31
96: 30 97: 34 98: 53 99: 0A 100: 20 101: 20 102: 20 103: 20
104: 20 105: 20 106: 20 107: 20 108: 00 109: 00 110: 00 111: FD
112: 00 113: 32 114: 78 115: 1E 116: 36 117: FF 118: 00 119: 0A
120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: EB
