107P CM25 GSIII

OSD Adjustments

9 Go to cover page

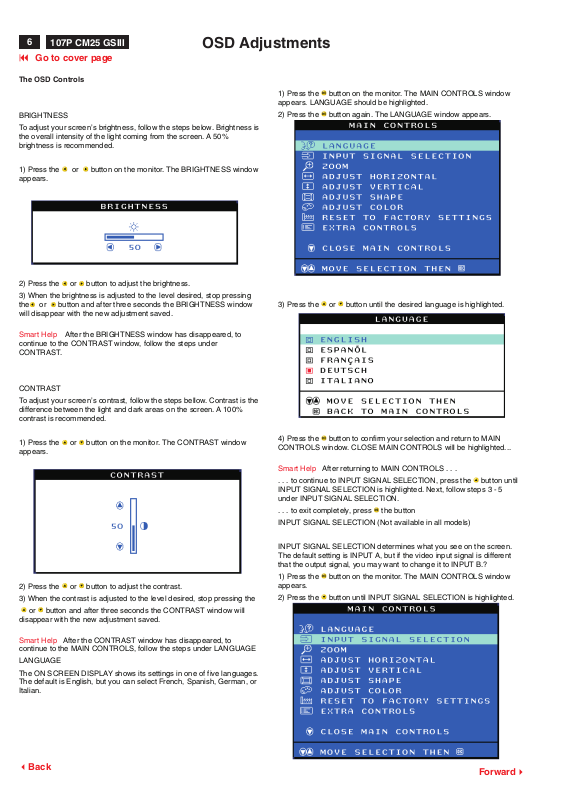

The OSD Controls

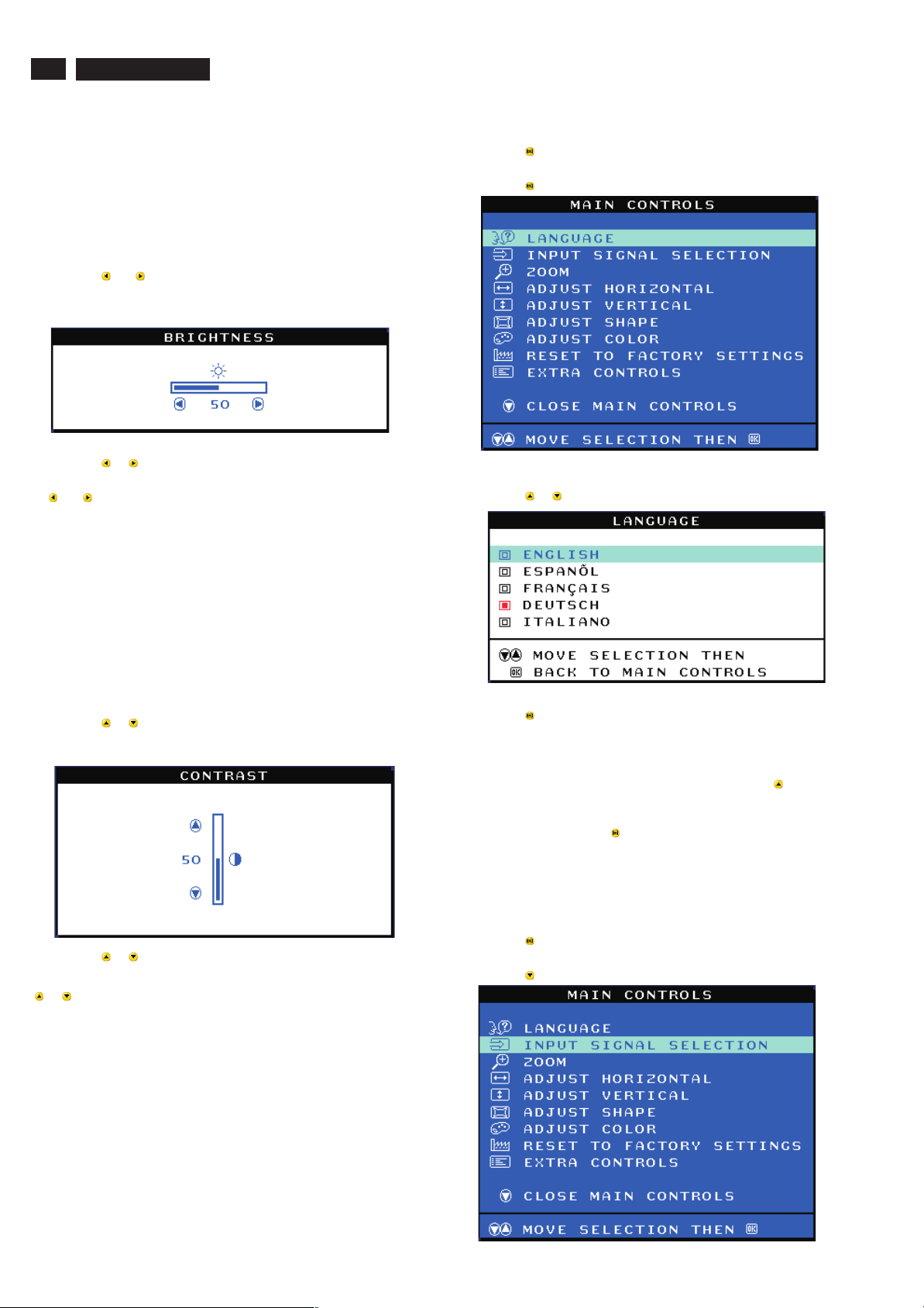

BRIGHTNESS

To adjust your screen's brightness, follow the steps below. Brightness is
the overall intensity of the light coming from the screen. A 50%
brightness is recommended.

1) Press the or button on the monitor. The BRIGHTNESS window
appears.

2) Press the or button to adjust the brightness.

3) When the brightness is adjusted to the level desired, stop pressing
the or button and after three seconds the BRIGHTNESS window
will disappear with the new adjustment saved.

1) Press the button on the monitor. The MAIN CONTROLS window
appears. LANGUAGE should be highlighted.

2) Press the button again. The LANGUAGE window appears.

3) Press the or button until the desired language is highlighted.

Smart Help

continue to the CONTRAST window, follow the steps under
CONTRAST.

CONTRAST

To adjust your screen's contrast, follow the steps bellow. Contrast is the
difference between the light and dark areas on the screen. A 100%
contrast is recommended.

1) Press the or button on the monitor. The CONTRAST window
appears.

2) Press the or button to adjust the contrast.

3) When the contrast is adjusted to the level desired, stop pressing the

or button and after three seconds the CONTRAST window will

disappear with the new adjustment saved.

After the BRIGHTNESS window has disappeared, to

4) Press the button to confirm your selection and return to MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted...

Smart Help

...tocontinue to INPUT SIGNAL SELECTION, press the button until
INPUT SIGNAL SELECTION is highlighted. Next, follow steps3-5
under INPUT SIGNAL SELECTION.

...toexit completely, press the button

INPUT SIGNAL SELECTION (Not available in all models)

INPUT SIGNAL SELECTION determines what you see on the screen.
The default setting is INPUT A, but if the video input signal is different
that the output signal, you may want to change it to INPUT B.?

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until INPUT SIGNAL SELECTION is highlighted.

After returning to MAIN CONTROLS...

Smart Help

continue to the MAIN CONTROLS, follow the steps under LANGUAGE

LANGUAGE

The ON SCREEN DISPLAY shows its settings in one of five languages.
The default is English, but you can select French, Spanish, German, or
Italian.

After the CONTRAST window has disappeared, to

3Back

Forward4

OSD Adjustments

3) Press the button. The INPUT SIGNAL SELECTION window
appears.

4) Press the or button to highlight INPUT B or INPUT A.

5) Press the button to confirm your selection and return to the MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

107P CM25 GSIII

9 Go to cover page

7

Smart Help

...tocontinue to ZOOM, press the button until ZOOM is highlighted.
Next, follow steps3-5under ZOOM.

...toexit completely, press the button

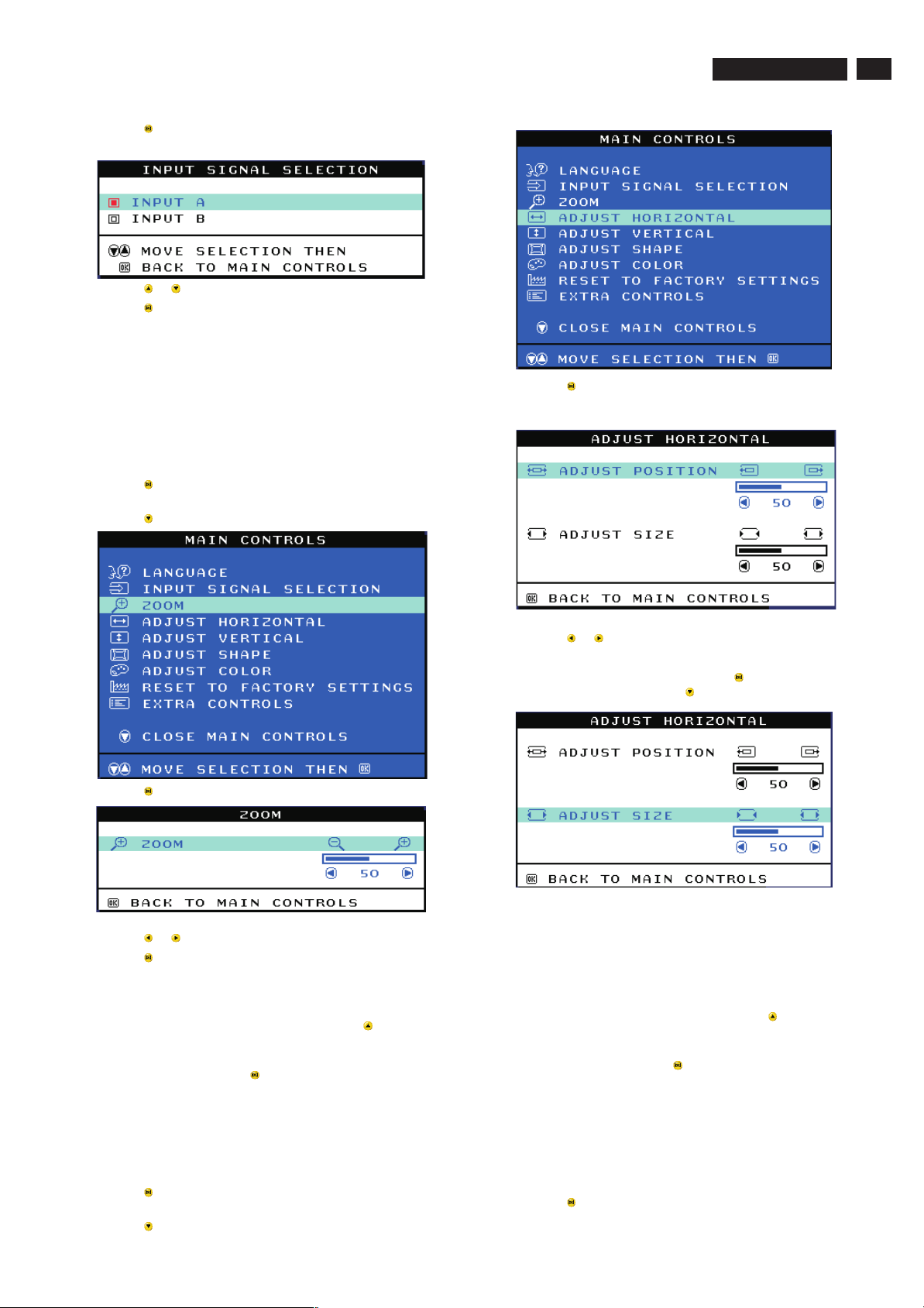

ZOOM

ZOOM increases or decreases the size of the images on your screen.
To adjust the ZOOM follow the steps below.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the --button until ZOOM is highlighted.

3) Press the button. The ZOOM window appears.

After returning to MAIN CONTROLS...

3) Press the button. The ADJUST HORIZONTAL window appears.
ADJUST POSITION should be highlighted.

4) Press the or button to move the image to the left or right.

5) When the position is adjusted, press the button to return to MAIN
CONTROLS window, or press the to highlight ADJUST SIZE.

4) Press the or button to adjust ZOOM.

5) Press the button to confirm your selection and return to the MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to ADJUST HORIZONTAL, press the button until
ADJUST HORIZONTAL is highlighted. Next, follow steps3-7under
ADJUST HORIZONTAL.

...toexit completely, press the button

ADJUST HORIZONTAL

ADJUST POSITION under ADJUST HORIZONTAL shifts the image on
your screen either to the left or right. Use this feature if your image
does not appear centered. ADJUST SIZE under ADJUST
HORIZONTAL expands or controls the image on your screen, pushing it
out toward the left and right sides or pulling it in toward the center.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until ADJUST HORIZONTAL is highlighted.

After returning to MAIN CONTROLS...

3Back

6) To adjust the horizontal size, press the or button.

7) When the size is adjusted, press the button to return to MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to ADJUST VERTICAL, press the button until ADJUST
VERTICAL is highlighted. Next, start with step 3 under ADJUST
VERTICAL and follow the directions.

...toexit completely, press the button

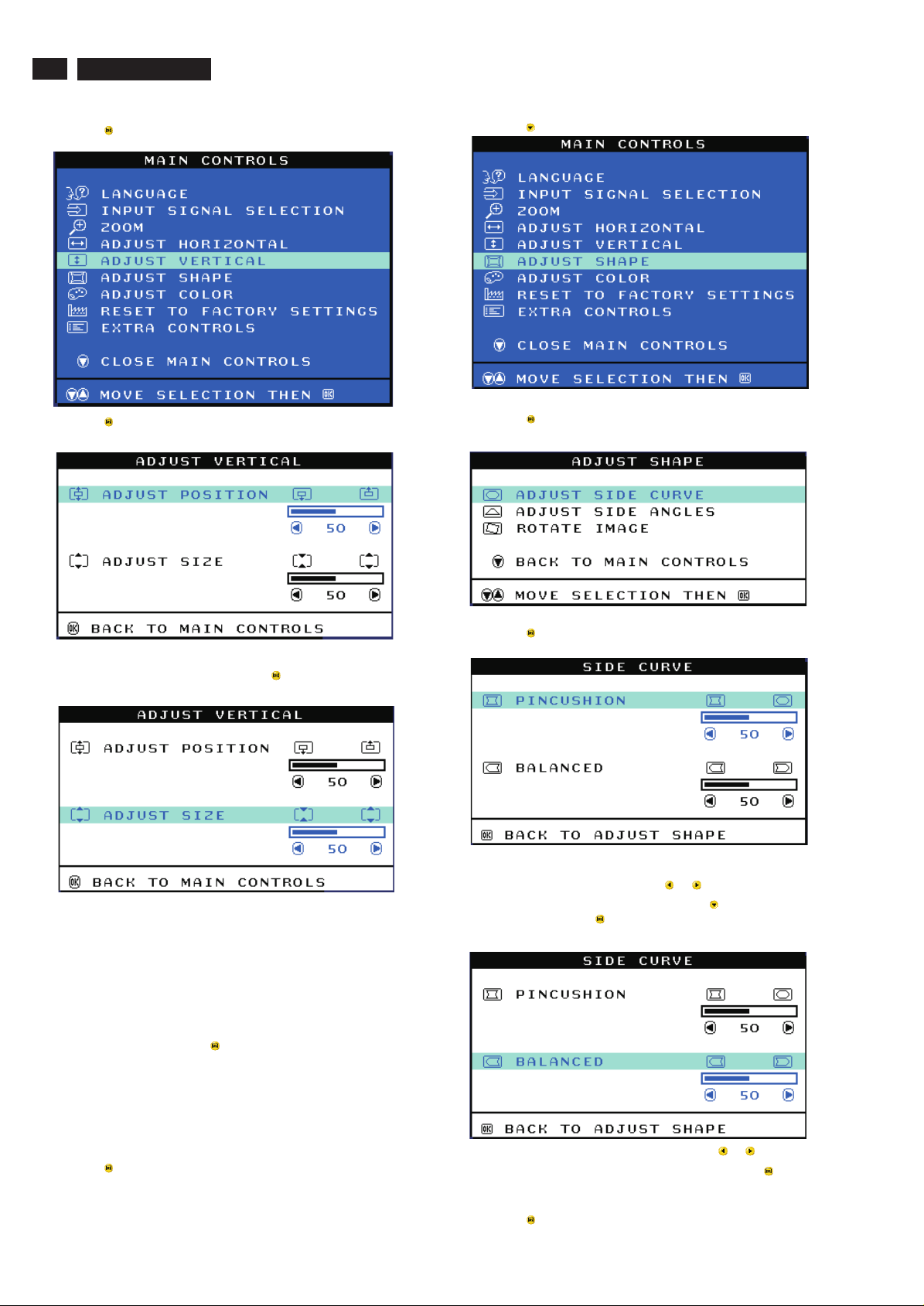

ADJUST VERTICAL

ADJUST POSITION under ADJUST VERTICAL shifts the image on
your screen either up or down. Use this feature if your image does not
appear centered. ADJUST SIZE under ADJUST VERTICAL expands or
controls the image on your screen, pushing it out toward the top or
bottom or pulling it in toward the center.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

After returning to MAIN CONTROLS...

Forward4

8

107P CM25 GSIII

9 Go to cover page

OSD Adjustments

2) Press the button until ADJUST VERTICAL is highlighted.

3) Press the button. The ADJUST VERTICAL window appears.
ADJUST POSITION should be highlighted.

2) Press the button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears.
ADJUST SIDE CURVE should be highlighted.

4) Press the or button to move the image up or down.

5) When the position is adjusted, press the button to return to MAIN
CONTROLS window, or press the to highlight ADJUST SIZE.

6) To adjust the vertical size, press the or button.

7) When the size is adjusted, press the button to return to MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to ADJUST SHAPE, press the button until ADJUST
SHAPE is highlighted. Next, start with step 3 under ADJUST SHAPE
and follow the directions.

...toexit completely, press the button

ADJUST SHAPE

ADJUST SIDE CURVE

ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two
of the five preset options. These two options are PINCUSHION and
BALANCED pincushion. Note: use these features only when the picture
is not square.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

After returning to MAIN CONTROLS...

4) Press the button. The SIDE CURVE window appears.
PINCUSHION should be highlighted.

5) To adjust the pincushion, press the or button.

6) When the pincushion is adjusted, press the button to highlight
BALANCED or press the button to return to the ADJUST SHAPE
window.

7) To adjust the balanced pincushion, press the or button.

8) When the balanced pincushion is adjusted, press the button to
return to the ADJUST SHAPE window. BACK TO MAIN WINDOWS will
be highlighted.

9) Press the button to return to the MAIN CONTROLS window, or

3Back

Forward4

OSD Adjustments

107P CM25 GSIII

9 Go to cover page

9

Smart Help After returning to MAIN CONTROLS...

...to continue to ADJUST SIDE ANGLES, start with step 5 under
ADJUST SIDE ANGLES and follow the directions.

...to exit completely, press the button twice.

...to adjust only the BALANCED pincushion, follow steps1-4above,
then press the button, and follow steps7-9.

...to adjust only the PARALLELOGRAM, follow steps1-4above, then
press the button, and follow steps 7 -9

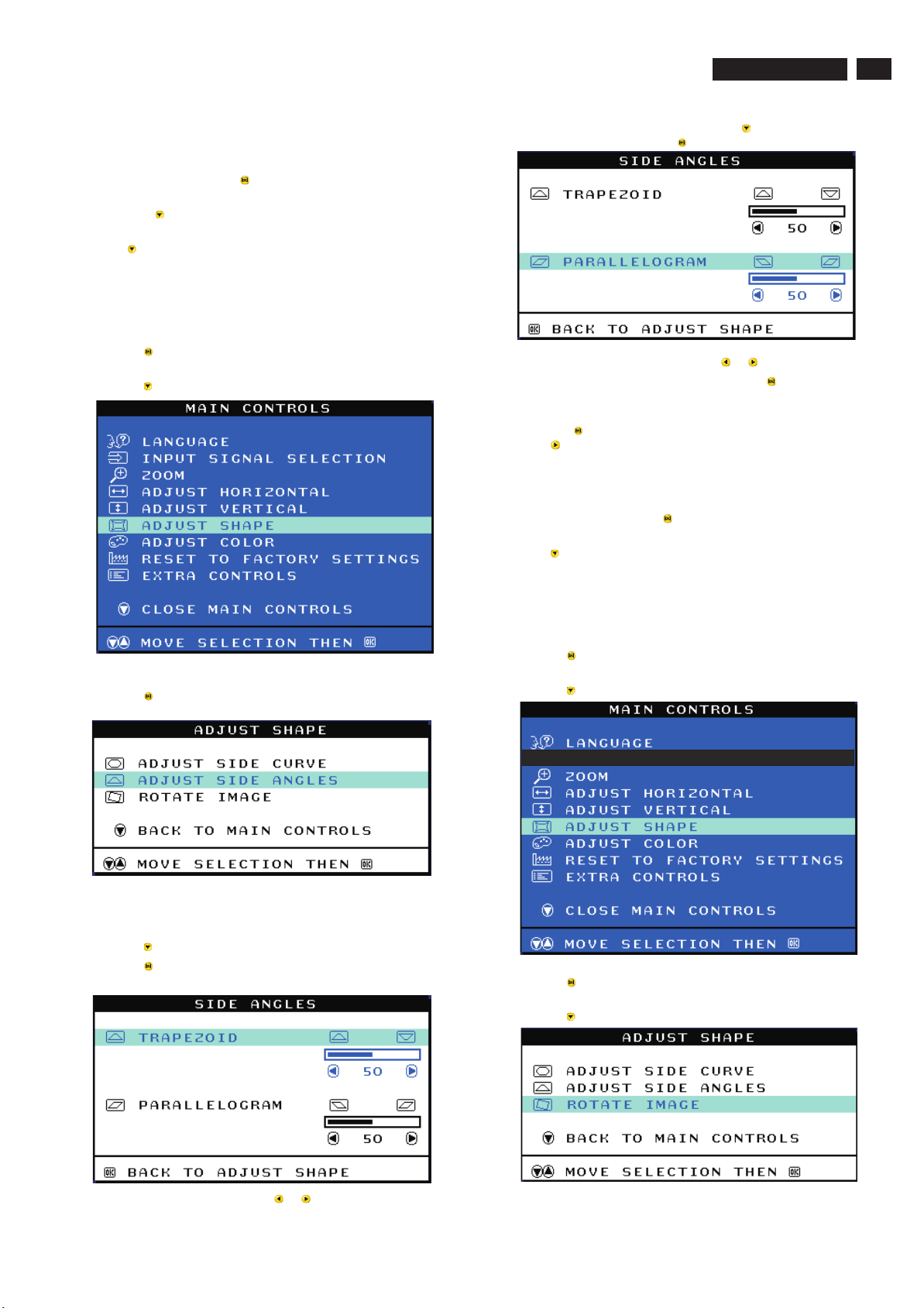

ADJUST SIDE ANGLES

ADJUST SIDE ANGLES under ADJUST SHAPE allows you to adjust
two of the five preset options. These two options are TRAPEZOID and
PARALLELOGRAM. Note: use these features only when the picture is
not square.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears.
ADJUST SIDE CURVE should be highlighted.

7) When the trapezoid is adjusted, press the button to highlight
PARALLELOGRAM or press the button to return to the ADJUST

8) To adjust the parallelogram, press the or button.

9) When the parallelogram is adjusted, press the button to return to
the ADJUST SHAPE window. BACK TO MAIN WINDOWS will be
highlighted.

10) Press the button to return to the MAIN CONTROLS window, or
press the button until ROTATE IMAGE is highlighted.

Smart Help

...to continue to ROTATE IMAGE, start with step 5 under ROTATE
IMAGE and follow the directions.

...to exit completely, press the button twice.

...to adjust only the PARALLELOGRAM, follow steps1-4above, then
press the button, and follow steps 7 -9

ROTATE IMAGE (Not available in all models)

ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of
the five preset options. These two options are PINCUSHION and
BALANCED pincushion. Note: use this feature only when the picture is
not square.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until ADJUST SHAPE is highlighted.

After returning to MAIN CONTROLS...

4) Press the button to highlight ADJUST SIDE ANGLES.

5) Press the button. The SIDE ANGLES window appears.
TRAPEZOID should be highlighted.

6) To adjust the trapezoid, press the or button.

SHAPE window.

3Back

3) Press the button. The ADJUST SHAPE window appears.
ADJUST SIDE CURVE should be highlighted.

4) Press the arrow until ROTATE IMAGE is highlighted.

Forward4

10

107P CM25 GSIII

9 Go to cover page

OSD Adjustments (Continued)

5) Press the button. The ROTATE IMAGE window appears. ROTATE
should be highlighted.

6) To adjust the rotation, press the or button.

7) When the rotation is adjusted, press the button to return to the
ADJUST SHAPE window. BACK TO MAIN CONTROLS should be
highlighted.

8) Press the button to return to MAIN CONTROLS.

Smart Help

...tocontinue to ADJUST COLOR, press the button until ADJUST
COLOR is highlighted. Next, start with step 3 under ADJUST COLOR
and follow the directions.

...to exit completely, press the button twice.

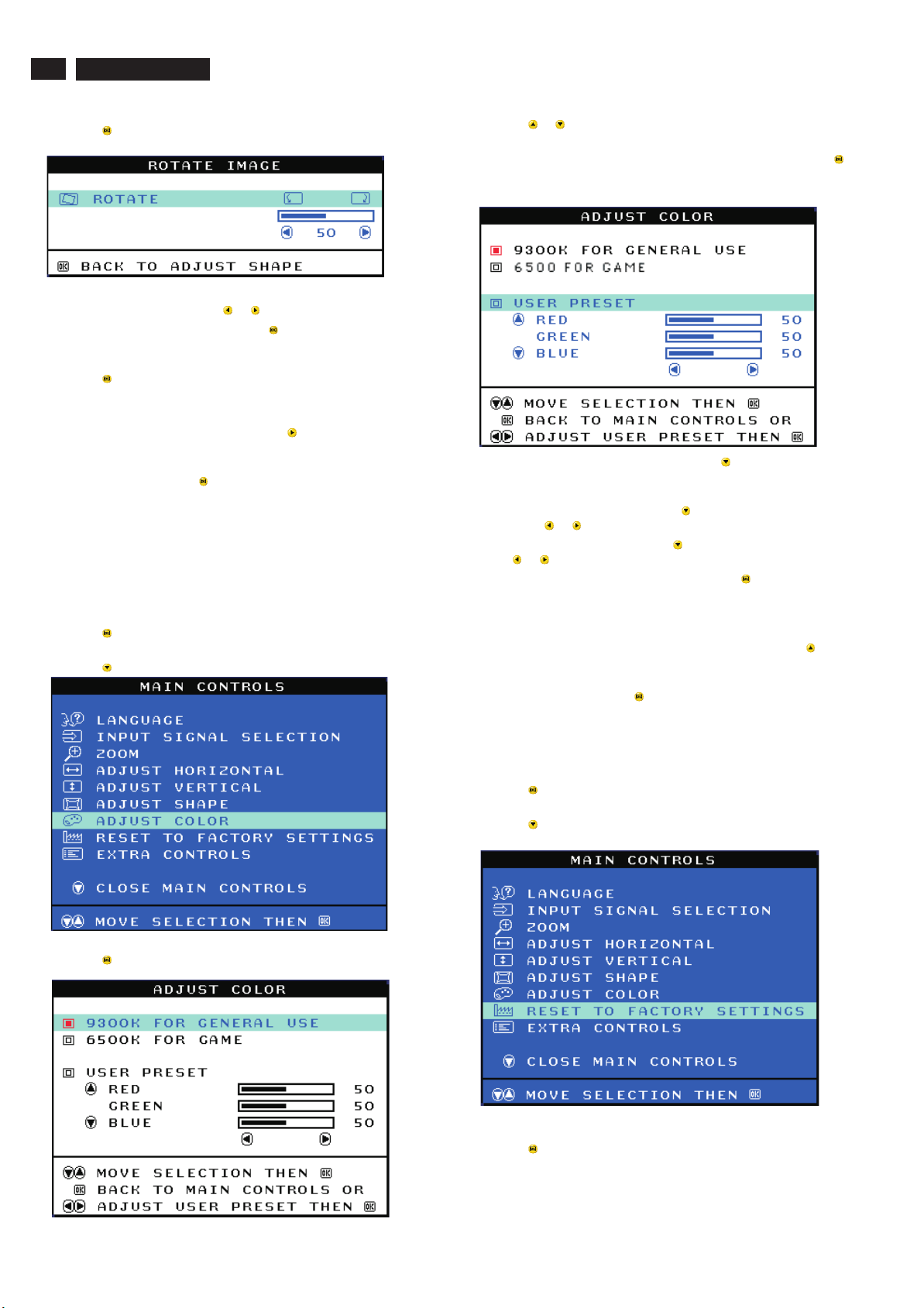

ADJUST COLOR

Your monitor has two preset options you can choose from. The first
option is for GENERAL USE, which is fine for most applications. The
second option is for GAMES, which is for playing computer games.
When you select one of these options, the monitor automatically adjusts
itself to that option. There is also a third option, USER PRESET, which
allows you to adjust the colors on your screen to a setting you desire.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until ADJUST COLOR is highlighted.

After returning to MAIN CONTROLS...

4) Press the or button to highlight 9300K for GENERAL USE,
6500K for GAMES, or USER PRESET.

5) Once you have highlighted GENERAL USE or GAMES, press the
button to confirm you selection and return to the MAIN CONTROLS
window. CLOSE MAIN CONTROLS will be highlighted.

6a) ?If USER PRESET is highlighted, press the button to highlight
RED. Next, press the LEFT CURSOR or RIGHT CURSOR button to
adjust the color red.

6b) ?When finished with RED, press the button to highlight GREEN.
Next, press the or button to adjust the color green.

6c) ?When finished GREEN, press the button to highlight BLUE. Next,
press the or button to adjust the color blue.

6d) ?When all adjustments are complete, press the button to confirm
your adjustments and return to the MAIN CONTROLS window. CLOSE
MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to RESET TO FACTORY SETTINGS, press the button
until RESET TO FACTORY SETTINGS is highlighted. Next, start with
step 3 under RESET TO FACTORY SETTINGS.

...toexit completely, press the button.

After returning to MAIN CONTROLS. . .

3) Press the button. The ADJUST COLOR window appears.

RESET TO FACTORY SETTINGS

RESET TO FACTORY SETTINGS returns everything in all the windows
to factory presets.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until RESET TO FACTORY SETTINGS is
highlighted.

3) Press the button. The RESET TO FACTORY SETTINGS window
appears.

3Back

Forward4

OSD Adjustments (Continued)

107P CM25 GSIII

9 Go to cover page

11

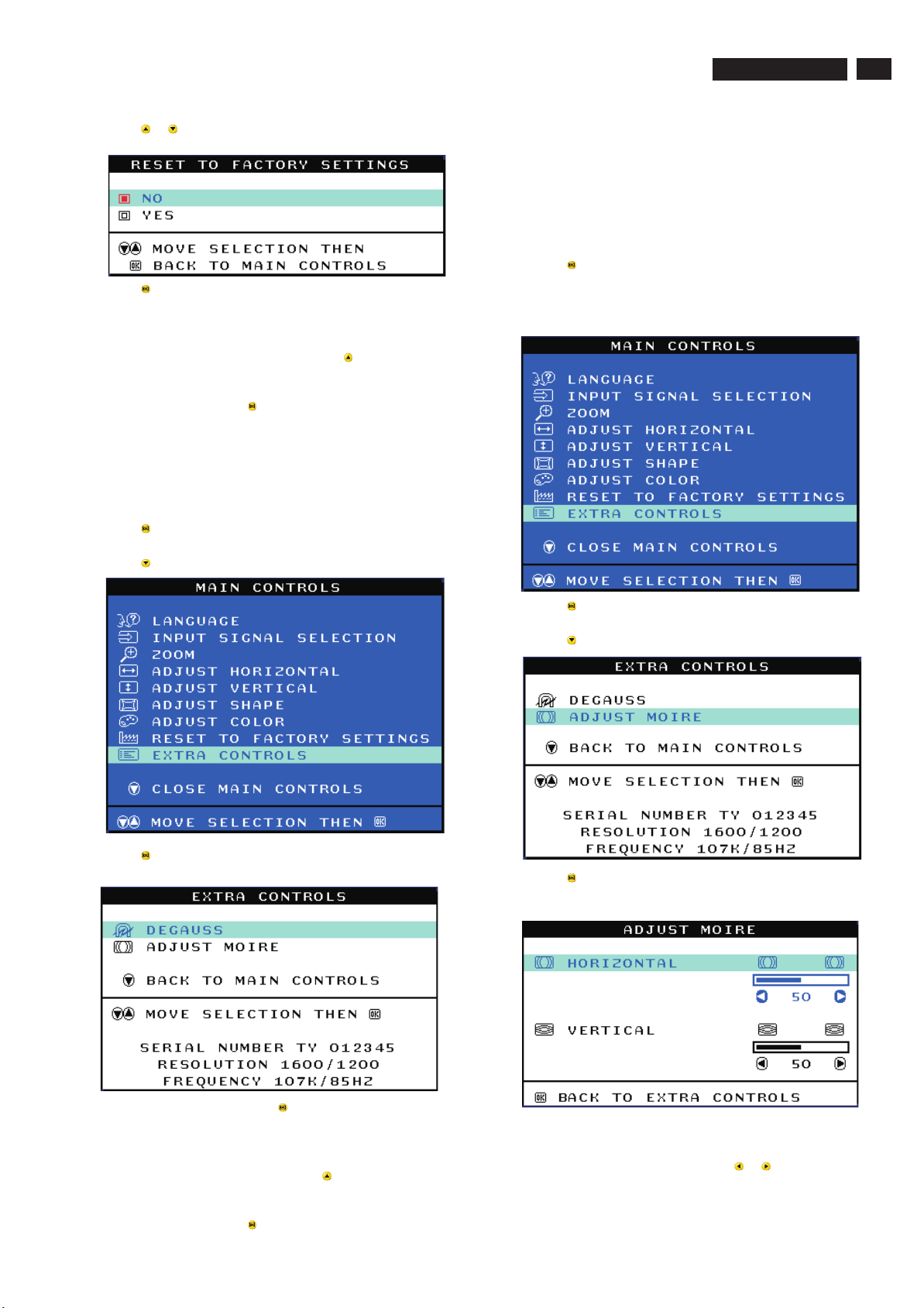

4) Press the or button to select YES or NO. NO is the default. YES
returns all settings to their original factory adjustments.

5) Press the button to confirm your selection and return to the MAIN
CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to EXTRA CONTROLS, press the button until EXTRA
CONTROLS is highlighted. Next, start with step 3 under EXTRA
CONTROLS.

...toexit completely, press the button.

EXTRA CONTROLS

DEGAUSS

EXTRA CONTROLS is a set of three features, including DEGAUSS.
Degaussing removes electromagnetic build up that may distort the color
on your screen.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the button until EXTRA CONTROLS is highlighted.

After returning to MAIN CONTROLS...

ADJUST MOIRE (Not available in all models)

EXTRA CONTROLS is a set of three features, including ADJUST
MOIRE. Moire is a fringe pattern arising from the interference between
two superimposed line patterns. To adjust your moire, follow the steps
below. Note: Use only if necessary. By activating ADJUST MOIRE,
sharpness can be affected.

1) Press the button on the monitor. The MAIN CONTROLS window
appears.

2) Press the DOWN CURSOR button until EXTRA CONTROLS is
highlighted.

3) Press the button. The EXTRA CONTROLS window appears.
DEGAUSS will be highlighted.

3) Press the button. The EXTRA CONTROLS window appears.
DEGAUSS will be highlighted.

4) Press the button until ADJUST MOIRE is highlighted.

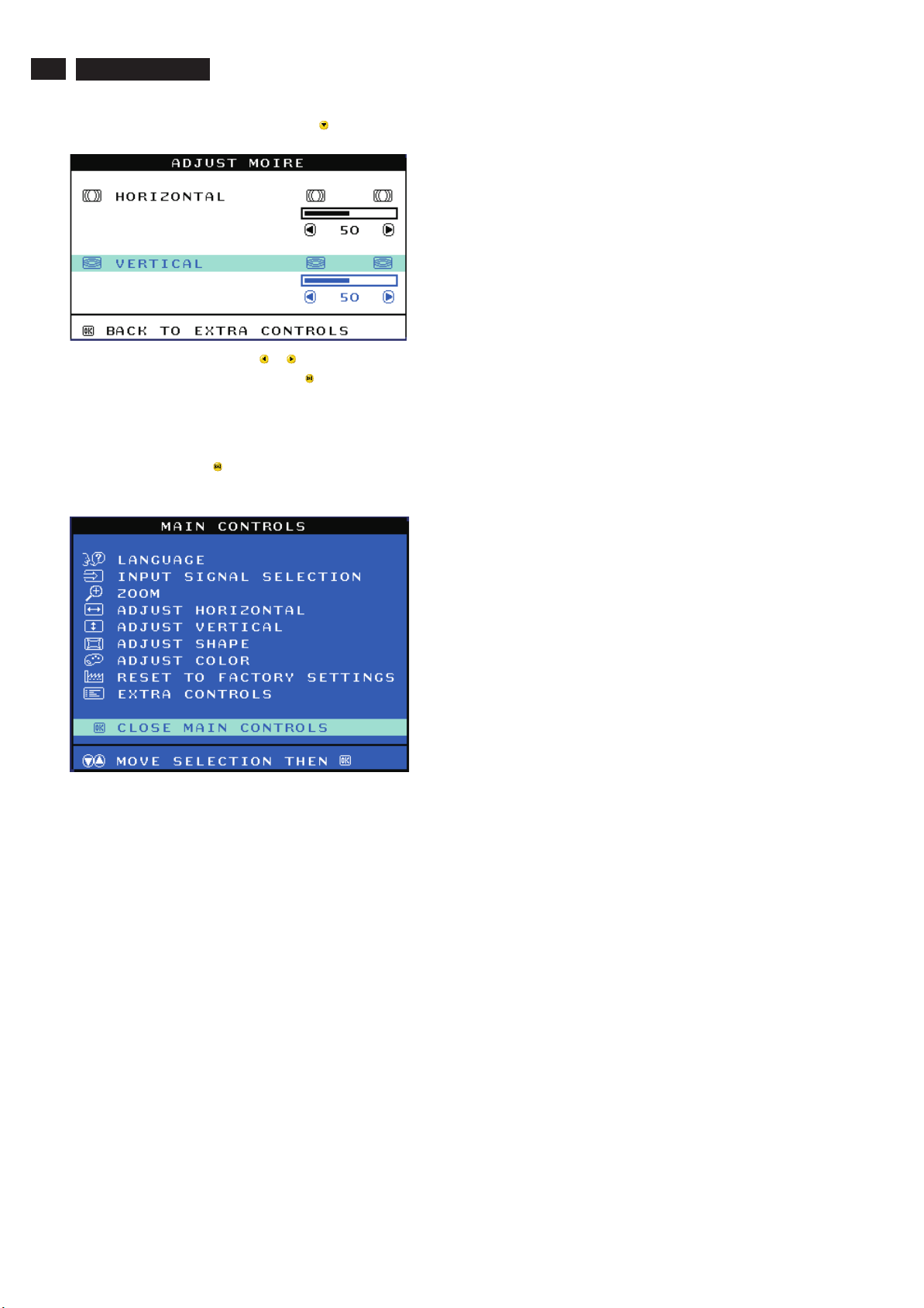

5) Press the button. The ADJUST MOIRE window appears.
HORIZONTAL will be highlighted.

4) To degauss your screen, press the button. Your screen will be
degaussed, then the MAIN CONTROLS window will reappear. CLOSE
MAIN CONTROLS will be highlighted.

Smart Help

...tocontinue to ADJUST MOIRE, press the button until EXTRA
CONTROLS is highlighted. Next, start with step 3 under EXTRA
CONTROLS, ADJUST MOIRE.

...toexit completely, press the button.

After returning to MAIN CONTROLS...

3Back

6) To adjust the horizontal moire, press the or button.

Forward4

12

107P CM25 GSIII

OSD Adjustments (Continued)

9 Go to cover page

7) When the horizontal moire is adjusted, press the button to highlight
VERTICAL.

8) To adjust the vertical moire, press the or button.

9) When the vertical moire is adjusted, press the button to return to
the EXTRA CONTROLS window. BACK TO MAIN CONTROLS will be
highlighted.

Smart Help

...toexit completely, press the button.

CLOSE MAIN CONTROLS

After returning to MAIN CONTROLS...

3Back

Forward4
