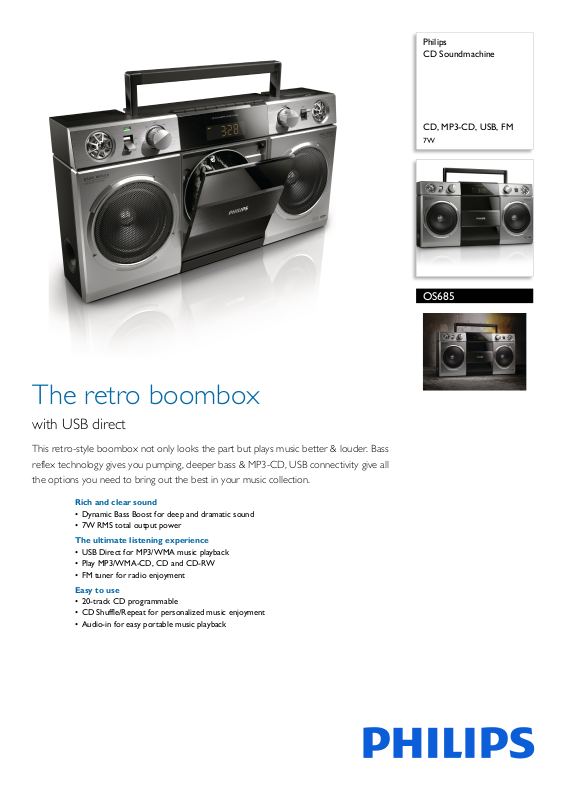

Page 1
Philips
CD Soundmachine
CD, MP3-CD, USB, FM
7W
OS685
The retro boombox
with USB direct
This retro-style boombox not only looks the part but plays music better & louder. Bass
reflex technology gives you pumping, deeper bass & MP3-CD, USB connectivity give all
the options you need to bring out the best in your music collection.
Rich and clear sound
• Dynamic Bass Boost for deep and dramatic sound
• 7W RMS total output power
The ultimate listening experience
• USB Direct for MP3/WMA music playback
• Play MP3/WMA-CD, CD and CD-RW
• FM tuner for radio enjoyment
Easy to use
• 20-track CD programmable
• CD Shuffle/Repeat for personalized music enjoyment
• Audio-in for easy portable music playback
Page 2
CD Soundmachine
CD, MP3-CD, USB, FM 7W
Highlights
OS685/12
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of
the music throughout the range of volume
settings - from low to high – at the touch of a
button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level.
To counteract this, Dynamic Bass Boost can be
switched on to boost bass levels, so you can
enjoy consistent sound even when you turn
down the volume.
USB Direct
20-track CD programmable
The CD progammable playback feature allows
yo
u to enjoy your favorite tracks in the
sequence you want.
CD Shuffle/Repeat
The "Shuffle/Repeat" function helps you to get
rid of the boredom of hearing your music
played in the same order all the time. After
loading your favorite songs to the player, all
you have to do is to select one of the modes "Shuffle" or "Repeat" for your tunes to be
played in different modes order. Enjoy the
different and unique music experience every
time you hook up to your player.
Play MP3/WMA-CD, CD and CD-RW
quality. MP3 or WMA are two of the
compression formats that let you enjoy a
world of digital music on your Philips player.
Download MP3 or WMA songs from
authorized music sites on the Internet or
create your own MP3 or WMA music files by
ripping your audio CDs and transferring them
onto your player.
AUDIO-IN (3.5mm)
Make one easy connection and enjoy all your
music from portable devices and computers.
Simply plug your device to the AUDIO-IN (3.5
mm) port on your Philips set. With computers,
the connection is typically made from the
headset output. Once linked, you can enjoy
your entire music collection directly, on a set
of superior speakers. Philips simply delivers
better sound.
With the USB Direct mode, simply plug in your
USB device to the USB port on your Philips
device and your digital music will be played
directly from the Philips device.
FM tuner
FM tuner for radio enjoyment
Audio compression technology allows large
digital music files to be reduced up to 10 times
in size without radically degrading their audio
Page 3
CD Soundmachine
CD, MP3-CD, USB, FM 7W
Specifications
OS685/12
Audio Playback
• Disc Playback Modes: Fast Forward/Backward,
Next/Previous Track Search, Program Play, Repeat
Play, Shuffle Play
• Loader Type: Front
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD
• Programmable Tracks: 20
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previou
Shuffle
s/Next, Program Play, Repeat,
Connectivity
• USB: USB host
• Audio in (3.5mm)
Tuner/Reception/Transmission
• Antenna: FM antenna
• Tuner bands: FM
• Station presets: 20
• Tuner enhancement: auto digital tuning
Sound
• Output Power: 7W max.
• Sound System: Stereo
• Speaker diameter: 4"
• Volume control: rotary (digital)
• Sound enhancement: bass reflex system, Dynam
Bass Boost
Loudspeakers
• Built-in speakers: 2
• Speaker diameter: 4"
Convenience
• Display Type: LED
• Display Enhancements: Brightness Control
Accessories
•Power cord
• User Manual: multi-languages
• Warranty: Warranty leaflet
Power
• Number of batteries: 6 x LR14/C-cell (not
included)
• Mains power: 220 - 240V 50/60Hz
Dimensions
• Packaging depth: 146 mm
• Packaging height: 275 mm
• Packaging width: 510 mm
• Weight incl. Packaging: 3.3 kg
•Weight: 2.3 kg
• Main unit depth: 146 mm
• Main unit height: 275 mm
• Main unit width: 447 mm
•
ic
Issue date 2014-06-12
Version: 2.0.3
12 NC: 8670 000 97673
EAN: 87 12581 66779 5
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
