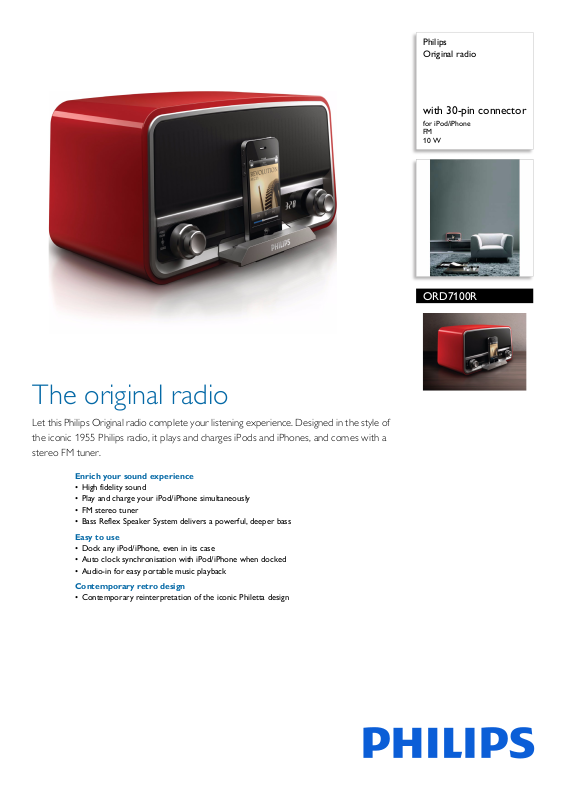

Page 1
Philips
Original radio
with 30-pin connector
for iPod/iPhone
FM
10 W
ORD7100R
The original radio
Let this Philips Original radio complete your listening experience. Designed in the style of
the iconic 1955 Philips radio, it plays and charges iPods and iPhones, and comes with a
stereo FM tuner.
Enrich your sound experience
• High fidelity sound
• Play and charge your iPod/iPhone simultaneously
• FM stereo tuner
• Bass Reflex Speaker System delivers a powerful, deeper bass
Easy to use
• Dock any iPod/iPhone, even in its case
• Auto clock synchronisation with iPod/iPhone when docked
• Audio-in for easy portable music playback
Contemporary retro design
• Contemporary reinterpretation of the iconic Philetta design
Page 2
Original radio
with 30-pin connector for iPod/iPhone, FM, 10 W
Highlights
ORD7100R/10
Play and charge your iPod/iPhone
Enjoy your favourite MP3 music while charging
your iPod/iPhone! The dock lets you connect
your portable device directly to the Docking
entertainment system so you can listen to your
favourite music in superb sound. It also charges
your iPod/iPhone while it plays so you can
enjoy your music and not have to worry about
your portable player battery running out. The
Docking entertainment system automatically
charges your portable device while it is
docked.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimise the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by causing the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a completely new dimension of deep
bass.
Dock iPod/iPhone in its case
Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adapters. What's more, it
works even when most protective cases are on
– just dock your iPod or iPhone as it is. Now
you can truly have fuss-free enjoyment of your
music.
Auto clock synchronisation
When connected and docked, this docking
system will automatically synchronise the clock
with your iPod/iPhone within a few seconds.
With this convenient feature, you do not need
to set the time manually.
AUDIO-IN (3.5 mm)
Make one easy connection and enjoy all your
music from portable devices and computers.
Simply plug your device into the AUDIO-IN
(3.5 mm) port on your Philips set. With
computers,
from the headset output. Once linked, you can
enjoy your entire music collection directly, on
a set of superior speakers. Philips simply
delivers better sound.
the connection is typically made
Page 3
Original radio
with 30-pin connector for iPod/iPhone, FM, 10 W
Specifications
ORD7100R/10
iPod compatibility
• Compatible with: iPod touch, iPod touch 2nd
Generation, iPod classic, iPod nano 3rd
Generation, iPod nano 4th Generation, iPod 5th
Generation, iPod with colour display, iPod nano,
iPod mini, iPod nano 1st Generation, iPod nano
2nd Generation
iPhone compatibility
• Compatible with: iPhone 3G, iPhone 3GS, iPhone
4, iPhone 4S
iPod/iPhone App
• App name: HomeStudio, Free download from App
store
• Compatibility: Dock radio f
Touch, iPhone
• 5-day weather forecast
• Playback: album/track navigatio
• Clock: analogue display, digital display
• Alarm: multiple alarms, sleep timer
• Radio: FM radio, preset, scan, tune
or iPod/iPhone, iPod
n, playback controls
Audio Playback
• Playback mode: Charging iPod, Charging iPhone
Tuner/Reception/Transmission
• Tuner bands: FM
• Frequency range: (FM) 87.5–108 MHz
• Station presets: 20
• Auto digital tuning
Connectivity
• Audio in (3.5 mm)
• Antenna: FM antenna (75 ohm)
Convenience
• Display Type: LED white
Sound
• Sound System: Stereo
• Volume control: rotary (digital)
Loudspeakers
• Built-in speakers: 2
Power
•Power type: AC input
Dimensions
• Product dimensions (WxDxH): 330 x 150 x
163 mm
• Packaging dimensions (WxDxH): 460 x 250 x
5 mm
24
Accessories
• Included accessories: AC power cord (VDE and
UK), User Manual, Warranty certificate
•
Issue date 2014-07-18
Version: 4.0.6
12 NC: 8670 000 94847
EAN: 87 12581 65893 9
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
