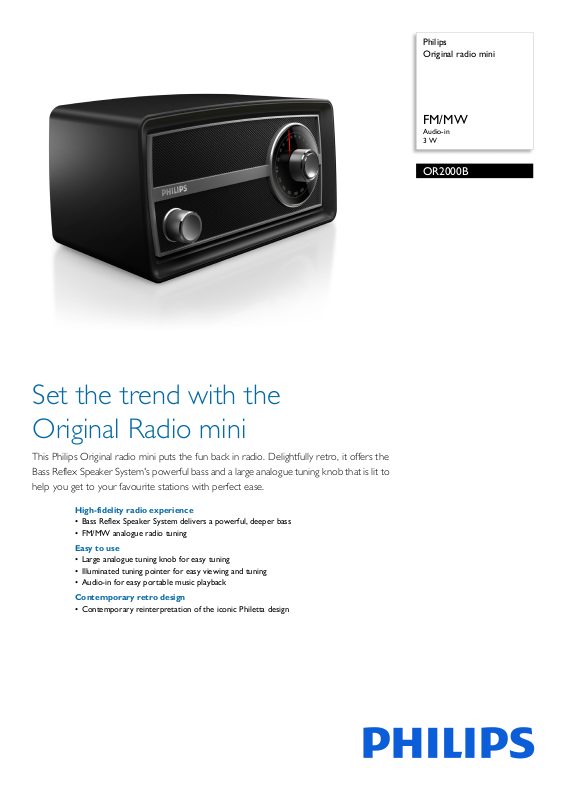

Page 1
Philips
Original radio mini
FM/MW
Audio-in
3 W
OR2000B
Set the trend with the
Original Radio mini
This Philips Original radio mini puts the fun back in radio. Delightfully retro, it offers the
Bass Reflex Speaker System's powerful bass and a large analogue tuning knob that is lit to
help you get to your favourite stations with perfect ease.
High-fidelity radio experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• FM/MW analogue radio tuning
Easy to use
• Large analogue tuning knob for easy tuning
• Illuminated tuning pointer for easy viewing and tuning
• Audio-in for easy portable music playback
Contemporary retro design
• Contemporary reinterpretation of the iconic Philetta design
Page 2
Original radio mini
FM/MW Audio-in, 3 W
OR2000B/12
Highlights
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimise the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by causing the air mass in the bass pipe
to vibrate like a conventional woofer. Combined
with the response of the woofer, the system extends
the overall low frequency sounds to create a
completely new dimension of deep bass.
FM/MW analogue tuning
FM/MW analogue radio tuning
Large analogue tuning knob for easy
tuning
Large analogue tuning knob for easy tuning
Illuminated tuning pointer
Illuminated tuning pointer for easy viewing and
tuning
AUDIO-IN (3.5 mm)
Make one easy connection and enjoy all your music
from portable devices and computers. Simply plug
your device into the AUDIO-IN (3.5 mm) port on
ur Philips set. With computers, the connection is
yo
typically made from the headset output. Once linked,
you can enjoy your entire music collection directly,
on a set of superior speakers. Philips simply delivers
better sound.
Iconic Philetta design
Inspired by 1955 Original Radio - This original radio
mini carries forward the iconic elements of the
legendary 1955 Philips radio, also known as Philetta
"BF 102 U". At the time this compact radio wowed
audiences with its simple design, big sound and
crystal clear reception. Philips radio heritage dates
back to 1927. Over the decades, many models have
become renowned radio icons and collectors' items.
Specifications
Tuner/Reception/Transmission
• Analogue tuning
• Tuner bands: FM, MW
• Frequency range [FM]: 87.5 - 108 MHz
• Frequency range [MW]: 531 - 1602 kHz
Sound
•Sound System: Mono
• Volume control: rotary (digital)
Loudspeakers
• Speaker types: bass reflex speaker system
• Built-in speakers: 1
Connectivity
• Audio in (3.5 mm)
Power
•Power type: AC Input
• Power supply: 220-240 V, 50 Hz
Dimensions
• Packaging dimensions (WxDxH): 336 x 158 x 183
mm
• Product dimensions (WxDxH): 245 x 123 x
2 mm
12
• Product weight: 1.33 kg
Accessories
• Quick start guide
• Warranty: Warranty leaflet
•
Issue date 2014-12-04
Version: 1.0.5
12 NC: 8670 001 20764
EAN: 04 89518 56044 97
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
