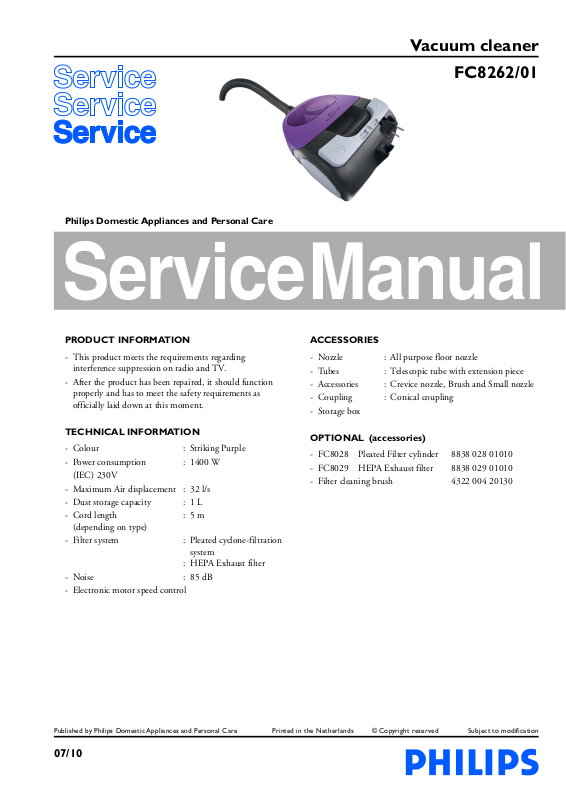

Page 1
Vacuum cleaner
FC8262/01
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour : Striking Purple
- Power consumption : 1400 W
(IEC) 230V
- Maximum Air displacement : 32 l/s
- Dust storage capacity : 1 L
- Cord length : 5 m
(depending on type)
- Filter system : Pleated cyclone-filtration
system
: HEPA Exhaust filter
- Noise : 85 dB
- Electronic motor speed control
ACCESSORIES
- Nozzle : All purpose floor nozzle
- Tubes : Telescopic tube with extension piece
- Accessories : Crevice nozzle, Brush and Small nozzle
- Coupling : Conical coupling
- Storage box
OPTIONAL (accessories)
- FC8028 Pleated Filter cylinder 8838 028 01010
- FC8029 HEPA Exhaust filter 8838 029 01010
- Filter cleaning brush 4322 004 20130
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
07/10
Page 2
FC8262/01

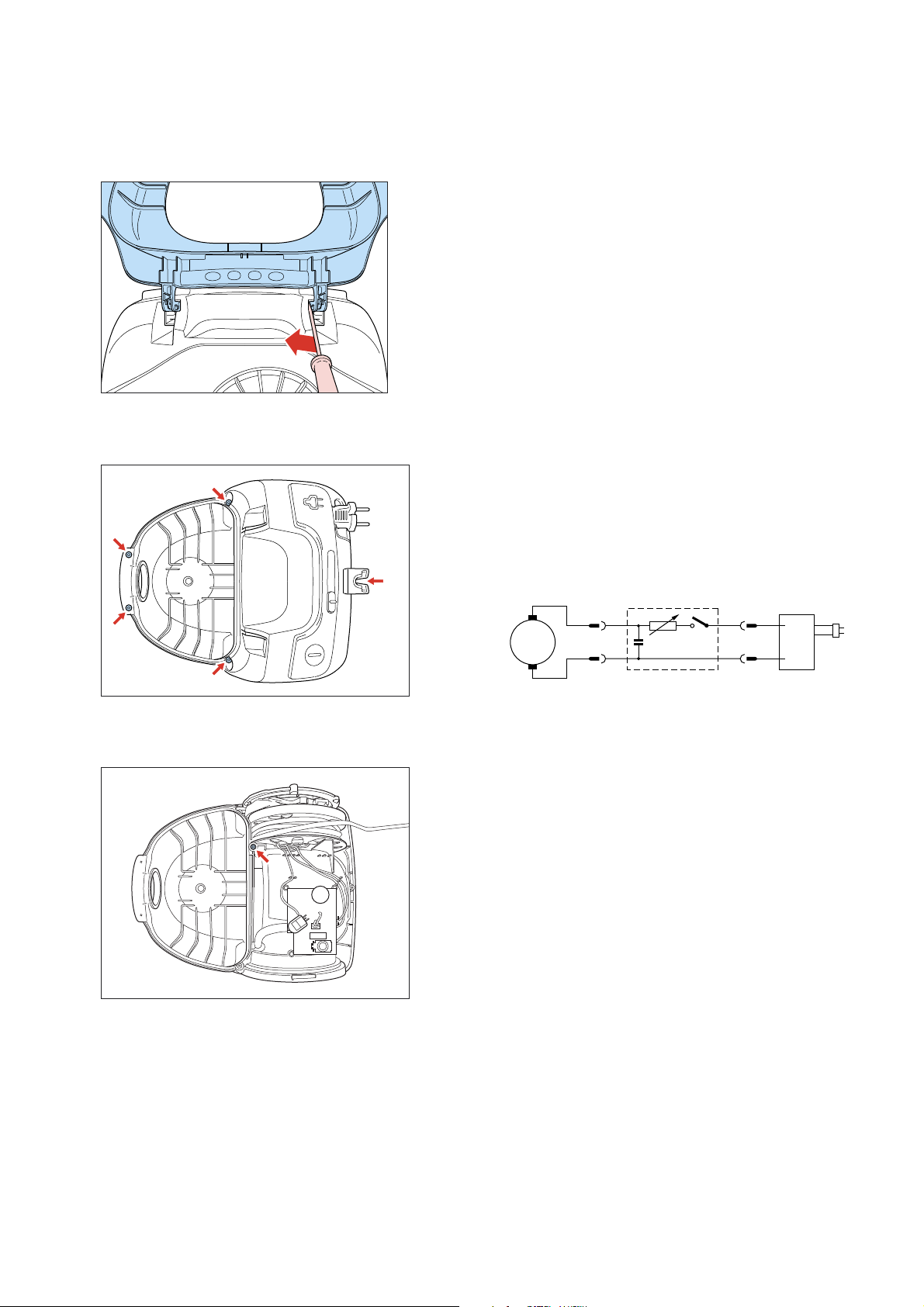

DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- First remove the dust bag.
- Remove the dustcover using a screwdriver (see picture).
- When the dustcover has been removed, the 5 screws A that
need to be unscrewed to disassemble the upper housing, are
accessible.
A
A
REPAIR INSTRUCTION
- The spare parts have been standardized as much as possible.
- Depending on the original cord, the spare cord must be
shortened to the length of the original cord.
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn
- If the reel half spring unit is replaced, shaft D must be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (item 34) or
conductors (item 33).
- Item 7, air valve, opens to cool the motor if the air
displacement is too low or if the airflow is blocked.
ELECTRICAL DIAGRAM
A
A
A
- After removing screw B, lift the motor cap (item 20) out of
the lower housing to be able to take out the cord winder
unit.
B
- To disassemble the cord winder, use TORX screwdriver
no. T10, which is one of a set consisting of T20; T15; T10;
T9; T8; T7 and T6 (code number 4822 395 50145).
- During re-assembling, take care the wires are positioned in
the guides correctly.
M
SPEED
CONTROL UNIT
C
CORD WINDER
2-6
Page 3
PARTS LIST
FC8262/01
Pos Service code Description
1
4322 009 09760
2
4322 003 29300
3
4322 001 73680
4
4322 003 29030
5
4322 005 20850
6
4322 005 20840
7
4322 005 19070
8
4322 003 28510
9
4322 001 73610
10
4322 003 28480
11
4322 005 20760
12
4322 003 28730
13
4322 003 28720
14
4322 003 28710
15
4322 000 68060
16
4322 003 28570
17
4322 003 28580
18
4322 003 28700
19
4322 006 23290
20
4322 003 28560
21
4322 005 20820
22
4322 003 28670
23
4322 001 73640
24
4322 003 28690
25
4322 005 21440
26
4322 001 73590
27
4322 003 28680
Dustcover Assy Striking Purple
Container cover Striking Purple
Sealing ring
Filter case Spectra Yellow *
Filter Spectra Yellow *
Dustbucket Spectra Yellow *
Valve assy
Side panel
Dustcover seal
Nose piece
Caster assy
Slide Artic Ice
Buttons-E Artic Ice
Actuator
Button spring
Back panel Dark raven
Switch cap
Drive wheel
PCB electronic control
Motor cap
HEPA fi lter Gemini
Air outlet cover HEPA
Cooling hose
Knee bend cooling tube
Lower housing assy
Motor buffer front
Motor front support Domus
Pos Service code Description
28
4322 006 98040
4322 006 97970
4322 006 98000
29
4322 003 28550
30
4322 001 73580
31
4322 005 20770
32
4322 009 07610
4322 009 09060
33
4341 005 01330
34
4341 005 00790
35
4341 006 01890
36
4322 006 02160
37
4322 006 02060
38
4322 006 02080
39
4322 006 07600
40
4341 004 20420
41
4341 005 01240
42
4322 004 23740
43
4322 004 23490
44
4341 004 20170
45
4341 004 20100
46
4341 004 20190
47
4322 004 23520
48
4822 479 20039
49
4822 479 20038
50
4322 004 23510
51
4322 003 29100
52
4322 004 23500
53
4322 003 29090
Motor Domus 240 V 1400 W
Motor Domus 230 V 1400 W
Motor Domus 220 V 1400 W (ccc)
Air guide Domus
Bufferback Gemini
Base plate assy Gemini
Real half spring unit
Real half spring unit PRC
Real half contact side
Contact plate assy
Cordset Taiwan/PRC L = 5.3 m
Cordset U.K./H.K. L = 6.3 m
Cordset Europe L = 6.3 m
Cordset Swiss L = 6.3 m
Cordset Brazil L = 7.3 m
Bend/hose assy
Bend handle
Extension tube
Telescopic tube
Crevice nozzle con.
Small nozzle con.
Brush con.
Nozzle D272
Nozzle brush
Nozzle strip
Box cover assy Striking purple *
Accessory tray
Storage box
Box divider wall
* Standardized colour
= changed
3-6
Page 4

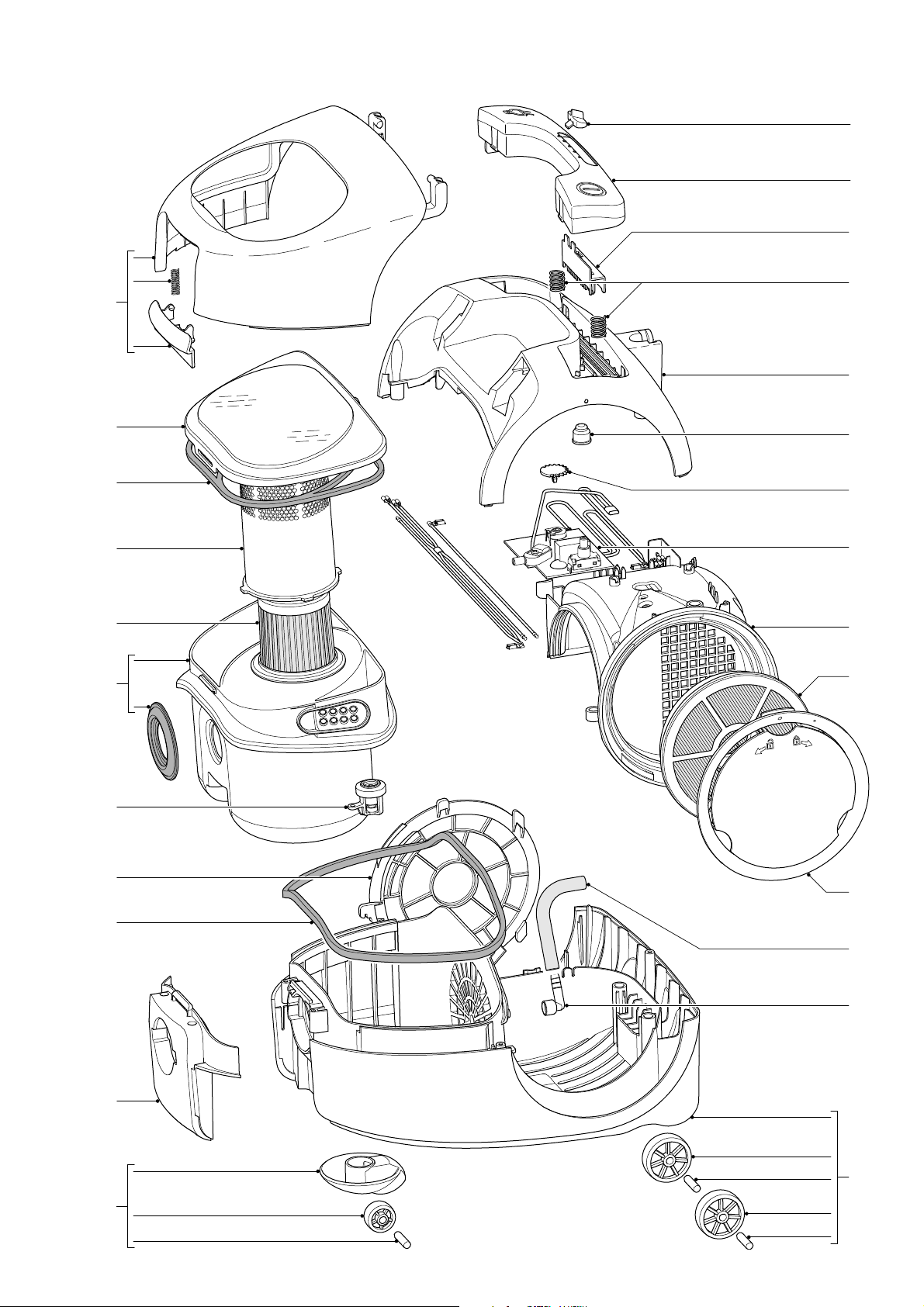

EXPLODED VIEW
1
FC8262/01
12
13
14
15
16
2
3
4
5
6
7
17
18
19
20
21
10
11
8
22
9
23
24
25
4-6
Page 5

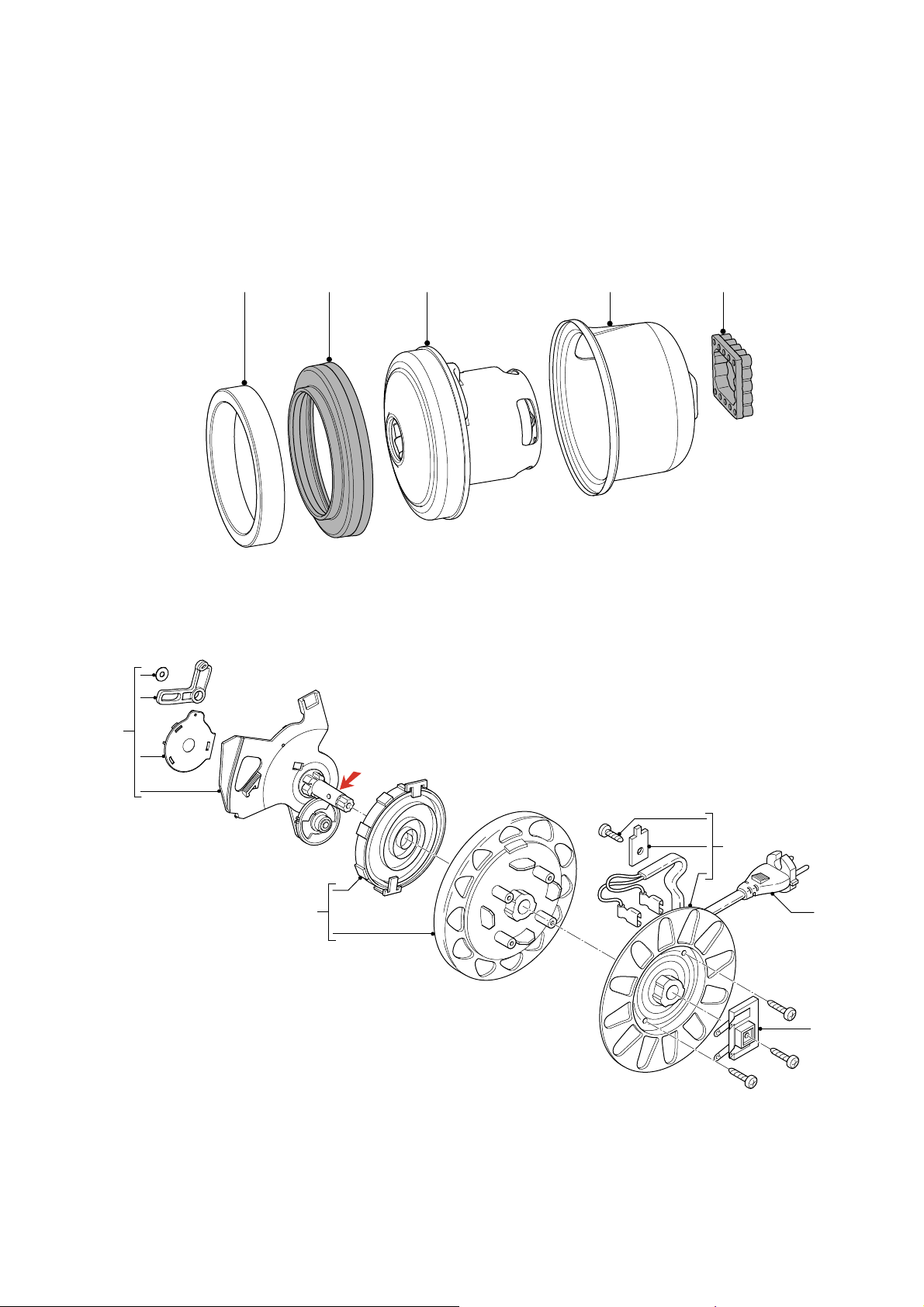

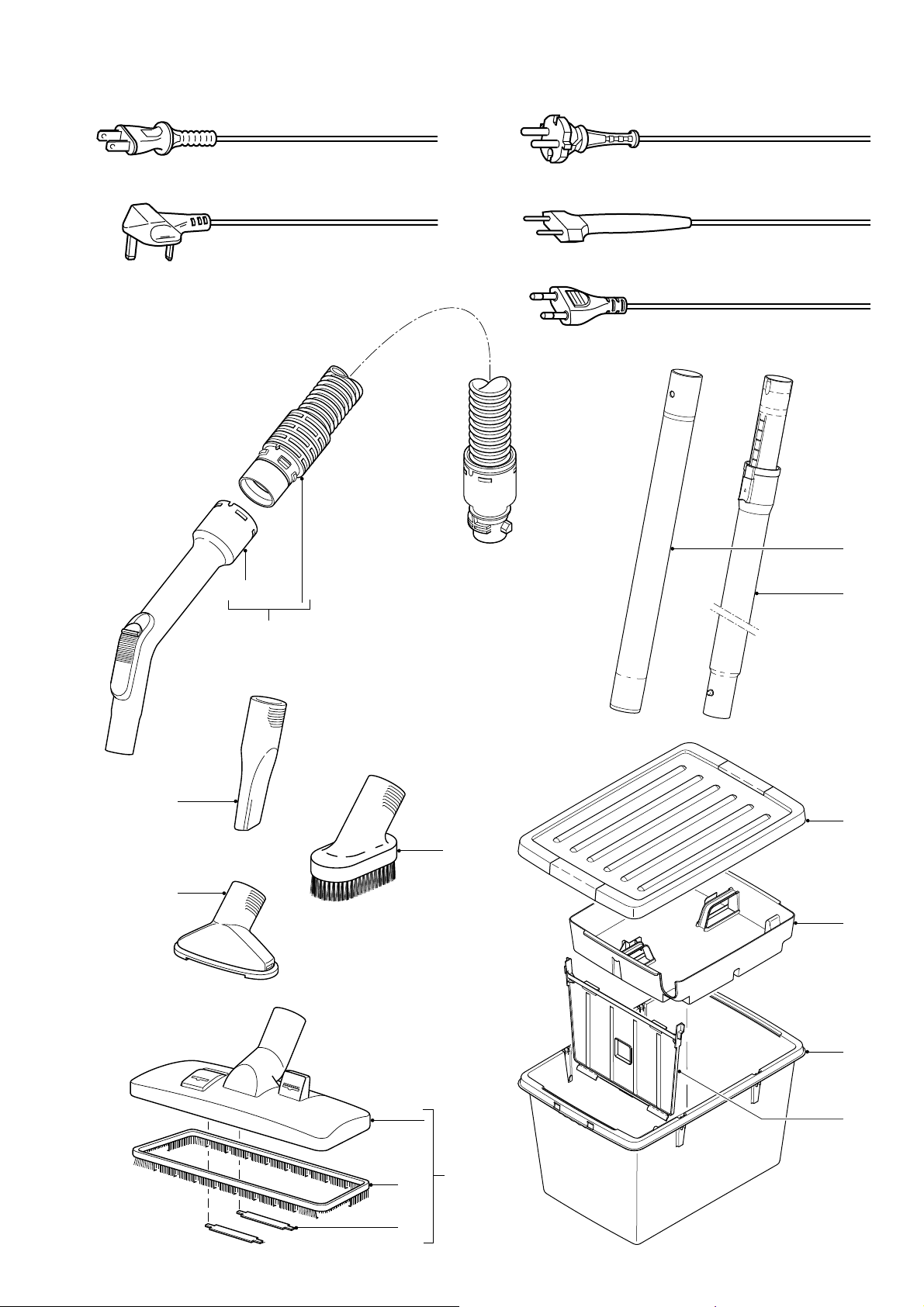

EXPLODED VIEW
FC8262/01
3029282726
31
32
D
C
33
35÷39
C
34
5-6
Page 6
EXPLODED VIEW
FC8262/01
Taiwan / P.R.C. 35 Korea / Europe 37
41
40
36 H.K. / U.K.
Swiss 38
Brazil 39
42
43
44
45
48
49
50
46
51
52
53
47
6-6
