Page 1

MX3910D • MX3960D

12nc: 3139 115 23091

Printed in China

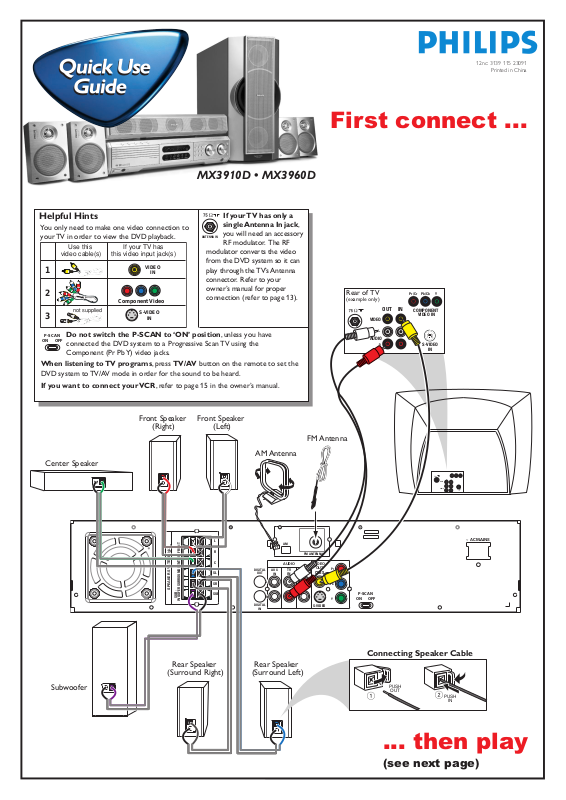

First connect ...

Helpful Hints

You only need to make one video connection to your TV in order to view the DVD playback.

Use this

video cable(s)

not supplied

Do not switch the P-SCAN to ‘ON’ position, unless you have

P-SCAN

ON OFF

connected the DVD system to a Progressive Scan TV using the

If your TV has

this video input jack(s)

VIDEO

Component Video

S-VIDEO

If your TV has only a single Antenna In jack,

you will need an accessory

ANTENNA IN

RF modulator. The RF modulator converts the video from the DVD system so it can play through the TV’s Antenna connector. Refer to your owner’s manual for proper connection (refer to page 13).

Component (Pr Pb Y) video jacks.

When listening to TV programs, press TV/AV button on the remote to set the DVD system to TV/AV mode in order for the sound to be heard.

If you want to connect your VCR, refer to page 15 in the owner’s manual.

Front Speaker

(Right)

Front Speaker

(Left)

AM Antenna

Center Speaker

FM Antenna

Rear of TV

(example only)

VIDEO

AUDIO

OUT IN

Pr/Cr Pb/Cb Y

COMPONENT

VIDEO IN

S-VIDEO

Pr/

CrPb/

CbY

OUT

VIDEO

AUDI

S-VIDEO

Subwoofer

SPEAKER SYSTEMS (4Ω)

SUB-

WOOFER SURROUND CENTER FRONT

SUB

Rear Speaker

(Surround Right)

DIGITAL

AUDIO

TVINLINE

AUX

OUT

Rear Speaker

(Surround Left)

FM ANTENNA

OUT

VIDEO

OUT

CVBS

S-VIDEO

~ AC MAINS

P-SCAN

ON OFF

Connecting Speaker Cable

PUSH

OUT

PUSH

... then play

(see next page)

Page 2

SYSTEM MENU

SEATING ZOOM

OPEN•CLOSE

DISC 1 DISC 2 DISC 3 DISC 4 DISC 5

DISC 1

DISC 2

DISC 3

DISC 4

DISC 5

iR SENSOR

STANDBY-ON

DISC/

AUX/DI

TUNER

MEDIA

TV/AV

123

456

789

SURR.

PREV NEXT

VOICE MUTE

DIM SLEEP SUB TV VOL

SOUND

VOL

STOP PLAY/PAUSE

PROGRAM

REPEAT REPEATDISC SKIP

A-B

DISC MENU

5 DISC CHANGER

SUPER VIDEO

AV IN

DVD VIDEO DIGITAL SURROUND SYSTEM

VOLUME

SOURCE

TREBLE

BASS

SURR. LEFT SURR. RIGHT LEFT RIGHTCENTER SUBWOOFER

STOPPLAY•PAUSE SEATING

SURROUND

PROG TUNINGCLOCK•TIMER

Make sure your DVD system

and TV are connected and

4 CHANNEL 3

turned on!

Playing a disc

1 Press DISC/MEDIA on the remote control.

You can also adjust the SOURCE button at the front panel until “DISC X” appears on the display panel.

2 Turn on the TV and select the correct Video In mode.

You should see the blue Philips DVD background screen on the TV (if no disc in the DVD system).

3 Press OPEN•CLOSE 0 at the front of the DVD system and load a disc, then

press the corresponding OPEN•CLOSE 0 again to close the disc tray.

Make sure the disc label is facing up. For double-sided discs, load the side you want to play face up.

4 Playback will start automatically.

If a disc menu appears, use 3 4 1 2 buttons on the remote to make the necessary selection, then press OK to confirm. Or, use the numeric keypad on the remote to select features. Follow the instructions given in the disc menu.

Helpful Hints

If a DVD does not play properly, please contact Philips at 1-800-531-0039 for assistance. Due to the inconsistency of disc formats provided by various disc manufacturers, your DVD system may require a playability enhancement or upgrade. As DVD technology advances, these enhancements will become common and will be easy to complete.

5 To stop playback, press STOPÇ.

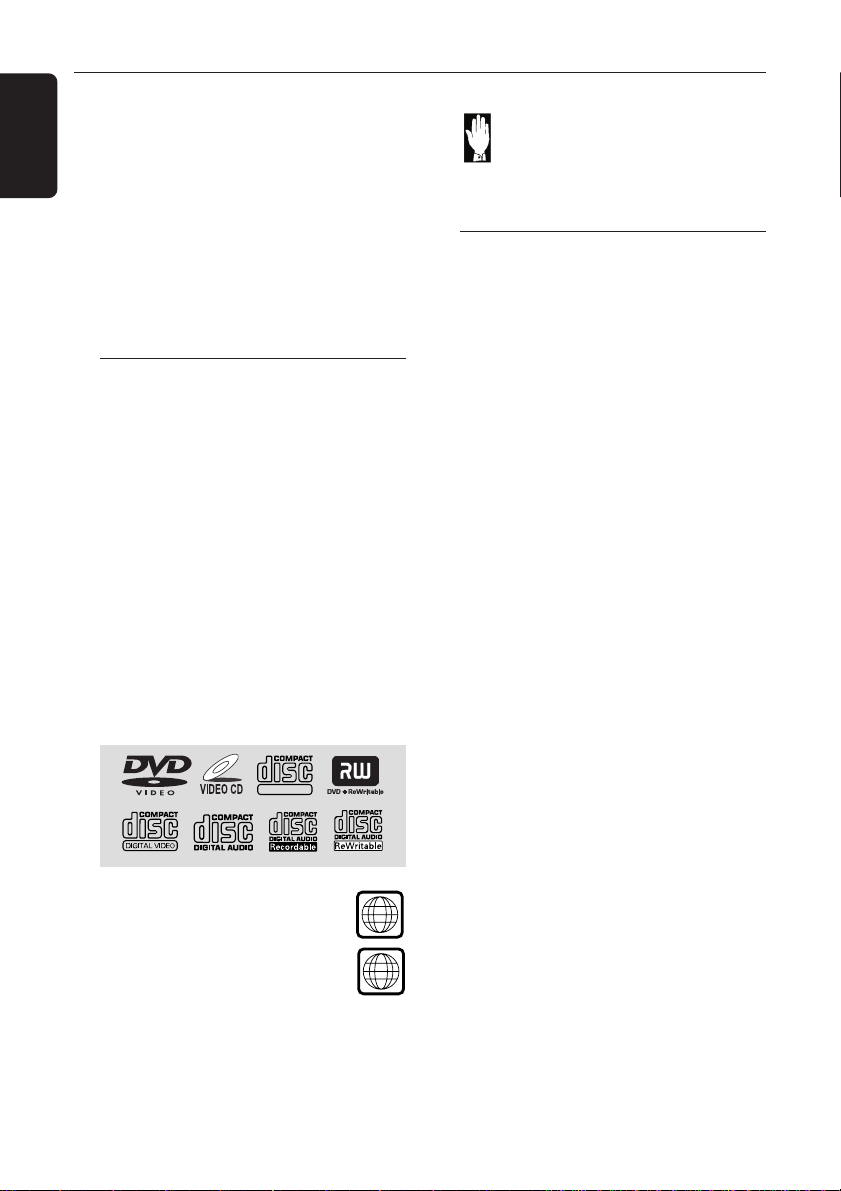

Region Codes

DVDs must be labeled for ALL regions or for Region 1 in order to play on this DVD system.

ALL

No picture!!

Check the AV (Audio/Video) mode on your TV.

* Usually this channel is between the lowest and highest channels and may be called FRONT, A/V IN, or

VIDEO.

* Or, you may go to channel 1 on your TV, then press the Channel down button repeatedly until you see

the Video In channel. * Or, your TV remote control may have a button or switch that chooses different video modes. * Or, set the TV to channel 3 or 4 if you are using an RF modulator. * See your TV manual for more details.

Detailed playback features and additional functions are described in the

accompanying owner’s manual.

Page 3

DVD VIDEO DIGITAL SURROUND SYSTEM

MX3910D • MX3960D

Need help? Call us!

Philips representatives are ready to help you with any questions about your new product. We can guide you through Connections, First-time Setup, or any of the Features. We want you to start enjoying your new product right away!

CALL US BEFORE YOU CONSIDER RETURNING THE PRODUCT!

1-800-531-0039

Visit us on the web at www.philips.com

MX3910D

DVD HOME

CINEMA

SYSTEM

Return

your Warranty

Registration Card

within 10 days

MX3960D

Page 4

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to.

• Once your Philips purchase is registered, you’re eligible to receive all the privileges of owning a Philips product.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Know these

ssaaffeettyy symbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

• So complete and return the Warranty Registration Card enclosed with your purchase at once, and take advantage of these important benefits.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. _______________________

Serial No. ________________________

This “bolt of lightning” indicates uninsulated material

an electrical shock. For the safety of everyone in your household, please do not remove product covering.

enclosed literature closely to prevent operating and maintenance problems.

within your unit may cause

The “exclamation point” calls attention to features for which you should read the

WARNING:

FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION:

shock, match wide blade of plug to wide slot, and fully insert.

TO PREVENT

To prevent electric

MAC5097

Page 5

Visit our World Wide Web Site at http://www.philips.com

Hurry!

Congratulations on your purchase, and welcome to the “family!”

Dear Philips product owner:

Thank you for your confidence in Philips.You’ve selected one of the best-built, best-backed products available today.And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the Philips “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome – and thanks for investing in a Philips product.

Sincerely,

Lawrence J. Blanford President and Chief Executive Officer

P.S. Remember, to get the most from your Philips product, you

must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Page 6

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near

water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer´s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

9. Do not defeat the

safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments/accessories

speciﬁed by the manufacturer.

AC Polarized

Plug

12 .

13 .

Unplug this apparatus during lightning

storms or when unused for long periods of time.

14 .

Refer all servicing to qualiﬁed service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.

Battery usage CAUTION – To

prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

●

Install all batteries correctly, + and - as marked on the unit.

●

Do not mix batteries (old and new or carbon and alkaline, etc.).

●

Remove batteries when the unit is not used for a long time.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

16. Apparatus shall not be exposed to

dripping or splashing.

17. Do not place any sources of danger

on the apparatus (e.g. liquid filled

objects, lighted candles).

Class II equipment symbol

This symbol indicates that the unit has

a double insulation system

EL 6475-E004: 03/11

Page 7

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français:

Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère des Communications du Canada.

This warning label is located on the rearside

and inside this laser product.

INVISIBLE

CAUTION

LASER RADIATION

WHEN OPEN. DO NOT STARE INTO BEAM.

INVISIBLE LASER RADIATION WHEN OPEN.

DANGER

AVOID DIRECT EXPOSURE TO BEAM. AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET

VARO !

ALTTIINANAKYMATTOMAALLE LASERSATEILYLLE. ALA KATSO SATEESEEN.

OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.

VARNING!

OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.

DANGER - Invisible laser radiation when open.

AVOID DIRECT EXPOSURE TO BEAM.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

ATTENTION

L'utilisation des commandes ou réglages ou le non-respect des procédures ci-incluses peuvent se traduire par une exposition dangereuse à l'irradiation.

ATENCIÓN

El uso de mando o ajustes o la ejecucción de métodos que no sean los aquí descritos puede ocasionar peligro de exposición a radiación.

Page 8

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1999 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, inc. US Pat. No. 5,451,942 and other worldwide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc . Digital

Theater Systems, Inc.

1996-2000

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

This system complies with the FCC rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

– This device may not cause harmful interference, and – This device must accept any interference received, including interference that may cause undesired operation.

Page 9

Index

English ------------------------------------------------ 8

Français -------------------------------------------- 48

Español --------------------------------------------- 88

English

Français

Español

Page 10

Contents

English

General Information

Supplied accessories .......................................... 10

Care and safety information ............................ 10

Connections

Step 1: Placing the speakers and subwoofer 11 Step 2: Connecting speakers and subwoofer11

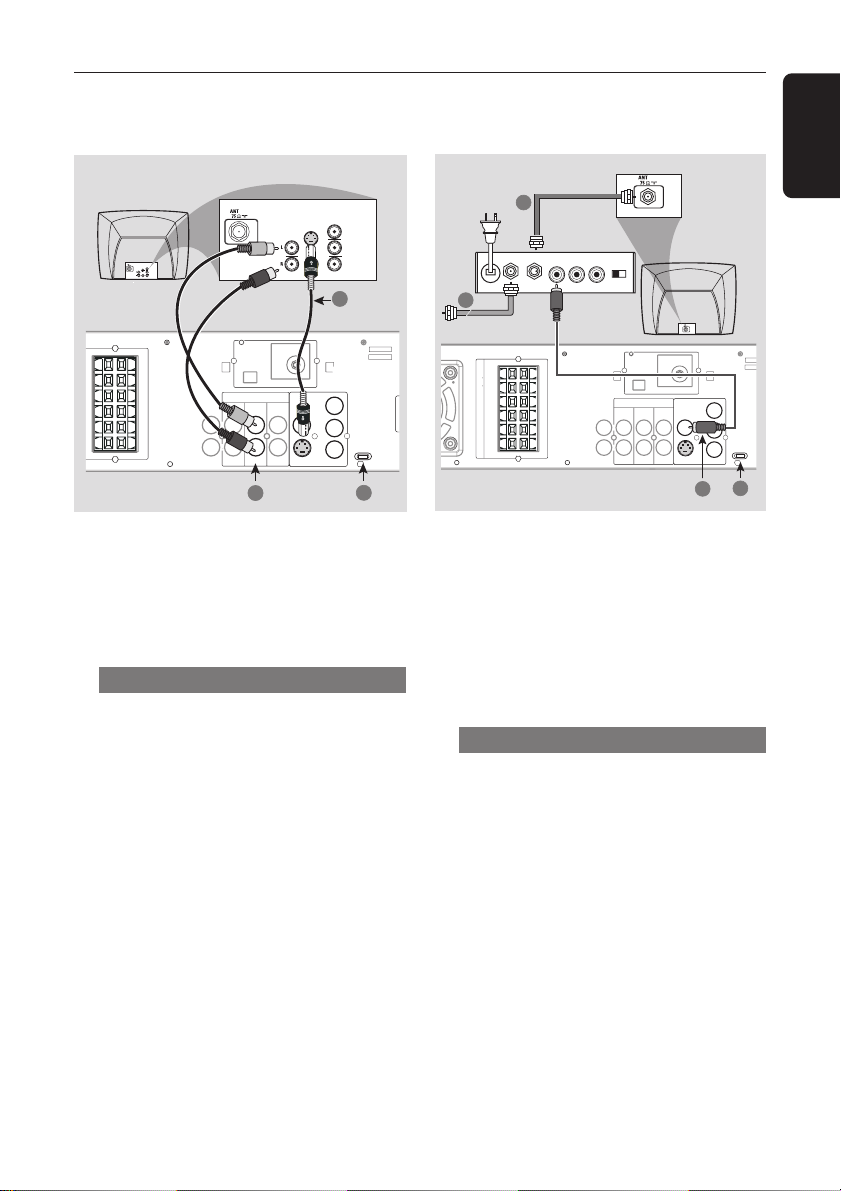

Step 3: Connecting TV ..................................... 12

Using Composite Video jack (CVBS) ....... 12

Using Component Video jack (Pr Pb Y)... 12

Using S-Video jack ........................................ 13

Using an accessory RF modulator ............ 13

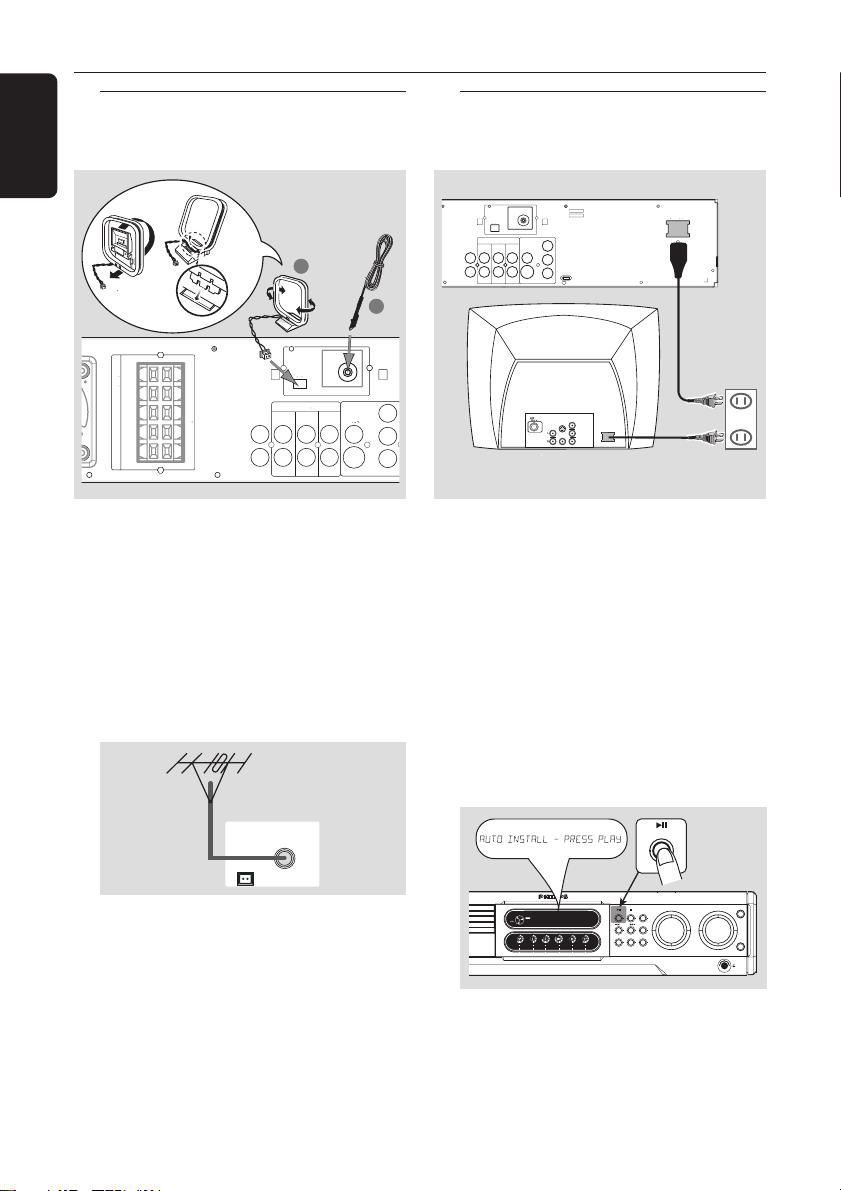

Step 4: Connecting FM/AM antennas ............. 14

Step 5: Connecting the power cord ............... 14

Connections (optional)

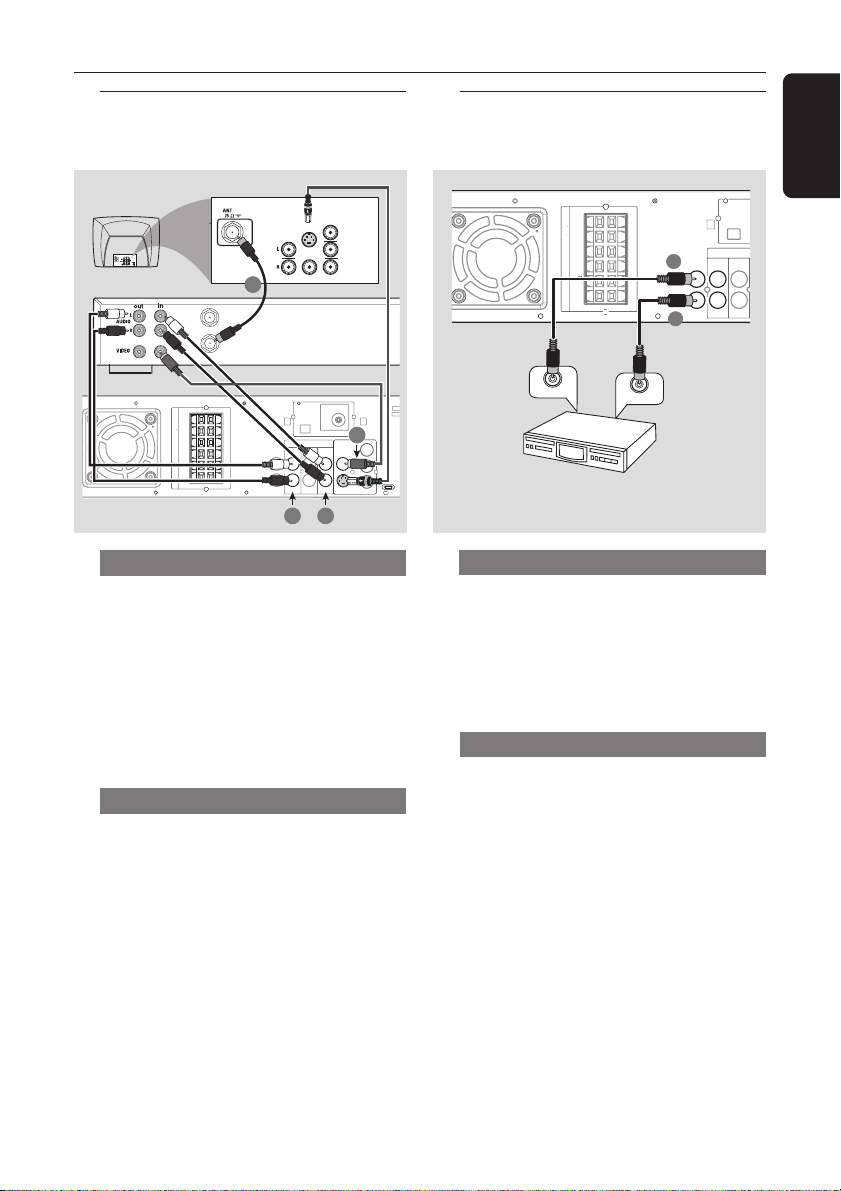

Connecting a VCR or Cable/Satellite Box .... 15

Viewing and listening to the playback ...... 15

Recording DVDs ........................................... 15

Connecting digital audio equipment .............. 15

Listening to the playback ............................ 15

Recording (digital) ........................................ 15

Functional Overview

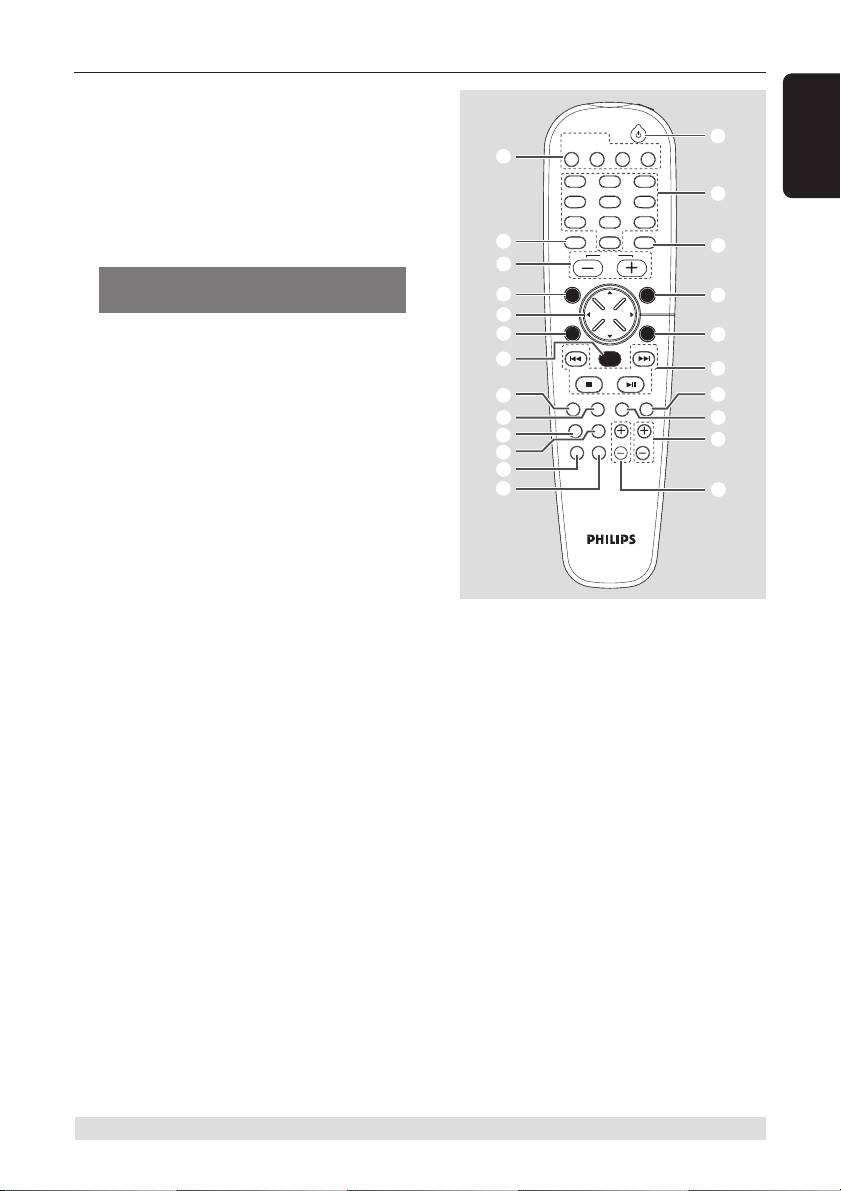

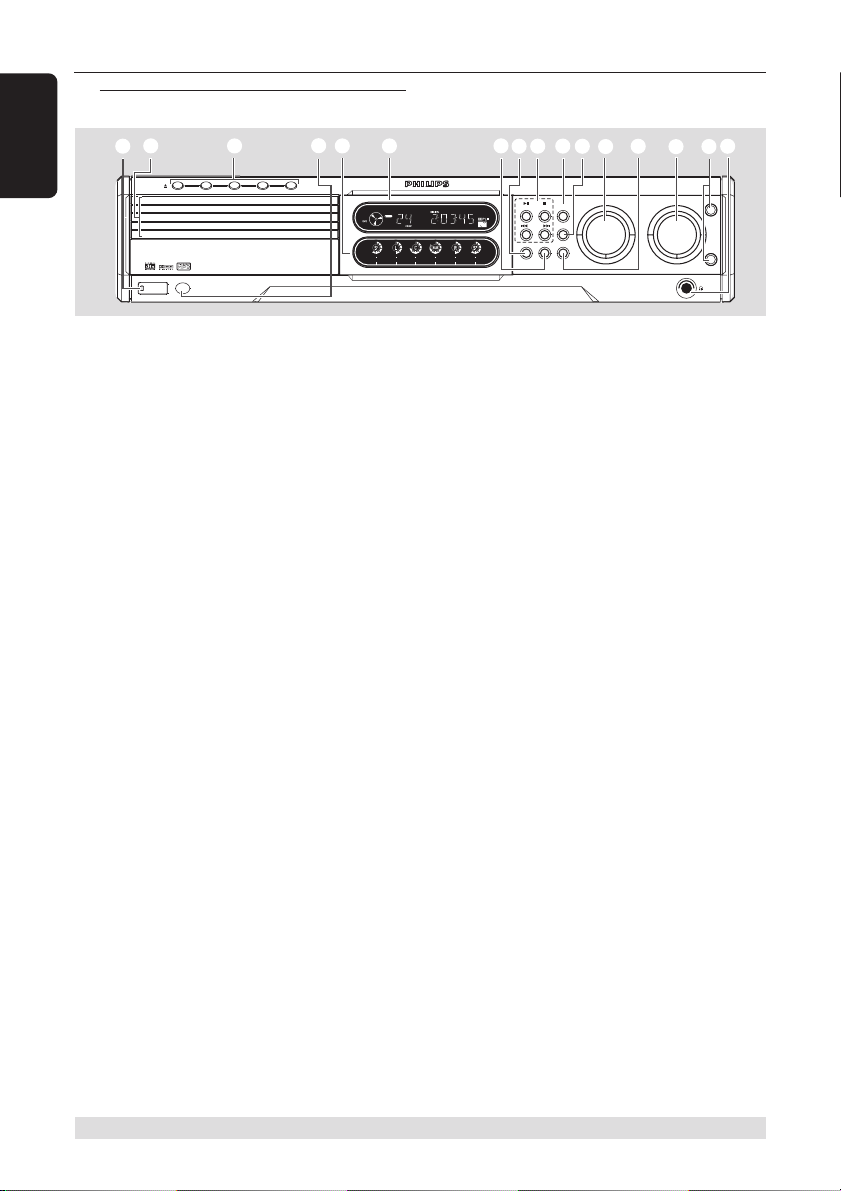

Main unit and remote control ......................... 16

Control buttons available on the

remote only ................................................... 17

Getting Started

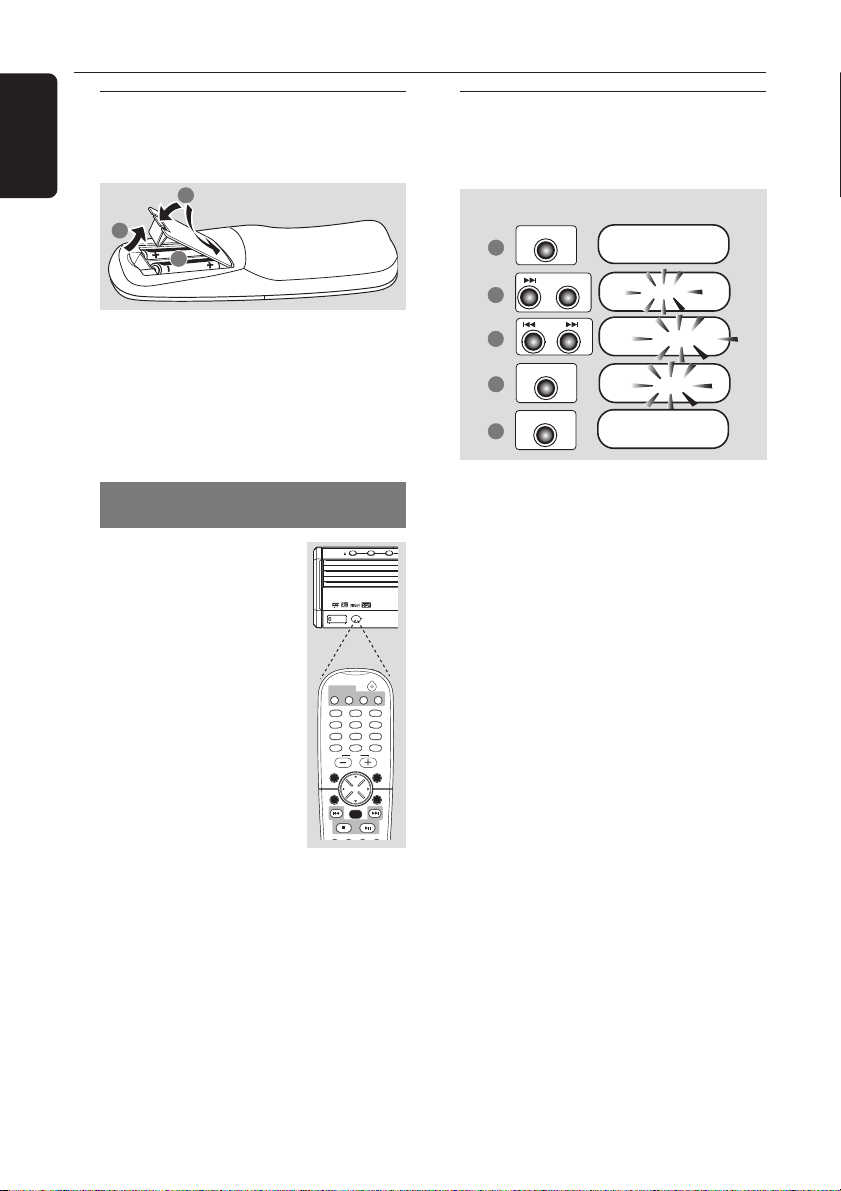

Step 1: Inserting batteries into the

remote control ................................................... 18

Using the remote control to operate the

system ............................................................. 18

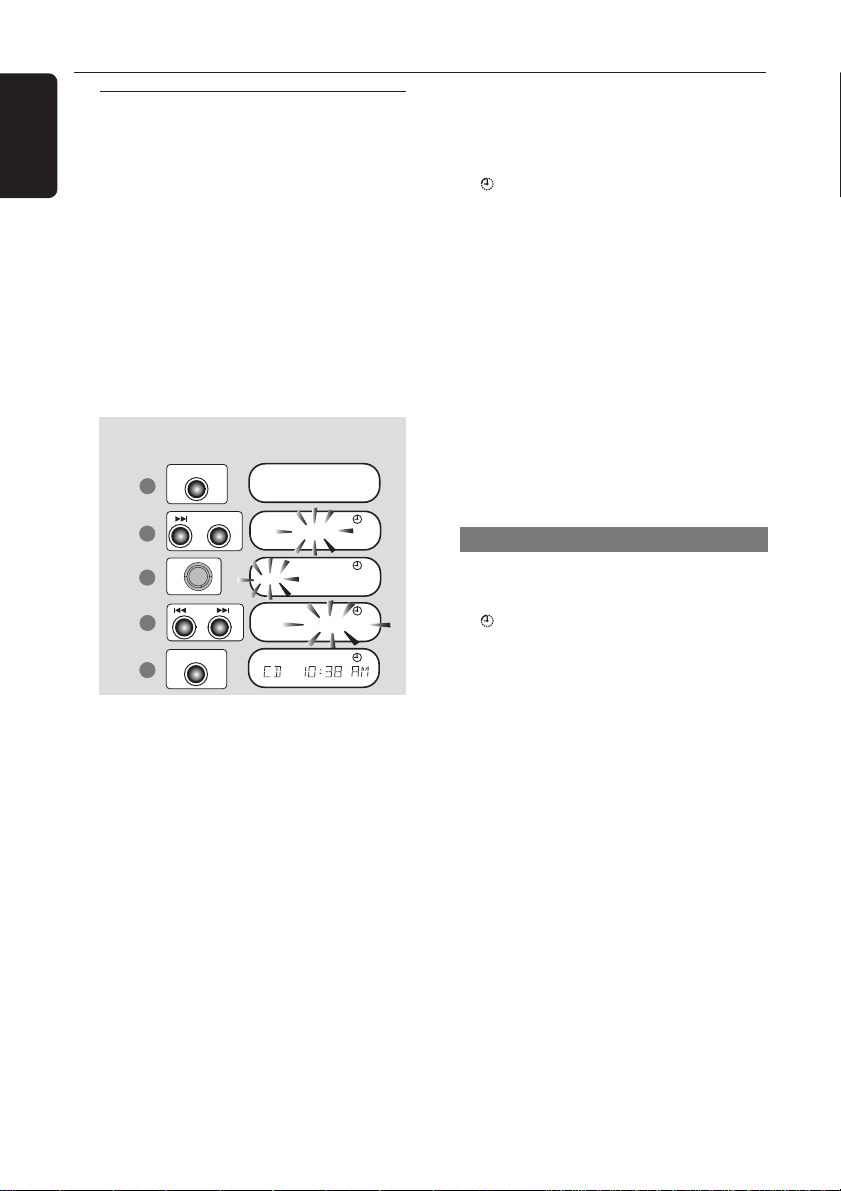

Step 2: Setting the clock ................................... 18

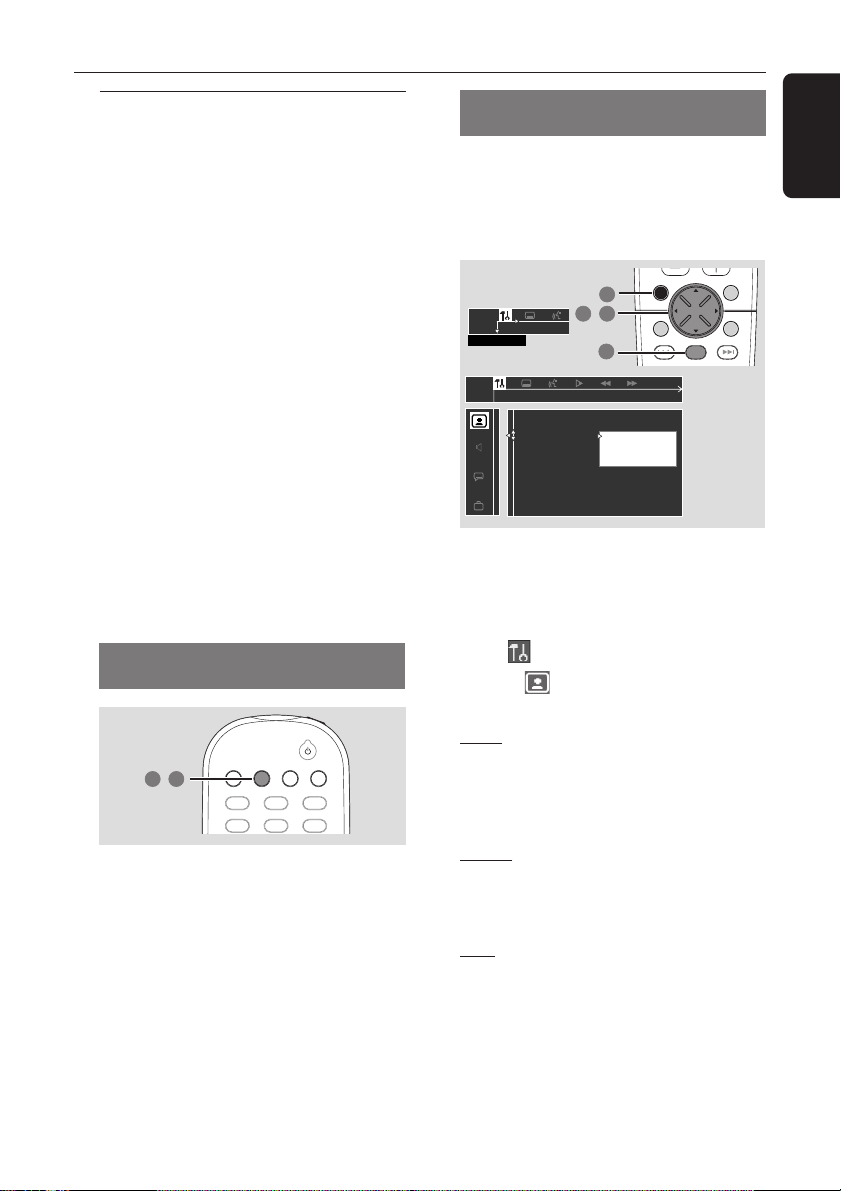

Step 3: Setting the TV ........................................ 19

Changing the NTSC/PAL setting via the

remote control.............................................. 19

Selecting the color system that

corresponds to your TV .............................. 19

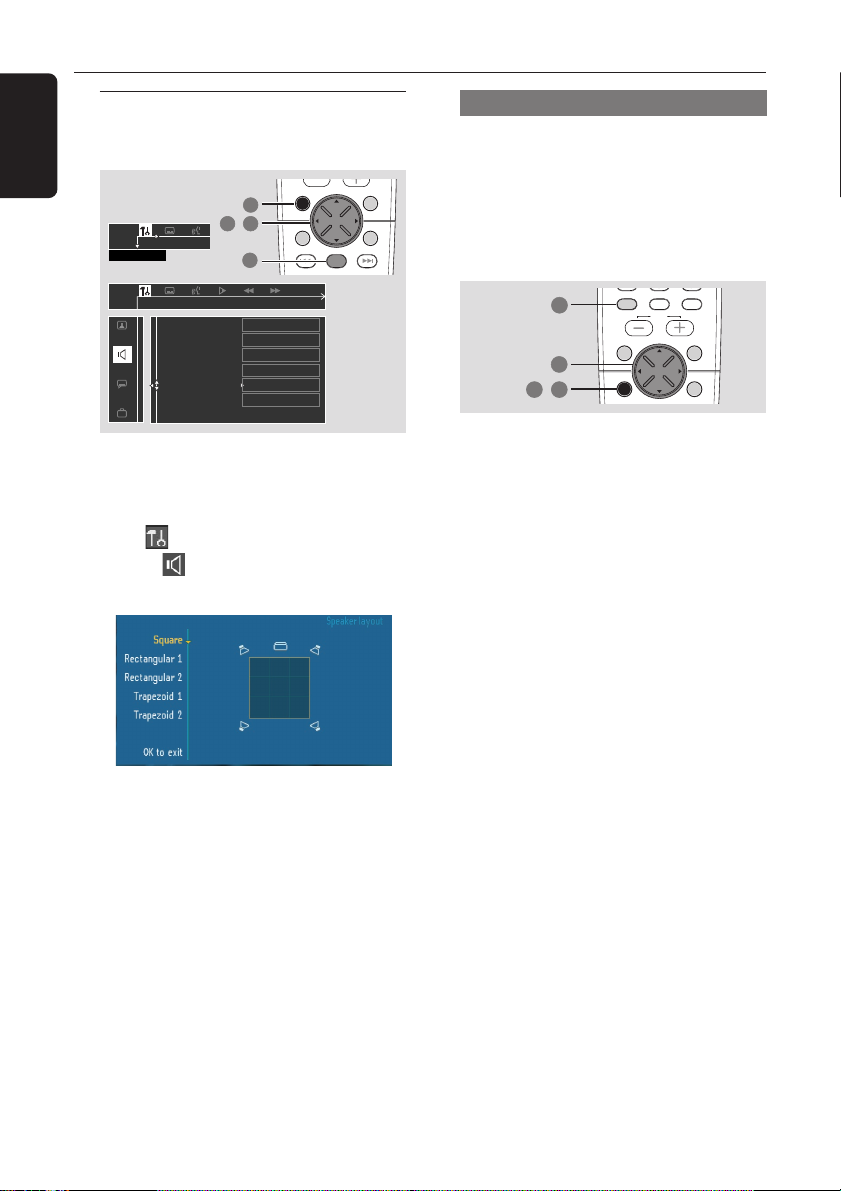

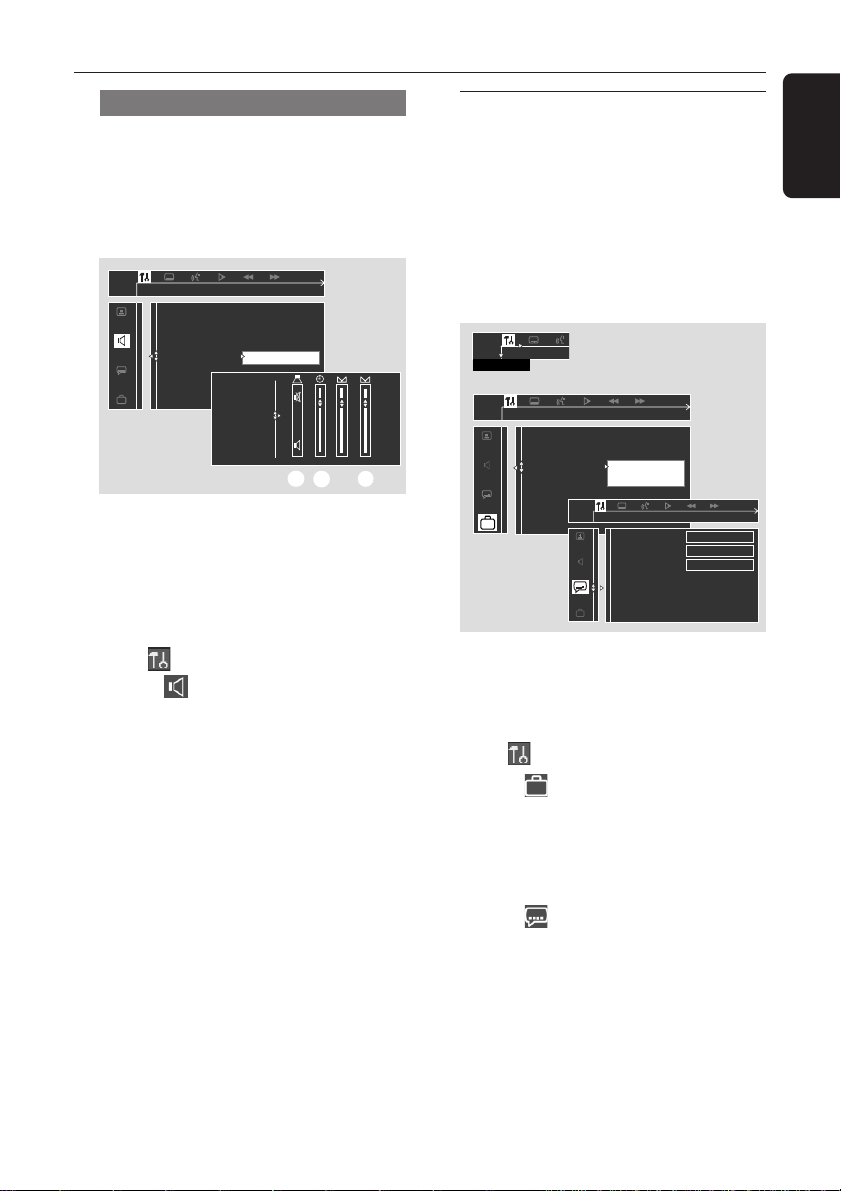

Step 4: Selecting speaker layout ...................... 20

Changing seating control position ............ 20

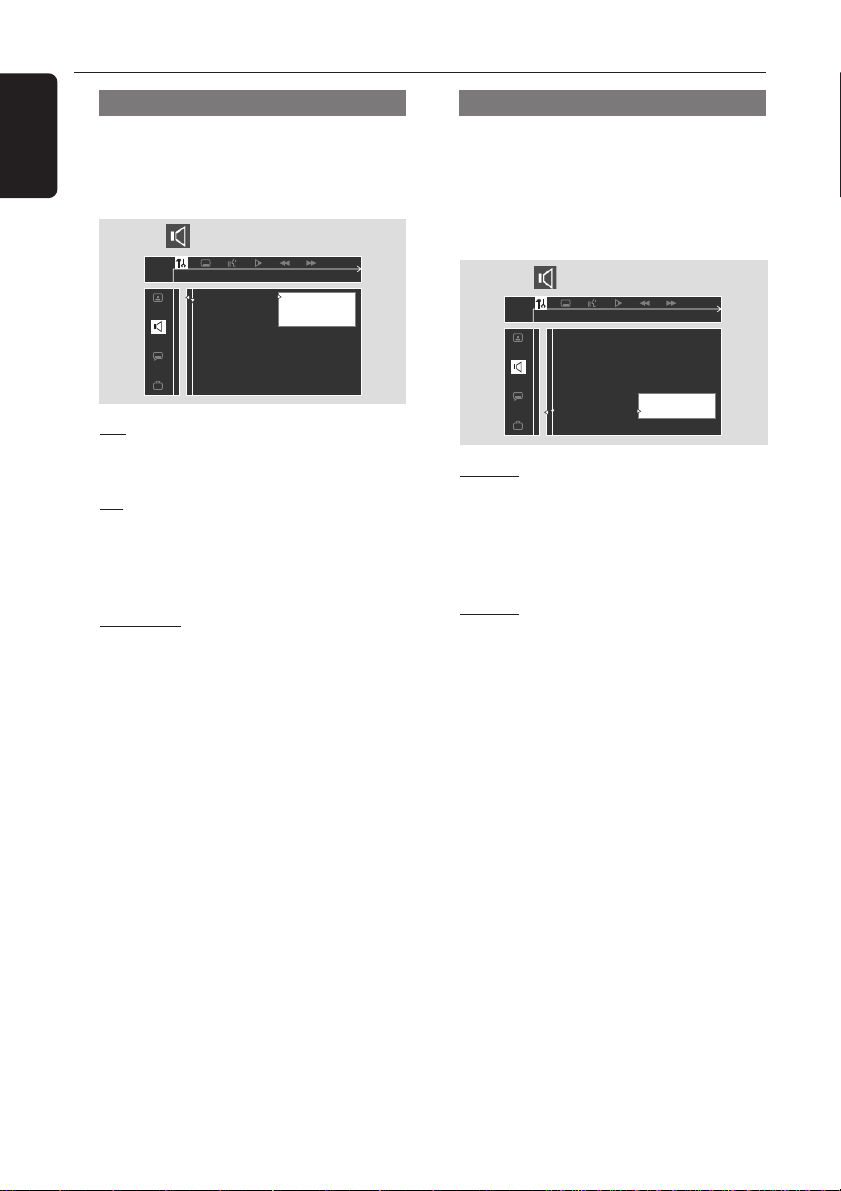

Setting the speakers’ channels ................... 21

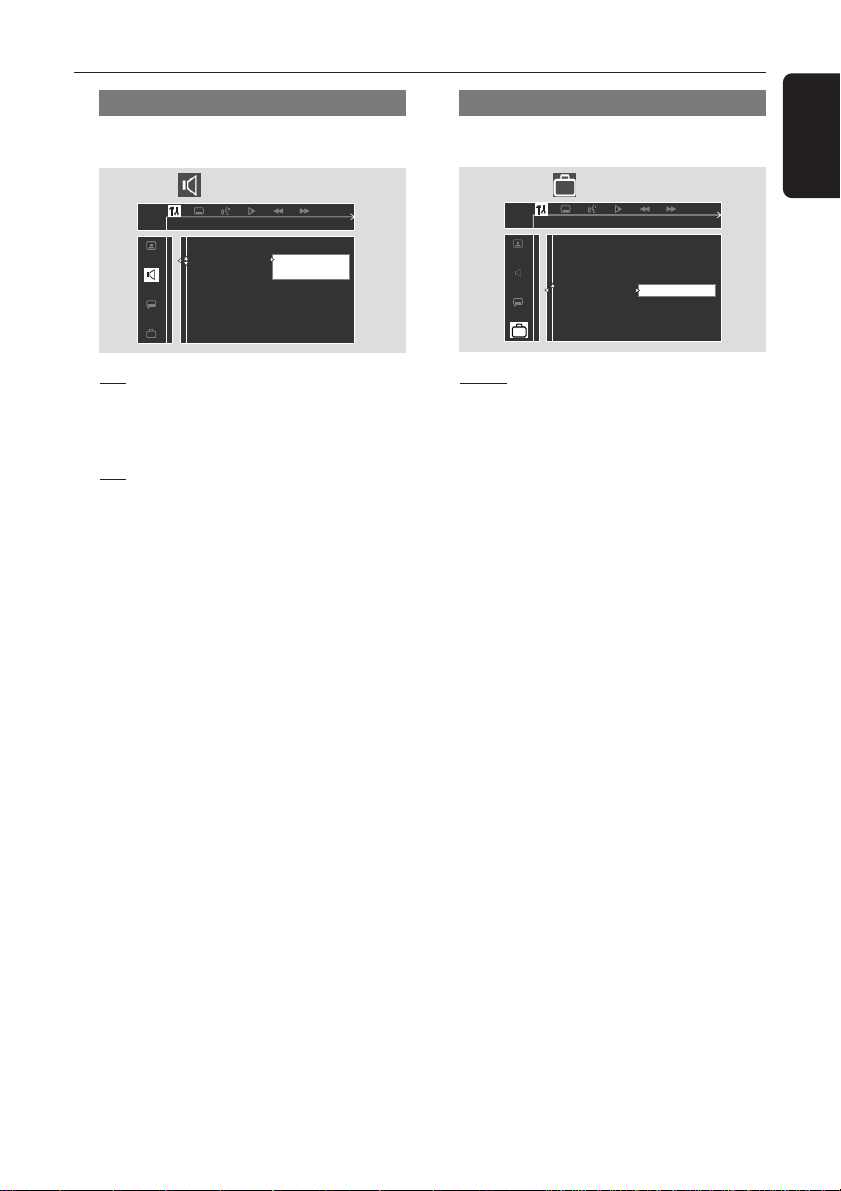

Step 5: Setting language preferences .............. 21

Disc Operations

Playable discs ....................................................... 22

Playing discs ......................................................... 22

Turning on/off auto Eco standby mode ... 23

Using the Disc Menu ......................................... 23

Basic playback controls ..................................... 23

Resuming playback from the last stopped

point (DVD/VCD) ........................................ 23

Replacing discs without interrupting

playback........................................................... 23

Selecting various repeat functions .................. 24

Repeat play mode ......................................... 24

Repeating a section within a

chapter/track ................................................. 24

Program favorite tracks

(audio CDs and VCDs) .............................. 24–25

Clearing the program .................................. 25

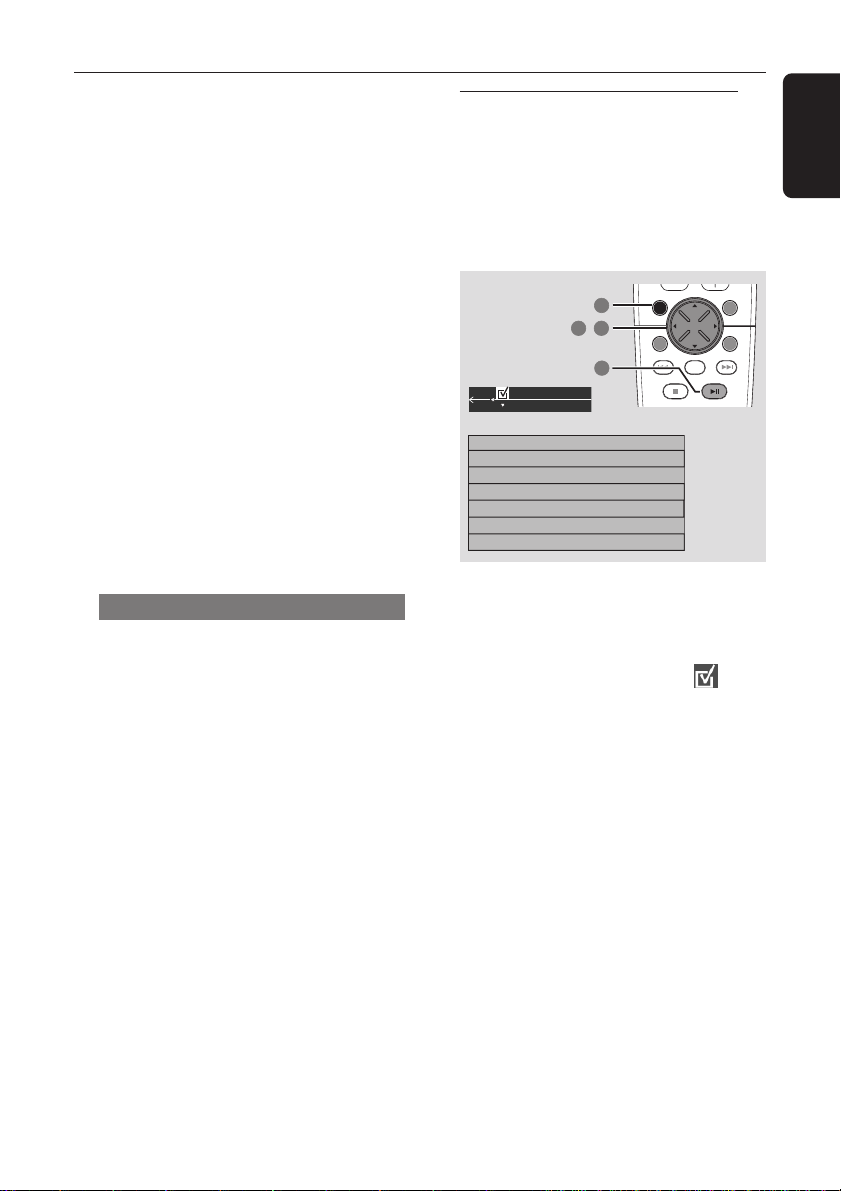

Using the menu bar to program ..................... 25

Playing MP3/Picture disc (Kodak, JPEG) ........ 26

Program MP3 disc .............................................. 26

DVD Menu Options

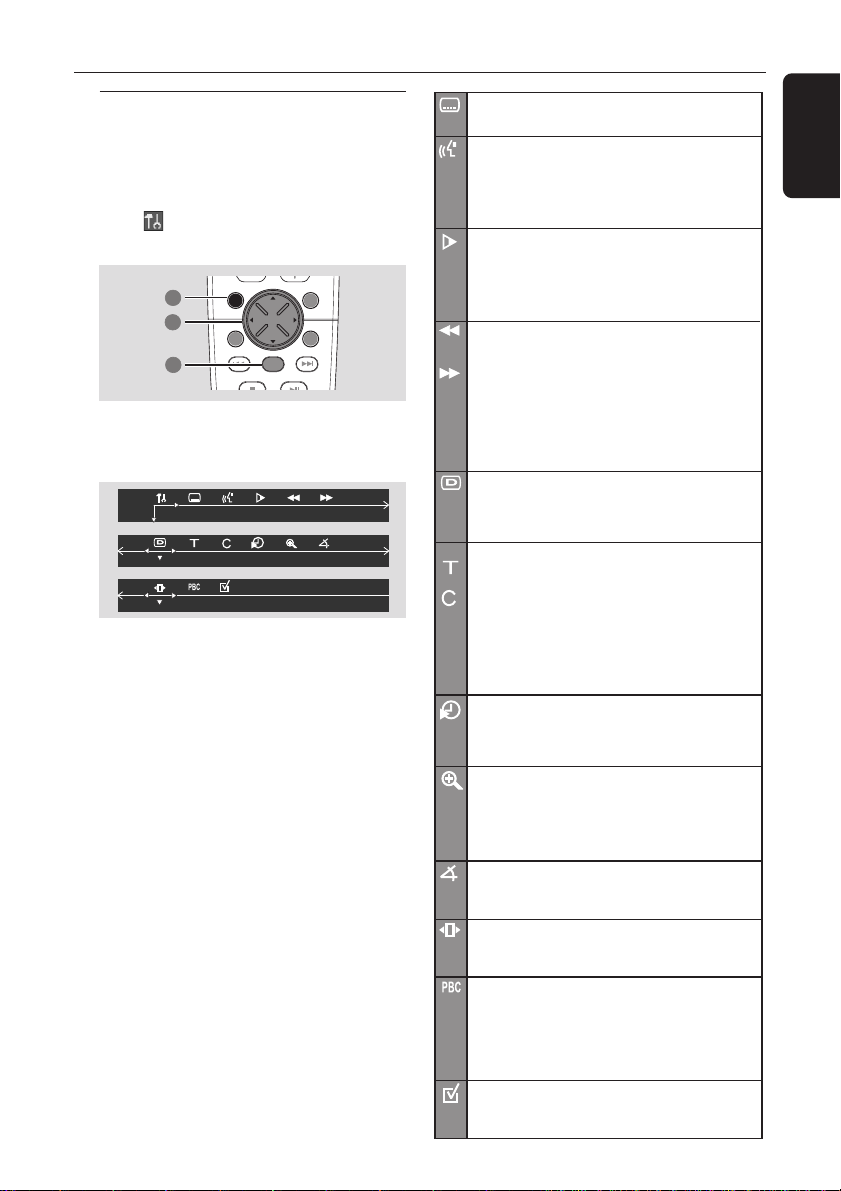

Using the menu bar ........................................... 27

Using the Setup Menu ....................................... 28

Setting the TV shape .................................... 28

Setting the video output ............................. 29

Screen saver - turning on/off...................... 29

Setting the analog output ............................ 29

Setting the digital output ............................ 30

Setting the PCM output .............................. 30

Night mode- turning on/off ........................ 31

Restoring the original settings ................... 31

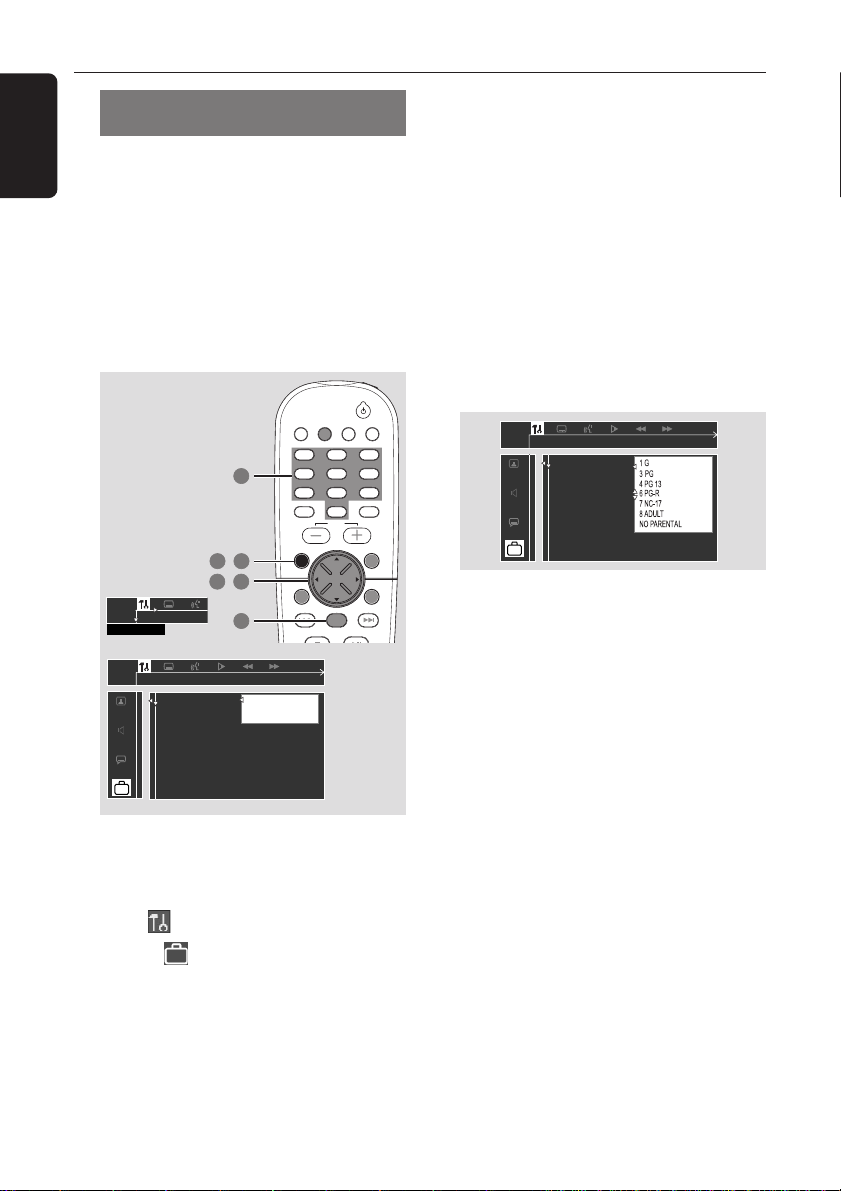

Restricting playback by parental control . 32

Changing the password ............................... 33

Tuner Operations

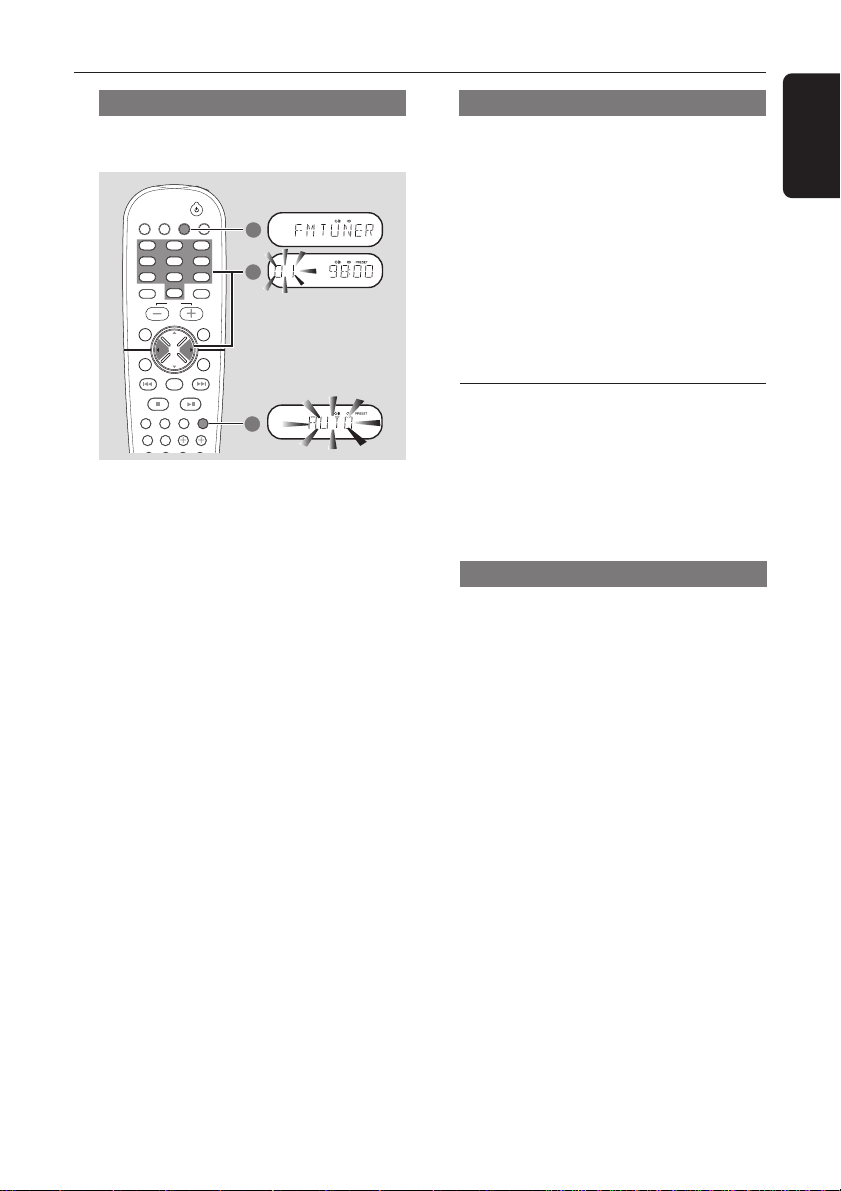

Tuning to radio stations .................................... 34

Presetting radio stations ................................... 34

Using the Plug and Play ............................... 34

Automatic presetting ................................... 35

Manual presetting ......................................... 35

Selecting a preset radio station ....................... 35

Deleting a preset radio station .................. 35

Page 11

Timer Operations

Setting the timer ................................................. 36

Activating/ Deactivating the timer ............ 36

Setting the Sleep timer ..................................... 37

Sound and Volume Controls

Sound Control .................................................... 38

Selecting surround sound ........................... 38

Turning on/off clear voice effect ............... 38

Adjusting Bass/ Treble level ........................ 38

Changing subwoofer volume level ............ 38

Selecting digital sound effects .................... 38

Volume Control .................................................. 38

Other Functions

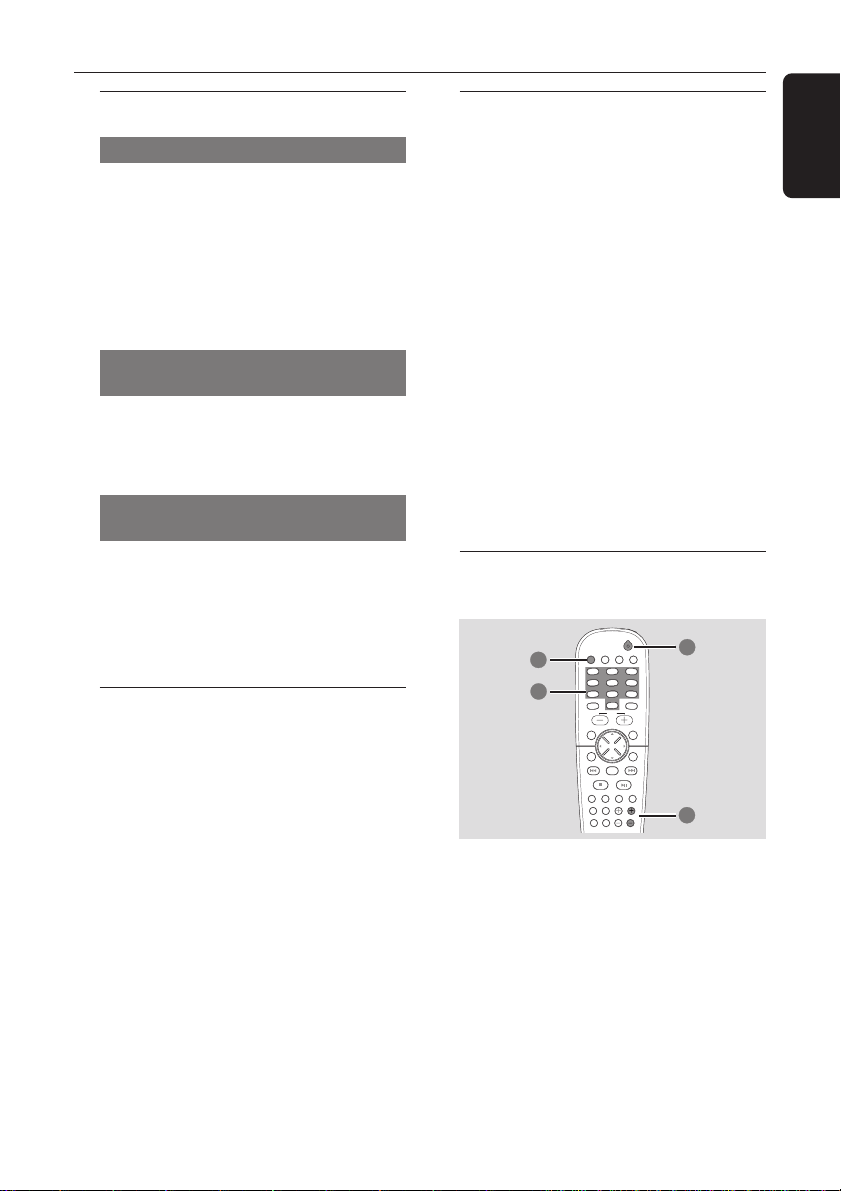

Switching on/off .................................................. 39

Switching to active mode ............................ 39

Switching to Eco Power standby mode ... 39

Switching to standby mode (view clock). 39

Dimming system’s display screen .................... 39

Recording to an external device ..................... 39

Using the remote to operate your television 39

Troubleshooting........................................... 40–41

Specifications .......................................................... 42

Contents

English

Glossary ......................................................................... 43

Limited Warranty.............................................. 44

Page 12

General Information

10 cm

(4 inches)

10 cm

(4 inches)

10 cm

(4 inches)

DVD Home Cinema System

PHILIPS

English

Supplied accessories Care and safety information

Avoid high temperatures, moisture,

Speaker cables

Subwoofer cable

Audio cable (white, red)

Composite video cable (yellow)

Component video cables (red/blue / green)

FM wire antenna

AM loop antenna

Remote Control and two AA batteries

AC power cable

Brackets and screws

DISC/

MEDIA

TV/AV

123

456

789

SURR.

VOL

SYSTEM MENU

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

REPEAT REPEATDISC SKIP

VOICE MUTE

DIM SLEEP SUB TV VOL

TUNER AUX/DI

A-B

SOUND

DISC MENU

PROGRAM

(4x)

(5x)

water and dust

– Do not expose the system, batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight.) Always keep the disc tray closed to avoid getting dust on the lens.

Avoid condensation problem

– The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Do not block the vents

– Do not operate the DVD system in an enclosed cabinet and allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.

Care of disc

– To clean a CD, wipe it in a straight line from the center towards the edge using a soft, lint-free cloth. Do not use cleaning agents, as they may damage the disc! – Write only on the printed side of a CD-R/CD-RW and only with a soft felttipped pen. – Handle the disc by its edge, do not touch the surface.

Care of the cabinet

– Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Finding a suitable location

– Place the player on a flat, hard, stable surface.

Page 13

Connections

DIGITAL

OUT

DIGITAL

AUX

SPEAKER SYSTEMS (4Ω)

SUB-

WOOFER SURROUND CENTER FRONT

SUB

AUDIO

INPUT

Speakers / Subwoofer - +

Front Left (FL) (L) black white

Front Right (FR) (R) black red

Center (C) black green

Surround Left (SL) black blue

Surround Right (SR) black gray

Subwoofer (SUB) black purple

Step 1: Placing the speakers

and subwoofer

Front Speaker

(Left)

Subwoofer

Center speaker and DVD system

Surround

Speaker (Left)

For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position.

1 Place the front left and right speakers at

equal distances from the TV and at an angle of approximately 45 degrees from the listening position.

2 Place the center speaker above the TV or

the DVD system so that the center channel’s sound is localized.

3 Place the surround speakers at normal

listening ear level facing each other or mounted on the wall.

4 Place the subwoofer on the floor near

the TV.

Helpful Hints: – To avoid magnetic interference, do not position the front speakers too close to your TV. – Allow adequate ventilation around the DVD system.

Front Speaker

(Right)

Surround

Speaker (Right)

Step 2: Connecting speakers

and subwoofer

Front Right

Center

Subwoofer

Surround

Right

Connect the supplied speaker systems using the supplied speaker cables by matching the colors of the jacks and speaker cables. Fully insert the stripped portion of the speaker wire into the jacks.

Helpful Hints: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. – Do not connect more than one speaker to any one pair of

+/- speaker jacks.

– Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Front

Left

Surround

Left

English

Page 14

Connections

SUB

P-SCAN

ON OFF

DIGITAL

OUT

DIGITAL

AUX

LINE OUT

AUDIO

VIDEO

OUT

CVBS

S-VIDEO

FM ANTENNA

SUB-

WOOFER SURROUNDCENTER FRONT

SUB

AUDIO

OUT

Pr/Cr

Pb/Cb

S-VIDEO

VIDEO IN

COMPONENT

VIDEO IN

AUDIO OUT

Pr/Cr

Pb/Cb

S-VIDEO

VIDEO IN

COMPONENT

VIDEO IN

English

Step 3: Connecting TV

AUDIO

OUT

COMPONENT VIDEO IN

S-VIDEO

Pr/Cr AUDIO OUT

Pb/Cb

VIDEO IN

SUB

WOOFER SURROUNDCENTER FRONT

DIGITAL

FM ANTENNA

AUDIO

LINE

AUX

OUT

IMPORTANT! – You only need to make connection from the following options, depending on the capabilities of your TV. – S-Video or Component Video connection provides higher picture quality. These options must be available on your TV. – Connect the DVD system directly to the TV.

Using Composite Video jack (CVBS)

1 Use the supplied composite video cable

(yellow) to connect the DVD system’s CVBS jack to the video input jack (or labeled as A / V In, Video In, Composite or Baseband) on the TV.

2 To hear the TV channels through this

DVD system, use the supplied audio cables (white/ red) to connect TV IN (L/R) jacks to the corresponding AUDIO OUT jacks on the TV.

3 Set the P-SCAN switch to ‘OFF.’

COMPONENT

VIDEO IN

S-VIDEO

VIDEO IN

VIDEO

OUT

CVBS

S-VIDEO

one video

Pr/Cr

Pb/Cb

P-SCAN

ON OFF

IMPORTANT! – If both S-Video and Component (Pr Pb Y) Video are used to connect to your TV, the video signal will automatically switch to S-Video when you power up the DVD system. To set the VIDEO OUT(put) to ‘Pr Pb Y’, see page 29.

Using Component Video jacks (Pr Pb Y)

1 Use the supplied component video cables

(red/blue/ green) to connect the DVD system’s Pr Pb Y jacks to the corresponding Component video input jacks (or labeled as Pr/ Cr Pb /Cb Y or YUV) on the TV.

2 To hear the TV channels through this

DVD system, use the supplied audio cables (white/red) to connect TV IN (L/ R) jacks to the corresponding AUDIO OUT jacks on the TV.

3 If you are using a Progressive Scan TV

(TV must indicate Progressive Scan or ProScan capability), set the P-SCAN switch to ‘ON’. Otherwise, set it to ‘OFF.’

Page 15

Connections

DIGITAL

OUT

DIGITAL

AUX

TVINLINE

OUT

AUDIO

VIDEO

OUT

CVBS

S-VIDEO

FM ANTENNA

SPEAKER SYSTEMS

SUB-

WOOFER SURROUNDCENTER FRONT

SUB

AUDIO IN R L

VIDEO

TO TVINT IN

CH3 CH4

P-SCAN

ON OFF

English

RF coaxial cable to TV

COMPONENT

VIDEO IN

S-VIDEO

Pr/Cr

AUDIO

OUT

Pb/Cb

COMPONENT

VIDEO IN

S-VIDEO IN

Pr/Cr AUDIO OUT

Pb/Cb

VIDEO IN

Antenna or Cable TV signal

SUB

WOOFER SURROUNDCENTER FRONT

DIGITAL

FM ANTENNA

AUDIO

VIDEO

OUT

LINE

AUX

OUT

CVBS

OUT

P-SCAN

ON OFF

S-VIDEO

Back of RF Modulator (example only)

IMPORTANT! – If the picture is distorted, check the Video Output setting. Make sure it is set to ‘S-Video’, see page

29.

Using S-Video jack

1 Use an S-video cable (not supplied) to

connect the DVD system’s S-VIDEO OUT jack to the S-Video input jack

(or labeled as Y /C or S-VHS) on the TV.

2 To hear the TV channels through this

DVD system, use the supplied audio cables (white/ red) to connect TV IN (L/R) jacks to the corresponding AUDIO OUT jacks on the TV.

3 Set the P-SCAN switch to ‘OFF.’

IMPORTANT! If your TV only has a single Antenna In jack (labeled as 75 ohm or RF In), you will need an RF modulator in order to view DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

Using an accessory RF modulator

1 Use the supplied composite video cable

(yellow) to connect the DVD system’s CVBS jack to the video input jack on the RF modulator.

2 Use an RF coaxial cable (not supplied) to

connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the TV.

3 Connect the Antenna or Cable TV

service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)

4 Set the P-SCAN switch to ‘OFF.’

Page 16

Connections

DIGITAL

OUT

DIGITAL

AUX IN

TVINLINE

OUT

AUDIO

VIDEO

OUT

CVBS

S-VIDEO

FM ANTENNA

~ AC MAINS

AUDIO

OUT

Pr/Cr

Pb/Cb

S-VIDEO

VIDEO IN

COMPONENT

VIDEO IN

P-SCAN

ON OFF

DVD VIDEO DIGITAL SURROUND SYSTEM

STOPPLAY•PAUSE SEATING

TREBLE

BASS

SOURCE

VOLUME

PROG TUNING CLOCK•TIMER

SURROUND

ISC CHANGER

SURR. LEFT SURR. RIGHT LEFT RIGHTCENTER SUBWOOFER

PLAY•PAUSE

AUTO INSTALL - PR

English

Step 4: Connecting FM/AM

antennas

➠

fix the claw

into the slot

SPEAKER SYSTEMS

1 Connect the supplied AM loop antenna

to the AM jack. Place the AM loop antenna on a shelf or attach it to a stand or wall.

2 Connect the supplied FM antenna to the

FM jack. Extend the FM antenna and fix its ends to the wall.

For better FM stereo reception, connect an external FM antenna (not supplied.)

SUB

SUB-

WOOFER SURROUND CENTER FRONT

DIGITAL

OUT

antenna

AUX

AUDIO

TVINLINE

FM ANTENNA

VIDEO

OUT

S-VIDEO

antenna

OUT

CVBS

Step 5: Connecting the

power cord

After everything is connected properly, plug the AC power cord into the power outlet.

Never make or change any connections with the power switched on.

On the DVD system,

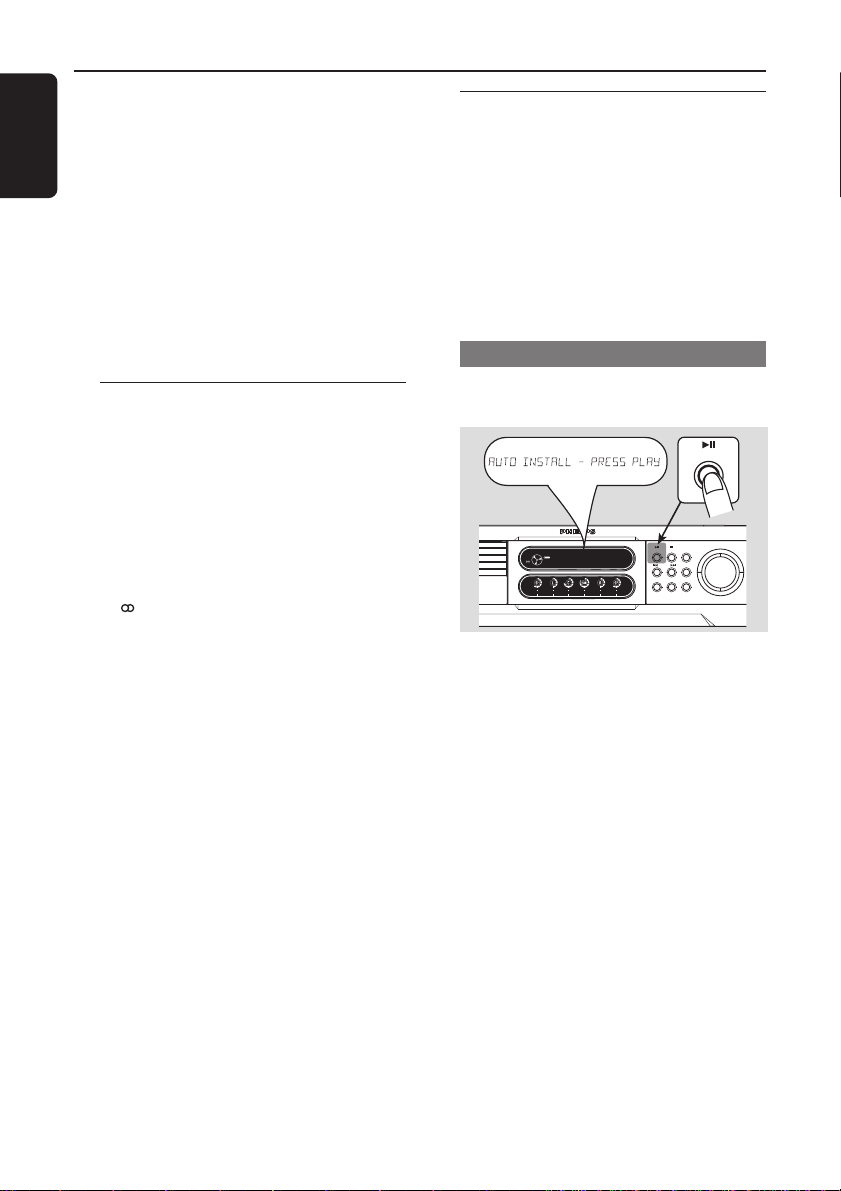

"AUTO INSTALL – PRESS PLAY" may appear on the display panel. Press ÉÅ on the front panel to store all available radio stations or press Ç to exit (see page 34 “Tuner Operations”.)

Power Outlet

FM ANTENNA

Helpful Hints: – Adjust the position of the antennas for optimal reception. – Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.

Page 17

Connections (optional)

DIGITAL

OUT

DIGITAL

AUX IN

TV IN

AUDIO

SPEAKER SYSTEMS

SUB-

WOOFER SURROUNDCENTER FRONT

SUB

DIGITAL IN

DIGITAL OUT

Connecting digital audio equipment

COMPONENT

VIDEO IN

S-VIDEO

AUDIO

ANT IN

VCR or Cable/Satellite Box

TO TV

DIGITAL

OUT

SPEAKER SYSTEMS

SUB

SUB-

WOOFERSURROUND CENTER FRONT

DIGITAL

Viewing and listening to the playback

1 Connect the VCR or Cable/ Satellite Box

to the TV as shown.

2 Connect the DVD system’s AUX IN

(R/ L) jacks to the AUDIO OUT jacks on

the VCR or cable/satellite box.

Before starting operation, press AUX / DI on the remote to select “AUX” in order to activate the input source.

Recording DVDs

Some DVDs are copy-protected. You cannot record or dub protected discs using a VCR.

3 Connect the DVD system’s CVBS jack

to the VIDEO IN jack on the VCR.

4 Connect the DVD system’s LINE OUT

(R / L) jacks to the AUDIO IN jacks on the

VCR. This will allow you to make analog stereo (two channel, right and left) recordings.

To view DVD playback while recording, you must connect the DVD

system to your TV using the S-VIDEO (as shown above) or the Component (Pr Pb Y) video connection.

Pr/Cr

OUT

Pb/Cb

VIDEO IN

FM ANTENNA

AUDIO

VIDEO

OUT

LINE

AUX

CVBS

OUT

ON OFF

S-VIDEO

Connecting a VCR or Cable/Satellite Box

P-SCAN

Listening to the playback

1 Connect the DVD system’s DIGITAL

IN jack to the DIGITAL OUT jack on a

digital audio device.

Before starting operation, press AUX / DI on the remote to select “DIG IN” in order to activate the input source.

Recording (digital)

2 Connect the DVD system’s DIGITAL

OUT jack to the DIGITAL IN jack on a

digital recording device (DTS-Digital Theater System compatible, with a Dolby Digital decoder, for example.)

Before starting operation, set the DIGITAL OUTPUT according to the audio connection. (See page 30 “Setting the digital output”.)

Helpful Hints: – Some DVDs are copy-protected. You cannot record the disc through a VCR or digital recording device. – Always refer to the owner’s manual of the other equipment for complete connection and usage details.

(for example) CD Recorder

English

Page 18

Functional Overview

English

Main unit and remote control

OPEN•CLOSE

DISC 1

DISC 2

DISC 3

DISC 4

DISC 5

STANDBY-ON

DISC 1 DISC 2 DISC 3 DISC 4 DISC 5

iR SENSOR

5 DISC CHANGER

1 STANDBY ON

– Switches to Eco Power standby mode or

turns on the system. (see page 39)

– *Switches to standby mode. (see page 39)

2 Disc trays 1~5

3 OPEN • CLOSE 0 (DISC1~5)

– Opens / Closes the individual disc tray.

4 iR SENSOR

– Point the remote control towards this

sensor.

5 Speaker display panel

6 System display panel

7 TUNING

– Switches between frequency tuning and

preset tuning mode. (see pages 34–35)

8 PROG (PROGRAM)

– DISC: starts programming. (see pages

22–23)

– TUNER: starts *automatic/ manual preset

programming. (see page 35)

– CLOCK: selects 12- or 24-hour clock

display. (see page 18)

9 ÉÅ PLAY•PAUSE

– DISC: starts/pauses playback. (see page 23) – TUNER: *enters Plug & Play mode and / or

starts preset radio station installation (only on the main unit.) (see page 34)

Ç STOP

– Exits an operation. – DISC: stops playback or *clears a program.

(see page 23, 25)

– TUNER: *erases a preset radio station.

(see page 35)

653

SURR. LEFT SURR. RIGHT LEFT RIGHTCENTER SUBWOOFER

PROG TUNING CLOCK•TIMER

STOPPLAY•PAUSE SEATING

SURROUND

DVD VIDEO DIGITAL SURROUND SYSTEM

SOURCE

VOLUME

TREBLE

BASS

S SEARCH T (PREV/ NEXT)

– DISC: *searches backward / forward or

selects a track. (see page 23)

– TUNER: tunes the radio frequency up /

down or selects a preset radio station.

(see pages 34–35)

(On the remote, it can only tune the radio frequency up/down.)

– CLOCK: sets the minutes and hours.

(see pages 18, 36)

0 SEATING (only available in Multi-

channel mode)

– Turns on / off the seating control diagram

on the TV. Use the VOLUME control on the main unit or joystick on the remote to select the desired seating position.

(see page 20)

! SURROUND (SURR.)

– Selects multichannel surround, 3D sound

or stereo mode. (see page 38)

@ SOURCE

– Selects the relevant active mode : TV/AV,

DISC, TUNER or AUX/DI.

– DISC: toggles between DISC 1~5. – TUNER: toggles between FM and AM band. – AUX/DI: toggles between AUX and DIG

IN (Digital Input) mode.

# CLOCK•TIMER

– *Enters clock or timer setting mode.

(see pages 18, 36)

– Shows clock display for a few seconds.

(see page 18)

$ VOLUME (VOL +-)

– Adjusts the volume level.

* = Press and hold the button for more than two seconds.

Page 19

∞

% BASS / TREBLE

– Selects bass or treble sound. Use the

VOLUME control to select the desired enhancement level. (see page 38)

^ n

– Plugging in the headphones jack.

The speakers output will be cancelled.

Control buttons available on the remote only

& SYSTEM MENU (DVD mode only)

– Enters or exits system setup menu.

(see pages 27–28)

* Joystick 1 2 3 4

– Selects movement direction in the menu. – Use 1 2 to select a preset radio station.

(see page 35)

( OK

– Confirms a selection.

) DISC SKIP

– Selects next disc tray for playback.

(see page 23)

¡ REPEAT

– Selects various repeat modes. (see page

24)

™ VOICE (only available in Multi-channel

mode)

– Turns on / off clear voice sound effect.

(see page 38)

£ MUTE

– Mutes or restores the volume.

(see page 38)

≤ DIM

– Selects different levels of brightness for

display panel. (see page 39)

∞ SLEEP

– Sets the sleep timer function. (see page 37)

§ SUB +-

– Adjusts subwoofer’s sound level.

(see page 38)

≥ TV VOL +-

– Adjusts TV volume (Philips TV only.)

(see page 39)

Functional Overview

DISC/

AUX/DI

TUNER

MEDIA

! $

& * 0

(

)

¡ ™ £

TV/AV

123

456

789

SURR.

SYSTEM MENU

SEATING ZOOM

PREV NEXT

VOICE MUTE

DIM SLEEP SUB TV VOL

VOL

STOP PLAY/PAUSE

REPEAT REPEATDISC SKIP

A-B

SOUND

PROGRAM

DISC MENU

≤

• REPEAT A-B

– Repeats a specific section on a disc.

(see page 24)

ª ZOOM

– Enlarges a picture on the TV screen.

º DISC MENU

– Enters or exits disc contents menu.

(see page 23)

– For VCD version 2.0 only;

In stop mode, turns on / off playback control (PBC) mode. During playback, returns to main menu.

⁄ SOUND

– Selects a sound effect. (see page 38)

¤ Numeric Keypad (0-9)

– Enters a track/title number of the disc. – Enters a number of a preset radio station.

‹ B

– Switches to Eco Power standby mode.

(see page 39)

– *Switches to standby mode. (see page 39)

‹

⁄

• ≥

English

* = Press and hold the button for more than two seconds.

Page 20

Getting Started

English

Step 1: Inserting batteries

into the remote control

1 Open the battery compartment. 2 Insert two batteries type R06 or AA,

following the indications (+-) inside the compartment.

3 Close the cover.

Using the remote control to operate the system

1 Aim the remote control

directly at the remote sensor (iR) on the front panel.

2 Select the source you wish

to control by pressing one of the source select buttons on the remote control (for example TV/AV, TUNER.)

3 Then select the desired

function (for example ÉÅ,

T).

CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.

OPEN•CLOSE

DISC 1 DISC 2 DISC 3

DISC 1

DISC 2

DISC 3

DISC 4

DISC 5

iR SENSOR

STANDBY-ON

DISC/

TUNER

MEDIA

TV/AV

123

456

789

SURR.

VOL

SYSTEM MENU

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

REPEAT REPEATDISC SKIP

Step 2: Setting the clock

The clock can be set in either 12-hour or 24-hour mode ("12:00 AM" or "00:00" for example).

buttons on front panel

CLOCK•TIMER

PROG

CLOCK•TIMER

1 Press STANDBY ON to switch on the

DVD system.

2 Press and hold CLOCK•TIMER until

"SELECT CLOCK OR TIMER" appears.

3 Press T (if necessary) to change the

display to "CLOCK", then press CLOCK•TIMER again to confirm.

4 Press S / T to set the minutes and

AUX/DI

SOUND

DISC MENU

hours. To increase the speed, hold down S or T.

➜ The changes in minutes will roll over

to the hours.

5 Press PROG to change between 12-hour

and 24-hour clock mode.

PROGRAM

6 Press CLOCK•TIMER again to store

the setting.

➜ The clock will start working.

To view the clock time in any active mode

● Press CLOCK•TIMER. ➜ The clock will display for a few seconds.

Helpful Hints: – If the DVD system is disconnected from the power supply, it will erase the clock setting. – If you do not press any buttons within 90 seconds, the system will exit clock setting mode.

DVD system’s display panel

SELECT CLOCK OR

CLOCK

01:38 PM

13:38

Page 21

Getting Started

SETUP MENU

Auto NTSC PAL

Set TV system

TV Shape

TV System

Video Output

Screen Saver

DISC MENUSYSTEM MENU

SEATING ZOOM

PREV NEXT

2 3

Step 3: Setting the TV

IMPORTANT! Make sure you have completed all the necessary connections. (See pages 12–13 “Connecting TV”.)

1 Adjust SOURCE control until “DISC X”

appears on the display panel (or press DISC/MEDIA on the remote.)

2 Turn on the TV and set to the correct

video-in channel. You should see the blue Philips DVD background screen on the TV.

➜ Usually this channel is between the

lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details.

➜ Or, you may go to channel 1 on your TV,

then press the Channel down button repeatedly until you see the Video In channel.

➜ Or, the TV remote control may have a

button or switch that chooses different video modes.

➜ Or, set the TV to channel 3 or 4 if you

are using an RF modulator.

Changing the NTSC/ PAL setting via the remote control

DISC/

AUX/DI

TUNER

MEDIA

1 2

1 Press DISC/ MEDIA on the remote to

enter disc mode.

➜ Make sure no MP3 or picture (Kodak,

JPEG) disc is in disc tray 1.

➜ Wait until the system finishes reading

the discs before proceeding to next step. If playback begins, press Ç to stop playback.

2 Press and hold DISC/ MEDIA on the

remote until “PAL” or “NTSC” appears on the display panel.

➜ To change the setting, repeat step

TV/AV

123

456

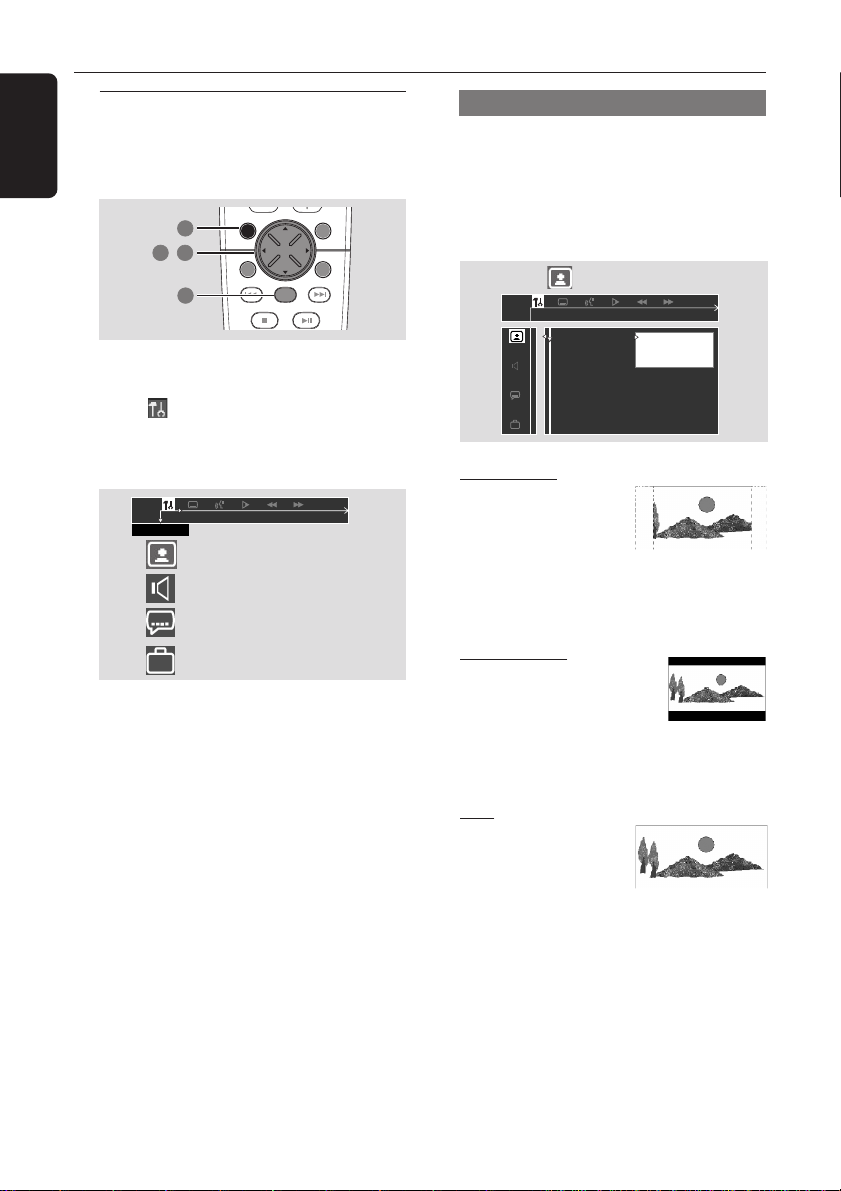

Selecting the color system that corresponds to your TV

This DVD system is compatible with both NTSC and PAL. In order for a DVD to play on this DVD system, the color system of the DVD, the TV and the DVD system should match.

➠

1 In disc mode, stop playback and press

SYSTEM MENU.

2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

3 Select icon and press 4.

Move to Move to {TV System} and press 2.

Auto – Select this if the connected TV is compatible with both NTSC and PAL (multi-system.) The output format will be in accordance with the video signal of the disc.

NTSC – Select this if the connected TV has the NTSC color system. It will change the video signal of a PAL disc (VCD only) and output it to NTSC format.

PAL – Select this if the connected TV has the PAL color system. It will change the video signal of an NTSC disc and output it to PAL format.

and press 2.

4 Select an item and press OK.

To remove the menu

Press SYSTEM MENU.

English

Page 22

Getting Started

DISC MENUSYSTEM MENU

SEATING ZOOM

VOL

789

SOUND

SURR.

2 4

English

Step 4: Selecting speaker

layout

2 3

SETUP MENU

➠

Digital Output

Night mode

Analog Output

Speakers

Speaker Layout

PCM Output

Speaker Layout Settings

1 In disc mode, press SYSTEM MENU. 2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

3 Select icon and press 4.

Move to Move to {Speaker Layout} and press 2.

and press 2.

Personal

4 Select the layout that most closely

resembles your speakers’ arrangement, then press OK.

➜ The speaker output will adjust

automatically to suit the selected speaker layout settings based on the seating position in the middle. To change the seating position, see “Changing seating control position.”

➜ If you choose {Personal,} the speaker

output will follow the settings in the ‘Speakers‘ menu. (See next page “Setting the speakers’ channels”.)

To remove the menu

Press SYSTEM MENU.

Off

Multi-channel

Personal settings ...

Square

96 kHz

DISC MENUSYSTEM MENU

SEATING ZOOM

PREV NEXT

Changing seating control position

Normally, the best sound spot and the ideal setting position is in the middle of the room. With this ‘SEATING’ feature, it allows you to select the current seating position in the room and the speaker setting will automatically be adjusted for optimum performance.

1 Press SURR. (or SURROUND on the

front panel) repeatedly to select ‘Multi- channel’.

2 Press SEATING.

➜ The seating control diagram which

represents your current speaker layout appears on the TV screen. To change the speaker layout, see “Selecting speaker layout.”

3 Use the joystick (1 2 3 4) on the

remote (or VOLUME control on the front panel) to select your current seating position.

➜ During playback, you can hear the

changing of sound effect when you change the seating position.

➜ If you do not press any buttons within

five seconds, the seating control diagram will exit from the TV and the system will execute the last selected seating position.

4 If you want to remove the seating control

feature, press SEATING twice.

➜ “PERSONAL SETTING” appears and

the system will revert to the personal speaker settings.

Page 23

Getting Started

English Français

Parental

Password

Defaults

Menu Language

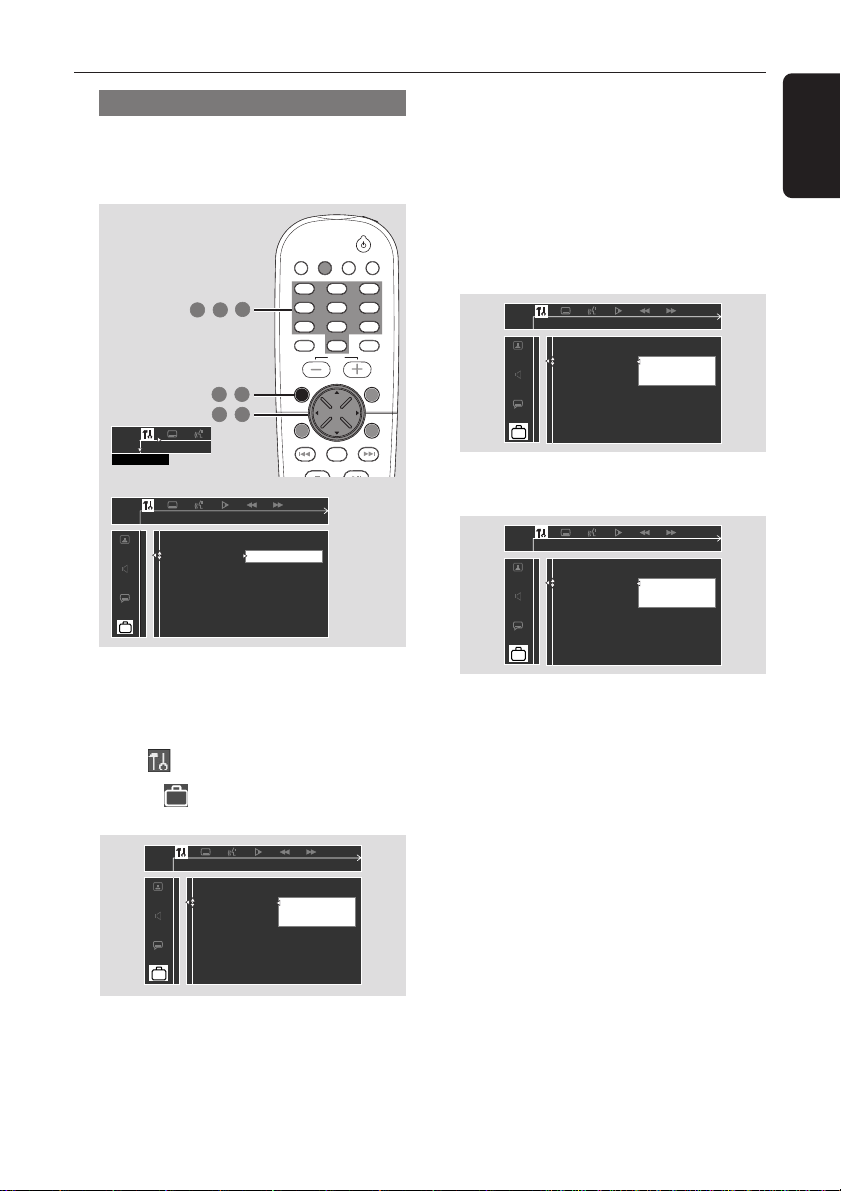

Setting the speakers’ channels

You can adjust the delay times (center and surround only) and volume level for individual speakers. These adjustments let you optimize the sound according to your surroundings and setup. Speaker settings are only active on Multi-channel audio outputs.

Digital Output

Night mode

Analog Output

Speakers

Speaker Layout

PCM Output

Set Speaker Settings

Personal setting ...

Front L & R Center Surr L & R Sub Woofer OK to exit

On 3 ms

A B C

1 Press SURR. (or SURROUND on the

front panel) repeatedly to select ‘Multi- channel’.

2 In disc mode, press SYSTEM MENU. 3 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

4 Select icon and press 4.

Move to Move to {Speakers} and press 2.

and press 2.

5 Press 3 4 to select ({Front L&R},

{Center}, {Surr L&R}, {Sub Woofer}), then press 2 to enter the speaker setting menu.

➜ The test tone will be automatically

generated.

6 Use 3 4 to adjust the settings for each

speaker to suit your surround sound needs. These adjustments may include :

ATurning on or off the sound output. BDelay time settings - use the longer

delay settings when the surround speakers are closer to the listener than the front speakers. CAdjusting the volume levels for one or both speakers until the sound evens.

7 Press OK to confirm.

To remove the menu

Press SYSTEM MENU.

3 dB 6 dB

Step 5: Setting language

preferences

You can select your preferred language settings so that this DVD system will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the disc’s default setting language will be used instead. Except the DVD system’s Menu Language, it will remain once selected.

SETUP MENU

➠

Audio Subtitle Disc Menu

Go to language setup page

1 In disc mode, stop playback and press

SYSTEM MENU.

2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

3 Select icon and press 4.

Move to and press 2. Move to {Menu Language} and press 2.

4 Select a language and press OK. 5 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

Move to

and press 2.

Move to one of the following and press 2.

– {Audio Language} (disc’s soundtrack) – {Subtitle} (disc’s subtitles) – {Disc Menu} (disc’s menu)

6 Select a language and press OK. 7 Repeat steps 5~6 for other settings.

To remove the menu

Press SYSTEM MENU.

English

Page 24

Disc Operations

English

IMPORTANT! – DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same zone as your player. – Depending on the DVD or VIDEO CD, some operations may be different or restricted. – Do not push on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the disc player to malfunction.

Playable discs

Your DVD home cinema system will play:

– Digital Video Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Digital Video Discs +

Rewritable(DVD+RW)

– Compact Discs (CDs) – MP3 discs, picture (Kodak, JPEG) files

on CD-R(W)

– JPEG / ISO 9660 format – Maximum 30 characters display – Supported sampling frequencies :

32 kHz, 44.1 kHz, 48 kHz

– Supported Bit-rates : 32~256 (kbps),

variable bit rates

SUPER VIDEO

Region Codes

DVDs must be labeled for ALL regions or for Region 1 in order to play on this DVD system. You cannot play discs that are labeled for other regions.

Helpful Hint: – If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD system.

ALL

IMPORTANT!

If the inhibit icon (or X) appears on the TV screen when

a button is pressed, it means the function is not available on the current disc or at the current time.

Playing discs

1 Adjust SOURCE control until “DISC

X” appears on the display panel (or press

DISC/ MEDIA on the remote.)

2 Turn on the TV power and set to the

correct Video In channel. (See page 19 “Setting the TV”.)

➜ You should see the blue Philips DVD

background screen on the TV.

3 Press one of the OPEN • CLOSE 0

button to open the disc tray and load a disc, then press the same button again to close the disc tray.

➜ Make sure the disc label is facing up.

For double-sided discs, load the side you want to play face up.

4 Repeat steps 3 for loading a disc onto

another disc tray.

5 Playback will start automatically from the

last loaded disc.

➜ All the available discs will play once,

then stop.

➜ If a disc menu shows on the TV, see

next page on “Using the Disc Menu.”

➜ If the disc is locked by parental control,

you must enter your four-digit password (see page 32–33.)

● To obtain the best surround effects, see

page 20 “Changing seating control position.”

Helpful Hint: – Only one tray can be opened at a time. If you intend to open the second tray before closing the first tray, the first tray will automatically close before the second tray opens.

Page 25

Disc Operations

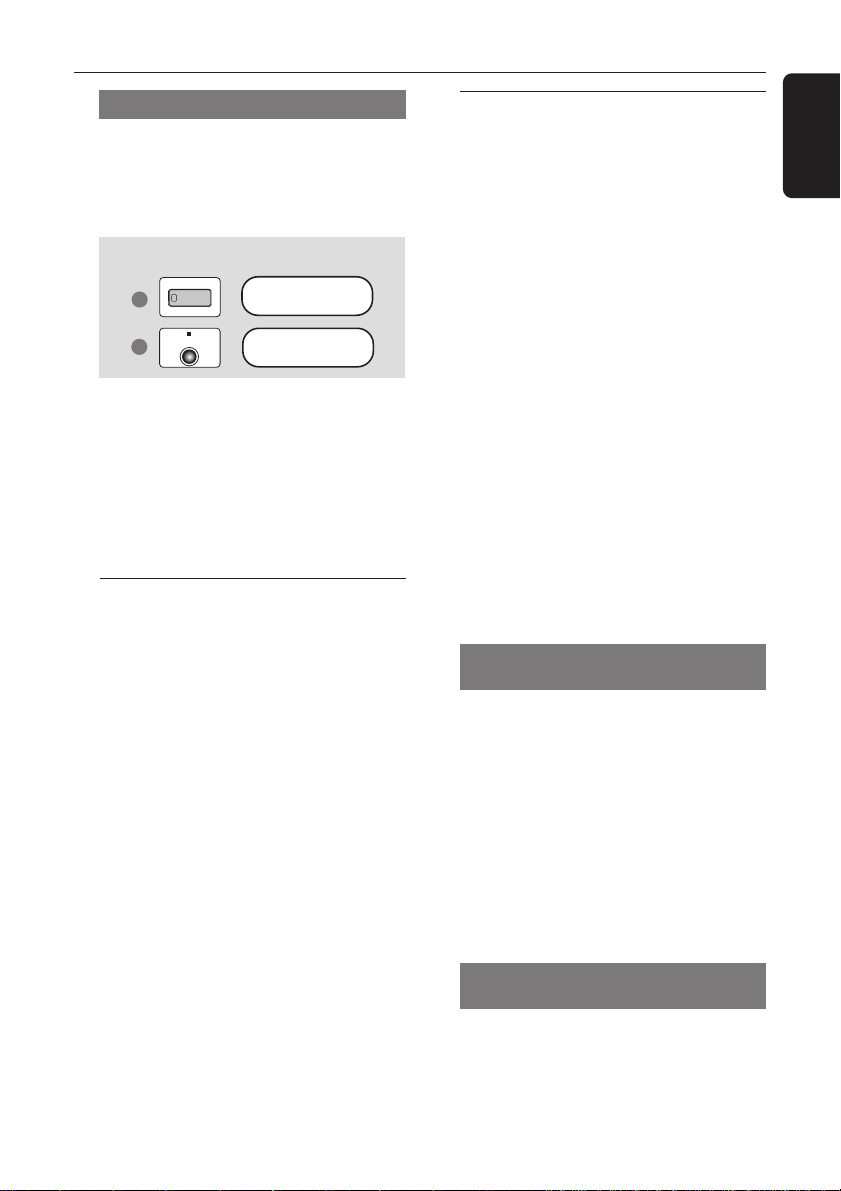

Turning on / off auto Eco standby mode

This is a power-saving feature, the system will automatically switch to Eco standby mode if you do not press any buttons within 30 minutes after a disc has stopped playing.

buttons on front panel

STANDBY-ON

STOP

DVD system’s display panel

13:38

AUTO ECO ON

1 Press and hold STANDBY ON to

switch the system to standby mode.

➜ The clock appears.

2 Press and hold Ç until “AUTO ECO ON”

appears.

➜ To turn off the setting, repeat step

until “AUTO ECO OFF” appears.

Using the Disc Menu

Depending on the disc, a menu may appear on the TV screen once you load in the disc.

To select a playback feature or item

● Use the joystick (1 2 3 4) or

numeric keypad (0-9) on the remote, then press ÉÅ or OK to start playback.

To access or remove the menu

● Press DISC MENU on the remote.

For VCD with Playback Control (PBC) feature (version 2.0 only)

● In stop mode, press DISC MENU to

toggle between ‘PBC ON’ and ‘PBC OFF’, then the playback will start automatically.

➜ If you select ‘PBC ON’, the disc menu

(if available) will appear on the TV. Use the Joystick (1 2 34) to highlight your selection and press OK to confirm or use the to select a play option.

● During playback, pressing DISC MENU

will return to the menu screen (if PBC is on).

Basic playback controls

Pausing playback

● Press ÉÅ.

➜ To resume normal playback, press

ÉÅ again.

Selecting another track/chapter

● Press S / T or use the numeric

keypad (0-9) to key in a track/chapter

number.

Searching backward/forward

● Press and hold S / T, then press

ÉÅ to resume normal playback.

➜ While searching, pressing and holding

S / T again will increase the search speed.

Selecting next disc

● Press DISC SKIP. ➜ The selected disc will play once, then

stop.

Stopping playback

● Press Ç.

Resuming playback from the last stopped point (DVD/VCD)

● In stop mode and when the disc has not

been ejected, press ÉÅ.

To cancel the resume mode

● In stop mode, press Ç again.

Helpful Hints: – Opening the current disc tray or selecting another disc tray will cancel the resume feature. – Resume option may not be available on some discs.

Replacing discs without interrupting playback

● Press OPEN •CLOSE 0 buttons of the

inactive disc trays. For example, if currently disc tray 1 is playing, you can replace the discs on disc trays 2~5.

English

Page 26

Disc Operations

TV/AV

DISC/

MEDIA

TUNER

AUX/DI

REPEAT REPEATDISC SKIP

DISC MENU

PROGRAM

SYSTEM MENU

VOICE MUTE

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

A-B

VOL

456

123

789

SURR.

SOUND

2 9

4 5

English

Selecting various repeat functions

Repeat play mode

● While playing a disc, press REPEAT to

select :

REPEAT CHAPTER (DVD) – to repeat playback of the current chapter.

REPEAT ALBUM (MP3) – to repeat playback of the current album.

REPEAT TRACK/TITLE – to repeat playback of the current track/title.

REPEAT DISC (CD/VCD/SVCD) – to repeat playback of the current disc or the programmed tracks (if the program mode is active.)

REPEAT ALL (CD/VCD/SVCD) – to repeat playback of all available discs or the programmed tracks.

REPEAT OFF – to cancel the repeat mode.

Helpful Hints: – Repeat play might not work correctly with some DVDs. – For VCD, if the PBC mode is switched on, repeat play is not possible.

Repeating a section within a chapter/track

1 While playing a disc, press REPEAT A-B

at the starting point.

2 Press REPEAT A-B again at the point to

end the section.

➜ The section A and B can be set only

within the same chapter/track.

➜ The section will now repeat

3 Press REPEAT A-B again to resume

continuously.

normal playback.

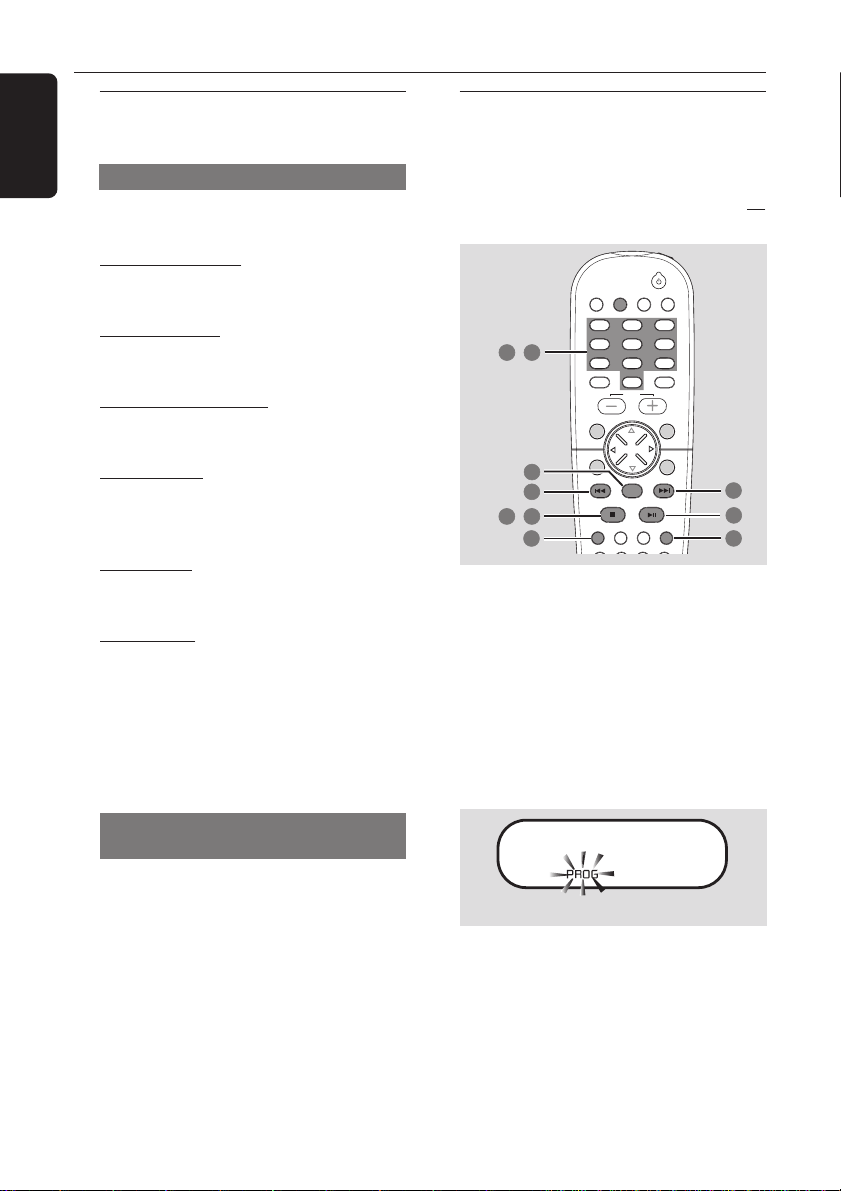

Program favorite tracks (audio CDs and VCDs)

You can play the contents of the disc in the order you want by programming the order of the tracks to be played. Up to tracks can be stored.

1 Press DISC SKIP repeatedly to select a

disc tray containing audio CD or VCD.

➜ Wait until the system finishes reading

the discs before proceeding to next step.

2 When the playback begins, press Ç to

stop playback.

3 Press PROGRAM to enter program

mode.

➜ "PROGRAM FULL" will appear if you

have programmed 99 tracks.

TOTAL XX

“XX” = number of programmed tracks

Page 27

Disc Operations

DISC MENU

SYSTEM MENU

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

2 3

4 Press S, then use the numeric

keypad (0-9) to enter the disc number.

➜ "DISC X" appears.

5 Press T, then use the numeric

keypad (0-9) to enter the track number.

➜ "TRACK X" appears.

6 Press OK to store the track. 7 Repeat steps 4~6 to select other discs

and tracks.

8 Press ÉÅ to start program playback.

➜ Only the tracks programmed from

audio CDs and VCDs will play.

9 Press Ç to stop playback or exit

program mode.

Helpful Hints: – Pressing OPEN•CLOSE button of the programmed disc tray will erase the program. – If you do not press any buttons within 20 seconds, the system will exit programming mode.

Clearing the program

● Stop playback, then press and hold Ç.

PROG disappears from the display panel

➜

and "PROGRAM CLEARED" appears.

Helpful Hint: – If the DVD system is disconnected from the power supply, the program will be erased.

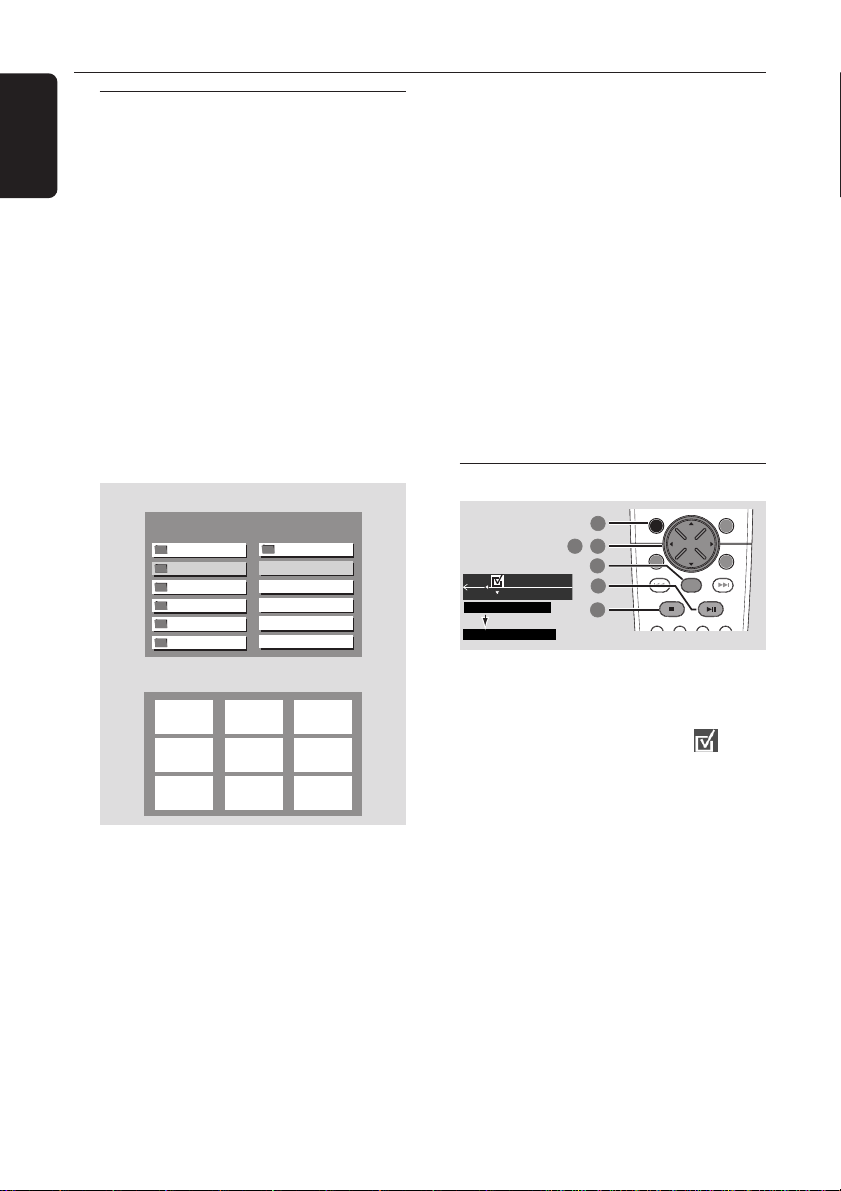

Using the menu bar to program

IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 19 “Setting the

TV”.)

PROGRAM DISC TRACK

2 3 4 5 6

1 Stop playback, then press SYSTEM

MENU.

➜ The menu bar will appear across the

top of the TV screen.

2 Use the joystick (1 2) to select and

press 4 to enter the program menu.

3 Use the joystick (1 2 3 4) to move

within the program menu and use the numeric keypad (0-9) to enter the disc and track number to be programmed.

4 Press ÉÅ to start program playback.

➜ Only the tracks programmed from

audio CDs and VCDs will play.

● In stop mode, press PROG on the front

panel to toggle between program on and off.

English

To clear the program

● Stop playback, then press and hold Ç.

Page 28

Disc Operations

REPEAT REPEATDISC SKIP

DISC MENU

PROGRAM

SYSTEM MENU

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

2 3

English

Playing MP3/Picture disc (Kodak, JPEG)

IMPORTANT! You have to turn on your TV and set to the correct Video In channel.

(See page 19 “Setting the TV”.)

1 Load an MP3 / Picture (Kodak, JPEG) disc.

➜ The disc reading time may exceed

30 seconds due to the complexity of the directory/file configuration.

2 Playback will start automatically.

➜ For picture discs, 9 thumbnail pictures

will appear on the TV. Press ÉÅ to start the slide-show playback.

➜ For MP3 discs, a list of albums/titles

menu will appear on the TV.

(example for MP3 disc menu)

Title : Title Name 1 Artist : Unknown

Root

BIG HITS

FAT POP HI

HOT RELEA

M. TV MUSIC

NOW THAT

(example for 9 thumbnail pictures display)

...

MP3

"Title Name 1"

MP3

"Title Name 2"

MP3

"Title Name 3"

MP3

"Title Name 4"

MP3

"Title Name 5"

ABC

DE F

GHI

During playback, you can;

● Press S / T to select another title/

picture in the current folder.

● Use the joystick (1 2 3 4) on the

remote to rotate/ flip the picture files.

● Press ZOOM on the remote to turn

on/off the zoom effect. Then press and hold S / T to change the zoom ratio: 25, 50 (full screen), 100, 150 or 200 (PCT – Percentage.)

● Press ÉÅ to pause /resume playback.

3 To stop playback, press Ç.

In stop mode, you can;

● Use the joystick (1 2 3 4) on the remote

to move within the menu and press OK to select the desired file to play.

● In picture menu, you can use the joystick

(1 2 3 4) to select S or T in the menu to view the previous/ next page (if available).

Helpful Hints: – Due to the recording nature of Digital Audio MP3 (DAM), only digital audio music will play.

– It is normal to experience an occasional “skip” while listening to your MP3 discs. – Some files on Kodak or JPEG discs may be

distorted during playback due to the configuration and characteristics of the disc.

Program MP3 disc

PROGRAM

PROGRAM P 00 : 0000

1 Stop playback, then press SYSTEM MENU.

➜ The menu bar will appear across the

top of the TV screen.

2 Use the joystick (1 2) to select and

press 4 to enter the program menu.

3 Use the numeric keypad (0-9) or joystick

(1 2 3 4) to select the title number and press OK.

4 Repeat step 3 to select title number. 5 Press Ç to stop the programming.

➜ A list of programmed tracks appears.

6 Press ÉÅ to start program playback.

To clear the program

● Stop playback, then press and hold Ç.

Helpful Hint: – Repeat function is not possible during MP3 program playback.

Page 29

DVD Menu Options

Using the menu bar

You can continue a number of operations directly via the multiple menu bars on the TV screen without interrupting the disc playback. The exception is when you

enter playback will pause.

1 In disc mode, press SYSTEM MENU.

➜ The menu bar will appear across the

top of the TV screen.

2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

➜ Press 1 2 to move through the menu bar. ➜ Press 4 to enter the selection. If there

are multiple choices available, press 4 repeatedly to select.

3 Press OK to confirm the selection.

➜ Playback will resume or begin

automatically.

To remove the menu

Press SYSTEM MENU.

IMPORTANT! – Some operations may be different or restricted, depending on the disc format. Refer to the jacket or case of the disc you are playing. – Changing the Subtitle Language and Audio Language from the menu bar will only apply to the current disc, it will not change the default preset.

(SETUP MENU), after which the

STOP PLAY/PAUSE

DISC MENUSYSTEM MENU

SEATING ZOOM

PREV NEXT

SUBTITLE

Select a subtitle language available on the DVD.

AUDIO

DVD : Select an audio soundtrack language available on the DVD. VCD : Select audio channels : LEFT VOCAL, RIGHT VOCAL, MONO LEFT, MONO RIGHT or STEREO.

SLOW MOTION

Select a slow playback speed. The volume will be muted. To resume normal playback, press ÉÅ. DVD : SF x2, SF x4, SF x8, SR x2, SR x4, SR x8. VCD : SF x1, SF x2, SF x3.

(SF=Slow Forward, SR=Slow Rerverse)

FAST REVERSE

DVD : FR x2, FR x4, FR x6, FR x8. VCD/MP3 : FR x1, FR x2, FR x3, FR x4.

FAST FORWARD

DVD : FF x2, FF x4, FF x6, FF x8 VCD/MP3 : FF x1, FF x2, FF x3, FF x4.

Select a search speed (backward/forward). The volume will be muted. To resume normal playback, press ÉÅ.

STATUS

Allows viewing of the current status of the disc The information will vary depending on the disc format.

Available on DVD only TITLE SEARCH (TITLE XX:YY") Select a Title for playback to begin.

CHAPTER SEARCH (CHAPTER XX:YY) Select a Chapter for playback to begin.

"XX" - current title/chapter number. "YY" - total number of title/chapter. Use the numeric keypad (0-9) to change the "XX" number, then press OK.

TIME SEARCH (TIME __:__:__) Use the numeric keypad (0-9) to enter the

time (hours, minutes and seconds) at which you want playback to begin.

ZOOM

Select an enlarge picture ratio : x1.5, x2.0, x3.0, then press OK to confirm. Use the joystick to move within the enlarged picture on the TV. To resume normal playback, select 'ZOOM OFF' from the menu.

ANGLE (for DVD only) Select to view the same scene from different angles if the DVD is recorded with multiple angles.

STEP FORWARD

Select to advance the still picture one frame forward. To resume normal playback, press ÉÅ.

PBC ON/OFF (for VCD 2.0 with PBC feature) Select between PBC On and Off. 'PBC OFF' - the playback will start automatically.

'PBC ON' - the disc menu (if available) will appear on the TV. Use the numeric keypad (0-9) to enter your choice.

PROGRAM

Stop playback, then select this to enter the program menu (see page 25 "Using the menu bar to program".)

English

Page 30

DVD Menu Options

4:3 panscan 4:3 letterbox 16:9

Set TV shape mode

TV Shape

TV System

Video Output

Screen saver

English

Using the Setup Menu

This DVD setup is carried out via the TV, enabling you to customize the DVD system to suit your particular requirements.

2 3

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

1 In disc mode, press SYSTEM MENU.

➜ Playback will pause.

2 Select icon and press 4 to enter the

setup menu. Then press 3 4 to select one of the setup menu options and press 2 to enter the menu.

SETUP MENU

Picture Setup

Sound Setup

Language Setup

Feature Setup

3 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

4 Press OK to confirm your selection.

➜ Playback will resume or begin

automatically.

To remove the menu

Press SYSTEM MENU.

HELPFUL HINT: Some of the features in the Setup Menu are described in “Getting Started.”

Setting the TV shape

The format you select must be available on the disc. If it is not, the setting for TV Shape will not affect the picture during playback.

DISC MENUSYSTEM MENU

Follow the steps of “Using the Setup Menu” and select :

> TV Shape

4:3 panscan

Select this if you have a conventional TV and your DVD is not formatted for wide screen viewing. A wide picture will display on the whole TV screen with a portion automatically cut off.

4:3 letterbox

Select this if you have a conventional TV and your DVD is formatted for wide screen viewing. Black bars appear on the upper and lower portions of the TV screen.

16:9

Select this if you have a wide screen TV (you must also set your wide screen TV to “full size”.)

Page 31

DVD Menu Options

Stereo 3D Sound Multi-channel

Set Analog Output

Digital Output

Analog Output

Night mode

Speakers

Speaker Layout

PCM Output

Setting the video output

Choose the type of video output that matches the video connection between the DVD system and your TV.

Stop playback, then follow the steps of “Using the Setup Menu” and select :

> Video Output

TV Shape

TV System

Video Output

Screen saver

Set Video Output

S-Video Scart / Pr Pb Y

S-Video

Select this if you have connected the DVD system to your TV using the S-Video jack.

Scart / Pr Pb Y

Select this if you have connected the DVD system to your TV using component video jacks. (SCART – this feature is not available for this model.)

Helpful Hint: – You do not need to adjust the video output setting if you are using CVBS jack (yellow) to connect the DVD system to your TV.

Screen Saver – turning on/off

Follow the steps of “Using the Setup Menu” and select :

> Screen saver

Setting the analog output

Set Analog Output to match your DVD home cinema system’s playback capability. This function can also be accessed via the SURR. button on the remote control (or SURROUND on the front panel.)

Follow the steps of “Using the Setup Menu” and select :

> Analog Output

Stereo

Select this to change channel output to stereo which delivers sound from only the two front speakers and subwoofer.

3D Sound

Select this to change channel output to 3D sound which delivers surround sound from only the two front speakers and subwoofer.

Multi-channel

Select this to enable Multi-channel output.

English

TV Shape

TV System

Video Output

Screen Saver

Screen Saver On or Off

Off On

Off

Select this to disable the screen saver function.

Select this if you wish to dim the TV screen when disc playback is stopped or paused for more than five minutes. This will prevent your display device from becoming damaged.

Page 32

DVD Menu Options

48 kHz 96 kHz

Set PCM output to 48K or 96K

Digital Output

Analog Output

Night mode

Speakers

Speaker Layout

PCM Output

English

Setting the digital output

Set Digital Output according to the optional audio equipment you connected.

Follow the steps of “Using the Setup Menu” and select :

> Digital Output

Digital Output

Night mode

Analog Output

Speakers

Speaker Layout

PCM Output

Set Digital Output

Off All PCM only

Off

Select this to deactivate the digital output.

All

Select this if you have connected the digital output to an optional piece of audio equipment that has a multichannel decoder.

PCM only

Select this if the optional audio equipment is not capable of decoding multichannel audio. After that, proceed to “Setting the PCM output.” Once you select “PCM only” the surround mode will automatically change to “STEREO”.

Setting the PCM output

Set your PCM (Pulse Code Modulation) output only after you have set the system’s Digital Output to ‘PCM only.’ (See “Setting the digital output”.)

Follow the steps of “Using the Setup Menu” and select :

> PCM Output

48 kHz

Select this if the optional audio equipment is incapable of processing 96 kHz digital signal input. The signal will then be converted to a standard signal with sampling rates of 48 kHz.

96 kHz

Select this if the optional audio equipment is capable of processing digital signal input with sampling rates of 96 kHz. However, if the sound output is distorted or there is no sound, select ‘48 kHz’ instead.

Page 33

DVD Menu Options

Reset

Load factory settings

Parental

Password

Defaults

Menu Language

Night mode – turning on/off

Follow the steps of “Using the Setup Menu” and select :

> Night Mode

Digital Output

Night mode

Analog Output

Speakers

Speaker Layout

PCM Output

Set Night mode

Off On

Off

Select this when you want to enjoy the surround sound with its full dynamic range.

Select this to level out the volume. High volume outputs will be softened and low volume outputs are brought upward to an audible level. This feature is only available for movies with Dolby Digital mode.

Restoring to original settings

Follow the steps of “Using the Setup Menu” and select :

> Defaults

Reset

Pressing 2 on the remote will restore all the items in the setup menu to the original factory setting except for your Parental Control password.

English

Page 34

DVD Menu Options

Set Parental control

Parental

Password

Menu Language

Defaults

English

Restricting playback by Parental Control

(only available in region 1 players)

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

1 6

SETUP MENU

➠

2 3

Parental

Password

Menu Language

Defaults

Set Parental control

__ __ __ __

Enter code

SEATING ZOOM

1 In disc mode, press SYSTEM MENU. 2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

3 Select icon and press 4.

Move to and press 2. Move to {Parental Control} and press 2.

DISC/

AUX/DI

TUNER

MEDIA

TV/AV

123

456

789

VOL

STOP PLAY/PAUSE

SOUND

SURR.

PREV NEXT

4 Use the numeric keypad (0-9) to enter

‘1234’ (default password) when you are asked to enter the four-digit password. You will have to enter the same code, exactly, twice.

➜ To change the password, see page 33

“Changing the password.”

5 Select a rating level and press OK.

➜ DVDs that are rated above the level

you selected will not play unless you enter your four-digit password and choose a higher level rating. To disable Parental Controls and have all discs play, choose ‘NO PARENTAL.’

DISC MENUSYSTEM MENU

6 Press SYSTEM MENU again to remove

the menu.

Rating explanations

NO PARENTAL – All discs will play.

8 ADULT – Mature material; should be viewed

only by adults due to graphic sexual material, violence, or language.

7 NC-17 – No children under age 17; not

recommended viewing for children under age 17.

6 PG-R – Parental Guidance - Restricted;

recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

4 PG13 – Material is unsuitable for children

under age 13.

3 PG – Parental Guidance suggested. 1 G – General Audience; recommended as

acceptable for viewers of all ages.

Helpful Hint: – Some DVDs are not encoded with a rating though the movie rating may be printed on the disc jacket. The rating level feature does not prohibit play of such discs.

Page 35

DVD Menu Options

__ __ __ __

Enter code

Please enter new password

Parental

Password

Menu Language

Defaults

__ __ __ __

Enter code

Please reenter new password

Parental

Password

Menu Language

Defaults

Changing the password

You can change the four-digit password used for Parental Control. The default password is ‘1234.’

DISC/

AUX/DI

TUNER

MEDIA

TV/AV

123

SURR.

SEATING ZOOM

PREV NEXT

Change

456

789

SOUND

VOL

DISC MENUSYSTEM MENU

STOP PLAY/PAUSE

SETUP MENU

➠

4 5

Parental Control

Password

Menu Language

Defaults

Change password

1 7

2 3

4 Use the numeric keypad (0-9) to enter

your original four-digit password at “Enter code.”

➜ If you are asked to enter the code for

the first time, key in ‘1234.’

➜ If you forget your password, press Ç

four times to restore to the default password (1234.)

5 Enter your new four-digit password.

6 Enter the same new four-digit password

again.

English

1 In disc mode, press SYSTEM MENU. 2 Use the joystick (1 2 3 4) on the

remote to navigate in the menu.

3 Select icon and press 4.

Move to and press 2. Move to {Password} and press 2.

Parental

Password

Menu Language

Defaults

Please enter old password

__ __ __ __

Enter code

7 Press SYSTEM MENU again to remove

the menu.

Page 36

Tuner Operations

DVD VIDEO D

STOPPLAY•PAUSE SEATING

SOURCE

PROG TUNING CLOCK•TIMER

SURROUND

C CHANGER

SURR. LEFT SURR. RIGHT LEFT RIGHTCENTER SUBWOOFER

PLAY• PAUSE

AUTO INSTALL - PR

English

IMPORTANT! – Make sure the FM and AM antennas are connected. – The TUNING button on the front panel is used to toggle between frequency tuning and preset tuning. When in preset tuning, “

PRESET”

appears on the display panel and S / T buttons on the front panel are used for preset number selection. Otherwise, pressing S / Twill change the radio frequency.

Tuning to radio stations

1 Press TUNER on the remote (or adjust

SOURCE control on front panel) to

select “FM TUNER” or “AM TUNER.”

2 Press and hold S / T on the

remote until the frequency indication starts to change, then release.

➜ The next radio station will tune

automatically.

➜

lights up for FM stereo reception.

3 To tune a weak station, press S / T

briefly and repeatedly until an optimal reception is found.

● If you use S / T on the front panel

for frequency tuning, make sure the system is in frequency tuning mode. If not, press TUNING.

➜

PRESET will disappear from the display

panel.

Presetting radio stations

You can store up to 40 preset radio stations in the memory, starting from FM and followed by AM bands.

Helpful Hints: – The system will exit presetting mode if no button is pressed within 20 seconds. – If no stereo frequency is detected during Plug and Play, "CHECK ANTENNA" appears.

Using the Plug and Play

Plug and Play allows you to store all available radio stations automatically.

1 Connect the system to the power supply,

"AUTO INSTALL – PRESS PLAY" appears. OR

In Eco Power standby/ standby mode, press and hold ÉÅ on the front panel until "AUTO INSTALL – PRESS PLAY" appears.

2 Press ÉÅ on the front panel to start

installation.

➜ "INSTALL TUNER" appears. ➜ All previously stored radio stations will

be replaced.

➜ Once completed, the last tuned radio

station will play.

Page 37

Tuner Operations

Automatic presetting

You can start the automatic presetting from a selected preset number.

DISC/

AUX/DI

TUNER

MEDIA

TV/AV

123

456

789

SURR.

VOL

SYSTEM MENU

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

REPEAT REPEATDISC SKIP

A-B

VOICE MUTE

DIM SLEEP SUBW TV VOL

SOUND

PROGRAM

DISC MENU

1 Press TUNER on the remote (or adjust

SOURCE control on front panel) to

select “FM TUNER” or “AM TUNER.”

2 Press 1 2 or use the numeric keypad

(0-9) to select a preset number to begin.

● If you use S / T on the front panel

for preset tuning, make sure the system is in preset tuning mode. If not, press TUNING.

➜

PRESET will appear on the display panel.

3 Press and hold PROGRAM (or PROG

on the front panel) until "AUTO" appears.

➜ If a radio station is stored in one of the

presets, the same radio station will not store under another preset number.

➜ If no preset number is selected,

automatic preset will begin from preset (1) and all your former presets will be overridden.

Manual presetting

You can choose to store only your favorite radio stations.

1 In tuner mode, press PROGRAM (or

PROG on the front panel.)

2 Press 1 2 or use the numeric keypad

(0-9) to select a preset number.

3 Press S / T on the remote to

select a radio station.

4 Press PROGRAM again to store.

Selecting a preset radio station

● Press 1 2 or use the numeric keypad

(0-9) to select a preset number.

➜ The preset number, radio frequency,

and waveband will appear.

Deleting a preset radio station

● Press and hold Ç until “PRESET

DELETED” appears.

➜ The current preset radio station will

be deleted and the next available preset radio station will take its place.

➜ All other preset radio stations with

higher numbers will decrease by one.

English

Page 38

Timer Operations

English

Setting the timer

The system can switch on to DISC or TUNER mode automatically at a preset time, serving as an alarm to wake you up.

IMPORTANT! – Before setting the timer, ensure that the clock is set correctly. – The volume of the timer will increase gradually to the last tuned volume level. If the last tuned volume level is too low, the set will then increase to a predetermined minimum audible level.

buttons on front panel

CLOCK•TIMER

SOURCE

CLOCK•TIMER

DVD system’s display panel

SELECT CLOCK OR

TIMER

TU 12:00 AM

CD 12:00 AM

1 Press STANDBY ON to switch on the

DVD system.

2 Press and hold CLOCK•TIMER until

"SELECT CLOCK OR TIMER" appears.

3 Press T (if necessary) to change the

display to "TIMER", then press CLOCK• TIMER again to confirm.

4 Adjust SOURCE (or press DISC/

MEDIA or TUNER on the remote) to

select the wake up source (DISC or TUNER.)

5 Press S / T to set the wake up

time (minutes and hours.) To increase the speed, hold down S or T.

➜ The changes in minutes will roll over

to the hours.

6 Press CLOCK• TIMER again to store

the setting.

➜ Once the timer is set, it will always

switch on unless you deactivate it.

➜

icon will remain on the display panel.

It indicates the timer is activated.

● At the preset time, the selected sound source will play for 30 minutes before it switches to Eco Power standby mode (if no button is being pressed within the time frame.)

➜ DISC – the first track of the last

selected disc will be played. If the last selected disc tray is empty, it will switch to the next available disc. If all the disc trays are not available, it will switch to Tuner mode.

➜ TUNER – the last tuned radio station

will be played.

Activating/ Deactivating the timer

1 Repeat steps 1~3 of “Setting the timer.” 2 Press Ç to turn off the timer.

➜

icon will disappear from the display

panel and "TIMER OFF" appears.

Press CLOCK•TIMER to turn on the timer to the last setting.

➜ The timer information will display for a

few seconds, then the system resumes its last active source or stays in standby mode.

Helpful Hint: – The system will exit timer setting mode if no button is pressed within 90 seconds.

Page 39

Setting the Sleep timer

The sleep timer enables the system to switch to Eco Power standby mode automatically at a preset time.

● Press SLEEP on the remote repeatedly

until it reaches the desired preset turn-off time.

➜ The selections are as follows (time in

minutes):

15 ™ 30 ™ 45 ™ 60 ™ 90 ™ 120 ™ OFF ™ 15 …

➜

SLEEP will show on the display panel,

except if "OFF" is selected.

➜ Before the system switches to Eco

Power standby mode, a countdown of 10 seconds is displayed.

"SLEEP 10" ™ "SLEEP 9".... ™

"SLEEP 1" ™ "SLEEP"

To check or change the setting

● Press SLEEP once to show the

remaining time before switching off. If you continue pressing the SLEEP button, the next Sleep Timer option will appear on the display panel.

Timer Operations

English

To cancel the sleep timer

● Press SLEEP repeatedly until "OFF"

appears or press the STANDBY ON button.

Page 40

Sound and Volume Controls

English

Sound Control

IMPORTANT! For proper surround sound, make sure the speakers and subwoofer are connected (see page 11.)

Selecting surround sound

● Press SURROUND (SURR.) to select :

MULTI-channel, 3D SOUND or STEREO.

➜ The availability of the various surround

sound modes depends on the number of speakers used and the sound available on the disc.

➜ The center and surround speakers

operate only when the DVD home cinema system is set to Multi-channel mode.

➜ The available output modes for Multi-

channel include: Dolby Digital, DTS (Digital Theater Systems) Surround and Dolby Pro Logic.

➜ Stereo broadcasts or recordings will

produce some surround channel effects when played in a surround mode. However, monaural (single channel sound) sources will not produce any sound from the surround speakers.

Helpful Hint: – You are not able to select the surround sound mode if the system menu/menu bar is turned on.

2 Within five seconds, use the VOLUME

control to adjust the Bass or Treble level (-3 to +3.)

➜ If the volume control is not used

within five seconds, it will resume its normal volume control function.

Changing subwoofer volume level

● Press SUB +/- on the remote to

adjust subwoofer volume level (-6dB to +6dB.)

Selecting digital sound effects

Select a preset digital sound effects that matches your disc’s content or that optimizes the sound of the musical style you are playing.

● Press SOUND on the remote.

When playing movie discs or while in TV/ AV mode, you can select : CONCERT, DRAMA, ACTION or SCI-FI.

When playing music discs or while in TUNER or AUX/ DI mode, you can select: ROCK, DIGITAL, CLASSIC or JAZZ.

Helpful Hint: – For flat sound output, select CONCERT or CLASSIC.

Turning on /off clear voice effect

You can enhance the center and surround sound outputs by activating the clear voice sound feature if you have selected Multi-channel as the surround mode.

● Press VOICE on the remote to select

“CLEAR VOICE ON.”

➜ To turn off the setting, press VOICE

again to select “CLEAR VOICE OFF.”

Adjusting Bass/ Treble level

The BASS (low tone) and TREBLE (high tone) features enable you to define the sound-processor settings.

1 Press BASS or TREBLE.

➜ The level indicator appears.

Volume control

● Adjust VOLUME control (or press

VOL +/-on the remote) to increase

or decrease the volume level.

➜ "VOL MIN" is the minimum volume

level and “VOL MAX” is the maximum volume level.

To listen through the headphones

● Connect the headphones plug to the n

socket at the front of the DVD system.

➜ The speakers will be mute.

To turn off the volume temporarily

● Press MUTE on the remote. ➜ Playback will continue without sound

and "MUTE" appears.

➜ To restore the volume, press MUTE

again or increase the volume level.

Page 41

Other Functions

TV/AV

DISC/ MEDIA

TUNER

AUX/DI

REPEAT REPEATDISC SKIP

DISC MENU

PROGRAM

SYSTEM MENU

DIM SLEEP SUBW TV VOL

VOICE MUTE

SEATING ZOOM

PREV NEXT

STOP PLAY/PAUSE

A-B

VOL

SOUND

SURR.

456

123

789

Switching on/ off

Switching to active mode

● Adjust the SOURCE control to select :

DISC 1....DISC 5 ™ FM TUNER ™

AM TUNER ™ TV/AV ™ AUX ™

DIG IN ™ DISC 1....

Press DISC/MEDIA, TUNER, TV/AV or AUX / DI on the remote.

Switching to Eco Power standby mode

● Press STANDBY ON (B).

➜ ECO POWER button lights up. ➜ The display screen will go blank.

Switching to standby mode (view clock)

● Press and hold STANDBY ON (B).

➜ The clock appears. ➜ While in standby mode, pressing

CLOCK•TIMER button will switch the system to Eco Power standby mode.

Recording to an external device

1 Connect the external recording device to

LINE OUT or DIGITAL OUT. (See page 15 “Connections – Optional”.)

2 Select the source to record from your

DVD system (DISC, TUNER, TV/AV or AUX/DI) and start playback (if necessary.)

➜ You can only record from DISC if using

DIGITAL OUT to connect the external recording device.

3 Start recording on the external recording

device.

Helpful Hints: – All the sound control features are available for selection. – Refer to the owner’s manual of the connected equipment for details.

Using the remote to operate your television

English

Dimming system’s display screen

● Press DIM to select desired brightness :

MODE 1, MODE 2, MODE 3 or NORMAL.

Helpful Hint: – Pressing DIM button in standby mode will toggle between half and full brightness.

1 Press TV / AV. 2 Press S / T or use the numeric

keypad (0-9) to select the TV’s channel.

3 Press TV VOL +/- to adjust the TV’s

volume level.

4 Press B to turn off your TV.

Page 42

Troubleshooting

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, please call

1-800-531-0039 for help.

Problem

No power.

No picture.

Distorted or poor picture.

Completely distorted picture or black/ white picture.

– Check if the AC power cord is properly connected. – Press the STANDBY ON on the front of the

DVD system to turn on the power.

– Refer to your TV’s manual for correct Video In

channel selection. Change the TV channel until you see the DVD screen. (see page 19)

– Press DISC on the remote. – Switch the P-SCAN at the back panel to “OFF”

position if you are not using a Progressive Scan TV.

– Check the video connection. If both S-Video and

Component (Pr Pb Y) Video connections are used to connect to your TV, the video signal will go to S-Video automatically every time when you power up the DVD system. To change the setting, refer to ‘Video Output’. (see page 29)

– Sometimes a small amount of picture distortion

may appear. This is not a malfunction.

– Clean the disc. (see page 10)

– TVs have a color system standard. If the disc’s

or DVD system’s color system is different than your TV’s color system, the picture may be distorted or colorless. Set to the correct ‘TV System’ setting. (see page 19)

Solution

The aspect ratio of the screen cannot be changed even though you have set the TV display.

No sound or distorted sound.

The DVD system does not work.

– The aspect ratio is fixed on the DVD disc. – Depending on the TV, it may not be possible to

change the aspect ratio.

– Adjust the volume. – Replace the speaker cables. – Check the speaker connections and settings.

(see pages 11, 21)

– Disconnect the headphones. – Press PLAY to resume normal play mode if

necessary.

– Press the correct source button on the remote (TV/

AV or AUX, for example) to choose the equipment that you want to hear through the DVD system. (see pages 12, 13, 15)

– Disconnect the power cord from the power

outlet for a few minutes. Reconnect the power cord and try to operate again as usual.

Page 43

Troubleshooting

Problem

The DVD player does not start playback.

Cannot activate some features, such as Angles, Subtitles, or multi-language Audio.

There is no sound from the center and surround speakers.

Radio reception is poor.

Solution

– Insert a readable disc with the playback side

facing down. (see page 22)

– Check the disc type, color system and region

code. (see page 22)

– Check for any scratches or smudges on the disc. – Press SYSTEM SETUP to turn off the setup

menu screen.

– Change the rating level. (see page 32) – Moisture has condensed inside the system.

Remove the disc and leave the system turned on for about an hour.

– The features may not be available on the DVD. – Changing the language for the sound or

subtitle is prohibited on the DVD.

– Make sure the center and surround speakers

are connected correctly. (see page 11)

– Press SURROUND button to select a correct

surround sound setting. (see page 38)

– Make sure the source you are playing is

recorded or broadcast in surround sound (DTS, Dolby Digital, etc.)

– If the signal is too weak, adjust the antenna or

connect an external antenna for better reception.

– Increase the distance between the system and

your TV or VCR.

– Tune in to the correct frequency. – Place the antenna farther away from any

equipment that may be causing the noise.

English

The remote control does not function properly.

The timer is not working.

The display panel is dark.

Low hum or buzz sound.

– Select the source (DISC or TUNER, for

example) before pressing the function button (ÉÅ , S, T.)

– Reduce the distance between the remote

control and the system.

– Replace the batteries with new ones. – Point the remote control directly toward the

IR sensor.

– Check that the batteries are loaded correctly.

– Set the clock correctly. (see page 18) – Press and hold CLOCK•TIMER to switch on

the timer. (see page 36)

– Press DIM again. (see page 39)

– Place the DVD system as far away as possible

from electrical devices that may be causing interference.

Page 44

Specifications

English

AMPLIFIER SECTION

Output power 600 W Total power

- Front 100 W + 100 W RMS / 2 x 60 W FTC

- Rear 100 W + 100 W RMS / 2 x 60 W FTC

- Center 100 W RMS / 60 W FTC

- Subwoofer 100 W RMS / 60 W FTC

Frequency Response 100 Hz – 20 kHz / –3 dB Signal-to-Noise Ratio > 65 dB (CCIR) Input Sensitivity

- AUX In 880 mV

- TV In 350 mV

Output Sensitivity

- Headphone 32 Ω – 1000 Ω

- Line Out 600 mV

- Digital In acc IEC 60958 &

1 4ohm, 150 Hz~12.5 kHz, 10% THD 2 4ohm, 120 Hz~12.5 kHz, 10% THD 3 4ohm, 60 Hz~120 Hz, 10% THD

IEC 61937

TUNER SECTION

Tuning Range FM 87.5 – 108 MHz

26 dB Quieting Sensitivity FM 20 dB 26 dB Quieting Sensitivity AM 3162 µV/m Image Rejection Radio FM 25 dB

IF Rejection Ratio FM 60 dB

Signal-to-Noise Ratio FM 60 dB

AM Suppression Ratio FM 30 dB Harmonic Distortion FM Mono 3%

Frequency Response FM 180 Hz – 10 kHz /

Stereo Separation FM 26 dB (1 kHz) Stereo Threshold FM 23.5 dB

(100 kHz steps) AM 530 – 1700 kHz (10 kHz steps)

AM 28 dB

AM 24 dB

AM 40 dB

FM Stereo 3% AM 5%

±6 dB

DISC SECTION

Laser Type Semiconductor Disc Diameter 12cm / 8cm Video Decoding MPEG-2 / MPEG-1 Video DAC 10 Bits Signal System PAL / NTSC Video Format 4:3 / 16:9 Video S/N 56 dB (minimum) Composite Video Output 1.0 Vp-p, 75 Ω S-Video Output Y - 1.0 Vp-p, 75 Ω

Audio DAC 24 Bits / 96 kHz

C - 0.286 Vp-p, 75 Ω

Frequency Response 4 Hz – 20 kHz (44.1 kHz)

4 Hz – 22 kHz (48 kHz) 4 Hz – 44 kHz (96 kHz)

Digital Output/Input SPDIF (Sony Philips

digital interface) Coaxial

- PCM IEC 60958

- Dolby Digital/DTS IEC 60958, IEC 61937

MAIN UNIT

Power Supply Rating 120 V / 60 Hz Power Consumption 150 W Dimensions (w x h x d) 435 x 100 x 360 (mm)

17.13 x 3.94 x 14.17 (inch)

Weight 7.15 kg / 15.73 pounds

SPEAKERS

Front speakers / Rear (surround) speaker System 2-way satellite Impedance 4 Ω Speaker drivers 3” woofer,

1” piezo tweeter Frequency response 120 Hz – 20 kHz Dimensions (w x h x d) 94 x 155 x 88 (mm)

3.70 x 6.10 x 3.46 (inch)

Weight 0.65 kg/each

1.43 pounds/ each

CENTER SPEAKER

System 5 multi directional driver Impedance 4 Ω Speaker drivers 4 x 2” woofer,

1 3/4” tweeter Frequency response 120 Hz – 20 kHz Dimensions (w x h x d) 435 x 63.5 x 72 (mm)

17.13 x 25 x 2.83 (inch)

Weight 1.32 kg/2.90 pounds

SUBWOOFER

Impedance 4 Ω Speaker drivers 6 1/2” woofer Frequency response 30 Hz – 120 Hz Dimensions (w x h x d) 195 x 433 x 391 (mm)

7.68 x 17.05 x 15.39 (inch)

Weight 5.72 kg/12.58 pounds

Specifications subject to change without prior notice

Page 45

Glossary

Analog: Sound that has not been turned into

numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide-screens is 16:9. AUDIO OUT Jacks: Red and white jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.). Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc. Chapter: Sections of a picture movie or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want. Clear voice: It enables the digital sound processor to extract the voice dynamics in movie dialog on all five surround channels without compromizing on the location accuracy and the width of the surround sound. Component Video Out Jacks: Red, blue, and green jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/Pr, YUV, etc.). Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD. Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.

Dolby Digital: A surround sound system

developed by Dolby Laboratories capable of delivering up to 5.1 discrete channels of audio (front left and right, surround left and right, center, and LFE.)

DTS: Digital Theater Systems. This is a surround

sound system, but it is different from Dolby Digital. The formats were developed by different companies. JPEG: A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. MP3: A file format with a sound data compression system. “MP3” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using the MP3 format. One CD-R or CD-RW can contain about 10 times more data then a regular CD.

Multichannel: DVD are formatted to have each sound track constitute one sound field. Multichannel refers to a structure of sound tracks having three or more channels. Parental control: Limits Disc play according to the age of the users or the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level. PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion. Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive playback and searching. Plug and Play: After power up, the system will prompt the user to proceed with the automatic installation of radio stations by simply pressing the PLAY button on the main unit. Progressive Scan: It displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format when the DVD player is connected to a Progressive Scan TV. It dramatically increases the vertical resolution. A progressive-scan TV is needed to receive progressive scan output from the player. Region code: A system allowing discs to be played only in the region designated. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions). S-Video: Produces a clear picture by sending separate signals for the luminance and the color. You can use S-Video only if your TV has an S-Video In jack. Sampling Frequency: Frequency of sampling data when analog data is converted to digital data Sampling frequency numerically represents how many time the original analog signal is sampled per second. Seating control: It gives the user a perfect sound and movie experience anywhere in the room, providing maximum flexibility and real total immersion because the user can choose their preferred seat. Surround: A system for creating realistic threedimensional sound fields full of realism by arranging multiple speakers around the listener. Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want. VIDEO OUT jack: Yellow jack on the back of the DVD system that sends the DVD picture video to a TV.

English

Page 46

LIMITED WARRANTY

AUDIO SYSTEM

One Year Free Labor

One Year Free Service on Parts

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, all parts will be repaired or replaced, and labor is free. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges. All parts, including repaired and replaced parts, are covered only for the original warranty period.When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product that is used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips. In countries where Philips does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase.Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner's manual for assistance. If you have additional questions, call us at 1-800-531-0039.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts. (In U.S.A., Puerto Rico, and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-531-0039 (English or Spanish Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product.Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # __________________________________

SERIAL # __________________________________

This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 520890, Miami, FL 33152, USA, (402) 536-4171

EL4965E007 / 8-02
