Philips MVP483 User Guide
Tango4 泛光灯
MVP483
Mounting instruction 安装说明
Tango4-P102
Connection
box
IP44 IP65
接线盒
Type number
产品型号
MVP483
V/ Hz
电压/频率
220V~/ 50Hz
230V~/ 50Hz
240V~/ 50Hz
220V~/ 60Hz
1. Suggest to use electrical components in form or equivalent type.
建议使用表格内电器或同等规格的电器。
2. Except MHN-FC lamp, no gear in the luminaire.
除了MHN-FC lamp，灯具内不含电器。
Lamp
光源
2×SON-T 400
2×SON-T 600
SON-T 1000
2×HPI-T 400
HPI-T 1000
Lamp
光源
SON-T 1000W
SON-T 400W
SON-T 600W
HPI-T 1000W
HPI-T 400W
SON-T 1000W
SON-T 400W
SON-T 600W
HPI-T 1000W
HPI-T 400W
SON-T 1000W
SON-T 400W
SON-T 600W
HPI-T 1000W
HPI-T 400W
SON-T 1000W
SON-T 400W
SON-T 600W
HPI-T 1000W
HPI-T 400W
Optic
光源腔
Symmetrical对称Asymmetrical
非对称WB宽角NB窄角
Ballast 镇流器
LE Ultratech LE Ultratech
BSN 1000L300I
BSN 400L300ITS
BSN 600L300ITS
BSN 1000L300I
BHL 400L200
BSN 1000L3021
BSN 400L407ITS
BSN 600L407ITS
BHL 1000L202
BHL 400L202
HPS-1K0-ALCC+C
HPSA600-ALBC
MHA1K0-ALBC+C
HPS-1K0-AMBD(C)
HPSA600-AMBC
MHA1K0-AMAC(C)
-
BSN 400L407ITS
BSN 600L407ITS
HPSA600-ANAC
-
BHL 400L204
-
HPS-1K0XALCD+C
-
-
-
MHA1K0XALAD+C
-
-
-
-
-
HPS-1K0-ANED
-
MHA1K0-ANAD
-
-
-
-
0~100m
Indoor室内Outdoor
ta
45ºC
45ºC
45ºC
45ºC
45ºC
室外
220V~/230V~/240V~/50Hz, 220V~/60Hz
220V~/230V~/240V~/50Hz, 220V~/60Hz 1.5
220V~/230V~/240V~/50Hz, 220V~/60Hz
220V~/230V~/240V~/50Hz, 220V~/60Hz
220V~/230V~/240V~/50Hz, 220V~/60Hz
Ignitor 触发器
MAX igniting distance
最大触发距离
SN56
SN58
SN58
SN56
SI51
SN56
SN58
SN58
SI52
SI51
40m
20m
20m
40m
>100m
40m
20m
20m
>100m
>100m
- -
SN58
SN58
-
SI51
-
-
-
-
-
3. Use the gear from same supplier.
同一厂家的电器配合使用。
20m
20m
-
>100m
-
-
-
-
-
Max.
2
0.35 m
V/ Hz
电压/频率
MAX igniting distance
最大触发距离
UZT 6010 B1
-
UZT 6010 B1 30m
UZP 9005 B1
>100m
-
UZT 6010 B1
-
UZT 6010 B1 30m
UZP 9005 B1
-
UZT 6010 B1 30m
-
UZT 6010 B1 30m
UZP 9005 B1
>100m
-
UZT 6010 B1 30m
- -
- -
UZP 9005 B1
>100m
- -
30m
-
-
30m
-
>100m
-
-
-
m
16.4
1.5
16.4
16
1.5
16.4
1.5
16
1.5
Capacitor
电容
100uF 250V
50uF 250V
60uF 250V
60uF 250V
30uF 250V
100uF 250V
45uF 250V
60uF 250V
65uF 250V
30uF 250V
100uF 250V
45uF 250V
60uF 250V
65uF 250V
30uF 250V
65uF 250V
-
-
55uF 250V
-
1. When use in seaside, ensure the distance is above 3km between the luminaire and coast.
当使用在海边环境时，要保证灯具和海岸线距离大于3公里。
2. Please make sure the product will be inaccessible after installation.
请确保灯具在安装后不会被触及到。
3. The luminaire shall be installed by a qualified electrician and wired in accordance with the latest IEC60364-7-714
regulations or the national requirements.
灯具应由有资格的电工安装，接线要符合IEC60364-7-714标准或国家标准。
4. Do not switch on without installing lamp.
未安装光源时请勿通电。
Philips Lighting Luminaires (Shanghai) Co., Ltd.
Address: No. 2688, Huyi Road, Jiading, Shanghai, China
Postalcode: 201801
飞利浦灯具（上海）有限公司
地址：中国上海市嘉定区马陆镇沪宜公路2688号
邮编：201801
M20(3×)
130N.m
720
675
150
300
3-Ø22
S=30
235(1kw)
240(2kw)
550
425
Installation preparation
安装准备
Unscrew the M10 bolt before mounting
the luminaire.
安装灯具前，旋松M10螺拴。
Turn the mounting BKT till appear stopper in the scale dish and overun
the position, take out the plastic part with metal ring.
转动支架直到越过刻度盘的止位，去掉带金属环的塑料件。

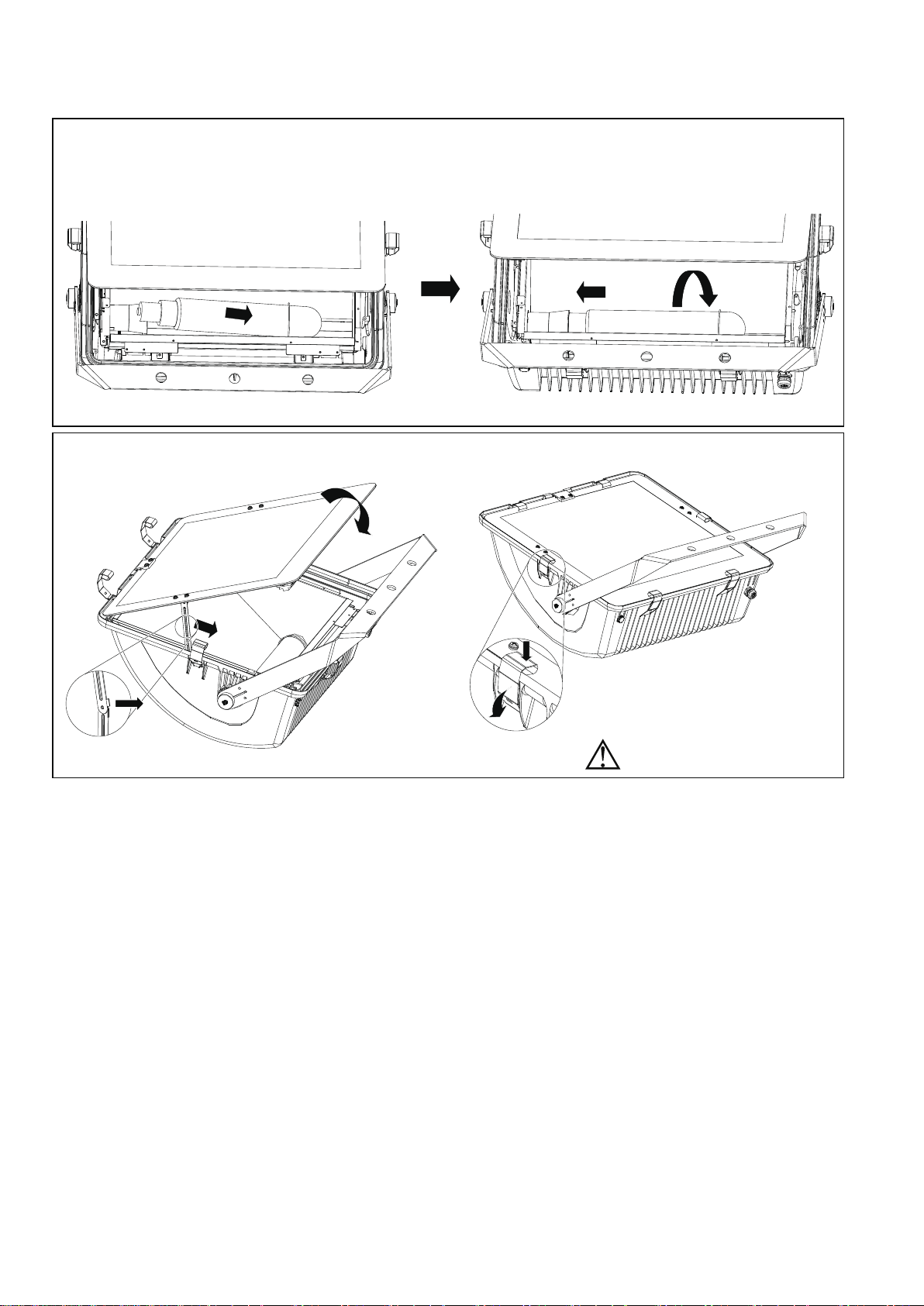

Open the luminaire
打开灯具
40N.m
Installation conditions
安装条件
150°
1KW/ 2×400W/ 2×600W ：
Allowed installing angel is 0°~150°
允许的安装角度是的0°~150°
M10(2×)50N.m
Aiming object through a dial and scale
in mounting bracket
通过刻度盘和支架上的刻度瞄准目标
1. Before opening the glass, ensure
all 6 clips opened.
2
2
打开玻璃时，确保六个搭扣都
已经打开。
2. Ensure the supply power shut off
2
1
1
before installing the luminaire or
replacing the lamp.
为了您的安全，请在安装或更
换光源前切断主电源。
