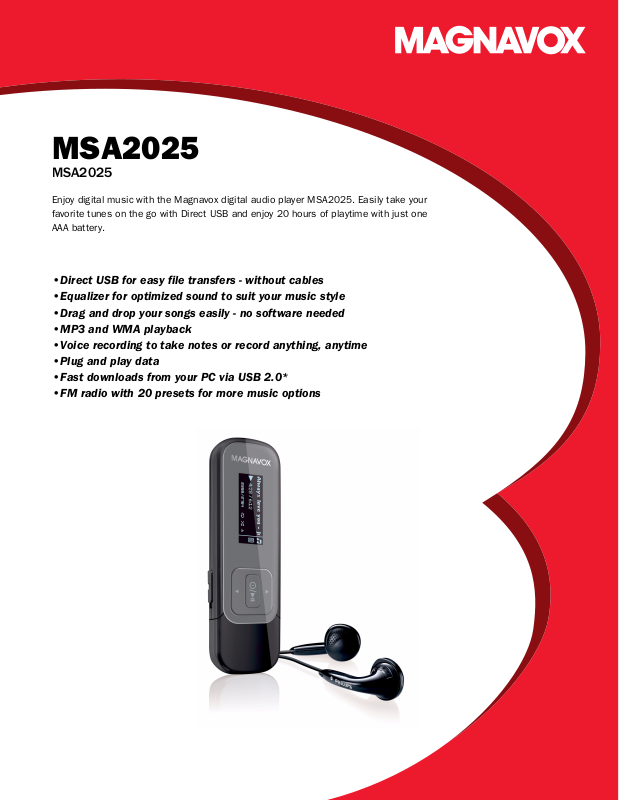

MSA2025
MSA2025
Enjoy digital music with the Magnavox digital audio player MSA2025. Easily take your
favorite tunes on the go with Direct USB and enjoy 20 hours of playtime with just one
AAA battery.
•Direct USB for easy file transfers - without cables
•Equalizer for optimized sound to suit your music style
•Drag and drop your songs easily - no software needed
•MP3 and WMA playback
•Voice recording to take notes or record anything, anytime
•Plug and play data
•Fast downloads from your PC via USB 2.0*
•FM radio with 20 presets for more music options
Page 2
MSA2025/37
MSA2025
Product specifications
Picture/Display
• Backlight
• Lines of text: 3
• Resolution: 128 x 48
• Type: LCD
Convenience
• Firmware upgradeable
• Function: Keypad lock
• Battery low indication
• Volume control
Sound
• Channel separation: 35 dB
• Equalizer settings: Classic, Funk, Hip Hop, Jazz,
Rock
• Frequency response: 80 - 18 000 Hz
• Output power (RMS): 2 x 3 mW
• Signal to noise ratio: > 80 dB
Audio Playback
• Compression format: MP3, WAV, WMA
• ID3 Tag support: Song title, artist, album
• MP3 bit rates: 8-320 kbps and VBR
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
Storage Media
• Built-in memory capacity: 2 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Music memory capacity, WMA: Up to 450 tracks*
Tuner/Reception/Transmission
• Station presets: 20
• Tuner Bands: FM
Connectivity
• Headphone: 3.5 mm
• USB: USB 2.0
Accessories
• Batteries: AAA Alkaline
• CD-ROM: Yes, with IFU, Device Manager
• Headphones: AY3816
• Quick start guide
Software
• Device manager: to restore and upgrade
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Internet connection: Yes (for access to updated
support documents, manuals, future firmware and
PC software upgrades)
• PC OS: Windows 2000 / XP / Vista
• USB: Free USB port
Dimensions
• Blister dimensions (WxDxH): 43.2 x 135 x 213.4
• Packaging type: Clamshell
• Product dimensions (WxDxH): 90 x 29 x 20.3
Power
• Batteries included
• Battery type: AAA / LR03 Alkaline
• Playtime on external battery: Up to 30 hours
Date of issue 2013-02-06
Version: 2.0.3
12 NC: 8670 000 40959
UPC: 6 09585 15723 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
All Rights reserved.
www.magnavox.com
