Philips BSC111, MS1011 User Manual

	2	3	4		ENGLISH

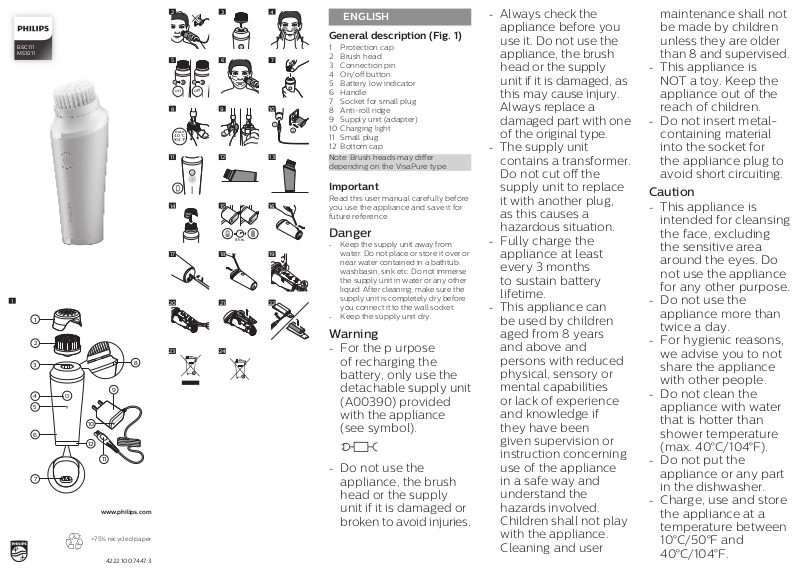

				General description (Fig. 1)
	BSC111			1	Protection cap
	MS1011			2	Brush head
	5	6	7
				3	Connection pin
				4	On/of button
	1x	2x		5	Battery low indicator
	on	o		6	Handle
				7	Socket for small plug
	8	9	10	8	Anti-roll ridge
			1	9	Supply unit (adapter)
				10	Charging light
	max		2
				11	Small plug
	104 °F
	40 °C
				12	Bottom cap
	11	12	13	Note: Brush heads may difer
				depending on the VisaPure type.

		14	15	16
				8 hrs.
		17	18	19
1		20	21	22
	1
	2
		23	24
	3	8
		9
	4
	5
		10
	6
		12
		11
	7

www.philips.com

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

-Keep the supply unit away from water. Do not place or store it over or near water contained in a bathtub, washbasin, sink etc. Do not immerse the supply unit in water or any other liquid. After cleaning, make sure the supply unit is completely dry before you connect it to the wall socket.

-Keep the supply unit dry.

Warning

-For the p urpose of recharging the

battery, only use the detachable supply unit (A00390) provided with the appliance (see symbol).

-Do not use the appliance, the brush head or the supply unit if it is damaged or broken to avoid injuries.

>75% recycled paper

-Always check the appliance before you use it. Do not use the appliance, the brush head or the supply unit if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

-The supply unit contains a transformer. Do not cut of the supply unit to replace it with another plug, as this causes a hazardous situation.

-Fully charge the appliance at least every 3 months to sustain battery lifetime.

-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children unless they are older than 8 and supervised.

-This appliance is NOT a toy. Keep the appliance out of the reach of children.

-Do not insert metalcontaining material into the socket for the appliance plug to avoid short circuiting.

Caution

-This appliance is intended for cleansing the face, excluding the sensitive area around the eyes. Do not use the appliance for any other purpose.

-Do not use the appliance more than twice a day.

-For hygienic reasons, we advise you to not share the appliance with other people.

-Do not clean the appliance with water that is hotter than shower temperature (max. 40°C/104°F).

-Do not put the appliance or any part in the dishwasher.

-Charge, use and store the appliance at a temperature between 10°C/50°F and 40°C/104°F.

4222.100.7447.3

-Do not use the appliance on chapped skin, after eye surgery, open wounds or if you sufer from skin diseases or skin irritations, such as severe acne, sunburn, skin infection etc.

-Do not use the appliance if you are taking steroid-based medication.

-If you wear piercings on your face, remove the piercings before you use the appliance or make sure that you do not use the appliance on or near the piercing.

-If you wear jewelry or glasses, take them of before you use the appliance or make sure you do not use the appliance on or near the jewelry or glasses.

-Do not use the appliance with selfmade cleansers or cleansers containing harsh chemicals or rough particles.

-If you have sensitive skin or experience skin irritation after using the appliance with the normal brush head, we advise

you to switch to the sensitive brush head.

-VisaPure cleanses your skin deeply and stimulates blood circulation. If your skin is used to the treatment, you may experience slight skin reactions like redness or skin tightness on occasion. If your

skin is not used to the treatment, these reactions may be stronger and can last longer, but should disappear after some

hours. To reduce these skin reactions, you can shorten the treatment time, reduce the treatment frequency and/or apply less pressure on the skin during treatment. After 2 weeks of

daily usage, your skin should have adapted to treatment with VisaPure. However, if you still experience strong skin reactions after 2 weeks of daily usage, we advise you

to stop using VisaPure and give your skin some time to recover. You can continue your treatment once the skin reactions have disappeared, using reduced treatment time and frequency. If the

strong skin reactions reoccur, we advise you to contact your doctor.

-We advise you to not cleanse your skin longer than 1 minute at a time, to prevent overtreatment.

-Use a hairband or hair clips to avoid your hair getting caught in the rotating parts.

General

-Please note that the condition of the skin varies throughout the year. Facial skin can get dryer during the winter season. In that case you can reduce the treatment time or

frequency, depending on the needs of your skin.

-The appliance cannot be used directly from the wall socket.

-Regular cleaning of the appliance ensures optimal results and a longer lifetime for the appliance.

-The appliance complies with the internationally approved IEC safety regulations and can be safely used in the bath or shower and cleaned under the tap.

-The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

Electromagnetic ields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic ields.

Introduction

Thank you for choosing to buy Philips VisaPure Essential Mini. Before you get started, we hope you will register your product at www.philips.com/welcome in order to enjoy dedicated product support and ofers designed especially for you.

So what is VisaPure Essential Mini and how can it help your skin? Cleansing is an essential part of the daily skincare routine, but traditional methods do not always leave your skin as clean and

radiant as it could be. That is why we have developed VisaPure Essential Mini - our exciting new approach

to facial cleansing. Forget manual cleansing, with VisaPure Essential Mini you can enjoy clean, radiant skin, quickly and easily every day. VisaPure Essential Mini uses gentle rotating movements to cleanse deeply, remove impurities and make-up to leave skin feeling soft and fresh. Designed to complement your current routine,

you can use VisaPure Essential Mini together with your current cleanser. It also helps skincare products applied after cleansing – such as your favorite moisturizer – to be absorbed better. You will notice the cleansing efect immediately - experiencing smoother, more radiant-looking skin. VisaPure Essential Mini comes ready to use with a brush head. Additional brush heads for diferent skin types and purposes are available separately. Ready to get started? Use VisaPure Essential Mini twice daily to enjoy soft, cleansed skin and to reveal your natural radiance. We hope you and your skin will enjoy using VisaPure Essential Mini.

Using the appliance

You can either use the appliance in front of the sink, in the shower or in the bath. We advise you use VisaPure Essential Mini with your favorite cleanser. You can cleanse your face with VisaPure Essential Mini twice a day.

Daily facial cleansing with VisaPure

Cleansing procedure

Note: The appliance does not work directly from the wall socket (Fig. 2).

Note: Do not use the brush head on the sensitive skin around the eyes.

1Push the brush head onto the connection pin until it locks into position with a click (Fig. 3).

2Moisten the brush head with water or liquid cleanser or apply the cleanser directly on your skin before you use the appliance. Do not use the appliance with a dry brush head, as this can irritate the skin (Fig. 4).

3 Place the brush head on your skin.

4Press the on/of button once to switch on the appliance. Press twice to switch of the appliance (Fig. 5).

Note: We advise you to not cleanse your skin for longer than 1 minute to prevent overtreatment.

5Gently move the brush head across your skin from the nose towards the ear (Fig. 6).

Do not push the brush head too hard onto the skin to make sure the treatment remains comfortable.

6 After the treatment, rinse and dry your face.

7 Clean the brush head with water.

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Cleaning the appliance and the brush head

Clean the appliance and the brush head thoroughly with water after each use, to ensure optimum performance. Make sure the appliance is switched of before you start cleaning it.

1Rinse the handle and the brush head under the tap with warm water (max. 40°C/104°F) (Fig. 8).

2 Remove the brush head from the appliance (Fig. 7).

3Clean the back of the brush head and the connection pin of the

appliance under the tap at least once a week (Fig. 9).

4 Dry these parts with a towel.

Cleaning the supply unit

Danger: Always keep the supply unit dry. Never rinse it under the tap or immerse it in water.

Make sure the supply unit is unplugged when you clean it. Only wipe it with a dry cloth.

Charging the appliance

Charging the appliance takes approximately 8 hours. A fully charged appliance can be used for at least 20 days without charging. This is based on a 1 minute cleansing routine, when using the VisaPure Essential Mini twice a day.

Note: The appliance cannot be used directly from the wall socket.

1Make sure the appliance is

switched of.

2Insert the small plug into the socket of the appliance.

3 Put the supply unit in the wall socket (Fig. 10).

4Charge the appliance. The charging light on the supply unit lights up white continuously to indicate that the appliance is charging (Fig. 15).

Battery-low indication

-When the battery is almost empty, the charging light lights up orange for 15 seconds. The battery still contains enough energy for a complete treatment (Fig. 11).

Storage

-To store the appliance horizontally, place it on the anti-roll ridge (Fig. 12), or place the appliance upright (Fig. 13).

-If you take the appliance with you when you travel, put the protection cap on the dry brush head to protect the brush head ilaments (Fig. 14).

Note: Never put the protection cap on the brush head if the brush head is still wet, for hygienic reasons.

Brush head replacement

Damaged brush heads or worn ilaments could lead to skin irritation. Therefore brush heads need to be replaced every 3 months or earlier if the ilaments are deformed or damaged. Replacement brush heads are available from our website www.shop.philips.com/service or from the shop where you purchased your Philips VisaPure Essential Mini.

If you have any diiculties obtaining replacement brush heads, please contact the Philips Consumer Care Center in your country. You ind its contact details in the International Warranty lealet. You can also visit www.philips.com/support.

Other heads

All Visapure brush heads are compatible with VisaPure Essential Mini. The Revitalising Massage head, Fresh Eyes head and Fresh Skin head are only compatible with Visapure Advanced, not with Visapure Essential Mini.

If you like to know more about other types of heads that are available for speciic skincare needs, please visit www.philips.com/beauty for information.

Recycling

-This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU) (Fig. 23).

-This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with

normal household waste (Fig. 24) (2006/66/EC). Please take your product to an oicial collection point or a Philips service center to have a professional remove the rechargeable battery.

-Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the

product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

1Switch on the appliance and let it operate until it switches of because the rechargeable battery is empty.

2 Separate the bottom cap from the handle with a small lathead screwdriver (Fig. 16) and undo the screw (Fig. 17).

3Insert a small lathead screwdriver between the top part and the handle and pry loose the top part of the appliance (Fig. 18). Carefully pull the top part with the battery

holder out of the housing (Fig. 19).

4Cut the wires (Fig. 20) and undo the screw of the printed circuit board (Fig. 21).

5Remove the rechargeable battery from the battery holder (Fig. 22).

Warning: Do not attempt to replace the rechargeable battery.

Warning: Do not reconnect the appliance to the mains after you have removed the rechargeable battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty lealet. This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem	Solution
The appliance	Make sure that
does not work.	the appliance
	is disconnected
	from the wall
	socket when you
	use it. Charge
	the appliance
	according to the
	instructions in this
	user manual. Check
	if there is a power
	failure and if the
	wall socket is live.
	Make sure that
	you have pressed
	the on/of button
	properly. When
	connected to the
	wall socket, check
	if the charging light
	on the supply unit
	lights up to make
	sure the appliance
	is charging. If it
	does not light up
	or if the appliance
	still does not work,
	take it to your
	Philips dealer or an
	authorized Philips
	service center.

The appliance	Make sure the
does not	socket to which
charge.	you connect the
	appliance is live.
	If you use a socket
	in a bathroom
	cabinet, you may
	need to switch on
	the light to activate
	the socket. If the
	light on the supply
	unit still does not
	light up or if the
	appliance still
	does not charge,
	take it to your
	Philips dealer or an
	authorized Philips
	service center.

I do not know if the appliance is suitable for use on my skin.

The appliance is suitable for all skin types. Do not use the appliance on dry, chapped skin, open wounds, or when you sufer from skin diseases or skin irritation, such as severe acne, sunburn, skin infection, etc. Do not use the appliance if you are taking steroidbased medication.

DEUTSCH

Allgemeine Beschreibung (Abb. 1)

1	Schutzkappe
2	Bürstenkopf
3	Verbindungspin
4	Ein-/Ausschalter
5	Anzeige für leeren Akku
6	Grif
7	Buchse für Gerätestecker
8	Anti-Rutsch-Leiste
9	Netzteil (Adapter)

10Ladeanzeige

11Kleines Netzteil

12Untere Abdeckung

Hinweis: Bürstenköpfe können sich je nach VisaPure-Typ unterscheiden.

Wichtig

Lesen Sie diese Bedienungsanleitung vor dem Gebrauch des Geräts aufmerksam durch, und bewahren Sie sie für eine spätere Verwendung auf.

Gefahr

-Schützen Sie das Netzteil vor Feuchtigkeit. Platzieren oder lagern Sie es nicht über oder in der Nähe von Wasser in Badewannen, Waschbecken, Spülen usw. Tauchen Sie das Netzteil nicht in Wasser oder andere Flüssigkeiten ein. Achten Sie nach dem Reinigen darauf, dass es vollständig trocken ist, bevor Sie es an die Netzsteckdose anschließen.

-Halten Sie das Netzteil trocken.

Warnhinweis

-Laden Sie den Akku nur mit dem abnehmbaren Netzteil (A00390) im Lieferumfang des Geräts (siehe Symbol).

-Zur Vermeidung von Verletzungen benutzen Sie das Gerät, den Bürstenkopf oder das Netzteil nicht, wenn diese beschädigt oder defekt sind.

-Überprüfen Sie das Gerät vor jedem Gebrauch. Benutzen Sie das Gerät, den Bürstenkopf oder das Netzteil nicht, wenn diese beschädigt oder defekt sind, andernfalls sind Verletzungen möglich. Ersetzen Sie ein beschädigtes Teil nur durch Originalteile.
