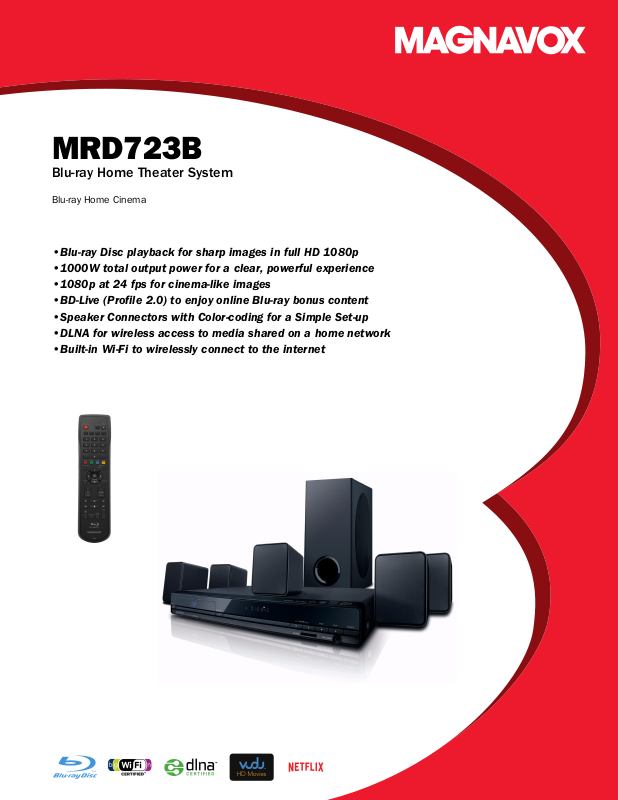

Page 1
MRD723B
Blu-ray Home Theater System
Blu-ray Home Cinema
•Blu-ray Disc playback for sharp images in full HD 1080p
•1000W total output power for a clear, powerful experience
•1080p at 24 fps for cinema-like images
•BD-Live (Profile 2.0) to enjoy online Blu-ray bonus content
•Speaker Connectors with Color-coding for a Simple Set-up
•DLNA for wireless access to media shared on a home network
•Built-in Wi-Fi to wirelessly connect to the internet
Page 2
MRD723B/F7
Blu-ray Home Theater System
Product specifications
Picture/Display
• Picture enhancement: High Def (720p, 1080i,
1080p), Progressive scan
Sound
• Sound System: Dolby Prologic II, Stereo, Dolby
Digital Plus, DTS HD, DTS-HD Master Audio
Essential
• Sound Enhancement: Class "D" Digital Amplifier
• Equalizer settings: Action, Concert, Drama, Sports
Video Playback
• Compression formats: MPEG1, MPEG2
• Playback Media: DVD-Video, DVD-R/-RW, CD-R/
CD-RW
• Video disc playback system: NTSC
Audio Playback
• Compression format: MP3, WMA
• Playback Media: Audio CD, CD-R/RW, DVD-R/-RW
Antenna, Easy-Fit Speaker Connectors, Analog
audio Left/Right in, Digital coaxial in
Power
• Power supply: 120V, 60Hz
Loudspeakers
• Satellite speaker drivers: 3" full range woofer
• Subwoofer driver: 6.5" high efficiency woofer
• Subwoofer type: Passive
• Center freq range: 180-20000 Hz
• Satellite speaker freq range: 180-20000 Hz
• Satellite speaker impedance: 4 ohm
• Subwoofer freq range: 60-150 Hz
• Subwoofer impedance: 4 ohm
Accessories
• Included accessories: Remote Control, CVBS video
cable, FM antenna, 2 x AA Batteries, Information
Sheet, Setup Manual
Blu-ray Disc playback
Blu-ray Discs have the capacity to carry high definition
data, along with pictures in the 1920 x 1080
resolution that defines full high definition images.
Scenes come to life as details leap at you,
movements smoothen and images turn crystal clear.
Blu-ray also delivers uncompressed surround sound so your audio experience becomes unbelievably real.
The high storage capacity of Blu-ray Discs also allow a
host of interactive possibilities to be built in.
Seamless navigation during playback and other
exciting features like pop-up menus bring a whole new
dimension to home entertainment.
1080p at 24 fps
Bring true cinema experience into your living room with
24 frames-per-second video. Original films are all
recorded at this frame rate, providing an ambience
and image texture that is so unique. Philips Blu-ray
Disc players are equipped to bring you 24fps directly
from Blu-ray Discs - thus giving you sensational
cinema-like high definition images that will astound
you.-
Still Picture Playback
• Picture Compression Format: JPEG
• Playback Media: CD-R/RW, DVD-R/-RW
• Picture Enhancement: Rotate, Zoom, Slideshow
with music playback
Tuner/Reception/Transmission
• Tuner Bands: FM
Connectivity
• Front / Side connections: MP3 Line-in, SD Card slot
• Rear Connections: HDMI output, Component Video
output, Composite video (CVBS) output, FM
Dimensions
• Set dimensions (W x H x D): 435 x 59 x 297 mm
• Set weight: 3.7 kg
Product dimensions
• Product dimensions (W x H x D):
x 5.9 x 29.7 cm
43.5
• Product dimensions (W x H x D):
17.1
x 2.3 x 11.7 inch
•Weight: 3.7 kg
• Weight: 8.157 lb
Date of issue 2014-07-15
Version: 2.2.2
12 NC: 8670 000 76444
UPC: 6 09585 21449 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V. or their respective
owners.
© 2014 Magnavox.
All Rights reserved.
www.magnavox.com
