MRD120/17
User guide
SMART. VERY SMART.
MRD120
Read this manual first!
Congratulations on purchasing this Magnavox product.
We’ve included everything you need to get started.
If you have any problems, Magnavox Representatives can
help you get the most from your new product by explaining:
• Hookups,
• First Time Setup, and
• Feature Operation.
Do not attempt to return this product to the store.
Thank you for making Magnavox a part of your home!
DVD VIDEO DIGITAL SUROUND SYSTEM
T
R
A
O
N
For fast help, call us first!
1-800-705-2000
P
M
I
Return
your Warranty
Registration Card
within 10 days
S
E
E
T
!
E
D
I
S
W
N
H
I
Y
001-037-MRD120-37-Eng3 1/6/04, 4:19 PM1
1
8239 300 30533
Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
• Once your Magnavox purchase is
registered, you’re eligible to receive all
the privileges of owning a Magnavox
product.
Warranty
Verification
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Magnavox warranty.
Owner
Confirmation
Your completed Warranty
Registration Card serves
as verification of ownership in the event of product theft or loss.
Know these
ssaaffeettyy
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
symbols
• So complete and return the Warranty
Registration Card enclosed with your
purchase at once, and take advantage
of these important benefits.
Model
Registration
Returning your Warranty
Registration Card right
away guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
For Customer Use
Enter below the Serial No. which is located on the rear of the cabinet. Retain this
information for future reference.
Model No. _______________________
Serial No. ________________________
This “bolt of lightning” indicates uninsulated material
t
an electrical shock. For the safety of
everyone in your household, please do
not remove product covering.
s
enclosed literature closely to prevent
operating and maintenance problems.
2
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM2
within your unit may cause
The “exclamation point” calls
attention to features for
which you should read the
WARNING:
FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
CAUTION:
shock, match wide blade of plug to
wide slot, and fully insert.
TO PREVENT
To prevent electric
MAC5097
8239 300 30533
Visit our World Wide Web Site at http://www.magnavox.com
I
T
O
A
N
R
T
S
I
G
E
R
S
Y
Hurry!
A
D
0
N
I
T
H
I
1
N
Congratulations on your purchase,
and welcome to the “family!”
Dear Magnavox product owner:
Thank you for your confidence in Magnavox.You’ve selected one of the
best-built, best-backed products available today.And we’ll do everything in
our power to keep you happy with your purchase for many years to come.
As a member of the Magnavox “family,” you’re entitled to protection by
one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information
and special offers for which you qualify, plus easy access to accessories
from our convenient home shopping network.
E
E
D
E
D
W
And most importantly you can count on our uncompromising commitment
to your total satisfaction.
All of this is our way of saying welcome – and thanks for investing in a
Magnavox product.
Sincerely,
Lawrence J. Blanford
President and Chief Executive Officer
P.S. Remember, to get the most from your Magnavox product,
you must return your Warranty Registration Card within
10 days. So please mail it to us right now!
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM3
3
8239 300 30533
IMPORTANT SAFETY INSTRUCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near
water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation
openings. Install in accordance with
the manufacturer´s instructions.
8.
Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9.
Do not defeat the
safety purpose of the
polarized or
grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug
does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10.
Protect the power cord from being
walked on or pinched, par ticularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11.
Only use attachments/accessories
specified by the manufacturer.
AC Polarized
Plug
12 .
13 .
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14 .
Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15.
Battery usage
prevent battery leakage which may result in
bodily injury, proper ty damage, or damage
to the unit:
●
Install all batteries correctly, + and - as
marked on the unit.
●
Do not mix batteries (old and new or
carbon and alkaline, etc.).
●
Remove batteries when the unit is not used
for a long time.
16.
Apparatus shall not be exposed to
dripping or splashing.
17.
Do not place any sources of danger
on the apparatus (e.g. liquid filled
objects, lighted candles).
Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer or sold with
the apparatus.When a cart is
used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
CAUTION
– To
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
4
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM4
18.
This product may contain lead and mercury.
Disposal of these material may be regulated
due to environment considerations.
For disposal or recycling information,
please contact your local authorities
or the Electronic Industries Alliance :
www.eiae.org.
EL 6475-E004: 03/12
8239 300 30533
Canada
English:
This digital apparatus does not exceed the
Class B limits for radio noise emissions
from digital apparatus as set out in the
Radio Interference Regulations of the
Canadian Department of Communications.
This warning label is located on the rearside
and inside this laser product.
INVISIBLE
:
CAUTION
LASER RADIATION
WHEN OPEN. DO NOT STARE INTO BEAM.
INVISIBLE LASER RADIATION WHEN OPEN.
:
DANGER
AVOID DIRECT EXPOSURE TO BEAM.
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET
VARO !
ALTTIINANAKYMATTOMAALLE LASERSATEILYLLE.ALA
KATSO SATEESEEN.
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
VARNING!
OCH SPARREN AR URKOPPLAD.BETRAKTA EJ STRÅLEN.
or
DANGER - Invisible laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
IMPORTANT NOTE
Due to the numerous versions of new
CD-Audio copy protection or
enhanced CD-Audio protection
recently available on certain discs,
Magnavox is unable to guarantee
that this DVD system is fully
compatible with such new discs.
Should you have difficulty playing
such CD-Audio discs, kindly refer
them to your CD-Audio disc retailer.
Laser
Type Semiconductor laser GaAIAs
Wave length 650nm
Output Power 7mW
Beam divergence 60 degree
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
This system complies with the FCC rules, Part
15 and with 21 CFR 1040.10. Operation is
subject to the following two conditions:
– This device may not cause harmful
interference, and
– This device must accept any
interference received, including
interference that may cause undesired
operation.
5
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM5
8239 300 30533
Contents
General Information
Supplied accessories ............................................ 7
Care and safety information .............................. 7
Connections
Step 1: Placing the speakers and subwoofer . 8
Step 2: Connecting speakers and subwoofer 9
Step 3: Connecting TV ..................................... 10
Using Composite Video jack ...................... 10
Using Component Video jack
(Pr/Cr Pb/Cb Y) ............................................. 10
Using S-Video jack ........................................ 11
Using an accessory RF modulator ............ 11
Step 4: Connecting FM/AM antennas ............. 12
Step 5: Connecting the power cord ............... 12
Connections (optional)

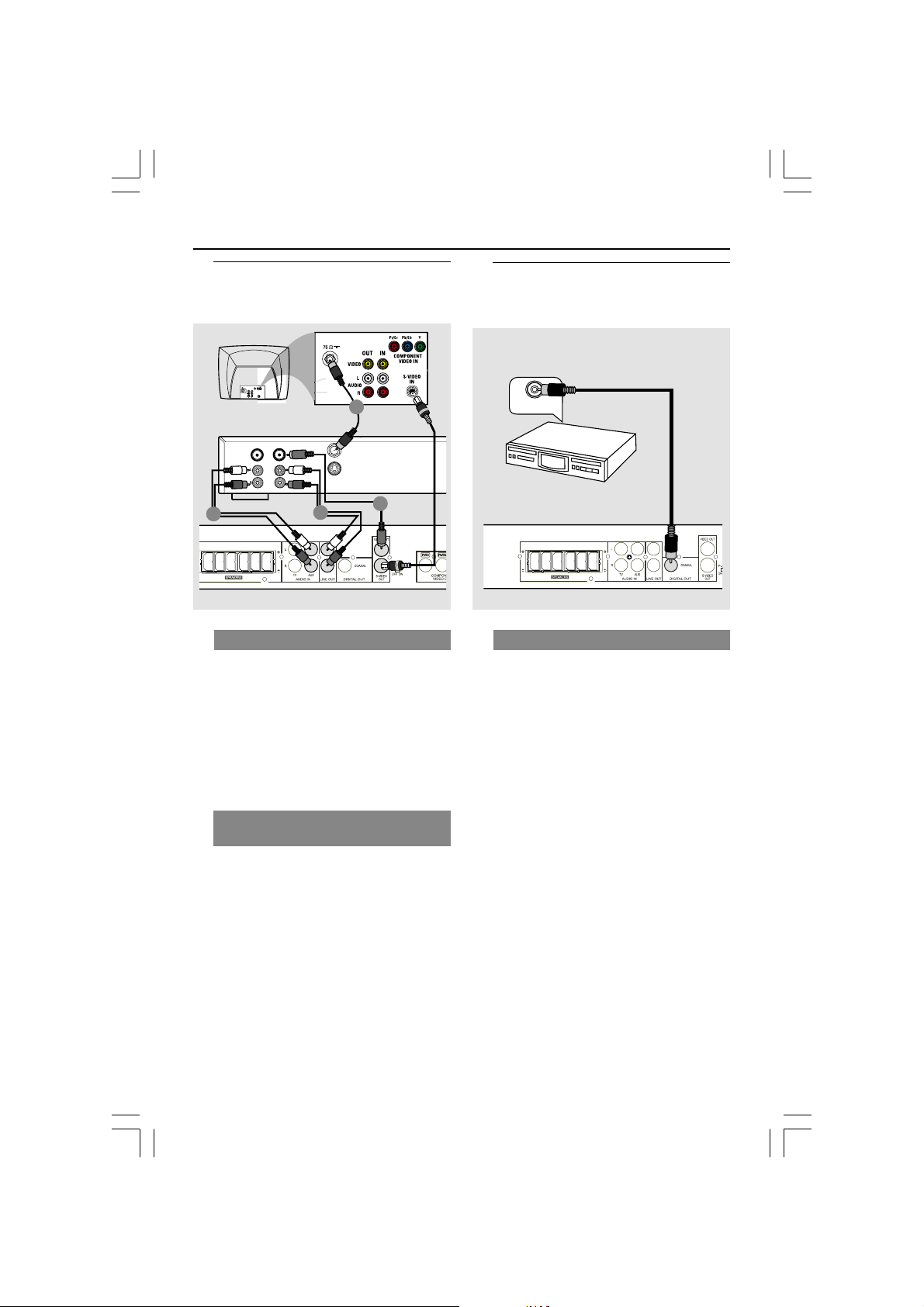

Connecting a VCR or Cable/Satellite Box .... 13
Viewing and listening to the playback ...... 13
Using the VCR for recording DVD
playback........................................................... 13
Connecting digital audio equipment .............. 13
Digital Recording .......................................... 13
Functional Overview

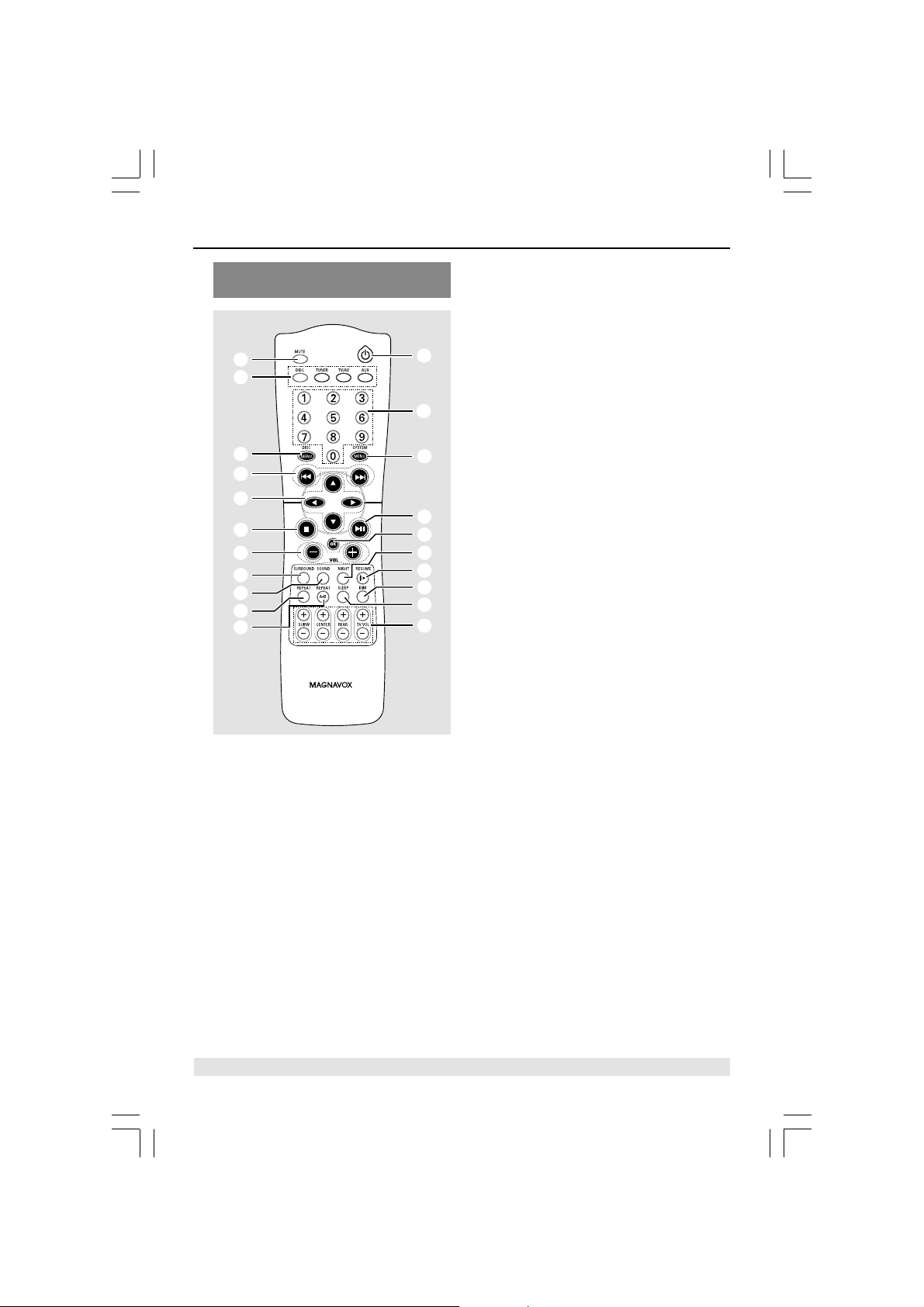

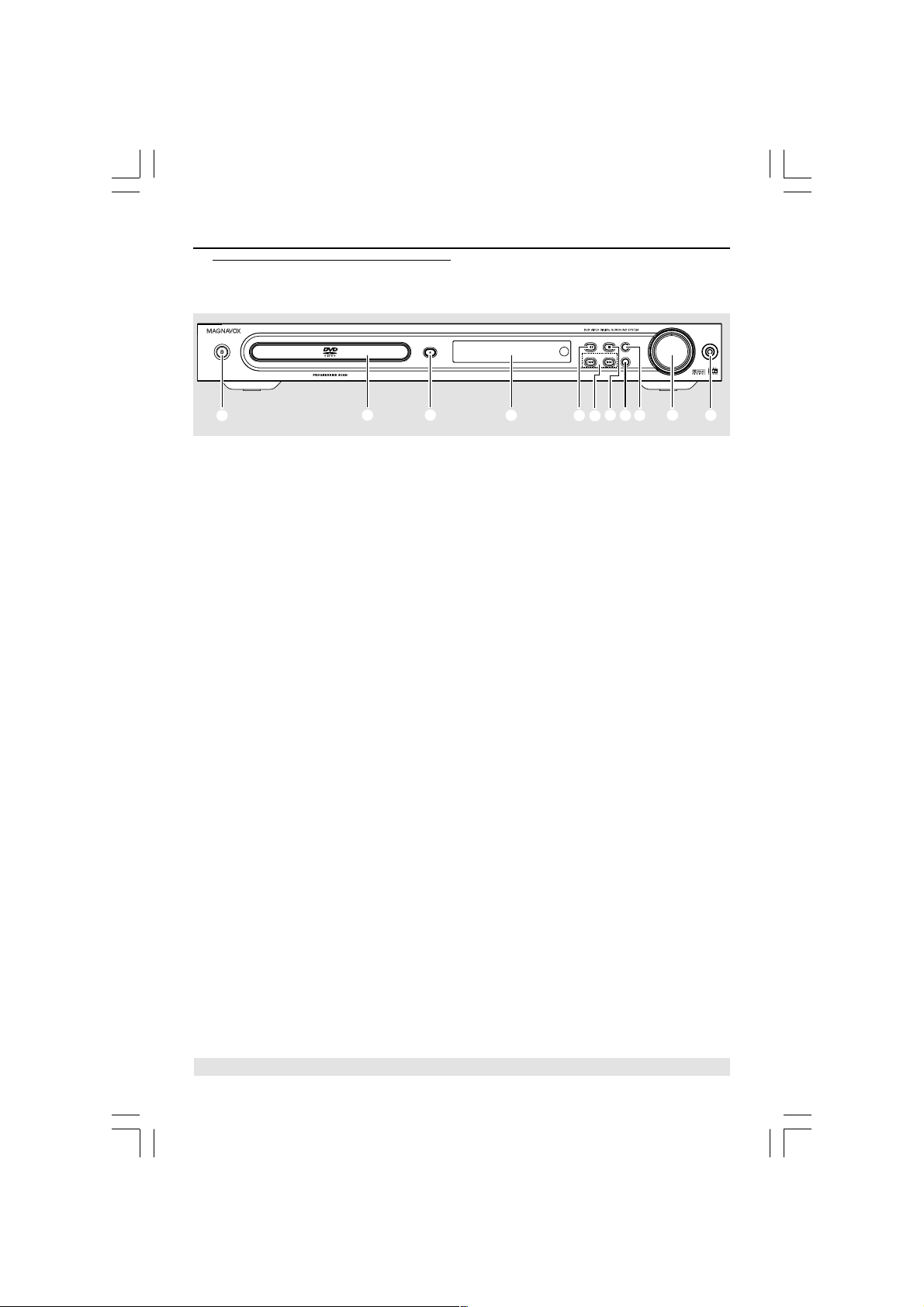

Main unit and remote control ......................... 14
Control buttons available on the
remote only ................................................... 15
Getting Started

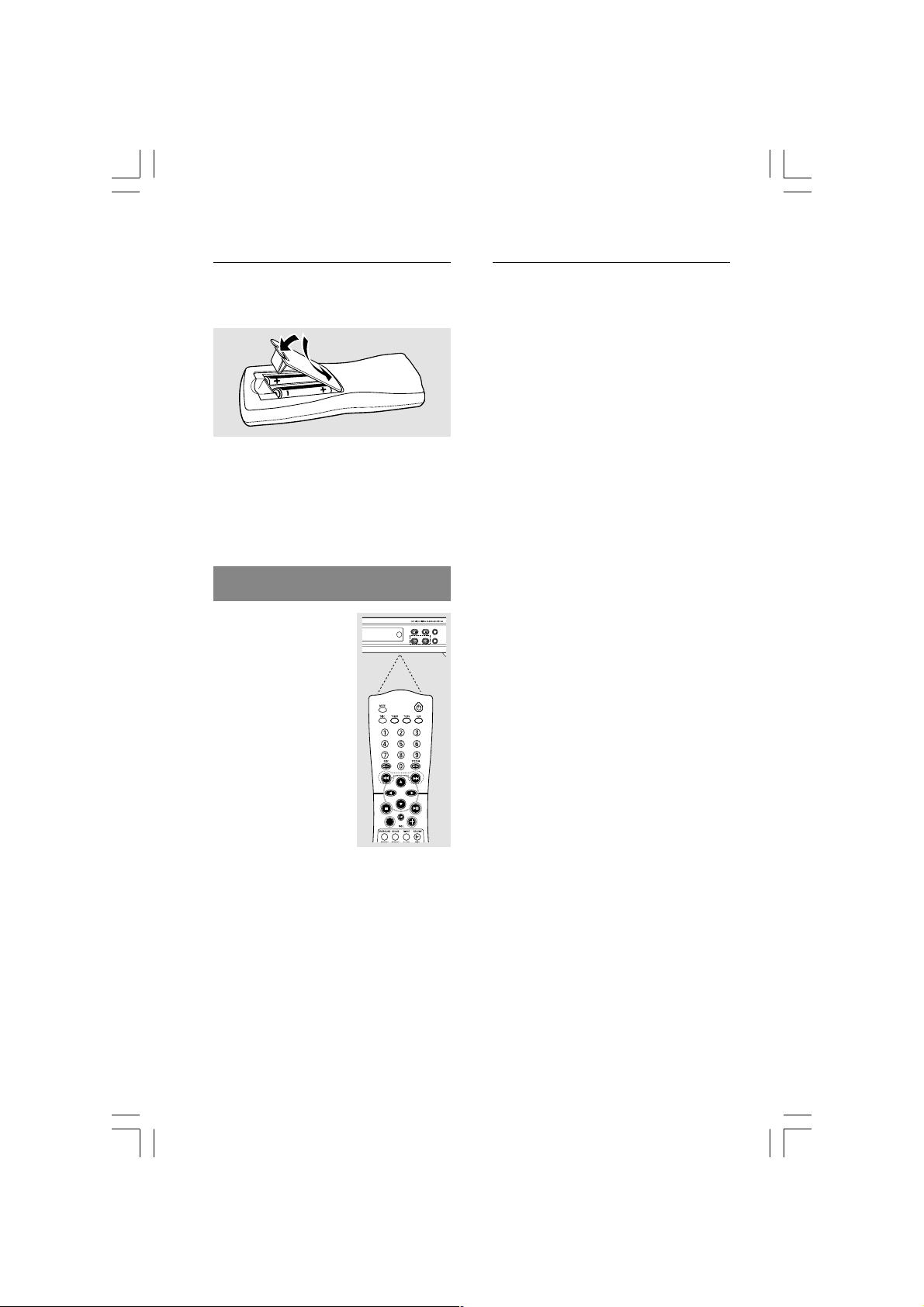

Step 1: Inserting batteries into the
remote control ................................................... 16
Using the remote control to operate
the system ...................................................... 16
Step 2: Setting the TV ........................................ 16
Selecting the color system that
corresponds to your TV .............................. 17
Setting the TV shape .................................... 17
Step 3: Setting the speakers ............................. 18
Test Tone - turning on/off ........................... 18
Adjusting the delay time.............................. 18
Adjusting the speaker output levels ......... 18
Step 4: Setting language preferences .............. 19
On-screen display (OSD) language........... 19
Audio, Subtitle and Disc Menu language .. 19
Disc Operations
Playable discs ....................................................... 20
Playing discs ......................................................... 20
Using the Disc Menu ......................................... 21
Basic playback controls ..................................... 21
Resuming playback from the last
stopped point (DVD/VCD/CD) ................ 21
Selecting various repeat functions .................. 22
Repeat play mode ......................................... 22
Repeating a section within a
chapter/track ................................................. 22
Program favorite tracks
(audio CDs and VCDs) ..................................... 22
Clearing the program .................................. 22
Using the menu bar to program ..................... 23
Playing MP3/Picture disc (Kodak, JPEG) ........ 23
DVD Setup Menu Options
Using the menu bar ........................................... 24
Using the Setup Menu ....................................... 25
Setting the video output ............................. 25
Screen saver - turning on/off...................... 26
Setting the digital output ............................ 26
Night mode- turning on/off ........................ 27
Restoring the original settings ................... 27
Restricting playback by parental control . 28
Changing the password ............................... 29
Tuner Operations
Tuning to radio stations .................................... 30
Presetting radio stations ................................... 30
z
Other Functions
Sound Control .................................................... 31
Selecting surround sound ........................... 31
Selecting digital sound effects .................... 31
Volume Control .................................................. 31
Dimming system’s display screen .................... 31
Using the remote to operate ‘Philips’
television ............................................................... 32
Setting the Sleep timer ..................................... 32
Specifications .......................................................... 33
Troubleshooting ...........................................34–35
Glossary ........................................................................ 36
6
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM6
Limited Warranty.............................................. 37
8239 300 30533
General Information
Supplied accessories
Composite video
cable (yellow)
Audio cable
(white, red)
FM wire antenna
AM loop antenna
Remote Control
and two AA batteries
(12nc: 3139 228 61131)
Care and safety information
Avoid high temperatures, moisture,
water and dust
– Do not expose the system, batteries or
discs to humidity, rain, sand or excessive
heat (caused by heating equipment or
direct sunlight.) Always keep the disc tray
closed to avoid getting dust on the lens.
Avoid condensation problem
– The lens may cloud over when the
player is suddenly moved from cold to
warm surroundings, making it impossible
to play a disc. Leave the player in the
warm environment until the moisture
evaporates.
Do not block the vents
– Do not operate the DVD system in an
enclosed cabinet and allow about 10 cm
(4 inches) of free space all around the
player for adequate ventilation.
10 cm
(4 inches)
10 cm
(4 inches)
Care of disc
– To clean a CD, wipe it
in a straight line from the
center toward the edge
VOL
using a soft, lint-free
cloth. Do not use
cleaning agents, as they
may damage the disc.
– Write only on the printed side of a
CD-R/CD-RW and only with a soft felttipped pen.
– Handle the disc by its edge, do not
touch the surface.
Care of the cabinet
– Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits,
ammonia or abrasives.
Finding a suitable location
– Place the player on a flat, hard, stable
surface.
PHILIPS
DVD Home Cinema System
10 cm
(4 inches)
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM7
7
8239 300 30533

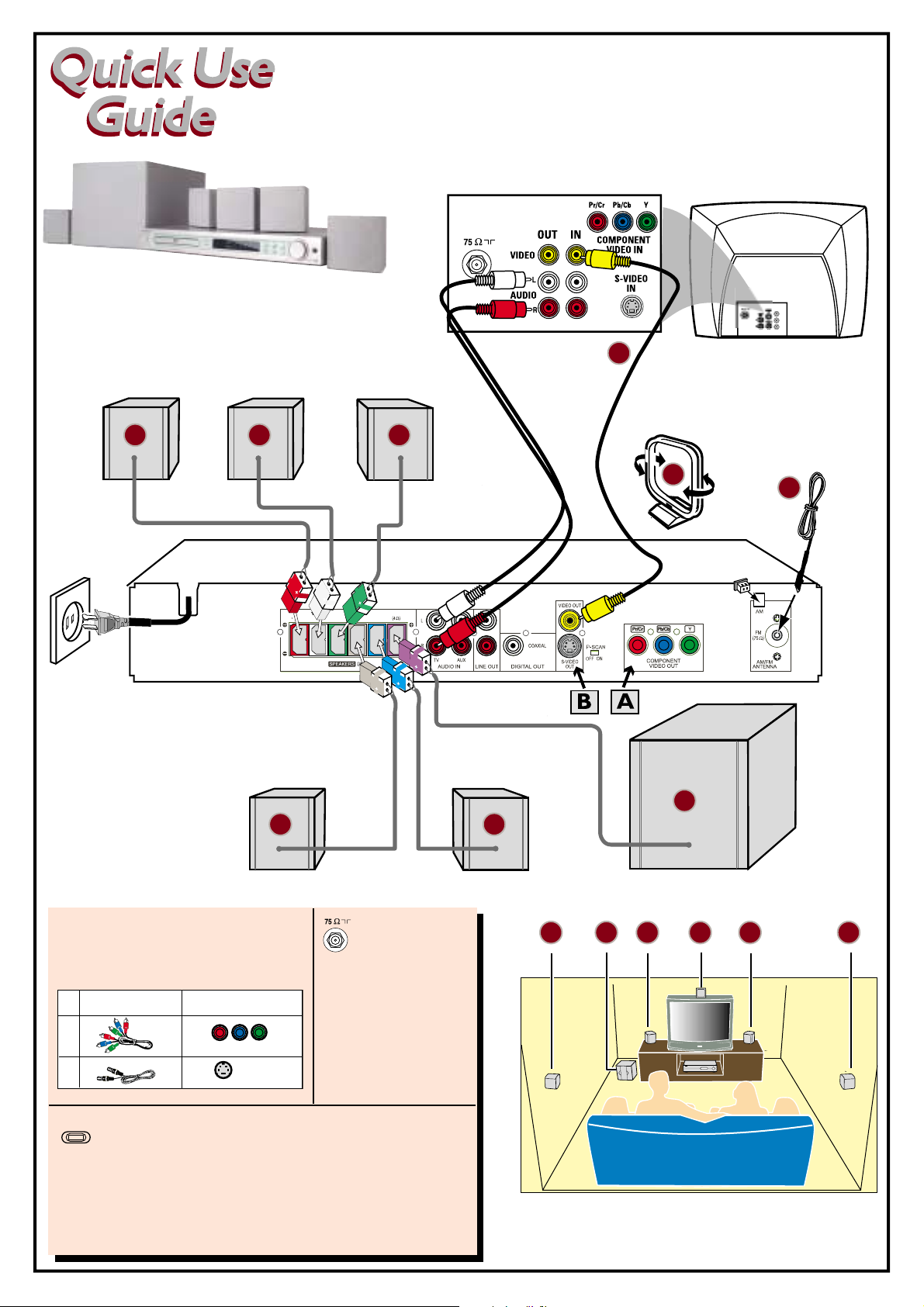

Connections
Step 1: Placing the speakers
and subwoofer
Front Speaker
(Left)
1
Center speaker
2
Front Speaker
(Right)
1
3
Rear Speaker
(Left)
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
1 Place the front left and right speakers at
equal distances from the TV and at an
angle of approximately 45 degrees from
the listening position.
2 Place the center speaker above the TV or
the DVD system so that the center
channel’s sound is localized.
3 Place the rear speakers at normal
listening ear level facing each other or
hang on the wall.
4 Place the subwoofer on the floor near
the TV.
4
Passive
Subwoofer
3
Rear Speaker
(Right)
Helpful Hints:
– To avoid magnetic interference, do not
position the front speakers too close to
your TV.
– Allow adequate ventilation around the
DVD system.
8
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM8
8239 300 30533
Step 2: Connecting speakers
and subwoofer
Connections
Front Speaker
(Right)
Rear Speaker
(Right)
Front Speaker
FRONT
FRONT
FRONT
RIGHT
LEFT
CENTER
Rear Speaker
(Left)
REAR
RIGHT
(Left)
REAR
SUBWOOFER
LEFT
Connect the supplied speaker systems
using the fixed speaker cables by
matching the colors of the jacks and
speaker cables.
Helpful Hint:
– Ensure that the speaker cables are
correctly connected. Improper connections
may damage the system due to short-circuit.
Center
Speaker
Passive
Subwoofer
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM9
9
8239 300 30533
O
Connections
Step 3: Connecting TV
Option 1
1
OFER
2
3
IMPORTANT!
– You only need to make
one video
connection from the following
options, depending on the
capabilities of your TV.
– Connect the DVD system directly
to the TV.
Using Composite Video jack
1 Use the supplied composite video cable
(yellow) to connect the DVD system’s
VIDEO OUT jack to the video input
jack (or labeled as A/V In, Video In,
CVBS, Composite or Baseband) on the
TV.
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO
IN-TV jacks to the corresponding
AUDIO OUT jacks on the TV.
3 Set the P-SCAN switch to ‘OFF.’
Option 2
OFER
1
2
3
IMPORTANT!
The progressive scan video quality is
only possible when using Pr/Cr Pb/Cb Y,
and a progressive scan TV is required.
Using Component Video jacks
(Pr/Cr Pb /Cb Y)
1 Use a component video cables (red/blue/
green - not supplied) to connect the
DVD system’s Pr/Cr Pb/Cb Y jacks to
the corresponding Component video
input jacks (or labeled as Pr Pb Y or
YUV) on the TV.
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO
IN-TV jacks to the corresponding
AUDIO OUT jacks on the TV.
3 If you are using a Progressive Scan TV
(TV must indicate Progressive Scan or
ProScan capability,) set the P-SCAN
switch to ‘ON’. Otherwise, set it to ‘OFF.’
Helpful Hint:
– You have to power off the DVD system or
switch to standby mode before changing the
P-SCAN switch setting.
10
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM10
8239 300 30533
Connections
Option 3 Option 4
OFER
1
2
3
REAR
LEFT
IMPORTANT!
If S-Video is used for DVD playback,
the system’s VIDEO OUT setting will
need to be changed accordingly.
Details are on page 25.
Using S-Video jack
1 Use an S-video cable (not supplied) to
connect the DVD system’s S-VIDEO
OUT jack to the S-Video input jack
(or labeled as Y / C or S-VHS) on the TV.
1 Use the supplied composite video cable
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO
IN-TV) jacks to the corresponding
2 Use an RF coaxial cable (not supplied) to
AUDIO OUT jacks on the TV.
3 Set the P-SCAN switch to ‘OFF.’
3 Connect the Antenna or Cable TV
4 Set the P-SCAN switch to ‘OFF.’
ANT IN
RF coaxial cable to TV
Back of RF Modulator
(example only)
AUDIO IN
TO TVINT IN
VIDEO
IN
R L
CH3 CH4
Antenna or
Cable TV signal
2
3
1
SUBWOOFER
4
IMPORTANT!
If your TV only has a single Antenna In
jack (labeled as 75 ohm or RF In,) you
will need an RF modulator in order to
view DVD playback on the TV. See
your electronics retailer or contact
Magnavox for details on RF
modulator availability and operations.
Using an accessory RF modulator
(yellow) to connect the DVD system’s
VIDEO OUT jack to the video input
jack on the RF modulator.
connect ANTENNA OUT or TO TV jack
on the RF modulator to the ANTENNA
IN jack on the TV.
service signal to the ANTENNA IN or
RF IN jack on the RF modulator. (It may
have been connected to your TV
previously. Disconnect it from the TV.)
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM11
11
8239 300 30533
Connections
Step 4: Connecting FM/AM
antennas
fix the claw into
the slot
➠
AM
antenna
1
FM
antenna
2
1 Connect the supplied AM loop antenna
to the AM jack. Place the AM loop
antenna on a shelf or attach it to a stand
or wall.
2 Connect the supplied FM antenna to the
FM (75Ω) jack. Extend the FM antenna
and fix its ends to the wall.
For better FM stereo reception, connect
an external FM antenna (not supplied.)
Step 5: Connecting the
power cord
SUBWOOFER
FRONT
FRONT
FRONT
REAR
REAR
CENTER
RIGHT
LEFT
RIGHT
LEFT
~ AC MAINS
Power Outlet
After everything is connected
properly, plug the AC power cord
into the power outlet.
Never make or change any connections
with the power switched on.
Helpful Hint:
– Refer to the type plate on the rear or
bottom of the system for identification and
supply ratings.
Helpful Hints:
– Adjust the position of the antennas for
optimal reception.
– Position the antennas as far as possible
from your TV, VCR or other radiation source
to prevent unwanted interference.
12
001-037-MRD120-37-Eng 18/03/2004, 02:18 PM12
8239 300 30533
