Page 1
MMS8080B
2.1
Page 2
General information
Safety instructions
Please read carefully the safety mark on the back side
This mark is intended to alert the user from
the non isolated dangerous voltage within the
constitute a risk of electric shock to persons.
This mark is intented to alert the user for
important operating and servicing instruction.
Warnings
•
Avoid sustained periods on high-volume use, and
do not turn the volume to maximum level while using
high output signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may damage the
loudspeaker cones.
•
when not in use.
• Do not open the cover or back panel to avoid
electrical shock or any other accidents. No userserviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage
marked on the back panel of the Subwoofer.
•
The MAINS plug is used as the disconnect device, the
disconnect device shall remain readily operable.
Care and safety information
Avoid high temperatures, moisture, water and dust
•
Apparatus should not be exposed to dripping or
splashing of liquid.
• Do not place any source of danger on the Subwoofer,
• Do not install near heat sources.
Do not block any ventilation opening
•
Place the apparatus in a location with adequate
ventilation to prevent internal heat build up. Allow at
least 100cm (4 inches) of free space all around the
apparatus for adequate ventilation.
• At high volume the back cover of Subwoofer becomes
hot. Do not touch it.
Care of the cabinet
•
Use a soft cloth slightly moistened to clean the cabinet.
Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
Accessories
Item 3.5mm to RCA cable Remote control User manual FM Antenna cable Speaker Stand
Quantity 1 1 1 1 2
The product shall not be exposed to dripping or splashing
and that no objects lled with liquids, such as vases, shall
be placed on the product.
•
•
Attention should be drawn to the environmental
aspects of battery disposal.
• Batteries shall not be exposed to excessive heat such as
sunshine, re or the like.
Page 3
Connections
Back panel
FM Antenna Connection
Power On Switch
Mains Cord
Page 4

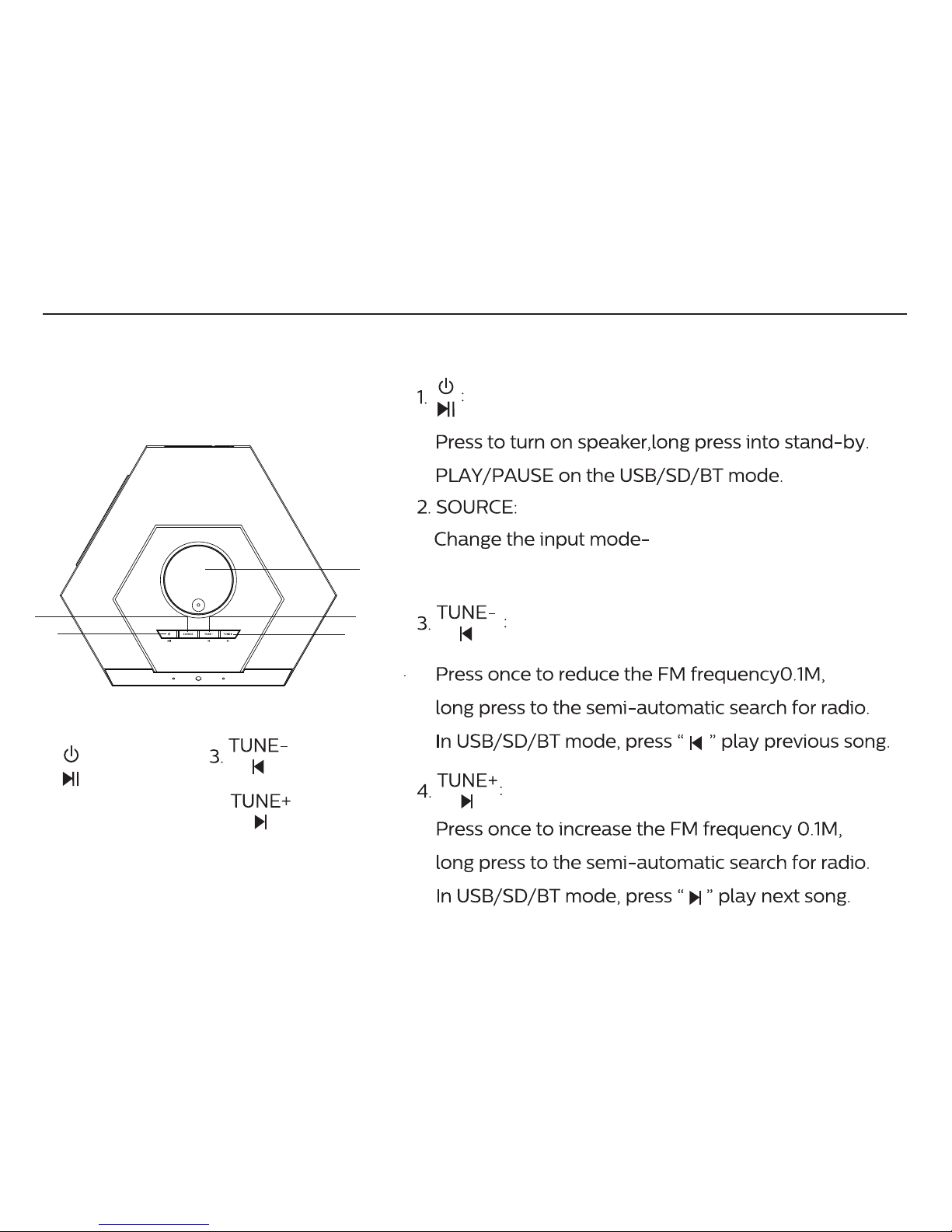

Front panel operation
* AVAILABLE IF CONNECTED
2. SOURCE
1.
4.
5. VOLUME+/-
5. Rotate the knob clockwise to increase volume
anti-clockwise to decrease volume.
(4)
(5)
(2)
(1)
(3)
Audio, Bluetooth, CD,
USB, SD and FM.
Page 5
Remote controls
8.
9.
10.
11.VOL-
12.TUNING-
13.TUNING+
1.
2.MUTE
3.0~9
4.SOURCE
5.BASS-/+
6.EQ
7.VOL+
1. ----- Turn on/Stand-by the speaker.
2.Mute----- Press “MUTE ” to activate or deactivate mute.
3.0-9 ----- Numeric keys, with the help of these keys you select
song or track in USB, and in FM, you can key in station frequency,
i.e. for 927 key in 92.7.
4.SOURCE ----- Select the input/source- Audio/CD,USB/FM/BT.
5.BASS-/+ ----- To decrease/ increase the bass.
6.Equalizer ----- NORMAL,CLASSIC,POP,JAZZ,POCK. (works only in
USB/SD mode)
7. VOL+ ----- Volume up.
8. ----- Plays/pauses songs alternately.in FM mode,
long press“ ”,it will enter into automatic search channel and
automatic save channel.
9. ----- Play the previous song by pressing “ ” at USB
input mode. Choose previous channel by pressing “ ” at
FM input mode.
10. ----- Play the next song by pressing “ ” at USB
input mode. Choose next channel by pressing “ ” at
FM input mode.
11. Vol- ----- Volume down.
12.TUNING- ----- Each time to search channel step by step(each
step(-) 0.1 MHz),Press“TUNING-”long time to search previous
channel,and play the channel automatically.
13.TUNING+ ----- Each time to search channel step by step(each
step 0.1 MHz),Press“TUNING+”long time to search next channel,
and play the channel automatically.
(1)
(3)
(4)
(6)
(7)
(9)
(12)
(2)
(5)
(8)
(10)
(11)
(13)
Page 6

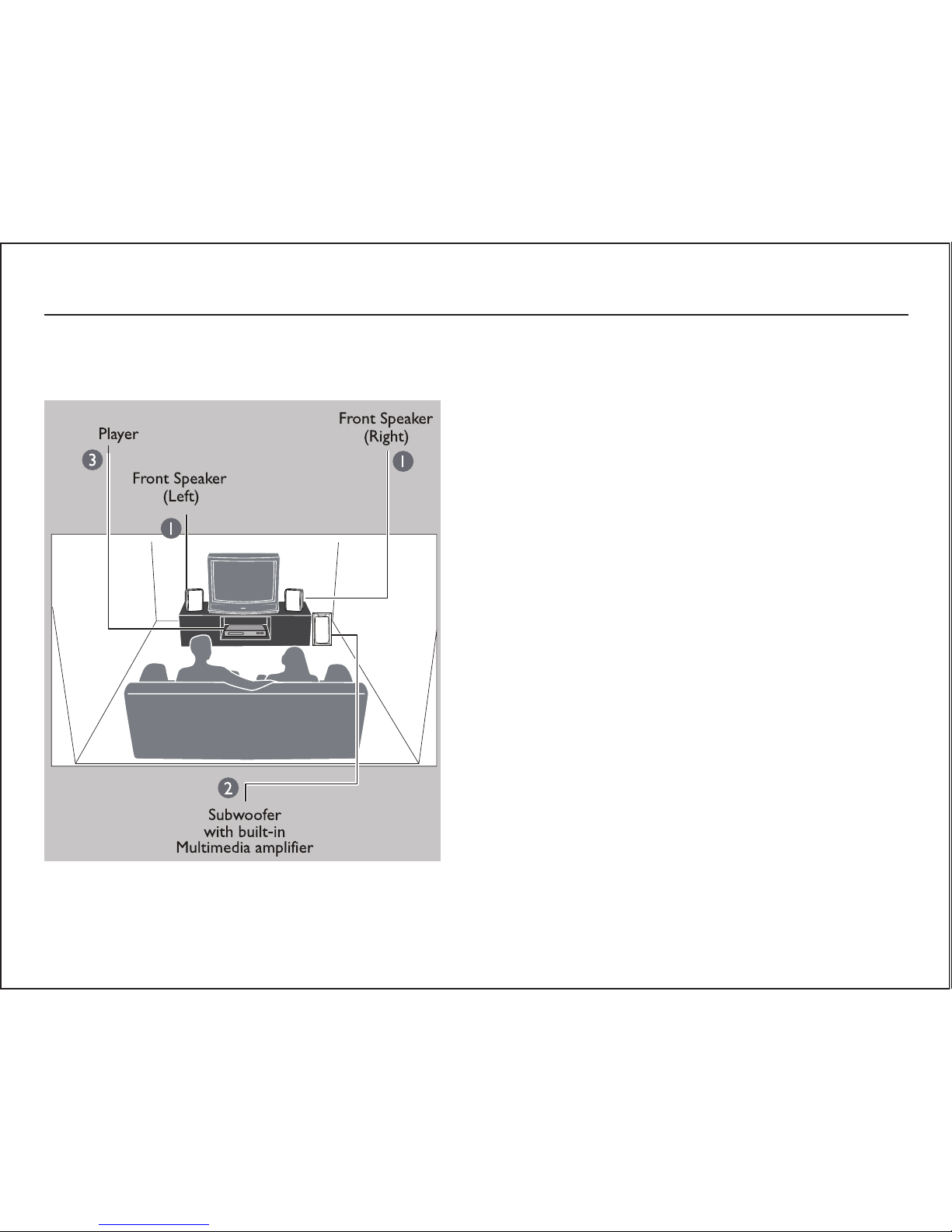

System positioning :
The subwoofer is recommended to be put
on the oor to get a better acoustic eect.
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
Place the front left and right speakers at
equal distances from the TV and at an angle
of approximately 45 degrees (horizontal)
from the listening position.
Helpful Hints:
- To avoid magnetic interference, do not position
the speakers, too close to your TV.
Playing the speakers and subwoofer
Page 7
Bluetooth Operating Instruction
LED lights & Operation :
standby mode
CD mode
FM mode
USB/SD mode(Connected)
USB/SD (While playing song)
mute
BT mode (Source Selection)
BT mode (connected)
BT mode (While playing song)
FM mode
AUX mode
blue LED blinks quickly
solid orange LED
solid red LED
solid green LED
solid orange LED
both solid red & blue LED
solid red LED, while blue LED ashes
both solid blue & orange LED ashes slowly
red LED ashes
blue LED blinks slowly
solid blue LED
Page 8
Troubleshooting
In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.
Problem Solution
1. No power.
2. No sound or distorted sound.
3. The remote control does not
function properly.
4. Low hum or buzz sound.
drive can not be read.
6. Slow operation of the USB / SD
8. FM reception not good.
Check if the AC power cord is properly inserted into the AC mains socket.
Adjust the volume / select the correct source to choose the equipment
that you want to hear through the system.
Reduce the distance between the remote control and the system. Replace
the batteries with new ones / Point the remote control directly towards the
IR sensor (located on front panel of the subwoofer) / Check that the batteries
Place the product as far away as possible from electrical devices that may be
causing interference / Check power supply voltage and consult electrician.
Drive is
and play. / Take out USB / SD drive and insert it again properly.
7. FM not properly tuned. Match with local frequency.
9. BT not working. Reduce the distance or device is not paired.
Warning -
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty.
below before taking the system for repair. If you are unable to remedy the problem by following hints
mentioned in below table, Consult your dealer or PHILIPS APSC for help.
Page 9
Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road,
Gurgaon-122018, Haryana, India
This Philips 2.1 multimedia speakers system is warranted against any defect due to defective materials or
workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,
Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer
from whom it has been purchased or at any of the Philips Authorised Service Centres.
The warranty is not valid in case :
1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in
transit to the purchaser’s residence.
All consumables and parts susceptible to normal wear and tear are not covered under warranty.
Week/S.No.: ___________________________ Bill No. ___________________________
Date of purchase _________________________________________________________
Dealer’s name: ___________________________________________________________
Dealers stamp: __________________________________________________________
Customer’s name and address: _____________________________________________
Model No.: _____________________________________________________________
Dealer’s signature: ________________________________________________________
Warranty
Page 10
Total system power 80W RMS
Satellite 18Wx2 RMS
Subwoofer power 45W RMS
Separation >40 dB
SNR >60 dB
Audio input socket RCA
Audio output socket RCA
Power consumption
80W
Subwoofer speaker 1 Way
Speaker size 6.5 inch
Impedance 8 Ohm
Frequency range 20Hz - 4KHz
Dimension (mm) W x H x D
266 x 515 x 230
Weight 5.47 Kg
Satellite speaker
1 Way, 2 Speakers
Speaker size
3 inch
Impedance 4 Ohm
Frequency range 120Hz - 20KHz
Dimension (mm) W x H x D 100 x 519 x 110
Weight 1.64 Kg
USB
Class support UMS (USB mass
storage class)
Capacity Upto 16GB
Playability MP3 track
The Philips trademark and Philips shield emblem are
registered trademarks of koninklijke Philips N.V. used
under license.
This product has been manufactured by and sold
under the responsibility of Gibson Innovation India
Private Ltd. and Gibson Innovations India private Ltd.
is the warrantor in relation to this product.
