MMS2143B
General information
Safety instructions
Please read carefully the safety mark on the back side
This mark is intended to alert the user from
the non isolated dangerous voltage within the
constitute a risk of electric shock to persons.
This mark is intented to alert the user for
important operating and servicing instruction.
Warnings
Avoid sustained periods on high-volume use, and
•
do not turn the volume to maximum level while using
high output signal, such as Mobile Phone or DVD,
etc., as this will cause distortion and may damage the
loudspeaker cones.
•
when not in use.
• Do not open the cover or back panel to avoid
electrical shock or any other accidents. No userserviceable parts are inside.
• Only for indoor use.
• Plug the system to the AC outlet with the right voltage
marked on the back panel of the Subwoofer.
•
The MAINS plug is used as the disconnect device, the
disconnect device shall remain readily operable.
Accessories
•
The product shall not be exposed to dripping or splashing
and that no objects lled with liquids, such as vases, shall
be placed on the product.
• Batteries shall not be exposed to excessive heat such as
sunshine, re or the like.
Attention should be drawn to the environmental
•
aspects of battery disposal.
Care and safety information
Avoid high temperatures, moisture, water and dust
•
Apparatus should not be exposed to dripping or
splashing of liquid.
• Do not place any source of danger on the Subwoofer,
• Do not install near heat sources.
Do not block any ventilation opening
•
Place the apparatus in a location with adequate
ventilation to prevent internal heat build up. Allow at
least 100cm (4 inches) of free space all around the
apparatus for adequate ventilation.
• At high volume the back cover of Subwoofer becomes
hot. Do not touch it.
Care of the cabinet
Use a soft cloth slightly moistened to clean the cabinet.
•
Do not use a solution containing alcohol, spirits,
ammonia or abrasives.
Item Remote control User manual FM Antenna cable
Quantity 1 1 1 1
2RCA to 3.5mm stereo cable
2
Connections
Power On/O switch
Subwoofer back panel
USB slot SD card slot
FM Antenna Connection
Power cord
3

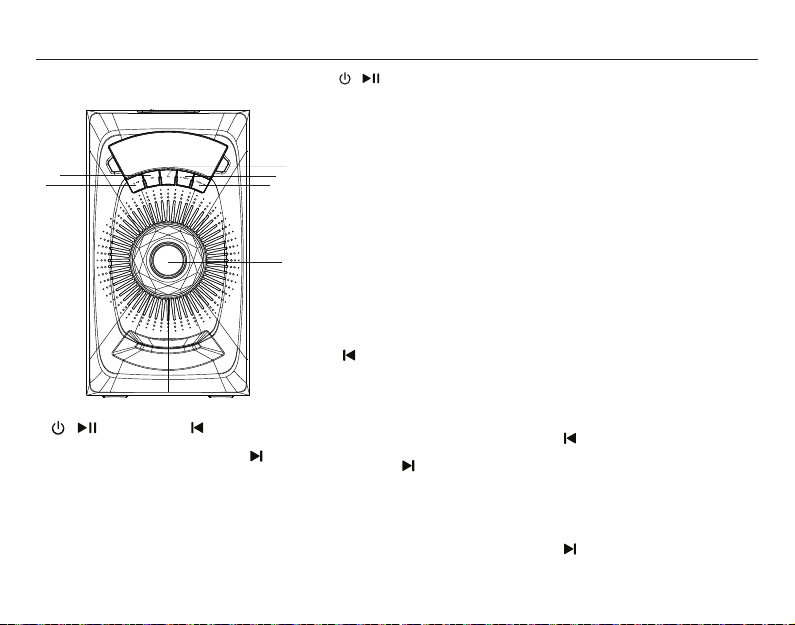

Front panel operation
(2)
(1)
4.
1.
2. SRC
3. EQ
TUNE-
TUNE+
5.
VOL Control
6.
* AVAILABLE IF CONNECTED
(5)
1. :
Press to turn on speaker, long press into stand-by mode.
Short press for play/pause function in USB*/SD*/BT mode.
2. SRC:
(3)
(4)
Change the input mode-AU for Audio-in mode, Cd for
CD mode, Ud for USB mode*, Sd for SD mode*, 88.3 for FM
mode, bt for Bluetooth mode.
(6)
3. EQ:
Normal, Pop, Rock, Jazz, Classic, Country mode.
(works only in USB*/SD*/BT mode).
4. TUNE- :
Short press to select previous station which had been stored.
Long press to semi-automatic search for radio.
In USB*/SD*/BT mode, press “ ” to play previous song.
5. TUNE+ :
Short press to select next station which had been stored.
Long press to semi-automatic search for radio.
In USB*/SD*/BT mode, press “ ” to play next song.
6. VOL Control:
Volume up/down.
4
Remote controls
(1)
(3)
(4)
(6)
(7)
(9)
(12)
1.
2.MUTE
3.0~9
4.SOURCE
5.BASS-/+
6.EQ
7.VOL+
SCN
8.
9.
10.
11.VOL-
12.TUNE-
13.TUNE+
* AVAILABLE IF CONNECTED
(5)
(8)
(10)
(2)
(11)
(13)
1. ----- Turn on/Stand-by the speaker.
2. Mute----- Press “MUTE ” to activate or deactivate mute.
3. 0-9 ----- Numeric keys, with the help of these keys you can select
song or track in USB*. In FM, you can key in frequency, i.e. 927 for 92.7.
4. SOURCE ----- Select the input/source- AU for Audio-in, Cd for CD,
Ud for USB*, Sd for SD*, 88.3 for FM, bt for Bluetooth.
5. BASS-/+ ----- To decrease/ increase the bass.
6. EQ ----- Normal, Pop, Rock, Jazz, Classic, Country mode.
(works only in USB*/SD*/BT mode)
7. VOL+ ----- Volume up.
8. ----- Short press To play or to pause songs. Long press “ ” in
FM mode, it will automatically search and save channels.
For manual storage, user can press frequency (eg. 106.4) and
press “ ”, station number will ash, press “ ” or “ ” to choose
the serial, press “ ” again to store the station.
9. ----- Play the previous song by pressing “ ” at USB*/BT
mode. Choose previous channel by pressing “ ” at FM mode.
10. ----- Play the next song by pressing “ ” at USB*/BT
mode. Choose next channel by pressing “ ” at FM mode.
11. VOL- ----- Volume down.
12. TUNE- ----- Each time to search channel step by step ( each
step- 0.1 MHz), press “TUNE-” and hold to search previous
channel, it will stop and play once previous channel been searched.
13. TUNE+ ----- Each time to search channel step by step ( each
step+ 0.1 MHz), press “TUNE+” and hold to search next channel,
it will stop and play once next channel been searched.
5
Playing the speakers and subwoofer
System positioning :
The subwoofer is recommended to be put
Audio source / player
on the oor to get a better acoustic eect.
For best possible surround sound, all the
speakers (except subwoofer) should be
placed at the same distance from the
listening position.
Place the front left and right speakers at
equal distances from the TV and at an angle
of approximately 45 degrees (horizontal)
from the listening position.
Helpful Hint:
- To avoid magnetic interference, do not position
the speakers, too close to your TV.
6
Bluetooth Operating Instruction
1. Press SOURCE key from subwoofer’s front panel or remote control to Bluetooth mode;
2. When selected the Bluetooth mode, in display, “bt” will start blinking and hear an audio tone which indicate in
Bluetooth pairing mode.
3. For pairing with mobile phone or other Bluetooth devices, search the device named “MMS2143B” and
pair it. Once paired, “bt” stops blinking and an audio tone will come up.
4. Press and hold “ ” for 3 seconds from remote control in order to force disconnect the
Bluetooth connection.
Note: While using Bluetooth, if external call comes, then speaker system goes in mute mode in
order to protect privacy of mobile phone user. Operation resumes once the call is disconnected.
7
Troubleshooting
Warning -
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty.
below before taking the system for repair. If you are unable to remedy the problem by following hints
mentioned in below table, Consult your dealer or PHILIPS APSC for help.
Problem Solution
1. No power.
2. No sound or distorted sound.
3. The remote control does not
function properly.
Check if the AC power cord is properly inserted into the AC mains socket.
Adjust the volume / select the correct source to choose the equipment
that you want to hear through the system.
Reduce the distance between the remote control and the system. Replace
the batteries with new ones / Point the remote control directly towards the
IR sensor (located on front panel of the subwoofer) / Check that the batteries
4. Low hum or buzz sound.
drive cannot be read.
6. Slow operation of the USB / SD
7. FM not properly tuned. Match with local frequency.
8. FM reception not good.
9. BT not working. Reduce the distance or device is not paired.
In case these measures do not work contact the nearest PHILIPS service center or call at customer care numbers.
Place the product as far away as possible from electrical devices that may be
causing interference / Check power supply voltage and consult electrician.
Big memory size USB / SD ash drive will take longer time to read
and play. / Take out USB / SD drive and insert it again properly.
Drive is
8
Warranty
This Philips 2.1 multimedia speakers system is warranted against any defect due to defective materials or
workmanship for 12 months from the date of purchase, should a defect develop during the period of warranty,
Gibson Innovations India Private Limited undertake to repair the apparatus FREE OF CHARGE through the dealer
from whom it has been purchased or at any of the Philips Authorised Service Centres.
The warranty is not valid in case :
1. Proof of purchase is not accompanied with this warranty card.
2. The warranty card is not completed immediately after purchase.
3. The apparatus is not used according to this manual.
4. Defects are caused by improper or reckless use.
5. Any repairs are done by persons other than Philips Authorised service centre.
7. The serial number is tampered with.
8. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in
transit to the purchaser’s residence.
All consumables and parts susceptible to normal wear and tear are not covered under warranty.
Week/S.No.: ___________________________ Bill No. ___________________________
Date of purchase _________________________________________________________
Dealer’s name: ___________________________________________________________
Dealers stamp: __________________________________________________________
Customer’s name and address: _____________________________________________
Model No.: _____________________________________________________________
Dealer’s signature: ________________________________________________________
Gibson Innovations India Private Limited 4th Floor, Block-1, Vatika Business Park, Sector 49, Sohna Road,
Gurgaon-122018, Haryana, India
9
Total system power 40W RMS
Satellite speaker power 10Wx2 RMS
Subwoofer power 20W RMS
Separation >40 dB
SNR >60 dB
Audio input socket RCA
Audio output socket RCA
Power consumption
40W
Subwoofer speaker 1 Way
Driver size 5 inches
Impedance 8 Ohm
Frequency range 20Hz - 170KHz
Dimension (mm) W x H x D
172 x 282 x 306
Weight 3.8 kg
The Philips trademark and Philips shield emblem are
registered trademarks of koninklijke Philips N.V. used
under license.
This product has been manufactured by and sold
under the responsibility of Gibson Innovation India
Private Ltd. and Gibson Innovations India private Ltd.
is the warrantor in relation to this product.
Satellite speaker power
Driver size
Impedance
Frequency range
Product Dimension (mm) W x H x D
Net Weight
1 Way, 2 Speakers
3 inches
4 Ohm
120Hz - 20KHz
105 x 172 x 129
1 kg
BT version V3.0
BT range
USB class support
USB capacity
USB playability
