Philips MMS130 User Manual

MMS130/

MMS140

MMS230/

MMS240

123 1243

5678

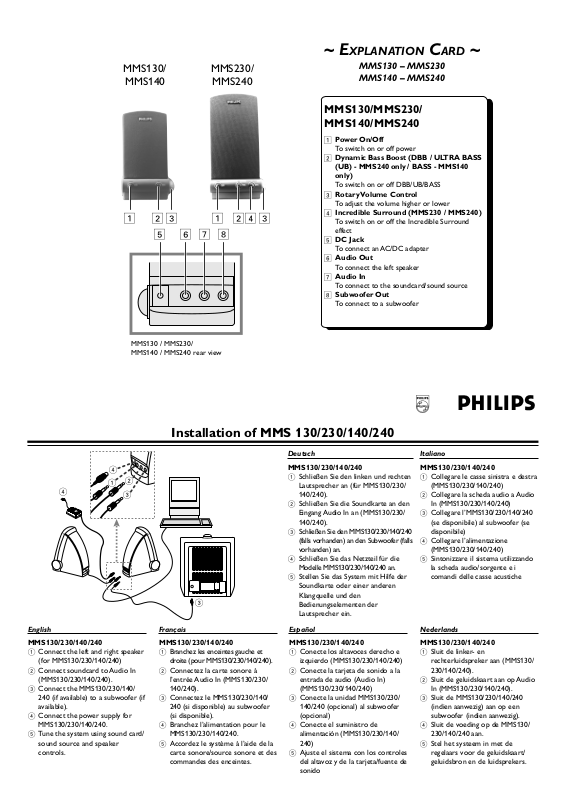

~ EXPLANATION CARD ~

MMS130 – MMS230 MMS140 – MMS240

MMS130/MMS230/ MMS140/MMS240

1 Power On/Off

To switch on or off power

2 Dynamic Bass Boost (DBB / ULTRA BASS

(UB) - MMS240 only / BASS - MMS140 only)

To switch on or off DBB/UB/BASS

3 Rotary Volume Control

To adjust the volume higher or lower

4 Incredible Surround (MMS230 / MMS240)

To switch on or off the Incredible Surround effect

5 DC Jack

To connect an AC/DC adapter

6 Audio Out

To connect the left speaker

7 Audio In

To connect to the soundcard/sound source

8 Subwoofer Out

To connect to a subwoofer

MMS130 / MMS230/ MMS140 / MMS240 rear view

English

MMS130/230/140/240

1 Connect the left and right speaker

(for MMS130/230/140/240)

2 Connect soundcard to Audio In

(MMS130/230/140/240).

3 Connect the MMS130/230/140/

240 (if available) to a subwoofer (if available).

4 Connect the power supply for

MMS130/230/140/240.

5 Tune the system using sound card/

sound source and speaker controls.

Installation of MMS 130/230/140/240

Deutsch

MMS130/230/140/240

1 Schließen Sie den linken und rechten

Lautsprecher an (für MMS130/230/ 140/240).

2 Schließen Sie die Soundkarte an den

Eingang Audio In an (MMS130/230/ 140/240).

3 Schließen Sie den MMS130/230/140/240

(falls vorhanden) an den Subwoofer (falls vorhanden) an.

4 Schließen Sie das Netzteil für die

Modelle MMS130/230/140/240 an.

5 Stellen Sie das System mit Hilfe der

Soundkarte oder einer anderen

Français

MMS130/230/140/240

1 Branchez les enceintes gauche et

droite (pour MMS130/230/140/240).

2 Connectez la carte sonore à

l’entrée Audio In (MMS130/230/ 140/240).

3 Connectez le MMS130/230/140/

240 (si disponible) au subwoofer (si disponible).

4 Branchez l’alimentation pour le

MMS130/230/140/240.

5 Accordez le système à l’aide de la

carte sonore/source sonore et des commandes des enceintes.

Klangquelle und den Bedienungselementen der Lautsprecher ein.

Español

MMS130/230/140/240

1 Conecte los altavoces derecho e

izquierdo (MMS130/230/140/240)

2 Conecte la tarjeta de sonido a la

entrada de audio (Audio In) (MMS130/230/140/240)

3 Conecte la unidad MMS130/230/

140/240 (opcional) al subwoofer (opcional)

4 Conecte el suministro de

alimentación (MMS130/230/140/

240)

5 Ajuste el sistema con los controles

del altavoz y de la tarjeta/fuente de sonido

Italiano

MMS130/230/140/240

1 Collegare le casse sinistra e destra

(MMS130/230/140/240)

2 Collegare la scheda audio a Audio

In (MMS130/230/140/240)

3 Collegare l’MMS130/230/140/240

(se disponibile) al subwoofer (se disponibile)

4 Collegare l’alimentazione

(MMS130/230/140/240)

5 Sintonizzare il sistema utilizzando

la scheda audio/sorgente e i comandi delle casse acustiche

Nederlands

MMS130/230/140/240

1 Sluit de linker- en

rechterluidspreker aan (MMS130/ 230/140/240).

2 Sluit de geluidskaart aan op Audio

In (MMS130/230/140/240).

3 Sluit de MMS130/230/140/240

(indien aanwezig) aan op een subwoofer (indien aanwezig).

4 Sluit de voeding op de MMS130/

230/140/240 aan.

5 Stel het systeem in met de

regelaars voor de geluidskaart/ geluidsbron en de luidsprekers.

Important notes for users in the U.K.

Norge

Typeskilt finnes på apparatens underside.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A.

or BSI approved type.

3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.

• Connect the brown wire to the terminal marked L or coloured red.

• Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

Deutschland

Hiermit wird bescheinigt, daß dieses Gerät in Übereinstimmung mit den Bestimmungen der Amtsblattverfügung 1046/1984 funkentstört ist.

Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerätes angezeigt und die Berechtigung zur Überprüfung der Serie auf Einhaltung der Bestimmungen eingeräumt.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
