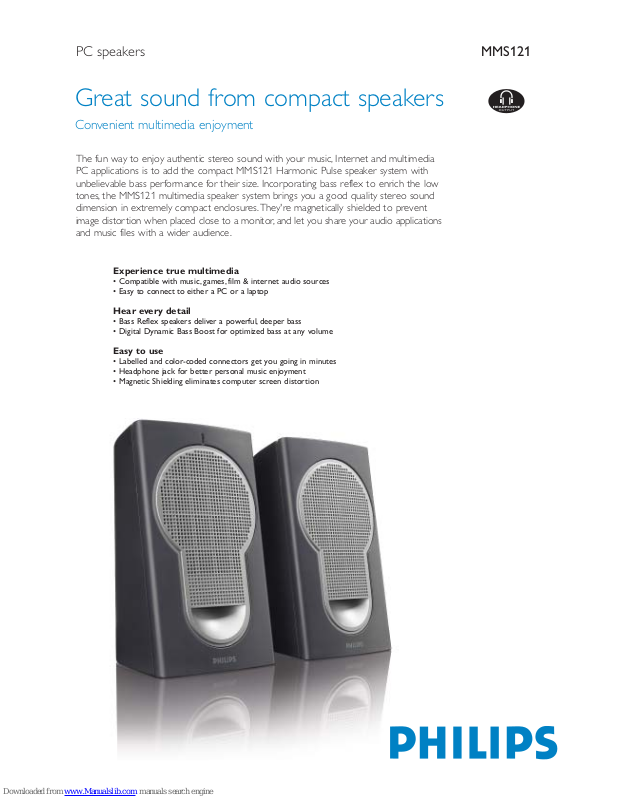

Philips MMS121, MMS221 Specifications

Great sound from compact speakers

Convenient multimedia enjoyment

MMS121PC speakers

The fun way to enjoy authentic stereo sound with your music, Internet and multimedia
PC applications is to add the compact MMS121 Harmonic Pulse speaker system with
unbelievable bass performance for their size. Incorporating bass reflex to enrich the low
tones, the MMS121 multimedia speaker system brings you a good quality stereo sound
dimension in extremely compact enclosures.They're magnetically shielded to prevent
image distortion when placed close to a monitor, and let you share your audio applications
and music files with a wider audience.

Experience true multimedia

• Compatible with music, games, film & internet audio sources

• Easy to connect to either a PC or a laptop

Hear every detail

• Bass Reflex speakers deliver a powerful, deeper bass

• Digital Dynamic Bass Boost for optimized bass at any volume

Easy to use

• Labelled and color-coded connectors get you going in minutes

• Headphone jack for better personal music enjoyment

• Magnetic Shielding eliminates computer screen distortion

Commercial Specifications

Sound

• Bass enhancement Digital Bass boost

• Output power (RMS) 2 x 0.75W

• Total Music Power 3W

• Volume Control Analogue Volume Control

Connectivity

• Headphone output 3.5 mm

• Line-in connector 3.5 mm stereo

• Cable length 2 m

Convenience

• Power on indication

Accessories

• Quick start guide

Packaging contents

• 1 x Active speaker

• 1 x Passive speaker

• 1 x Manual

• 1 x Warranty Card

• All required cables

Packaging information

• Gift box dimensions 198 x 114 x 178 mm

• Master carton
dimensions 418 x 244 x 378 mm

• Products per
master carton 8 sets

• Products per pallet 480 sets

• Products per
40' container 10,080 sets

MMS121/00 MMS121/05 (UK version)

• 12NC 9082 100 02913 9082 100 02916

• EAN single product 87 10895 815970 87 10895 816137

• EAN master carton 87 10895 816076 87 10895 816144

Date of issue: January 2004
Specifications are subject to change without notice
Trademarks owned by Royal Philips Electronics
2004 © Royal Philips Electronics - All rights reserved

www.philips.com

MMS121

PC speakers

Product Highlights

Music, games, films, internet

All types of music, games, films and internet audio
sources can be played, so no matter what you want
to hear, we make your multimedia experiences
sound more involving than ever.

Digital Dynamic Bass Boost

Digital Dynamic Bass Boost is an intelligent bass
booster that delivers maximum bass enhancement
at high volumes without sound distortion and at low
volumes without compromising on bottom-end bass
frequencies.Technologically advanced electronics
constantly monitor volume and bass levels, precisely
calibrating both to prevent sound distortion, thus
producing optimized bass. Digital Dynamic Bass
Boost enables the enjoyment of superb bass
performance - regardless of the chosen volume level.

Bass Reflex Speaker System

Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize
the low frequency roll-off of the system.The result
is deeper controlled bass and lower distortion.
The system works by resonating the air mass in
the bass pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the system
extends the overall low frequency sounds to create
a whole new dimension of deep bass.

For PC or Laptop

Can be connected to either a PC or a laptop.

Quick set-up

Color-coded cables, clear labelling and easy to
understand documentation mean you'll be up and
running in minutes.

Magnetic Shielding

Because the powerful magnets in speaker drivers
are magnetically shielded, there’s no danger of
image distortion or damage when placed close to
your PC monitor screen.
