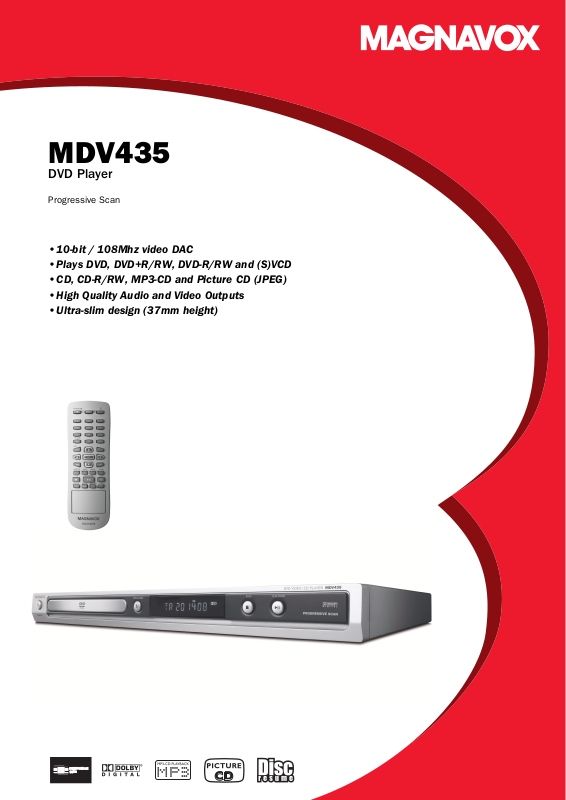

Page 1
MDV435
DVD Player
Progressive Scan
•10-bit / 108Mhz video DAC
•Plays DVD, DVD+R/RW, DVD-R/RW and (S)VCD
•CD, CD-R/RW, MP3-CD and Picture CD (JPEG)
•High Quality Audio and Video Outputs
•Ultra-slim design (37mm height)
Page 2
MDV435/78
DVD Player
Product specifications
Picture/Display
• D/A converter: 10 bit, 108 MHz
• Picture enhancement: 8x Video Upsampling,
Progressive scan
Sound
• Crosstalk (1kHz): 85 dB
• D/A converter: 24 bit, 96 kHz
• Dynamic Range (1kHz): 85 dB
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
Video Playback
• Compression formats: MPEG1, MPEG2
• Playback Media: CD-R/CD-RW, DVD+R/+RW,
DVD-R/-RW, DVD-Video, Video CD/SVCD
• Video disc playback system: NTSC, PAL
Audio Playback
• Compression format: Dolby Digital, MP3, PCM
• Playback Media: DVD+R/+RW, DVD-R/-RW, Audio
CD, CD-R/RW
Still Picture Playback
• Picture Compression Format: JPEG
• Picture Enhancement: Flip photos, Rotate,
Slideshow, Zoom
• Playback Media: DVD+R/+RW, DVD-R/-RW,
CD-R/RW
Connectivity
• Rear Connections: Analog audio Left/Right out,
Component Video output, Composite video
(CVBS) output, Digital coaxial out
Accessories
• Included accessories: 2 x AAA Batteries, Audio/
Video cable, Remote Control, VDE to 2-pin Flat
Adaptor
Dimensions
• Set dimensions (W x H x D): 360 x 37 x 235 mm
Power
• Power consumption: < 10 W
• Power supply: 110-240V, 50/60 Hz
• Standby power consumption: < 1 W
Container Loading
• Container 20 feet: 2340
• Container 40 feet: 4914
• Container 40 feet (HC): 5670
• Slipsheet: 234
Date of issue 2014-02-06
Version: 1.2.6
12 NC: 8622 810 13451
EAN: 87 10895 96016 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V. or their
respective owners.
© 2014 Magnavox.
All Rights reserved.
www.magnavox.com
