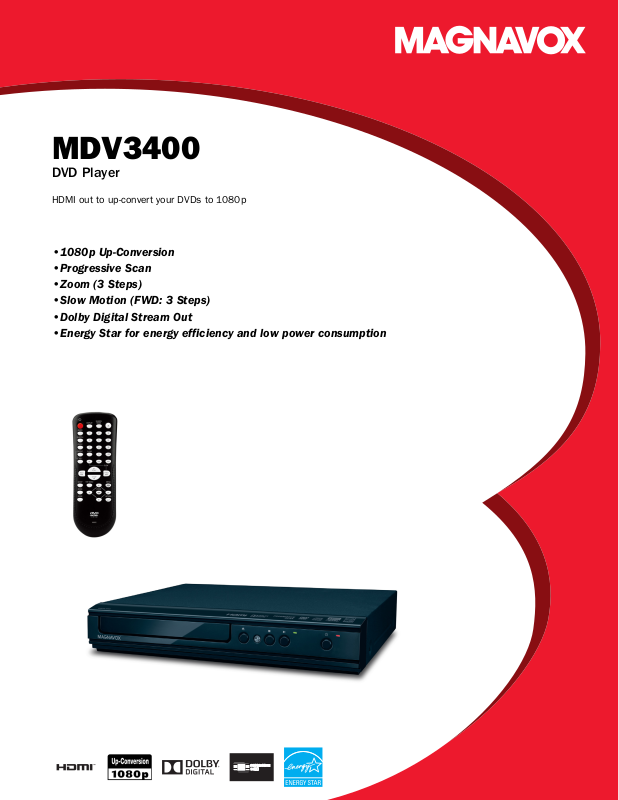

MDV3400
DVD Player
HDMI out to up-convert your DVDs to 1080p
•1080p Up-Conversion
•Progressive Scan
•Zoom (3 Steps)
•Slow Motion (FWD: 3 Steps)
•Dolby Digital Stream Out
•Energy Star for energy efficiency and low power consumption
Page 2
MDV3400/F7
DVD Player
1080p Up-Conversion
Up-Converts video to 1080p High Definition resolution
via HDMI connection. 1080p Up-Conversion delivers
crisp clear images.
Product specifications
Picture/Display
• Aspect ratio: 16:9, 4:3
Sound
• Sound System: Dolby Digital, LPCM
Video Playback
• Playback Media: DVD
• Compression formats: DVD-Video
• Video disc playback system: NTSC
• Video Enhancement: Progressive Scan, Video
scaling
Up
Audio Playback
• Playback Media: Audio CD, CD
Connectivity

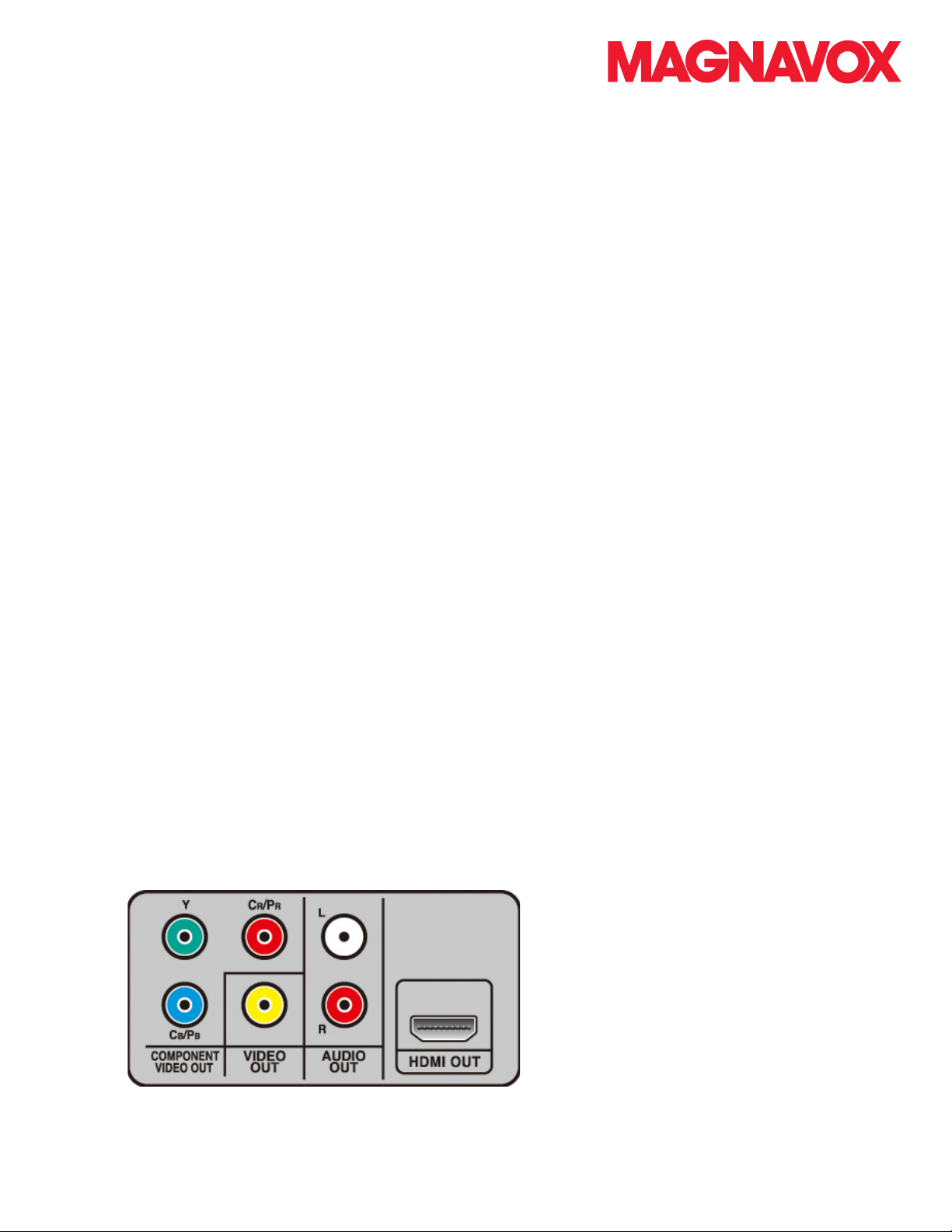

• Rear Connections: HDMI output, Analog audio Left/
Right out, Component Video output, Composite
video (CVBS) output
Convenience
• On-Screen Display languages: English, Canadian
French, Mexican Spanish
• Child Protection: Parental Control
•Zoom: 3 Steps
• Slow Motion: 3 Steps
Accessories
• Included accessories: Audio/Video cable, Remote
Control, Setup Manual
• Accessories on the web: Owner's Manual
Dimensions
• Set dimensions (W x H x D): 280 x 51 x 210 mm
• Set weight: 1.12 kg
• Set dimensions in inch (W x H x D):
1 x 2.1 x 8.3 inch
11.
• Product weight (lb): 2.47 lbs
• Packaging dimensions (W x H x D):
357 x 100 x 314 mm
• Weight incl. Packaging: 1.73 kg
• Packaging (W x H x D): 14.1 x 4 x 12.4 inch
• Weight incl. Packaging: 3.82 lb
Container Loading
• Container 20 feet: 2560
• Container 40 feet: 5300
• Container 40 feet (HC): 5990
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously using the maximum
resolution. Your eye perceives a sharper picture with
no line structure.
Date of issue 2013-02-22
Version: 1.3.2
12 NC: 8670 001 01846
UPC: 6 09585 23282 2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
All Rights reserved.
www.magnavox.com
