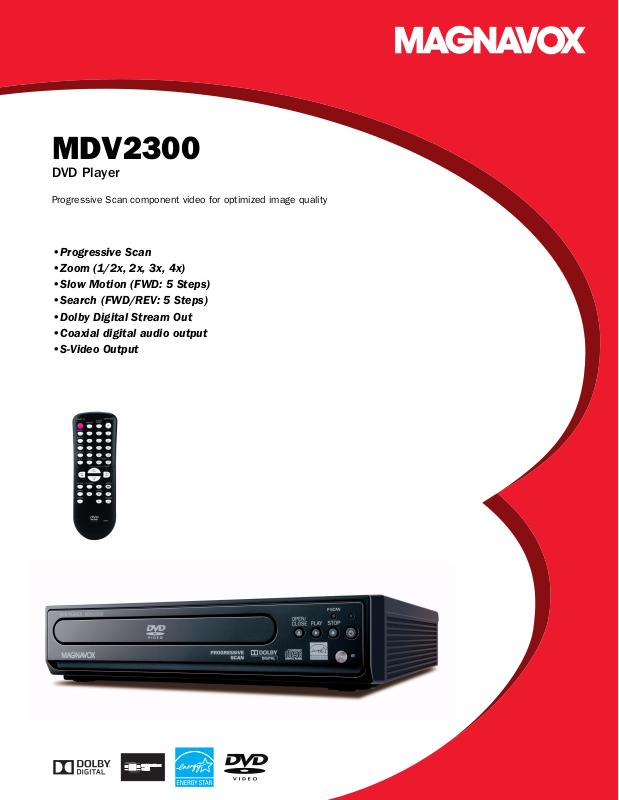

MDV2300
DVD Player
Progressive Scan component video for optimized image quality
•Progressive Scan
•Zoom (1/2x, 2x, 3x, 4x)
•Slow Motion (FWD: 5 Steps)
•Search (FWD/REV: 5 Steps)
•Dolby Digital Stream Out
•Coaxial digital audio output
•S-Video Output
Page 2
MDV2300/F7
DVD Player
Product specifications
Picture/Display
• Aspect ratio: 16:9, 4:3
Sound
• Sound System: Dolby Digital, LPCM
Video Playback
• Playback Media: DVD
• Compression formats: DVD-Video
• Video disc playback system: NTSC
• Video Enhancement: Progressive Scan
Convenience
• On-Screen Display languages: English, Canadian
French, Mexican Spanish
• Child Protection: Parental Control
•Zoom: 4 Steps
• Slow Forward: 5 Steps
Accessories
• Included accessories: Audio/Video cable, Remote
Control, Setup Manual
• Accessories on the web: Owner's Manual
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously using the maximum
resolution. Your eye perceives a sharper picture with
no line structure.
Audio Playback
• Playback Media: Audio CD, CD
• Compression format: MP3
Connectivity
• Rear Connections: Analog audio Left/Right out,
Component Video output, Digital coaxial out,
S-Video out, Composite video (CVBS) output
Dimensions
• Set dimensions (W x H x D): 210 x 50 x 245 mm
• Set weight: 0.8 kg
• Packaging dimensions (W x H x D):
279 x 100 x 326 mm
• Weight incl. Packaging: 1.4 kg
Container Loading
• Container 20 feet: 3220
• Container 40 feet: 6900
• Container 40 feet (HC): 7800
Date of issue 2015-03-18
Version: 4.4.2
12 NC: 8670 000 87878
UPC: 6 09585 22399 8
Specifications are subject to change without notice.
