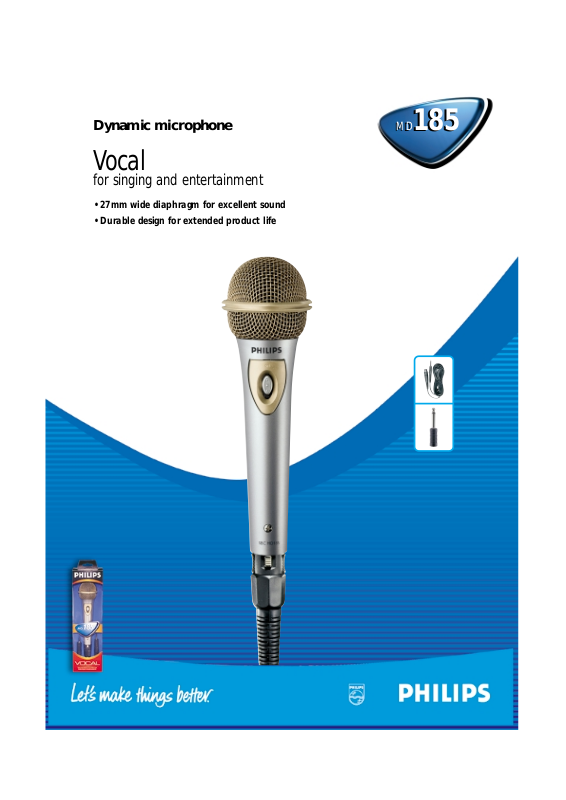

Philips MD185 User Manual

Vocal

for singing and entertainment

Dynamic microphone

• 27mm wide diaphragm for excellent sound

• Durable design for extended product life

MD185

High-quality vocal microphone for singing and entertainment

This sturdy microphone can take all the handling that goes with fun and entertainment.With excellent sound reproduction and the detachable 5m cable with Cannon connector for freedom of movement,the SBC MD185 is ideal for all kinds of festivities.

27mm wide diaphragm for excellent sound

Thanks to its large sensitive diaphragm,the microphone picks up every detail of the human voice to give superb sound reproduction.

Durable design for extended product life

The reinforced ABS body is designed to withstand rough handling.

Uni-directional sensor for minimum feedback

The microphone is mainly sensitive to the performer’s voice, whic h prevents annoying howling caused by feedback from speakers.

Low noise switch for ‘click’-free switching

Prevents annoying ‘clicks’when the microphone is switched on and off.

3.5-6.3mm adapter plug included

The microphone’s adapter plug means it can be connected to all types of audio systems.

Integrated windshield

The integrated windshield prevents disturbing noises from wind gusts and heavy breathing.

Standard product information

System information

• T ype Dynamic

• Polar pattern Uni-directional

• Frequency range 50 - 15 000 Hz

• Impedance 600 Ohm

• Sensitivity -72 dB +/- 3 dB

• Jack 3.5 - 6.3 mm mono

• Length of cord 5 meter

• Type number SBC MD185/00

• 12 NC 9082 100 00532

• EAN 87 10101 68025 5

• Weight (exclude cable) 170g

Packaging information

• T ype Window Box

• Material PET

Inner carton

• Quantity 3 pieces

• EAN 87 10101 87398 5

Outer carton

• Quantity 24 pieces

• EAN 87 10101 87399 2

• Country of origin China

Philips Accessories & Recordable Media

http://www.philips.com

Dynamic microphone

MD185
