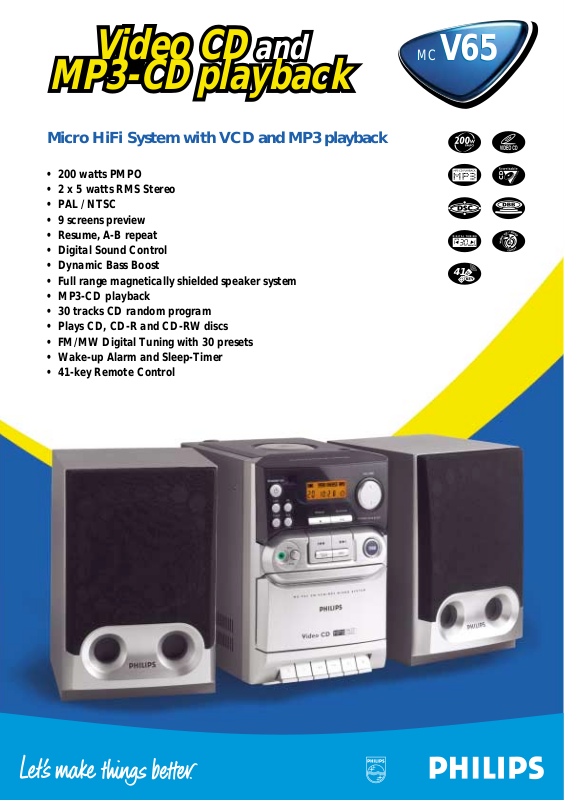

Philips MC-V65 User Manual
Video CD
Video CD
MP3-CD playback
MP3-CD playback
Micro HiFi System with VCD and MP3 playback
• 200 watts PMPO
• 2 x 5 watts RMS Stereo
• PAL / NTSC
• 9 screens preview
• Resume, A-B repeat
• Digital Sound Control
• Dynamic Bass Boost
• Full range magnetically shielded speaker system
• MP3-CD playback
• 30 tracks CD random program
• Plays CD, CD-R and CD-RW discs
• FM/MW Digital Tuning with 30 presets
• Wake-up Alarm and Sleep-Timer
• 41-key Remote Control
and
and
MC V65
MC V65
41
Micro HiFi System with VCD and MP3 playback
standard product information
MC V65
MC V65
amplifier
• 200 watts PMPO
• 2 x 5 watts RMS Stereo, +/- 10% THD,
3 Ohm, 1 kHz
• Digital Sound Control
(pop, jazz, rock, flat)
• Dynamic Bass Boost
• Volume up/down
• Mute function
compact disc player
• Plays CD, CD-R and CD-RW discs
• Plays Video CD
• PAL/NTSC
• 9 Screens preview
• Resume and A-B repeat
• Slow speeds
1
/2, 1/4, 1/8 and 1/16
• MP3-CD playback
• 30-Tracks CD random program
• Play modes (repeat/shuffle/program)
tuner
• FM/MW Digital Tuning with 30 presets
• Presets : 15 for FM and 15 for MW
• Up/down single step and search tuning
loudspeaker boxes
• Full range Bass Reflex speaker system
• Magnetically shielded
• Impedance : 3 Ohm
connections
• Stereo headphones : 3.5mm stereo jack
• Aux : cinch socket
• Video out : cinch socket
• Karaoke mic : 3.5mm jack
• Antenna : FM coaxial, MW Loop
general
• Clock/Timer
• 2 Timer modes (wake-up/sleep)
• Karaoke features (in VCD mode only)
- Microphone level control
- Digital echo
- V ocal echo
- T one control
• 41-key Remote Control
/21 /21M /22 /29 /30 /33
AP/Middle East/Africa
Australia/NZ
Korea
Latam
W Europe
E Europe
tuner
FM87.5-108MHz • •
MW522-1602kHz • •
LW153-279kHz
FM75 Ohm coaxial
mains supply
120/230V 50~60Hz •
230V/50Hz •
•
• •
general
made in sticker
•
•
tape deck
• CD synchro start recording
• AC tape erase
• Electronic speed control
• Full auto stop
STANDBY NTSC/PAL
OSD
2
SLEEP BAND TIMER MUTE
2
1
3
7
6
5
+10
9
0
REPEAT SHUFFLE DBB DSC
REW PREV NEXT FWD
ëí
RESUME
PLAY/PAUSE
VOL
ÅÉ
STOP
Ç
PBC RETURN A-B SLOW
VOCAL ECHO KEY VIEW
SOURCE
4
8
GO TO
EAN: 87 10895 73919 1 (/21M)
EAN: 87 10895 73918 4 (/33)
Product Dimensions:
áà
154 mm W x 225 mm H x 215 mm D (center unit)
148 mm W x 222 mm H x 175 mm D (speakers)
VOL
Package Dimensions:
442 mm W x 346 mm H x 320 mm D
Product weight: 5.2 kg
Carton contains: CD Micro System, Multi-Function Remote Control,
Video cinch cable, Operating instructions and Warranty Information
Printed in Singapore
Date Printed : Jul 2002
Specifications subject to change without notice.
© 2002 Koninklijke Philips Electronics N.V.
All rights reserved.
http://www.audio.philips.com
