CD Soundmachine
MCS240
Manual de Instruções
User guide
Manual del usuario
Printed in China PDCC-JH-0536
W
MCS240
Meet Philips at the internet
Visite nosso site na internet
http://www.philips.com.br
SET/2005 OS DADOS DESTE MANUAL ESTÃO SUJEITOS A ALTERAÇÕES
LASER PRODUCT
CLASS 1
!
@
2
3
4
5
1
7
6
#
$
908
2
^
%
6 x R14 • UM-2 • C-CELLS
3
4
5
6
7
8
AMPLIFIER
Output power
PMPO ..................................................................... 60 W
RMS ............ 2 x 1W (1KHz/10% THD/8 ohms)
RADIO
FM wave range .................................. 87,5-108 MHz
MW(AM) wave range ..526,5-1606,5 KHz KHz
CD PLAYER
Programmable tracks ............................................... 20
Signal-to-noise ratio ..................................... ≥ 55 d B
Channel separation ............... ≥ 4 0 DB (1 KH z)
Harmonic distortion..... < 1%(10 KHz,-20 dB)
GENERAL
AC power....................................................... 120/230 V
..................................................................50 / 60 Hz
DC power ...................................................... 6 x 1,5 V
Power consumption
Active...................................................................... 12 W
Stand-by....................................................................... 1 W
Dimensions (wxhxd).......... 290x143x240 (mm)
Weight (without package).......................... 1,62 Kg
Specifications are subject to change
Specifications Especificações Técnicas
AMPLIFICADOR
Potência de saída
PMPO ..................................................................... 60 W
RMS ............ 2 x 1W (1KHz/10% THD/8 ohms)
RÁDIO
Faixa de Sintona FM...................... 87,5-108 MHz
Faixa de Sintona MW(AM).. .526,5-1606,5 KHz
CD
Capacidade de Programação................................... 20
Relação Sinal-ruído ........................................ ≥ 5 5 dB
Separação de Canais ............. ≥ 40 DB (1 KHz)
Distorção Harmônica.... < 1%(10 KHz,-20 dB)
DADOS GERAIS
Alimentação CA.................... 120/230 V 50 / 60 Hz
Alimentação CC................................................. 6 x 1,5 V
Consumo de Energia
Ligado......................................................................... 12 W
Stand-by....................................................................... 1 W
Dimensões (LxAxP)................ 290x143x240 (mm)
Peso (sem embalagem)..................................... 1,62 Kg
Especificações sujeitas a modificações
SHUF
REP
PROG
X
English Controls/Power Supply
IMPORTANT!
- The voltage selector located at the bot-
tom of this system is preset at 220V-240V
from the factory. For countries that oper-
ate at 110V-127V, please adjust to 110V-
127V before you switch on the system.
Supplied Accessories
– AC power cord
Top/front panels (See 1)
1
VOLUME
–
adjusts volume level.
2
Source selector: CD,TUNER, OFF
–
selects CD or radio source of sound
–
power off switch
3
Display
–
shows the CD functions
4
2 ;
–
starts or pause CD playback
§ ∞
–
selects the next/previous track
– searches forwards/backwards (press and
hold the button) within the current track
REPEAT
–
repeats a track/
CD program/entire CD.
5 PROG – programs tracks and reviews the
program
6 LIFT TO OPEN – opens/ closes the CD
door.
7 TUNING
– tunes to radio stations
8
SHUFFLE – plays all tracks in random order
9
BAND –
selects waveband
0 9
STOP –
stops CD playback;;
–
erases a CD program
Back/bottom panel (See 2
and 3)
! Telescopic antenna - improves FM
reception.
@ AC MAINS~ - inlet for power cord.
#
DBB
–
turns the bass enhancement on/off.
$ p – 3.5 mm stereo headphone socket
Helpful hints: The speakers will be muted
when headphones are connected to the set.
% Battery door – open to insert 6 x 1.5V
R-14/ UM-2/ C-cells
^ Voltage selector – (not for all versions)
adjust to match the local voltage 110/220V
before plugging in the set
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in unsafe
operation.
Power Supply
Whenever convenient, use the power supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
Batteries (not included)
1 Open the battery door and inser t 6 batteries,
type R-14, UM-2 or C-cells, (preferably
alkaline) with the correct polarity as indicated
by the "+" and "–" symbols inside the com-
partment. (See 2)
2 Replace the battery door, making sure the bat-
teries are firmly and correctly in place. The set is
now ready to operate.
Batteries contain chemical substances, so
they should be disposed of properly.
Power Supply
General Operation/Tuner
• Incorrect use of batteries can cause electrolyte
leakage and will corrode the compartment or
cause the batteries to burst:
• Do not mix battery types: e.g. alkaline with car-
bon zinc. Only use batteries of the same type
for the set.
• When inserting new batteries, do not try to mix
old batteries with the new ones.
• Remove the batteries if the set is not to be used
for a long time.
Using AC power
WARNING:Always check you have com-
pletely switched off the set, before you
change or disconnect power supply.
1 Check if the power voltage, as shown on
the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
2 If your set is equipped with a voltage selec-
tor, adjust the selector so that it matches
with the local power supply.
3 Connect the power cord to the AC
MAINS~ inlet and the wall socket.The set is
now connected and ready for use.
4 To switch the set off completely, withdraw the
power cord from the wall socket.
5 Install the unit near the AC outlet and where
the AC power plug can be easily reached.
• Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms.
The type plate is located on the
bottom of the set.
Helpful hints:
– To avoid unnecessary energy consumption,
always adjust the
Source selector
to
OFF
after using the set.
General operation
Switching on and off and selecting the
function
1 To select your sound source, adjust the
Source selector to: CD or
TUNER.
2 To switch off the set, adjust the Source
selector to
OFF
position.
Adjusting volume and sound
Adjust the sound with the VOLUME and
DBB controls.
Radio reception
1 Adjust the Source selector to
TUNER
.
2 Adjust BAND to select your desired
waveband, MW, or FM.
3 Tu r n TUNING to tune to a station.
Helpful hints:
To improve radio reception
• For FM, extend, incline and turn the telescop-
ic antenna for best reception. Reduce its
length if the signal is too strong.
• For MW, the set uses a built-in antenna.
Direct this antenna for best reception by
turning the whole set.
Playing a CD
• This CD player plays Audio Discs including
CD-Recordables (CD-R) and CD-Rewritables
(CD-RW).
• MP3, CD-ROM, CD-I, CDV,VCD, DVD or
computer CDs are not possible for playback.
IMPORTANT!
CDs encoded with copyright protection
technologies by some record companies may
be unplayable by this product.
1 Adjust the Source selector to CD.
2 Open the CD door, and insert a CD with
the printed side facing up, then press the CD
door gently to close.
➜ Display shows --, and later the total
number of tracks. (See 3)
3 Press
2
/
;
to start playback.
4 To pause playback, press
2
/
;
.
➜
Display: 2 flashes.
(See 4)
5 To resume, press
2
/
;
again.
6 To stop CD playback, press
9
.
Helpful hints:
CD play will also stop when:
– you open the CD door ;
– you select
TUNER
or
OFF
sound source;
– the CD has reached the end.
Selecting a different track
• Press
∞/ §
once or repeatedly until the
desired track number appears in the display.
• In the pause/stop position, press 2/; to start
playback.
Finding a passage within a
track
1 During playback, press and hold ∞ or § .
➜ The CD is played at high speed and with
reduced volume.
2 When you recognize the passage you want,
release ∞ or § to resume normal playback.
Helpful hints:
– When your searching reaches the end of the
last track, the CD goes to stop mode.
Programming track num-
bers
You may store up to 20 tracks in the desired
sequence. If you like, store any track more
than once.
1 In the stop position, press PROG to
activate programming.
➜ Display: PROG and 00 flash. (See 5)
2 Press
∞
or
§
to select your desired track
number.
3 Press PROG to store the desired track
number.
➜ Display: PROG and 00 flash for you to
program the next track..
4 Repeat steps 2 to 3 to select and store all
desired tracks in this way.
➜ If you attempt to store more than 20
tracks, no track can be selected and the
display shows
----
.
5 To play your program, press
2
/
;
.
Helpful hints :
– When playback of your program comes
to the stop position, your set will return
to normal playback.To re-enter program
mode, press PROG in the stop position.
Reviewing the program
In the stop position, press PROG repeatedly
to see your stored tracks.
Erasing a program
You can erase the contents of the memory
by:
– in the stop position, press PROG to enter
program mode, and then press
9.
– selecting
TUNER
or
OFF
;
– opening the CD door;
Different play modes:
REPEAT. and SHUFFLE
(See 6
, 7)
REPEAT
You can play the current track or the whole
disc repeatedly, and combine REPEAT
modes with PROG (PROGRAM).
REP – plays the current track continuously.
REP ALL – repeats the entire CD/program
1 To select play mode, press REPT once or
more.
➜ The display shows REP or REP ALL.
2 Press 2; to start playback if in the
stop/pause position.
3 To return to normal playback, press
REPT
repeatedly until the modes are no longer dis-
played.
– You can also press 9 to cancel your play
mode.
SHUFFLE
You can play all the tracks in random order.
1 In the stop position, press SHUFFLE to
switch on shuffle play.
➜ Display shows SHUF.
2 To switch off shuffle play, press 9.
Helpful hints:
– During the shuffle play, when REP function is
selected, it will play the current shuffled track
repeatedly, or when the REP ALL function is
selected, it will repeat the shuffle play of the
entire CD.
CD Player
CD Player
Problem
– Possible cause
• Remedy
No sound /power
– Volume not adjusted
• Adjust the VOLUME
– Power cord not securely connected
• Connect the AC power cord properly
– Batteries dead/ incorrectly inserted
• Inser t (fresh) batteries correctly
– Headphones connected to the set
•
Disconnect headphones.
– CD contains non-audio files
• Press
∞ , §
once or more to skip to a CD audio
track, instead of the data file.
Display does not function properly / No
reaction to operation of any of the
controls
– Electrostatic discharge
• Switch off and unplug the set. Reconnect after a
few seconds
--, Er
or
01 indication
– No CD inserted
•
Insert a CD
– CD badly scratched or dirty
•
Replace/ clean CD, see Maintenance
– Laser lens steamed up
•Wait until lens has cleared
– CD-R/CD-RW is blank or not finalized
•
Use a finalized CD-R/CD-RW or suitable CD
Audio disc only
Note:
Make sure the CD is not encoded with
Copyright protection technologies, as some
do not conform to the Compact Disc stan-
dard.
The CD skips tracks
– CD damaged or dirty
• Replace or clean CD
– Program/shuffle is active
• Quit program/shuffle mode
Note: A CD badly scratch or dirty may result in
improper operation.
Troubleshooting
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock. Under no
circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
CD player and CD handling
• If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.
• The lens of the CD player should never be
touched!
• Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.
•Always close the CD door to avoid dust on
the lens.
•To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.
• Never write on a CD or attach any stickers
to it.
Safety information
• Place the set on a flat, hard and stable surface
so that the system does not tilt.
• Do not expose the set, batteries, CDs to
humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.
• The apparatus shall not be exposed to drip-
ping or splashing.
• Adequate ventilation with a minimum gap of
15cm (6 inches) between the ventilation
holes and surrounding surfaces is necessary
to prevent heat build-up.
• Do not cover the ventilation openings with
items such as newspapers, table-cloths, cur-
tains, etc.
• No objects filled with liquids, such as vases,
shall be placed on the apparatus.
• No naked flame sources, such as lighted can-
dles, should be placed on the apparatus.
• The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
•To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol, ammo-
nia, benzene or abrasives as these may harm
the housing.

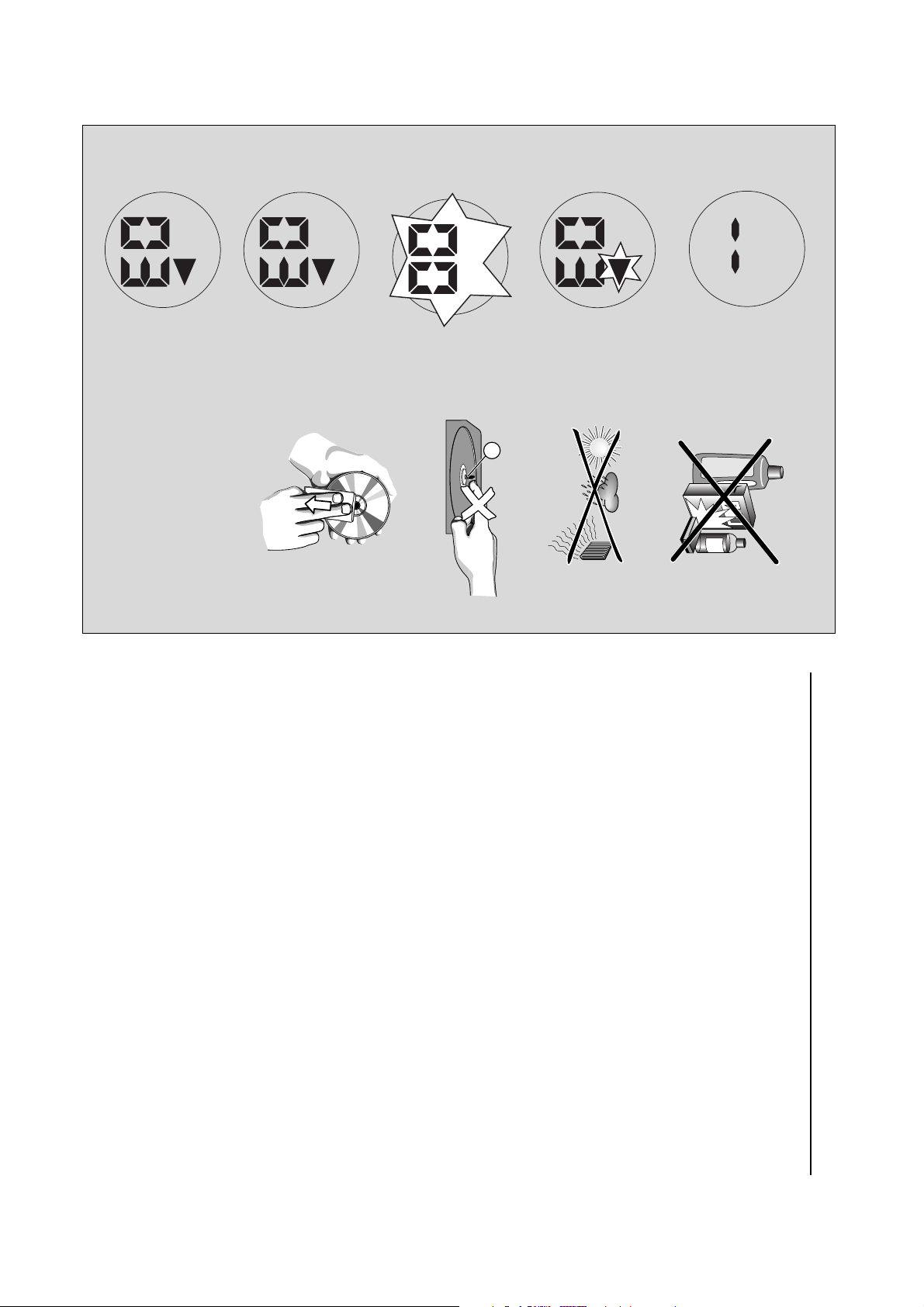

Maintenance & safety (See 8)
Environmental information
All unnecessary packaging material has been omitted.The packaging can be easily separated
into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
Loading...
