Page 1
MCM9
MCM11
Micro Hi-Fi System
MCM9
MCM11
1
Page 2
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5
Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with
the colour markings identifying the terminals
in your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio MCM9, MCM11,
Philips risponde alle prescrizioni dell’ar t. 2
comma 1 del D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
VAROITUS
Muiden kuin tässä esitettyjen
toimintojen säädön tai asetusten
muutto saattaa altistaa vaaralliselle
säteilylle tai muille vaarallisille
toiminnoille.
2
Page 3
3
Page 4
DK
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
SF
Luokan 1 laserlaite
Var oitus! Laitteen käyttäminen muulla
kuin tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina
silloin, kun pistoke on pistorasiassa.
Energy Star
As an ENERGY STAR
Par tner, Philips has
determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
4
R
R
Page 5
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 26
Español --------------------------------------------- 46
Deutsch --------------------------------------------- 66
Nederlands ---------------------------------------- 86
Italiano -------------------------------------------- 106
Svenska ------------------------------------------- 126
English
Français
EspañolDeutschNederlandsItalianoSvenskaDanskSuomi
Dansk --------------------------------------------- 146
Suomi --------------------------------------------- 166
Por tuguês ---------------------------------------- 186
----------------------------------------- 206
Por tuguês
5
Page 6
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Care and safety information .............................. 7
Functional Overview
Main unit and remote control ....................... 8–9
Connections
Step 1: Connecting FM/MW antennas .......... 10
Step 2: Connecting the speakers .................... 11
Step 3: Connecting the AC power cord ........ 11
Step 4: Inserting batteries into the remote
control .................................................................. 11
Basic Operations
Switching on/off ................................................. 12
Demonstration mode ........................................ 12
Setting the clock ................................................. 12
Dimming system’s display screen .................... 13
Volume control ................................................... 13
Sound control ..................................................... 13
Disc Operations
Playable discs ....................................................... 14
Loading disc ......................................................... 14
Basic playback controls ..................................... 14
Playing an MP3/WMA disc ............................... 15
Repeat and Shuffle .............................................. 15
Programming the disc tracks ........................... 16
Control buttons available on the
remote only ........................................................ 9
Using the remote control to operate
the system ........................................................ 11
Switching to an active mode......................... 12
Switching to Eco Power standby mode ..... 12
Switching to standby mode (view clock) ... 12
Incredible Surround ........................................ 13
Bass/Treble ........................................................ 13
Natural (Flat) sound ....................................... 13
Repeat play ....................................................... 15
Random play ..................................................... 15
Checking the programme ............................. 16
Clearing the programme ............................... 16
Tuner Operations
Tuning to radio stations .................................... 17
Presetting radio stations ................................... 17
Using the Plug and Play .................................. 17
Automatic presetting ..................................... 18
Manual presetting ............................................ 18
Selecting a preset radio station....................... 18
Deleting a preset radio station .................... 18
RDS ....................................................................... 18
Scrolling through RDS information ............. 18
Setting the RDS clock .................................... 18
NEWS ................................................................... 19
Switching on NEWS function ....................... 19
Ta pe Operations/Recording
Playing a tape ....................................................... 20
General information on recording ................. 20
Preparation for recording ................................ 21
One touch recording......................................... 21
CD Synchronised start recording .................. 21
Timer Operations
Timer setting ....................................................... 22
Activating / Deactivating the timer ............... 22
Checking the timer setting ........................... 22
Temporarily deactivating the wake up
timer .................................................................. 23
Setting the Sleep Timer ..................................... 23
Other Connection
Listening to an external source ...................... 23
Specifications ........................................... 24
Troubleshooting .................................... 25
6
Page 7
General Information
This product complies with the radio
interference requirements of the
European Community.
Refer to the type plate on the rear or
bottom of the system for identification
and supply ratings.
For users in the U.K.: please follow the
instructions on page 2.
Supplied accessories
CD TUNER TAPE AUX
REPEAT PROGRAM SHUFFLE
TAPE A/R DISPLAY
CLOCK TIMER TIMER ON/OFF NATURAL
REC DIM SLEEP SNOOZE
BASS TREBLE
INC. SURR
– Remote control and two AA batteries.
– MW loop antenna
– FM wire antenna
–AC power cord
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Care and safety information
Avoid high temperatures, moisture,
water and dust
– Do not expose the system, batteries or discs
to humidity, rain, sand or excessive heat (caused
by heating equipment or direct sunlight). Always
keep the disc tray closed to avoid dust on the
lens.
English
– No naked flame sources, such as lighted
candles, should be placed on the apparatus.
– No objects filled with liquids, such as vases,
shall be placed on the apparatus.
Avoid condensation problem
– The lens may cloud over when the system is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the system in the warm environment until
the moisture evaporates.
Do not block the vents
– In a cabinet, allows about 10cm (4 inches) of
free space all around the system for adequate
ventilation.
Care of disc
MUTE
–To clean a CD, wipe it in a straight line from
the centre towards the edge using a soft, lint-free
cloth. A cleaning agent may damage the disc!
–Write only on the printed side of a CDR(W)
and only with a soft felt-tipped pen.
– Handle the disc by its edge, do not touch the
surface.
Care of the cabinet
– Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Finding a suitable location
– Place the system on a flat, hard, and stable
surface.
Built-in safety circuit
– Under extreme conditions, this system may
switch to standby mode automatically. If this
happens, let the system cool down before
reusing it.
Cleaning the Heads and the Tape Paths
–To ensure good recording and playback
quality, clean the heads, the capstan(s), and
pressure roller(s) after every 50 hours of tape
operation.
– Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
–You also can clean the heads by playing a
cleaning tape once.
7
Page 8
Functional Overview
WMA-CD/MP3-CD/CD-R/CD-RW COMPATIBLE
MICRO SYSTEM
LOGIC DECK
AUTO REVERSE
CD
TUNER TAPE
AUX/CDR
TREBLE•
•BASS
DEMO STOP REC
MASTER VOLUME
IR
CLOCK
RDS/
NEWS
STANDBY-ON
ECO POWER
OPEN
/
CLOSE
OPEN
/
CLOSE
TUNING
ALBUM/TITLE
PLAY/PAUSE
1
3
5
4
6
8
7
9
0
@
!
#
*
&
^
%
$
2
English
Main unit and remote control
1 STANDBY ON B
– Switches to Eco Power standby mode or turns
on the system.
– *Switches to standby mode.
2 ECO POWER indicator
– Lights up when the system is in Eco Power
3 Disc tray
4 Display screen
5 iR
–Point the remote control towards this sensor.
6 CD / TUNER / TAPE /AUX/CDR
– Selects the relevant active mode.
– CD: switches to CD mode.
– TUNER: toggles between FM and MW band.
– TAPE: switches to Tape mode.
– AUX/CDR: toggles between AUX and CDR
standby mode.
mode.
6
(
)
%
CD TUNER TAPE AUX
REPEAT PROGRAM SHUFFLE
TAPE A/R DISPLAY
›
‹
¤
⁄
¡
7
8
™
^
£
!
≤
$
∞
CLOCK TIMER TIMER ON/OFF NATURAL
REC DIM SLEEP SNOOZE
BASS TREBLE
INC. SURR
MUTE
º
ª
•
≥
§
7 DEMO STOP Ç
– Exits an operation.
– CD: stops playback or clears a programme.
– TUNER: *erases a preset radio station.
– TAPE: stops playback or recording.
(only on the main unit)
– *Tu r ns on/ off the demonstration mode.
8 ÉÅ
– CD: starts/pauses playback.
– TAPE: starts playback or selects other side of the
tape during playback.
– CLOCK: toggles between hour and minutes
setting.
(only on the main unit)
– TUNER: *enters Plug & Play mode and/ or star ts
preset radio station installation.
9 n
– Plug in the headphones jack. The speakers
output will be cancelled.
* = Press and hold the button for more than two seconds.
8
Page 9
Functional Overview
0 TUNING S T (4ALBUM/TITLE3)
– CD: *searches backward/forward or selects a
track.
– MP3/WMA: *selects an album or selects a title
(track).
– TUNER: tunes the radio frequency up / down.
– TAPE: rewind or fast forward.
– CLOCK: sets the hours or minutes.
! REC
– *starts recording on a tape.
@ OPEN/ CLOSE
– Opens/ closes the tape deck door.
# Ta pe deck
$ BASS/TREBLE (+-)
– Selects a desired BASS (low tone) or TREBLE
(high tone) level.
% MASTER VOLUME (VOL +-)
– Adjusts the volume level.
^ CLOCK
– Switches to clock display mode or enter clock
setting mode.
& RDS/NEWS
– In tuner mode, selects RDS information.
– In other modes, turns on/ off news.
* OPEN/CLOSE 0
– Opens/closes the disc tray.
Control buttons available on the
remote only
( REPEAT
– Repeats a track / disc / all programmed tracks.
) TAPE A/R
– Selects the desired tape playback modes : one
side, both sides or auto replay.
¡ íë
– MP3/WMA: selects an MP3/WMA title (track).
– CD: selects a track.
– TUNER: selects a preset radio station.
– TAPE: selects other side of the tape.
™ àá
– MP3WMA: selects an album from MP3/WMA
disc.
– CD: searches backward/ forward.
– TUNER: tunes the radio frequency up / down.
– TAPE: rewind or fast forward.
– CLOCK: sets the hours or minutes.
£ TIMER
– Displays the timer setting or enter timer setting
mode.
≤ DIM
– Selects different levels of brightness for display
panel.
∞ INC. SURR.
–Turns on/ off the incredible surround sound
effect.
§ MUTE
– Mutes or restores the volume.
≥ SLEEP
– Sets the sleep timer function.
• SNOOZE
–Temporarily deactivate the wake up timer.
ª TIMER ON/OFF
–Turns on/ off timer function.
º NATURAL
– Selects flat sound effect.
⁄ DISPLAY
– Displays the album and title name for MP3/
WMA disc.
¤ PROGRAM
– CD: starts or confirms tracks programming.
– TUNER: starts *automatic / manual preset
programming.
– CLOCK: selects 12- or 24-hour clock display.
‹ SHUFFLE
–Turns on/ off random play mode.
› B
– Switches to Eco Power standby mode.
– *Switches to standby mode.
English
* = Press and hold the button for more than two seconds.
9
Page 10
MW
Connections
English
WARNING!
– Use only the supplied speakers.
The combination of the main unit and
speakers provide the best sound.
Using other speakers can damage the
unit and sound quality will be negatively
affected.
–Never make or change connections
with the power switched on.
– Connect the AC power cord to the
power outlet only after you have finished
hooking up everything.
10

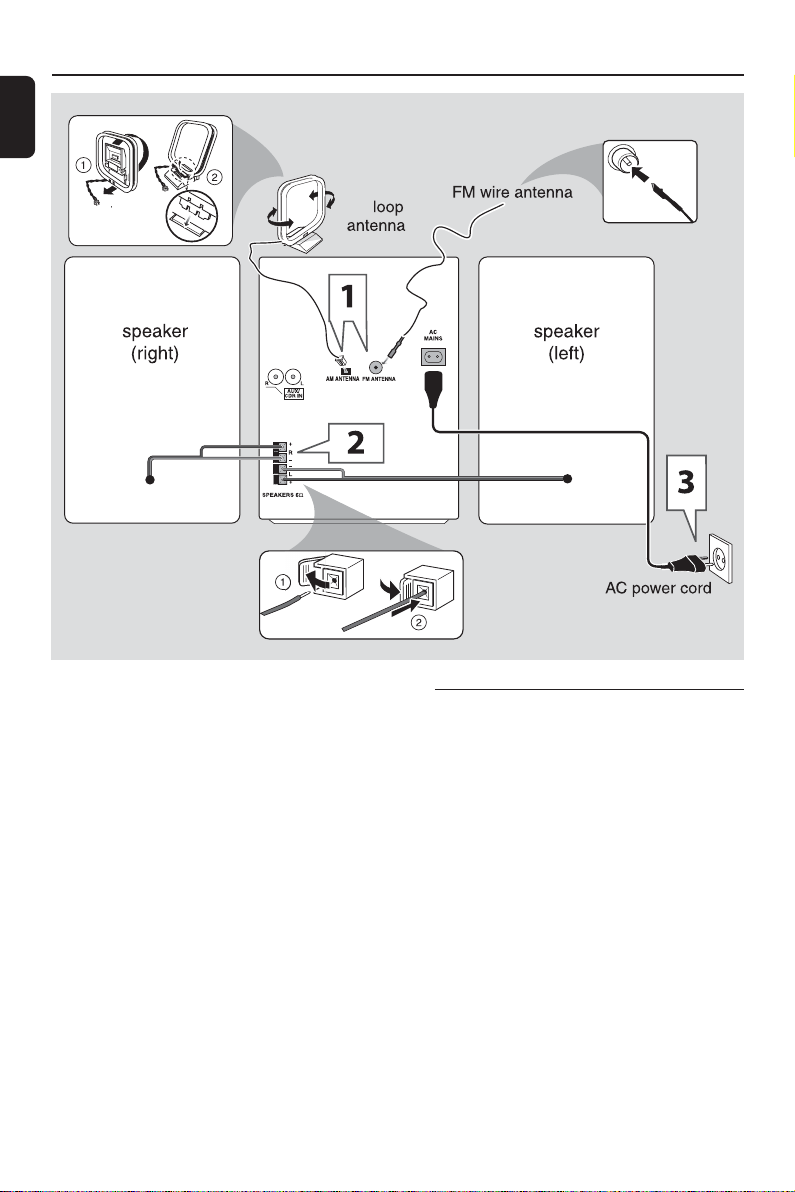

Step 1: Connecting FM/ MW
antennas
– Place the MW loop antenna on a shelf or
attach it to a stand or wall.
– Extend the FM antenna and fix its ends to the
wall.
– Adjust the position of the antennas for
optimal reception.
–Position the antennas as far as possible from a
TV, VCR or other radiation source to prevent
unwanted noise.
– For better FM stereo reception, connect
external FM antenna.
Page 11
Connections
Step 2: Connecting the
speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L", coloured (marked) wire to "+" and black
(unmarked) wire to "-". Fully insert the
stripped portion of the speaker wire into the
terminal as shown.
Helpful Hint:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
Step 3: Connecting the AC
power cord
"AUTO INSTALL – PRESS PLAY" may appear
on the display panel when the AC power cord is
plugged into the power outlet for the first time.
Press ÉÅ on the main unit to store all available
radio stations or press Ç to exit (refer to
“Tuner Operations”).

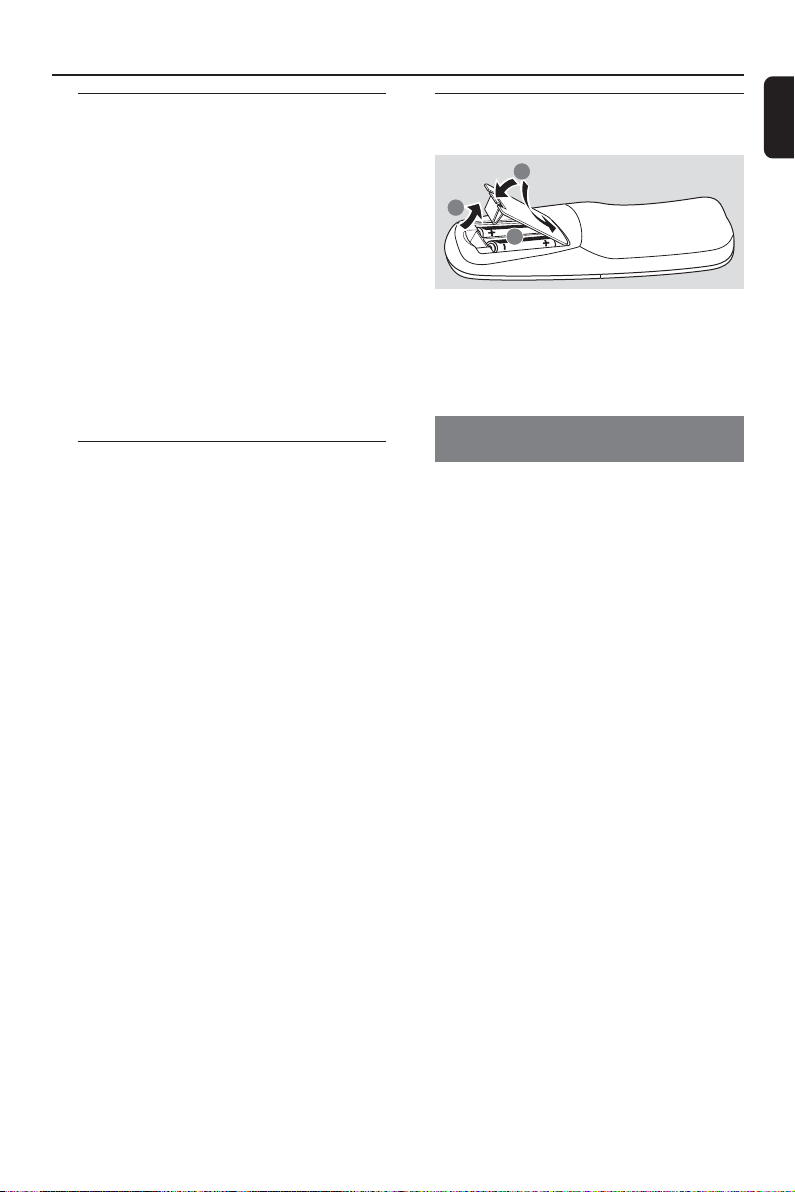

Step 4: Inserting batteries into
the remote control
3
1
2
1 Open the batter y compar tment cover.
2 Inser t two batteries type R06 or AA, following
the indications (+-) inside the compartment.
3 Close the cover.
Using the remote control to operate
the system
1 Aim the remote control directly at the
remote sensor (iR) on the main unit.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3 Then select the desired function (for example
í,
ÉÅ,
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
ë).
English
11
Page 12
(00:00 î 12:00AM)
(
00
:00 / 12:00AM)
(00:
00
/ 12:00AM)
4
2
1 5
,
PROGRAM
CLOCK
3 4
,
Basic Operations
English
Switching on/ off
Switching to an active mode
● Press CD, TUNER, TA PE or AUX/CDR.
Switching to Eco Power standby mode
● Press B.
➜ ECO POWER button lights up.
➜ The display screen will go blank.
Switching to standby mode (view
clock)
● Press and hold B.
➜ The clock appears.
➜ While in standby mode, pressing CLOCK
button will switch the system to Eco Power
standby mode.
Helpful Hint:
– Before switching the system to Eco Power
standby or standby mode, make sure you have
deactivated the the demonstration mode.
Demonstration mode
If the demonstration mode is active, whenever
you switch the system to Eco Power standby or
standby mode, it will begin showing the various
features offered by the system.
To activate the demonstration
● In Eco Power standby/standby mode,
press and hold Ç on the main unit until
"DEMO ON" appears.
To deactivate the demonstration
● Press and hold Ç on the main unit until
"DEMO OFF" appears.

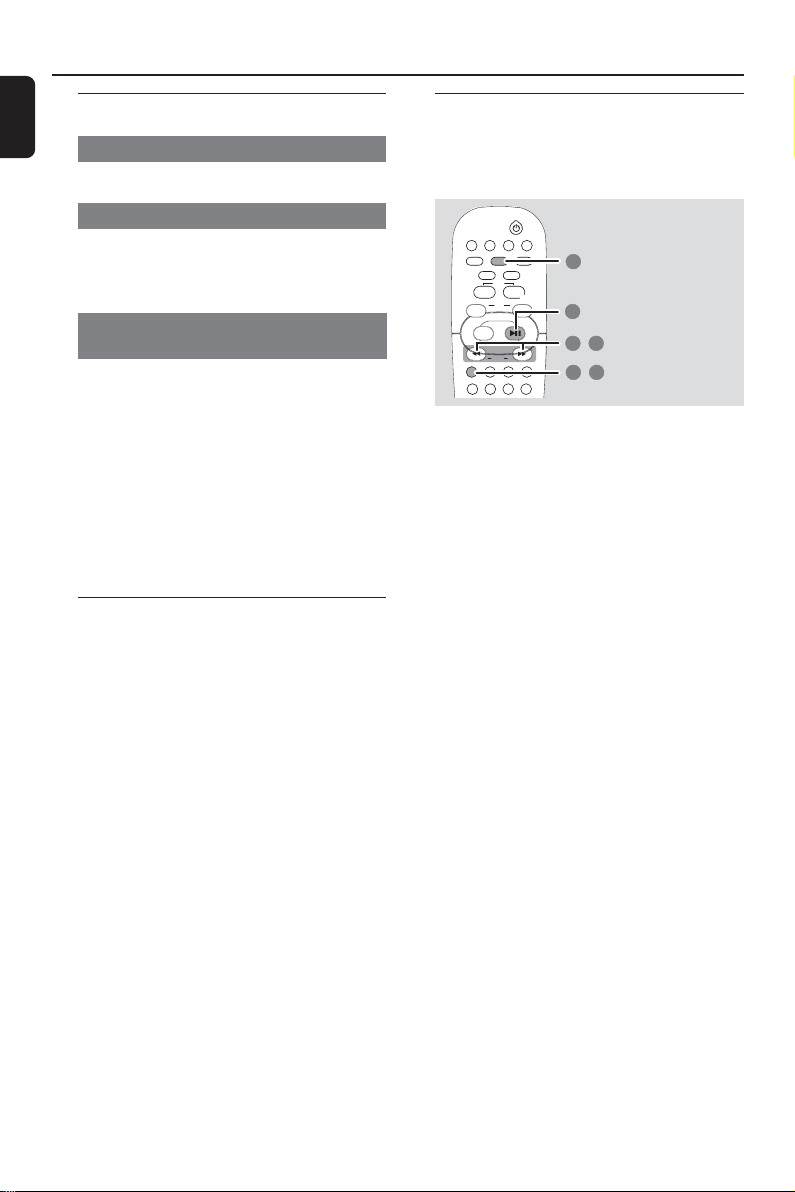

Setting the clock
The clock can be set in either 12-hour or
24-hour mode ("11:59 PM" or "23:59" for
example).
1 Press and hold CLOCK until the clock time
starts flashing.
2 Press PROGRAM repeatedly to change
between 12-hour and 24-hour clock mode.
3 Press à or á (S or T on the main
set) repeatedly to set the hour.
4 Press ÉÅ to change to minutes setting, then
press à or á (
set) repeatedly to set the minutes.
S or T on the main
5 Press CLOCK again to store the setting.
➜ The clock will start working.
To view the clock time in any active
mode
● Press CLOCK once.
➜ The clock is displayed for a few seconds.
Helpful Hints:
– The clock setting will be erased when the system
is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 90 seconds.
–To set the clock automatically through the time
information in the RDS signal, refer to "Tuner
Operations – Setting the RDS clock".
12
Page 13
Basic Operations
Dimming system’s display screen
You can select the desired brightness for the
display panel.
● In any active mode, press DIM repeatedly to
select DIM 1, DIM 2, DIM 3 or DIM OFF
display.
➜ DIM shows on the display screen, except
DIM OFF mode.
Volume control
● Adjust MASTER VOLUME (or press
VOL +/- on remote) to increase or
decrease the sound level.
➜ " VOL MUTE" is the minimum volume level
and “ 0 dB” is the maximum volume level.
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
"MUTE " appears.
➜ To restore the volume, press MUTE again or
increase the volume level.
Sound control
Incredible Surround
The Incredible Surround magnifies the virtual
distance between the front speakers for an
incredibly wide, enveloping, stereo effect.
● Press INC. SURR. repeatedly.
➜ If activated, INCREDIBLE SURROUND shows on
the display.
➜ If deactivated, “IS OFF” appears.
Bass/Treble
The BASS (low tone) and TREBLE (high tone)
feature enables you to define the soundprocessor settings.
● Adjust BASS or TREBLE (or press BASS
+-/TREBLE +- on the remote)
repeatedly to select the desired Bass or Treble
level.
➜ "BASS XX" or "TREBLE XX" appears.
"XX" denotes the level as follows :
Min ™ -2 …™ 0 ™ 1… ™ +2 ™ Max …
Natural (flat sound)
This feature allows you to temporarily switch off
the sound setting (e.g. Incredible Surround - OFF,
Bass/Treble setting - 0dB).
● Press NATURAL on the remote.
➜ Pressing the same button will restore the
previous sound setting.
➜ Pressing INC. SURR or BASS/TREBLE button
will turn off the natural sound mode.
English
13
Page 14
MP3-CD/CD-R/CD-RW COMPATIBLE
MICRO SYSTEM
CD
TUNER TAPE
AUX/CDR
BASS•
DEMO STOP REC
MASTER VOLUME
IR
CLOCK
RDS/
NEWS
STANDBY-ON
ECO POWER
OPEN
/
CLOSE
PLAY/PAUSE
MP3-CD/CD-R/CD-RW COMPATIBLE
2
OPEN
/
CLOSE
1 3
,
Disc Operations
English
IMPORTANT!
– This system is designed for regular
discs. Therefore, do not use any
accessories such as disc stabiliser rings or
disc treatment sheets, etc., as offered on
the market, because they may jam the
changer mechanism.
– Do not load more than one disc onto
the tray.
Playable discs
This system is able to play:
– All pre-recorded audio CDs
– All finalised audio CDR and audio CDRW
discs
– MP3-CDs (CD-ROMs with MP3 tracks)
– WMA-CDs (CD-ROMs with WMA tracks)

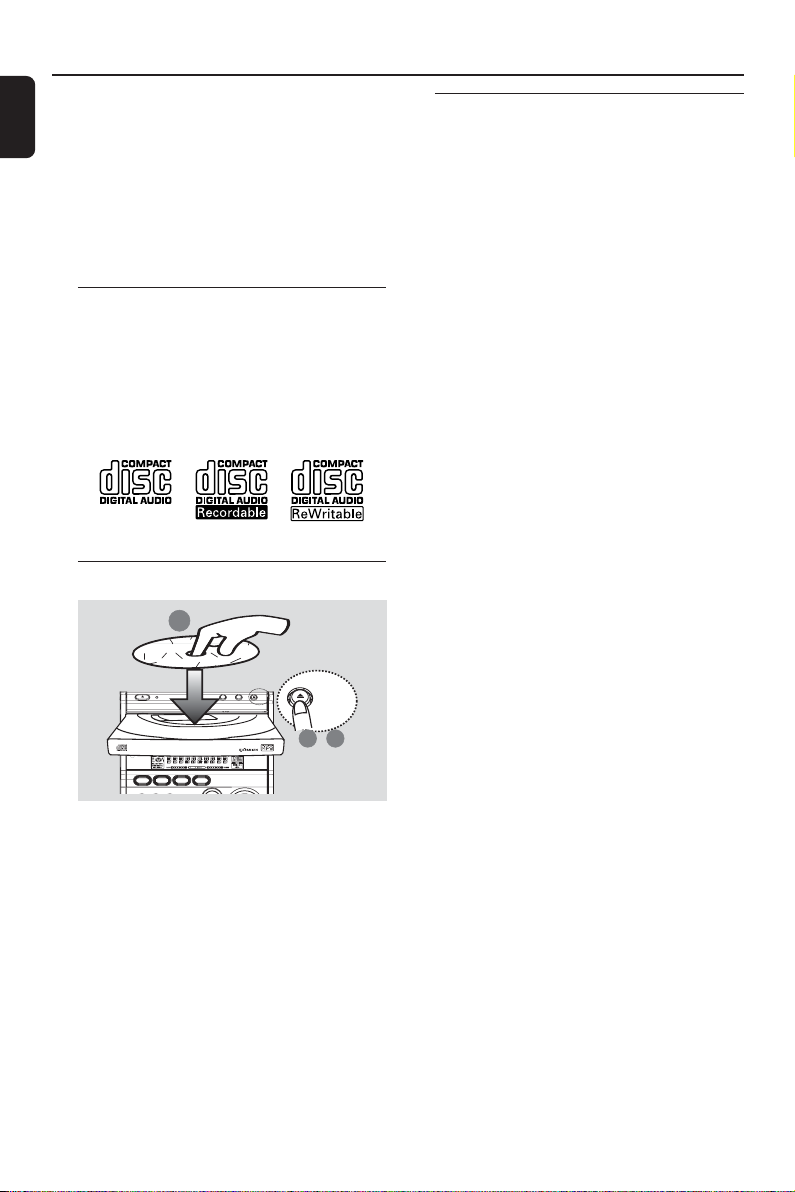

Loading disc
Basic playback controls
Unless stated, all operations described are based
on Remote Control use.
To start playback
● Press ÉÅ.
To select a desired track
Press í or ë (S or T on the main set)
●
repeatedly until the desired track is displayed.
➜ During random play (shuffle mode), pressing
í will not affect the current playback.
To search for a particular passage
during playback
●
Press and hold à or á (S or T on the
main set)
passage is located.
➜ For CD disc, the volume will be reduced.
➜ For MP3/WMA disc, the volume will be
reduced.
To interrupt playback
● Press ÉÅ.
➜ To resume normal playback, repeat the
above.
and release it when the desired
1 Press OPEN /CLOSE 0 button to open the
disc tray.
2 Load a disc with the label side is facing up. For
double-sided discs, load the side you want to
play face up.
3 Press OPEN /CLOSE 0 button again to
close the disc tray.
➜ “READING“ is displayed. The total number of
tracks and the playing time will appear on the
display.
Helpful Hint:
–To ensure good system performance, wait until
the disc tray completely read the disc before
proceeding.
14
To stop playback
● Press Ç.
➜ If the system remains in stop mode for 30
minutes, it will switch to Eco Power standby
mode.
Page 15
A02 T001
A02 T008
ALBUM
TITLE
3
4
2
1
CD
DISPLAY
MP3-CD/CD-R/CD-RW COMPATIBLE
VIRTUAL ENVIRONMENT CONTROL
DIGITAL SOUND CONTROL
MICRO SYSTEM
CD
TUNER TAPE
AUX/CDR
BASS•
•TREBLE
DEMO STOP REC
MASTER VOLUME
IR
CLOCK
RDS/
NEWS
STANDBY-ON
ECO POWER
OPEN
/
CLOSE
OPEN
/
CLOSE
TUNING
ALBUM/TITLE
PLAY/PAUSE
MP3-CD/CD-R/CD-RW COMPATIBLE
ALBUM/TITLE
Disc Operations
Playing an MP3/WMA disc
1 Load an MP3/WMA disc.
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ "AXX TYYY" is displayed. XX is the current
album number and YYY is the current title
number.
2 Press à á (or press and hold S T
on the system) to select a desired album.
3 Press í ë (or press S T on the
system) to select a desired title.
4 Press ÉÅ to start playback.
● During playback, press DISPLAY to show
the album and title name.
Supported MP3/WMA disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number : 400 (depending on
filename length)
– Maximum album number : 40
– Supported sampling frequencies: 32 kHz,
44.1 kHz, 48 kHz
– Supported Bit-rates : 32~256 (kbps), variable
bitrates
– ID3 tags : V1.1, V2.2, V2.3, V2.4
Repeat and Shuffle
You can select and change the various play
modes before or during playback.
Repeat play
1 Press REPEAT on the remote repeatedly to
select :
REPEAT
REPEAT
DISC
TRACK
ABCD
REPEAT
PROG
TRACK
REPEAT
PROG
A – to repeat playback of the current track.
B – to repeat playback of the current disc.
C – to repeat playback of the current
programmed track (only if the programme
mode is active)
D – to repeat playback of all the programmed
tracks (only if the programme mode is
active)
2 To resume normal playback, press REPEAT
until " OFF"appears.
Random play
● Press SHUFFLE on the remote to turn
on/ off the shuffling mode.
➜ If activated, SHUFFLE shows on the display and
the repeat mode (if any) will be cancelled.
➜ If programme mode is active, only the
programmed tracks will be played in random
order.
Helpful Hint:
– Pressing the OPEN / CLOSE button will cancel all
repeat and shuffling modes.
English
IMPORTANT:
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for CD burning/
conversion. Visit www. microsoft.com for details
about Windows Media Player and WM DRM
(Windows Media Digital Rights Management).
15
Page 16
2
4
6
7
3 5
,
1
MP3-CD/CD-R/CD-RW COMPATIBLE
MICRO SYSTEM
IR
CLOCK
RDS/
NEWS
STANDBY-ON
ECO POWER
OPEN
/
CLOSE
MP3-CD/CD-R/CD-RW COMPATIBLE
CD
PROGRAM
Disc Operations
English

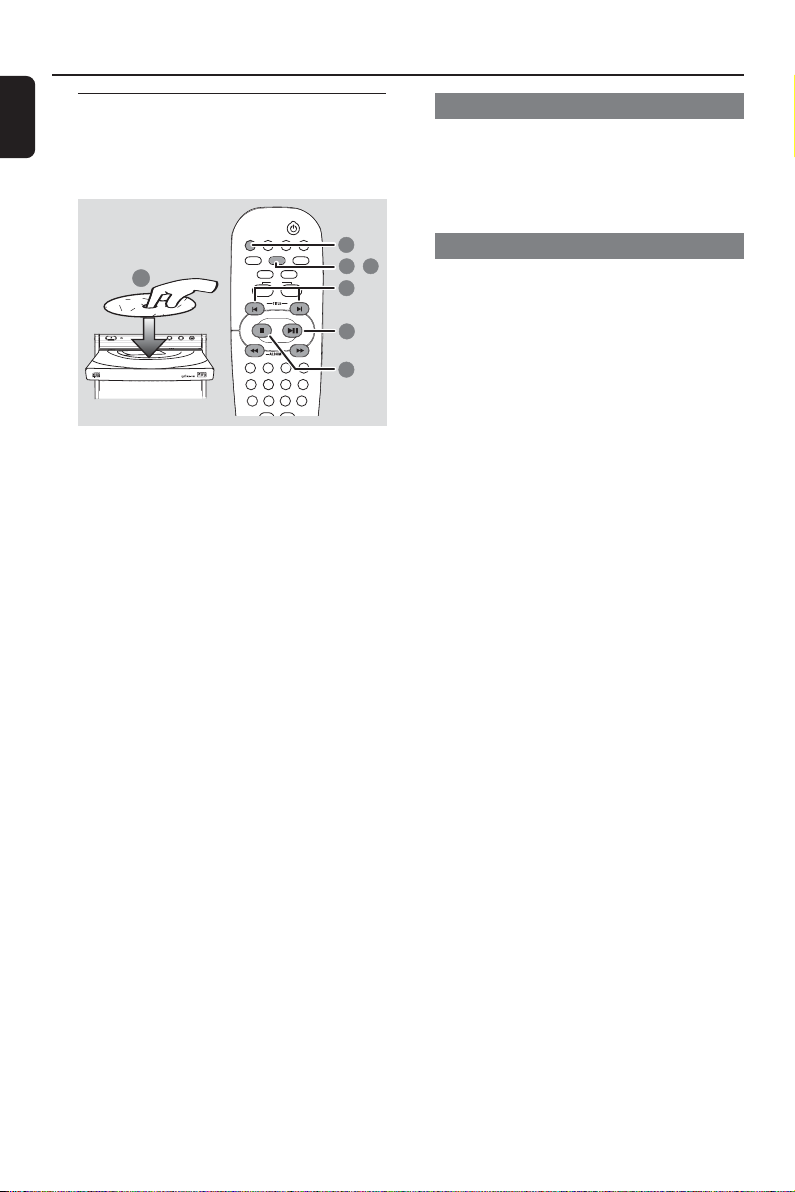

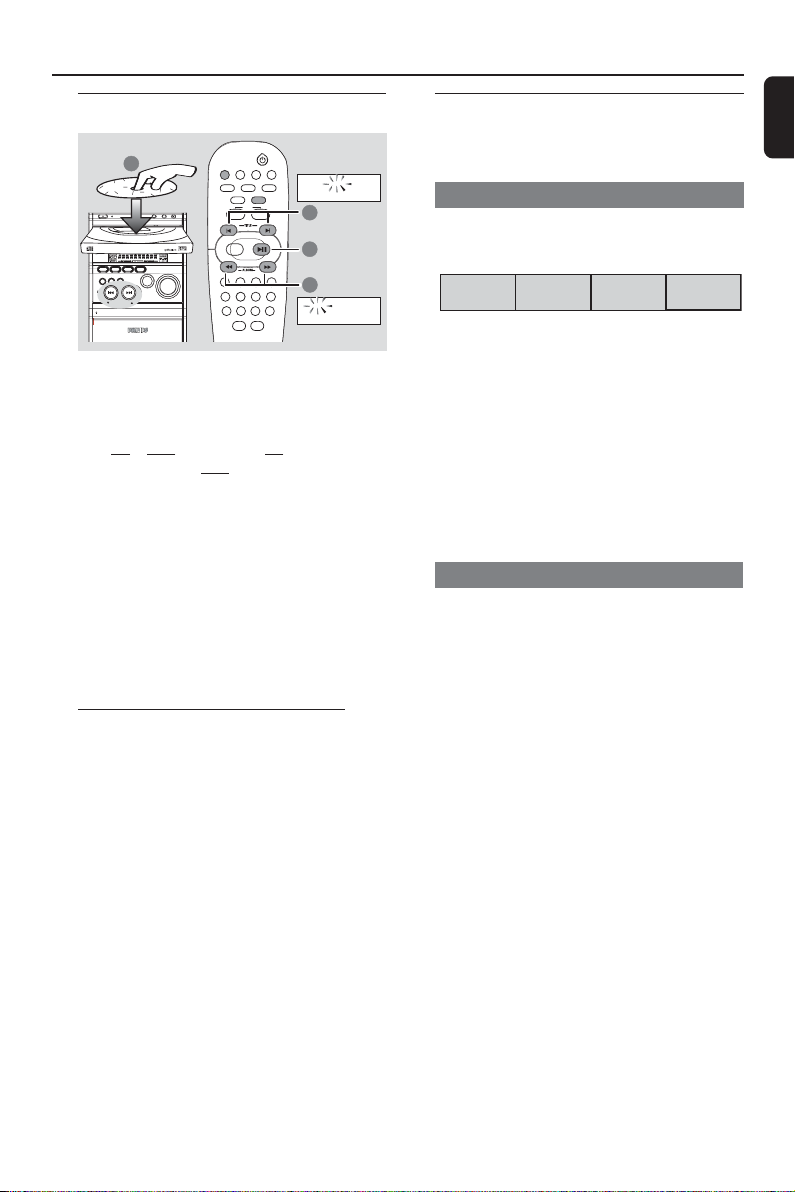

Programming the disc tracks
Programming tracks is possible when playback is
stopped. Up to 99 tracks can be stored in the
memory in any order.
Checking the programme
1 Stop playback and press í or ë (S or
T on the main set) repeatedly.
2 Press ÉÅ to star t playback from the
current programmed track.
Clearing the programme
● Stop playback, then press Ç to clear the
programme.
OR
Press the OPEN / CLOSE 0 button of the
disc tray.
➜ PROG disappears from the display and
"PROGRAM CLEARED " appears.
1 Load the desired disc on the disc tray (refer
to “Loading disc”).
2 Press CD to select a disc.
3 Press PROGRAM to start programming.
➜ PROG starts flashing.
4 Press í or ë (S or T on the main
set) repeatedly to select the desired track.
● For MP3/WMA disc, press à / á and í /
ë (
S or T on the main set) to select
the desired album and title for programming.
5 Press PROGRAM to store.
● Repeat steps 4~5 to select other tracks.
➜ If you attempt to programme more than 99
tracks, "PROGRAM FULL" appears.
6 To star t programme play, press ÉÅ.
7 To stop playback or to end the programming,
press Ç once.
➜ PROG stays and the programme mode
remains active.
Helpful Hints:
– If the total playing time reached 100 minutes or
if one of the programmed tracks has a number
greater than 30, then "--:--" will zappear instead
of the total playing time.
– For MP3/WMA discs always display "--:--".
– The system will exit programming mode if no
button is pressed within 20 seconds.
Helpful Hint:
– If the system is disconnected from the power
supply or you switch to other source mode, the
programme will be erased.
16
Page 17
Tuner Operations
MICRO SYSTEM
IR
IMPORTANT!
Make sure the FM and MW antennas are
connected.
Tuning to radio stations
1 Press TUNER to enter tuner mode.
To select another waveband (FM or MW),
press TUNER again.
2 Press and hold à or á (S or T on
the main set) until the frequency indication
starts to change, then release.
➜ "SEARCH" appears.
➜ The system automatically tunes to the next
strong signal radio reception.
➜ lights up for FM stereo reception.
➜ RDS lights up for RDS station (in FM band
only).
For tuning to a weak signal station
● Press à or á (
S or T on the main
set) briefly and repeatedly until an optimal
reception is found.
Presetting radio stations
You can store up to 40 preset radio stations in
the memory, star ting from FM and followed by
MW bands.
Helpful Hints:
– The system will exit presetting mode if no button
is pressed within 20 seconds.
– If no stereo frequency is detected during Plug
and Play, "CHECK ANTENNA" appear s.
Using the Plug and Play
Plug and Play allows you to store all available
radio stations automatically.
1 Connect the system to the power supply,
"AUTO INSTALL – PRESS PLAY" appears.
OR
In Eco Power standby/ standby mode,
press and hold ÉÅ on the main unit until
"AUTO INSTALL – PRESS PLAY" appears.
2 Press ÉÅ on the main unit to start
installation.
➜ "INSTALL TUNER AUTO" appears.
➜ All previously stored radio stations will be
replaced.
➜ Once completed, the last tuned radio station
(or the first available RDS station) will play.
3 If the first preset is a RDS station, it will
proceed to set the RDS clock.
➜ "INSTALL" appears, then "TIME" and
"SEARCH RDS TIME ".
➜ When RDS time is read, " RDS TIME" will
appear and the current time will be stored.
➜ If RDS station does not transmit RDS time
within 90 seconds, “NO RDS TIME” will appear
and the programme will exit automatically.
English
17
Page 18
Tuner Operations
English
Automatic presetting
You can start the automatic presetting from a
selected preset number.
1 In tuner mode, press í or ë (S or
T on the main set) to select a preset
number.
2 Press and hold PROGRAM until "AUTO"
appears.
➜ If a radio station is stored in one of the
presets, the same radio station will not store
under another preset number.
➜ If no preset number is selected, automatic
preset will begin from preset (1) and all your
former presets will be overridden.
Manual presetting
You can choose to store only the favourite radio
stations.
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press PROGRAM.
➜ The preset number starts flashing. If you want
to store the radio station in another preset
number, press í or ë (S or T on the
main set).
3 Press PROGRAM again to store.
● Repeat steps 1~3 to store other radio
stations.
Selecting a preset radio station
● In tuner mode, press í or ë (S or T
on the main set).
➜ The preset number, radio frequency, and
waveband will appear.
RDS
RDS (Radio Data System) is a service that
allows FM stations to show additional
information. If you are receiving a RDS station,
RDS and the station name are displayed.
Scrolling through RDS information
● Tuned to a RDS radio station from FM band,
then press RDS/NEWS repeatedly to select
the following information (if available):
– Station name
– Programme type (for example: News, Affairs,
Sport, etc.)
– Radio text messages
– Frequency
Setting the RDS clock
Some RDS radio station may be transmitting a
real clock time at an interval of ever y minute. It
is possible to set the clock by using a time signal
which is broadcast together with the RDS signal.
1 Tuned to a RDS station from FM band (refer
to “Tuning to radio stations”).
2 Press CLOCK twice.
3 Press RDS/NEWS.
➜ "SEARCH RDS TIME" appears.
➜ When RDS time is read, the current time will
be stored.
➜ If the RDS station does not transmit RDS
time within 90 seconds, "NO RDS TIME"
appears.
Helpful Hint:
– Some RDS radio station may be transmitting a
real time clock at a minute interval. The accuracy
of the transmitted time depends on the
transmitting RDS radio station.
Deleting a preset radio station
● Press and hold Çuntil “ PRESET DELETED”
appears.
➜ The current preset radio station will be
deleted.
➜ All other preset radio stations with higher
numbers are decreased by one.
18
Page 19
NEWS
You may set up the tuner in such a way that
listening to CD or external source is interrupted
by the NEWS of a RDS station. This only works
if the RDS station broadcasts a NEWS signal
while sending the news.
IMPORTANT!
You can activate NEWS function from
any source mode except TUNER.
Switching on NEWS function
1 In any active mode, press RDS/NEWS until
"NEWS" appears.
➜ NEWS shows on the display.
➜ The system will scan the radio stations stored
in the first five (5) preset and wait for the News
Programme Type data to be available in any of
these RDS stations.
➜ While searching NEWS in progress, the
current active mode remains uninterrupted.
2 When NEWS transmission is detected, the
system will switch to Tuner mode.
➜ NEWS starts flashing.
● If no RDS station is detected in the first five
presets, the system will exit NEWS function.
➜ "NO RDS NEWS" appears.
Tuner Operations
English
Helpful Hints:
–You have to exit Tuner mode before selecting
NEWS function.
– Before you activate the NEWS feature, ensure
that the first five presets have RDS stations.
– The NEWS works only once for each activation.
To cancel NEWS function
● Press RDS/NEWS again or switch the
system to tuner mode.
OR
During news bulletin, press any other available
source keys to execute the relevant source
mode.
19
Page 20
Ta pe Operations/ Recording
English
IMPORTANT!
– Before playing a tape, check and
tighten slack tape with a pencil. Slack
tape may get jammed or may burst in
the mechanism.
– C-120 tape is extremely thin and is
easily deformed or damaged. It is not
recommended for use in this system.
– Store the tapes at room temperature
and do not put them too close to a
magnetic field (for example, a
transformer, TV or speaker).
Playing a tape
1 Press TAPE to select tape mode.
2 Press OPEN / CLOSE 0 to open the tape
deck door.
3 Insert a recorded tape and close the tape
deck door.
➜ Load the tape with the open side downward
and full spool to the left.
4 Press ÉÅ to star t playback.
To change the playback side
● Press
í or ë on the remote.
➜ During playback, you can press ÉÅ on the
system to change the playback side.
➜ A (BACK) or B (FRONT) appears on the
display, depending on the tape side selected.
To rewind or fast forward
1 Stop playback, then press à / á (S or
T on the main set) on the remote.
2 Press Ç when you reached the desired
passage.
➜ The tape will stop automatically at the end of
rewinding or fast forwarding.
To stop playback
● Press Ç.
Helpful Hint:
– During rewinding or fast forwarding of a tape, it
is also possible to select another source (CD or
TUNER, for example).
General information on
recording
● For recording, use only tape of IEC type I
(normal tape).
● The recording level is set automatically,
regardless of the position of the Volume,
Incredible Surround, BASS/TREBLE and so
forth.

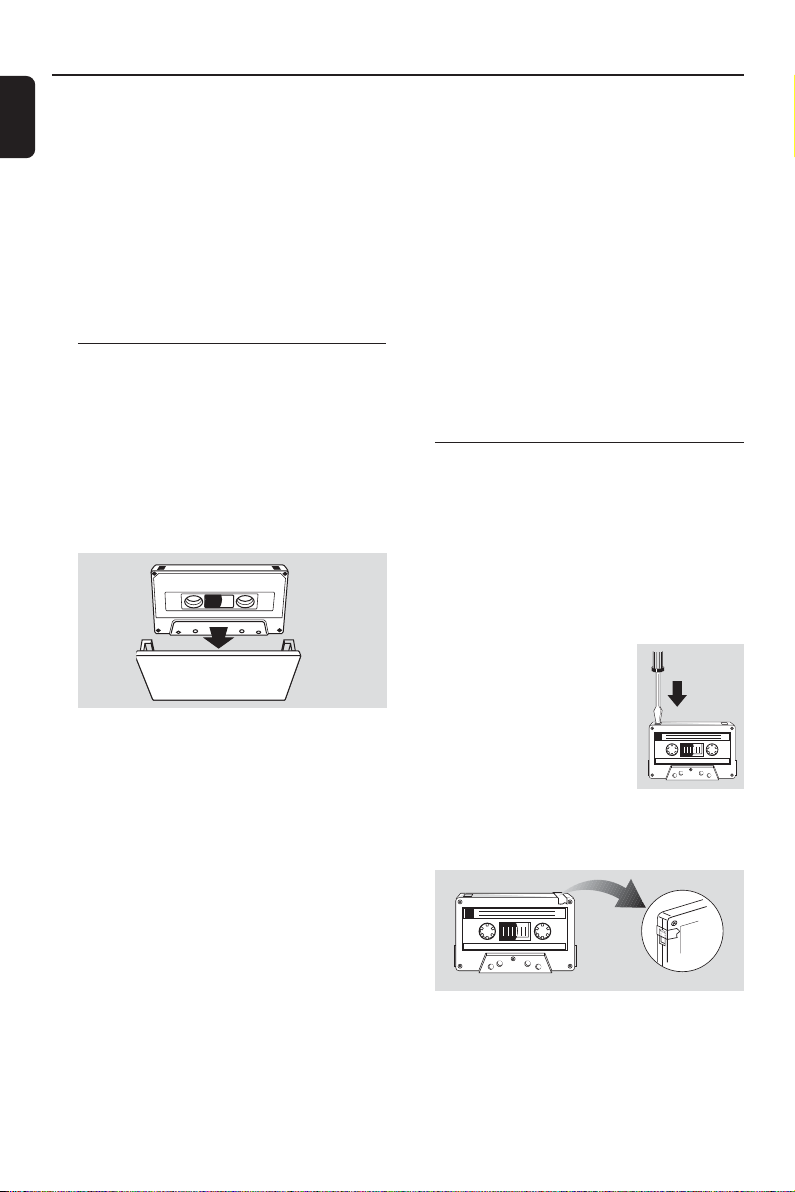

● The tape is secured at both ends with leader
tape. At the beginning and
end of the tape, nothing will
be recorded for six to seven
seconds.
● To prevent accidental
recording, break out the tab
on the left shoulder of the
tape side you want to protect.
● If “CHECK TAPE” is displayed, the protection
tab has been broken. Put a piece of clear
adhesive tape over the opening.
To change the playback mode
● Press TAPE A/R on the remote repeatedly
to select the different playback modes.
å : playback on one side of the tape only.
∂ : both sides are played once.
∫ : both sides are played repeatedly, up
to 10 times each side unless you
press Ç.
20
Page 21
Ta pe Operations/ Recording
IMPORTANT!
Recording is permissible if copyright or
other rights of third parties are not
infringed upon.
Preparation for recording
1 Press TAPE.
2 Load a recordable tape into the tape deck.
3 Press í or ë on the remote to select the
recording tape side.
➜ A appears on the display for the reverse
side.
➜ B appears on the display for the forward
side.
4 Press TAPE A/R on the remote repeatedly
to select a recording mode.
➜ å for recording on one side only.
∂∂
➜
∂ for recording on both sides.
∂∂
5 Prepare the source to be recorded.
CD – load the disc.
TUNER – tune to the desired radio station.
AUX/CDR – connect external equipment.
When recording is in progress
➜ REC starts flashing.
● It is not possible to change tape side.
● It is not possible to listen to another source.
● It is not possible to activate the timer
function.
One touch recording
1 Press CD, TUNER or AUX to select the
recording source.
2 Star t playback of the selected source.
3 Press REC until REC icon star ts flashing on
the display panel to start recording.
To stop recording
● Press Ç on the system.
Helpful Hint:
– One Touch Recording is not possible in TAPE
mode, "SELECT SOURCE" will appear.
CD Synchronised start recording
1 Press CD.
● If you want to start recording from a desired
track, press
main set).
➜ You can programme the tracks in the order
you want them to be recorded (refer to “CD
Operation - Programming the disc tracks”).
í or ë (S or T on the
2 Press REC to star t recording.
➜ The disc will start playback automatically.
To select another track during
recording
1 Press ÉÅ to interrupt recording.
2 Press í or ë to select the desired track.
3 Press ÉÅ to resume recording.
English
To stop recording
● Press Ç.
➜ Recording and disc playback will stop
simultaneously.
21
Page 22
(CD / TUNER / TAPE)
CD TUNER
TIMERTIMER ON/OFF
SLEEP SNOOZE
(00:00 / 12:00AM)
(00:
00
/ 12:00AM)
4
3 4
,
1 5
,
2
TAPE
Timer Operations
English
Timer setting
The system can switch on to CD, TUNER or
TAPE mode automatically at a preset time ,
serving as an alarm to wake you up.
IMPORTANT!
– Before setting the timer, ensure that
the clock is set correctly.
– if recording is in progress, the timer
function will not be activated.
– The volume of the timer will increase
gradually to the last tuned volume level.
If the last tuned volume level is too low,
the set will then increase to a
predetermined minimum audible level.
● At the preset time, the selected sound
source will be played for 30 minutes
before it switches to Eco Power standby
mode (if no button is being pressed within the
time frame).
➜ CD – playing the first track of the disc. If the
disc tray is empty, it will switch to Tuner mode.
➜ TUNER – playing the last tuned radio station.
➜ TAPE – playing the tape.
Activating/ Deactivating the timer
● Press TIMER ON/ OFF on the remote to
turn off the timer or turn on to the last
setting again.
➜ If activated, the timer information will display
for a few seconds, then the system resumes to
the last active source or stays in standby mode.
➜ If deactivated, “OFF” appears.
Helpful Hint:
– The system will exit timer setting mode if no
button is pressed within 90 seconds.

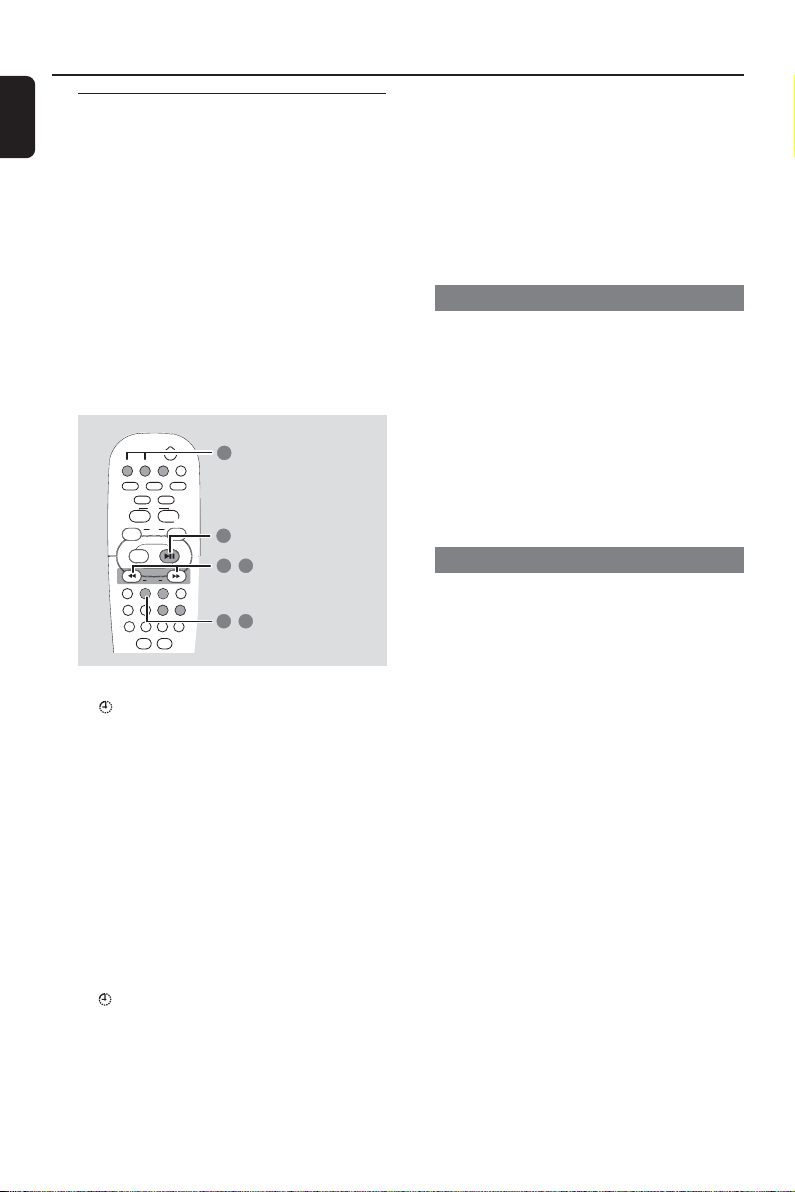

1 Press TIMER on the remote.
icon starts flashing.
➜
2 Press CD, TUNER or TAPE to select the
wake-up source.
➜ The selected source will be lighted while
other available sources are flashing.
3 Press à or á (S or T on the main
set) repeatedly to set the hour.
4 Press ÉÅ to change to minutes setting, then
press à or á (
set) repeatedly to set the minutes.
S or T on the main
5 Press TIMER to store the setting.
➜ Once the timer is set, it will always switch on
unless you deactivate it.
22
➜ icon remains on the display. It indicates the
timer is activated.
Checking the timer setting
● Press TIMER on the remote.
➜ The timer information will display for a few
seconds, then the system resumes to the last
active source or stays in standby mode.
Page 23
CD TUNER TAPE AUX
REPEAT PROGRAM SHUFFLE
TAPE A/R DISPLAY
Timer Operations Other Connection
Temporarily deactivating the wake up
timer
You are only able to activate the Snooze
function within 30 seconds after the timer wake
up from standby mode.
Temporarily deactivating the wake up timer
1 After timer wake up, press SNOOZE on
the remote.
➜ The system will switch to standby mode for
five minutes. After that, it resumes the timer last
selected source again.
2 To cancel the snooze function, press
SNOOZE again.
Setting the Sleep Timer
The sleep timer enables the system to switch to
Eco Power standby mode automatically at a
preset time
1 Press SLEEP on the remote repeatedly until
it reaches the desired preset turn-off time.
➜ The selections are as follows (time in
minutes):
15 ™ 30 ™ 45 ™ 60 ™ 90 ™ 120 ™
OFF ™ 15 …
➜ SLEEP appears on the display, except if "OFF"
is selected.
➜ To view or change the setting, repeat the
above.
2 Before the system switches to Eco Power
standby mode, a countdown of 10 seconds is
displayed.
"SLEEP 10" ™ "SLEEP 9".... ™ "SLEEP 1"
™ "SLEEP"
To cancel the sleep timer
● Press SLEEP repeatedly until "OFF" appears,
or press the STANDBY ON B button.

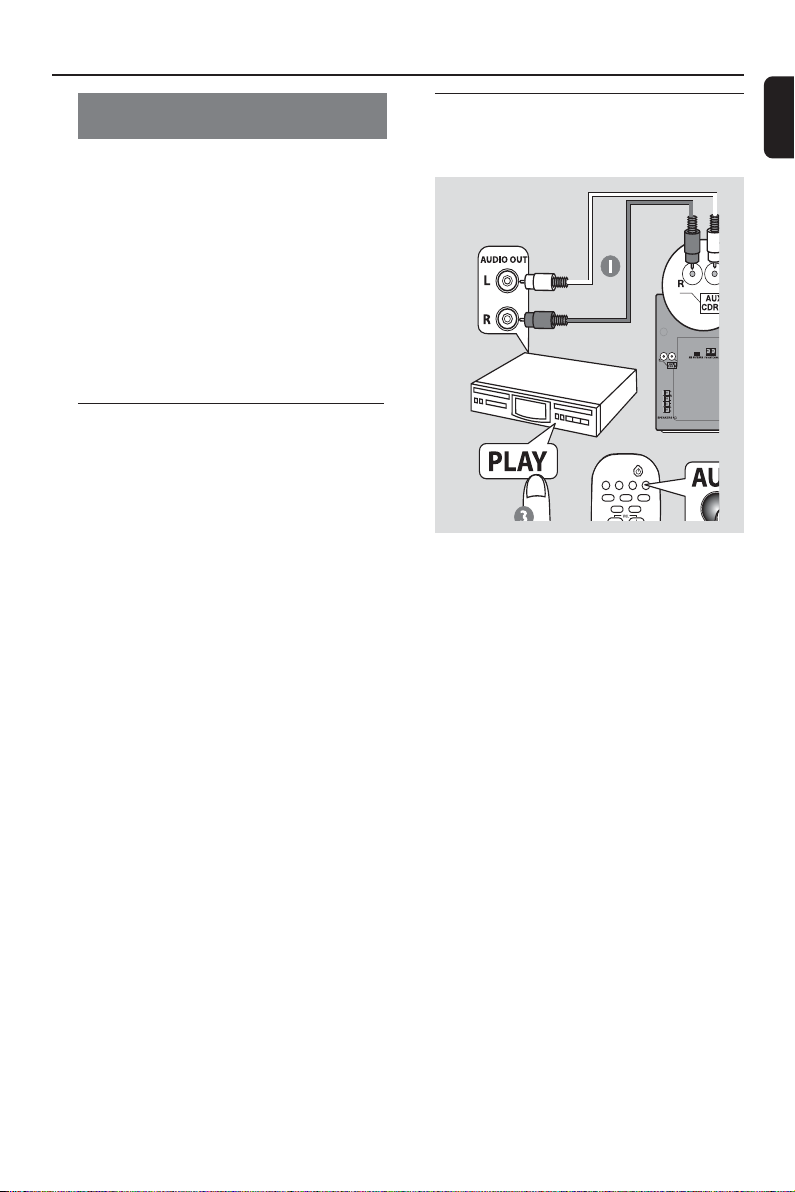

Listening to an external source
You can listen to the sound of the connected
external device through your system’s speakers.
1 Use the red /white audio cables to connect
the system’s AUX/CDR IN (R/L) terminals
to the AUDIO OUT terminals on the other
audio/visual device (such as a TV, VCR, Laser
Disc player, DVD player or CD recorder)
➜ If the connecting device has only a a single
audio out terminal, connect it to the AUX / CDR
IN left terminal. Alternatively, you can use a
“single to double” cinch cable, but the output
sounds still remain mono.
2 Press AUX/CDR repeatedly.
➜ Select “AUX” when connecting to a TV, VCR
or Laser Disc player.
➜ Select “AXU/CDR” when connecting to a CD
recorder or DVD player.
3 Press PLAY on the connected device to start
playback.
English
Helpful Hints:
– All the sound control features (INC SURR, for
example) are available for selection.
– Always refer to the owner’s manual of the other
equipment for complete connection and use details.
23
Page 24
Specifications
English
AMPLIFIER
Output power
- MCM9 2 x 100 W MPO
- MCM11 2 x 150 W MPO
Signal-to-noise ratio ≥ 75 dBA (IEC)
Frequency response 50 – 20000 Hz, –3 dB
Input sensitivity
AUX/CDR In 500 mV/ 1V
Output
Speakers ≥ 6 Ω
Headphones 32 Ω – 1000 Ω
(1) (6 Ω, 1 kHz, 10% THD)
2 x 50 W RMS
2 x 75 W RMS
SPEAKERS
System 2 way, Bass reflex
(1)
(1)
Impedance 6 Ω
Woofer 1 x 5.25" Aluminium
con woofer
Tw eeter (MCM9) 2" Ferro Fluid Cone
Dome tweeter
Tw eeter (MCM11) Ribbon tweeter
Dimensions (w x h x d)
- MCM9 175 x 254 x 196 (mm)
- MCM11 175 x 254 x 215 (mm)
Weight
- MCM9 3 kg each
- MCM11 3.1 kg each
DISC PLAYER
Programmable tracks 99
Frequency response 20 – 20000 Hz, –3 dB
Signal-to-noise ratio ≥ 76 dBA
Channel separation ≥ 60 dB (1 kHz)
MPEG 1 Layer 3 (MP3-CD)MPEG AUDIO
MP3/WMA-CD bit rate 32-256 kbps
(128 kbps advised)
Sampling frequencies 32, 44.1, 48 kHz
TUNER
FM wave range 87.5 – 108 MHz
MW wave range 531 – 1602 kHz
Number of presets 40
Antenna
FM 75 Ω wire
MW Loop antenna
TAPE PLAYER
Frequency response
CrO2 tape (type II) 80 – 12500 Hz, –8 dB
Normal tape (type I) 80 – 12500 Hz, –8 dB
Signal-to-noise ratio
CrO2 tape (type II) ≥ 50 dBA
Normal tape (type I) ≥ 47 dBA
Wow and flutter ≤ 0.4% DIN
GENERAL
Material / finish Polystyrene/ Metal
AC Power 220 – 230 V / 50 Hz
Power Consumption
Active- MCM9 45 W
- MCM11 40 W
Standby < 15 W
Eco Power Standby < 0.6 W
Dimensions (w x h x d) 175 x 252 x 350 (mm)
Weight (without speakers) 5.0 kg
Specifications and external appearance are subject
to change without notice.
24
Page 25
Tr oubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If
you are unable to remedy a problem by following these hints, consult your dealer or
Philips for help.
English
Problem
Radio reception is poor.
“NO DISC” is displayed or the disc
cannot be played.
The system does not react when buttons
are pressed.
Recording or playback cannot be made.
The tape deck door cannot open.
Sound cannot be heard or is of poor
quality.
The remote control does not function
properly.
Solution
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the system and
your TV or VCR.
✔ Insert a disc.
✔ Load in the disc with label facing up.
✔ Replace or clean the disc, see “Care and safety
information”.
✔ Use a finalised CD-R(W) or a correct format
disc.
✔ Remove and reconnect the AC power cord and
switch on the system again.
✔ Use only NORMAL (IEC I) tape.
✔ Apply a piece of adhesive tape over the missing
tab space.
✔ Remove and reconnect the AC power plug and
switch on the system again.
✔ Adjust the volume.
✔ Disconnect the headphones.
✔ Check that the speakers are connected correctly.
✔ Check that the AC power cord is connected
properly.
✔ Select the source (CD or TUNER, for example)
before pressing the function button (ÉÅ,
S, T).
✔ Reduce the distance between the remote
control and the system.
✔ Replace the battery.
✔ Point the remote control directly toward the IR
sensor.
The timer is not working.
The system displays features
automatically and buttons start flashing.
✔ Set the clock correctly.
✔ Press TIMER ON / OFF to switch on the timer.
✔ If recording is in progress, stop the recording.
✔ Press and hold DEMO STOP on the main unit
to switch off the demonstration mode.
25
Loading...
