Philips MCM108/98, MCM108B/96, MCM108/96, MCM108, MCM108B User Manual

...
MCM108 MCM108B MCM108C
Micro Hi-Fi System
Printed in China
MCM108 MCM108B MCM108C
Meet Philips at the Internet
http://www.philips.com
PDCC-JH-0628
CLASS 1
LASER PRODUCT
AUX-IN
SOURCE VOLUME
-
+
BAND
O
P
E
N
/
C
L
O
S
E
PROG/CLOCK
MC 108 MICRO SYSTEM
TUNING
iR
1
2
3
8
9
4
5
6
7
0
#
@
!
M
STANDBY-ON
1
* TIMER
– activates/deactivates or sets the timer function.
( ALBUM 4 3
for MP3 disc......................selects an album.
) DBB
– (Dynamic Bass Boost) enhances the bass.
¡ DSC
– (Digital Sound Control) selects sound
characteristics: JAZZ/POP/CLASSIC/ROCK.
English Controls
Controls on the system and remote control
1 BAND
– for Tuner (on the set only) selects waveband.
2 SOURCE (CD/ TUNER/ AUX)
– switches on the system. – selects the respective sound source for CD/
FM/ MW/ AUX.
3 STANDBY-ON / y
– switches the system to standby/on.
4 PROG/CLOCK
for CD .................progr ams tracks and reviews the
program.
for clock .............. sets the clock function.
5 OPEN•CLOSE
– opens/closes the CD door.
6 VOLUME
/
+
– adjusts volume level.
7 TUNING 0
– tunes to radio stations.
8 iR SENSOR
– infrared sensor for remote control.
9 n
– connect headphones.
0 ÉÅ
for CD .................star ts or pauses CD playback.
! ¡1 / 2™
– skips to the beginning of a current track/
previous/ next track.
– fast searches back and forward within a track/
CD.
@ STOP 9
– stops CD playback or erase a CD program.
# AUX IN
– connects to external audio source.
$ MUTE
– switches playback sound off and on.
% REPEAT
– repeats a track /dis c/ all programmed tracks.
^ SHUFF (SHUFFLE)
– plays CD/MP3 tracks in random order.
& SLEEP
– activates/deactivates or selects the sleeper time.
Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD , TUNER). – Then select the desired function (for exampleÉ,
í
,
ë
).
VOLUME
ALBUM
DBB DSC
MUTE
SLEEP TIMER
REPEAT
SHUFF
AUX PROG
CD
TUNER
3
2
%
&
@
!
)
$
4
^
*
0
(
6
¡
2
General Information
IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE SELECTOR LOCATED AT THE REAR OF THIS SYSTEM IS PRESET AT 220V FROM THE FACTORY. FOR COUNTRIES THAT OPERATE AT 110V-127V, PLEASE ADJUST TO 110V-127V BEFORE YOU SWITCH ON THE SYSTEM.
Supplied accessories
–2 speaker boxes – remote control with 1 x CR2032 battery – MW loop antenna
Environmental Information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Safety Information
Before operating the system, check that the
operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.
Place the system on a flat, hard and stable
surface.
Place the system in a location with adequate
ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
The ventilation should not be impeded by
covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
If the system is brought directly from a cold to a
warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or lubricated.
When the system is switched to Standby
mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
3
Preparations
Rear connections
The type plate is located at the rear of the system.
AA
AA
A Powe r
– Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.
– If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to match the local power line.
WARNING! –For optimal performance, use only the original power cable. –Never make or change any connections with the power switched on.
BB
BB
B Antennas Connection
MW antenna
1 Unfold the loop antenna and if necessar y, use
screws (not supplied)to fix it to a flat, hard and stable place:
2 Fit the plug of the loop antenna to MW
ANTENNA as shown above.
3 Adjust the antenna for optimal reception
FM Antenna
It is unnecessary to connect the FM pigtail antenna since it is fixed to the main unit.
Position the antenna as far as possible from a TV,
VCR or other radiation source.
4
AC power cord
FM wire antenna
Speaker
(right)
Speaker
(left)
MW loop antenna
1
2
Preparations
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", the wire (marked red) to "+" and the wire (marked black) to "-".
Fully inser t the stripped por tion of the speaker
wire into the terminal as shown.
Notes: –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
Before using the remote control
1 Pull out the plastic protective sheet. 2 Select the source you wish to control by
pressing one of the source select keys on the remote control (for example CD, TUNER).
3 Then select the desired function (for example
É, í, ë).
Replacing battery (lithium CR2032) into the remote control
1 Pull out the knob A slightly to the left. 2 Pull out the batter y compartment B .
3 Replace a new batter y and fully insert the
battery compar tment back to the original position.
CAUTION! Batteries contain chemical substances, so they should be disposed off properly.
B
A
5
Basic Functions
IMPORTANT: Before you operate the system, complete the preparation procedures.
Switching the system on
Press STANDBY-ON (y on the remote
control).
The system will switch to the last selected
source.
Press SOURCE (CD, TUNER or AUX on
the remote control).
The system will switch to the selected
source.
To switch the system to standby mode
Press STANDBY-ON (y on the remote
control).
The clock is displayed.
Power-saving automatic standby
The power-saving feature automatically switches to standby 15 minutes after a CD playback has ended and no control is operated.
Adjusting volume and sound
1 Press VOLUME
/ + to increase or decrease
volume.
Display shows the volume level
and a
number from 0-32.
2 Press DSC repeatedly to
select the desired sound effect:
JAZZ / POP / CLASSIC / ROCK.
3 Press DBB (on the remote control) to switch
bass enhancement on or off.
Display shows:
if the DBB is activated.
4 Press MUTE on the remote control to stop
sound play-back instantly.
Playback will continue without sound and
the display shows MUTE .
To start sound playback you can:
– press MUTE again; – adjust the volume controls; – change source.
VOLUME
DBB DSC
DBB
SOURCE VOLUME
-
+
BAND
O
P
E
N
/
C
L
O
S
E
PROG/CLOCK
TUNING
STANDBY-ON
6

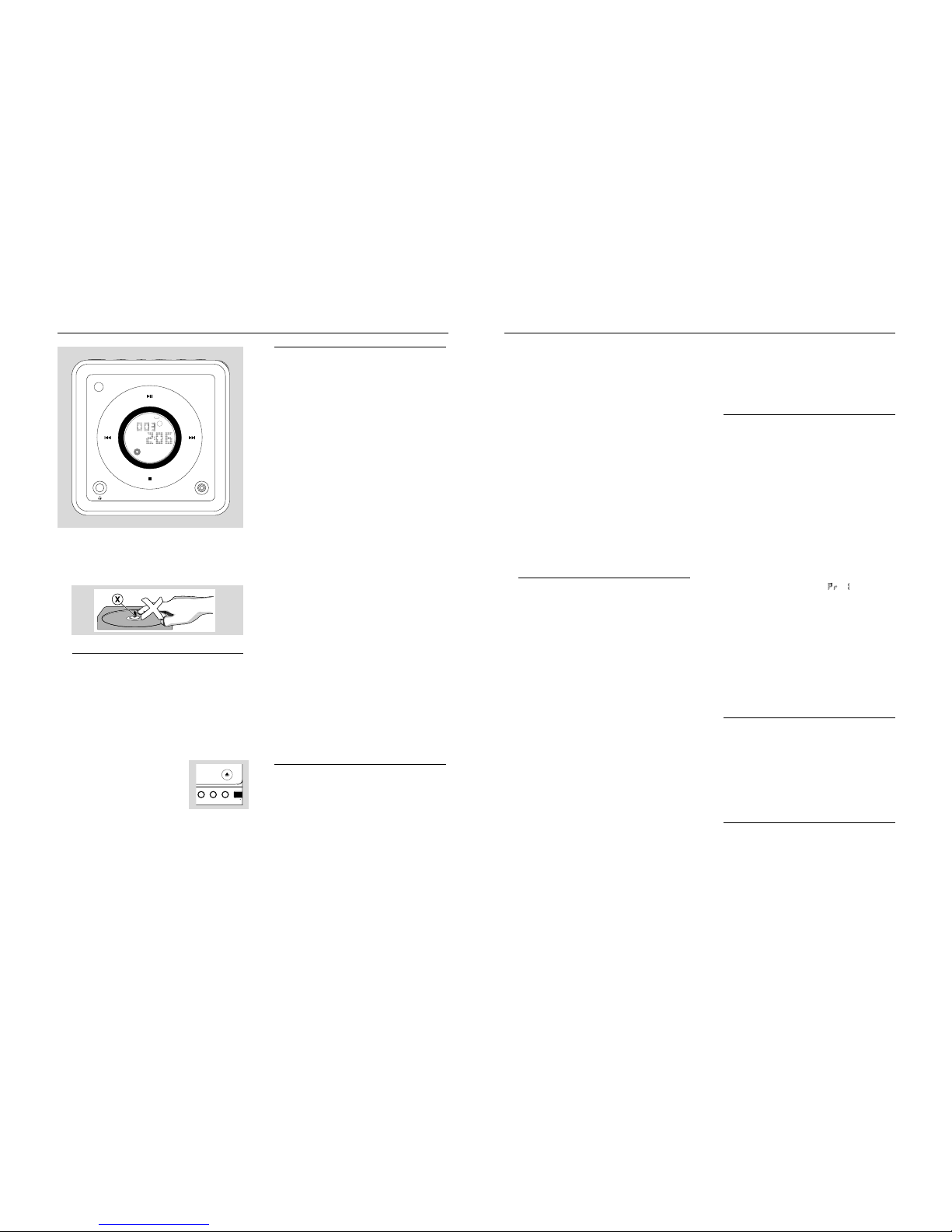

CD/MP3 Operation
IMPORTANT: The lens of the CD player should never be touched.
Loading a disc
This CD player plays Audio Discs including CD­Recordables, CD-Rewritables and MP3 CD.
CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible .
1 Select CD source .
2 Press OPEN/CLOSE3 on
the top of the system to open the CD compartment.
OPEN is displayed when
you open the CD compartment.
3 Inser t a disc with the printed side facing up and
press down on OPEN/CLOSE3 to close the CD door.
READ is displayed as the CD player scans
the contents of a disc, and then the total number of tracks and playing time (or the total number of albums and tracks for MP3 disc) are shown.
Basic playback controls
To play a disc
Press 2; to star t playback.The current track number and elapsed
playing time of the track are displayed during disc playback.
To select a different track
Press ¡1 2™ once or repeatedly until the
desired track number appears in the display.
To find a passage within a track
1 Press and hold down on ¡1 2™.
The disc is played at high speed and low
volume.
2 When you recognise the passage you want,
release ¡1 2™.
Normal playback continues.
To interrupt playback
Press 2; during playback.The display freezes and the elapsed playing
time flashes when playback is interrupted.
To resume , press 2; again.
To stop playback
Press 9.
Notes: CD play will also stop when; – the CD door is opened. – the disc has reached the end. – you select another source: TUNER or AUX. – you select standby
Playing an MP3 disc
1 Load an MP3 disc .
The disc reading time may exceed 10
seconds due to the large number of songs compiled into one disc.
➜ "XXX YY" is displayed. XXX is the current
track number and YY is the current album number.
2 Press ALBUM 4 3 to select a desired album..
CD
REP
MP3
ALL
PROG
POP
TRK
DBB
MICROSYSTEM
iR
MCM108
AUX-IN
VOLUME
-
+
O
P
E
N
/
C
L
O
S
E
PROG/CLOCK
TUNING
7
3 Press ¡1 2™ to select a desired track.
The album number will change accordingly
as you reach the first track of an album by pressing ¡1 or the last track of an album by pressing 2™ .
4 Press 2; to star t playback.
During playback, press once ALBUM 4 3 to
show the current album number.
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5 – Maximum title number: 512 (depending on
filename length) – Maximum album number: 99 – Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
– Suppor ted Bit-rates: 32~256 (kbps), var iable
bitrates
Different play modes: SHUFFLE and REPEAT
You can select and change the various play modes before or during playback. The REPEAT modes can also be combined with PROGRAMME.
SHUFFLE ......... tracks of the entire disc are
played in random order
REPEAT ALL ... repeats the entire disc/
programme
REPEAT............ plays the current track
continuously
REPEAT ALB ....repeats all tracks in the current
(for MP3 only) album
1 To select your play mode, press the SHUFF or
REPEAT on the remote control before or
during playback until the display shows the desired function.
2 Press 2; to start playback if in the STOP
position.
If you have selected SHUFFLE, playback
starts automatically.
3 To return to nor mal playback, press SHUFF or
REPEAT on the remote control until the
various SHUFFLE/ REPEAT modes are no longer displayed.
You can also press 9 to cancel your play mode.
Notes: – The SHUFFLE and REPEAT functions cannot be used simultaneously. – SHUFFLE play is not available in the programe mode.
Programming track numbers
Programme in the STOP position to select and store your disc tracks in the desired sequence. If you like, store any track more than once. Up to 20 (10 for MP3 disc) tracks can be stored in the memory.
1 In the stop position, use the ¡1 2™ to select
your desired track number.
For MP3, you may press ALBUM 4 3 to
select a desired album, then press ¡1 2™ to select your desired track.
2 Press PROG (or PROG/CLOCK on the set)
to store.
Display: PROG flashes, and
is displayed briefly, then the selected tr ack number (and the selected album number for MP3).
3 Repeat steps 1-2 to select and store all
desired tracks.
FULL is displayed if you attempt to
programme more than 20 (10 for MP3 disc) tracks.
4 To start playback of your disc programme,
press 2;.
Reviewing the programme
Stop playback and press PROG (or PROG/
CLOCK on the set) repeatedly.
Display first shows a programme sequence,
then the stored track number (and the album number for MP3).
To exit review mode , pressÇ.
Erasing the programme
You can erase the programme by:
pressing 9 once in the STOP mode;
pressing 9 twice during playback;
opening the CD compar tment;
Select another sound source.PROG disappears from the display.
CD/MP3 Operation
8
Radio Reception Other Connection
Tuning to radio stations
1 Select TUNER source .
is displayed.
2 Press BAND (TUNER on the remote
control) once or more to select your waveband.
3 Tu r n TUNING 0 to tune to a station.
Display shows: the frequency of the tuned
station.
Helpful hints:
To improve radio reception:
–For FM, extend coil antenna at the back of the unit fully for optimum reception.
Listening to an external source
You can listen to the sound of the connected external device through your system’s speakers.
1 Select AUX source. 2 Use a line-in cable (not supplied) to connect
MCM 108’s AUX-IN jack (3.5 mm ) to an AUDIO OUT or headphone jack on an external equipment (such as CD player, or VCR).
Maintenance
Cleaning the Cabinet
Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
When a disc becomes dir ty,
clean it with a cleaning cloth. Wipe the disc from the centre out.
Do not use solvents such as
benzene, thinner, commercially available cleaners, or antistatic spray intended for analogue records.
Cleaning the disc lens
After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instr uctions supplied with cleaner.
TUNER
SOURCE VOLUME
-
+
BAND
O
P
E
N
/
C
L
O
S
E
PROG/CLOCK
TUNING
STANDBY-ON
9
Clock/Timer
Setting the clock
1 In Standby mode, press PROG/CLOCK
button.
The clock digits for the hours flash.
2 Press ¡1 / 2™ to set the hours. 3 Press PROG/CLOCK again.
The clock digits for the minutes flash.
4 Press ¡1 / 2™ to set the minutes. 5 Press PROG/CLOCK to confirm the time .
Note: – If the clock has not been set, -- --:-- -- will be displayed.
Setting the timer
The system can be used as an alar m clock. CD
or TUNER can be set to switch on at a preset time. The clock time needs to be set first before the timer can be used.
If no button is pressed within 90 seconds during
timer setup, the system will exit timer setting mode automatically.
1 In any mode , press TIMER on the remote
control for more than 2 seconds.
2 Press ¡1 / 2™ (or CD / TUNER on the
remote control) to select sound source.
3 Press TIMER to confirm your desired source.
The clock digits for the hours flash.
4 Press ¡1 / 2™ to set the hours. 5 Press TIMER again.
The clock digits for the minutes flash.
6 Press ¡1 / 2™ to set the minutes. 7 Press TIMER to confirm the time .
The timer is now set and actiated.
Notes:
- If source CD is selected and no disc is in the CD tray or the disc has an error, TUNER will be selected automatically.
- At the set time of wake up, the set will turn on at volume level 12.
To activate and deactivate timer
In standby or during playback, press
TIMER once.
Display shows
if activated, and
disappears if deactivated.
Activating and deactivating SLEEP
The sleep timer enables the system to switch off by itself after a set period of time. The clock time needs to be set first before the sleep timer can be used.
Press SLEEP on the remote control repeatly
to select desired time before system shuts off.
Display shows SLEEP and
series of time options for selection: , , ,
,
, ...
To deactivate , press SLEEP on the remote
control once or more until “ “ is shown, or press STANDBY ON y on the system or remote control.
AUX-IN
MCMICROSYSTEM
iR
108
M
SLEEP TIMER
10
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre .
Problem Solution
CD OPERATION
NO cd is displayed. – Insert a disc .
– Check if the disc is inserted upside down. –Wait until the moisture condensation at the lens
has cleared. – Replace or clean the disc, see “Maintenance”. – Use a finalised CD-RW or CD-R, or a correct
MP3-CD format disc.
RADIO RECEPTION
Radio reception is poor. – If the signal is too weak, adjust the antenna or
connect an external antenna for better reception. – Increase the distance between the Micro HiFi
System and your TV or VCR.
GENERAL
The system does not react when buttons – Remove and reconnect the AC power plug and are pressed. switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume. quality. – Disconnect the headphones.
– Check that the speakers are connected correctly. – Check if the stripped speaker wire is clamped.
– Make sure the MP3-CD was recorded within
32-256 kbps bit rate with sampling frequencies
at 48 kHz, 44.1 kHz or 32 kHz.
The left and right sound outputs are – Check the speaker connections and location. reversed.
The remote control does not function – Select the source (CD or TUNER, for example) properly. before pressing the function button (É,í,ë).
– Reduce the distance between the remote control
and the system. – Insert the batteries with their polar ities
(+/– signs) aligned as indicated. –Replace the batteries. –Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working. – Set the clock correctly.
– Press TIMER to switch on the timer.
The Clock/Timer setting is erased. –Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
Tr oubleshooting
11
Specifications
AMPLIFIER
Output power ........................................... 2 x 2W RMS
.......................................................................... 200W PMPO
Signal-to-noise ratio .......................... 62 dBA (IEC)
Frequency response ......... 60 – 16000 Hz, ± 3 dB
Impedance loudspeakers ......................................... 8
Impedance headphones ................. 32 – 1000
CD PLAYER
Frequency range .................................. 20 – 20000 Hz
Signal-to-noise ratio ............................................75 dB A
TUNER
FM wave range ................................... 87.5 – 108 MHz
MW wave range ................................531 – 1602 kHz
Sensitivity at 75
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. 28 dB
Total harmonic distor tion ..................................... 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio .......................................... 50 dB
SPEAKERS
Bass reflex system Dimensions (w x h x d) . 150 x 150 x 200 (mm)
GENERAL INFORMATION
AC Power.........................................110-127V 60Hz /
220-240V 50Hz, switchable Dimensions (w x h x d) .. 150 x 150 x 220 (mm)
Weight (with/without speakers) ..................................
............................................................... approx. 4.9 / 2.3 kg
Standby power consumption ..........................< 3 W
Subject to modification
12
These warranty conditions are valid for the following consumer electronics products: Colour Televisions, Projection TV, Plasma & LCD TV, Video Cassette Recorders, CD Recorders & Players, DVD Players, DVD Recorders, Audio Systems, Home Theatre systems & Portable Audio.
The benefits given to the purchaser by this warranty are in addition to all other rights and remedies which the purchaser has in respect of the product under the Trade Practices Act or other Commonwealth or State Law.
Philips Consumer Electronics warrants its products to the purchaser as follows and subject to the stated conditions.
3 Years free Repair Service - at Philips ASC
Colour Television, Plasma Television, LCD Television, Projection Televsion, DVDR/VCR Combo, DVD Recorder, DVD Recorder with Hard Drive, LCD Projectors, Wireless Audio Systems
1 Year free Repair Service - at Philips ASC
Audio Systems & Home Theatre Systems.
1 Year free Replacement – at your Retailer
Portable Audio, MP3 Infotainment products, Video Cassette recorders, DVD Player, DVD/VCR Combo Player, Portable DVD/LCD player.
Conditions of Repair Warranty
1. All claims f or warranty service should be made to
your nearest Philips Authorised Service Centre. Reasonable evidence of date of purchase must be provided.
2. This war ranty extends only to defects in material or
workmanship occurring under normal use of the product when operated in accordance with the instructions.
3. If a replacement product is supplied under the repair
policy it is warranted, under this warranty, for the remainder of the warranty of the original purchased product only.
4. Home ser vice is provided only within the normal
service area of one of our recommended Authorised Service Centres (ASC). It will be provided for television receivers only, regardless of size or type (i.e. CRT, LCD, PTV, PDP). All other products are to be taken or sent by the consumer to the workshop of your nearest ASC (at the Consumer’s expense).
5. This Manufacturer s Warranty is limited to 3 months
for above listed Consumer Electronics products if used in commercial applications.
6. Philips may, at its discretion choose to replace rather
than repair any product covered by this warranty.
7. This Manufacturer s Warranty is neither transferable
nor valid in countries other than Australia.
This warranty does not cover:
a) Mileage or travel outside the normal service
area covered by selected Authorised Service Centre.
b) Ser vice costs arising from failure to correctly adjust the controls of the product or to observe the instructions, or inspections that reveal that the product is in normal working order.
c) Product failures caused by misuse, neglect, accidental breakage, transit damage, inexpert repairs or modification by un-authorised persons, external fires, lightning strikes, floods, vermin infestation or liquid spillage.
d) Cleaning of video or audio heads.
e) Inadequate receiving antennae .
f) Replacement of worn or used batteries or
other consumables.
g) Consumer products used in commercial applications (This warranty is limited to 3 months only).
h) Second hand products.
The conditions contained in this warranty card replace and override the provision of the Philips World-Wide Guarantee for products purchased in Australia and used in Australia.
Service is provided through more than 100 accredited Authorised Service Centres throughout Australia. For direct contact with the nearest recommended Authorised Service Centre in capital & regional cities/towns
Authorised Service Centre Network
1300 361 392
Customer support is provided in Australia by our trained call centre staff. For assistance with product features and specifications, please call
Technology Care Centre
1300 363 391
Please record the following information for your records and keep in a safe place. We r ecommend retaining your purchase receipt to assist with any warranty claim.
Model number:....................................................
Serial number:....................................................
Date of purchase:....................................................
Retailer:....................................................
Philips Consumer Electronics a division of Philips Electronics Australia Limited ABN 24 008 445 743, Level 1, 65 Epping Road NORTH RYDE NSW 2113
AUSTRALIA - Philips Manufacturers Warranty for Australia only
Warranty valid for all new products purchased after 1st April 2006
Thank-you for purchasing this quality Philips product. Philips New Zealand Ltd guarantees this product against defective components and faulty workmanship for a period of 12 months. Any defect in materials or workmanship occurring within 12 months from the date of purchase subject to the following conditions will be rectified free of charge by the retailer from whom this product was purchased.
Conditions
1. The product must have been purchased in New
Zealand. As proof of purchase , retain the original sales docket indicating the date of purchase.
2. The guarantee applies only to faults caused by
defective components, or faulty workmanship on the part of the manufacturer.
3. The guarantee does not cover failures caused
by misuse, neglect, normal wear and tear, accidental breakage, use on the incorrect voltage, use contrary to operating instructions, or unauthorised modification to the product or repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales
docket) must be supplied to indicate that the product was purchased no more than 12 months prior to the date of your claim.
5. In the event of a failure, Philips shall be under
no liability for any injury, or any loss or damage caused to property or products other than the product under guarantee.
This guarantee does not prejudice your rights under common law and statute, and is in addition to the normal responsibilities of the retailer and Philips.
New Zealand - Guarantee and Service for New Zealand
How to claim
Should your Philips product fail within the guarantee period, please return it to the retailer from whom it was purchased. In most cases the retailer will be able to satisfactorily repair or replace the product.
However, should the retailer not be able to conclude the matter satisfactorily, or if you have other difficulties claiming under this guarantee, please contact
The Guarantee Controller Philips New Zealand Ltd. 4 P.O. Box 41.021 Auckland 3 (09) 84 94 160 fax 3 (09) 84 97 858
Loading...
