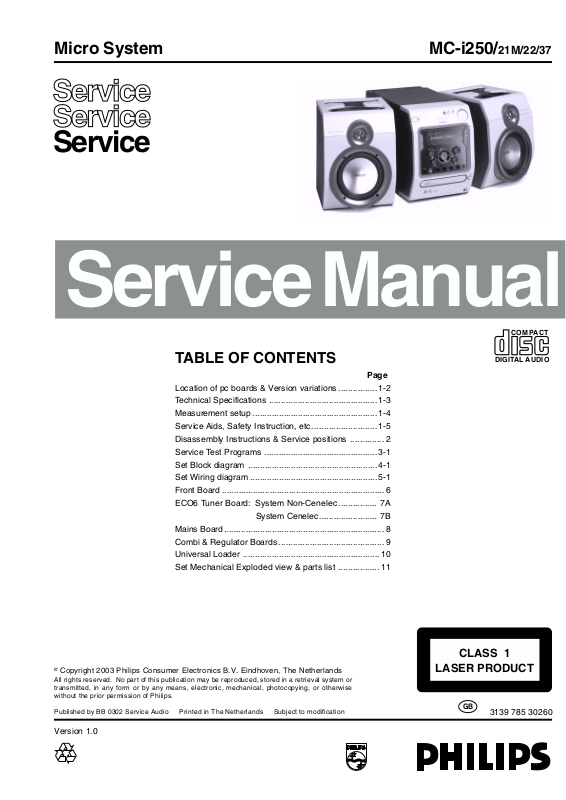

Philips MC-i250 Schematic

Service Manual

Service

Service

Micro System

Service
Service

Service

MC-i250/21M/22/37

TABLE OF CONTENTS

Page

Location of pc boards & Version variations................1-2

Technical Specifications .............................................1-3

Measurement setup ....................................................1-4

Service Aids, Safety Instruction, etc...........................1-5

Disassembly Instructions & Service positions .............. 2

Service Test Programs ...............................................3-1

Set Block diagram ......................................................4-1

Set Wiring diagram .....................................................5-1

Front Board .................................................................... 6

ECO6 Tuner Board: System Non-Cenelec ................ 7A

System Cenelec........................ 7B

Mains Board................................................................... 8

Combi & Regulator Boards ............................................ 9

Universal Loader ......................................................... 10

Set Mechanical Exploded view & parts list ................. 11

COMPACT

DIGITAL AUDIO

CLASS 1

©

Copyright 2003 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.

Published by BB 0302 Service Audio Printed in The Netherlands Subject to modification

Version 1.0

LASER PRODUCT

GB

3139 785 30260

LOCATION OF PRINTED CIRCUIT BOARDS

LCD INTERCONNECT

ANTENNA BOARD

1-2

MODULE INTERNET AUDIO

MAINS SOCKET

BOARD

ANTENNA

BOARD

BOARD

CONTROL BOARD

DISPLAY BOARD

ECO STANDBY

BOARD

SHUTTLE

BOARD

VOLUME

BOARD

LCD BACK

LIGHT BOARD

IR

BOARD

MAINS BOARD

HEADPHONE

BOARD

VERSION VARIATIONS:

Type /Versions: MC-i250

Features &

/21M /22 /37

Board in used:
Aux in /CDR in x x x

Line Out x x x
Surround Out
Subwoofer Out x x x
Digital Out
Digital in
Matrix Surround
CD Text
Dolby B
RDS x
News x
Dolby Pro Logic (DPL)
Incredible Surround x x x
Karaoke Features
Voltage Selector x
ECO Power Standby (Clock Display Off) x x x
ECO6 Tuner Board - Systems Non-Cenelec x x
ECO6 Tuner Board - Systems Cenelec x
Center/Surround Channel

TUNER BOARD

CD BOARD

REGULATOR

BOARD

COMBI BOARD

SPECIFICATIONS

1-3

GENERAL:

Mains voltage : 110-127V/220-240V Switchable for /21/21M

120V for /37

220-230V for /22
Mains frequency : 50/60Hz
Power consumption : < 0.5W at ECO Power Standby

: <15W at Standby (DEMO mode off)

: 80W at Active
Clock accuracy : < 4 seconds per day
Dimension centre unit : 175 x 244 x 366mm

TUNER:

FM

Tuning range : 87.5-108MHz
Grid : 50kHz

100kHz for /37
IF frequency : 10.7MHz ± 25kHz
Aerial input : 75Ω coaxial

300Ω click fit for /37
Sensitivity at 26dB S/N : < 7µV
Selectivity at 600kHz bandwidth : > 25dB
Image rejection : > 25dB
Distortion at RF=1mV, dev. 75kHz : < 3%

-3dB Limiting point : < 8µV
Crosstalk at RF=1mV, dev. 40kHz : > 18dB

MW

Tuning range : 531-1602kHz

530-1700kHz for /21/21M/37
Grid : 9kHz

10kHz for /21/21M/37
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.0mV/M
Selectivity at 18kHz bandwidth : > 18dB
IF rejection : > 45dB
Image rejection : > 28dB
Distortion at RF=50mV, m=80% : < 5%

AMPLIFIER:

Output power (6Ω, 1kHz, 10% THD)
L & R : 2 x 50W RMS /21M/22

Output power (6Ω, 60Hz-12.5kHz, 10% THD)
L & R : 2 x 40W FTC /37

Frequency response within -3dB : 50Hz-16kHz
Incredible Surround : ON/OFF
Treble : 12.5kHz ± 3 Steps
Bass : 55Hz ± 3 Steps
Woox : Level 1, 2, 3 & OFF

Input sensitivity

Aux in (at 1kHz) : 500mV ± 3dB at 600Ω

CDR in (at 1kHz) : 1V ± 3dB at 600Ω

Output sensitivity

Line out (Left/Right) : 500mV ± 3dB at 22kΩ

Subwoofer out (50Hz - 8kHz) : 1.5V ± 3dB at 22kΩ

Headphone output at 32Ω : 680mV ± 1dB (Vol. Max.)

COMPACT DISC:

Measurement done directly at the connector on the board.
Output resistance : < 100Ω
Output voltage (in Vrms) : 550mV ± 1dB (unloaded)
Frequency deviation : < 1%
Channel unbalance : < ±1dB
Frequency response : < ±1.5dB for 20Hz-20kHz
Signal to Noise Ratio (A-weighted) : > 80dBA
Distortion at 1kHz : < 0.02%
Crosstalk (1kHz) : >60dB

[....] Values indicated are for "ECO6 Cenelec Board" only.

LW

Tuning range : 153-279kHz /22
Grid : 3kHz
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : [< 6.0mV/M]
Selectivity at 18kHz bandwidth : [> 24dB]
IF rejection : [> 45dB]
Image rejection : [> 30dB]
Distortion at RF=50mV, m=80% : [< 5%]

MEASUREMENT SETUP

Tuner FM

1-4

Bandpass

LF Voltmeter

e.g. PM2534

RF Generator

e.g. PM5326

DUT

250Hz-15kHz

e.g. 7122 707 48001

Ri=50Ω

S/N and distortion meter

e.g. Sound Technology ST1700B

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Tuner AM (MW,LW)

RF Generator

e.g. PM5326

Ri=50Ω

DUT

Frame aerial

e.g. 7122 707 89001

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

S/N and distortion meter

e.g. Sound Technology ST1700B

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

CD

Use Audio Signal Disc
(replaces test disc 3)

DUT

L

R

SBC429 4822 397 30184

S/N and distortion meter

e.g. Sound Technology ST1700B

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

Recorder

Use Universal Test Cassette CrO2 SBC419 4822 397 30069

or Universal Test Cassette Fe SBC420 4822 397 30071

LF Generator

e.g. PM5110

DUT

L

R

S/N and distortion meter

e.g. Sound Technology ST1700B

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

SERVICE AIDS

1-5

Service Tools:

Universal Torx driver holder .................................. 4822 395 91019

Torx bit T10 150mm ............................................. 4822 395 50456

Torx driver set T6 - T20 ......................................... 4822 395 50145

Torx driver T10 extended ...................................... 4822 395 50423

Cassette:

SBC419 Test cassette CrO2 ................................. 4822 397 30069

SBC420 Test cassette Fe ..................................... 4822 397 30071

MTT150 Dolby level 200nWb/M ............................ 4822 397 30271

Compact Disc:

SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096

SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155

SBC429 Audio Signals disc .................................. 4822 397 30184

Dolby Pro-logic Test Disc ...................................... 4822 395 10216

HANDLING CHIP COMPONENTS

ESD Equipment:

Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953

Anti-static table mat - small 600x650x1.25mm ..... 4822 466 10958

Anti-static wristband .............................................. 4822 395 10223

Connector box (1MΩ) ............................................ 4822 320 11307

Extension cable

(to connect wristband to conn. box) .................. 4822 320 11305

Connecting cable

(to connect table mat to conn. box) .................. 4822 320 11306

Earth cable (to connect product to mat or box) .... 4822 320 11308

Complete kit ESD3

(combining all above products) ......................... 4822 320 10671

Wristband tester .................................................... 4822 344 13999

WARNING

GB

All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.

F

ATTENTION

Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.

1-6

ESD

D

WARNUNG

Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.

WAARSCHUWING

NL

Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.

I

AVVERTIMENTO

Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.

GB

Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.

NL

Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.

F

Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.

D

Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.

“Pour votre sécurité, ces documents
doivent être utilisés par des spécia­listes agréés, seuls habilités à réparer
votre appareil en panne”.

CLASS 1

LASER PRODUCT

GB

Invisible laser radiation when open.
Avoid direct exposure to beam.

Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.

Warning !

S

Varning !

3122 110 03420

I

Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.

"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."

Varoitus !

SF

Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!

DK Advarse !

Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.

2-1

DISMANTLING INSTRUCTIONS

Opening of the Universal Loader Tray manually & Dismantling of the Cover Tray

1) Loosen 6 screws and remove the Cover Top (pos 255) by

sliding it out towards the rear before lifting up.

- 4 screws on the rear

- 1 screw each on the left & right side

2) Loosen 2 screws each to remove the Panel Left (pos 253)

and Panel Right (pos 254). The Panels are remove by

sliding it towards the rear and outwards.

- 1 screw on the side

- 1 screw on the rear

3) Take a paper clip or any stiff wire diameter of 1mm-1.5mm

and make a marking about 40mm from the tip as shown in

Figure 1.

4) Place the set in the position as shown in Figure 2 and insert

the paper clip or stiff wire into the hole on the Left side of

the Cabinet Front (pos 101).

Figure 1

5) With the marking just outside the hole on the Cabinet Front

(pos 101) as shown in Figure 3, you have to feel and give

a push to unlock the tray of the Universal Loader before

sliding it out.

Figure 2

6) With the tray of the Universal Loader opened, remove the

Cover Tray (pos 158) as shown in Figure 4.

Figure 3 Figure 4

2-2

DISMANTLING INSTRUCTIONS

Detaching the Front Panel assembly from the Bottom/Rear assembly

1) Remove 2 screws A (pos 226) as shown in Figure 5 from

the bottom of the Cabinet Front (pos 101).

2) Release the fixation of the Combi Board (pos 1101-1001)

to Bracket Combi (pos 252) by releasing the 2 catches C2

(see Figure 6) and pulling the board outwards as shown in

Figure 7.

3) Uncatch 2 catches C1 (see Figure 6) on the left & right

sides of the Cabinet Front (pos 101) and slides the Front

Panel assembly out towards the front.

4) Remove 2 screws B (pos 225) as shown in Figure 8 to

remove the Universal Loader (pos 1109).

Figure 7

Figure 5

Figure 8

Figure 6

DISMANTLING INSTRUCTIONS

2-3 2-3

Dismantling of the Front Panel assembly

1) Loosen 3 screws D (see Figure 9) to remove the Control

Board (pos 1107-B).

2) Loosen 2 screws E (see Figure 9) to remove the ECO

Standby Board (pos 1107-D).

3) Loosen 4 screws F (see Figure 9) to remove the Volume

Board (pos 1107-H).

4) Loosen 2 screws G (see Figure 9) to remove the Bracket

Combi (pos 252).

5) Loosen 2 screws H (see Figure 10) to remove the

Headphone Board (pos 1107-F).

6) Loosen 6 screws J (see Figure 11) to remove the Display

Board (pos 1107-A).

7) Loosen 4 screws K (see Figure 12) to remove the Shuttle

Board (pos 1107-G).

8) Loosen 2 screws L (see Figure 12) to remove the LCD

Interconnect Board (pos 1107-J).

9) Loosen 1 screws V (see Figure 12) to remove the Infra
Receiver Board (pos 1107-E).

10)Loosen 2 screws M (see Figure 13) to remove the LCD
Back Light Board (pos 1107-C).

Figure 11

Dismantling of the Antenna Board, Bracket Antenna and Internet Audio Module

1) Uncatch the catches C5 (see Figure 14) to remove the
Antenna Board (pos 1106).

Figure 14

2) Uncatch the catches C6 (see Figure 14) and push
upward to remove the Bracket Antenna (pos 250).

Figure 9

Figure 12

3) Loosen 2 screws N (see Figure 14A) to remove the
Internet Audio Module assembly.

4) Loosen 4 screws P (see Figure 14B) to open the Shield
IAM (pos 262).

5) Loosen 2 screws P1 (see Figure 14C) to remove the Fan
(pos 1111).

Figure 14A

Figure 10

Figure 13

Figure 14B

Figure 14C

DISMANTLING INSTRUCTIONS

2-4

2-4

Dismantling of the Rear Panel

1) Loosen 3 screws Q and 2 catches C3 (see Figure 15) to
remove the Tuner Board assembly.

2) Loosen 1 screw S (see Figure 15) to free the Mains
Socket Board from the Panel Rear (pos 256).

3) Loosen 5 screws R and 2 catches C4 (see Figure 15) to
remove the Panel Rear (pos 256) by sliding it out towards
the rear.

Dismantling of the Bottom assembly

1) Loosen 2 screws T as shown in Figure 16 to remove the
Combi & Regulator boards assembly (pos 1101-1001 &
pos 1101-1003).

2) Loosen 2 screws U as shown in Figure 17 to remove the
Housing Fan Top (pos 267).

Note : During Fan (pos 1110) replacement, care should

be taken to ensure that the following are correct:

- fan blade direction

- fan wire position

Figure 15

Figure 16

Repair Hints

1) During repair it is possible to disconnect the ECO6 Tuner
Board completely unless the fault is suspected to be in
that area. This will not affect the performance of the rest
of the set.

2) Care should be taken not to damage or tear the LCD
Module Cable during repair (see Figure 18 & Figure 19).
The LCD Module Cable may be damage or tear as shown
in Figure 20 if too much force is applied when removing
the Black Tape during repair.

Figure 17

Note: The flex cables are very fragile, care should be taken

not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
into the flex sockets before encasing, otherwise faults
may occurs.

Figure 18 Figure 19 Figure 20

2-5 2-5

DISMANTLING INSTRUCTIONS

Service position A Service position B

3-1 3-1

SERVICE TEST PROGRAM

TUNER
TEST

TUNER

Button pressed?

Y

Display Tuner Version

"ccc"

TUNER

Button pressed?

Service frequencies are

copied to the RAM (see Table 1)

Tuner works normally except:

PROGRAM button

Disconnect

Mains cord ?

Y

Service Mode left

N

N

N

S refers to Service Mode

V refers to Version

yy refers to Software version number
of the uProcessor
(counting up from 01 to 99)

QUARTZ
TEST

BACK ( S )

Button pressed?

Y

Display shows

32K

Output at (Front Board)

pin 11 of uP = 2048Hz

BACK ( S )

Button pressed?

Y

Display shows

12M

Output at (Front Board)

pin 11 of uP = 2,929.6875Hz

CANCEL ( 9 )

Button pressed?

Y

To start service test program
hold ENTER (

plugging in the mains cord

T

depressed while

Display shows the

ROM version

"S-Vyy"

(Main menu)

) & AUX

SERVICE
PLAY MODE

N

N

N

STANDBY-ON

Button pressed?

Y

Set is in Service PLAY Mode

CD

Button pressed?

Y

CD works as in normal operation.

In case of failures, error

codes according to Table 2

will be displayed.

The Service Play Mode is intended
to detect and identify the failures in
the CD Mode.

In this mode CD works as in normal
opeartion, at which electronics will
still be function even when an error
is detected so that repair activities
can be carried out.

N

Module Internet Audio - Software Upgrading

Press INTERNET button followed by OPTIONS button, then press the Right-Hand Soft Key ( ! )
on the set to select the "SET OPTIONS".

Use the navigation Jog Shuttle to select "ONLINE UPGRADE" from the list and press OK (
to confirm and follow the instruction given on the display.

DISPLAY
TEST

N

OK (2)

Button pressed?

Y

Display shows Figure 1
and switch all LEDs on

OK (2)

Button pressed?

Y

Display shows Figure 2

and switch alternate LEDs on

(see Table 3)

CANCEL ( 9 )

Button pressed?

Y

N

N

N

É

Module Internet Audio - Clear Email Address and Presets memory

By holding the INTERNET and ENTER ( T ) buttons depressed while switching on the Mains
supply (without the need to be in either Service or Factory mode), all Email address and presets

)

stored in the memory will be cleared.

The display will shows "STARTING UP" for a few seconds. When the stored information in the memory
has been cleared, the display will shows "FACTORY RESET". Subsequently, the software is upgraded
(if necessary) when the set is first connected to the internet.

Alternatively, press INTERNET button followed by OPTIONS button, then press the Right-Hand Soft
Key (

!

) on the set to select the "SET OPTIONS".

Use the navigation Jog Shuttle to select "RESET SETTINGS" from the list and press OK (

É

) to

confirm and follow the instruction given on the display.

Figure 1

PRESET

* Depending on the selected grid frequency

Note: By holding the TUNER and ENTER (

Europe

"EUR"

1

87.5MHz

2

108MHz

3

531kHz

4

1602kHz

5

558kHz

6

1494kHz

7

153kHz

8

279kHz

9

198kHz

10

98MHz

11

87.5MHz

(9 or 10kHz).

buttons depressed while switching on the
Mains supply, the tuning grid frequency is
toggled between 9kHz and 10kHz for the
Oversea (/21) version.

USA

"USA"

87.5MHz

108MHz

530kHz

1700kHz

560kHz

1500kHz

98MHz

87.5MHz

87.5MHz

87.5MHz

87.5MHz

Table 1

Oversea

"OSE"

87.5MHz

108MHz

531/530kHz*

1602/1700kHz*

558/560kHz*

1494/1500kHz*

87.5/98MHz*

87.5MHz

87.5MHz

87.5MHz

98/87.5MHz*

T

Service Play Mode Error Codes

Error code

E1000

E1001

E1002

E1003

E1005

E1006

E1007

E1008

E1020

)

E1030

E1079

Error Description

Focus Error
Triggered when the focus cannot be found within a certain time when starting up the CD, or if
the focus is lost for more than a certain time during playing of CD.

Radial Error
Triggered when the radial servo is off-track for a certain time during playing the CD.

Sledge In Error
The sledge did not reach its inner position (inner-switch is close) before approximately 6 sec.
have passed by - Inner-switch or sledge motor problem.

Sledge Out Error
The sledge did not come out of its inner position (inner-switch is open) before approximately
250ms have passed by - Inner-switch or sledge motor problem.

Jump Error
Triggered in normal play when the jump destination could not be found within a certain time.

Subcode Error
Triggered when a new subcode was missing for a certain time during playing CD.

PLL Error
The Phase-Lock-Loop could not lock within a certain time.

Turntable Motor Error
Generated when the CD could not reached 75% of speed during startup within a certain time.
Disc motor problem.

Focus Search Error
The focus point has not been found within a certain time.

EBU Connection Error
Generated when IM module could not receive any data from EBU interface within a certain
time.

The drawer could not enter the inside position and is opening again. This can happen if the
drawer is blocked such that it cannot go fully inside, or if the drawer switch is defective and
does not close.

Table 2

LEDs

ECO POWER

PC LINK

TUNER

wOOx

LCD Back Light 2

Table 3

MC-i250

On

On

On

On

On

Figure 2

TEST

EEPROM TEST A test pattern will be sent to the EEPROM.

TEST

ROTARY
ENCODER TEST

DEMO TOGGLE

LEAVE SERVICE
TEST PROGRAM

Activated with

ENTER ( T )

CANCEL ( 9 )

Rotary Volume Knob

to Exit

OPTIONSEEPROM FORMAT

Jog Shuttle Display shows "LEVEL -1" or "LEVEL +1" when the Jog Shuttle turn in

TREBLE

Disconnect
mains cord

ACTION

"PASS" is displayed if the uProcessor read back the test pattern correctly,
otherwise "FAIL" will be displayed.

Load default data. Display shows "NEW" for 1 second.

Caution! All presets from the customer will be lost!!

Display shows value for 2 seconds.
Values increases or decreases until Min. (-87dB) or Max. (0dB) is reached.

anti-clockwise or clockwise for the first step.
Display shows "LEVEL -2" or "LEVEL +2" when the Jog Shuttle turn in
anti-clockwise or clockwise for the second step.

Pressing this button will toggle between DEMO ON and DEMO OFF.
The DEMO status will be displayed.

Micro 2003 MC-i250 Service Test Program (dd wk0248)

Various

other Tests

SET BLOCK DIAGRAM

4-1 4-1

Block Diagram_3139 119 34740 dd wk0217

SET WIRING DIAGRAM

5-1

5-1

EH-S 1301

Board-In 1320

1

8124

8P/140mm

1

1

1

EH 1203

FE 1209

8200

11P/120mm

FE 1805

FAN

1

EH 1401

1

EH 1400

1

EH 1020

FE 1030

1

8201

9P/220mm

8010

7P/220mm/AD

1

FAN

1

1

EH 1302

1

1

1

EH 1211

1

FE 12121

1

FE 1700

1

FE 1701

FE 1200
1

8123
16P/180mm/AD

1

FE 1203

1615
7P/140mm

1

1320
3P/180mm

10 DIPMATE

1

1206

4P/80mm

1

EH-S 1208

1

FE 1224 1

1

1134

4P/140mm

8122

9P/140mm/BD

EH 1210

Board-In 1615

FE 1304

1

FE 1025

EH 1314

EH 1207

1

8002

9P/340mm/AD

FE 10261

EH 1303

FE 1304

2P/80mm

1

1

1500

1209

1

BOARD IN 1209

FE 1223

FE 1103

FE 1102

FE 1106

FE 1104

PH 1101 1

FE 1201

1

1

8121

6P/140mm/BD

1

8009

6P/280mm/AD

1

1

1

1

FE 1213

FE 1204

1

8005

4P/180mm/AD

8004
7P/280mm/AD

8007

5P/340mm/AD (1mm pitch)

8008
4P/340mm/AD (1mm pitch)

1160
5P/220mm

8006

19P/180mm/AD

1

FE 1014

FE 10231

FE 1013

1

8P/280mm/AD Fold

8003

1

FE 1120

8001

15P/280mm/AD

FE 1802

1

FE 1804

1

DIPMATE 0003

1

1500

8013

1P/280mm

8014

1P/280mm

Wiring Diagram_3139 119 35960 dd wk0247

6-1

FRONT BOARD

LCD MODULE (WD-G1306K-7BNN)

BLOCK DIAGRAM

COM1

VIEW DIRECTION

COM32

LCD PANEL

132 * 64 DOTS

SEG1

SEG1 SEG132

6-1

COM33

COM64

SEG132

TABLE OF CONTENTS

LCD Module - Block diagram .......................................... 6-1

LCD Module - Interface Pin Function .............................. 6-1

Control Part - Component & Chip layout ......................... 6-2

Control Part - Circuit diagram .......................................... 6-3

Display Part - Component & Chip layout ........................ 6-4

Display Part - Circuit diagram ......................................... 6-5

ECO Standby Part - Layout & Circuit diagram ................ 6-6

Infra Receiver Part - Layout & Circuit diagram ............... 6-6

Headphone Part - Layout & Circuit diagram ................... 6-7

Shuttle Part - Layout & Circuit diagram........................... 6-7

LCD Interconnect Part - Layout & Circuit diagram.......... 6-8

LCD Back Light Part - Layout & Circuit diagram............. 6-9

Volume Part - Layout & Circuit diagram ........................ 6-10

Electrical parts list.......................................................... 6-11

COM32

COM64

LCD DRIVER IC

COM1

VSS

VDD

V0

/RES

/CS1

RS

/WR

COM33

/RD

D0-D7

INTERFACE PIN FUNCTION

NO SYMBOL LEVEL FUNCTION

1. VSS - GND

2. VDD - Power for Logic Circuit

LCD

3. V0 - V

4. /RES - Reset

5. /CS1 H/L Chip Select

6. RS H/L H : D0 to D7 Display Data

7. /WR H/L L : Writes Data to Internal Register

8. /RD H/L L : Read Data from Register

9. D7 H/L Data Bus

10. D6 H/L Data Bus

11. D5 H/L Data Bus

12. D4 H/L Data Bus

13. D3 H/L Data Bus

14. D2 H/L Data Bus

15. D1 H/L Data Bus

16. D0 H/L Data Bus

Output

Instruction & Data Register Select

L : D0 to D7 are Display Control Data

CONTROL BOARD - COMPONENT LAYOUT CONTROL BOARD - CHIP LAYOUT

6-26-2

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

3139 113 3476 pt3 dd wk0248

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

3139 113 3476 pt3 dd wk0248

CONTROL BOARD - CIRCUIT DIAGRAM

6-3 6-3

1200 A14
1201 C14
1202 F14
1203 F14
1204 B1
1207 A4
1210 A3
1211 A1

1212 D1
1213 E1
2100 F2
2101 F2
2102 F3
2103 F4
2104 G5
2105 H1

2106 H1
2107 H11
2108 H11
2109 H12
2110 H12
2111 G13
2114 C2
2115 C2

2400 D8
2401 D9
2402 D9
2403 D9
2404 B8
2405 B9
2406 C4
2407 C4

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Control PCB

Note : Some values may varies, see respective

parts list for correct value.

A

B

C

D

E

F

G

H

: Provision

*

EH-B

1211

1

2

3

To IR PCB

1204

1

2

3

4

5

6

To iAM Module

FE-BT-VK-N

1212

1

2

3

4

5

6

7

To Display PCB

8

9

D

+D

1K

10K

3124

3125

D

*

D

+D

D

FE-BT-VK-N

1213

1

2

3

4

5

6

To Display PCB

2100

3100

560p

1K5

7430

SAA6581T

ANTI-

4

MUX

ALIASING

FILTER

8

SCOUT

2105

560p

2106

2u2

D

7

CIN

5

VDDA

3

VREF

CLOCKED

COMPARATOR

VP1

REFERENCE

VOLTAGE

VSSA VSSD

6

D

123456789101112

2408 C5
2409 C4
2410 C4
2411 C5
2412 C5
2413 E4
2414 E4
2423 H6

47K

3496

10p

10p

2114

2115

D

D

+5V

10K

3475

B

10K

D

57 Khz

BANDPASS

(8th ORDER)

COSTAS LOOP
VARIABLE AND
FIXED DIVIDER

CLOCK

REGENERATION

AND SYNC

+D

47K

3495

LED_CONNECT

LED_PCLINK

3476

2101

1n

3101

2424 H7
2425 H7
2428 H9
2430 F7
2431 F9
2432 D13
2433 D13
2434 D13

IR_I2C_DATA

IR_I2C_CLK

IR_Reset

IR_IRQ

LED_ECO

LED_CD

LED_TUNER

LED_AUX

LED_wOOx

+C

2K7

2K7

3477

VOL_B

VOL_A

KEY_1

KEY_2

ECO_STDBY

TuRDS

RECONSTRUCTION

FILTER

2435 D12
2436 D12
2566 C13
2567 C13
2568 C13
2569 C12
2570 C12
2571 C12

EH-B

1210

1

2

E

+E

RC5

MPOscShift

5443

+5V

2u2

MPOscShift

RESET

PWDN

IR_I2C_DATA

IR_I2C_CLK

I2C_DATA

I2C_CLK

AT-51

5402

82p

2102

D

3103

220K

13

OSCI

OSCILLATOR

AND

DIVIDER

BIPHASE
SYMBOL

DECODER

TEST LOGIC AND OUTPUT

SELECTOR SWITCH

MODE

9

D

2572 C12
2573 C12
2574 C11
2575 C11
2576 C11
2577 C11
2578 C11
2800 A10

3

4

BLIGHT_1

BLIGHT_2

E

1K

3469

2407

3102

OSCO

D

C

14

TEST

+D

47u

3448

C

2K2

10

D

2801 A10
2900 F12
2901 F12
2902 F12
2903 F13
3100 F2
3101 F2
3102 F4

3579

10K

3580

10K

3581

10K

3582

10K

3584

10K

3904 1K
3905 1K
3466 1K

3468 1K

2406

100n

C

22p

2410

BC847B

10K

C

1K

220R

220R

220

220R

10p

2414

2413

D

D

47p

2103

12

VDDD

QUALITY

BIT

GENERATOR

DIFFERENTIAL

DECODER

11

D

7426

R

10p

3103 G3
3104 H5
3105 H5
3106 H6
3107 H6
3108 D6
3109 D7
3110 A6

1207

EH-B

1K3467

2409

C

QUAL

RDDA

RDCL

123

SHUTTLE_A

15p

T57

3111 A6
3112 A6
3113 A6
3114 F11
3115 F11
3116 F12
3117 G13
3118 G13

To Shuttle PCB

456

SHUTTLE_B

SHUTTLE_D

SHUTTLE_C

SHUTTLE_E

5400

22p

2408

CC

3470

3126

3127

3471

3472

+D

2u2

5450

100n

2104

D

1

3104

2

1K

3105

16

1K

15

(For /22 only)

3119 G13
3120 G12
3121 H12
3122 A13
3124 B2
3125 B2
3126 D5
3127 D5

7

D

SHUTTLE_SW

5401

22p

2411

2412

C

32K768
DT-38

3128 H11
3349 F9
3350 F9
3351 F9
3357 G12
3358 C13
3359 D13
3360 D13

E

C

C

22p

C

TuRDSDATA

# 3106

# - not for /22

TuRDSCLK

47K

# 3107

3400 D6
3401 D6
3402 D6
3403 D6
3404 D6
3405 D7
3406 D7
3407 D7

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

47K

DD

3408 D7
3409 D7
3410 D7
3411 D7
3412 D7
3413 D7
3414 D8
3415 D8

TU_CE

TU_CLK

HP_DET

MIC_DET

E

1K3112

470R3113

3465 1K

5

4

34041K3109

34031K3402

1K

1K

IR_IRQ

TuRDSCLK

LPC

OPTIONS

10n

C

7427

FREQ_Class_D

1K3464

1K3463

1K3462

7

31081K

3405

470R

TuRDSDATA

VOL_A

TU_DATA

+C

10K

3499

1K

3485

E

1K

3461

9

3406

1K

ECO_STDBY

3486

*

680K

TU_STEREO

470R

3110 470R

3111

110

3400

34011K

1K

CLIPPING

RC5

2423

BC847B

C

LCD_RES

1K3459

1K3460

70717273747576777879880

3416 D8
3417 D8
3418 D8
3419 D8
3420 D8
3421 D8
3422 C9
3423 C9

LCD_RS

LCD_CS1

1K3458

3457 1K

LCD_RD

LCD_WR

3455 1K

3456 1K

3424 C9
3425 C9
3426 C9
3427 C9
3428 C9
3429 C9
3430 C9
3431 C9

LCD_DATA_7

LCD_DATA_6

LCD_DATA_5

LCD_DATA_4

1K

1K

1K

3453

3451 1K

3454

3452

LCD_DATA_3

LCD_DATA_2

1K

1K

3449

3450

TMP88CU77F

11

12 13 14 15 16 17 18 192 2 0212223242526

39011K

39001K

34111K

3410

34131K

39021K

39031K

34091K

34071K

3414

1K

1K 3412

1K

3408

1K

SW_INFO

IR_Reset

+5V

D

B

47u

OPTIONS

2430

D

NTC

VOL_B

KEY_1

6415

1N4003

6416

1N4003

E

D

KEY_2

SILD

DATA

SICL

RAB

LED_ECO

CD

+D

2424

470n

10n

3484

3487

100K

680K

2425

C

C

C

3432 C9
3433 B9
3434 B9
3435 B9
3436 B9
3437 B9
3438 B9
3439 B9

LCD_DATA_1

LCD_DATA_0

1K3447

1K3444

1K3445

1K3446

7431

3418

34151K

3417

34161K

1K

1K

1K3442

1K3443

5556575859660616263646566676869

27 28 293 30

3419

1K

1K 3420

B

+5V6

CLIPPING

+5V6_ECO

1

2

3

6

7

D

1K3440

3441 1K

51525354

34211K

D

7428
M24C08

E0

E1

E2

SCL

WC_

3440 A8
3441 A8
3442 A8
3443 A8
3444 A8
3445 A8
3446 A8
3447 A8

E

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31

B

+5V

+5V

+E

2404

2400

B

BC847B

+5V6

5448

VCC

D

E

100n

8

VSS

100n

+C

2u2

5446

2u2

5445

7429

2u2

SDA

2401

4

3448 D4
3449 A8
3450 A7
3451 A7
3452 A7
3453 A7
3454 A7
3455 A7

+5V6

6400

5451

2405

47u

B

+D

3349

D

5

1N4148

2u2

47u

E

3439 1K

3437 1K
3436
3435 1K
3434 1K
3433

3431 1K
3430

3428 1K

3426 1K
3425 1K

3423 1K
3422

2402

D

10K

3491

470R

3492

470R

1K3438

1K

1K
1K3432

1K
1K3429

1K3427

1K3424

1K

100n

2431

3456 A7
3457 A7
3458 A7
3459 A7
3460 A7
3461 A7
3462 A7
3463 A7

+E

+D

2403

D

10n

D

6K8

3493

E

E

CLIP

3350

3351

47u

3464 A6
3465 A6
3466 B4
3467 B4
3468 B4
3469 B4
3470 D5
3471 E5

3472 E5
3475 E2
3476 E2
3477 E3
3484 H7
3485 H6
3486 H7
3487 H7

3491 H9
3492 H9
3493 H9
3494 H9
3495 B2
3496 B2
3497 D10
3498 F11

3499 F7
3566 A13
3567 A13
3569 A13
3570 A12
3571 A12
3572 A12
3573 A12

3574 A11
3575 A11
3576 A11
3577 A11
3578 A11
3579 A4
3580 A4
3581 A4

3582 B4
3584 B4
3900 D7
3901 D7
3902 D7
3903 D7
3904 B4
3905 B4

5444

2u2

4u7

2801

100n

2800

E

E

BLIGHT_2
BLIGHT_1

Drawer_OUT

Drawer_IN

LED_CD

LED_TUNER

LED_CONNECT

LED_PCLINK

LED_AUX

LED_wOOX

SHUTTLE_SW

SHUTTLE_E
SHUTTLE_D
SHUTTLE_C
SHUTTLE_B
SHUTTLE_A

E

LCD_RES

LCD_CS1

LCD_RS

LCD_WR

LCD_RD

LCD_DATA_7

LCD_DATA_6

LCD_DATA_5

LCD_DATA_4

LCD_DATA_3

LCD_DATA_2

LCD_DATA_1

LCD_DATA_0

NTC

I2C_DATA

I2C_CLK

6K8

2578

3578

22p

6K8

2577

6K8

6K8

6K8

6K8

2576

3575

3576

22p

E

2575

3574

3573

22p

22p

22p

2574

2573

E

E

3577

22p

EE

+D

10p 2435

D

+D

10K

3115

3116

2108

100p

2109

DD

D

10K

100p

680R

NTC

3497

DRAWER_IN

Drawer_OUT

SW_INFO

SICL

SILD

DATA

I2C_CLK

RAB

TU_STEREO

TU_CLK

TU_DATA

TU_CE

SA_IN

PWDN

LPC

HP_DET

MIC_DET

FREQ_Class_D

3498

3128

D

10K

10K

3114

2107

D

10K

**

22p

47K

I2C_DATA

10K

D

6K8

2428

100n

D

3494

3906 E13
3907 E13
3908 E13
3909 E13
3910 F13
3911 F13
3912 F13
3915 H13

6K8

6K8

3571

3572

22p

22p

2571

2572

E

EE

+D

10p 2436

10K

3918

3917

***

10p

2901

2900

D

22K

3120

TuRDS

22p

3121

2110

100K

D

D

D

6K8

3570

22p

2570

E

+5V6_ECO

10K

3919

10p

2902

D

3357

680K

1M

3916

6K8

2569

E

10K

10p

3916 H12
3917 D12
3918 D12
3919 D12
3920 F13
3921 F13
4401 E14
5400 C5

6K8

3122

22p

2568

D

10p

2903

DD

D

3915

D

E

2432

3569

22p

3920

3117

3118

3119

1M

6K8

2567

4u7

D

D

2111
100p

E

2433

5K6

5401 C5
5402 F3
5443 B3
5444 A10
5445 E9
5446 D9
5448 G8
5450 F5

6K8

3567

22p

2566

+5V6

4u7

D

3921

100R

100R

100R

CLIP

3906

3907

5K6

D

E

2434

3908

3909

3910

3911

3912

D

3566

22p

3358

3359

3360

+5V6

4u7

5451 A9
6400 A9
6415 F8
6416 F8
7426 D4
7427 H6
7428 H8
7429 F9

1R

D

220R

220R

D

D

1K

1K

D

1K

220R

220R

220R

220R

4401

7430 G1
7431 C8

FE-BT-VK-N
1200

1

E

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

1201
FE-BT-VK-N

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

A

To LCD Interconnect PCB

B

C

D

To Combi PCB

E

F

1203

1202

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

11

12

13

G

To Combi PCB

H

3139 118 55850...8239 210 92143...for 3476 pt3 dd wk0248

13 14

DISPLAY BOARD - COMPONENT LAYOUT DISPLAY BOARD - CHIP LAYOUT

6-46-4

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.

3139 113 3476 pt3 dd wk0248

3139 113 3476 pt3 dd wk0248

DISPLAY BOARD - CIRCUIT DIAGRAM

6-5 6-5

A

B

C

D

E

F

12345678

1208

1

2

3

4

5

VOLUME PCB

ECO STANDBY PCB

HP PCB

CONTROL PCB

CONTROL PCB

6

7

8

EH-B

1206

1

2

3

4

35022

1209

1

2

35022

1223

1

2

3

4

5

6

FE-ST-VK-N

1224

9

8

7

6

5

4

3

2

1

FE-ST-VK-N

KEY_2

KEY_3

VOL_B

VOL_A

LED_WOOX

LED_ECO

ECO_STDBY

KEY_4

ECO_STDBY

KEY_1

KEY_2

VOL_A

VOL_B

LED_ECO

LED_CD

LED_TUNER

LED_CONNECT

LED_PCLINK

LED_AUX

LED_WOOX

1206 B1
1208 A1
1209 C1

Display PCB

1223 C1
1224 E1
1400 D4

B

+D

KEY_3

3516

270R

3517

390R

1414

B

FAV

1413

B

MARKER

3518

560R

1412

B

S_RIGHT

3519

820R

1411

B

ENTER

3520

1K2

1410

B

STOP

100p

B

A

2461

1401 D4
1402 D4
1403 D5
1404 D6
1405 D6
1406 D7
1407 D7
1408 D7
1409 D5
1410 A6
1411 A6
1412 A5

D

B

+D

1413 A5
1414 A5
2461 A7
3502 D8
3503 D7
3504 D7
3505 D6
3506 D6

D

3507 D6
3508 D5
3509 D5
3510 D4
3511 D4
3516 A4

C

B

3517 A5
3518 A5
3519 A6
3520 A6
3535 E4
3536 F4
3537 E5
3538 E5
3539 F5
3540 E6
3541 E6
3542 F6
3543 E6
3544 E7
3545 F7

1401

B

S_LEFT

3510

220R

3509

270R

1402

BB

BACK

3511

150R

1400

B

B

VIEW

1403

B

PAUSE

3508

390R

1409

OPTION

3507

560R

1404

B

CONNECT

3506

820R

1405

B

PC_LINK

3505

1K2

1406

B

CD

3504

1K8

1407

B

TUNER

3503

2K7

1408

B

AUX

3502

4K7

D

3546 E7
3547 E7

+D

+D

+D

+D

+D

3548 F8
3549 E8
6401 E5
6402 E5
6403 E6
6404 E7
6405 E8
7401 E4
7402 E5
7403 E6
7404 E7
7405 E8

3535

4K7

LED_CD

7401
BC847B

10K

3536

D

270R

6401

D

3537

3538

4K7

LED_TUNER

7402
BC847B

10K

3539

D

3540

270R

LED_CONNECT

6402

7403

3541

4K7

10K

3542

D D

D

270R

6403

D

3543

3544

4K7

LED_PCLINK

7404
BC847BBC847B

10K

3545

D

3546

270R

LED_AUX

6404

7405
BC847B

3547

4K7

10K

3548

DD

270R

6405

3549

E

+D

D

F

Note : Some values may varies, see respective parts list for correct value.

12345678

3139 118 55850...8239 210 91633 for...3476 pt3 dd wk0248
