Philips MCD988 93 User Manual

DVD Micro Theatre

MCD988

HDMI (High Definition Multimedia Interface) is a digital interface that allows pure HD digital video transmission without the loss of image quality. The integrated control bus allows system control between the TV set and connected devices like a digital set top box.

DVS (Dolby Virtual Speaker) technology creates a highly compelling 5.1-channel listening experience from as few as two speakers, making it an ideal entertainment solution for locations where space for multiple speaker setup is limited.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

Windows Media is a trademark of Microsoft Corporation.

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Index

English ------------------------------------------------ 5

-------------------------------------------------------- 43

English

STOP

Language Code

Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese 7789 Castellano, Español 6983 Catalán 6765 Chamorro 6772 Chechen 6769 Chewa; Chichewa; Nyanja 7889 9072 Chuang; Zhuang 9065 Church Slavic; Slavonic 6785 Chuvash 6786 Corsican 6779 Česky 6783 Dansk 6865 Deutsch 6869 Dzongkha 6890 English 6978 Esperanto 6979 Estonian 6984 Euskara 6985  6976 Faroese 7079 Français 7082 Frysk 7089 Fijian 7074 Gaelic; Scottish Gaelic 7168 Gallegan 7176 Georgian 7565 Gikuyu; Kikuyu 7573 Guarani 7178 Gujarati 7185 Hausa 7265 Herero 7290 Hindi 7273 Hiri Motu 7279 Hrwatski 6779 Ido 7379 Interlingua (International)7365 Interlingue 7365 Inuktitut 7385

Inupiaq 7375 Irish 7165 Íslenska 7383 Italiano 7384 Ivrit 7269 Japanese 7465 Javanese 7486 Kalaallisut 7576 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kernewek 7587 Khmer 7577 Kinyarwanda 8287 Kirghiz 7589 Komi 7586 Korean 7579 Kuanyama; Kwanyama 7574 Kurdish 7585 Lao 7679 Latina 7665 Latvian 7686 Letzeburgesch; 7666 Limburgan; Limburger 7673 Lingala 7678 Lithuanian 7684 Luxembourgish; 7666 Macedonian 7775 Malagasy 7771 Magyar 7285 Malayalam 7776 Maltese 7784 Manx 7186 Maori 7773 Marathi 7782 Marshallese 7772 Moldavian 7779 Mongolian 7778 Nauru 7865 Navaho; Navajo 7886 Ndebele, North 7868 Ndebele, South 7882 Ndonga 7871 Nederlands 7876 Nepali 7869 Norsk 7879 Northern Sami 8369 North Ndebele 7868 Norwegian Nynorsk; 7878 Occitan; Provencal 7967 Old Bulgarian; Old Slavonic 6785 Oriya 7982 Oromo 7977 Ossetian; Ossetic 7983 Pali 8073 Panjabi 8065 Persian 7065 Polski 8076 Português 8084

Pushto 8083 Russian 8285 Quechua 8185 Raeto-Romance 8277 Romanian 8279 Rundi 8278 Samoan 8377 Sango 8371 Sanskrit 8365 Sardinian 8367 Serbian 8382 Shona 8378 Shqip 8381 Sindhi 8368 Sinhalese 8373 Slovensky 8373 Slovenian 8376 Somali 8379 Sotho; Southern 8384 South Ndebele 7882 Sundanese 8385 Suomi 7073 Swahili 8387 Swati 8383 Svenska 8386 Tagalog 8476 Tahitian 8489 Tajik 8471 Tamil 8465 Tatar 8484 Telugu 8469 Thai 8472 Tibetan 6679 Tigrinya 8473 Tonga (Tonga Islands) 8479 Tsonga 8483 Tswana 8478 Türkçe 8482 Turkmen 8475 Twi 8487 Uighur 8571 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapuk 8679 Walloon 8765 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 8973 Yoruba 8979 Zulu 9085

Contents

General Information

Features .................................................................. 7

Supplied accessories ............................................ 7

Environmental information ................................ 7

Installation .......................................................... 7~8

Maintenance .......................................................... 8

Connections

Step 1: Connecting the subwoofer ................... 9

Step 2: Placing the speakers ........................ 9~10

Step 3: Connecting speakers ............................ 10

Step 4: Connecting a USB device or a memory

card ........................................................................ 10

Step 5: Connecting TV ................................ 10~11

Using AV OUT jack ..................................................10

Using Component Video jacks (Y Pb Pr) ............11

Using S-Video jack ....................................................11

Step 6:Connecting FM antenna ...................... 12

Step 7: Connecting the power cord ............... 12

Additional: Connecting additional equipment ...

......................................................................... 12~13

Functional Overview

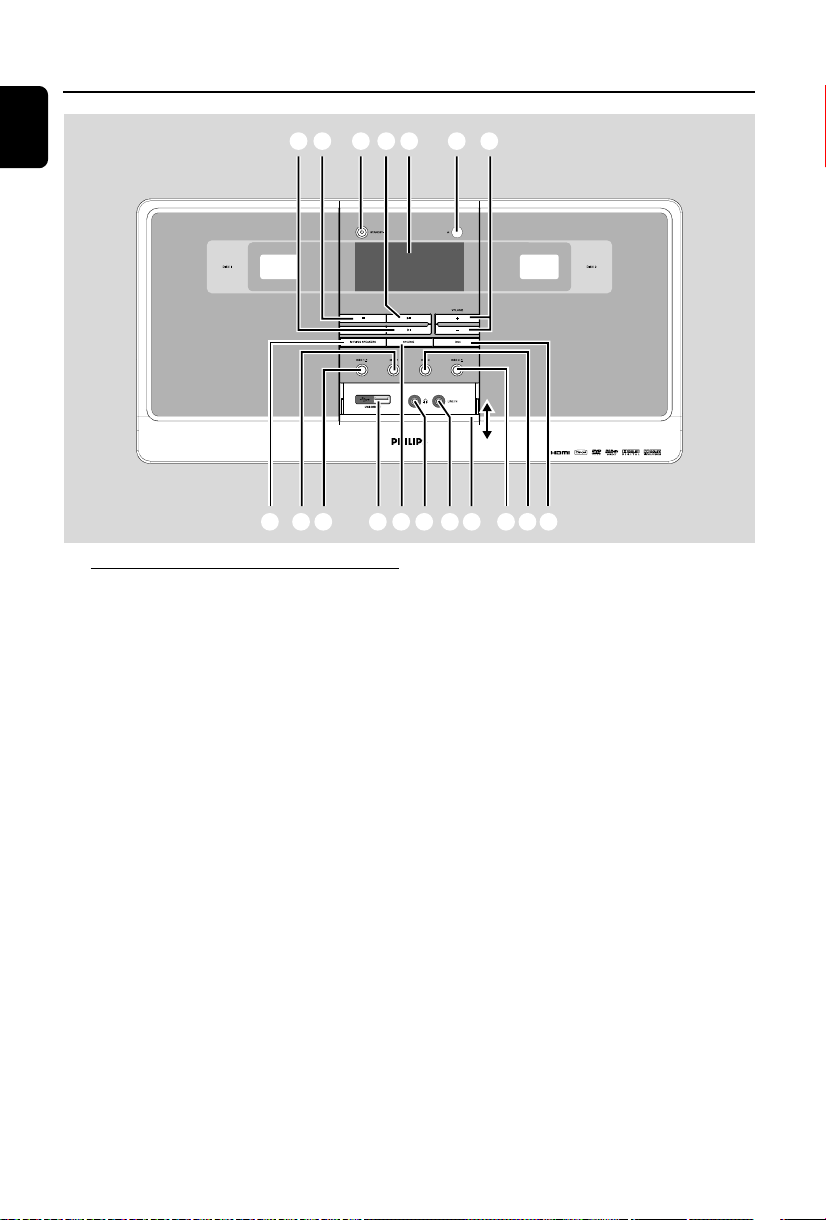

DVD player and power amplifier ............. 14~15

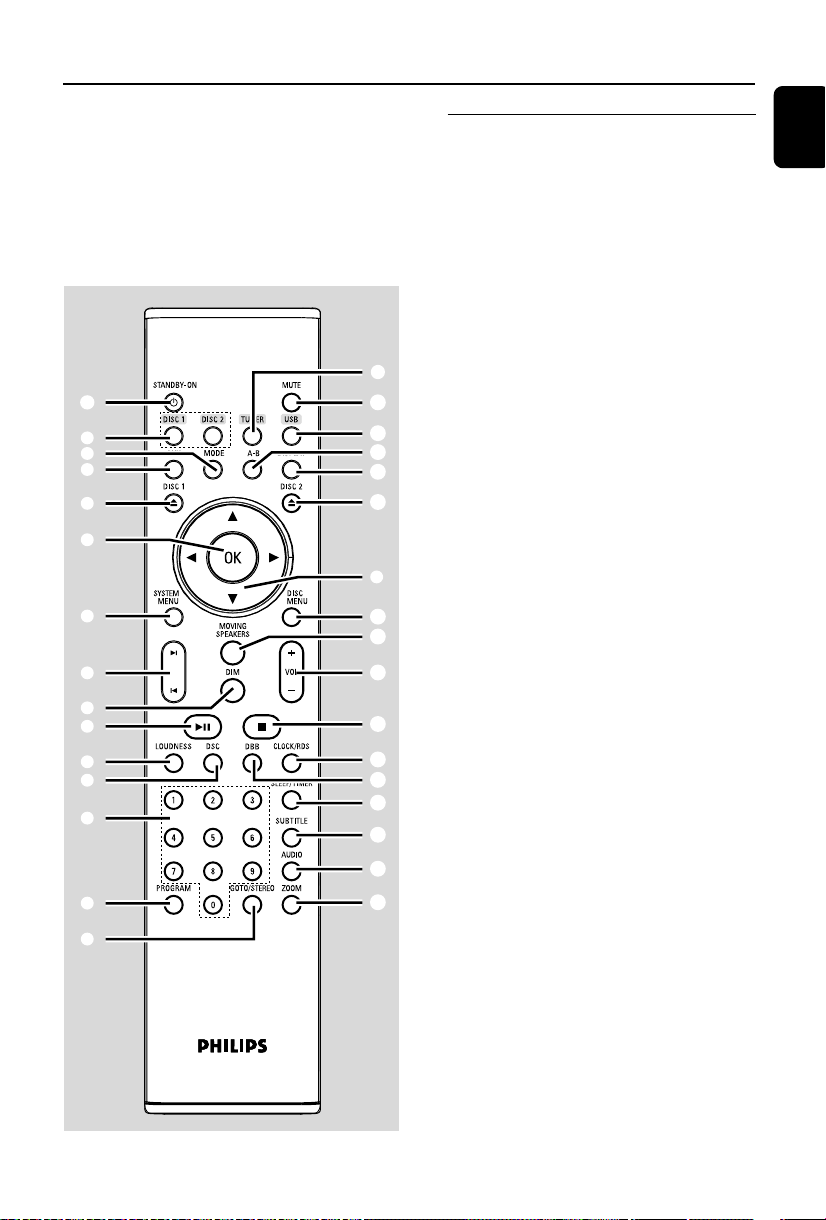

Remote control ........................................... 15~16

Getting Started

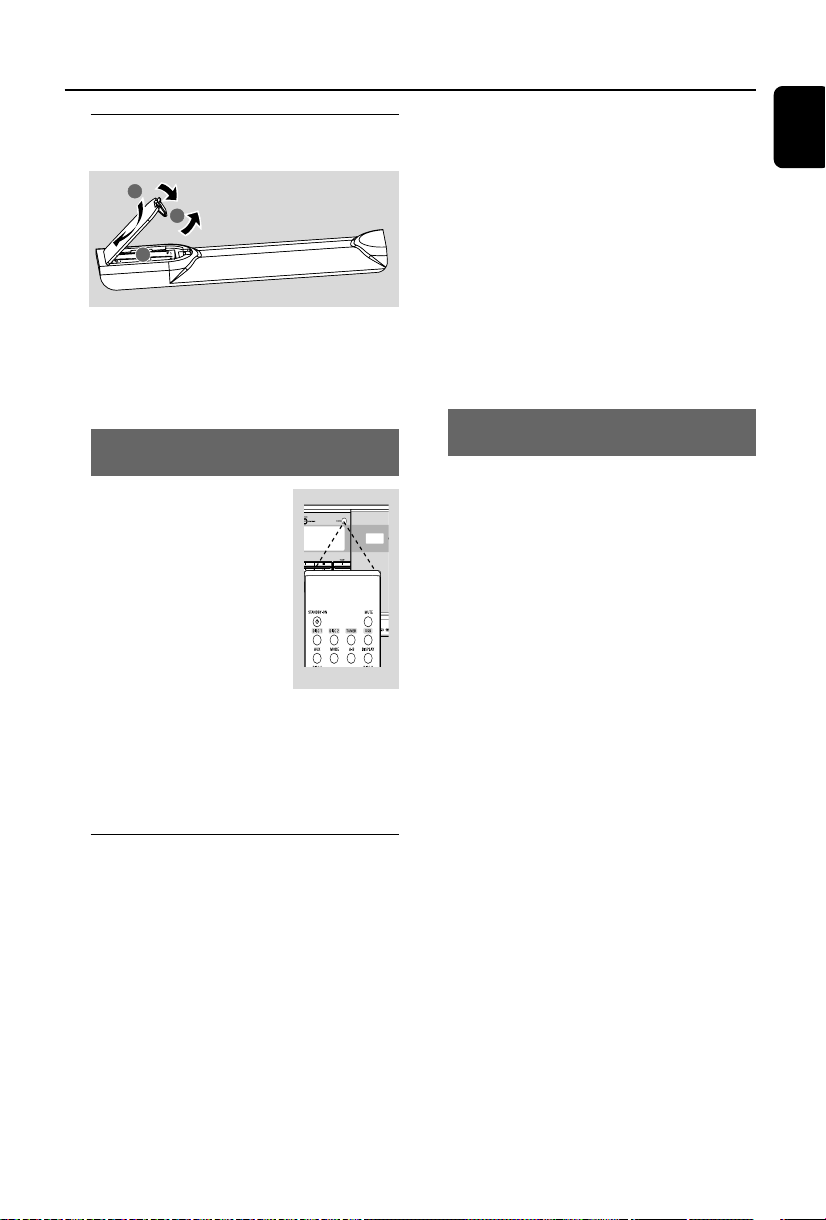

Step 1: Inserting batteries into the Remote

Control ................................................................. 17

Using the Remote Control to operate the Player

...................................................................................... 17

Step 2: Setting up the TV ........................... 17~18

Selecting the colour system that corresponds to

your TV ............................................................... 17~18

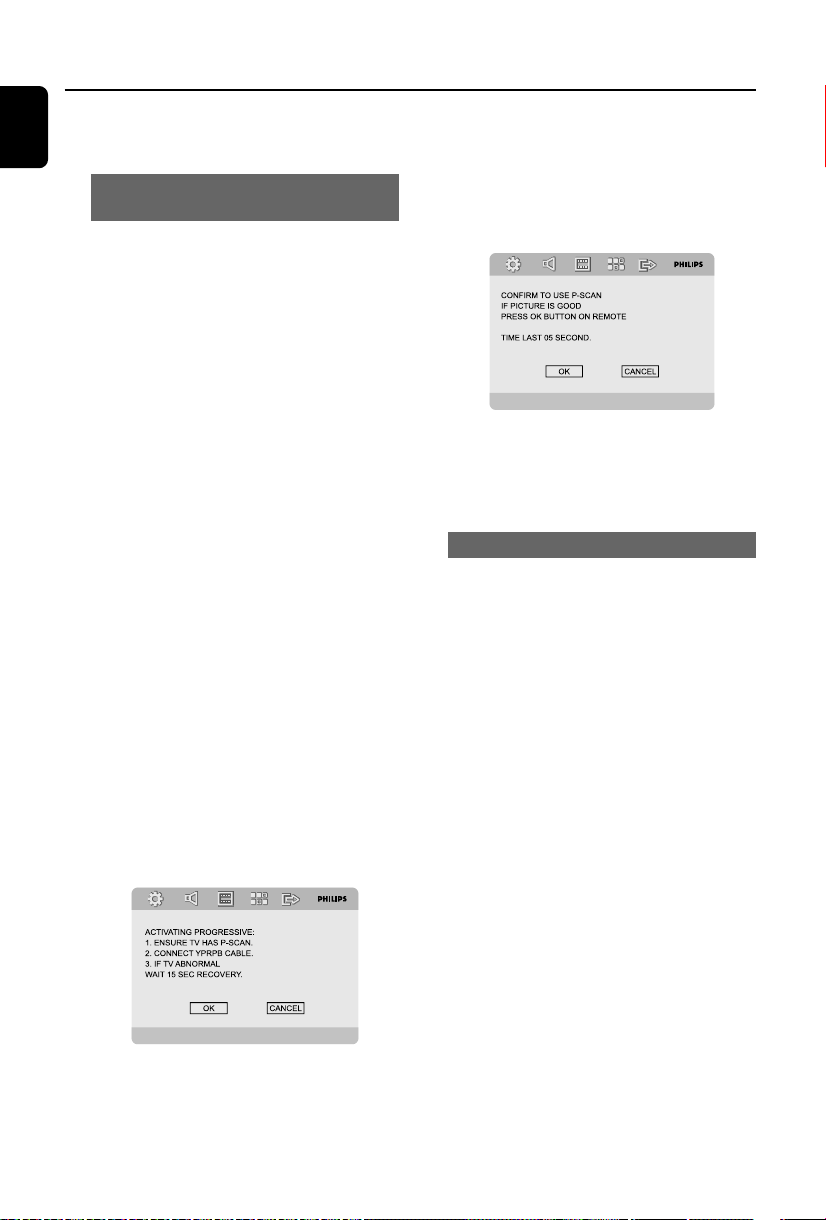

Setting up Progressive Scan feature (for

Progressive Scan TV only) .......................................18

To deactivate Progressive manually ......................18

Step 3: Setting language preference ................ 19

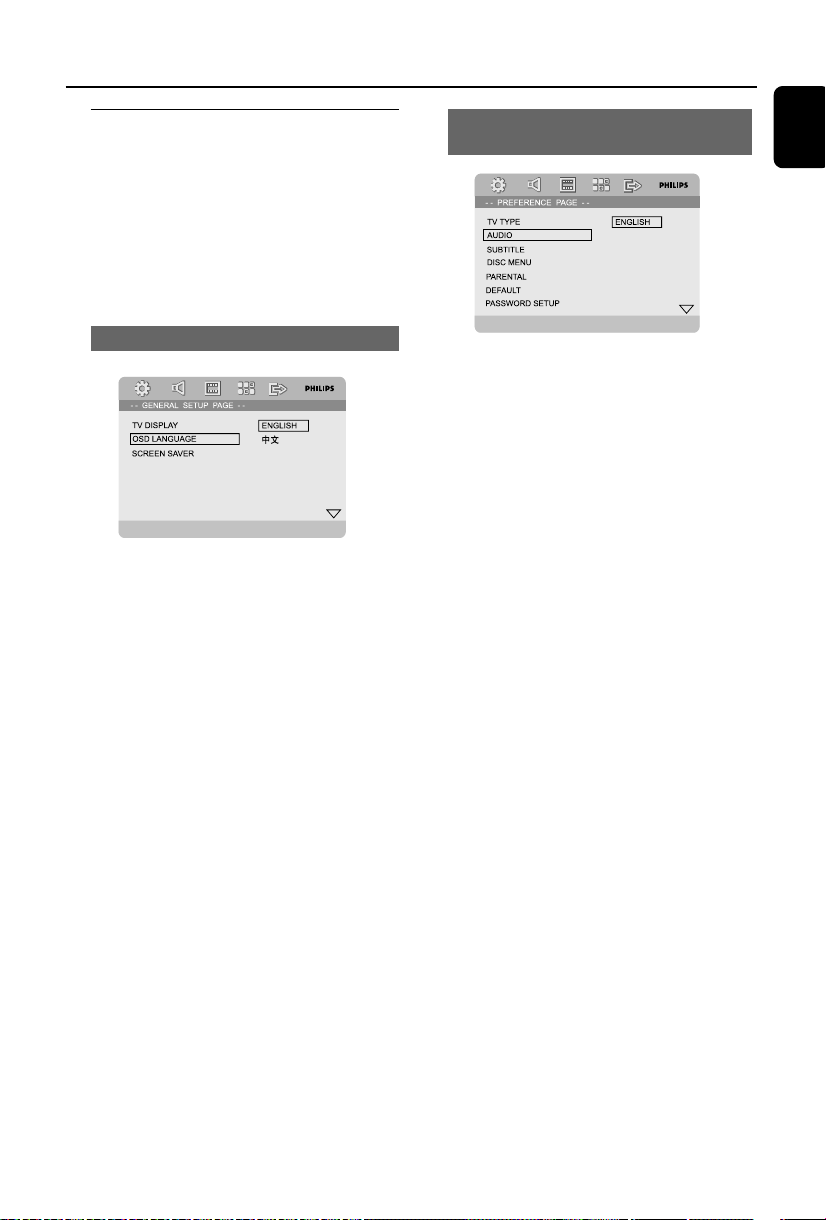

Setting the OSD Language ...................................... 19

Setting the Audio, Subtitle and Disc Menu language

...................................................................................... 19

Basic Operations

Switching the system on/off ............................. 20

Power-saving automatic standby ..................... 20

Volume control ................................................... 20

Sound control ..................................................... 20

DBB ............................................................................. 20

DSC (Digital Sound Control) ................................ 20

LOUDNESS ............................................................... 20

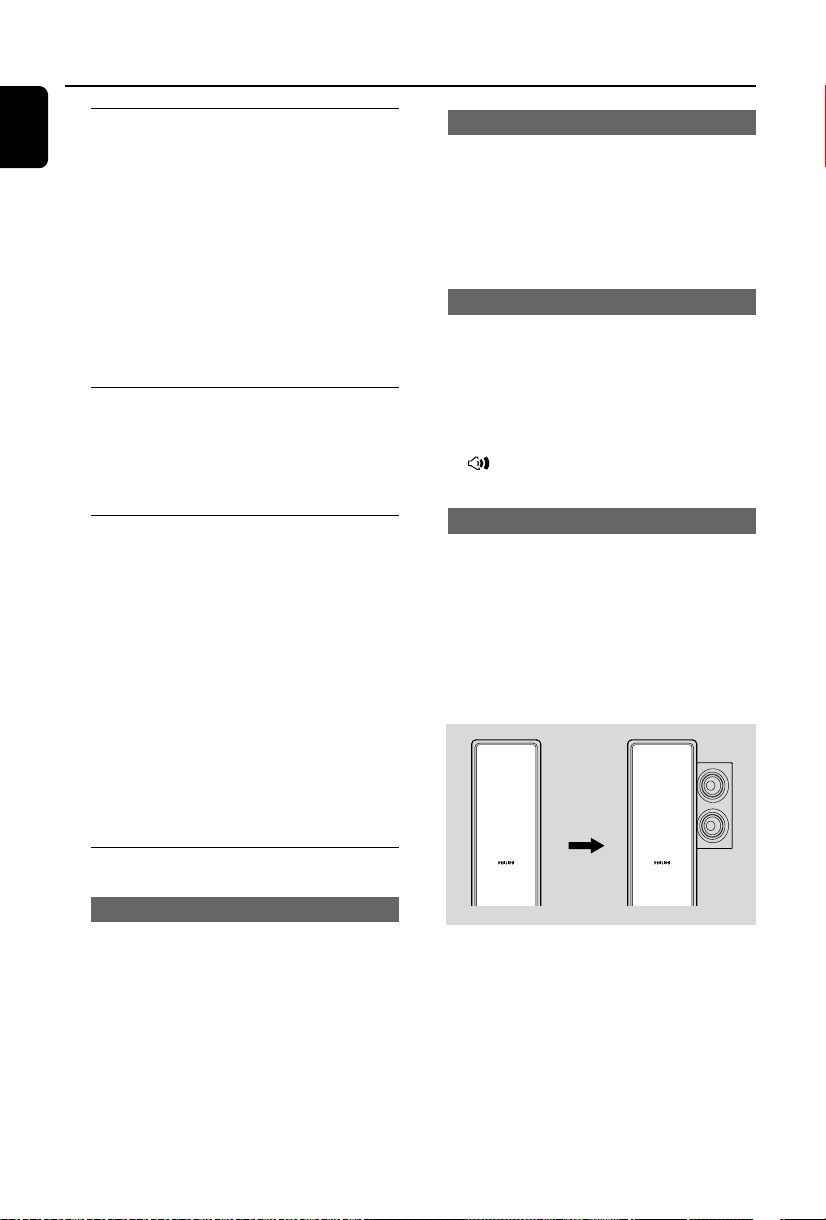

MOVING SPEAKERS ....................................... 20~21

Dimming the display screen ............................. 21

Demonstration mode ........................................ 21

Disc Operations

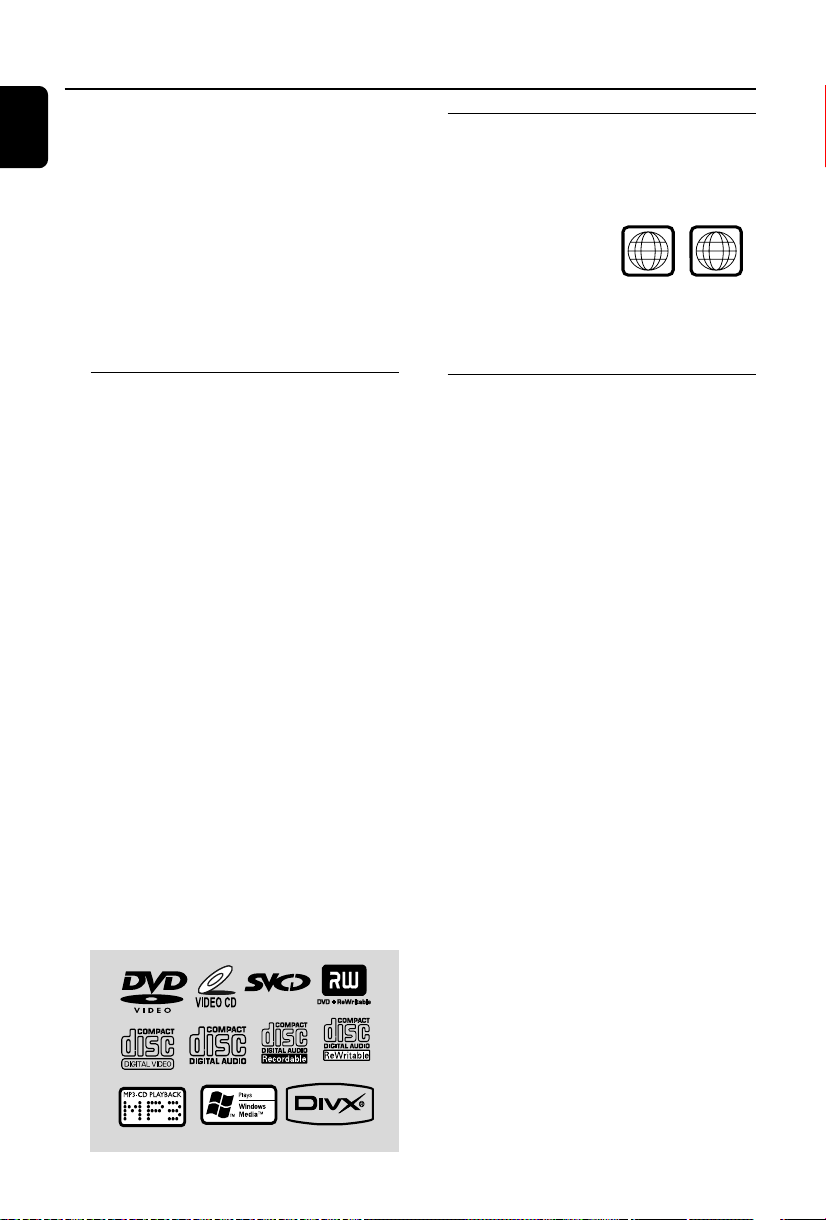

Playable Discs ...................................................... 22

Region Codes ...................................................... 22

Playing discs ......................................................... 22

Using the Disc Menu ......................................... 23

Basic playback controls .............................. 23~24

Pausing playback ........................................................ 23

Selecting a track/chapter/title ................................ 23

Resuming playback from the last stopped point....

...................................................................................... 23

Zoom ........................................................................... 23

Repeat ......................................................................... 23

Repeat A-B ................................................................. 24

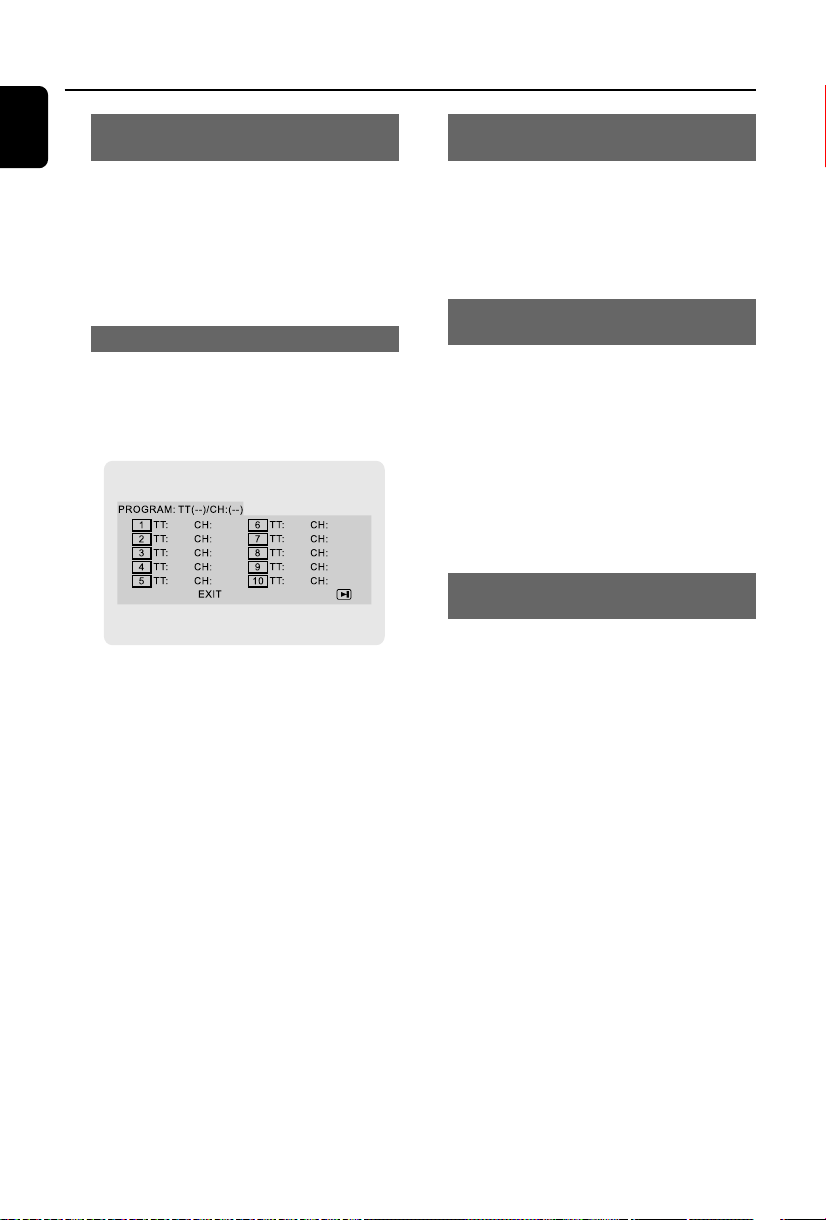

Program ...................................................................... 24

Forward/Reverse Searching ....................................24

Time search & search by chapter/track number ...

...................................................................................... 24

Information display during playback .....................24

Special disc features ........................................... 25

Playing a Title ............................................................. 25

Changing the Audio Language ................................25

Changing the Audio Channel .................................25

Subtitles ...................................................................... 25

Playing MP3/WMA/JPEG Picture disc ............ 25

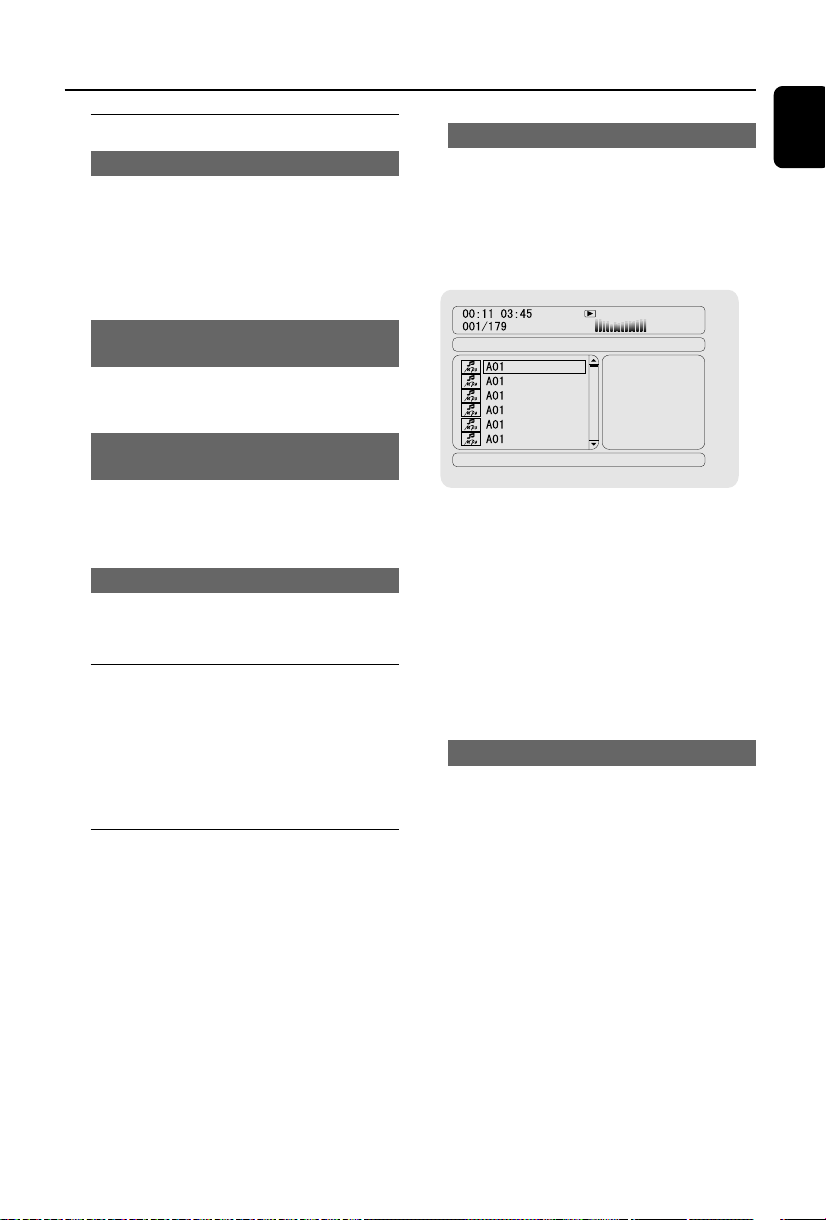

Playing MP3/WMA disc ..................................... 25

General operation ....................................................25

Playback selection ..................................................... 25

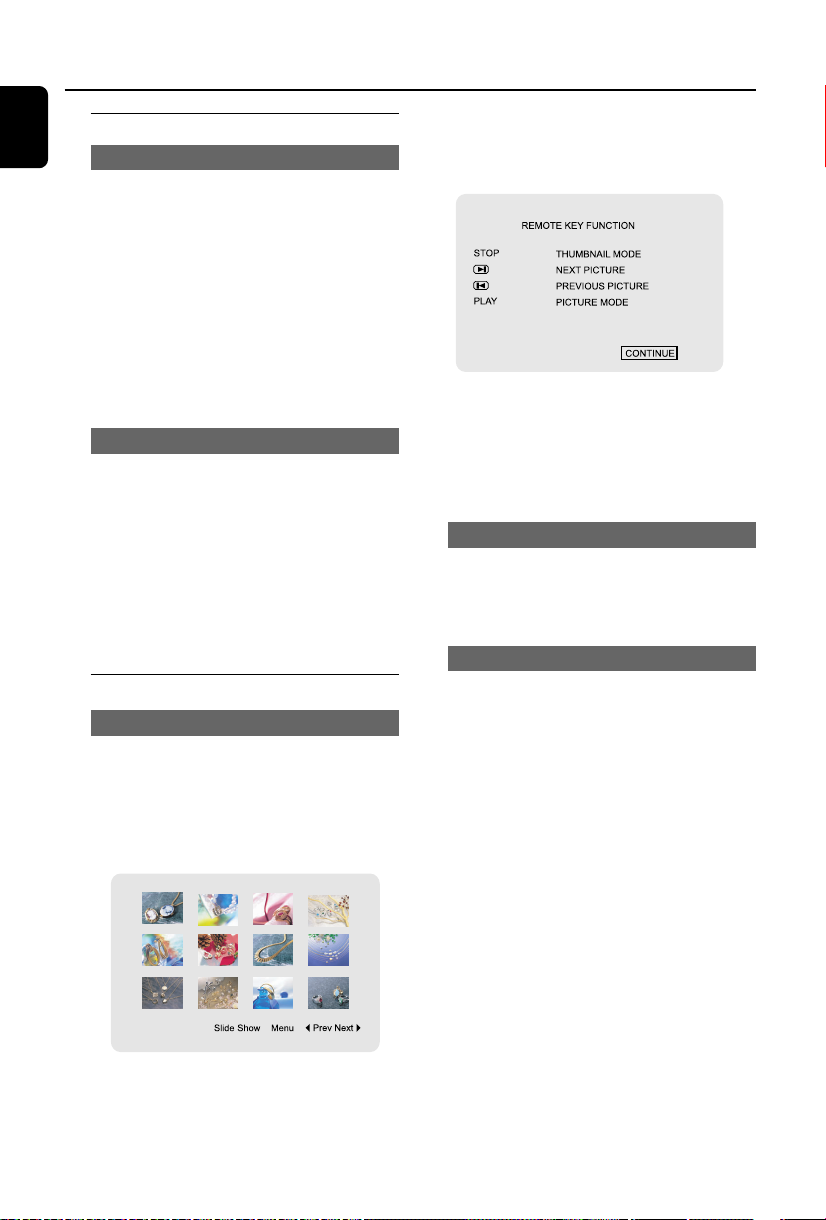

Playing JPEG Picture CD................................... 26

General operation ....................................................26

Playback selection ..................................................... 26

Special JPEG features ......................................... 26

Preview function .......................................................26

Zoom picture ............................................................ 26

Playback with multi-angles ......................................26

Playing a DivX disc ............................................. 27

English

Contents

English

System Menu Options

Basic operations ................................................. 28

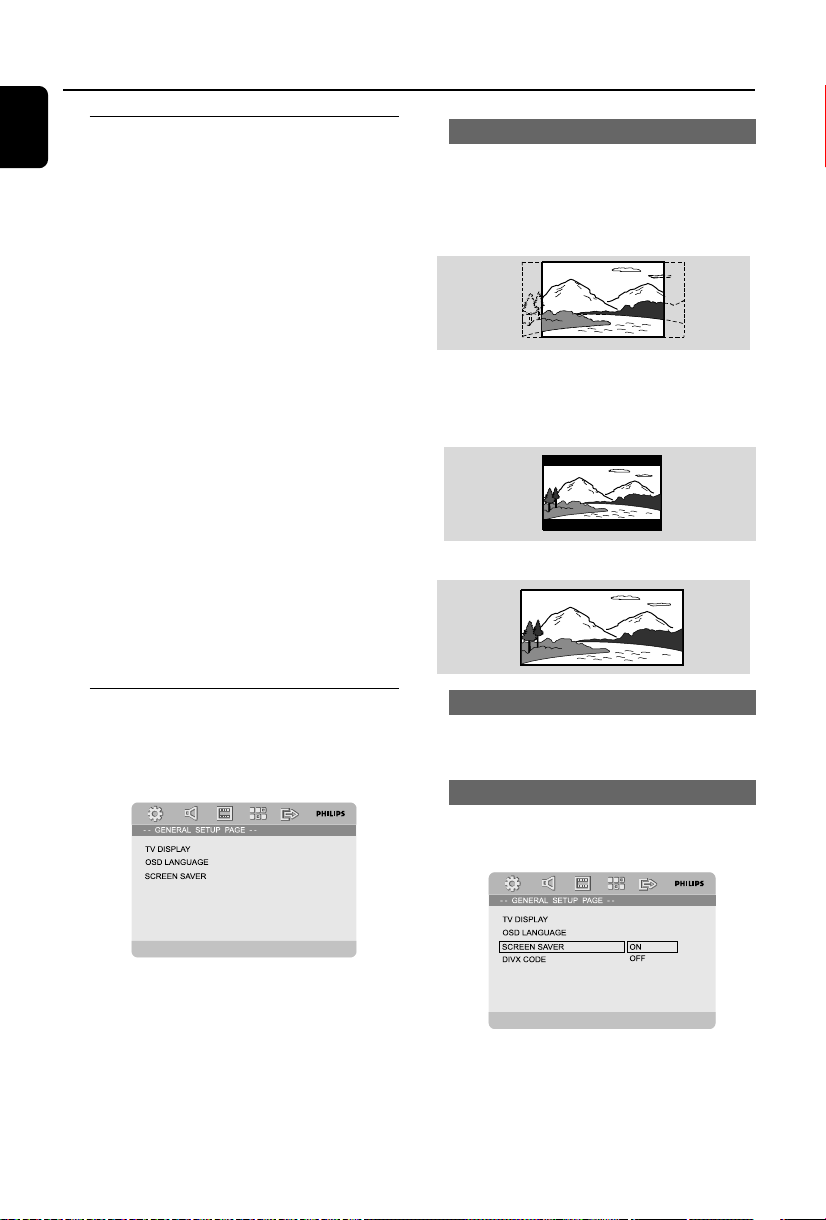

GENERAL SETUP PAGE ........................... 28~29

Audio Setup Page ........................................ 29~30

VIDEO SETUP PAGE ................................. 30~32

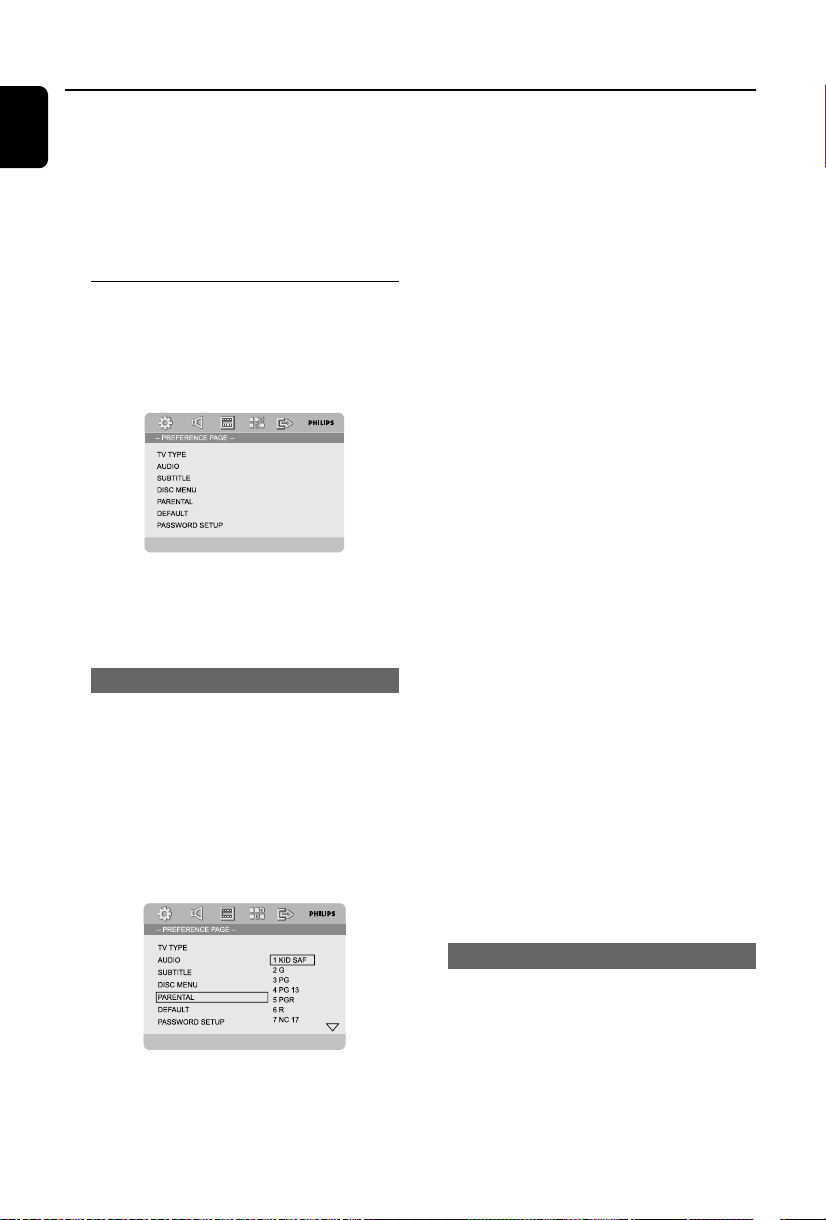

PREFERENCE PAGE................................... 32~33

Other Functions

Radio Reception ................................................. 34

Setting the clock ................................................. 34

Setting sleep/wake-up timer ............................ 35

TV DISPLAY ...............................................................28

OSD LANGUAGE....................................................28

SCREEN SAVER ........................................................ 28

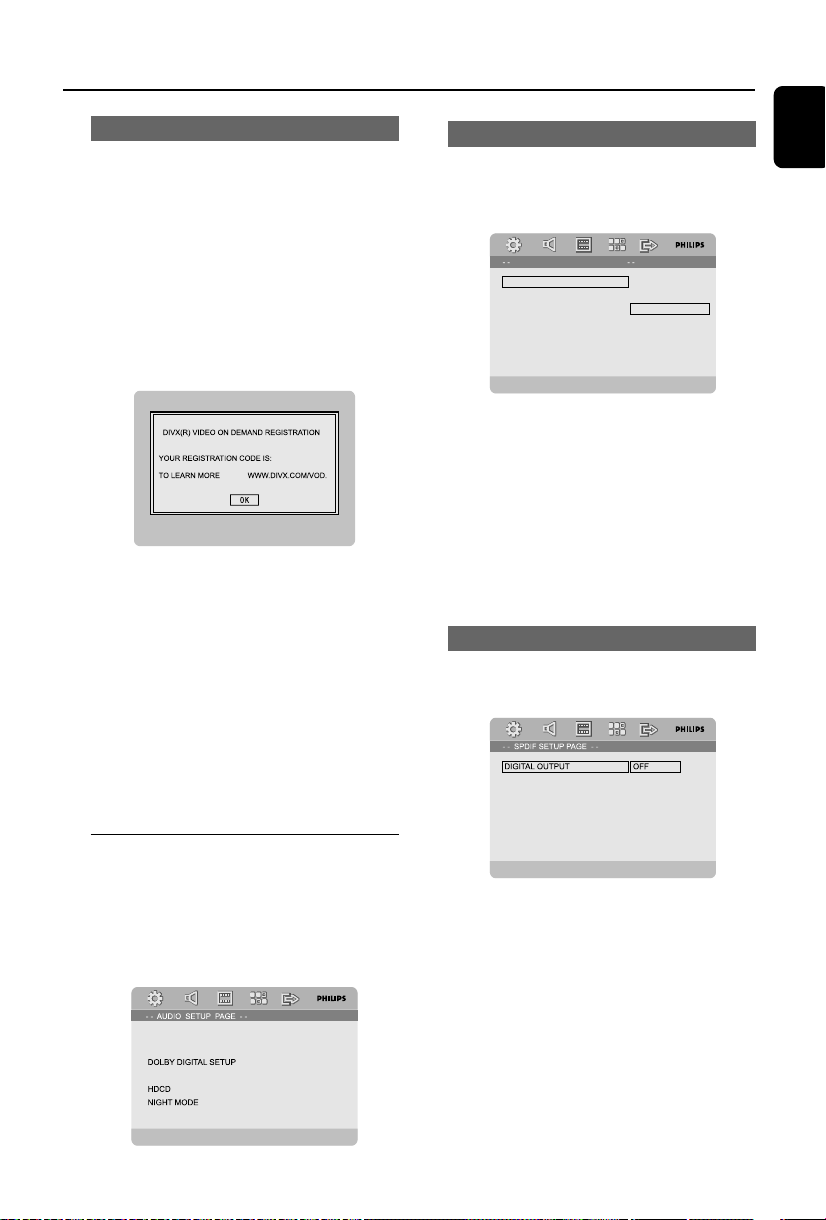

DIVX VOD ................................................................ 29

ANALOG AUDIO SETUP ...................................... 29

DIGITAL AUDIO SETUP ........................................ 29

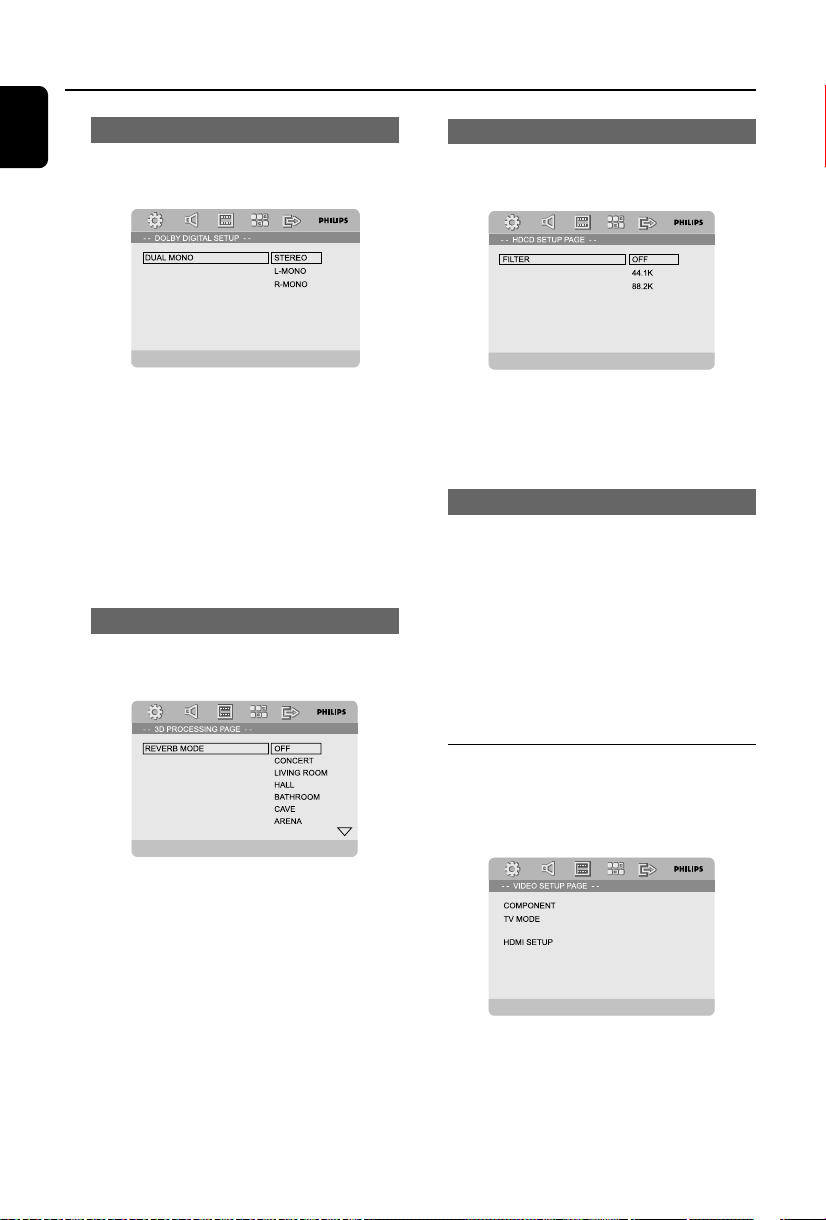

DOLBY DIGITAL SETUP .......................................30

3D PROCESSING..................................................... 30

HDCD .........................................................................30

NIGHT MODE .......................................................... 30

COMPONENT ......................................................... 31

TV MODE .................................................................. 31

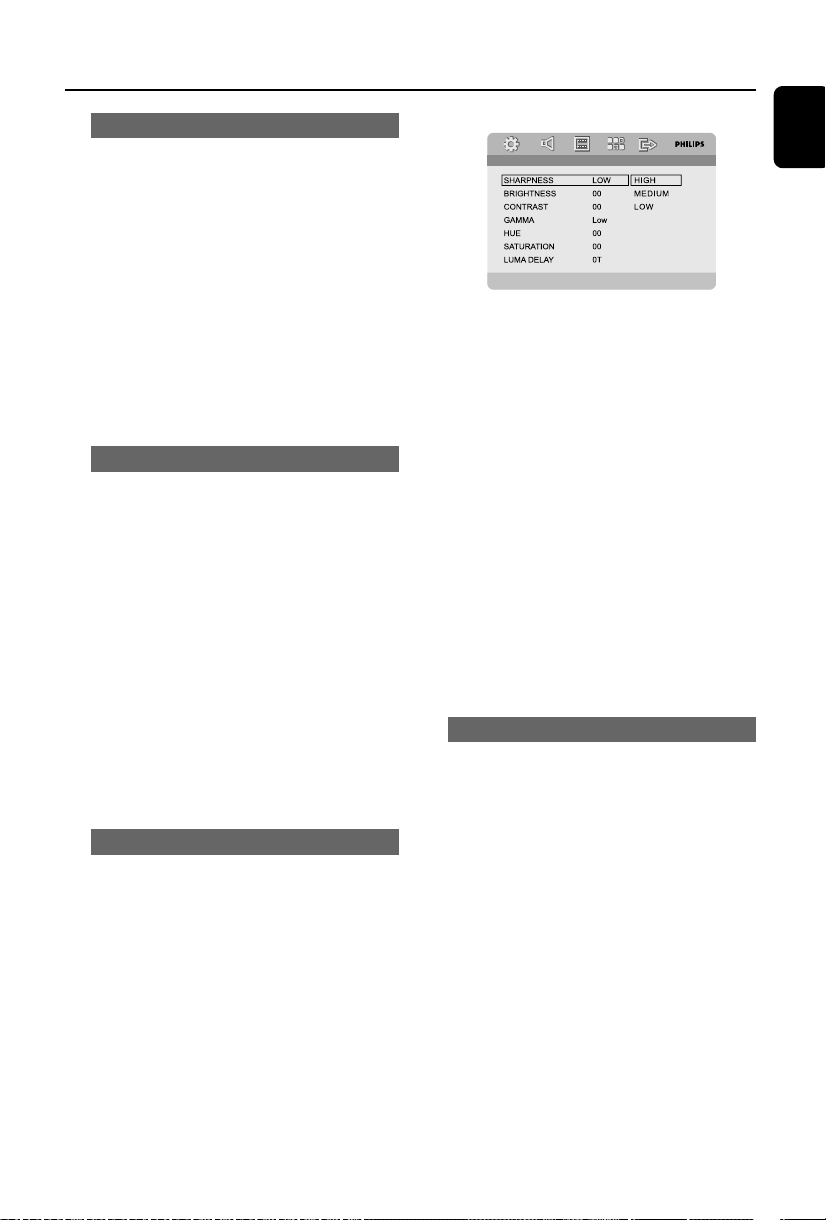

QUALITY ................................................................... 31

HDMI SETUP ..................................................... 31~32

PARENTAL ................................................................. 32

DEFAULT ....................................................................32

PASSWORD SETUP ................................................33

Tuning to radio stations ..........................................34

Presetting radio stations ......................................... 34

Listening to preset radio stations ......................... 34

Sleep timer setting .................................................... 35

Wak e-up timer setting .............................................35

External Sources

Using a non-USB device.................................... 36

Using a USB mass storage device ............ 36~37

Specifications ........................................... 38

Tr oubleshooting ............................. 39~41

Glossary ......................................................... 42

General Information

Features

Your DVD Micro Theatre with 2.1 channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology.

Other features include:

Built-in Dolby Digital decoder, supporting DSC sound setting.

Additional Component Connections

Lets you connect other audio and audio/visual components to the DVD micro theatre.

Night mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Parental Control (Rating Level)

Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep/Wake-up Timer

Enables the system to switch on/off automatically at a preset time.

Progressive Scan

Provides high quality flicker-free images for film based sources. When a picture refreshes, its ver tical resolution can double to 525 lines.

Note: –To fully enjoy the progressive scan feature, you need a progressive scan TV.

Supplied accessories

– Remote control with two AAA batteries – FM wire antenna – DIN cable to connect the subwoofer and

the main unit

–AV cord (R/W/Y) –2 front speakers including 2 speaker cables – This instruction booklet and a Quick Star t

Guide

– Cabling channel (optional) –Brackets and screws for wall mounting

If any item is damaged or missing, contact your retailer or Philips.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Installation

● Place the player on a flat, hard, and stable surface.

● In a cabinet, allow about 10cm (4 inches) of free

space all around the player for adequate ventilation.

English

General Information

English

● Do not expose your player to extreme

temperatures or humidity.

● The apparatus shall not be exposed to dripping

or splashing.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● No naked flame sources, such as lighted candles,

shall be placed on the apparatus.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newpapers, table-cloths, cur tains, et.

Maintenance

● When a disc becomes dirty, clean it with a

cleaning cloth. Wipe the disc from the center out, in a straight line.

● Do not expose the player, batteries or discs to

humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.

● Do not use solvents such as

benzene, thinner, commercially available cleaners, or anti-static spray intended for colour discs.

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Connections

Front

speaker

( left )

Front speaker ( right )

VIEWING AREA

Speaker

(right)

S-VIDEO

AUDIO

VIDEO IN

FM antenna

Subwoofer

IMPORTANT! – The type plate is located at the bottom of the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power on. –To connect a cable to the corresponding jack on the rear panel, make sure to lead it through the square hole of the stand. –A separate power switch is provided on the back of the subwoofer. Please switch it on after completing all connections in order to enjoy 2.1-channel sound output.

TV IN

AC power

S-VIDEO IN

AUDIO

TV IN

VIDEO IN

AC power

● Connect the subwoofer to the main unit with

the supplied system cable (grey).

Step 2: Placing the speakers

Speaker

(left)

English

Step 1: Connecting the subwoofer

Connections

English

● Place the front left and right speakers at equal

distances from the TV set and at an angle of approximately 45 degrees from the listening position.

Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV set. – Allow adequate ventilation around the DVD System.

Step 3: Connecting speakers

● Install the speakers to the corresponding stand

with screws.

● Connect the left and right speakers to the

SPEAKERS (4Ω) terminals on the back of the subwoofer with the supplied speaker cables. Right speaker to “R” and left speaker to “L”. Fully insert the speaker wire into the terminal.

Notes: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker jacks. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual. –To install the speakers on the wall, please see the Appendix for wall mounting instructions.

Step 4: Connecting a USB device or a memory card

● By connecting a USB mass storage device

(including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.

Slide down the protective cover before plugging in the USB device.

Insert the USB device's USB plug into the socket on the set.

for the devices with USB cables:

1 Inser t one plug of the USB cable (not supplied)

to the socket on the set.

2 Inser t the other plug of the USB cable to the

USB output terminal of the USB device.

for the memory card:

1 Inser t the memory card into a card reader (not

supplied).

2 Use a USB cable (not supplied) to connect the

card reader into the socket on the set.

Step 5: Connecting TV

IMPORTANT! –You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV.

Connections

Using AV OUT jack

1 Connect the end of the supplied AV cord with

only one connector to the AV OUT jack of the DVD system.

2 For the other end, connect the video output

connector (yellow) to the video input jack (or labeled as A/ V In, CVBS, Composite or Baseband) on the TV. To hear the sound of this DVD system through your TV, connect the audio connectors (white/ red) to the audio input jacks on the TV.

Using Component Video jacks (Y Pb Pr)

IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required.

2 To hear the TV channels through this DVD

system, use the audio cables (white/red-not supplied) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

3 If you are using a Progressive Scan TV (TV must

indicate Progressive Scan or ProScan capability), to activate TV Progressive Scan, please refer to your TV user manual. For DVD system Progressive Scan function, see “Getting StartedSetting up Progressive Scan feature”.

Note: – If your TV does not support Progressive Scan, you will not be able to view the picture. –Press SYSTEM MENU on the remote to exit the system menu, and then press DISC 1 (or DISC 2) and “1” to exit progressive scan.

Using S-Video jack

IMPORTANT! – If S-Video is used for DVD playback connection, the system’s VIDEO OUT setting will need to be changed accordingly.

English

S-VIDEO IN

AUDIO

TV IN

VIDEO IN

1 Use component video cables (red/blue/green -

not supplied) to connect the DVD system's COMPONENT (Pr/Cr Pb/Cb Y) jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.

1 Use an S-Video cable (not supplied) to connect

the DVD system’s S-VIDEO jack to the SVideo input jack (or labeled as Y/C or S-VHS) on the TV.

2 To hear the TV channels through this DVD

system, use the audio cables (white/red-not supplied) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

Connections

English

Step 6:Connecting FM antenna

Connect the supplied FM antenna to the FM (75 Ω) jack. Extend the FM antenna and fix its end to the wall. For better FM stereo reception, connect an external FM antenna (not supplied).

Note: – Adjust the position of the antennas for optimal reception. –Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.

Step 7: Connecting the power cord

After everything is connected properly, plug in the AC power cord to the power outlet. Switch on the power on the back of the subwoofer.

Never make or change any connection with the power on.

Additional: Connecting additional equipment

IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. –When making connections, make sure the colour of cables matches the colour of jacks. –Always refer to the owner’s manual of the other equipment for complete connection and usage details.

Connections

Viewing and listening to the playback of other equipment A

● Connect the system's AUX IN jacks to the

AUDIO OUT jacks on the other audio/visual device (such as a TV, VCR, Laser Disc player or cassette deck). Before starting operation, press SOURCE on the front panel to select AUX or press AUX on the remote in order to activate the input source.

Using the VCR for recording DVDs B

● Connect one of the system's VIDEO jack to the

corresponding VIDEO IN jack and AUDIO OUT L/R jacks to the AUDIO IN jacks on the VCR. This will allow you to make analogue stereo (two channel, right and left) recordings.

Recording (digital) C

● Connect the system's COAXIAL jack to the

DIGITAL IN jack on a digital recording device.

Before starting operation, set the DIGITAL OUT

according to the audio connection. (See "DIGITAL OUT".)

Connecting to a TV with HDMI Jack E

HDMI connects untouched and uncompressed digital transmission for the highest and crispest sound/image quality.

It has plug and play capability using only one cable for both audio/video output.

● Use a HDMI cable (not supplied) to connect the

HDMI jack on the DVD Player to HDMI IN on a HDMI compatible device (e.g.; TV, Projector, Adaptor).

➜ It may take a while for the DVD player and

input device to communicate and initialise.

➜ Playback starts automatically.

HDTV

HDMI IN

Notes: –Proceed to "Setup Menu Options" ➜ "VIDEO SETUP PAGE" ➜ "HDMI SETUP" for detailed HDMI setup. – If you are using the HDMI as audio source, make sure that "DIGITAL OUTPUT" is set to "PCM only" (see "Setup Menu Options" ➜ "AUDIO SETUP PAGE" ➜ "DIGITAL AUDIO SETUP"). –To stop sound output from your TV after making the HDMI connection, make sure that "DIGITAL OUTPUT" is set to "SPDIF OFF" (see "Setup Menu Options" ➜ "AUDIO SETUP PAGE" ➜ "DIGITAL AUDIO SETUP").

English

+ 30 hidden pages
