Philips MCD906 73 User Manual

DVD Micro Theatre
MCD906
HDMI (High Definition Multimedia Interface) is a digital interface that allows pure HD digital video transmission without the loss of image quality. The integrated control bus allows system control between the TV set and connected devices like a digital set top box.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.
CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
2
DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.
Windows Media is a trademark of Microsoft Corporation.
Index
English ------------------------------------------------ 4
-------------------------------------------------------- 35
English
3
Contents
English
General Information
Features .................................................................. 6
Supplied accessories ............................................ 7
Environmental information ................................ 7
Installation .............................................................. 7
Maintenance .......................................................... 7
Hearing Safety ....................................................... 8
Connections
Step 1: Placing the speakers ............................... 9
Step 2: Connecting speakers .............................. 9
Step 3: Connecting TV ....................................... 10
Using Composite Video jack .................................. 10
Using Component Video jacks (Y Pb Pr) ............ 10
Using S-Video jack ....................................................11
Using an accessory RF modulator ........................ 11
Connecting to a TV with HDMI Jack ................... 12
Step 4: Connecting FM antenna ...................... 12
Step 5: Connecting the power cord............... 13
Additional: Connecting additional equipment ...
................................................................................ 13
Additional connection: Connecting a USB
device or memory card .................................... 13
Functional Overview
DVD player and power amplifier .................... 14
Remote control .................................................. 15
Getting Started

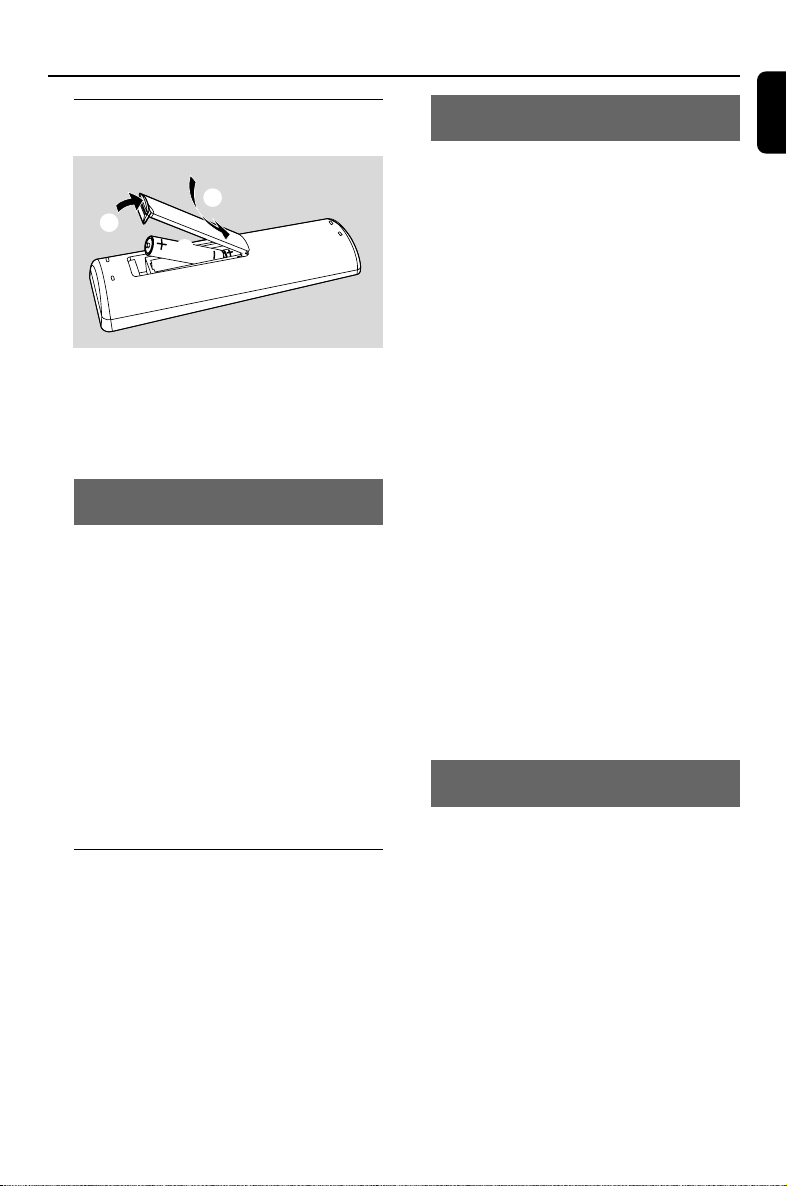

Step 1: Inserting batteries into the Remote
Control ................................................................. 17
Using the Remote Control to operate the Player
...................................................................................... 17
Step 2: Setting up the TV .................................. 17
Selecting the colour system that corresponds to
your TV ....................................................................... 17
Setting up Progressive Scan feature (for
Progressive Scan TV only) ....................................... 17
To deactivate Progressive manually ......................18
Step 3: Setting language preference ................ 19
Basic Operations
Switching the system on/off ............................. 20
Power-saving automatic standby ..................... 20
Volume control ................................................... 20
Sound control ..................................................... 20
Bass enhancement .................................................... 20
Tr eble adjustment ..................................................... 20
DSC (Digital Sound Control) ................................ 20
LOUDNESS ............................................................... 20
Dimming the display screen ............................. 20
Disc Operations
Region Codes ...................................................... 21
Playing discs ......................................................... 21
Using the Disc Menu ......................................... 21
Basic playback controls ..................................... 21
Pausing playback ........................................................ 21
Selecting a track/chapter/title ................................ 21
Resuming playback from the last stopped point....
...................................................................................... 21
Zoom ........................................................................... 22
Repeat & Shuffle ........................................................ 22
Repeat A-B ................................................................. 22
Slow Motion ............................................................... 22
Program ...................................................................... 22
Forward/Reverse Searching ....................................22
Time search & search by chapter/track number ...
...................................................................................... 22
Information display during playback .....................22
Special disc features ........................................... 23
Playing a Title ............................................................. 23
Camera Angle ............................................................ 23
Changing the Audio Language ................................ 23
Changing the Audio Channel .................................23
Subtitles ...................................................................... 23
Playing MP3/WMA/JPEG Picture CD............. 23
Special JPEG features ......................................... 23
Preview function .......................................................23
Zoom picture ............................................................ 23
Playback with multi-angles ......................................23
Playing a DivX disc ............................................. 24
4
External Sources
Using a USB mass storage device ................... 25
System Menu Options
Basic operations ................................................. 26
General Setup Page ............................................ 26
TV DISPLAY ...............................................................26
OSD LANG ............................................................... 26
SCREEN SAVER ........................................................ 26
DIVX(R) VOD ........................................................... 26
Audio Setup Page ............................................... 26
SPDIF SETUP .............................................................26
DOLBY DIGITAL SETUP ....................................... 27
3D PROCESSING..................................................... 27
HDCD .........................................................................27
NIGHT MODE .......................................................... 27
AUDIO SYNC ........................................................... 27
Video Setup Page................................................ 27
COMPONENT ......................................................... 27
TV MODE .................................................................. 27
QUALITY ................................................................... 27
HDMI SETUP ............................................................. 28
Preference Page .................................................. 28
PARENTAL .................................................................28
DEFAULT .................................................................... 28
PASSWORD SETUP ................................................28
Other Functions
Radio Reception ................................................. 29
Tuning to radio stations .......................................... 29
Presetting radio stations ......................................... 29
Listening to preset radio stations ......................... 29
Setting the clock ................................................. 30
Setting sleep/wake-up timer ............................ 30
Sleep timer setting .................................................... 30
Wak e-up timer setting ............................................. 30
Contents
Contents
English
Specifications ........................................... 31
Tr oubleshooting .................................... 32
5
General Information
English
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.
Features
Your DVD Micro Theatre with 2.0 channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology.
Other features include:
Built-in Dolby Digital decoder, supporting DSC sound setting.
Additional Component Connections
Lets you connect other audio and audio/visual components to the DVD micro theatre.
Night mode
Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.
Parental Control (Rating Level)
Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.
Sleep/Wake-up Timer
Enables the system to switch on/off automatically at a preset time.
Progressive Scan
Provides high quality flicker-free images for film based sources. When a picture refreshes, its ver tical resolution can double to 525 lines.
Hi-Fi Tube Sound from DVD Micro Theatre
Why do I need it?
You deserve an immersive sound experience like an audiophile. The built-in vacuum tube preamplifier enables you to experience the highest quality sound normally you can only find in premium Hi-Fi audio equipment.
Music is dynamic and is played to be heard by human ears. The analogue nature of tube gives a more pleasing sound to the nonlinear human ear-brain hearing system. Tube sound has less distortion than solid-state sound and audiophiles always prefer tubes for their clean, warm and far more detailed and life-like sound.
What is it?
Vacuum tube is not something new, but always a premium. Before the introduction of transistors, most electronic amplifier used vacuum tubes. By 60s', solid-state amplification became more common, but tube amplifier has retained a loyal following among audiophiles with modern units from companies commanding very high price.
How does it work?
Amplifiers are available based on solid-state (semiconductor) technology or vacuum-tube (valve) technology. Many audiophile systems separate the functions of the preamplifier-which selects audio signals and has a volume control­and the power amplifier, which takes a line-level audio signal and drives the loudspeakers. Audiophiles find the tube preamplifier product a more faithful and detailed reproduction in comparison to the solid-state preamplifier.
Note: –To fully enjoy the progressive scan feature, you need a progressive scan TV.
6
General Information
Supplied accessories
– Remote control with two AAA batteries – FM wire antenna – Composite video cable (yellow) –2 front speakers including 2 speaker cables – This instruction booklet and a Quick Start
Guide
If any item is damaged or missing, contact your retailer or Philips.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Installation
Place the player on a flat, hard, and stable surface.
In a cabinet, allow about 10cm (4 inches) of free
space all around the player for adequate ventilation.
Do not expose your player to extreme
temperatures or humidity.
The apparatus shall not be exposed to dripping
or splashing.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
No naked flame sources, such as lighted candles,
shall be placed on the apparatus.
Install this unit near the AC outlet and where the
AC power plug can be reached easily.
The ventilation should not be impeded by
covering the ventilation openings with items, such as newpapers, table-cloths, curtains, et.
Maintenance
When a disc becomes dirty, clean it with a
cleaning cloth. Wipe the disc from the center out, in a straight line.
Do not expose the player, batteries or discs to
humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.
Do not use solvents such as
benzene, thinner, commercially available cleaners, or anti-static spray intended for colour discs.
The lens may cloud over when
the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.
English
7
General Information
English
Hearing Safety
Listen at a moderate volume.
Using headphones at a high volume can impair
your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.
Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable
periods of time.
Be careful not to adjust the volume as your
hearing adapts.
Do not turn up the volume so high that you
can't hear what's around you.
You should use caution or temporarily
discontinue use in potentially hazardous situations.
Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
8
Connections
1
2
3
IMPORTANT! – The type plate is located at the bottom of the system. – The voltage selector located at the bottom of this system is preset at 220V­240V from the factory. For countries that operate at 110V-127V, please adjust to 110V-127V before you switch on the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power switched on.
Note: – The DEMO jack is only applicable to the demo unit that is not included in the audio system. Do not attempt to connect any other device to the audio system through this jack.
Step 1: Placing the speakers
Front
speaker
( left )
Front speaker ( right )
Step 2: Connecting speakers
Connect the left and right speakers to the
SPEAKERS (4) terminals on the back of the system with the supplied speaker cables. Right speaker to “R” and left speaker to “L”, red wire to “+” and silver wire to “-”. Fully insert the stripped portion of the speaker wire into the terminal as shown.
Speaker wire connection on main set
12
Speaker wire connection on speakers
English
VIEWING AREA
Place the front left and right speakers at equal
distances from the TV set and at an angle of approximately 45 degrees from the listening position.
Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV set. – Allow adequate ventilation around the DVD System.
Notes: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker jacks. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
9
Connections
English
Step 3: Connecting TV
Using Component Video jacks (Y Pb Pr)
IMPORTANT! –You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV.
Using Composite Video jack
1 Use the composite video cable (yellow) to
connect the system's VIDEO jack to the video input jack (or labelled as A/V In, Video In, Composite or Baseband) on the TV set.
2 To listen to the TV channels through this DVD
system, use the audio cables (white/red-not supplied) to connect AUX IN L/R jacks to the corresponding AUDIO OUT jacks on the TV.
IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required.
1 Use component video cables (red/blue/green -
not supplied) to connect the DVD system's COMPONENT (Pr/Cr Pb/Cb Y) jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.
2 To listen to the TV channels through this DVD
system, use the audio cables (white/red-not supplied) to connect AUX IN L/R jacks to the corresponding AUDIO OUT jacks on the TV.
3 If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability), to activate TV Progressive Scan, please refer to your TV user manual. For DVD system Progressive Scan function, see “Getting Started­Setting up Progressive Scan feature”.
10
Note: – If your TV does not support Progressive Scan, you will not be able to view the picture. Press SYSTEM on the remote control to exit the system menu. Then press DISC followed by “1” to exit progressive scan.
Connections
Using S-Video jack
IMPORTANT! – If S-Video is used for DVD playback connection, the system’s COMPONENT setting will need to be changed accordingly.
1 Use an S-Video cable (not supplied) to connect
the DVD system’s S-VIDEO jack to the S­Video input jack (or labeled as Y/C or S-VHS) on the TV.
2 To listen to the TV channels through this DVD
system, use the audio cables (white/red-not supplied) to connect AUX IN L/R jacks to the corresponding AUDIO OUT jacks on the TV.
Using an accessory RF modulator
IMPORTANT! – If your TV only has a single Antenna In jack (labeled as 75 ohm or RF In), you will need an RF modulator in order to view DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
1 Use the composite video cable (yellow) to
connect the DVD system’s VIDEO jack to the video input jack on the RF modulator.
2 Use an RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the RF modulator to the Antenna IN jack on the TV.
3 Connect the Antenna or Cable TV service signal
to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)
English
11
Connections
English
Connecting to a TV with HDMI Jack
HDMI connects untouched and uncompressed digital transmission for the highest and crispest sound/image quality.
It has plug and play capability using only one cable for both audio/video output.
Use a HDMI cable (not supplied) to connect the
HDMI jack on the DVD Player to HDMI IN on a HDMI compatible device (e.g.; TV, Projector, Adaptor).
It may take a while for the DVD player and
input device to communicate and initialise.
Playback starts automatically.
Step 4: Connecting FM antenna
FM
antenna
Connect the supplied FM antenna to the FM
ANENNA (75 ) jack. Extend the FM antenna
and fix its end to the wall. For better FM stereo reception, connect an external FM antenna (not supplied).
HDTV
HDMI IN
E
HDMI IN
Notes: –Proceed to "Setup Menu Options" "VIDEO SETUP PAGE" "HDMI SETUP" for detailed HDMI setup. – If you are using the HDMI as audio source make sure that "DIGITAL OUTPUT" is set to "PCM only" (see "Setup Menu Options" "AUDIO SETUP PAGE" "DIGITAL AUDIO SETUP"). –To stop sound output from your TV after making the HDMI connection, make sure that "DIGITAL OUTPUT" is set to "SPDIF OFF" (see "Setup Menu Options" "AUDIO SETUP PAGE"
"DIGITAL AUDIO SETUP").
Note: – Adjust the position of the antenna for optimal reception. –Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.
12
Connections
Step 5: Connecting the power cord
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connection with the power switched on.
Additional: Connecting additional equipment
IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. –When making connections, make sure the colour of cables matches the colour of jacks. –Always refer to the owner’s manual of the other equipment for complete connection and usage details.
Viewing and listening to the playback of other equipment A
Connect the system's AUX IN L/R jacks to the
AUDIO OUT jacks on the other audio/visual device (such as a TV, VCR, Laser Disc player or cassette deck). Before starting operation, press SOURCE on the front panel to select AUX or press AUX on the remote control in order to activate the input source.
Using the VCR for recording DVDs B
Connect one of the system's VIDEO OUT
jacks to the corresponding VIDEO IN jack and AV OUT jacks to the AUDIO IN jacks on the VCR. This will allow you to make analogue stereo (two channel, right and left) recordings.
Recording (digital) C
Connect the system's DIGITAL OUT
(COAXIAL) jack to the DIGITAL IN jack on a
digital recording device.
Additional connection: Connecting a USB device or memory card
By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.
Insert the USB device's USB plug into the
socket on the set.
English
for the devices with USB cables:
1 Inser t one plug of the USB cable (not supplied)
to the socket on the set.
2 Inser t the other plug of the USB cable to the
USB output terminal of the USB device.
for the memory card:
1 Inser t the memory card into a card reader (not
supplied).
2 Use a USB cable (not supplied) to connect the
card reader into the socket on the set.
13
Functional Overview
English
1 % $ @#
9 0 !
875 6432
DVD player and power amplifier
1 STANDBY-ON y
– switches the system on or to standby mode.
2
– is the jack for an external USB mass storage
device.
3 ÉÅ
– starts or interrupts disc playback.
4 9
– stops disc playback or erases a program.
5 ¡/
– skips to the previous/next chapter/title/track.
6 VOLUME -/+
– adjusts the volume upward/downward. – adjusts the hours and minutes in clock/timer
setting mode.
– switches the set timer ON or OFF.
7 22/33
Tuner
– press to tune to a lower/higher radio frequency
gradually.
– press and hold, then release the key to start
automatic search for a radio frequency downward/upward. Disc/USB
– searches fast backward/forward.
8 BASS
– to adjust the bass boost level.
9 TREBLE
– to adjust the treble (high tone) level.
0 n
– connect a headphone.
! Display
– shows the current status of the DVD player.
@ 0
– opens or closes the disc tray.
# IR SENSOR
– point the remote control towards this sensor.
$ Disc tray
– loads a disc.
% SOURCE
– to select the respective sound source : TUNER,
DISC, USB or AUX.
14
Functional Overview
Remote control
1 B
– switches the system on or to standby mode.
2 0
– opens or closes the disc tray.
3 SOURCE
– to select the respective sound source : TUNER,
DISC, USB or AUX.
1
2
3
4 5 6
7
8
8
0
!
#
$
4 AUDIO
for VCD/DivX
– sets Stereo, Mono-Left or Mono-Right sound
mode.
for DVD
– selects an audio language.
5 A-B
– repeats playback of a specific section on a disc.
6 SYSTEM (disc mode only)
– enters or exits the system menu.
7 1 (22) / 2 (33) / 3 / 4
– In DISC mode, to select a movement direction in
the disc menu or system menu bar. Tuner 1 (22) / 2 (33)
– press to tune to a lower/higher radio frequency
gradually.
– press and hold, then release the key to start
⁄ ¤ º
automatic search for a radio frequency downward/upward. Disc/USB 1 (22) / 2 (33)
– searches fast backward/forward.
8 OK
– confirms a selection.
9 ZOOM
–DVD/VCD/Picture CD: enlarges or reduces a
ª ≥
@
§
picture or active image on the TV screen.
oo
0
o
oo
– disables or enables sound output.
! TREBLE
– to adjust the treble (high tone) level.
@ BASS
– to adjust the bass boost level.
English
%
^
& * (
)
£ ≤ ™
¡
15
Functional Overview
English
# í/ë
– Disc/USB: skips to the previous/next chapter/
title/track.
–Tuner: selects a preset radio station.
$ DISPLAY
– displays information on TV screen during
playback
% Numeric Keypad (0-9)
– inputs a track/title/chapter number of the disc.
^ PROGRAM
–DVD/VCD/CD/MP3-CD/USB: enters the
program menu.
– Picture CD: during playback, to select a slide
show mode.
–Tuner: programs preset radio stations.
& REPEAT
– selects a repeat playback mode.
* SHUFFLE
– plays disc/USB tracks randomly.
( LOUDNESS
– enables or disables automatic loudness
adjustment.
) CLOCK
Standby mode *– sets the system clock. Playback mode – displays the system clock.
¡ RDS (unavailable for this version)
DIM
– selects different levels of brightness for the
display screen.
£ TIMER
Standby mode
– sets time for switching on the system
automatically.
SLEEP
Power-on mode
– sets the sleep timer function (auto off).
GOTO
– In DISC mode, to fast search in a disc by
entering a time, title, chapter or track.
§ VOL +/-
– adjusts the volume upward/downward. – adjusts the hours and minutes in clock/timer
setting mode.
– selects a source in timer setting mode.
ÉÅ
– starts or interrupts disc playback.
9
– stops disc playback or erases a program.
ª ANGLE
– selects a DVD camera angle.
º MENU (disc mode only)
–DVD/VCD: enters or exits the disc contents
menu.
– VCD2.0: switches the playback control mode
on or off .
SLOW
– selects different slow playback modes for a
VCD/SVCD/DVD.
¤ SUBTITLE
– selects a subtitle language.
Notes for remote control:
– First, select the source you wish to control by pressing one of the source select keys on the remote control (DISC or TUNER, for example). – Then select the desired function ( 2;, í, ë for example).
16
Getting Started
Step 1: Inserting batteries into the Remote Control
3
1
2
1 Open the battery compar tment. 2 Insert two AAA batteries following the
indications (+/-) inside the compartment.
3 Close the cover.
Using the Remote Control to operate the Player
1 Aim the Remote Control directly at the remote
sensor (IR) on the front panel.
2 Do not put any objects between the Remote
Control and the DVD Player while operating the DVD Player.
CAUTION! – Remove batteries if they are exhausted or if the Remote Control is not being used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.
Step 2: Setting up the TV
IMPORTANT! Make sure you have completed all the necessary connections. (See “Connecting TV”).
1 Switch the DVD system on and then select DISC
source. (See “Switching the system on/off”).
2 Turn on the TV and set to the correct video-in
channel. You should see the blue Philips DVD background screen on the TV.
Selecting the colour system that corresponds to your TV
This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match.
1 Press SYSTEM in full stop mode. 2 Press 1 (22) / 2 (33) to select
“PREFERENCE PAGE”.
3 Use 1 (22) / 2 (33) / 3 / 4 on the remote
to navigate in the menu.
Move to “TV TYPE” and press 2 (33).
PA L : Select this if the connected TV is PAL
system. It will change the video signal of a NTSC disc and output in PAL format.
AUTO: Select this if the connected TV is
compatible with both NTSC and PAL (multi­system). The output format will be in accordance with the video signal of the disc.
NTSC: Select this if the connected TV is
NTSC system. It will change the video signal of a PAL disc and output in NTSC format.
4 Select an item and press OK.
Notes: – This option is available only when the "HDMI" is set to "OFF". – Before changing the current TV Type setting, ensure that your TV supports the selected TV Type.
Setting up Progressive Scan feature (for Progressive Scan TV only)
IMPORTANT! Before enabling the progressive scan feature, you must ensure:
1) Your TV can accept progressive signals, a progressive scan TV is required.
2) You have connected the DVD player to your TV using Y Pb Pr (see “Connections-Step 3: Connecting TV- Using Component Video jacks”.)
English
17
Getting Started
English
1 Tu rn on your TV. 2 Tu rn off your TV progressive scan mode or turn
on interlaced mode (refer to your TV user manual).
3 Press STANDBY-ON B (B on the remote)
to turn on the DVD player.
4 Select the correct Video Input channel.
The DVD background screen appears on the
TV.
5 Press SYSTEM. 6 Press 1 (22) / 2 (33) repeatedly to select
"VIDEO SETUP PAGE".
7 Select "TV MODE" to "P-SCAN", then OK to
confirm.
The instruction menu appear s on the TV.
8 Press 1 (22) / 2 (33) to highlight OK in the
menu and press OK to confirm. There will be a distorted picture on your TV at this state until you turn on the progressive scan mode on your TV.
9 Tu rn on your TV progressive scan mode (refer to
your TV user manual).
The below menu appears on the TV.
0 Press 1 (22) / 2 (33) to highlight OK in the
menu and press OK to confirm.
The setup is complete now and you can start
enjoy the high quality picture.
To deactivate Progressive manually
When the distorted sign still appears on
the TV, it may be due to the connected TV
does not accept progressive signals, and progressive is set by mistake. You must reset the unit to interlace format.
1 Tu rn off your TV progressive scan mode or turn
on to interlaced mode (refer to your TV user manual).
2 Press SYSTEM on the remote control to exit
the system menu. Then press DISC followed by “1” to exit progressive scan.
The DVD blue background screen will appear
on the TV.
18
Note: – During normal playback in the progressive scan mode, pressing DISC button and “1” will exit the progressive scan mode.
Getting Started
Step 3: Setting language preference
1 In stop mode or during playback, press
SYSTEM.
2 Press 1 (22) / 2 (33) / 3 / 4 on the remote
control to select your preferred option.
Move to GENERAL SETUP PAGE or
PREFERENCE PAGE and press 4.
Move to one of the following and press 2
(33).
OSD LANG (On-Screen Display) Switches the display language on the TV screen. Select the language from the displayed list.
AUDIO (DVD only) Switches the display language of the sound track. Select the language from the displayed list.
SUBTITLE (DVD only) Switches the display language of the subtitle. Select the language from the displayed list.
DISC MENU (DVD only) Select the language for the DVD menu.
When the selected language is not recorded in
the DVD, one of the recorded languages will be selected automatically (except for OSD). You can reset all the DVD settings except for Rating.
If the language selected is not available on the disc, the original language designated by each disc will be selected.
3 Press 5/4 to select a language and press OK. 4 Repeat steps 2~3 for other settings.
English
To exit the menu
Press SYSTEM again.
19
Basic Operations
English
Switching the system on/off
Press STANDBY-ONB (or B on the remote
control).
A countdown of 10 seconds star ts for
preheating of the systme. Then, the system will switch to the last selected source.
Press DISC, TUNER, USB or AUX on the
remote control.
The system will switch to the selected source.
To switch the system to standby mode
Press STANDBY-ONB (or B on the remote
control).
BYE BYE” is displayed briefly. The interactive
sound settings, last selected source and tuner presets will be retained in the player’s memory.
Power-saving automatic standby
As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 15 minutes after a disc has stopped playing.
Volume control
Tu r n VOLUME (-/+) clockwise or anticlockwise (or press VOL +/- on the remote control) to increase or decrease the volume level.
VOL XX” is displayed on the display panel.
XX” denotes the volume level.
To switch off the volume temporarily
Press
To activate sound reproduction, you can:
oo
o on the remote control.
oo
Playback will continue without sound and
MUTIE” flashes.
oo
– press
o again;
oo
– adjust the volume controls; – change source.
Sound control
BASS, TREBLE and LOUDNESS sound features cannot be activated at the same time.
Bass enhancement
Bass adjustment enhances the bass response.
Press BASS repeatedly to adjust the bass level.Some discs might be recorded in high
modulation, which causes a distortion at high volume. If this occurs, switch off BASS or reduce the volume.
Tr eble adjustment
The treble (high tone) setting enables you to adjust the treble level of the system.
Press TREBLE repeatedly adjust the treble
level.
LOUDNESS
LOUDNESS feature enables the system to automatically increase the treble and bass sound effect at low volume (the higher the volume, the lower the treble and bass increase).
Press LOUDNESS on the remote to enable or
disable LOUDNESS feature.
icon appears/disappears after this feature
is enabled/disabled.
Dimming the display screen
Press DIM on the remote control repeatedly to
select different levels of brightness for the display screen.
20
Disc Operations
ALL
3
IMPORTANT! – Depending on the DVD or VIDEO CD, some operations may be different or restricted. – Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction. – If the inhibit icon (ø) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.
Region Codes
DVDs must be labeled as shown below in order to play on this DVD system. You cannot play discs that are labeled for other regions.
Note: – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not play on this DVD Player.
Playing discs
1 Connect the power cords of the system and TV
(or any optional stereo or AV receiver) to a power outlet.
2 Tu rn on the TV power and set to the correct
Video In channel. (See “Setting up the TV”).
3 Press STANDBY-ON B on the DVD Player
front panel or B on the remote control.
You should see the blue Philips DVD
background screen on the TV.
4 Press ç to open the disc tray and load in a disc,
then press the same button again to close the disc tray.
Make sure the label side is facing up.
5 Playback will start automatically (depending on
the disc type).
If a disc menu appears on the TV, see “Using
the Disc Menu”.
If the disc is locked by parental control, you
must enter your four-digit password. (See “PASSWORD SETUP PAGE”).
6 At any time, simply press 9 to stop playback.
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load the disc.
To select a playback feature or item
Use 1 (22) / 2 (33) / 3 / 4 and OK or
Numeric Keypad (0-9) on the remote.
Playback will start automatically.
To access or exit from the menu
Press MENU on the remote control.
For VCD with Playback Control (PBC) feature (version 2.0 only)
PBC playback allows you to play Video CDs interactively, following the menu on the display.
During playback, press MENU.If PBC was ON, it will switch to OFF and
continue playback.
If PBC was OFF, it will switch to ON and
return to menu screen.
Basic playback controls
Pausing playback (DVD/VCD/CD/MP3/ DivX/WMA)
1 During playback, press ÉÅ .
Playback will pause and sound will be muted.
2 Press ÉÅ again to resume.
Selecting a track/chapter/title (DVD/ VCD/DivX/CD)
1 Press during playback to go to the next
chapter/track
2 Press ¡ to go to the previous chapter/track. 3 To go directly to any chapter/track/title, enter the
chapter/track/title number using the Numeric Keypad (0-9).
Resuming playback from the last stopped point (DVD/VCD/CD)
In stop mode and when a disc has not been
removed, pressÉÅ.
English
21
Disc Operations
English
To cancel resume mode
In stop mode, press 9 again.
Zoom (DVD/VCD/DivX/JPEG)
Zooming allows you to enlarge or reduce the video image during playback.
1 Press ZOOM repeatedly to enlarge or reduce
the playback video image.
2 Press 1 (22) / 2 (33) / 3 / 4 to pan across
the TV screen.
Repeat & Shuffle (DVD/VCD/CD/MP3/ DivX/WMA)
Press REPEAT or SHUFFLE on the remote
control to choose a repeat or random playback mode during playback.
2 Use the Numerical Keypad (0-9) to directly
input the tracks or chapters (single track number with digit “0” in front, for example “05”).
3 Move the cursor by pressing 1 (22) / 2 (33)
/ 3 / 4 to select START.
4 Press OK to star t playback.
For MP3/WMA
1 In Stop mode, press MENU to switch the menu
between Album and Filelist.
2 When Filelist is on the screen, press 3 4 to
select the files and press PROGRAM to add the files to the program list.
3 Press MENU to display the program list. 4 Press PROGRAM to delete unwanted files
from the program list.
Repeat A-B (DVD/VCD/CD/MP3/DivX/ WMA)
1 Press A-B at your chosen starting point. 2 Press A-B again at your chosen end point.
The section A and B can be set only within
the same chapter/track.
The section will now repeat continuously.
3 To exit the sequence, press A-B again.
Slow Motion (DVD/VCD)
1 Press SLOW during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16 (backward or forward).
Sound will be muted.
2 To return to normal speed, press ÉÅ.
Note: – Slow backward is not possible on VCDs.
Program (not for Picture CD)
To select favourite tracks/chapters for playback in preferred sequence.
For DVD/VCD/CD
1 Press PROGRAM on the remote control to
enter the program mode.
Forward/Reverse Searching (DVD/VCD/ DivX/CD/MP3/WMA)
1 Press 5 6 on the system or 1 (22) / 2
(33) on the remote control during playback to select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).
Sound will be muted.
2 To return to normal speed, press ÉÅ.
Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA)
1 Press GOTO until the time or chapter/track
edit box appears.
2 Enter hours, minutes and seconds from left to
right in the time edit box using remote control numerical keypad.
OR
Enter your desired chapter/track number in the chapter/track edit box using remote control numerical keypad.
Information display during playback (not for Picture CD)
During playback, press DISPLAY to show disc
information on the TV screen.
22
Disc Operations
Special disc features
Playing a Title (DVD)
1 Press MENU.
The disc title menu appears on the TV screen.
2 Use 1 (22) / 2 (33) / 3 / 4 or Numeric
Keypad (0-9) to select a play option.
3 Press OK to confirm.
Camera Angle (DVD)
Press ANGLE repeatedly to select different
desired angle.
Changing the Audio Language (for DVD recorded with multiple languages)
Press AUDIO repeatedly to select different
audio languages.
Changing the Audio Channel (for VCD only)
Press AUDIO to select the available audio
channels provided by the disc (Mono Left, Mono Right or Stereo).
Subtitles (DVD)
Press SUBTITLE repeatedly to select different
subtitle languages.
Playing MP3/WMA/JPEG Picture CD
1 Load an MP3/WMA/JPEG disc.
The data disc menu appears on the TV
screen.
2 Use 3 4 to select an album (folder) and press
OK to open the album (folder).
3 Press 3 4 or use the Numeric Keypad (0-9)
to highlight a track. (file)
4 Press OK to confirm.
The playback will start from the selected
track (file) to the end of the album (folder).
Special JPEG features
Preview function (JPEG)
This function shows the content of the current folder or the whole disc.
1 Press 9 during playback.
Thumbnails of 12 pictures appears on the TV
screen.
2 Use 1 (22) / 2 (33) / 3 / 4 to highlight
one of the pictures/”Slide Show” and press OK to start playback/slide show.
To enter the remote key function menu
Use 1 (22) / 2 (33) / 3 / 4 to highlight
“Menu” and press OK.
To display the other pictures on the previous/next page
Press ¡ / ™.
Use 1 (22) / 2 (33) / 3 / 4 to highlight
“Prev” or “Next” and press OK.
Zoom picture (JPEG)
During playback, press ZOOM repeatedly to
display the picture with different scales.
Use 1 (22) / 2 (33) / 3 / 4 to view the
zoomed picture.
Playback with multi-angles (JPEG)
During playback, press 1 (22) / 2 (33) / 3 /
4 on the remote control o rotate the picture
on the TV screen.
English
23
Disc Operations
English
Playing a DivX disc
This DVD player supports the DivX movie playback that you download from your computer onto a CD-R/RW (see “System Menu Options-DIVX(R) VOD registration code” for more information).
1 Load a DivX disc.
Playback will start automatically. If not press
ÉÅ.
2 If the DivX movie contains external subtitles, the
subtitle menu will appear on the TV screen for your selection.
In this case, pressing SUBTITLE on the remote
control will turn on or off the subtitle.
If multilingual subtitles are embedded on the
DivX disc, pressing SUBTITLE will change the subtitle language during playback.
Note: – Subtitle files with the following filename extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the file navigation menu. – The subtitle filename have to be the same as the filename of the movie.
24
External Sources
Using a USB mass storage device
By connecting a USB mass storage device to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.
Playing a USB mass storage device Compatible USB mass storage devices
With the Hi-Fi system, you can use: – USB flash memor y (USB 2.0 or USB1.1) – USB flash players (USB 2.0 or USB1.1) – memor y cards (requires an additional card
reader to work with this Hi-Fi system)
Note: – In some USB flash players (or memory devices), the stored contents are recorded using copyright protection technology. Such protected contents will be unplayable on any other devices (such as this Hi-Fi system).
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate – WMA v9 or earlier – Directory nesting up to a maximum of 8
levels – Number of albums/ folders: maximum 99 – Number of tracks/titles: maximum 999 – ID3 tag v2.0 or later – File name in Unicode UTF8 (maximum length:
128 bytes)
The system will not play or support the following:
– Empty albums – Non-supported file formats are skipped.
–AAC, WAV, PCM audio files – DRM protected WMA files – WMA files in Lossless format
How to organize your MP3/WMA files on the USB mass storage device
This Hi-Fi system will browse the MP3/WMA files in the folders/sub-folders/titles order.
Organize your MP3/WMA files in different folders or subfolders as required.
Notes: – If you have not organized MP3/WMA files into any albums on your disc, an album "00" will be automatically assigned for all those files. – Make sure that the file names of MP3 files end with .mp3. and the file names of WMA files end with .wma. –For DRM protected WMA files, use Windows Media Player 10 (or later) for conversion. Visit www.microsoft.com for details about Windows Media Player and WM DRM (Windows Media Digital Rights Management).
1 Check the USB device has been properly
connected. (See “Connections - Additional connection: Connecting a USB device or memory card”).
2 Press SOURCE on the system (or USB on
the remote control) to select USB.
- NO AUDIO appears if no audio file is found in the USB device.
3 Play the USB's audio files as you do with the
albums/tracks on a CD (See “Disc Operations”).
Notes: –For compatibility reasons, the album/track information may differ from what it is displayed through flash players' music management software. – File names or ID3 tags will be displayed as --- if they are not in English.
English
25
System Menu Options
English
Basic operations
1 Press SYSTEM to enter the Setup Menu. 2 Press 1 (22) / 2 (33) to select a page to be
set.
3 Press 3 4 to highlight an option. 4 Enter its submenu by pressing 2 (33) or OK. 5 Move the cursor by pressing 3 4 to highlight
the selected item.
In cases of value setting, press 1 (22) / 2
(33) to adjust values.
6 Press OK to confirm.
To return to the upper-level menu
Press 1 (22) or OK (in cases of value
adjustment).
To exit from the menu
Press SYSTEM again.
The settings will be stored in the player’s
memory even if the player is switched off.
Note: – Some of the features in the System Menu Options are described in “Getting Started”.
GENERAL SETUP PAGE
TV DISPLAY
Set the aspect ratio of the DVD Player according to the TV you have connected.
NORMAL/PS: If you have a normal TV and
want both sides of the picture to be trimmed or formatted to fit your TV screen.
NORMAL/LB: If you have a normal TV. In
this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.
WIDE: If you have a wide-screen TV.
OSD LANG
See “Getting Started-Step 3: Setting language preference”.
SCREEN SAVER
This function is used to turn the screen saver on or off.
ON: In STOP, PAUSE or No DISC mode, if
no actions are performed about 3 minutes, the screen saver will be activated.
OFF: Screen saver is disabled.
DIVX(R) VOD
Philips provides you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit us at www.divx.com/ vod.
1 In GENERAL SETUP PAGE, press 3 4 to
highlight DIVX(R) VOD, then press 2 (33) or OK to ener its submenu and press OK again to confirm.
The registration code will appear.
2 Press OK to exit. 3 Use the registration code to purchase or rent
the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a CD-R for playback on this DVD player.
Notes: – All the downloaded videos from DivX® V OD can only be played back on this DVD player. – Time search feature is not available during DivX movie playback.
AUDIO SETUP PAGE
SPDIF SETUP
OFF: Tu r ns off the SPDIF output.SPDIF/RAW: If you have connected your
DIGITAL OUT (COAXIAL) to a multi-channel decoder/receiver.
SPDIF/PCM: Only if your receiver is not
capable of decoding multi-channel audio.
26
System Menu Options
DOLBY DIGITAL SETUP
Select the setting that matches the number of speakers you have connected.
STEREO: Left mono sound will send output
signals to Left speaker and Right mono sound will send output signals to Right speaker.
L-MONO: Left mono sound will send
output signals to Left speaker and Right speaker.
R-MONO: Right mono sound will send
output signals to Left speaker and Right speaker.
3D PROCESSING
Provides a virtual surround sound experience using just two speakers.
OFF, CONCERT, LIVING ROOM,
HALL, BATHROOM, CAVE, ARENA and CHURCH.
HDCD
Sets the audio output cutoff frequency point when playing an HDCD disc.
OFF, 44.1K and 88.2K.
NIGHT MODE
In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night.
ON: Select this to level out the volume. This
feature is only available for movies with Dolby Digital mode.
OFF: Select this when you want to enjoy the
surround sound with its full dynamic range.
AUDIO SYNC
Sets the audio output delay time if the video playback is slower than the audio output.
Select this option and then use 1 (22) / 2
(33) keys on the remote control to set the delay time for the audio output between 0~200ms.
VIDEO SETUP PAGE
COMPONENT
Sets the video output according to your video connection. This setting is not required if you are using the VIDEO jack (yellow) to connect the DVD micro system to your TV.
S-VIDEO: Select this if you have connected
the DVD micro system to your TV using S-Video jack.
Pr/Cr Pb/Cb Y: Select this if you have
connected the DVD micro system to your TV using Component video jacks.
TV MODE
Selects interlace or P-SCAN video output mode when Pr/Cr Pb/Cb Y is selected.
P-SCAN and INTERLACE.
In the progressive scan mode, you can enjoy the high quality picture with less flickers. It only works when you have connected the DVD player's Y Pb Pr jacks to your TV that suppor ts the progressive video input. Otherwise, a distorted picture will appear on the TV. For proper progressive scan set up, see “Getting started-Setting up Progressive Scan feature”.
QUALITY
This menu helps you to set the video quality.
SHARPNESS
Adjusts the sharpness level.
HIGH, MEDIUM and LOW.
BRIGHTNESS
Adjusts the brightness level. Range: -20-+20.
CONTRAST
Adjusts the contrast level. Range: -16-+16.
GAMMA
Adjusts the gamma level.
HIGH, MEDIUM, LOW and NONE.
HUE
Adjusts the hue level. Range: -9-+9.
SATURATION
Adjusts the saturation level. Range: -9-+9.
LUMA DELAY
Adjusts the luma delay.
0 T and 1 T.
English
27
System Menu Options
English
HDMI SETUP
The options included in HDMI SETUP Page are: "HDMI" and "RESOLUTION".
HDMI
This option is used to enable/disable HDMI output.
AUTO: Enables HDMI output automatically.OFF: Disables HDMI output.
RESOLUTION
The resolution options include 480p (60Hz), 720p (60Hz), 1080i (60Hz), 576p (50Hz), 720p (50Hz) and 1080i (50Hz).
Notes: – This option is available only when the "HDMI" is set to "AUTO". – If no display appears on the TV screen due to unsupported resolution, reconnect any available interlace video output to your display and re-adjust the resolution settings to 480p/576p.
PREFERENCE PAGE
DEFAULT
Setting the “DEFAULT” function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased.
Caution! – When this function is activated, all settings will be reset to factory defaults.
PASSWORD SETUP
PASSWORD MODE
This feature is used to enable/disable password by selecting “ON”/”OFF”.
PASSWORD
Enter your four digit password when a hint is displayed on the screen. The default password is
1234.
IMPORTANT! –Preference features can be selected only during “No Disc” condition or full STOP mode.
PARENTAL
1 Press 3 4 to highlight “PARENTAL”. 2 Enter its submenu by pressing 2 (33). 3 Use 3 4 to highlight a rating level for the disc
inserted.
DVDs that are rated above the level you
selected will not play unless you enter your four­digit password and choose a higher level rating.
Note: – Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs.
28
Other Functions
Radio Reception
Tuning to radio stations
1 Press STANDBY-ON B (or B on the
remote control) to switch on the last selected source.
2 Press SOURCE (TUNER on the remote
control) to select TUNER (FM) mode.
3 Press and hold ¡ / (1 (22) / 2 (33) on
the remote control) until the frequency indication starts to change, then release.
The system automatically tunes to the next
strong radio station.
To tune to a weak station, press ¡ / (or 1
(22) / 2 (33) on the remote control) briefly and repeatedly until an optimal reception is found.
4 Repeat Step 3 if necessar y until you find the
desired radio station.
Presetting radio stations
You can preset up to 20 stations regardless of the reception.
Automatic progamming
Press PROGRAM on the remote control for
more than two seconds to activate programming.
All available stations are programmed.
Listening to preset radio stations
In tuner mode, press ¡ / to select the desired
preset number.
The preset number, radio frequency, and
waveband are displayed.
English
Manual progamming
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press PROGRAM on the remote control.
PROG” icon flashes.
3 Press ¡ / to select the desired preset number.
If “PROG” icon goes off before you select the
desired preset number, press PROGRAM on the remote control.
4 Press PROGRAM on the remote control again
to store the radio station.
Repeat steps 1-4 to store other radio stations.
29
Other Functions
English
Setting the clock
1 In Standby mode, press and hold CLOCKon
the remote control until the time flashes on the display.
SET CLOCK” is displayed briefly. Then, the
hour digits flash on the display screen.
2 Tu rn VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote control to set the hours.
3 Press CLOCK to confirm.
The minute digits flash on the display screen.
4 Tu rn VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote control to set the minutes.
5 Press CLOCK again to confirm the clock
setting.
Notes: – This system only supports 24-hour mode. – The clock setting will be erased when the system is disconnected from the power supply. – The system will exit clock setting mode if no button is pressed within 30 seconds.
Setting sleep/wake-up timer
Sleep timer setting
In power-on mode, the sleep setting enables
the system to switch to standby mode automatically at a preset time.
1 In power-on mode, press SLEEP on the remote
control repeatedly to select a preset time.
The selections are as follows (time in
minutes):
-- 10 20 30 40 50 60 70 80 90 --
2 When you reach the desired length of time, stop
pressing SLEEP.
SLEEP” appears.
To deactivate the sleep timer
Press SLEEP repeatedly until “00” is displayed,
or press STANDBY-ON B (B on the remote control).
In standby mode, the timer setting enables the system to switch on automatically at a set time.
Wake-up timer setting
IMPORTANT! – Before setting the timer, ensure that the clock is set correctly.
1 Press and hold TIMER until the time flashes on
the display.
SET TIMER” scrolls. Then, the hour digits
flash on the display screen.
2 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote control to set the hours.
3 Press TIMER to confirm.
The minute digits flash on the display screen.
4 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote control to set the minutes.
5 Press TIMER to confirm the time setting.
OFF” flashes on the display screen.
6 Tur n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote control to select “ON”.
icon appear s on the display screen.
To deactivate the timer
Select “OFF” at Step 6.
30
Specifications
Amplifier
Rated output power ........................... 2 x 75W RMS
Frequency response ............... 20 - 20000Hz, - 3dB
Signal to noise ratio ............................................ > 65dB
Aux input ............................................. 1V RMS 20kohm
Disc
Laser type ................................................ Semiconductor
Disc diameter .................................................. 12cm/8cm
Video decoding .............MPEG-1 / MPEG-2 / Divx
Video DAC ................................................................. 12Bits
Signal system ............................................... PAL / NTSC
Video format .................................................... 4:3 / 16:9
Video S/N............................................................... > 48dB
Audio DAC ............................................ 24Bits / 96kHz
Total harmonic distor tion .................. < 1% (1kHz)
Frequency response ........ 4Hz - 20kHz (44.1kHz)
......................................................... 4Hz - 22kHz (48kHz)
......................................................... 4Hz - 24kHz (96kHz)
S/N ratio ............................................................... > 65dBA
Tuner
FM tuning range .................................. 87.5 - 108MHz
Tuning grid ............................................................... 50KHz
Sensitivity
– Mono, 26dB S/N ratio ................................... <22dBf
– Stereo, 46dB S/N ratio ................................. >48dBf
Search Selectivity ................................................. > 28dBf
Image Rejection .................................................... > 25dB
Total Harmonic Distortion .................................. < 3%
Signal to Noise Ratio ..................................... > 55dBA
Speakers
Speaker impedance .............................................. 4 ohm
Speaker Driver ............... 5” full range + 2’ tweeter
Sensitivity .............................................................. 80 ± 4dB
Frequency response ........................... 20 - 20000 Hz
General information
AC power ....................... 110 – 127 / 220 – 240 V;
....................................................... 50/60 Hz Switchable
Operation power consumption ....................... 85W
Standby power consumption ........................... < 4W
Composite video output ............... 1.0Vp-p, 75ohm
Coaxial output ................ 0.5Vpp ± 0.1Vpp 75ohm
Headphone output ......................2x15mW 32 ohm
USB direct ........................................................ Version 2.0
Dimensions
– Main unit (W x H x D) .................................................
........................................................... 280 x 130 x 290mm
– Speaker box (W x H x D)..........................................
........................................................... 185 x 305 x 225mm
Weight
– With packing ........................................................... 13kg
– Main unit .................................................................. 4.85kg
– Speaker box....................................................... 2X4.5kg
Specifications subject to change without prior notice
English
31
Troubleshooting
English
WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
No power.
No picture.
Problem
Solution
Check if the AC power cord is properly
connected.
Press STANDBY-ON B on the top of the
DVD micro system or B on the remote control to turn on the power.
Check if the TV is switched on.Check the video connection.Press SOURCE on the top of the DVD player
repeatedly to select “DVD” or press DISC on the remote.
Set your TV to the correct Video In channel. This
channel is usually near channel 00. Or, you may have a button on the TV remote control that selects Auxiliary or A/V IN channel. See your TV owner’s manual for details. Or, change channels at the TV until you see DVD screen on the TV.
If the progressive scan feature is activated but
the connected TV does not suppor t progressive signals or the cables are not connected accordingly, see “Getting star ted-Setting up Progressive Scan feature” for proper progressive scan setup or deactivate the progressive scan feature as below:
1) Turn off your TV progressive scan mode or turn on to interlaced mode.
2) Press SYSTEM on the remote control to exit the system menu. Then press DISC followed by “1” to exit progressive scan.
Distorted or poor picture.
Completely distorted picture or black/ white picture.
32
Sometimes a small amount of picture distor tion
may appear. This is not a malfunction.
Clean the disc.
TV has a colour system standard. If the disc’s or
DVD system’s colour system is different than your TV’s colour system, the picture may be distorted or colour less.
Tr oubleshooting
The aspect ratio of the screen cannot be changed even though you have set the TV shape.
No sound or distorted sound.
The micro DVD player does not start playback.
The DVD micro system does not respond when the buttons are pressed.
The aspect ratio is fixed on the DVD disc.Depending on the TV, it may not be possible to
change the aspect ratio.
Adjust the volume.Check that the speakers are connected
correctly.
Replace the speaker cables.Disconnect the headphones.The system is in pause, slow motion or fast
forward/reverse mode, pressÉÅ to resume normal play mode.
Inser t a readable disc with the playback side
facing down.
Check the disc type, colour system and regional
code. Check for any scratches or smudges on the disc.
Press SYSTEM to turn off the setup menu
screen.
Cancel the parental control rating function or
change the rating level.
Moisture has condensed inside the system.
Remove the disc and leave the system turned on for about an hour.
Disconnect the power plug from the outlet and
insert again.
English
Cannot activate some features, such as Angles, Subtitles, or multi-language Audio.
Considerable noise in radio broadcasts.
Multi-language sound or subtitle is not
recorded on the DVD.
Changing the language for the sound or subtitle
is prohibited on the DVD.
The features may not be available on the disc.
Tune in to the correct frequency.Connect the antennas.Fully extend the FM wire antenna. Position for
best reception and secure to a wall.
Connect an outdoor FM antenna.Adjust the direction and position for best
reception.
Place the antenna far ther away from any
equipment that may be causing the noise.
Increase the distance between the system and
your TV or other equipment.
33
Troubleshooting
English
The remote control does not function.
The display is dark.
Low hum or buzz sound.
Low bass response.
Unable to select Progressive Scan.
No sound is output from the HDMI jack.
Some files on the USB device are not displayed.
Select the correct source (DISC or TUNER, for
example) before pressing the function button.
Point the remote control at the remote sensor
of the unit.
Reduce the distance to the player.Remove any possible obstacles.Replace the batteries with new ones.Check that the batteries are loaded correctly.
Press DIM again.
Place the DVD micro system as far away as
possible from electrical devices that may be causing interference.
Check all speakers for correct polarity.
Check that the output of the video signal is
switched to 'Pr/Cr Pb/Cb Y'.
Check the connection between the TV and the
HDMI jack of the DVD player.
See if the TV supports this 480p/576p/720p/
1080i DVD player.
Check your TV system setup correctly.
Check if the number of folders exceeds 99 or
the number of titles exceeds 999.
DEVICE NOT SUPPORTED” scrolls on the display.
34
Remove the USB mass storage device or select
another source.
