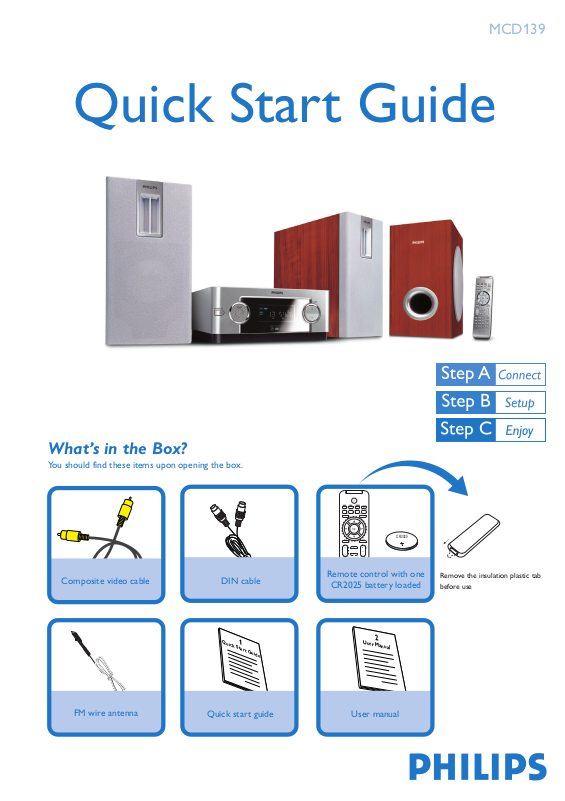

Quick Start Guide
MCD139
What’s in the Box?
You should find these items upon opening the box.
Composite video cable
FM wire antenna
DIN cable
Quick Start Guide
Quick start guide
TUNER
DISPLAY
DISC AUX
OSD
SLEEP/TIMER
MODE
CLOCKA-B
DISC MENU
SYSTEM MENU
OK
AUDIO MUTE
1
2
4
5
7
8
PROG
SUBTITLE
0
Remote control with one
CR2025 battery loaded
1
+
VOL
GOTO
3
ZOOM
6
DSC
9
DBB
User Manual
CR2025
Remove the insulation plastic tab
before use
2
User manual
Page 2
Important!
1
4
7
2
5
8
0
3
6
9
PROG
AUDIO MUTE
GOTO
VOL
+
ZOOM
DSC
DBB
OK
SYSTEM MENU
MODE
CLOCKA-B
SLEEP/TIMER
DISPLAY
OSD
DISC MENU
DISC AUX
TUNER
SUBTITLE
– This set can only be operated after the
supplied DIN cable has been connected.
Tips
– See the User Manual for other TV
connection options.
–For connecting to a Progressive Scan
TV, refer to the user manual for proper
connections and detailed setup.
1
Connect the speaker wires of the right speaker and subwoofer to the
left speaker.
2
Connect the supplied FM wire antenna.
3
Connect the left speaker and the DVD player by using the supplied
DIN cable.
4
Connect the DVD player to your TV using the supplied composite video
cable.
TV
1 1
3
4
Speakers
Right Speaker
Subwoofer
5
Connect the AC power cord to the wall socket.
––
+
Red
Black
White
Green
Notes for the remote control:
– First, select the source you wish to
control by pressing one of the source
select keys on the remote control
(DISC or AUX, for example).
– Then select the desired function
(
2;, í, ë
5
AC Power Cord
2
ANTENNA
FM
(75Ω)
FM wire antenna
for example).
Setting up the TV
1
Press SOURCE (DISC on the remote) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
Page 3

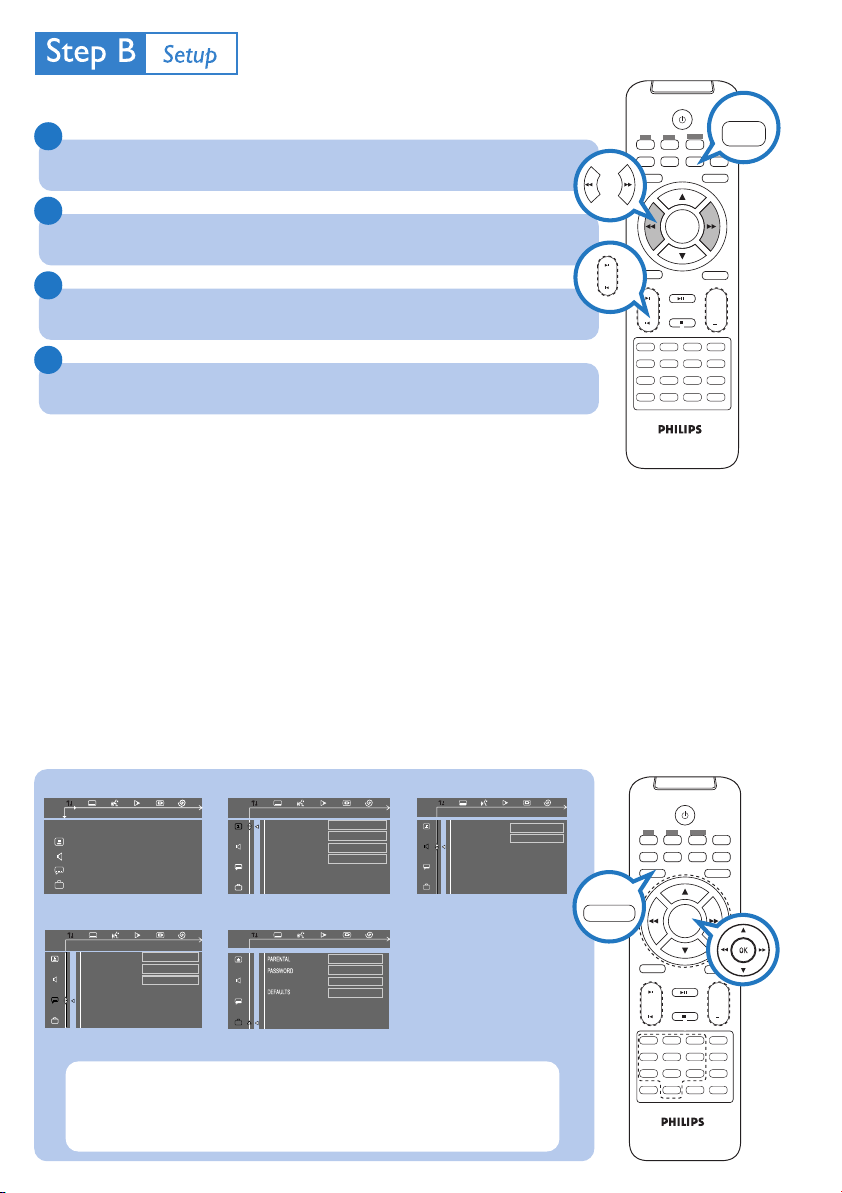

Setting the clock
1
In standby or power on mode, press and hold CLOCK on the remote control.
The clock digits flash on the display.
DISC AUX
SYSTEM MENU
CLOCK
TUNER
DISPLAY
OSD
SLEEP/TIMER
MODE
CLOCKA-B
DISC MENU
2
Press ¡ / ™ repeatedly to set the hours.
3
Press à / á repeatedly to set the minutes.
4
Press CLOCK again to store the setting.
Setting DVD menu options
IMPORTANT!
If the progressive scan feature is activated but the connected TV does not support
progressive signals or the video cables are not connected accordingly, see the user
manual for proper progressive scan setup or deactivate the progressive scan
feature as below:
1) Turn off your TV progressive scan mode then turn on to interlaced mode.
2) Select “OFF” in PROGRESSIVE menu of the system setup menu to turn off
progressive scan, then press SYSTEM MENU on the remote to exit the system
menu.
Or To turn off progressive scan, you may also first open the disc door, then hold
down
™ on the front panel, and press numeric key “1” on the remote.
OK
AUDIO MUTE
1
2
3
4
5
6
7
8
9
PROG
SUBTITLE
0
+
VOL
GOTO
ZOOM
DSC
DBB
SETUP MENU
AUDIO
SUBTITLE
DISC MENU
GOTO LANGUAGE SETUP PAGE
ENGLISH
ENGLISH
ENGLISH
TV DISPLAY
TV TYPE
PROGRESSIVE
SCREEN SAVER
OSD LANG
NORMAL/PS
MULTI
OFF
ON
GOTO PICTURE SETUP PAGE
8 ADULT
CHANGE
ENGLISH
RESET
GOTO FEATURE SETUP PAGE
Tip
See chapters "Getting Started" and "DVD menu operations" in the
User Manual for detailed descriptions.
NIGHT MODE
TEST TONE
GOTO SOUND SETUP PAGE
OFF
OFF
DISC AUX
SYSTEM MENU
TUNER
DISPLAY
OSD
SLEEP/TIMER
MODE
CLOCKA-B
DISC MENU
SYSTEM MENU
OK
AUDIO MUTE
+
VOL
1
4
7
PROG
GOTO
2
3
ZOOM
5
6
DSC
8
9
SUBTITLE
DBB
0
Page 4

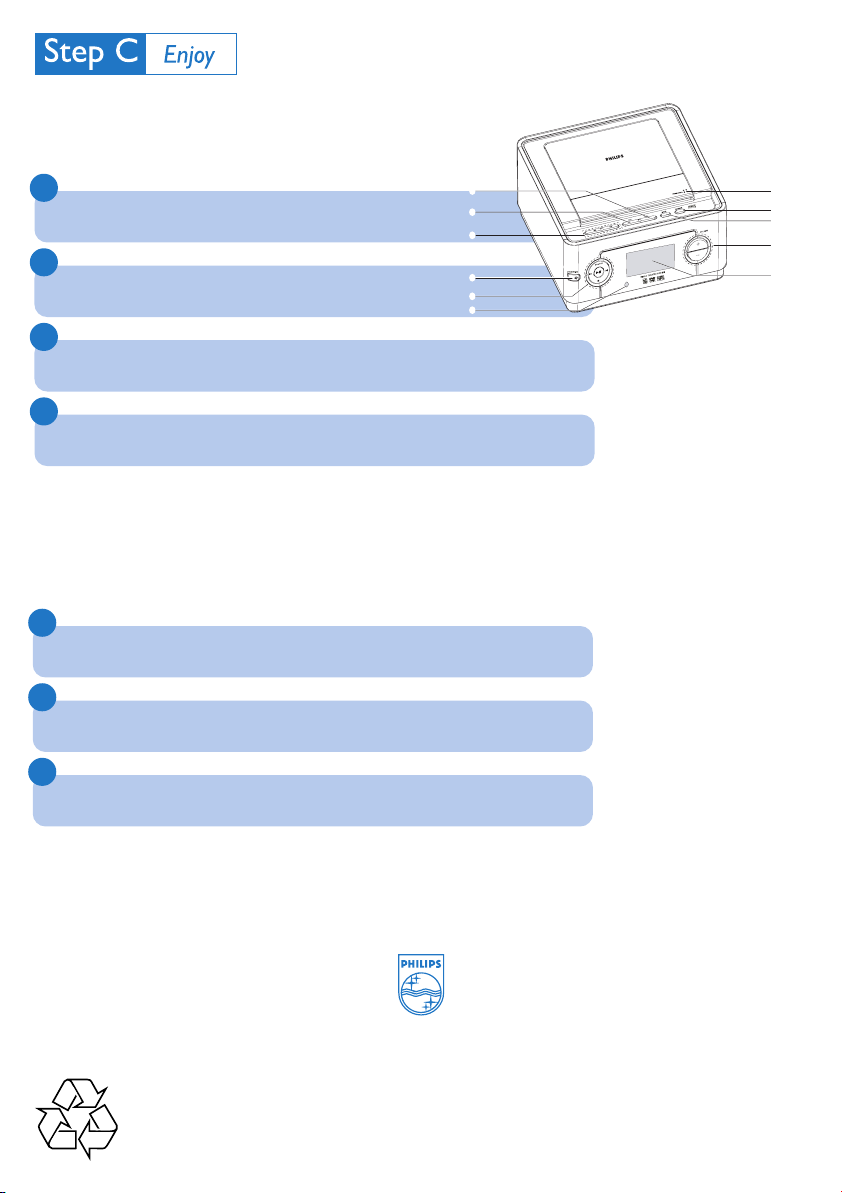

Playing a disc
1
Push OPEN /CLOSEç to open the disc door.
2
Load in a disc with the label side facing up, then close the disc door.
1
2
3
4
5
6
3
Playback will start automatically. If not, pressÉÅ.
4
To stop playback, press 9.
Programming and tuning to radio stations
1
Press SOURCE (TUNER on the remote) to select tuner source (FM).
2
Press PROGRAM on the set for more than two seconds to program all available stations
in order of waveband.
7
8
9
0
!
To s witch on the system,
press STANDBY ONB/
SOURCE on the set, or
DISC/TUNER/AUX on the
remote.
3
Press ¡ / ™ (Numberic keys on the remote) until the desired preset station is displayed.
Tip
Detailed playback features and
additional functions are described in the
accompanied user manual.
2006 C Koninklijie Philips Electronics
N.V. All rights reserved.
