Philips MC-57 User manual

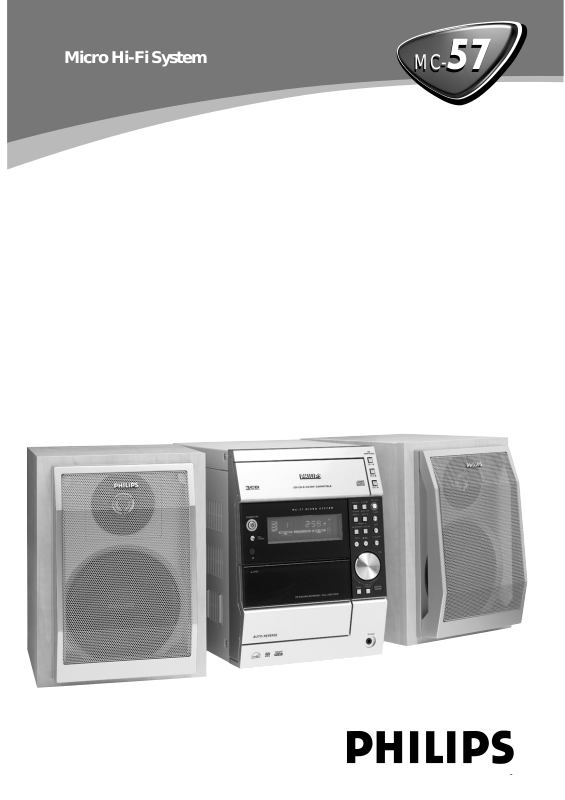

Micro Hi-Fi System	MC-57

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1Remove fuse cover and fuse.

2Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.

3Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

¶As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

–Connect the blue wire to the terminal marked N or coloured black.

–Connect the brown wire to the terminal marked L or coloured red.

–Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio MC-57 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven,The Netherlands

Norge

Typeskilt finnes på apparatens underside.

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

CD	CD / CD-R / CD-RW COMPATIBLE
3C H A N G E R

OPEN•CLOSE

CD 1

CD 2

CD 3

PLAY	CD 1•2•3
	STOP

M I C R O S Y S T E M
STANDBY-ON
PAUSE	DEMO STOP
PREV	TUNER
PREV	NEXT
NEWS
PRESET

TAPE

SEARCH/ TUNE

ECO POWER

PROG REC AUX/CDR

VOL

OPEN

BASS TREBLE

DIGITAL

SOUND

CONTROL

PHONES

Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

Klass 1 laseraparat

Varning! Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

Luokan 1 laserlaite

Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle.

Huom.Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

	Index
English ------------------------------------------------	6
Français --------------------------------------------	30
Español ---------------------------------------------	55
Deutsch ---------------------------------------------	80
Nederlands --------------------------------------	105
Italiano --------------------------------------------	130
Svenska -------------------------------------------	155
Dansk ---------------------------------------------	180
Suomi ---------------------------------------------	205
Português ----------------------------------------	230
∂ППЛУИО¿ -----------------------------------------	255
Polski ----------------------------------------------	280

English

Fran aisç

Espa olñ

Suomi Dansk Svenska Italiano Nederlands Deutsch

Portugu sê

Polski ∂ППЛУИО¿

English

Contents

General Information
Environmental Information ................................	7
Acknowledgement ...............................................	7
Supplied Accessories ...........................................	7
Safety Information ................................................	7
Preparations
Rear Connections ............................................	8–9
Optional Connections ........................................	9
Inserting batteries into the remote
control ....................................................................	9
Controls
Controls on the system and remote
control ...........................................................	10–11
Basic Functions
Plug and Play .................................................	12–13
Demonstration mode ........................................	13
Switching the system on ...................................	13
Switching the system to Standby mode ........	13
Switching the system to Eco Power
Standby mode .....................................................	13
Power Saving Automatic Standby ....................	14
Dim mode ............................................................	14
Volume Control ..................................................	14
Interactive Sound Control ...............................	15

Tape Operation/Recording
Tape Playback ......................................................	22
General Information on Recording ................	23
Preparation for Recording ...............................	23
One Touch Recording ........................................	23
CD Synchro Recording .....................................	24
Digital Recording via Digital Out ....................	24
External Sources
Listening to External Sources ..........................	24
Clock/Timer
Clock Setting .......................................................	25
Display Clock ......................................................	25
Timer Setting .......................................................	26
Sleep Timer Setting ............................................	26
Specifications ...........................................	27
Maintenance ..............................................	28
Troubleshooting .............................	28–29

CD Operation
Discs for Playback ..............................................	16
Loading Disc ........................................................	16
Disc Playback .......................................................	17
Programming the disc tracks ....................	17–18
Repeat ...................................................................	18
Shuffle ....................................................................	18
Radio Reception
Storing Preset Radio Stations ...................	19–20
Tuning to Preset Radio Stations ......................	20
Erasing a Preset Radio Station ........................	20
RDS ................................................................	20–21
NEWS ...................................................................	21

General Information

This product complies with the radio interference requirements of the European Community.

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Acknowledgement

Energy Star

As an ENERGY STARR

Partner, Philips has determined that this product

meets the ENERGY STARR guidelines for energy efficiency.

Supplied accessories

–Remote control

–Batteries (two AA size) for remote control

–AM loop antenna

–FM wire antenna

–AC power cord

Safety Information

●Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

●Place the system on a flat, hard and stable surface.

●Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

●Do not expose the system, batteries or discs to excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

●If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

●The mechanical parts of the set contain selflubricating bearings and must not be oiled or lubricated.

●When the system is switched to Standby mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

	Preparations
English	AM loop			FM wire antenna
	antenna
	speaker	DIGITAL	B	AC	speaker
	speaker	OUT	B	MAINS	speaker
	(right)				(left)
	R	L	AM ANTENNA FM ANTENNA 75Ω
	R	L
	AUX/CDR IN
	SUB
	WOOFER OUT
		+
		R
		– C
		–
		L
		+
	SPEAKERS 6Ω
					A
					AC power cord
	Rear Connections			B Antennas Connection

The type plate is located at the rear of the system.

For users in the U.K.: please follow the instructions on page 2.

APower

Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.

WARNING!

–For optimal performance, use only the original power cable.

–Never make or change connections with the power switched on.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions.

If this happens, let the system cool down before reusing it (not available for all versions).

Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.

AM Antenna

Fix the claw to the slot

¶Position the antenna as far as possible from a TV, VCR or other radiation source.

Preparations

FM Antenna

¶For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal.

CSpeakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS

(FRONT) terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".

1 2

●Fully insert the stripped portion of the speaker wire into the terminal as shown.

Notes:

–For optimal sound performance, use the supplied speakers.

–Do not connect more than one speaker to any one pair of +/- speaker terminals.

–Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Optional Connections

The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.

Subwoofer Out Connection

Connect the subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effect (explosions or the rumble of spaceships, for example).

Connecting other equipment to your system

Connect the audio left and right OUT terminals of a TV,VCR, Laser Disc player, DVD player or CD Recorder to the AUX/CDR IN terminals.

Note:

– If you are connecting equipment with a monaural output (a single audio out terminal), connect it to the AUX/CDR IN left terminal. Alternatively, you can use a “single to double” cinch cable (still be monaural sound).

Digital Out Connection

Connect this digital output when recording on any audio equipment with digital input (CD Recorder, Digital Audio Tape [DAT] deck, Digital to Analogue Converter and Digital Signal Processor, for example). Use a cinch cable to connect the DIGITAL OUT terminal to the digital input terminal of the equipment.

Inserting batteries into the Remote Control

Insert two batteries (Type R06 or AA) into the remote control with the correct polarity as indicated by the + and - symbols inside the battery compartment.

2 1

CAUTION!

–Remove batteries if they are exhausted or will not be used for a long time.

–Do not use old and new or different types of batteries in combination.

–Batteries contain chemical substances, so they should be disposed off properly.

English
