Index
English ------------------------------------------------ 6
Français -------------------------------------------- 22
Español --------------------------------------------- 38
Deutsch --------------------------------------------- 54
Nederlands ---------------------------------------- 70
Italiano ---------------------------------------------- 86
English
Français
Español
DeutschNederlandsItalianoSvenskaDanskSuomi
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM5
Svenska ------------------------------------------- 102
Dansk --------------------------------------------- 118
Suomi --------------------------------------------- 134
Português ---------------------------------------- 150
Português
∂ППЛУИО¿ ----------------------------------------- 166
∂ППЛУИО¿Polski
Polski ---------------------------------------------- 184
5
3140 115 27913
Page 6
Contents
English
General Information
Environmental Information ................................ 7
Supplied Accessories ........................................... 7
Safety Information ................................................ 7
Preparation
Rear Connections ............................................. 8-9
Inserting batteries into the Remote Control 9
Controls
Controls on the system and remote
control .............................................................. 9-10
Basic Functions
Switching ON ...................................................... 11
Power-saving automatic standby ..................... 11
Adjusting volume and sound............................ 11
Compact Disc
Playing a disc ........................................................ 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 12
Different play modes: Shuffle and
Repeat ................................................................... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
Clock/Timer
Setting the clock ................................................. 18
Setting Timer ....................................................... 18
Activating and deactivating TIMER ................. 18
Activating and deactivating SLEEP .................. 19
Maintenance.............................................. 19
Specifications ........................................... 20
Troubleshooting .............................. 20-21
Tuner
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Tuning to Preset Radio Stations ...................... 14
RDS ................................................................. 14-15
EON ...................................................................... 15
Searching programme type (PTY) .................. 15
RDS News and Traffic Announcement (TA) . 15
Tape Recorder
Tape playback ...................................................... 16
Switching tape sides ........................................... 16
General Information on Recording ................ 16
Synchro Start CD recording ............................ 17
Recording from the radio................................. 17
Recording from the Aux ................................... 17
Recording Timer ................................................. 17
6
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM6
3140 115 27913
Page 7
General Information
¶ The type plate (which contains the serial
number) is located at the rear of the
system.
¶ Recording is permissible if copyright or
other rights of third parties are not
infringed.
¶ This product complies with the radio
interference requirements of the European
Community.
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
– 2 speaker boxes
– remote control with batteries
– AM frame aerial
– FM aerial wire
Safety Information
¶ Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer. The typeplate is located at
the rear of your system.
¶ When the system is switched on, do not move it
around.
¶ Place the system on a solid base (e.g. a cabinet).
¶ Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
¶ Do not expose the system to excessive
moisture, rain, sand or heat sources.
¶ Under no circumstances should you repair the
system yourself, as this will invalidate the
warranty!
¶ If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the CD
unit inside the system. Should this occur, the CD
player will not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
¶ Electrostatic discharge may cause unexpected
problems. See whether these problems
disappear if you unplug the AC power cord and
plug it in again after a few seconds.
¶ To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM7
7
3140 115 27913
Page 8
Preparation
English
A
AM
aerial
FM
aerial
B
75Ω
E
Rear Connections

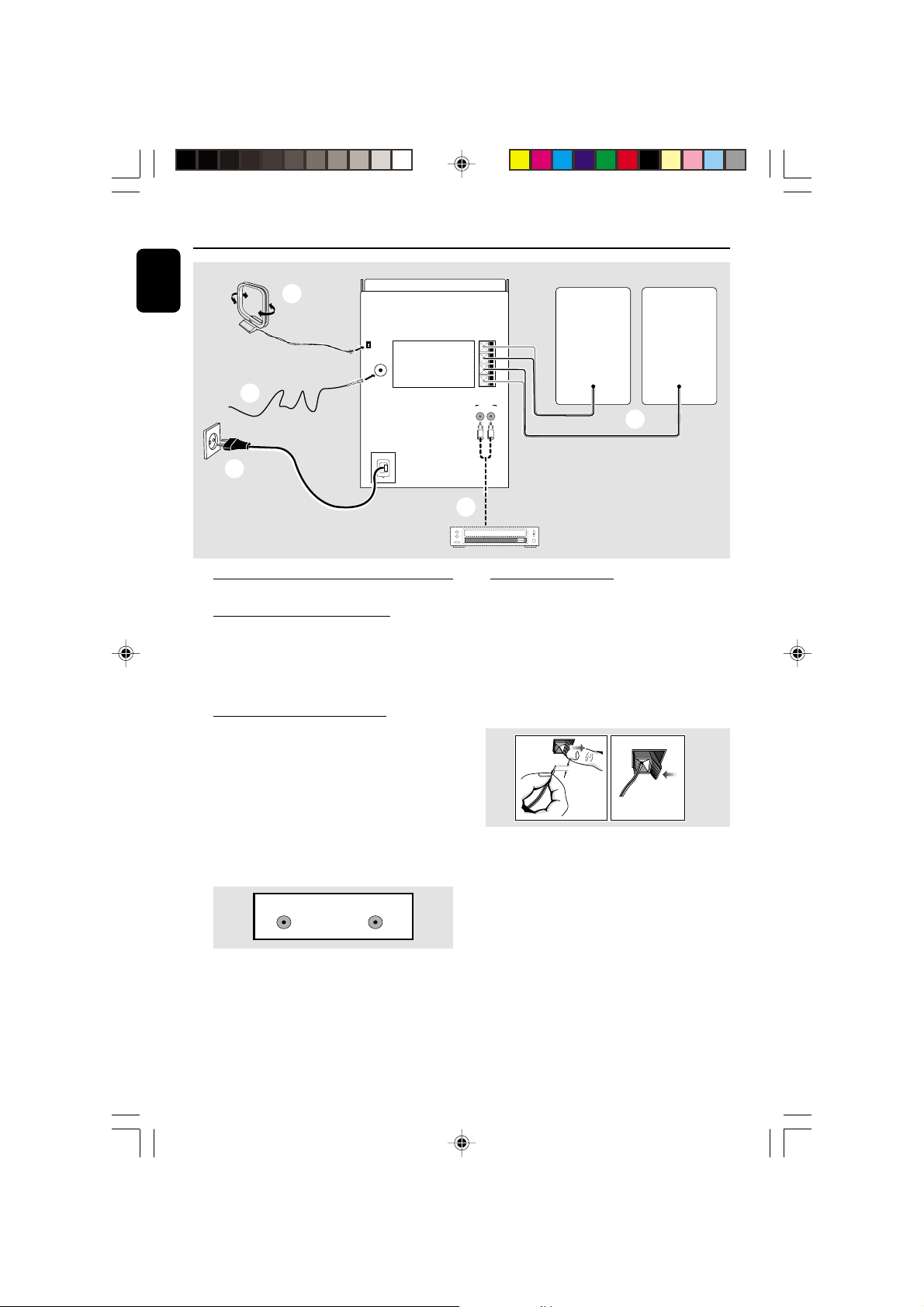

A AM Loop Antenna Connection
Connect the supplied loop antenna to the AM
AERIAL (AM ANTENNA) terminal. Place the
AM loop antenna far away from the system and
adjust its position for the best reception.
B FM Wire Antenna Connection
Connect the supplied FM wire antenna to the
FM AERIAL (FM ANTENNA) 75 Ω terminal.
Adjust the position of the FM antenna for the
best reception.
Outdoor Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) 75 Ω terminal using a 75 Ω coaxial
wire.
FM AERIAL 75Ω
FM ANTENNA 75Ω
OR
LR
speaker
8Ω
+
RIGHT
–
–
LEFT
+
AUX in
LR
C
D
AUDIO OUT
C Speakers Connection
¶ Connect the right speaker to terminal marked
RIGHT, with the coloured wire to + and the
black wire to -.
¶ Connect the left speaker to terminal marked
LEFT, with the coloured wire to + and the black
wire to -.
¶ Clip the stripped portion of the speaker wire as
shown.
12 mm
unlock
CAUTION:
– For optimal sound performance, it is
recommended to use the supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminal.
– Do not connect speakers with impedance lower
than the speakers supplied. Please refer to
SPECIFICATION section of this manual.
lock
8
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM8
3140 115 27913
Page 9
Preparation
D Connecting other equipment to your
system
You can connect the audio left and right OUT
terminals of a TV, VCR, Laser Disc player, DVD
player or CD Recorder to the AUX IN terminals
at the rear of the system.
E AC Power Supply
After all other connections have been made,
connect the AC power cord of the system to
the wall outlet.
For users in the U.K. : please follow the
instructions on page 2.
Controls (main system’s illustration on page 3)
Controls on the system and
remote control
1 STANDBY-ON y
– switches the system to standby/on.
– on the remote control only - switches the system
to standby.
2 iR
– infrared sensor for remote control.
3 SOURCE
– selects the respective sound source for CD/
TUNER/ TAPE /AUX.
– switches on the system.

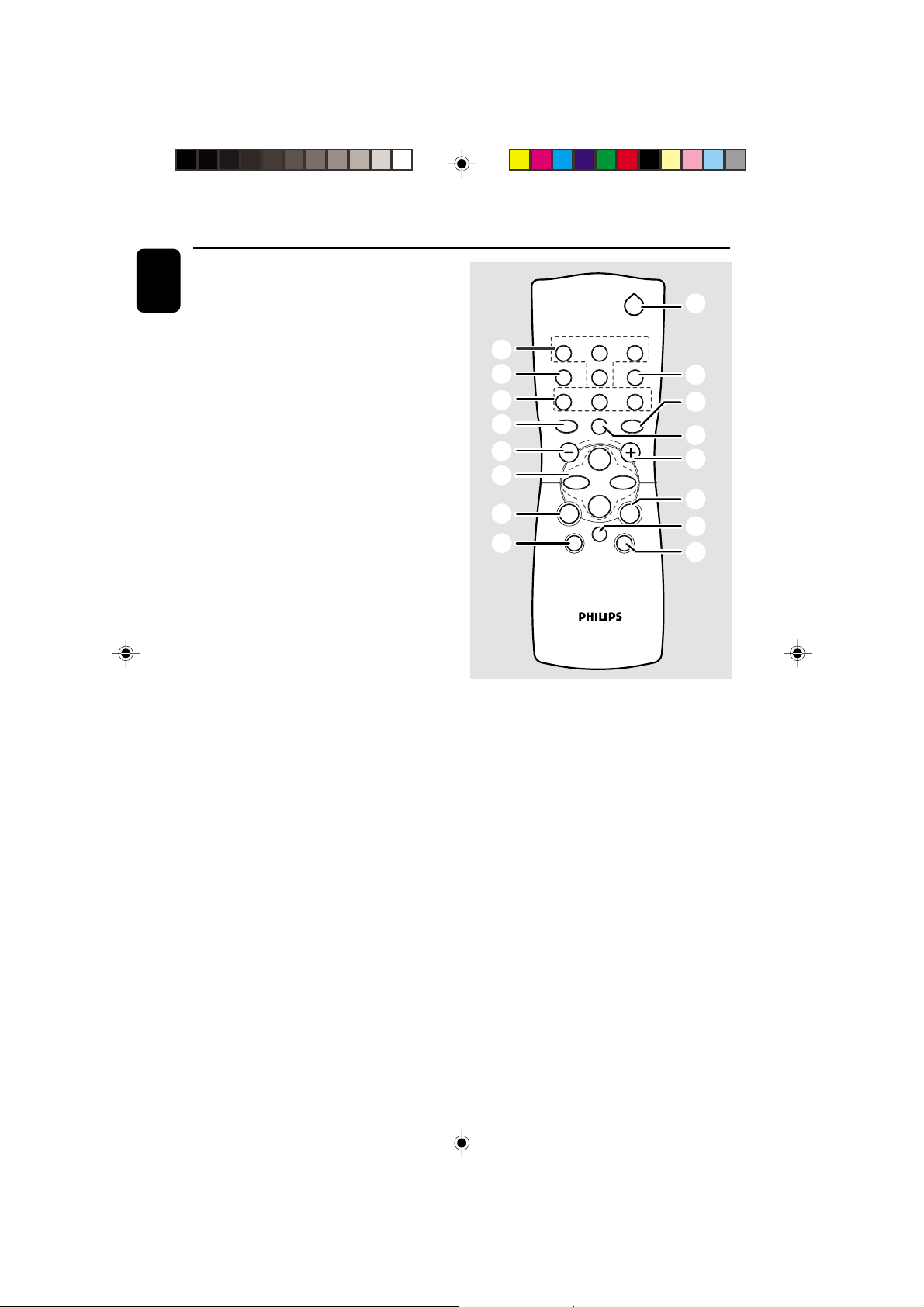

4 SHUFFLE/ SIDE A/B
for CD ................. plays CD tracks in random order.
for Tape ............... switches tape direction.
5 RDS / CLOCK
for Tuner ............. displays RDS information.
for Clock ............ sets the clock function.
for Tape ............... shows tape counter in recording
mode.
6 PROGRAM
for CD ................. programmes tracks and reviews
the programme.
for Tuner ............. programmes tuner stations
manually or automatically.

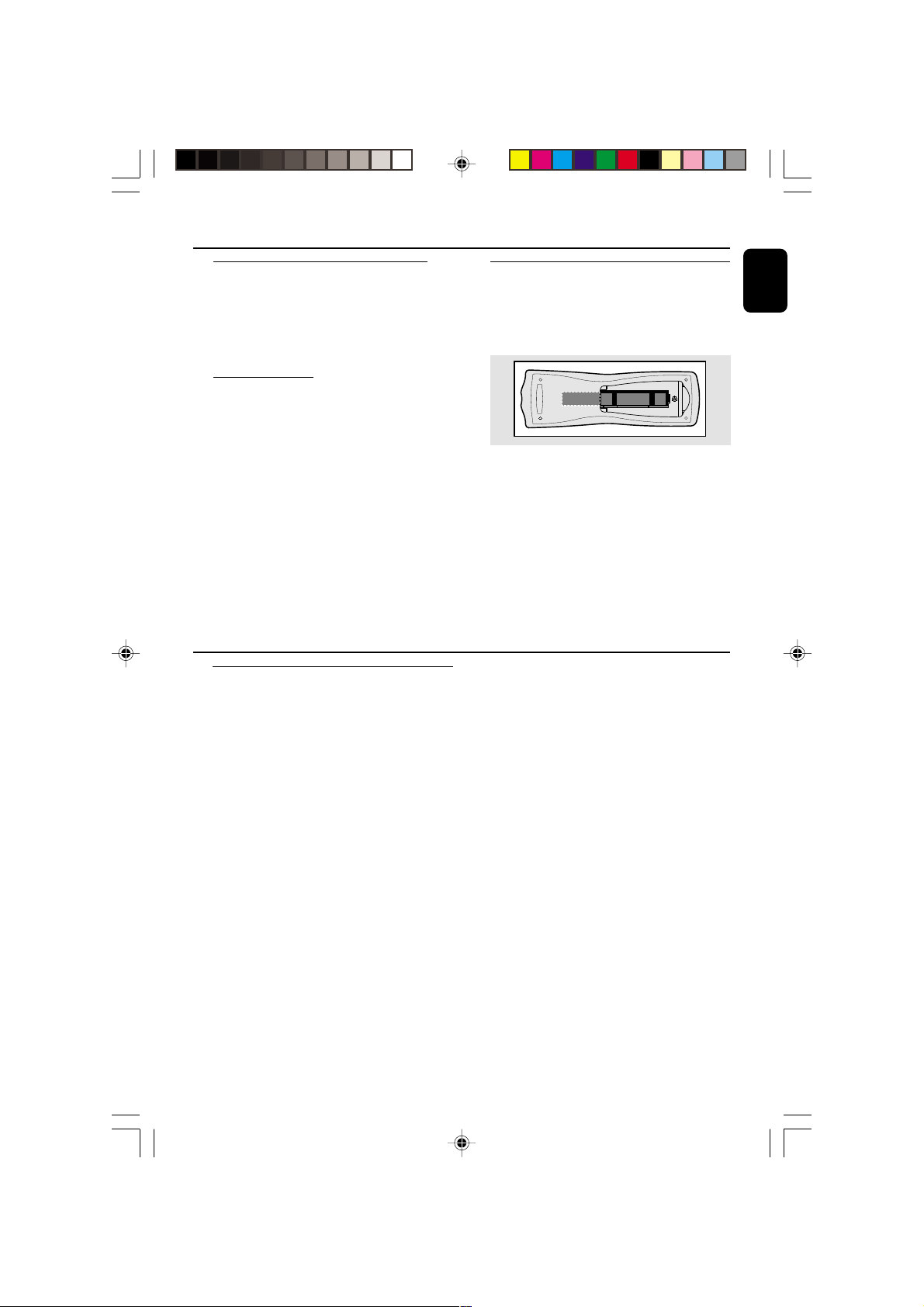

Inserting batteries into the
Remote Control
¶ Inser t batteries (Type R06 or AA) into the
remote control as shown in the battery
compartment.
+
-
+
-
¶ To avoid damage from possible battery leakage,
remove dead batteries or batteries that will not
be used for a long time.
Batteries contain chemical substances, so
they should be disposed off properly.
7 TIMER ON•OFF
– activates/deactivates or sets (on the system only)
the timer function.
8 Mode Selection
9 STOP ............ stops CD playback or erase a
................................. stops tape playback/recording.
ÉÅ PLAY•PAUSE
(É ) .................... star ts CD/Tape playback.
.................................. (on the remote control only)
(SIDE/Å ) ....... interrupts CD playback.
.................................. (on the remote control only)
PRESET 43
( ¡, ™ ) .............. selects a preset radio station.
REW à / ¡ FWD á / ™
( ¡, ™ ) .............. skips to the beginning of a
( à, á ) .......... fast searches back and forward
................................. fast rewind/wind tape or during
CD programme.
switches Tape direction during
playback.
switches tape direction.
current track/previous/
subsequent track.
within a track/CD.
playback, review and cue
passages.
English
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM9
9
3140 115 27913
Page 10
Controls
English
TUNING 34
( à, á ) ..........tunes to radio stations.
9 REPEAT/ REV MODE/ BAND
for CD ................. repeats a track/CD programme/
entire CD.
for Tape ............... selects tape reverse modes.
for Tuner ............. selects waveband.
0 Display
– shows the status of the system.
! VOLUME ( -/+ )
– adjusts the volume level.
– on the system only - adjusts the hour and minutes
for the clock/timer functions.
@ RECORD
– starts recording.
# OPEN
– opens tape compartment.
$ OPEN•CLOSE
– opens/closes the CD door.
% n
– connect headphones.
^ INTERACTIVE SOUND controls:
DBB .................... (Dynamic Bass Boost) enhances
the bass.
DSC ..................... (Digital Sound Control) selects
sound characteristics: OPTIMAL/
ROCK/JAZZ/POP.
INC. SURR ...(Incredible Surround) creates a
super-enhanced stereo effect.
& MUTE
– interrupts and resumes sound reproduction.
* NEWS/TA
– activates RDS news and Traffic Announcement
(not for all versions).
( SLEEP
– activates/deactivates or selects the sleeper time.
1
(
*
8
!
8
3
7
^
&
!
8
8
DBB
MUTE
à
2
TUNERTAPECD
SLEEP AUXTIMER
DSC
INC. SURR
SIDE
NEWS/TA
Å
VOLUME
É
Ç
ë
á
í
4
9
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (e.g. CD ,
TUNER, etc.).
– Then select the desired function (É,
ë
, etc.).
SHUFFLE
REPEAT PROGRAM
6
í
,
10
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM10
3140 115 27913
Page 11
STANDBY-ON
iR
MC-30 MICRO SYSTEM
FWD á/ë
SHUFFLE
PLAY•PAUSE
RDS/CLOCK
SIDE A/B
TIMER ON•OFF PROGRAM
TUNING
REW à /í
SOURCE
REPEAT
REV MODE/BAND
STOP
RECORD
PRESET
VOLUME
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching on
There are 3 ways to switch the system on:
¶ press 2 STANDBY-ON on the system and
the last selected source switches on;
¶ press SOURCE on the system and the last
selected source switches on;
¶ press CD, TUNER, TAPE or AUX on the
remote control.
To switch the system to standby, press 2
STANDBY-ON once on the system (2 on
the remote control).
¶ If in recording mode, press 9 first.
➜ The volume level, interactive sound settings,
last selected source and tuner presets will be
retained in the player's memory.
Power-saving automatic standby
As a power-saving feature, the system
automatically switches to standby 15 minutes
after a tape or CD has reached the end and no
control is operated.
Basic Functions

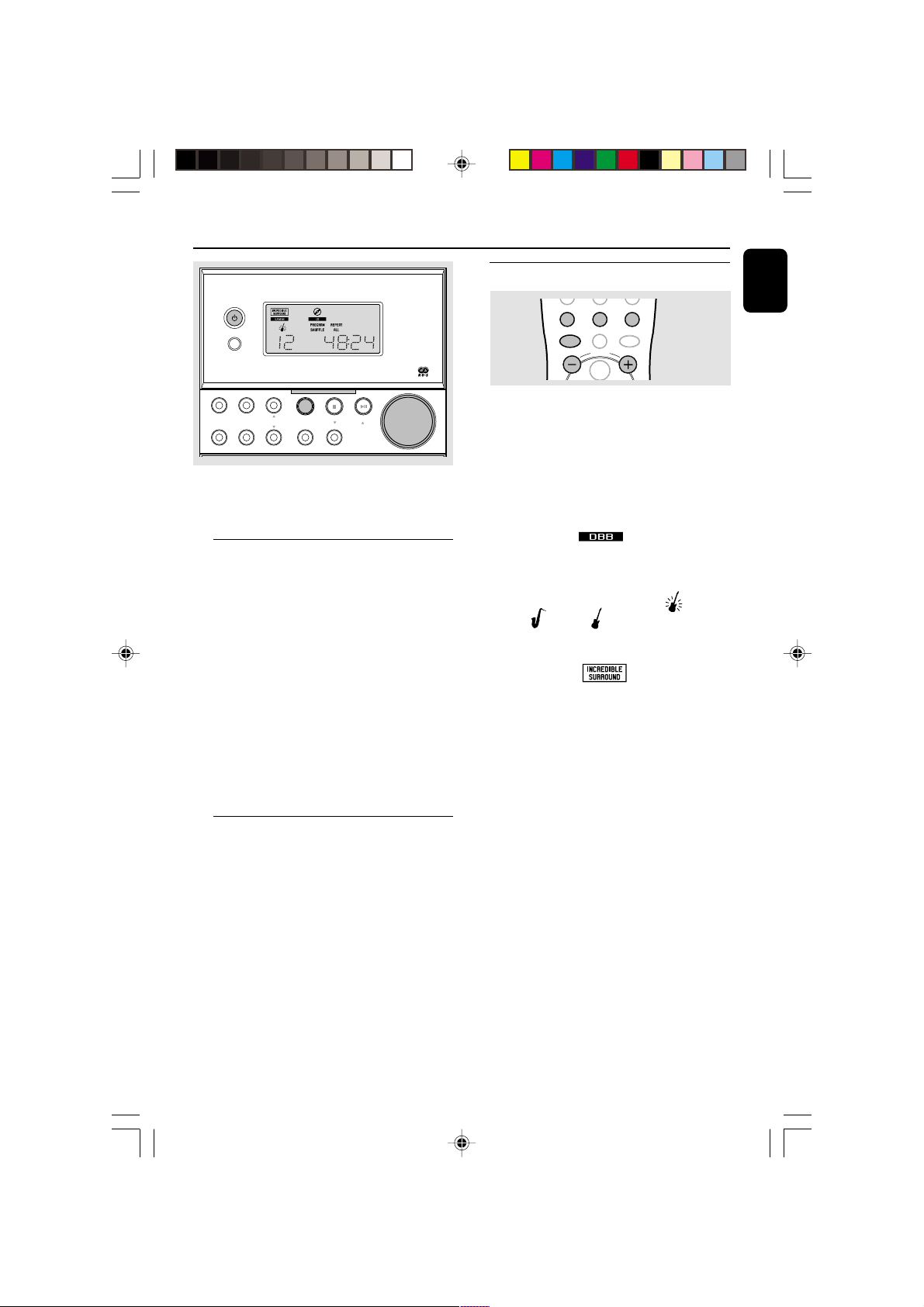

Adjusting volume and sound
DSC
SIDE
Å
VOLUME
É
INC. SURR
NEWS/TA
DBB
MUTE
1 Turn the VOLUME control anti-clockwise to
decrease or clockwise to increase volume on the
system (or press VOLUME -/+ on the
remote control).
➜ Display shows the volume level VOL and a
number from 0-32.
2 Press DBB on the remote control to switch
bass enhancement on or off.
➜ Display shows: if the DBB is
activated.
3 Press DSC on the remote control once or
more to select the desired sound effect:
OPTIMAL (no indication)/ ROCK ( ) /
JAZZ ( )/ POP ( ) .
4 Press INC. SURR. on the remote control to
switch the surround sound effect on or off.
➜ Display shows: if activated.
Note:
– The effect of INCREDIBLE SURROUND may
vary with different types of music.
5 Press MUTE on the remote control to
interrupt sound reproduction instantly.
➜ Playback will continue without sound and the
display shows MUTE.
¶ To activate sound reproduction you can:
– press MUTE again;
– adjust the volume controls;
– change source.
English
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM11
11
3140 115 27913
Page 12
Compact Disc
English
STANDBY-ON
iR
MC-30 MICRO SYSTEM
FWD á/ë
SHUFFLE
PLAY•PAUSE
RDS/CLOCK
SIDE A/B
TUNING
TIMER ON•OFF PROGRAM
REW à /í

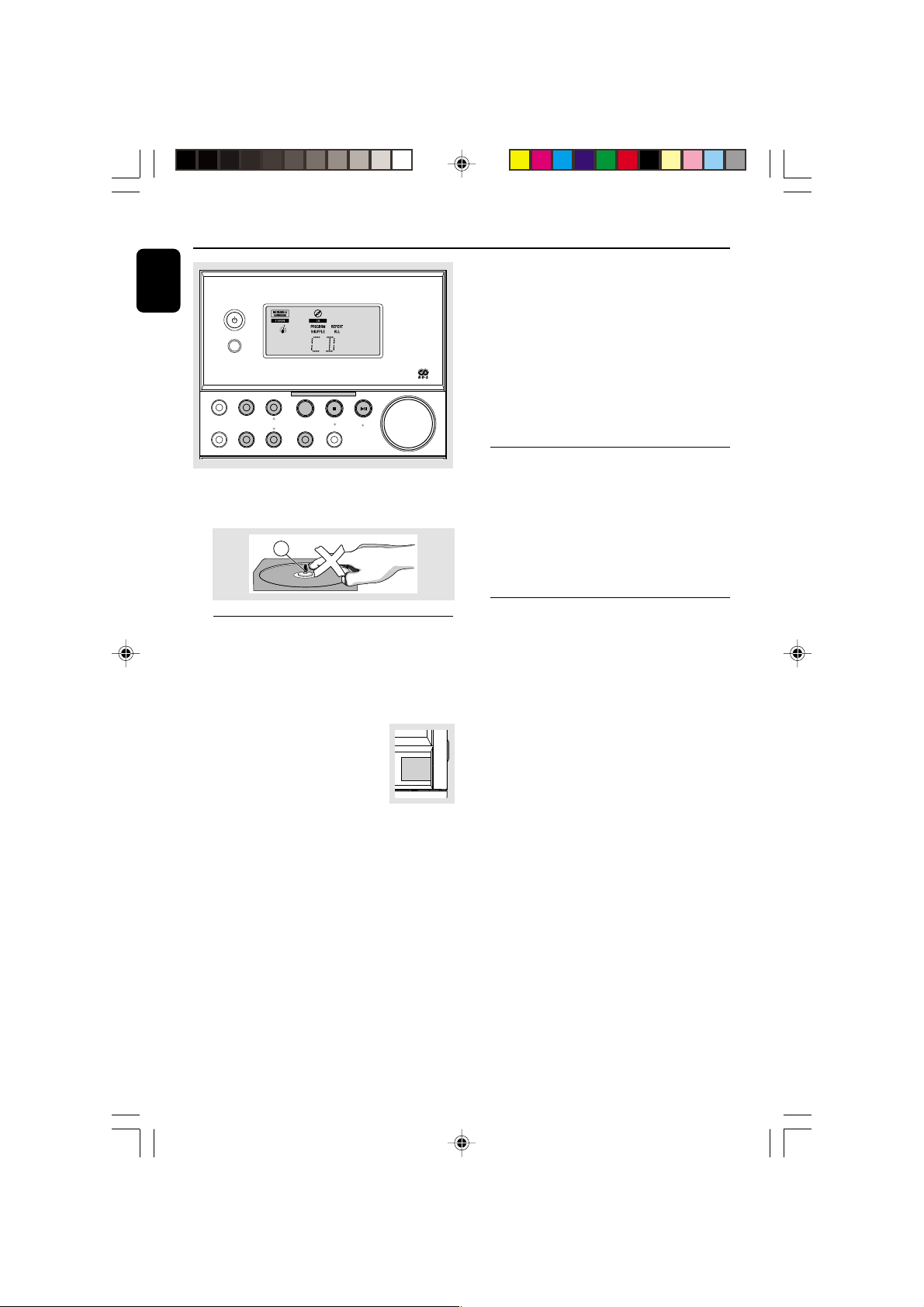

IMPORTANT:
The lens of the CD player should never be
touched.
X
Playing a disc
This CD player plays Audio Discs including CDRecordables and CD-Rewritables.
¶ CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
1 Select CD source.
2 Press OPEN•CLOSE on the top
of the system to open the CD
compartment.
➜ OPEN is displayed when you
open the CD compartment.
3 Inser t a disc with the printed side facing up and
press down on OPEN•CLOSE to close the
CD door.
➜ READ is displayed as the CD player scans
the contents of a disc, and then the total number
of tracks and playing time are shown.
4 Press 2; (on the remote control 2) to star t
playback.
➜ Current track number and elapsed playing
time of the track are displayed during disc
playback.
SOURCE
REPEAT
REV MODE/BAND
STOP
RECORD
PRESET
VOLUME
OPEN •
CLOSE
5 To interrupt playback press 2; (on the remote
control SIDE/;). Press 2; (on the remote
control 2) again to resume play.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
6 To stop disc playback, press 9.
Note: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TAPE, TUNER or AUX.
Selecting a different track
¶ Press REW à / ¡ or FWD á / ™ (on the
remote control ¡ or ™) once or repeatedly until
the desired track number appears in the display.
¶ If you have selected a track number shortly after
loading a disc or in the PAUSE position, you will
need to press 2; (on the remote control 2) to
start playback.
Finding a passage within a track
1 Press and hold down on REW à / ¡ or
FWD á / ™.
➜ The disc is played at high speed and low
volume.
2 When you recognise the passage you want,
release REW à / ¡ or FWD á / ™.
➜ Normal playback continues.
Note:
– During a disc programme or if SHUFFLE/
REPEAT active, searching is only possible within the
same track.
12
pg 001-021/MC30/22-Eng 12/7/00, 1:32 PM12
3140 115 27913
Page 13
Compact Disc
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The play
modes can also be combined with
PROGRAMME.
SHUFFLE ......... tracks of the entire disc/
programme are played in
random order
SHUFFLE and REPEAT ALL…to repeat the
entire disc/ programme
continuously in random order
REPEAT ALL ... repeats the entire disc/
programme
REPEAT ............ plays the current track
continuously
1 To select your play mode, press the SHUFFLE
or REPEAT button before or during playback
until the display shows the desired function.
2 Press 2; (on the remote control 2) to star t
playback if in the STOP position.
➜ If you have selected SHUFFLE, playback star ts
automatically.
3 To return to normal playback, press the
respective SHUFFLE or REPEAT button until
the various SHUFFLE/ REPEAT modes are no
longer displayed.
¶ You can also press 9 to cancel your play mode.
4 Repeat steps 2-3 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to
programme more than 20 tracks.
5 To start playback of your disc programme, press
2; (on the remote control 2).
Reviewing the programme
In STOP mode, press and hold down
PROGRAM on the system or remote control,
for a while until the display shows all your stored
track numbers in sequence.
Erasing the programme
You can erase the programme by:
¶ pressing 9 once in the STOP mode;
¶ pressing 9 twice during playback;
¶ opening the CD compar tment;
➜ PROGRAM disappears from the display.
English
Programming track numbers
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
20 tracks can be stored in the memory.
1 Press PROGRAM on the system or remote
control to enter the programming mode.
➜ A track number is shown and PROGRAM
flashes.
2 Use the REW à / ¡ or FWD á / ™ (on
the remote control ¡ or ™) to select your
desired track number.
3 Press PROGRAM to confirm the track number
to be stored.
➜ The number of tracks programmed and total
playing time of the programme is shown briefly,
then the selected track and PROG.
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM13
13
3140 115 27913

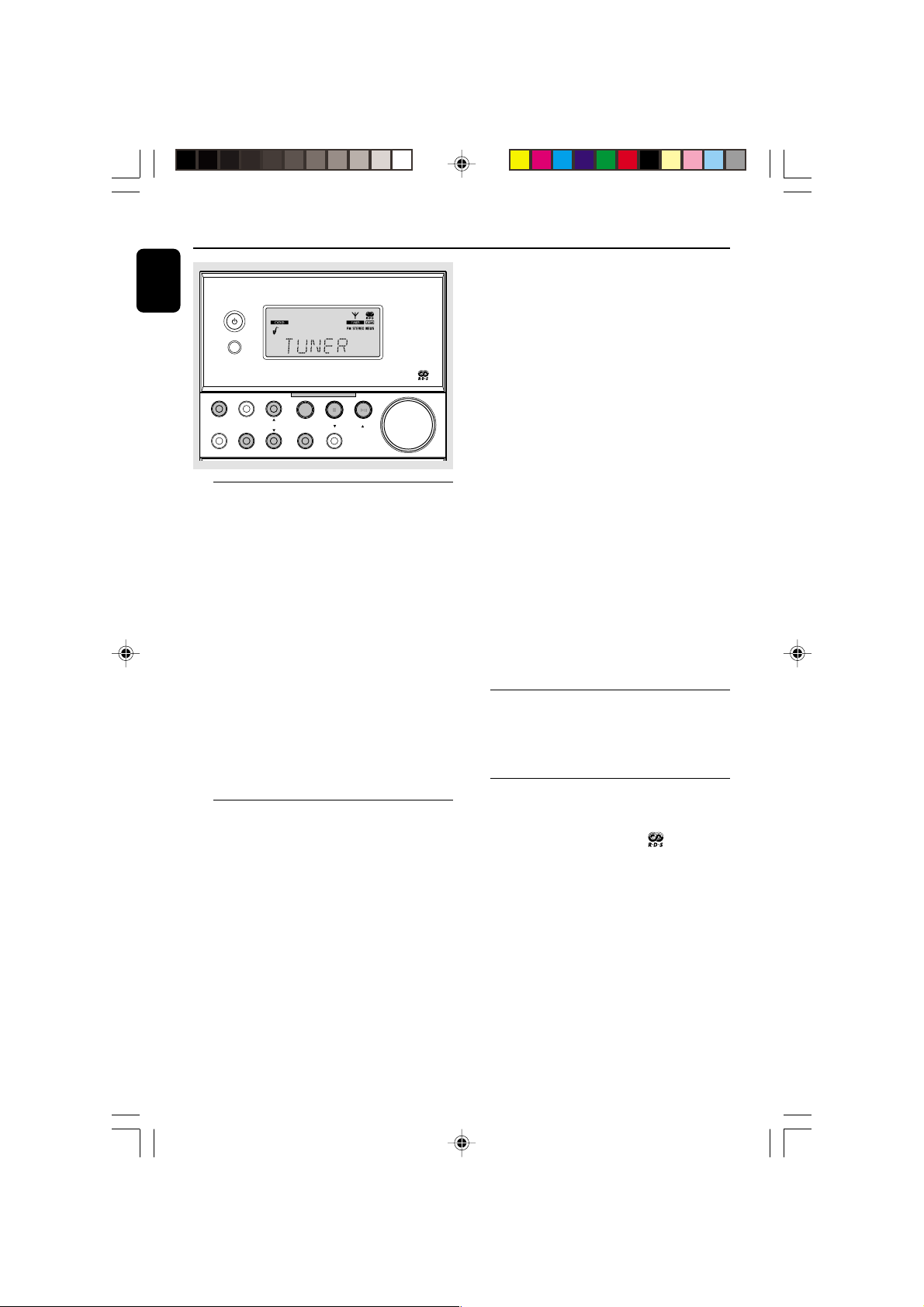

Page 14
Tuner
English
STANDBY-ON
iR
MC-30 MICRO SYSTEM
FWD á/ë
SHUFFLE
PLAY•PAUSE
RDS/CLOCK
SIDE A/B
TUNING
TIMER ON•OFF PROGRAM
REW à /í

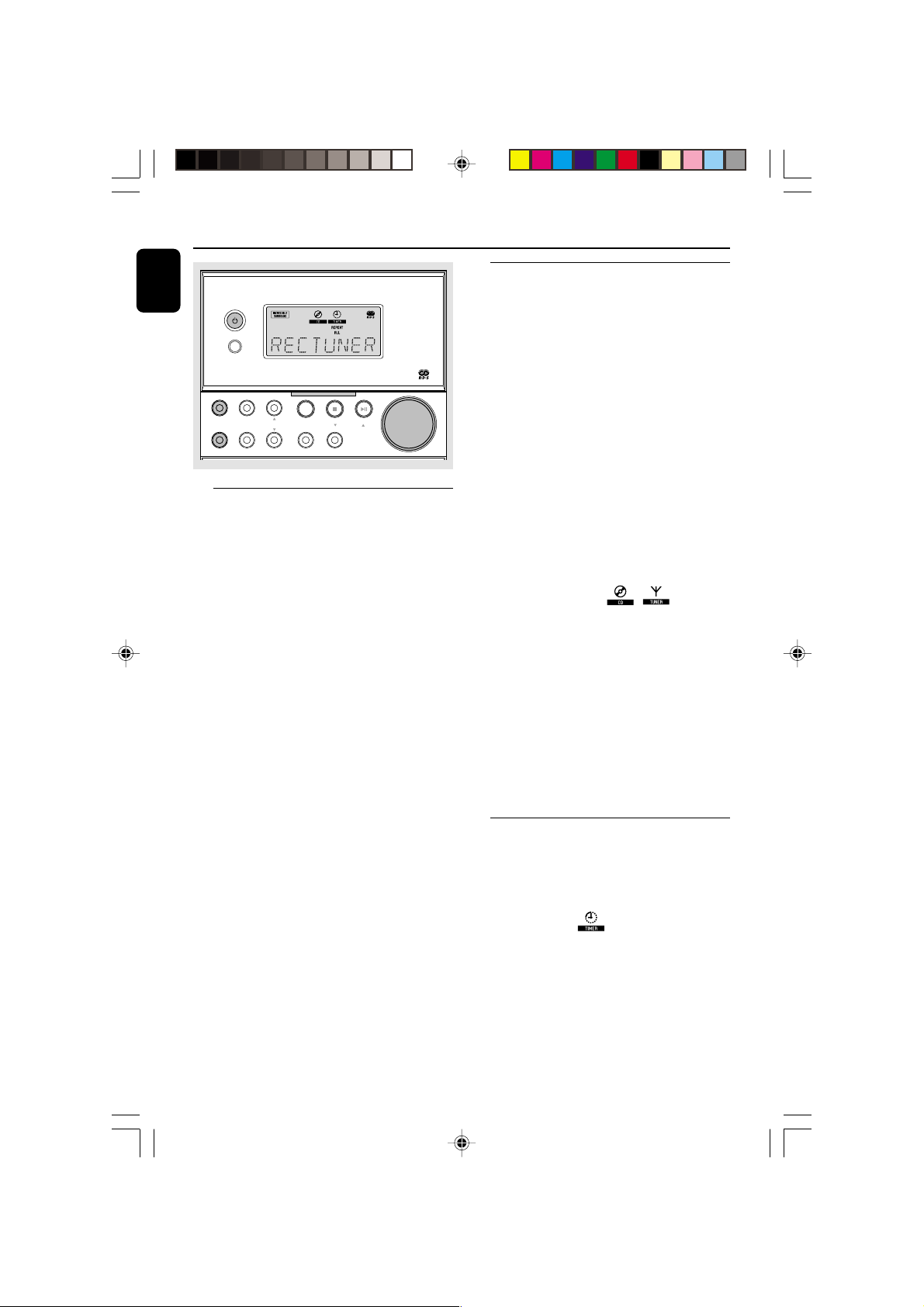

Tuning to radio stations
1 Select TUNER source.
➜ TUNER is displayed briefly.
2 Press BAND once or more to select your
waveband.
3 Press down on TUNING 3 or 4 and release
button.
➜ The radio automatically tunes to a station
with sufficient reception. Display indication during
automatic tuning: SEARCH.
➜ If a FM station is received in stereo, STEREO is
shown.
4 Repeat step 3 if necessar y until you find the
desired station.
¶ To tune to a weak station, press TUNING 3 or
4 briefly and repeatedly until you have found
optimal reception.
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
Automatic programming
Automatic programming will start with a chosen
preset number. From this preset number
upwards, former programmed radio stations will
be overridden. The system will only programme
stations which are not in the memory already.
1 Press PRESET 4 or 3 ( ¡ or ™ on the
remote control) to select the preset number
where programming should start.
Note:
– If no preset number is selected, default is preset
(1) and all your presets will be overridden.
SOURCE
REPEAT
REV MODE/BAND
STOP
RECORD
PRESET
VOLUME
2 Press PROGRAM on the system or remote
control for more than 2 seconds to activate
programming.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength: FM followed by MW and LW. The last
preset automatically stored will then be played.
Manual programming
1 Tune to your desired station (see Tuning to radio
stations).
2 Press PROGRAM on the system or remote
control to activate programming.
➜ PROGRAM flashes in the display.
3 Press PRESET 4 or 3 (¡ or ™ on the remote
control) to allocate a number from 1 to 40 to
this station.
4 Press PROGRAM again to confirm the setting.
➜ PROGRAM disappears, the preset number and
the frequency of the preset station are shown.
5 Repeat the above four steps to store other
stations.
¶ You can override a preset station by storing
another frequency in its place.
Tuning to preset stations
¶ Press PRESET 4 or 3 ( ¡ or ™ on the
remote control) until the desired preset station
is displayed.
RDS (some versions only)
Radio Data System is a service that allows
FM stations to show additional information. If
you are receiving a RDS station, and the
station name are displayed.
When automatic programming is used, RDS
stations will be programmed first.
Scrolling through different RDS
information
¶ Press RDS briefly and repeatedly to scroll
through the following information (if available):
– Station name
– Programme type such as NEWS, SPORT,
POP M ...
– Radio text messages
– Frequency
14
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM14
3140 115 27913

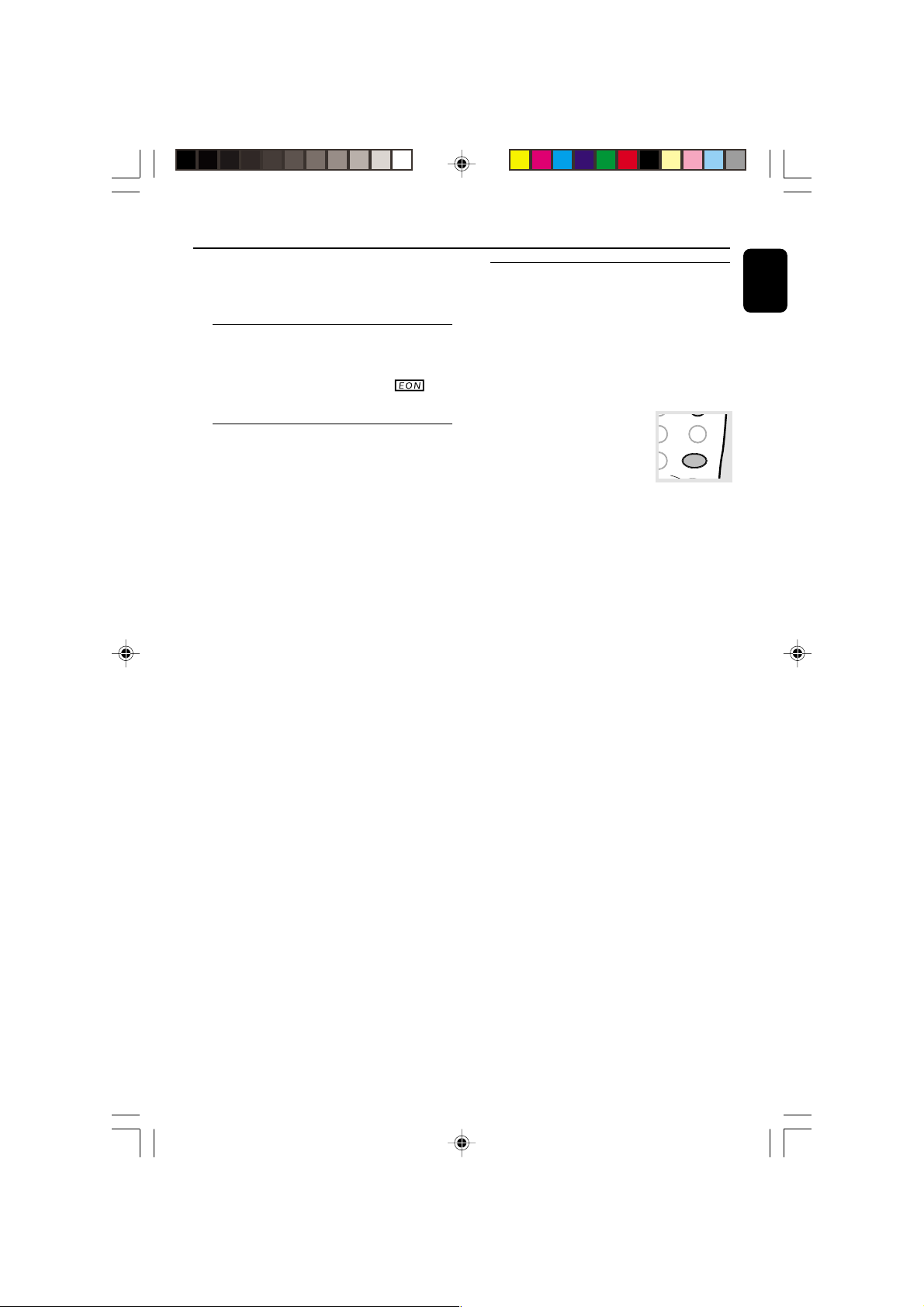

Page 15
Tuner
Note:
– If you press RDS and the RDS signal is not
available NO RDS is displayed.
EON
Enhanced Other Network allows you to
search for an RDS station offering a certain
programme type. If EON is available, is
shown.
Searching programme type
(PTY)
PTY helps you find a desired programme type.
To enable PTY, first programme RDS stations
into the tuner memory (see Programming radio
stations)
1 While receiving an RDS station, press RDS
briefly until the programme type is displayed.
2 Press PRESET 4 or 3 ( ¡ or ™ on the remote
control) until the desired programme type is
displayed.
3 Press and hold down on TUNING 3 or 4
( à or á on the remote control) to start
searching.
➜ The radio tunes to a RDS station
broadcasting this programme type. If the
programme type is not available TYPE NOT
FOUND is displayed.
RDS Programme types
NO TYPE ....... No RDS programme type
NEWS .................. News services
AFFAIRS ...... Politics and current affairs
INFO .................. Special information programmes
SPORT .............. Spor ts
EDUCATE ...... Education and advanced training
DRAMA .............. Radio plays and literature
CULTURE ...... Culture, religion and society
SCIENCE ...... Science
VARIED .......... Entertainment programmes
POP M ............... Pop music
ROCK M ........... Rock music
MOR M ............... Light music
LIGHT M ....... Light classical music
CLASSICS ... Classical music
OTHER M ....... Special music programmes
RDS News and Traffic
Announcement (TA)
You may set up the tuner in such a way that
listening to CD or tape is interrupted by the
NEWS of a RDS station. This only works if the
RDS station broadcasts a NEWS signal while
sending the news.
1 Tune to the desired RDS station.
2 Press NEWS/TA once or
more on the remote control to
select the NEWS option.
➜ NEWS ON, TA ON or OFF
is displayed briefly.
➜ NEWS is displayed if you have
activated the NEWS or TA option. Changing
listening source will not disarm the function.
Notes:
– To avoid unwanted recordings, the NEWS
announcement does not work while recording a
cassette.
– When you receive RDS news or traffic
announcements during CD playback, playback will
pause and you will be able to hear the news/TA.
Playback resumes after the broadcast has finished.
In tape mode, the tape continues playing but you
will hear the news/TA only until the broadcast has
finished.
– If you are using the RDS NEWS announcement
with an EON station, the whole network is
searched for the respective news.
Disarming RDS News and Traffic
Announcement
There are a number of ways to disarm the news
feature:
¶ Press NEWS/TA on the remote control during
reception of the news option.
¶ Press standby on the system or remote control.
¶ Tune to a non-RDS-station.
C
INC. SURR
E
NEWS/TA
ME
English
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM15
15
3140 115 27913
Page 16
Tape Recorder
English
STANDBY-ON
iR
MC-30 MICRO SYSTEM
FWD á/ë
SHUFFLE
PLAY•PAUSE
RDS/CLOCK
SIDE A/B
TUNING
TIMER ON•OFF PROGRAM
REW à /í

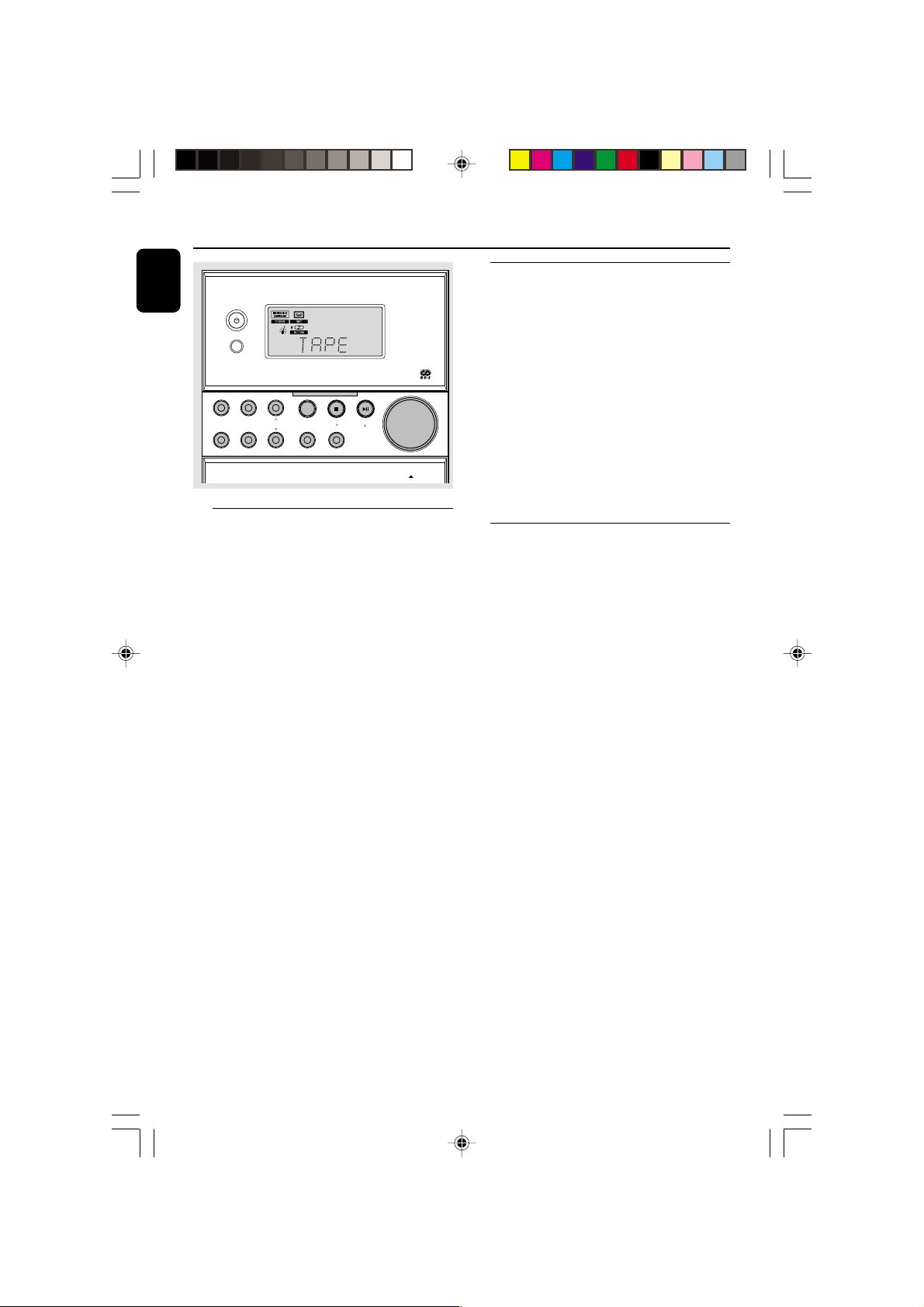

Tape playback
1 Select TAPE source.
➜ The display shows TAPE briefly. The tape
counter TAPE 000 display with the A or B and
reverse mode status are then shown during tape
mode.
2 Press OPEN to open the tape door.
3 Inser t a recorded tape and close the tape door.
¶ Load the tape with the open side downward and
the full spool to the left.
4 Press 2; (on the remote control 2) to star t
playback.
5 By pressing à or á on the remote control, fast
winding of tape is possible in both directions.
¶ To review and cue at low volume, press
REW à / ¡ or FWD á / ™ on the system.
¶ During fast winding or review/cue you can
monitor the tape message with the tape counter.
Release the fast wind/cue control at your desired
passage.
6 To stop the tape, press 9 .
¶ To reset the tape counter, press 9 again.
Note:
– The sound source cannot be changed while
recording a tape.
SOURCE
REPEAT
REV MODE/BAND
STOP
RECORD
PRESET
VOLUME
OPEN
Switching tape sides
The tape side can be switched manually or
automatically before or during tape playback.
¶ Press SIDE A/B (SIDE/; or during playback
only 2 on the remote control).
➜ The display shows A or B and the tape
counter resets to 000.
Reverse mode options
¶ Press REV MODE once or more to select your
option;
å : playback stops at the end of the tape.
∂ : both sides are played once.
∫ : both sides are played repeatedly, up
to 5 times each side.
General Information on
Recording
¶ Recording is permissible insofar as copyright or
other rights of third parties are not infringed.
¶ For recording, use only NORMAL (IEC type I)
cassette on which the tabs have not yet been
broken. This deck is not suited for recording on
METAL (IEC IV) type cassettes.
¶ The best recording level is set automatically.
Altering the VOLUME, INCREDIBLE
SURROUND or DBB controls will not affect the
recording in progress.
¶ At the ver y beginning and end of the tape, no
recording will take place during the 7 seconds
when the leader tape passes the recorder heads.
¶ To protect a tape from accidental erasure, have
the tape in front of you and break out the left
tab. Recording on this side is no longer possible.
If, however, you wish to record over this side
again, cover the tabs with a piece of adhesive
tape.
16
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM16
3140 115 27913
Page 17
Tape Recorder
Synchro Start CD recording
1 Select CD source.
2 Inser t a disc and if desired, programme track
numbers.
3 Press OPEN to open the tape door.
4 Inser t a suitable tape into the deck and close the
tape door.
5 Press RECORD to star t recording.
➜ COPY or RECORD is displayed briefly and
RECORD is shown during recording.
➜ Playing of the CD programme starts
automatically from the beginning of the CD/
programme after 7 seconds. It is not necessary
to start the CD player separately.
¶ If you wish, press CLOCK once to monitor the
counter display.
6 To stop recording, press 9.
Recording from the Radio
1 Tune to the desired radio station (see Tuning to
radio stations).
2 Press OPEN to open the tape door.
3 Inser t a suitable tape into the deck and close the
tape door.
4 Press RECORD to star t recording.
➜ RECORD is displayed briefly and RECORD is
shown during recording.
¶ If you wish, press CLOCK once to monitor the
counter display.
5 To stop recording, press 9.
Recording Timer
To record from the radio, you will need to use a
preset radio station and to set a start (ON) and
finish (OFF) time.
1 Inser t a suitable tape into the deck.
➜ If desired, select tape reverse mode option.
2 Select the preset radio station to record from.
3 Press TIMER ON•OFF for more than 2
seconds.
➜ TIMER flashes and a source is displayed.
4 Press SOURCE repeatedly, or turn VOLUME
clockwise until REC TUN source is displayed.
5 Press TIMER ON•OFF to confirm the source.
➜ SET ON TIME is displayed, TIMER and the
clock digits for the hours flash.
6 Tu r n VOLUME to set the hours: clockwise for
hours up; anti-clockwise for hours down.
7 Press TIMER ON•OFF again.
➜ The clock digits for the minutes flash.
8 Tu r n VOLUME to set the minutes: clockwise for
minutes up; anti-clockwise for minutes down.
9 Press TIMER ON•OFF to confirm the ON
start time.
➜ SET OFF TIME is displayed, TIMER and
the clock digits for the hours flash.
10 Repeat steps 6-8 to set the finish time.
11 Press TIMER ON•OFF to confirm the timer
settings.
➜ TIMER is shown and the recording timer is
now set.
English
Recording from AUX
1 Select AUX source.
2 If necessar y, prepare the additional appliance for
recording.
3 Press RECORD to star t recording.
➜ RECORD is displayed briefly and RECORD is
shown during recording.
¶ If you wish, press CLOCK once to monitor the
counter display.
4 To stop recording, press 9.
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM17
17
3140 115 27913
Page 18
Clock/Timer
English
STANDBY-ON
iR
MC-30 MICRO SYSTEM
FWD á/ë
SHUFFLE
PLAY•PAUSE
RDS/CLOCK
SIDE A/B
TUNING
TIMER ON•OFF PROGRAM
REW à /í
Setting the clock
There are two possible methods for setting the
clock: manually or automatically by using RDS.
Automatic clock setting (RDS versions
only)
1 Tune to a RDS station (see TUNER).
2 Press CLOCK for more than 2 seconds.
➜ SEARCH RDS TIME is displayed for a
maximum of 90 seconds; the time is then
displayed.
➜ NO RDS TIME is displayed if no time signal
has been received and you will have to set the
clock manually.
Manual clock setting
1 In standby, press CLOCK.
➜ The clock digits for the hours flash.
2 Tu r n VOLUME to set the hours: clockwise for
hours up; anti-clockwise for hours down.
3 Press CLOCK again.
➜ The clock digits for the minutes flash.
4 Tu r n VOLUME to set the minutes: clockwise for
minutes up; anti-clockwise for minutes down.
5 Press CLOCK to confirm the time.
SOURCE
REPEAT
REV MODE/BAND
STOP
RECORD
PRESET
VOLUME
Setting TIMER
¶ The system can be used as an alarm clock,
whereby the CD, TUNER or TAPE is switched on
at a set time. The clock time needs to be set first
before the timer can be used.
¶ You can also use it to record a favourite tuner
programme at a set period (REC TUN, see TAPE
RECORDER)
¶ During setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
1 In any mode, press TIMER ON•OFF for more
than 2 seconds.
2 Tu r n VOLUME clockwise to select sound
source.
➜ Display sequence shows CD, TUNER, TAPE
or REC TUNER.
3 Press TIMER ON•OFF to confirm your
desired mode.
➜ The selected source , or RECORD
is shown.
Display sequence scrolls SET ON TIME and
TIMER flashes. The clock digits for the hours flash.
4 Tu r n VOLUME to set the hours: clockwise for
hours up; anti-clockwise for hours down.
5 Press TIMER ON•OFF again.
➜ The clock digits for the minutes flash.
6 Tu r n VOLUME to set the minutes: clockwise for
minutes up; anti-clockwise for minutes down.
7 Press TIMER ON•OFF to confirm the time.
➜ The timer is now set and activated.
Activating and deactivating
TIMER
¶ In standby or during playback, press TIMER
ON•OFF on the system once (TIMER on the
remote control).
➜ Display shows if activated, and
disappears if deactivated.
18
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM18
3140 115 27913

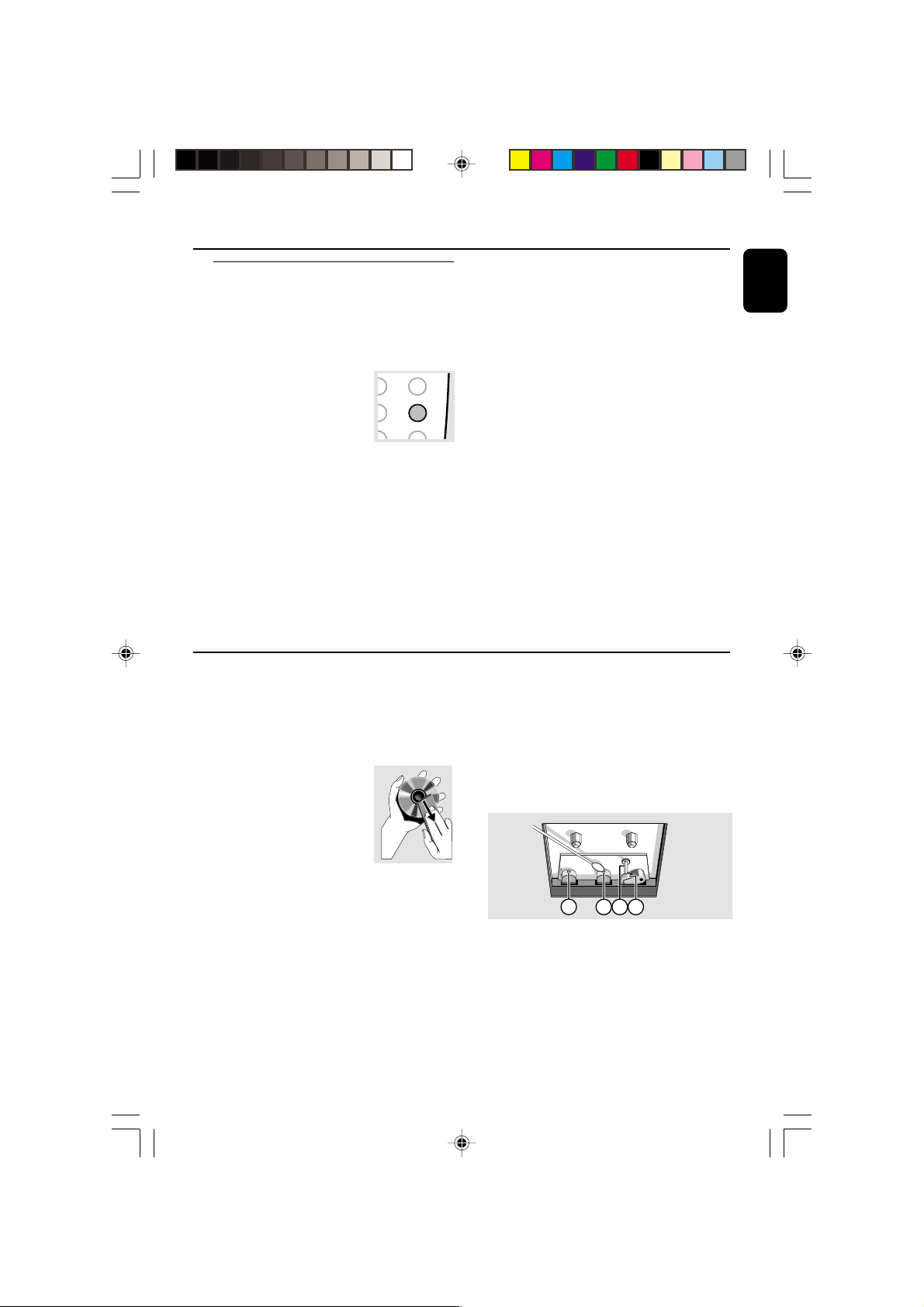

Page 19
Clock/Timer
A A B C
TUNERAPE
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time. The clock time
needs to be set first before the sleep timer can
be used.
¶ Press SLEEP on the remote
control once or more.
➜ Display shows SLEEP and
one of the sleep time options
in sequence: 60, 45, 30,15,
SLEEP OFF, 60... if you
have selected a time. Once SLEEP is activated,
SLEEP ON scrolls across the display at
repeated intervals.
Cleaning the Cabinet
¶ Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
¶ When a disc becomes dir ty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
¶ Do not use solvents such as
benzine, thinner, commercially
available cleaners, or antistatic
spray intended for analogue records.
SLEEP
X
C
INC. SURR
¶ To deactivate, press SLEEP on the remote
control once or more until SLEEP OFF is
shown, or press STANDBY-ON on the system
or remote control.
Maintenance
Cleaning the Heads and the Tape Paths
¶ To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and
pressure roller(s) C after every 50 hours of
tape operation.
¶ Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
¶ You can also clean the heads by playing a
cleaning tape once.
English
Cleaning the disc lens
¶ After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM19
Demagnetising the heads
¶ Use a demagnetising tape available at your
dealer.
19
3140 115 27913
Page 20
Specifications
English
AMPLIFIER
Output power ....................................... 2 x 10 W RMS
...................................................................... 2 x 20 W MPO
Signal-to-noise ratio .......................... ≥ 65 dBA (IEC)
Frequency response ......... 40 – 20000 Hz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers ......................................... 8 Ω
Impedance headphones .................... 32 Ω -1000 Ω
CD PLAYER
Frequency range .................................. 20 – 20000 Hz
Signal-to-noise ratio ............................................ 75 dBA
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range ................................ 531 – 1602 kHz
LW wave range .....................................153 – 279 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distortion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio ...................................... ≥ 50 dBA
TAPE DECK
Frequency response
Normal tape (type I) ...... 80 – 12500 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 50 dBA
Wow and flutter ......................................... ≤ 0.4% DIN
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 155 x 224 x 250 (mm)
GENERAL INFORMATION
AC Power ................................................... 230 V / 50 Hz
Dimensions (w x h x d) .. 140 x 228 x 262 (mm)
Weight (with/without speakers) ..................................
............................................................... approx. 8.4 / 3.3 kg
Standby power consumption .......................... < 3 W
Subject to modification
Troubleshooting
WARNING
Do not open the system as there is a risk of electric shock! Under no circumstances
should you try to repair the system yourself, as this will invalidate the warranty
¶ If a fault occurs, first check the points listed below before taking the system for repair.
¶ If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
Symptom Remedy
CD PLAYER OPERATION
“NO DISC” is displayed. ¶ Check if the disc is inserted upside down.
20
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM20
¶ Wait until the moisture condensation at the lens
has cleared.
¶ Use a finalised CD-R(W) or CD-R.
¶ Replace or clean the disc, see Maintenance.
3140 115 27913
Page 21
Troubleshooting
RADIO RECEPTION
Poor radio reception. ¶ The signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
¶ Increase the distance from TV or VCR.
TAPE DECK OPERATION
Recording or playback cannot be ¶ Clean deck par ts, see Maintenance.
made. ¶ Use only NORMAL (IEC I) tape for recording.
“CHECK TAPE” is displayed. ¶ Apply a piece of adhesive tape over the missing
tab space.
Tape deck door cannot open. ¶ Reconnect the AC power plug and switch on
the system again.
GENERAL
Does not react when any buttons ¶ Press STANDBY-ON to switch off the system.
are pressed. Remove the AC power plug from the wall
outlet, then reconnect the power plug and
switch on the system again.
No or poor sound. ¶ Adjust the volume.
¶ Disconnect the headphones.
¶ Check that the speakers are connected
correctly.
¶ Check if the stripped speaker wire is clamped.
Reversed left and right sound. ¶ Check the speaker connections and location.
English
Remote control does not function properly. ¶ Select the source (CD, TUNER, etc.)
before pressing the function button (É,í,ë,
etc.).
¶ Reduce the distance to the system.
¶ Inser t the batteries with their polarities
(+/– signs) as indicated.
¶ Replace the batteries.
Timer is not working. ¶ Set the clock.
¶ Press TIMER ON•OFF to switch on the timer.
¶ If recording is in progress, stop recording.
pg 001-021/MC30/22-Eng 12/7/00, 1:33 PM21
21
3140 115 27913
Loading...
