Philips MC-220/15 User Manual

Download

Page 1

Micro Hi-Fi System

MC-

220

Page 2

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Microsistema de Audio Modelo : MC-220/ 21 Alimentación: 110–127 / 220–240V; ~50–60 Hz Consumo: 26 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6

Localidad y Tel: Edo. de México C.P. 52784

Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________

ATENCIÓN

Col. San Fernando La Herradura Huixquilucan

Tel.52 69 90 00

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Page 3

^ &

REPEAT SHUFFLE SLEEP

TUNER TAPE AUX

VOL

)

# @

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PREV NEXT

ON OFF

PROGRAM SHUFFLE

PLAY•PAUSERECORD

CLOCKTIMER

REV MODE BAND

STOP

SHUFFLE

SIDE A/B

DSC DBB IS

MUTE

NEWS/TA

(

1 2

6 7

Page 4

Page 5

Index

English ------------------------------------------------ 6

Français -------------------------------------------- 22

Español --------------------------------------------- 38

-------------------------------------------------------- 54

English

Français

Español

Page 6

Contents

English

General Information

Environmental information ................................ 7

Supplied accessories ............................................ 7

Safety information ................................................ 7

Preparations

Rear connections ............................................. 8–9

Optional connection ........................................... 9

Inserting batteries into the remote control ... 9

Controls

Controls on the system and remote

control .................................................................. 10

Basic Functions

Switching the system on ................................... 11

Power-saving automatic standby ..................... 11

Adjusting volume and sound............................ 11

CD Operation

Playing a disc ........................................................ 12

Selecting a different track ................................. 12

Finding a passage within a track ...................... 12

Different play modes: Shuffle and Repeat ..... 13

Programming track numbers ........................... 13

Reviewing the programme ............................... 13

Erasing the programme ..................................... 13

Clock/Timer

Setting the clock ................................................. 18

Setting the timer ................................................. 18

Activating and deactivating TIMER ................. 18

Activating and deactivating SLEEP .................. 18

Specifications ........................................... 19

Maintenance.............................................. 19

Troubleshooting ............................. 20–21

Radio Reception

Tuning to radio stations .................................... 14

Programming radio stations ............................. 14

Tuning to preset radio stations ....................... 15

Changing tuning grid .......................................... 15

Tape Operation / Recording

Tape playback ...................................................... 16

Switching tape sides ........................................... 16

Reverse mode options ...................................... 16

General information on recording ................. 16

Synchro start CD recording ............................ 17

Recording from the radio................................. 17

Recording from the Aux ................................... 17

Recording timer .................................................. 17

Page 7

General Information

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Supplied accessories

– 2 speaker boxes – remote control – AM loop antenna – FM wire antenna

Safety Information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

● If the system is brought directly from a cold to a

warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or lubricated.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

English

Page 8

Preparations

English

FM wire antenna

speakers

(right)

aerial

AC power cord

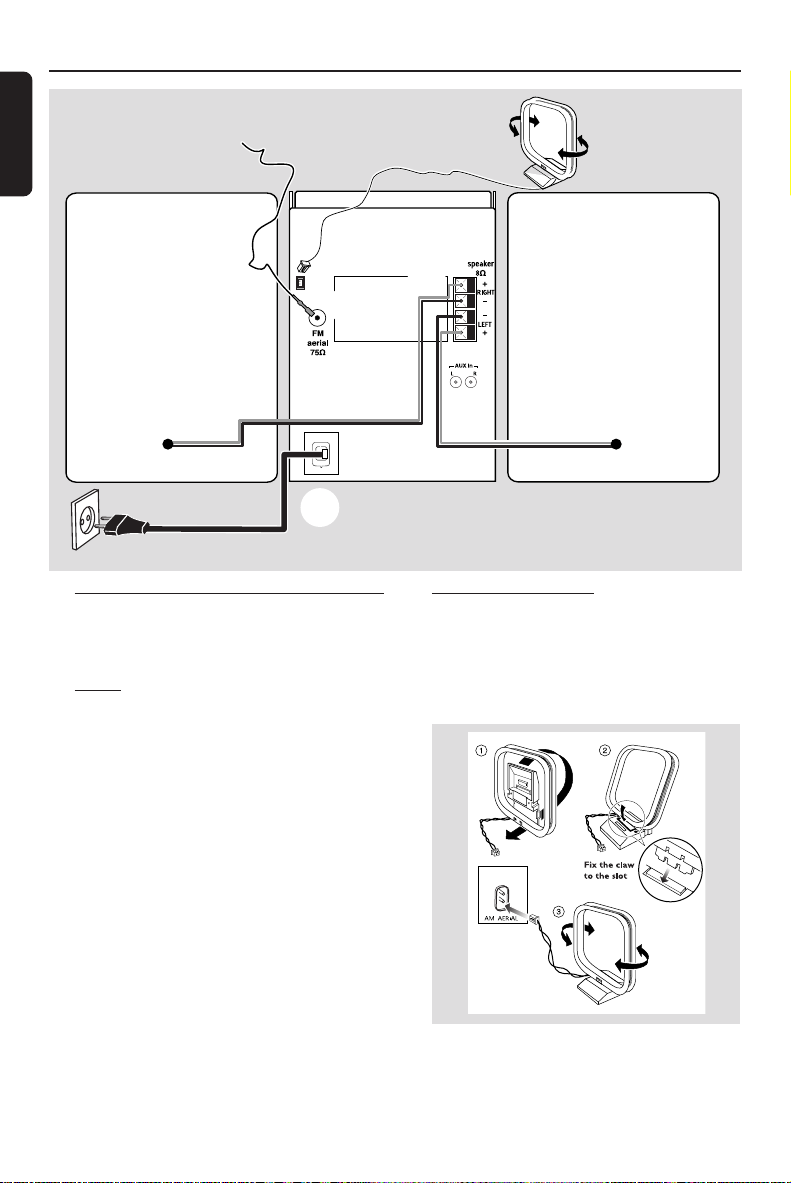

Rear connections

The type plate is located at the rear of the system.

AM loop

antenna

speakers

(left)

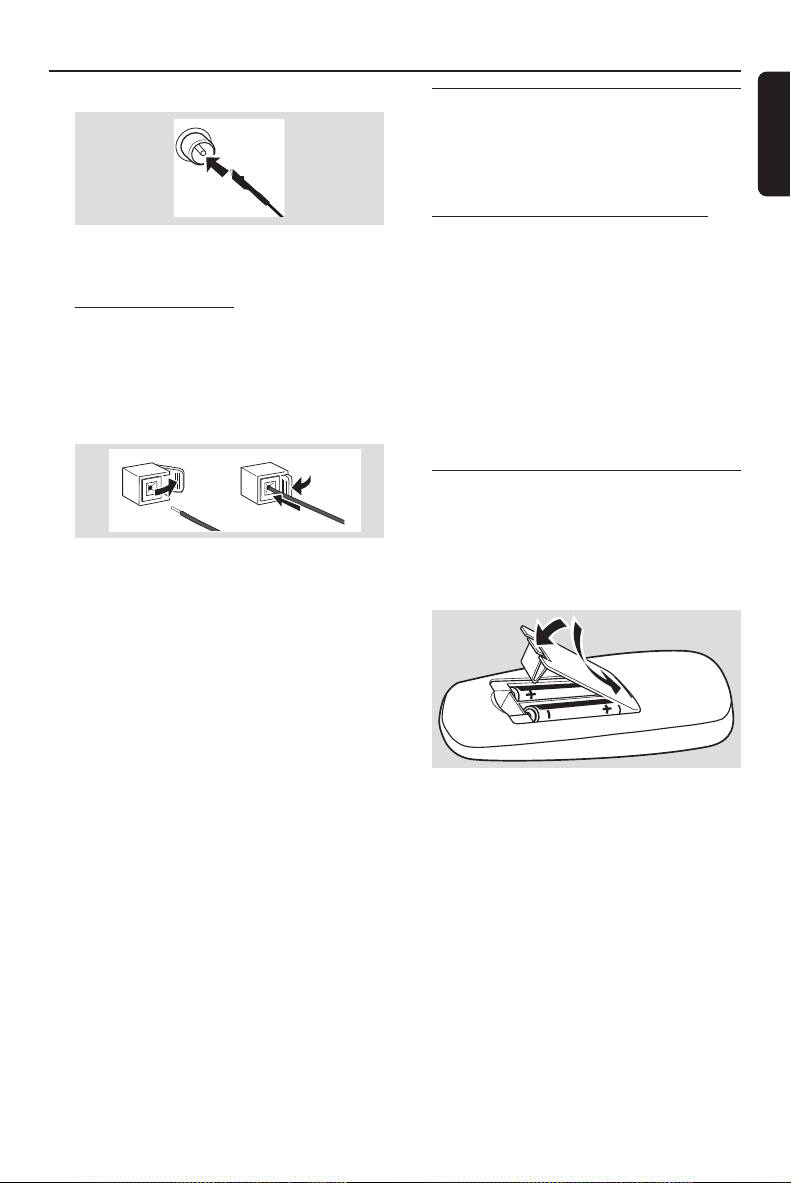

B Antennas Connection

Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.

A Powe r

Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. – All other connections have been made.

WARNING! – For optimal performance, use only the original power cable. – Never make or change any connections with the power switched on.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).

AM Antenna

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

Page 9

Preparations

FM Antenna

● For better FM stereo reception, connect an

outdoor FM antenna to the FM AERIAL (FM ANTENNA) terminal.

C Speakers Connection

Front Speakers

Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", coloured (marked) wire to "+" and black (unmarked) wire to "-".

● Fully inser t the stripped por tion of the speaker

wire into the terminal as shown.

Notes: – For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Optional connection

The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.

Connecting other equipment to your system

Connect the audio left and right OUT terminals of a TV, VCR, Laser Disc player, DVD player or CD Recorder to the AUX IN terminals.

Note: – If you are connecting equipment with a mono output (a single audio out terminal), connect it to the AUX IN left terminal. Alternatively, you can use a “single to double” cinch cable (the output sound still remain mono).

Inserting batteries into the remote control

Insert two batteries (not supplied) type R03 or AAA into the remote control with the correct polarity as indicated by the "+" and "-" symbols inside the battery compar tment.

English

CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed off properly.

Page 10

Controls (illustrations on page 3)

English

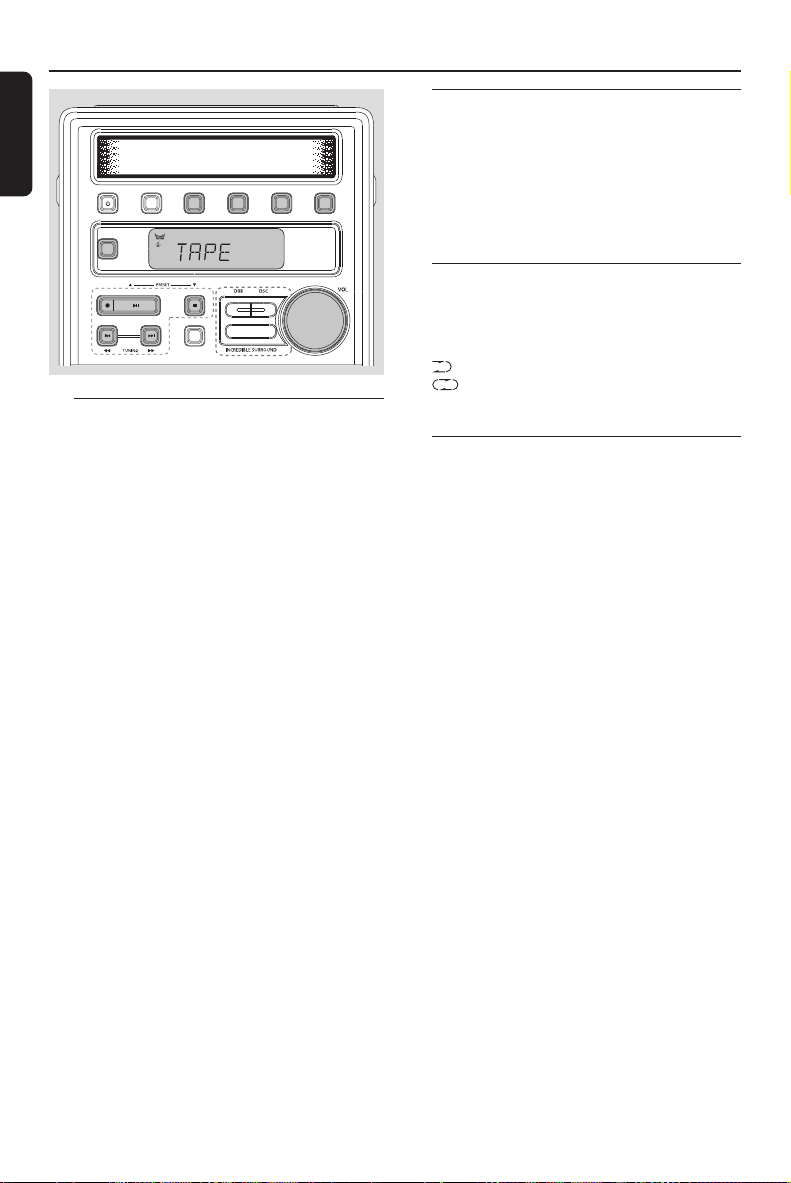

Controls on the system and remote control

1 CLOCK

for Clock ............ sets the clock function.

for Tape ............... shows tape counter in recording

mode.

2 REPEAT/ REV MODE/ BAND

for CD .................repeats a track/CD programme/

for Tape ............... selects tape reverse modes.

for Tuner ............. selects waveband.

entire CD.

3 SHUFFLE/ SIDE A/B

for CD .................plays CD tracks in random order.

for Tape ............... switches tape direction.

4 Display

– shows the status of the system.

5 VOLUME (VOL -/+ )

– adjusts the volume level. – on the system only - adjusts the hour and minutes

for the clock/timer functions.

6 INTERACTIVE SOUND controls:

DBB .................... (Dynamic Bass Boost) enhances

the bass.

DSC ..................... (Digital Sound Control) selects

INCREDIBLE SURR.

(IS) ....................... creates a super-enhanced stereo

sound characteristics: OPTIMAL/ ROCK/JAZZ/POP.

effect.

7 OPEN

– opens tape compar tment.

8 iR SENSOR

– infrared sensor for remote control.

9 Mode Selection

STOP 9............ stops CD playback or erase a

................................. stops tape playback/recording.

PLAY•PAUSE ÉÅ

................................. starts or interrupts CD playback.

................................. starts tape playback.

................................. (on the remote control only)

PRESET 34

( ¡, ™ ) .............. selects a preset radio station.

PREV ¡1 / NEXT 2™

( ¡, ™ ) ................ skips to the beginning of a

CD programme.

during tape playback, switches tape direction.

current track/previous/ subsequent track.

( à, á ) ..........fast searches back and

................................. fast rewind/wind tape.

TUNING à á

( à, á ) ..........tunes to radio stations.

RECORD ........ starts recording.

forward within a track/CD.

0 SELECT SOURCE

– selects the respective sound source for CD/

TUNER/ TAPE /AUX.

– switches on the system.

! STANDBY ON y

– switches the system to standby/on. – on the remote control only - switches the

system to standby.

@ PROGRAM

for CD .................programmes tracks and

for Tuner ............. programmes tuner stations

reviews the programme.

manually or automatically.

# TIMER ON•OFF

– activates/deactivates or sets the timer

function.

$ OPEN•CLOSE

– opens/closes the CD door.

% n

– connect headphones.

^ REPEAT

– repeats a track/CD programme/ entire CD.

& SHUFFLE

– plays CD tracks in random order.

* MUTE

– interrupts and resumes sound reproduction.

( NEWS/TA

– activates RDS news and Traffic

Announcement (not for all versions).

) SLEEP

– activates/deactivates or selects the sleeper

time.

Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD, TUNER). – Then select the desired function (for exampleÉ,

Page 11

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PLAY•PAUSERECORD

PREV NEXT

CLOCKTIMER

ON OFF

STOP

SHUFFLE

REV

MODE

SIDE A/B

BAND

IMPORTANT! Before you operate the system, complete the preparation procedures.

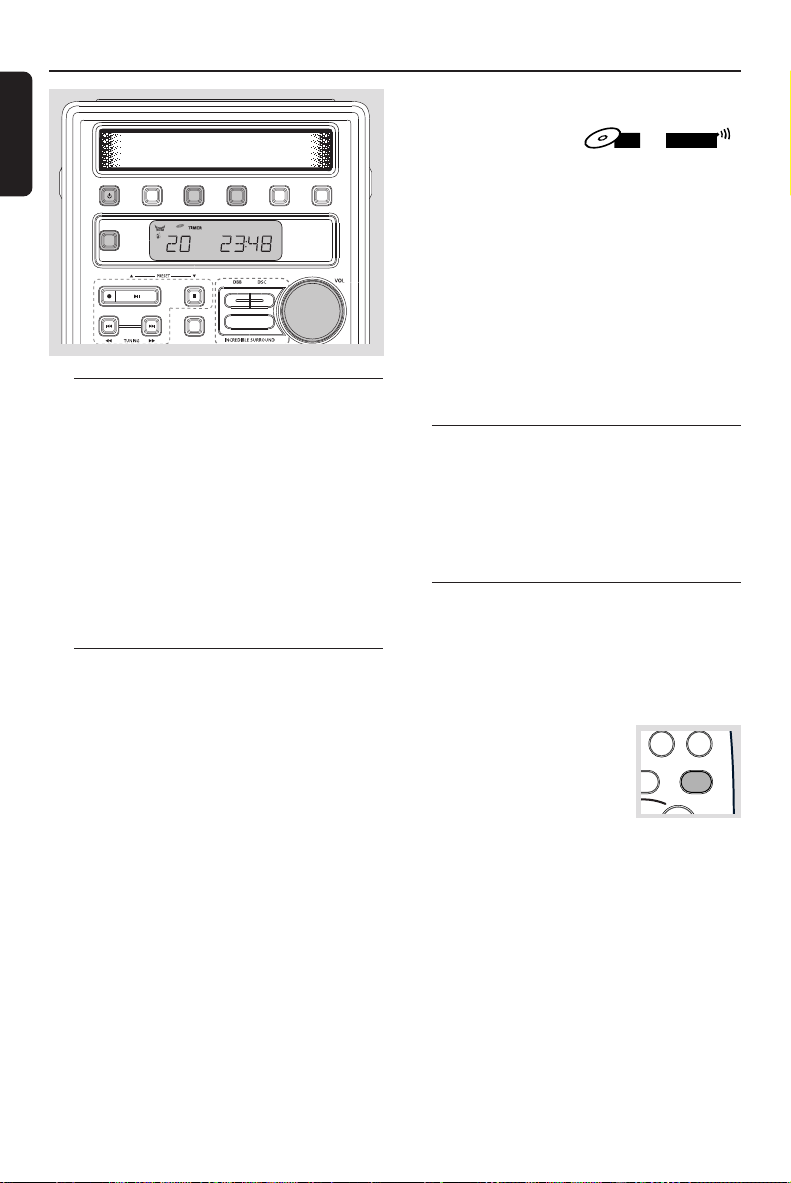

Switching the system on

● Press 2 STANDBY ON or SELECT

SOURCE.

➜ The system will switch to the last selected source.

● Press CD, TUNER, TAPE or AUX on the

remote control. ➜ The system will switch to the selected source.

To switch the system to standby mode

● Press 2 STANDBY ON on the system or

remote control.

● If in recording mode, press STOP 9 first.

➜ The volume level, interactive sound settings,

last selected source and tuner presets will be retained in the player's memory.

Basic Functions

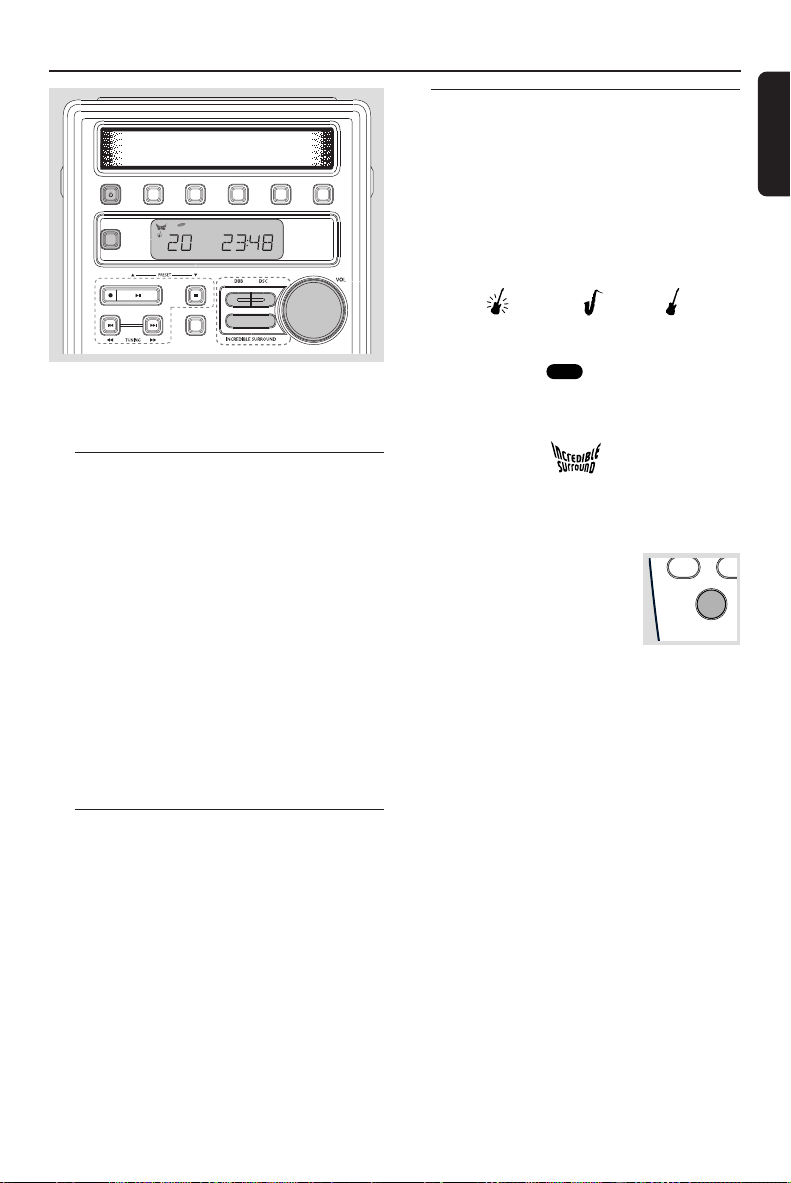

Adjusting volume and sound

1 Turn the VOLUME control anti-clockwise to

decrease or clockwise to increase volume on the system (or press VOL -/+ on the remote control). ➜ Display shows the volume level VOL and a number from 0-32.

2 Press DSC repeatedly to select the desired

sound effect: OPTIMAL (no indication)/ ROCK ( ) / JAZZ ( ) / POP ( ).

3 Press DBB to switch bass enhancement on or

off. ➜ Display shows:

4 Press INCREDIBLE SURR. (IS on the

remote control) to switch the surround sound effect on or off. ➜ Display shows: if activated.

Note: – The effect of INCREDIBLE SURROUND may vary with different types of music.

5 Press MUTE on the remote

control to interrupt sound reproduction instantly. ➜ Playback will continue without sound and the display shows MUTE.

● To activate sound reproduction you can:

– press MUTE again; – adjust the volume controls; – change source.

if the DBB is activated.

DBB

DSC DB

MUTE

English

Power-saving automatic standby

As a power-saving feature, the system automatically switches to standby 15 minutes after a tape or CD has reached the end and no control is operated.

Page 12

CD Operation

English

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PLAY•PAUSERECORD

PREV NEXT

CLOCKTIMER

ON OFF

STOP

REV MODE BAND

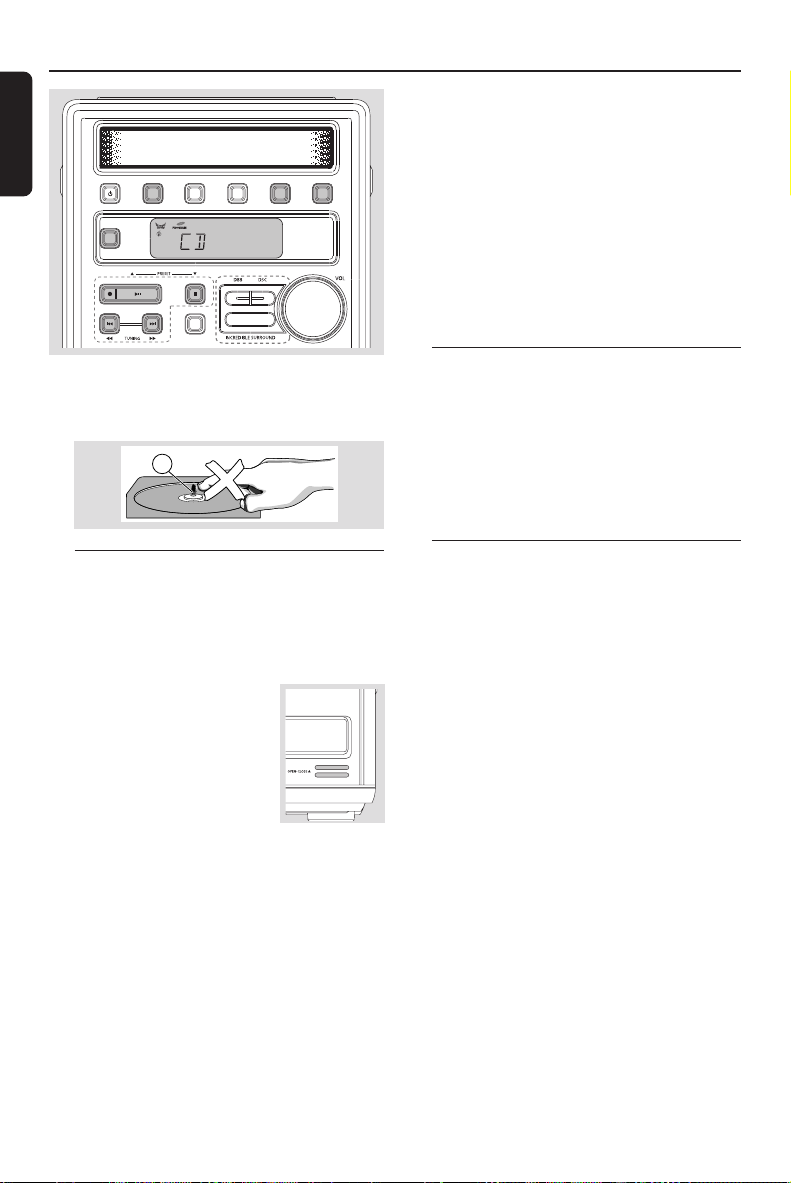

IMPORTANT! The lens of the CD player should never be touched.

Playing a disc

This CD player plays Audio Discs including CDRecordables and CD-Rewritables.

● CD-ROM, CD-I, CDV, VCD, DVD or computer

CDs, however, are not possible.

1 Select CD source.

2 Press OPEN•CLOSE on the

top of the system to open the CD compartment. ➜ OPEN is displayed when you open the CD compartment.

3 Inser t a disc with the printed side facing up and

press down on OPEN•CLOSE to close the CD door. ➜ READ is displayed as the CD player scans the contents of a disc, and then the total number of tracks and playing time are shown.

4 Press PLAY•PAUSE 2; (on the remote

control 2;) to start playback. ➜ Current track number and elapsed playing time of the track are displayed during disc playback.

SIDE A/B

SHUFFLE

5 To interrupt playback press PLAY•PAUSE 2;

(on the remote control 2;). Press PLAY•PAUSE 2; (on the remote control 2;) again to resume play. ➜ The display freezes and the elapsed playing time flashes when playback is interrupted.

6 To stop disc playback, press STOP 9.

Note: CD play will also stop when; – the CD door is opened. – the disc has reached the end. – you select another source: TAPE, TUNER or AUX.

Selecting a different track

● Press PREV ¡1 or NEXT 2™ (on the remote control ¡ or ™) once or repeatedly until the desired track number appears in the display.

● If you have selected a track number shortly after loading a disc or in the PAUSE position, you will need to press PLAY•PAUSE 2; (on the remote control 2;) to start playback.

Finding a passage within a track

1 Press and hold down on PREV ¡1 or

NEXT 2™ (on the remote control à or á ).

➜ The disc is played at high speed and low volume.

2 When you recognise the passage you want,

release PREV ¡1 or NEXT 2™ (on the remote control à or á ). ➜ Normal playback continues.

Note: – During a disc programme or if SHUFFLE/ REPEAT active, searching is only possible within the same track.

Page 13

CD Operation

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during playback. The play modes can also be combined with PROGRAMME.

SHUFFLE ......... tracks of the entire disc/

programme are played in random order

SHUFFLE and REPEAT ALL…to repeat the

entire disc/ programme continuously in random order

REPEAT ALL ... repeats the entire disc/

programme

REPEAT ............plays the current track

continuously

1 To select your play mode, press the SHUFFLE

or REPEAT button before or during playback until the display shows the desired function.

2 Press PLAY•PAUSE 2; (on the remote

control 2;) to start playback if in the STOP position. ➜ If you have selected SHUFFLE, playback starts automatically.

3 To return to normal playback, press the

respective SHUFFLE or REPEAT button until the various SHUFFLE/ REPEAT modes are no longer displayed.

● You can also press STOP 9 to cancel your play

mode.

Programming track numbers

Programme in the STOP position to select and store your disc tracks in the desired sequence. If you like, store any track more than once. Up to 20 tracks can be stored in the memory.

1 Press PROGRAM to enter the programming

mode. ➜ A track number is shown and PROGRAM flashes.

2 Use the PREV ¡1 or NEXT 2™ (on the

remote control ¡ or ™) to select your desired track number.

3 Press PROGRAM to confirm the track number

to be stored. ➜ The number of tracks programmed and total playing time of the programme is shown briefly, then the selected track and PROG.

4 Repeat steps 2-3 to select and store all desired

tracks. ➜ FULL is displayed if you attempt to programme more than 20 tracks.

5 To start playback of your disc programme, press

PLAY•PAUSE 2; (on the remote control 2;).

Reviewing the programme

In STOP mode, press and hold down PROGRAM for a while until the display shows all your stored track numbers in sequence.

Erasing the programme

You can erase the programme by:

● pressing STOP 9 once in the STOP mode;

● pressing STOP 9 twice during playback;

● opening the CD compar tment; ➜ PROGRAM disappears from the display.

English

Page 14

Radio Reception

English

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PLAY•PAUSERECORD

PREV NEXT

CLOCKTIMER

OFF

STOP

REV MODE BAND

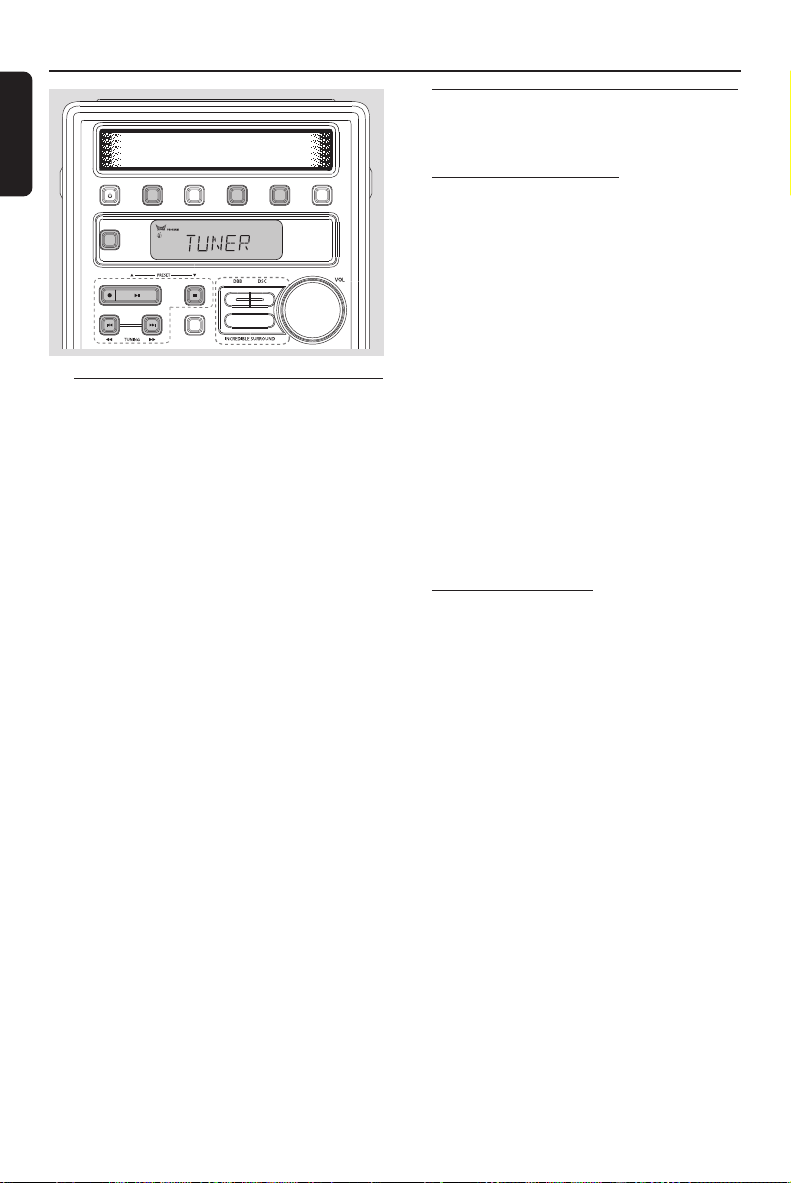

Tuning to radio stations

1 Select TUNER source.

➜ TUNER is displayed briefly.

2 Press BAND once or more to select your

waveband.

3 Press down on TUNING à or á and release

button. ➜ The radio automatically tunes to a station with sufficient reception. Display indication during automatic tuning: SEARCH. ➜ If a FM station is received in stereo, STEREO is shown.

4 Repeat step 3 if necessar y until you find the

desired station.

● To tune to a weak station, press TUNING à or á briefly and repeatedly until you have found optimal reception.

SIDE A/B

SHUFFLE

Programming radio stations

You can store up to a total of 40 radio stations in the memory.

Automatic programming

Automatic programming will start with a chosen preset number. From this preset number upwards, former programmed radio stations will be overridden. The system will only programme stations which are not in the memory already.

1 Press PRESET 3 or 4 (on the remote control

¡ or ™ ) to select the preset number where

programming should start.

Note: – If no preset number is selected, default is preset (1) and all your presets will be overridden.

2 Press PROGRAM for more than 2 seconds to

activate programming. ➜ AUTO is displayed and available stations are programmed in order of waveband reception strength: FM followed by MW. The last preset automatically stored will then be played.

Manual programming

1 Tune to your desired station (see Tuning to radio

stations).

2 Press PROGRAM to activate programming.

➜ PROGRAM flashes in the display.

3 Press PRESET 3 or 4 (on the remote control

¡ or ™ ) to allocate a number from 1 to 40 to

this station.

4 Press PROGRAM again to confirm the setting.

➜ PROGRAM disappears, the preset number and the frequency of the preset station are shown.

5 Repeat the above four steps to store other

stations.

● You can override a preset station by storing

another frequency in its place.

Page 15

Tuning to preset radio stations

● Press PRESET 3 or 4 (on the remote control ¡ or ™ ) until the desired preset station is

displayed.

Changing tuning grid (some versions

only)

In North and South America the frequency step between adjacent channels in the AM and FM band are 10 KHz and 100 KHz respectively. In the rest of the world this step is 9 KHz and 50 KHz. Usually the frequency step has been preset in the factory for your area if not:

1 Select TUNER source.

2 Press SHUFFLE on the set for at least 5

seconds.

➜ The display shows either GRID 9 or GRID 10.

Note: – All preset stations will be lost and need to be reprogrammed.

Radio Reception

English

Page 16

Tape Operation / Recording

English

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PLAY•PAUSERECORD

PREV NEXT

CLOCKTIMER

OFF

STOP

REV MODE BAND

Tape playback

1 Select TAPE source.

➜ The display shows TAPE briefly. The tape counter TAPE 000 display with the SIDE A or

SIDE B and reverse mode status are then shown

during tape mode.

2 Press OPEN to open the tape door.

3 Inser t a recorded tape and close the tape door.

● Load the tape with the open side downward and

the full spool to the left.

4 Press PLAY•PAUSE 2; (on the remote

control 2;) to start playback.

5 By pressing ¡1 or 2™ on the system (on the

remote control à or á), fast winding of tape is possible in both directions.

● During fast winding, you can monitor the tape

message with the tape counter.

6 To stop the tape, press STOP 9 .

● To reset the tape counter, press STOP 9 again.

Note: – The sound source cannot be changed while recording a tape.

SIDE A/B

SHUFFLE

Switching tape sides

The tape side can be switched manually or automatically before or during tape playback.

● Press SIDE A/B (during playback only 2; on

the remote control). ➜ The display shows SIDE A or SIDE B and the tape counter resets to 000.

Reverse mode options

● Press REV MODE repeatedly to select your

option; å : playback stops at the end of the tape.

: both sides are played once. : both sides are played repeatedly, up to 5 times each side.

General information on recording

● Recording is permissible insofar as copyright or

other rights of third parties are not infringed.

● For recording, use only NORMAL (IEC type I)

tapes on which the tabs have not yet been broken. This deck is not suited for recording on METAL (IEC IV) type tapes.

● The best recording level is set automatically.

Altering the VOLUME, INCREDIBLE SURROUND, DBB or INTERACTIVE SOUND controls will not affect the recording in progress.

● At the very beginning and end of the tape, no

recording will take place during the 7 seconds when the leader tape passes the recorder heads.

● To protect a tape from accidental erasure, have

the tape in front of you and break out the left tab. Recording on this side is no longer possible. If, however, you wish to record over this side again, cover the tabs with a piece of adhesive tape.

Page 17

Tape Operation / Recording

Synchro start CD recording 1 Select CD source.

2 Inser t a disc and if desired, programme track

numbers.

3 Press OPEN to open the tape door.

4 Inser t a suitable tape into the deck and close the

tape door.

5 Press RECORD to star t recording.

➜ COPY or RECORD is displayed briefly and

RECORD is shown during recording.

➜ Playing of the CD programme starts

automatically from the beginning of the CD

after 7 seconds. It is not necessary to start the

CD player separately.

● If you wish, press CLOCK once to monitor the

counter display.

6 To stop recording, press STOP 9.

Recording from the radio 1 Tune to the desired radio station (see Tuning to

radio stations).

2 Press OPEN to open the tape door.

3 Inser t a suitable tape into the deck and close the

tape door.

4 Press RECORD to star t recording.

➜ RECORD is displayed briefly and RECORD is

shown during recording.

● If you wish, press CLOCK once to monitor the

counter display.

5 To stop recording, press STOP 9.

Recording from Aux 1 Select AUX source.

2 If necessar y, prepare the additional appliance for

recording.

3 Press RECORD to star t recording.

➜ RECORD is displayed briefly and RECORD is

shown during recording.

● If you wish, press CLOCK once to monitor the

counter display.

4 To stop recording, press STOP 9.

Recording timer

To record from the radio, you will need to use a preset radio station and to set a start (ON) and finish (OFF) time.

1 Inser t a suitable tape into the deck.

➜ If desired, select tape reverse mode option.

2 Select the preset radio station to record from.

3 Press TIMER ON•OFF for more than 2

seconds.

➜ TIMER flashes and a source is displayed.

4 Press SELECT SOURCE repeatedly, or turn

VOLUME clockwise until REC TUN source is

displayed.

5 Press TIMER ON•OFF to confirm the source.

➜ SET ON TIME is displayed, TIMER and the clock digits for the hours flash.

6 Tu r n VOLUME to set the hours: clockwise for

hours up; anti-clockwise for hours down.

7 Press TIMER ON•OFF again.

➜ The clock digits for the minutes flash.

8 Tu r n VOLUME to set the minutes: clockwise for

minutes up; anti-clockwise for minutes down.

9 Press TIMER ON•OFF to confirm the ON

start time. ➜ SET OFF TIME is displayed, TIMER and the clock digits for the hours flash.

10 Repeat steps 6-8 to set the finish time.

11 Press TIMER ON•OFF to confirm the timer

settings. ➜ TIMER is shown and the recording timer is now set.

English

Page 18

Clock/Timer

English

STANDBY-ON PROGRAM REPEAT

SOURCE SELECT

PLAY•PAUSERECORD

PREV NEXT

CLOCKTIMER

OFF

STOP

REV MODE BAND

Setting the clock

1 In standby, press CLOCK.

➜ The clock digits for the hours flash.

2 Tu r n VOLUME to set the hours: clockwise for

hours up; anti-clockwise for hours down.

3 Press CLOCK again.

➜ The clock digits for the minutes flash.

4 Tu r n VOLUME to set the minutes: clockwise for

minutes up; anti-clockwise for minutes down.

5 Press CLOCK to confirm the time.

Setting the timer

● The system can be used as an alarm clock,

whereby the CD, TUNER or TAPE is switched on at a set time. The clock time needs to be set first before the timer can be used.

● You can also use it to record a favourite tuner

programme at a set period (see “Recording timer”)

● During setting, if no button is pressed within 90

seconds, the system will exit timer setting mode automatically.

1 In any mode, press TIMER ON•OFF for more

than 2 seconds.

2 Tu r n VOLUME clockwise to select sound

source.

➜ Display sequence shows CD, TUNER, TAPE or REC TUNER.

SIDE A/B

SHUFFLE

3 Press TIMER ON•OFF to confirm your

desired mode. ➜ The selected source is shown. Display sequence scrolls SET ON

TUNER

TIME and TIMER flashes. The clock digits for the hours flash.

4 Tu r n VOLUME to set the hours: clockwise for

hours up; anti-clockwise for hours down.

5 Press TIMER ON•OFF again.

➜ The clock digits for the minutes flash.

6 Tu r n VOLUME to set the minutes: clockwise for

minutes up; anti-clockwise for minutes down.

7 Press TIMER ON•OFF to confirm the time.

➜ The timer is now set and activated.

Activating and deactivating TIMER

● In standby or during playback, press

TIMER ON•OFF once.

➜ Display shows TIMER if activated, and disappears if deactivated.

Activating and deactivating SLEEP

The sleep timer enables the system to switch off by itself after a set period of time. The clock time needs to be set first before the sleep timer can be used.

● Press SLEEP on the remote

control once or more. ➜ Display shows SLEEP and one of the sleep time options in sequence: 60, 45, 30,15, SLEEP OFF, 60... if you have selected a time. Once SLEEP is activated, SLEEP ON scrolls across the display at repeated intervals.

● To deactivate, press SLEEP on the remote

control once or more until SLEEP OFF is shown, or press STANDBY ON on the system or remote control. ➜ SLEEP OFF scrolls across the display.

FFLE SLEEP

Page 19

Specifications / Maintenance

AMPLIFIER

Output power ....................................... 2 x 10 W RMS

......................................................................... 400 W PMPO

Signal-to-noise ratio .......................... ≥ 65 dBA (IEC)

Frequency response ......... 40 – 20000 Hz, ± 3 dB

Input sensitivity AUX ....................... 0.5 V (max. 2 V)

Impedance loudspeakers ......................................... 8 Ω

Impedance headphones .................... 32 Ω -1000 Ω

CD PLAYER

Frequency range .................................. 20 – 20000 Hz

Signal-to-noise ratio ............................................ 75 dBA

TUNER

FM wave range ...................................87.5 – 108 MHz

MW wave range (9 kHz) ............. 531 – 1602 kHz

MW wave range (10 kHz) ........... 530 – 1700 kHz

Tuning grid ............................................................ 9/10 kHz

Sensitivity at 75 Ω

– mono, 26 dB signal-to-noise ratio ............ 2.8 µV

– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV

Selectivity ................................................................. ≥ 28 dB

Total harmonic distortion ..................................... ≤ 5%

Frequency response ..... 63 – 12500 Hz (± 3 dB)

Signal-to-noise-ratio ...................................... ≥ 50 dBA

TAPE DECK

Frequency response

Normal tape (type I) ...... 80 – 12500 Hz (8 dB)

Signal-to-noise ratio

Normal tape (type I) .................................... 50 dBA

Wow and flutter ......................................... ≤ 0.4% DIN

SPEAKERS

Bass reflex system Dimensions (w x h x d) . 140 x 231 x 216 (mm)

..................................................... 5.51 x 9.09 x 8.5 (inch)

Cleaning the Cabinet

● Use a soft cloth slightly moistened with a mild

detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

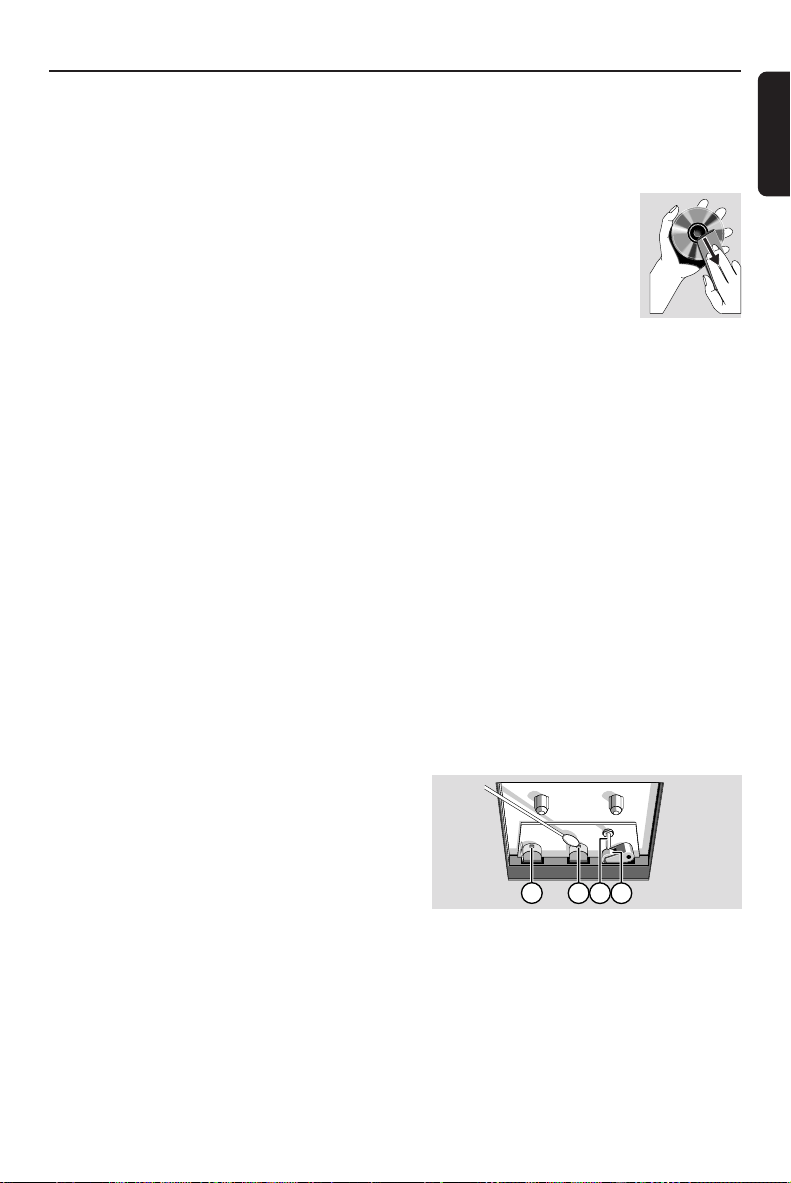

● When a disc becomes dir ty,

clean it with a cleaning cloth. Wipe the disc from the centre out.

● Do not use solvents such as

benzene, thinner, commercially available cleaners, or antistatic spray intended for analogue records.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

● To ensure good recording and playback quality,

clean the heads A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

Caution: Do not rotate the heads during cleaning.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You can also clean the heads by playing a

cleaning tape once.

English

GENERAL INFORMATION

AC Power

For Version /21-/21M ..... 110–127 / 220–240 V;

50–60 Hz Switchable

For Version /30 .......................230 – 240 V; 50 Hz

Dimensions (w x h x d) .. 140 x 231 x 280 (mm)

................................................ 5.51 x 9.09 x 11.02 (inch)

Weight (with/without speakers) ..................................

............................................................... approx. 6.7 / 3.0 kg

.............................................. approx. 14.8 / 6.62 pound

Standby power consumption .......................... < 3 W

Subject to modification

A A B C

Demagnetising the heads

● Use a demagnetising tape available at your

dealer.

Page 20

Troubleshooting

English

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

Problem Solution

CD OPERATION

“NO DISC” is displayed. – Inser t a disc.

– Check if the disc is inser ted upside down. – Wait until the moisture condensation at the lens

has cleared. – Replace or clean the disc, see “Maintenance”. – Use a finalised CD-RW or CD-R.

RADIO RECEPTION

Radio reception is poor. – If the signal is too weak, adjust the antenna or

connect an external antenna for better reception. – Increase the distance between the Micro HiFi

System and your TV or VCR.

TAPE OPERATION / RECORDING

Recording or playback cannot be made. – Clean deck parts, see “Maintenance”.

– Use only normal (IEC I) tape for recording.

“CHECK TAPE” is displayed. – Apply a piece of adhesive tape over the missing

tab space.

The tape deck door cannot open. – Remove and reconnect the AC power plug and

switch on the system again.

GENERAL

The system does not react when buttons – Remove and reconnect the AC power plug and are pressed. switch on the system again.

Sound cannot be heard or is of poor – Adjust the volume. quality. – Disconnect the headphones.

– Check that the speakers are connected correctly. – Check if the stripped speaker wire is clamped.

The left and right sound outputs are – Check the speaker connections and location. reversed.

Page 21

Troubleshooting

The remote control does not function – Select the source (CD or TUNER, for example) properly. before pressing the function button (É,í,ë).

– Reduce the distance between the remote control

and the system. – Inser t the batteries with their polarities

(+/– signs) aligned as indicated. – Replace the batteries. – Point the remote control directly toward

IR sensor on the front of the system.

The timer is not working. – Set the clock correctly.

– Press TIMER ON•OFF to switch on the timer. – If a recording is in progress, stop the recording.

The Clock/Timer setting is erased. – Power has been interrupted or the power cord

has been disconnected. Reset the clock/timer.

English
