Micro Hi-Fi System
MC-
120
MC-
130
Audio
Audio
1
México
Es necesario que lea cuidadosamente su instructivo de
manejo.
PRECAUCIÓN - ADVERTENCIA
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
Descripción: Microsistema de Audio
Modelo : MC-120/21, MC-130/21
Alimentación: 110–127 / 220–240V; ~50–60 Hz
Comsumo: 20 W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6
Localidad y Tel: Edo. de México C.P. 52784
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
ATENCIÓN
Col. San Fernando La Herradura
Huixquilucan
Tel.52 69 90 00
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SUAPARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C.V.no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, in
eléctricas, rayos etc
terceros (choques asaltos, riñas, etc .).
2
undaciones, incendios, descargas
. o delitos causados por
CAUTION
Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.
%
2
^
8
@
CD
TUNER TAPE AUX
REPEAT SHUFFLE SLEEP
VOL
1
(
6
5
4
1
2
@
0
$
STANDBY-ON PROGRAM REPEAT
SOURCE
SELECT
PLAY•PAUSE
PREV NEXT
ON
OFF
PROGRAM SHUFFLE
CLOCKTIMER
BAND
STOP
iR
9
&
DSC DBB IS
MUTE
SHUFFLE
NEWS/TA
*
7
!
8
3
6
9
#
3
3
4
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 22
Español --------------------------------------------- 38
-------------------------------------------------------- 54
English
Français
Español
5
Contents
English
General Information
Environmental information ................................ 7
Supplied accessories ............................................ 7
Safety information ................................................ 7
Preparations
Rear connections ............................................. 8–9
Optional connection ........................................... 9
Inserting batteries into the remote control ... 9
Controls
Controls on the system and remote
control .................................................................. 10
Basic Functions
Switching the system on ................................... 11
Power-saving automatic standby ..................... 11
Adjusting volume and sound............................ 11
CD Operation
Playing a disc ........................................................ 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 12
Different play modes: Shuffle and Repeat ..... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
Clock/Timer
Setting the clock ................................................. 18
Setting the timer ................................................. 18
Activating and deactivating TIMER ................. 18
Activating and deactivating SLEEP .................. 18
Specifications ........................................... 19
Maintenance.............................................. 19
Troubleshooting ............................. 20–21
Radio Reception
Tuning to radio stations .................................... 14
Programming radio stations ............................. 14
Tuning to preset radio stations ....................... 15
Changing tuning grid .......................................... 15
Tape Operation / Recording
Tape playback ...................................................... 16
General information on recording ................. 16
Synchro start CD recording ..................... 16–17
Recording from the radio................................. 17
Recording from the Aux ................................... 17
6
General Information
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Supplied accessories
– 2 speaker boxes
– remote control
– AM loop antenna
– FM wire antenna
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
7
Preparations
English
FM wire antenna
speakers
(right)
AM
aerial
B
A
AC power cord

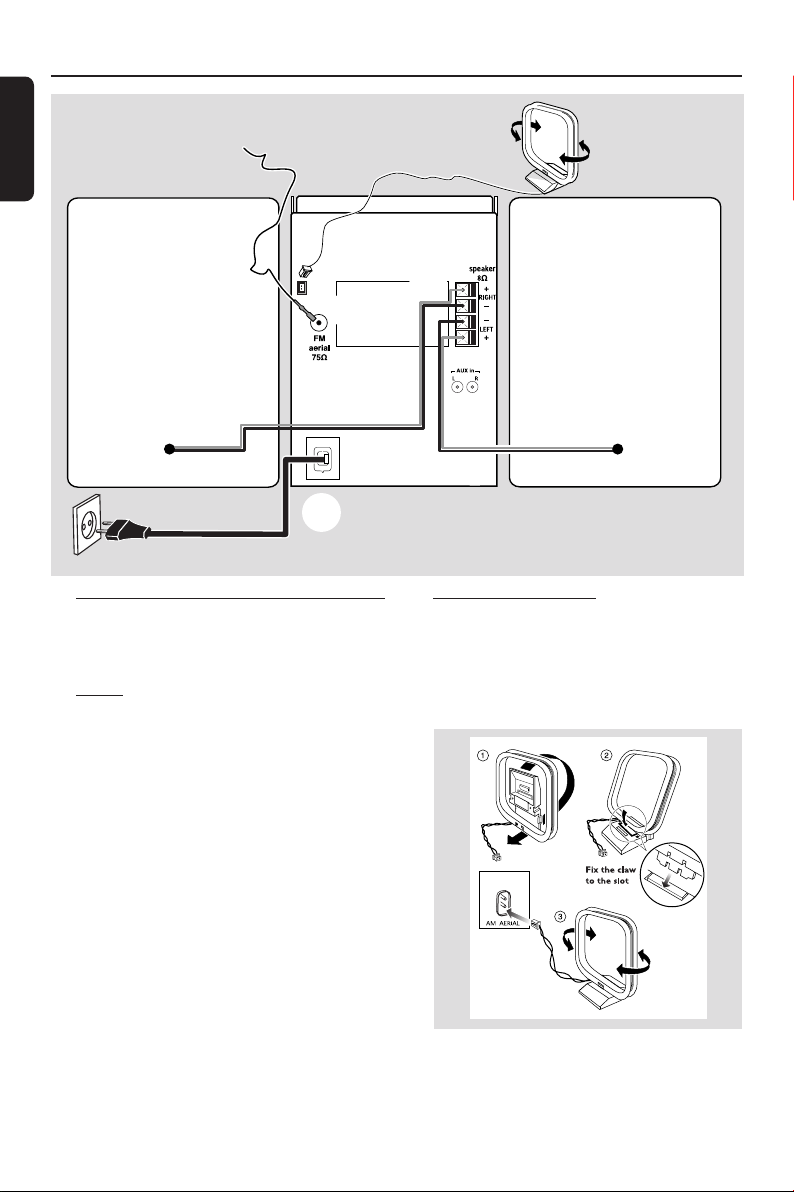

Rear connections
The type plate is located at the rear of the
system.
AM loop
antenna
C
speakers
(left)
B Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
A Powe r
Before connecting the AC power cord to the
wall outlet, ensure that the following are done;
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
– All other connections have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
8
AM Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
Preparations
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM AERIAL (FM
ANTENNA) terminal.
C Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", coloured (marked) wire to
"+" and black (unmarked) wire to "-".
1
● Fully inser t the stripped por tion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
2
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX IN terminals.
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX IN left terminal. Alternatively, you can use
a “single to double” cinch cable (the output sound
still remain mono).

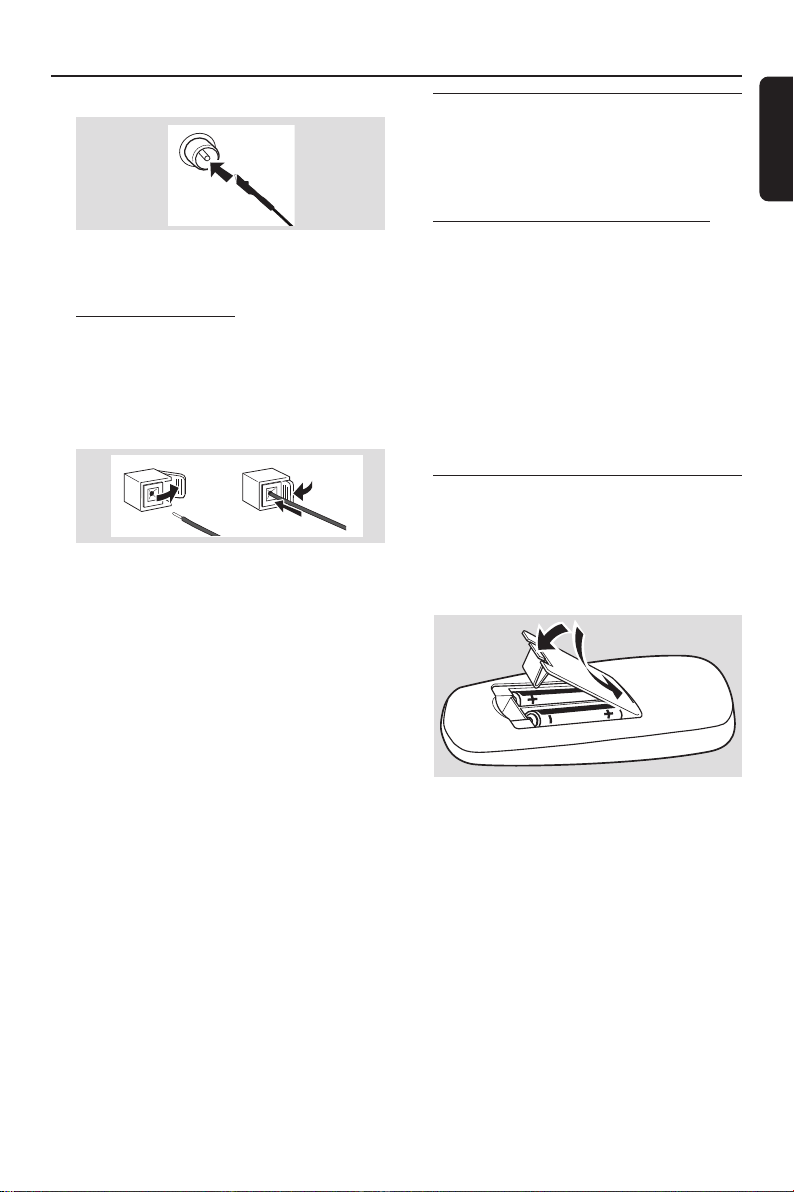

Inserting batteries into the
remote control
Insert two batteries (not supplied) type R03 or
AAA into the remote control with the correct
polarity as indicated by the "+" and "-"
symbols inside the battery compar tment.
English
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, so
they should be disposed off properly.
9
Controls (illustrations on page 3)
English

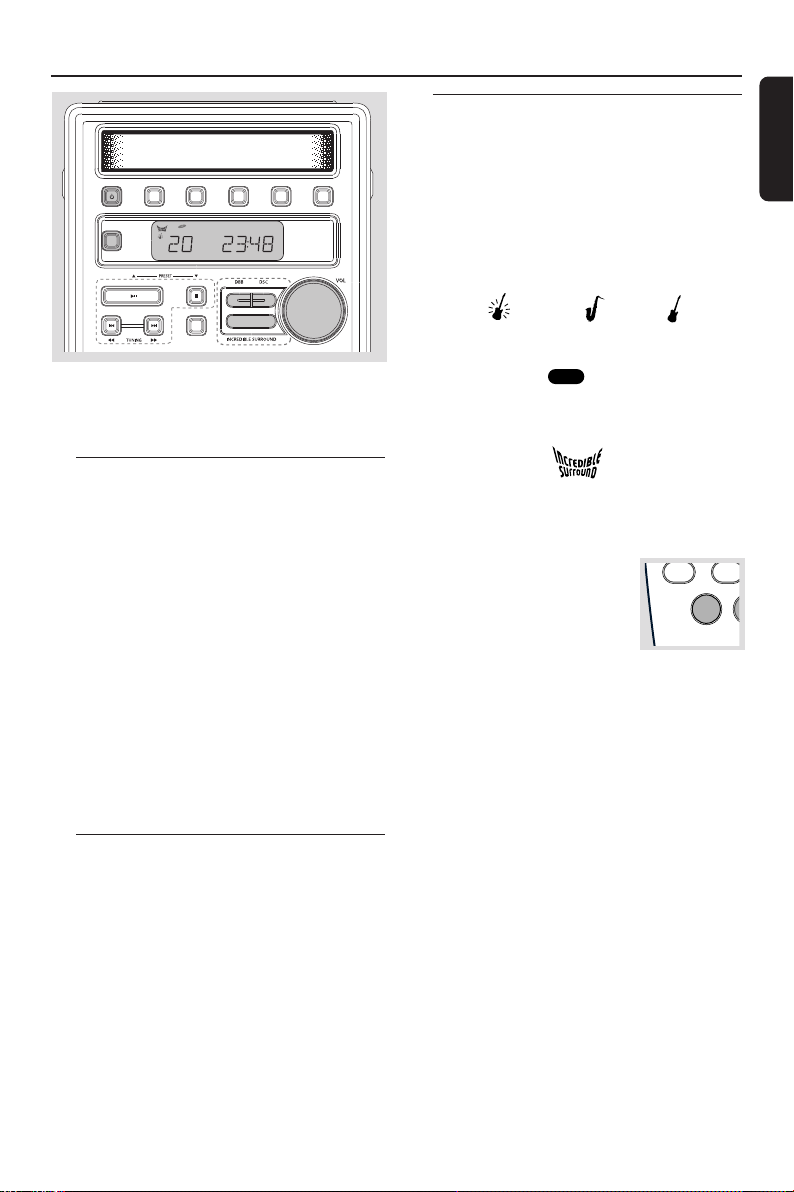

Controls on the system and
remote control
1 STANDBY ON y
– switches the system to standby/on.
– on the remote control only - switches the system
to standby.
2 SELECT SOURCE
– selects the respective sound source for CD/
TUNER/ TAPE /AUX.
– switches on the system.
3 Display
– shows the status of the system.
4 PROGRAM
for CD .................programmes tracks and reviews
for Tuner ............. programmes tuner stations
the programme.
manually or automatically.
5 TIMER ON•OFF
– activates/deactivates or sets the timer function.
6 VOLUME (VOL -/+ )
– adjusts the volume level.
– on the system only - adjusts the hour and minutes
for the clock/timer functions.
7 CLOCK
– sets the clock function.
8 SHUFFLE
– plays CD tracks in random order.
9 INTERACTIVE SOUND controls:
DBB .................... (Dynamic Bass Boost) enhances
the bass.
DSC ..................... (Digital Sound Control) selects
INCREDIBLE SURR.
(IS) ....................... creates a super-enhanced stereo
sound characteristics: CLASSIC/
ROCK/JAZZ/POP.
effect.
0 iR SENSOR
– infrared sensor for remote control.
! REPEAT / BAND
for CD .................repeats a track/CD programme/
for Tuner ............. selects waveband.
entire CD.
@ Mode Selection
STOP 9............ stops CD playback or erase a
PLAY•PAUSE ÉÅ
................................. star ts or interr upts CD playback.
PRESET 34
( ¡, ™ ) .............. selects a preset radio station.
PREV ¡1 / NEXT 2™
( ¡, ™ ) ................ skips to the beginning of a
( à, á ) ..........fast searches back and forward
TUNING à á
( à, á ) ..........tunes to radio stations.
CD programme.
current track/previous/
subsequent track.
within a track/CD.
# Tape Deck Operation
RECORD ........ starts recording.
PLAY 2 ............ star ts playback.
à / á ............... fast rewinds/winds the tape.
STOP•OPEN …stops the tape; opens the
PA US E .............. interrupts recording or playback.
tape compartment.
$ OPEN•CLOSE
– opens/closes the CD door.
% n
– connect headphones.
^ REPEAT
– repeats a track/CD programme/ entire CD.
& MUTE
– interrupts and resumes sound reproduction.
* NEWS/TA
– activates RDS news and Traffic Announcement
(not for all versions).
( SLEEP
– activates/deactivates or selects the sleeper time.
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD ,
TUNER).
– Then select the desired function (for
exampleÉ,
í
,
ë
).
10
E
STANDBY-ON PROGRAM REPEAT
PROGRAM
SOURCE
SELECT
PLAY•PAUSE
PREV NEXT
CLOCKTIMER
ON
OFF
STOP
iR
SHUFFLE
BAND
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press 2 STANDBY ON or SELECT
SOURCE.
➜ The system will switch to the last selected
source.
● Press CD, TUNER, TAPE or AUX on the
remote control.
➜ The system will switch to the selected source.
To switch the system to standby mode
● Press 2 STANDBY ON on the system or
remote control.
● If in tape mode or recording mode, press
STOP•OPEN first.
➜ The volume level, interactive sound settings,
last selected source and tuner presets will be
retained in the player's memory.

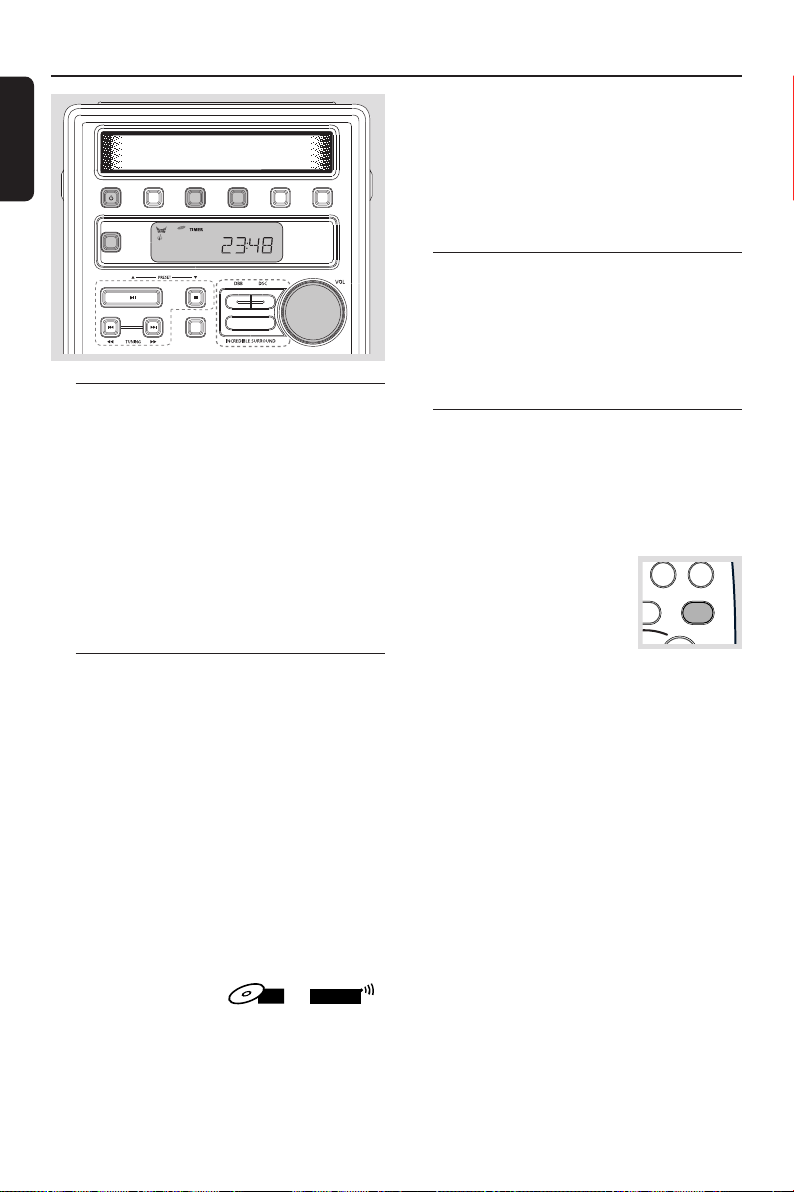

Basic Functions
Adjusting volume and sound
1 Turn the VOLUME control anti-clockwise to
decrease or clockwise to increase volume on the
system (or press VOL -/+ on the remote
control).
➜ Display shows the volume level VOL and a
number from 0-32.
2 Press DSC repeatedly to select the desired
sound effect: CLASSIC (no indication)/
ROCK ( ) / JAZZ ( ) / POP ( ).
3 Press DBB to switch bass enhancement on or
off.
➜ Display shows:
4 Press INCREDIBLE SURR. (IS on the
remote control) to switch the surround sound
effect on or off.
➜ Display shows: if activated.
Note:
– The effect of INCREDIBLE SURROUND may
vary with different types of music.
5 Press MUTE on the remote
control to interrupt sound
reproduction instantly.
➜ Playback will continue
without sound and the display
shows MUTE.
● To activate sound reproduction you can:
– press MUTE again;
– adjust the volume controls;
– change source.
if the DBB is activated.
DBB
DSC DBB
MUTE
English
N
Power-saving automatic standby
As a power-saving feature, the system
automatically switches to standby 15 minutes
after a tape or CD has reached the end and no
control is operated.
11
CD Operation
English
STANDBY-ON PROGRAM REPEAT
PROGRAM
SOURCE
SELECT
PLAY•PAUSE
PREV NEXT
CLOCKTIMER
ON
OFF
STOP
iR
BAND
IMPORTANT:
The lens of the CD player should never be
touched.
X

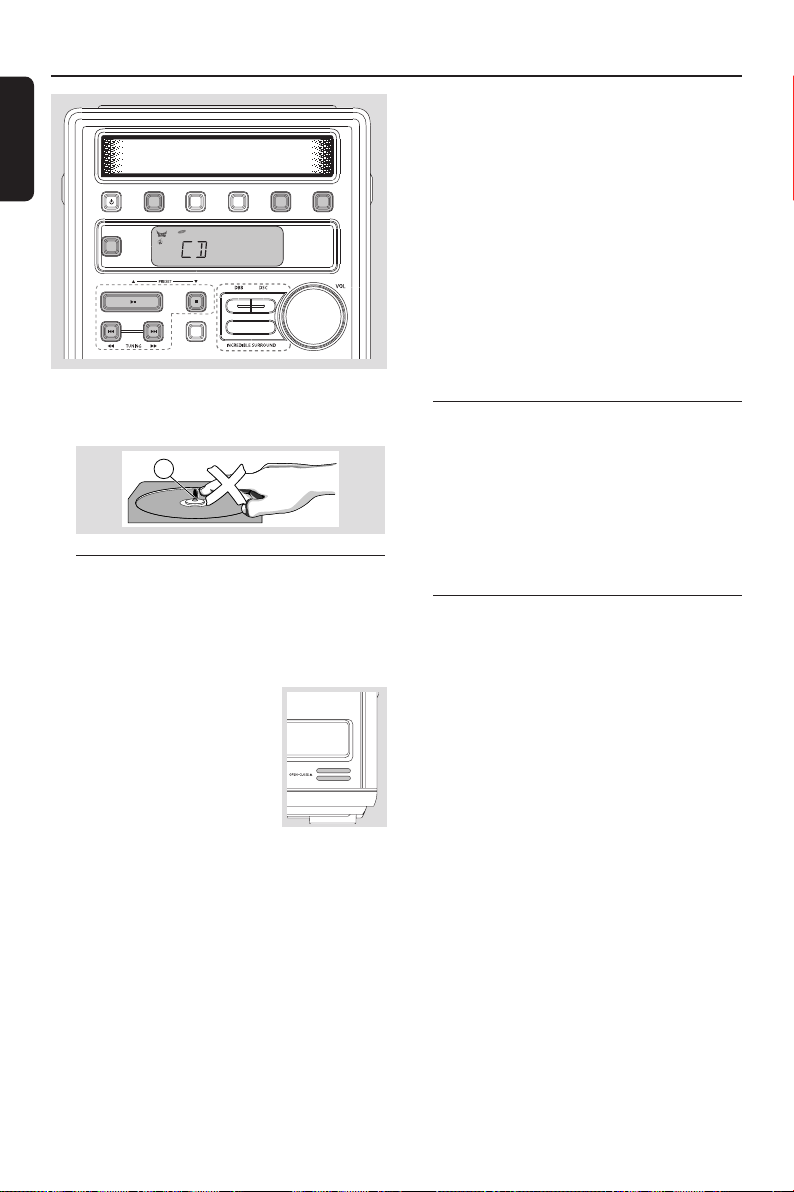

Playing a disc
This CD player plays Audio Discs including CDRecordables and CD-Rewritables.
● CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
1 Select CD source.
2 Press OPEN•CLOSE on the
top
of the system to open the CD
compartment.
➜ OPEN is displayed when
you
open the CD compartment.
3 Inser t a disc with the printed side facing up and
press down on OPEN•CLOSE to close the
CD door.
➜ READ is displayed as the CD player scans the
contents of a disc, and then the total number of
tracks and playing time are shown.
4 Press PLAY•PAUSE 2; (on the remote
control 2;) to start playback.
➜ Current track number and elapsed playing
time of the track are displayed during disc
playback.
SHUFFLE
5 To interrupt playback press PLAY•PAUSE 2;
(on the remote control 2;). Press
PLAY•PAUSE 2; (on the remote control 2;)
again to resume play.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
6 To stop disc playback, press STOP 9.
Note: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TAPE, TUNER or AUX.
– you select to standby.
– you press the tape deck PLAY 2 key.
Selecting a different track
● Press PREV ¡1 or NEXT 2™ (on the remote
control ¡ or ™) once or repeatedly until the
desired track number appears in the display.
● If you have selected a track number shortly after
loading a disc or in the PAUSE position, you will
need to press PLAY•PA US E 2; (on the
remote control 2;) to start playback.
Finding a passage within a track
1 Press and hold down on PREV ¡1 or
NEXT 2™ (on the remote control à or á ).
➜ The disc is played at high speed and low
volume.
2 When you recognise the passage you want,
release PREV ¡1 or NEXT 2™ (on the
remote control à or á ).
➜ Normal playback continues.
Note:
– During a disc programme or if SHUFFLE/
REPEAT active, searching is only possible within the
same track.
12
CD Operation
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback. The play
modes can also be combined with
PROGRAMME.
SHUFFLE ......... tracks of the entire disc/
programme are played in
random order
SHUFFLE and REPEAT ALL…to repeat the
entire disc/ programme
continuously in random order
REPEAT ALL ... repeats the entire disc/
programme
REPEAT ............plays the current track
continuously
1 To select your play mode, press the SHUFFLE
or REPEAT button before or during playback
until the display shows the desired function.
2 Press PLAY•PAUSE 2; (on the remote
control 2;) to start playback if in the STOP
position.
➜ If you have selected SHUFFLE, playback starts
automatically.
3 To return to normal playback, press the
respective SHUFFLE or REPEAT button until
the various SHUFFLE/ REPEAT modes are no
longer displayed.
● You can also press STOP 9 to cancel your play
mode.
Programming track numbers
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
20 tracks can be stored in the memory.
1 Press PROGRAM to enter the programming
mode.
➜ A track number is shown and PROGRAM
flashes.
2 Use the PREV ¡1 or NEXT 2™ (on the
remote control ¡ or ™) to select your desired
track number.
3 Press PROGRAM to confirm the track number
to be stored.
➜ The number of tracks programmed and total
playing time of the programme is shown briefly,
then the selected track and PROG.
4 Repeat steps 2-3 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to
programme more than 20 tracks.
5 To start playback of your disc programme, press
PLAY•PAUSE 2; (on the remote control 2;).
Reviewing the programme
In STOP mode, press and hold down
PROGRAM for a while until the display shows
all your stored track numbers in sequence.
Erasing the programme
You can erase the programme by:
● pressing STOP 9 once in the STOP mode;
● pressing STOP 9 twice during playback;
● opening the CD compar tment;
➜ PROGRAM disappears from the display.
English
13
Radio Reception
English
STANDBY-ON PROGRAM REPEAT
PROGRAM
SOURCE
SELECT
PLAY•PAUSE
PREV NEXT
CLOCKTIMER
ON
OFF
STOP
iR
BAND

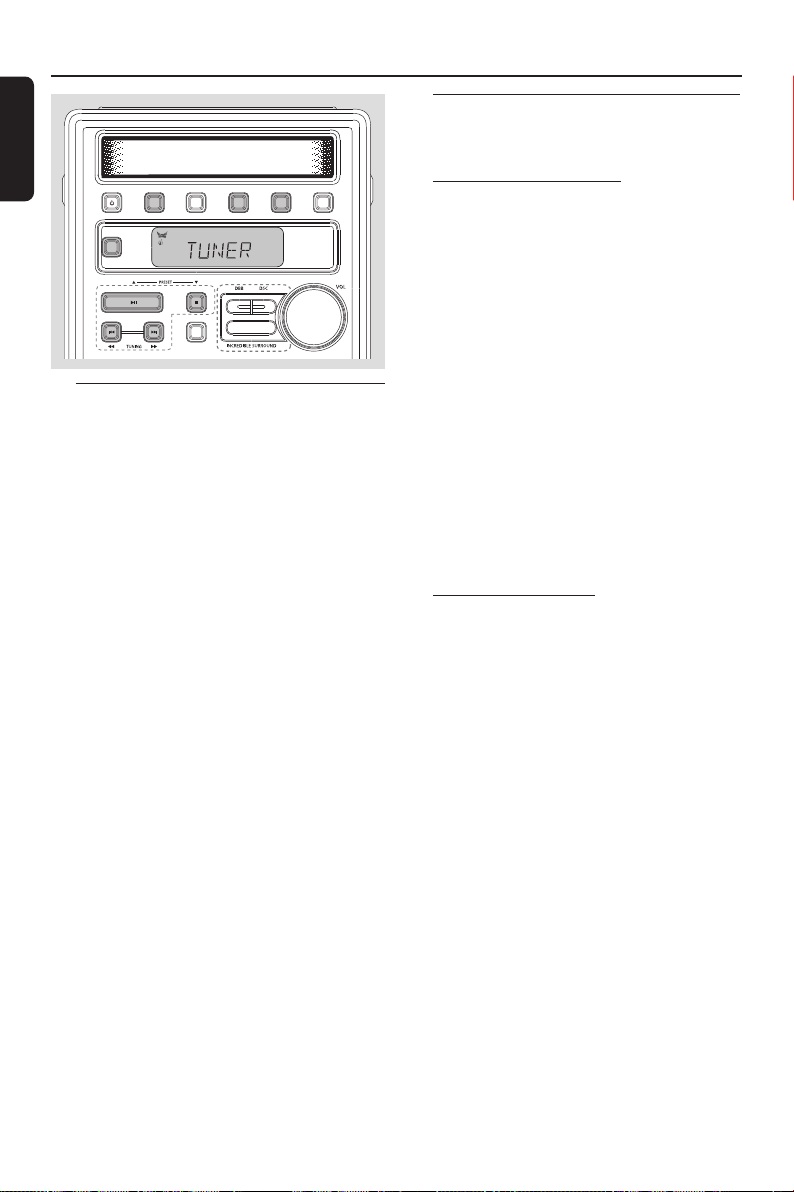

Tuning to radio stations
1 Select TUNER source.
➜ TUNER is displayed briefly.
2 Press BAND once or more to select your
waveband.
3 Press down on TUNING à or á and release
button.
➜ The radio automatically tunes to a station
with sufficient reception. Display indication during
automatic tuning: SEARCH.
➜ If a FM station is received in stereo, STEREO is
shown.
4 Repeat step 3 if necessar y until you find the
desired station.
● To tune to a weak station, press TUNING à
or á briefly and repeatedly until you have
found optimal reception.
SHUFFLE
Programming radio stations
You can store up to a total of 40 radio stations
in the memory.
Automatic programming
Automatic programming will start with a chosen
preset number. From this preset number
upwards, former programmed radio stations will
be overridden. The system will only programme
stations which are not in the memory already.
1 Press PRESET 3 or 4 (on the remote control
¡ or ™ ) to select the preset number where
programming should start.
Note:
– If no preset number is selected, default is preset
(1) and all your presets will be overridden.
2 Press PROGRAM for more than 2 seconds to
activate programming.
➜ AUTO is displayed and available stations are
programmed in order of waveband reception
strength: FM followed by MW. The last preset
automatically stored will then be played.
Manual programming
1 Tune to your desired station (see Tuning to radio
stations).
2 Press PROGRAM to activate programming.
➜ PROGRAM flashes in the display.
3 Press PRESET 3 or 4 (on the remote control
¡ or ™ ) to allocate a number from 1 to 40 to
this station.
4 Press PROGRAM again to confirm the setting.
➜ PROGRAM disappears, the preset number and
the frequency of the preset station are shown.
5 Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
14
Tuning to preset radio stations
● Press PRESET 3 or 4 (on the remote control
¡ or ™ ) until the desired preset station is
displayed.
Changing tuning grid (some versions
only)
In North and South America the frequency step
between adjacent channels in the AM and FM
band are 10 KHz and 100 KHz respectively. In
the rest of the world this step is 9 KHz and 50
KHz. Usually the frequency step has been preset
in the factory for your area if not:
1 Select TUNER source.
2 Press SHUFFLE on the set for at least 5
seconds.
➜ The display shows either GRID 9 or
GRID 10.
Note:
– All preset stations will be lost and need to be
reprogrammed.
Radio Reception
English
15

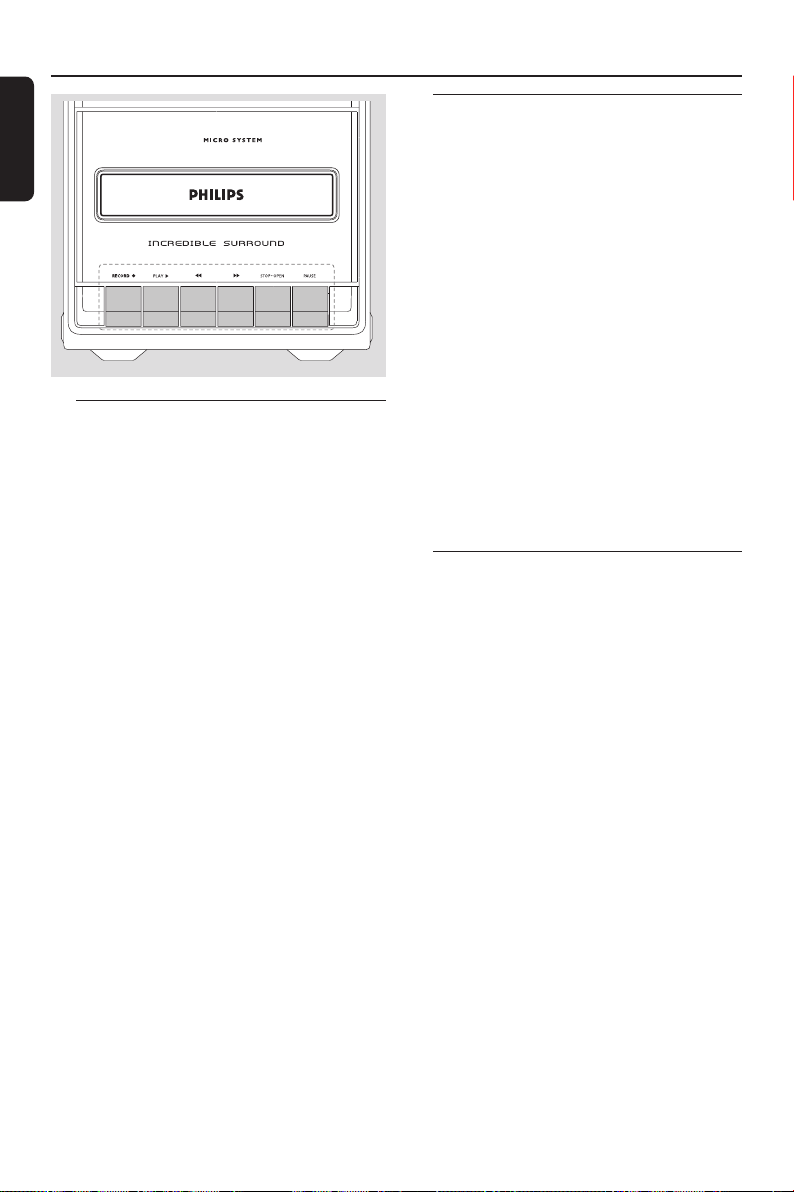

Tape Operation / Recording
English
Tape playback
1 Select TAPE source.
➜ The display shows TAPE throughout tape
operation.
2 Press STOP•OPEN to open the tape door.
3 Inser t a recorded tape and close the tape door.
● Load the tape with the open side downward and
the full spool to the left.
4 Press PLAY 2 to start playback.
5 To interrupt playback, press PAUSE. To resume,
press this key again.
6 By pressing à or á on the system fast winding
of tape is possible in both directions.
7 To stop the tape, press STOP•OPEN.
● The keys are automatically released at the end of
the tape, except if PAUSE has been activated.
Note:
– The sound source cannot be changed while
recording a tape.
General information on
recording
● Recording is permissible insofar as copyright or
other rights of third parties are not infringed.
● For recording, use only NORMAL (IEC type I)
tapes on which the tabs have not yet been
broken. This deck is not suited for recording on
METAL (IEC IV) type tapes.
● The best recording level is set automatically.
Altering the VOLUME, INCREDIBLE
SURROUND, DBB or INTERACTIVE SOUND
controls will not affect the recording in progress.
● At the very beginning and end of the tape, no
recording will take place during the 7 seconds
when the leader tape passes the recorder heads.
● To protect a tape from accidental erasure, have
the tape in front of you and break out the left
tab. Recording on this side is no longer possible.
If, however, you wish to record over this side
again, cover the tabs with a piece of adhesive
tape.
Synchro start CD recording
1 Select CD source.
2 Inser t a disc and if desired, programme track
numbers.
3 Press STOP•OPEN to open the tape door.
4 Inser t a suitable tape into the deck and close the
tape door.
5 Press RECORD to star t recording.
➜ Playing of the CD programme starts
automatically from the beginning of the CD
after 7 seconds. It is not necessar y to start the
CD player separately.
To select and record a particular passage
within a track:
● Press and hold down on PREV ¡1 or NEXT
2™ (on the remote control à or á ).
● When you recognise the passage you want,
release PREV ¡1 or NEXT 2™.
● To interrupt disc playback, press PLAY•PAUSE
2; (on the remote control 2;).
● Recording will begin from this exact point in the
track when you press RECORD.
16
6 For brief interruptions during recording, press
PAUSE. To resume recording, press PAUSE
again.
7 To stop recording, press STOP•OPEN.
Recording from the radio
1 Tune to the desired radio station (see Tuning to
radio stations).
2 Press STOP•OPEN to open the tape door.
3 Inser t a suitable tape into the deck and close the
tape door.
4 Press RECORD to star t recording.
5 For brief interruptions, press PAUSE. To
resume recording, press PAUSE again.
6 To stop recording, press STOP•OPEN.
Recording from Aux
1 Select AUX source.
2 If necessar y, prepare the additional appliance for
recording.
3 Press RECORD to star t recording.
Tape Operation / Recording
English
17
Clock/Timer
English
STANDBY-ON PROGRAM REPEAT
SOURCE
SELECT
PLAY•PAUSE
PREV NEXT
CLOCKTIMER
ON
OFF
STOP
iR
BAND
Setting the clock
1 In standby, press CLOCK.
➜ The clock digits for the hours flash.
2 Tu r n VOLUME to set the hours: clockwise for
hours up; anti-clockwise for hours down.
3 Press CLOCK again.
➜ The clock digits for the minutes flash.
4 Tu r n VOLUME to set the minutes: clockwise for
minutes up; anti-clockwise for minutes down.
5 Press CLOCK to confirm the time.
Setting the timer
● The system can be used as an alarm clock,
whereby the CD or TUNER is switched on at a
set time. The clock time needs to be set first
before the timer can be used.
● During setting, if no button is pressed within 90
seconds, the system will exit timer setting mode
automatically.
SHUFFLE
5 Press TIMER ON•OFF again.
➜ The clock digits for the minutes flash.
6 Tu r n VOLUME to set the minutes: clockwise for
minutes up; anti-clockwise for minutes down.
7 Press TIMER ON•OFF to confirm the time.
➜ The timer is now set and activated.
Activating and deactivating
TIMER
● In standby or during playback, press
TIMER ON•OFF once.
➜ Display shows TIMER if activated, and
disappears if deactivated.
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time. The clock time
needs to be set first before the sleep timer can
be used.
● Press SLEEP on the remote
control once or more.
➜ Display shows SLEEP and
one of the sleep time options
in sequence: 60, 45, 30,15,
SLEEP OFF, 60... if you have
selected a time. Once SLEEP is activated, SLEEP
ON scrolls across the display at repeated
intervals.
● To deactivate, press SLEEP on the remote
control once or more until SLEEP OFF is
shown, or press STANDBY ON on the system
or remote control.
➜ SLEEP OFF scrolls across the display.
FFLE SLEEP
1 In any mode, press TIMER ON•OFF for more
than 2 seconds.
2 Tu r n VOLUME clockwise (or press SELECT
SOURCE) to select sound source.
3 Press TIMER ON•OFF to confirm your
desired mode.
➜ The selected source
is shown. The clock digits for the hours flash.
CD
or
TUNER
TUNER
4 Tu r n VOLUME to set the hours: clockwise for
hours up; anti-clockwise for hours down.
18
Specifications / Maintenance
AMPLIFIER
Output power .......................................... 2 x 5 W RMS
......................................................................... 200 W PMPO
Signal-to-noise ratio .......................... ≥ 65 dBA (IEC)
Frequency response ......... 40 – 20000 Hz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers ......................................... 8 Ω
Impedance headphones ................. 32 Ω – 1000 Ω
CD PLAYER
Frequency range .................................. 20 – 20000 Hz
Signal-to-noise ratio ............................................ 75 dBA
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range (9 kHz) ............. 531 – 1602 kHz
MW wave range (10 kHz) ........... 530 – 1700 kHz
Tuning grid ............................................................ 9/10 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 2.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distortion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio ...................................... ≥ 50 dBA
TAPE DECK
Frequency response
Normal tape (type I) ... 120 – 10000 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 48 dBA
Wow and flutter ......................................... ≤ 0.4% DIN
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dir ty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic spray intended for
analogue records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.

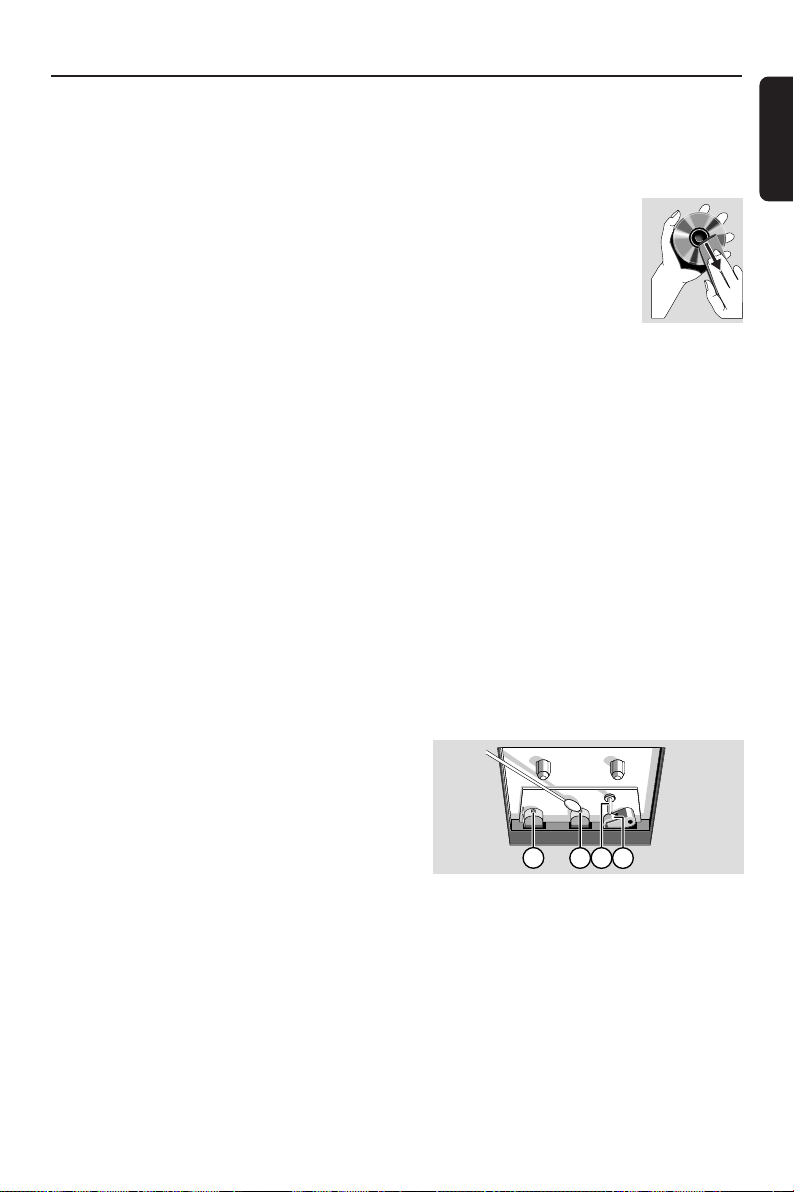

Cleaning the Heads and the Tape Paths
● To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and
pressure roller(s) C after every 50 hours of
tape operation.
● Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
● You can also clean the heads by playing a
cleaning tape once.
English
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 140 x 231 x 202 (mm)
GENERAL INFORMATION
AC Power
For Version /21-/21M ..... 110–127 / 220–240 V;
50–60 Hz Switchable
For Version /30 ........................ 230 – 240 V; 50 Hz
Dimensions (w x h x d) .. 140 x 231 x 280 (mm)
Weight (with/without speakers) ..................................
............................................................... approx. 5.7 / 2.7 kg
Standby power consumption .......................... < 3 W
Subject to modification
A A B C
Demagnetising the heads
● Use a demagnetising tape available at your
dealer.
19
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or service centre.
Problem Solution
CD OPERATION
“NO DISC” is displayed. – Inser t a disc.
– Check if the disc is inser ted upside down.
– Wait until the moisture condensation at the lens
has cleared.
– Replace or clean the disc, see “Maintenance”.
– Use a finalised CD-RW or CD-R.
RADIO RECEPTION
Radio reception is poor. – If the signal is too weak, adjust the antenna or
connect an external antenna for better reception.
– Increase the distance between the Micro HiFi
System and your TV or VCR.
TAPE OPERATION / RECORDING
Recording or playback cannot be made. – Clean deck parts, see “Maintenance”.
– Use only normal (IEC I) tape for recording.
– Apply a piece of adhesive tape over the missing
tab space.
GENERAL
The system does not react when buttons – Remove and reconnect the AC power plug and
are pressed. switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume.
quality. – Disconnect the headphones.
– Check that the speakers are connected correctly.
– Check if the stripped speaker wire is clamped.
The left and right sound outputs are – Check the speaker connections and location.
reversed.
20
Troubleshooting
The remote control does not function – Select the source (CD or TUNER, for example)
properly. before pressing the function button (É,í,ë).
– Reduce the distance between the remote control
and the system.
– Inser t the batteries with their polarities
(+/– signs) aligned as indicated.
– Replace the batteries.
– Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working. – Set the clock correctly.
– Press TIMER ON•OFF to switch on the timer.
– If a recording is in progress, stop the recording.
The Clock/Timer setting is erased. – Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
English
21
Loading...
