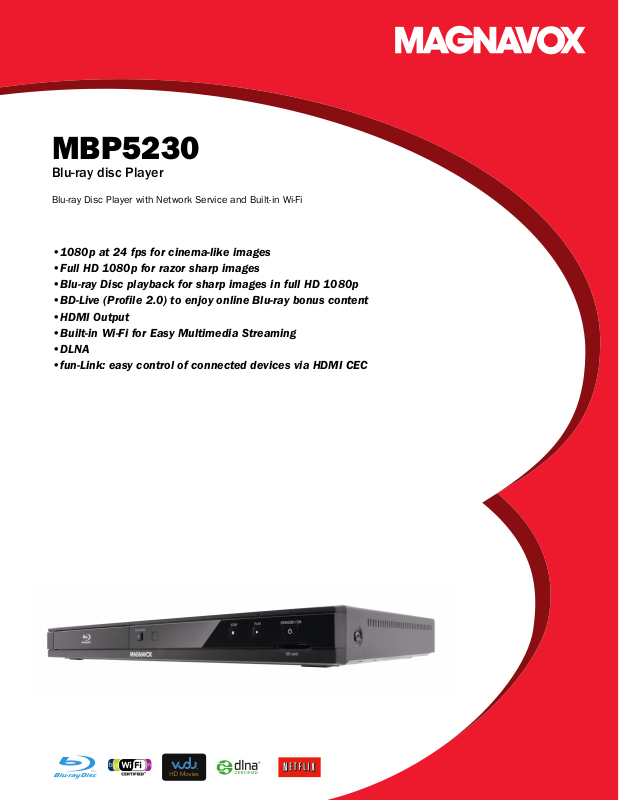

MBP5230
Blu-ray disc Player
Blu-ray Disc Player with Network Service and Built-in Wi-Fi
•1080p at 24 fps for cinema-like images
•Full HD 1080p for razor sharp images
•Blu-ray Disc playback for sharp images in full HD 1080p
•BD-Live (Profile 2.0) to enjoy online Blu-ray bonus content
•HDMI Output
•Built-in Wi-Fi for Easy Multimedia Streaming
•DLNA
•fun-Link: easy control of connected devices via HDMI CEC
Page 2
MBP5230/F7
Blu-ray disc Player
Product specifications
Picture/Display
• Picture enhancement: Progressive scan, Video
upscaling, High Def (720p, 1080i, 1080p)
• Aspect ratio: 16:9, 4:3
Sound
• Sound System: Dolby Digital, DTS
Video Playback
• Playback Media: CD-R/CD-RW, DVD-Video, DVD-R/
-RW, CD, DVD, BD Video, BD-R/RE 2.0, BD-ROM
• Compression formats: MPEG2, H.264, VC-1
• Video disc playback system: NTSC
• Disc Playback Modes: Angle, Disc Menu, Pause,
Repeat, Resume Playback from Stop, Skip, Search
forward/reverse, Slow Forward, Standard Play
• Picture Quality Enhancements: Video upscaling
• Video Enhancement: Progressive Scan, Video
Upscaling
Audio Playback
• Playback Media: CD, CD-R/RW
• Compression format: Dolby Digital, DTS
Still Picture Playback
• Playback Media: CD-R/RW, DVD-R/-RW, Kodak
Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Slideshow, Rotate, Zoom,
High Definition Resolution
Connectivity
• Rear Connections: Analog audio Left/Right out,
HDMI output, Composite video (CVBS) output,
Digital coaxial out, Ethernet
• Front / Side connections: SD-card (Videostore)
Convenience
• Child Protection: Parental Control
• OSD Languages: English, French, Spanish
Accessories
• Included accessories: Quick start guide, IFU / User
Manual, Remote Control, 2 x AAA Batteries, Audio
Cable
• User Manual: English, Mexican Spanish
Power
• Power supply: 120V, 60Hz
Dimensions
• Set dimensions (W x H x D): 360 x 39 x 215 mm
• Packaging dimensions (W x H x D):
x 89 x 328 mm
446
• Set weight: 1.6 kg
• Weight incl. Packaging: 2.48 kg
Blu-ray Disc playback
Blu-ray Discs have the capacity to carry high definition
data, along with pictures in the 1920 x 1080
resolution that defines full high definition images.
Scenes come to life as details leap at you,
movements smoothen and images turn crystal clear.
Blu-ray also delivers uncompressed surround sound so your audio experience becomes unbelievably real.
The high storage capacity of Blu-ray Discs also allow a
host of interactive possibilities to be built in.
Seamless navigation during playback and other
exciting features like pop-up menus bring a whole new
dimension to home entertainment.
1080p at 24 fps
Bring true cinema experience into your living room with
24 frames-per-second video. Original films are all
recorded at this frame rate, providing an ambience
and image texture that is so unique. Philips Blu-ray
Disc players are equipped to bring you 24fps directly
from Blu-ray Discs - thus giving you sensational
cinema-like high definition images that will astound
you.-
Full HD 1080p
Blu-ray Discs have the capacity to carry high definition
data, along with pictures in the 1920 x 1080
resolution that defines full high definition images. This
can only mean you get the best possible TV picture
quality available today - so prepare to feast your eyes.
Date of issue 2011-11-04
Version: 2.3.2
12 NC: 8670 000 69753
UPC: 6 09585 19960 6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2011 Magnavox.
All Rights reserved.
