1 Important
Safety and important notice
Warning
Risk of overheating! Never install the product in a confined space. Always leave a space of at least 4 inches around the product for ventilation. Ensure cur tains or other objects never cover the ventilation slots on the product. Never place the product, remote control or
batteries near naked flames or other heat sources, including direct sunlight. Only use this product indoors. Keep this
product away from water, moisture and liquid­filled objects. Never place this product on other electrical
equipment. Keep away from this product during lightning
storms. Where the mains plug or an appliance
coupler is used as the disconnect device, the disconnect device shall remain readily operable. Visible and invisible laser radiation when open.
Avoid exposure to beam.
To establish a safe volume level:
Set your volume control at a low setting. • Slowly increase the sound until you can • hear it comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even • at normally ‘safe’ levels, can also cause hearing loss. Be sure to use your equipment • reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for • reasonable periods of time. Be careful not to adjust the volume as • your hearing adapts. Do not turn up the volume so high that • you can’t hear what’s around you. You should use caution or temporarily • discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can • impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your • hearing ‘comfor t level’ adapts to higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.
4
EN
CLASS 1
LASER PRODUCT
Disposal of your old product and batteries
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and
batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health. Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Please visit www.recycle.philips.com for additional information on a recycling center in your area.
Copyright notice
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual proper ty rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
Open source software
Philips Electronics Hong Kong Ltd. hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licenses. This offer is valid up to three years after product purchase to anyone in receipt of this information. To obtain source code, please contact open.source@philips.com. If you prefer not to use email or if you do not receive confirmation receipt within a week after mailing to this email address, please write to “Open Source Team, Philips Intellectual Property & Standards, P.O. Box 220, 5600 AE Eindhoven, The Netherlands.” If you do not receive timely confirmation of your letter, please email to the email address above.
Trademark notice
‘Blu-ray Disc’ and ‘Blu-ray Disc’ logo are trademarks.
HDMI, and HDMI logo and High-Definition Multimedia Inter face are trademarks or registered trademarks of HDMI licensing LLC.
‘AVCHD’ and ‘AVCHD’ logo are trademarks of Matsushita Electric Industrial Co., Ltd and Sony Corporation.
‘x.v.Colour’ is a trademark of Sony Corporation.
BONUSVIEW™
‘BD LIVE’ and ‘BONUSVIEW’ are trademarks of Blu-ray Disc Association.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
English
EN
5
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Cer tified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
®
DivX
, DivX Certified® and associated logos are registered trademarks of DivX, Inc. and are used under license.
Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries.
®
device must be registered in
2 Your Blu-ray
Micro System
Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers (e.g. product software upgrade), register your product at www.philips.com/welcome. If you contact Philips, you will be asked for the model and serial number of this product. The model number and serial number are on the bottom of this product. Write the numbers here: Model No. __________________________ Serial No. ___________________________
Feature highlights
For optimal per formance of this product, it is recommended to regularly update the software of this product.
High-Definition entertainment
Watch high-definition content disc with HDTV (High Definition Television). Connect it through a high speed HDMI cable (1.3 or category 2). You can enjoy excellent picture quality up to 1080p resolution with the frame rate of 24 frames per second with progressive scan output.
BD-Live
Connect this product to the movie studios website via the L AN port or external Wi-Fi to access a variety of up-to-date content (e.g. refreshed previews and exclusive special features).
6
EN
Playable media
This product can play:
BD-Video, BD-R/RE2.0• DVD, DVD-Video, DVD+R/+RW, DVD-• R/-RW, DVD+R/-R DL (Dual Layer) Video CD/SVCD• Audio CD, CD-R/CD-RW, MP3 media, • WMA media, JPEG files DivX (Ultra)/DivX Plus HD media• USB flash drive
Region codes
You can play discs with the following region codes.
Region code Coun-
tries
DVD Blu-ray
China
C
English
EN
7
Product overview
k
h
i
Main unit
a
b
c d
e f g
m l
j
a Disc compartment b STANDBY-ON
Turn on this product or switch to the • standby mode.
c SRC
Select a source.
d
/
Skip to the previous/next track.• Skip to the previous/next title or • chapter. Tune to a radio station.
e
Star t or pause play.
f
Stop play.• Erase a program.
g

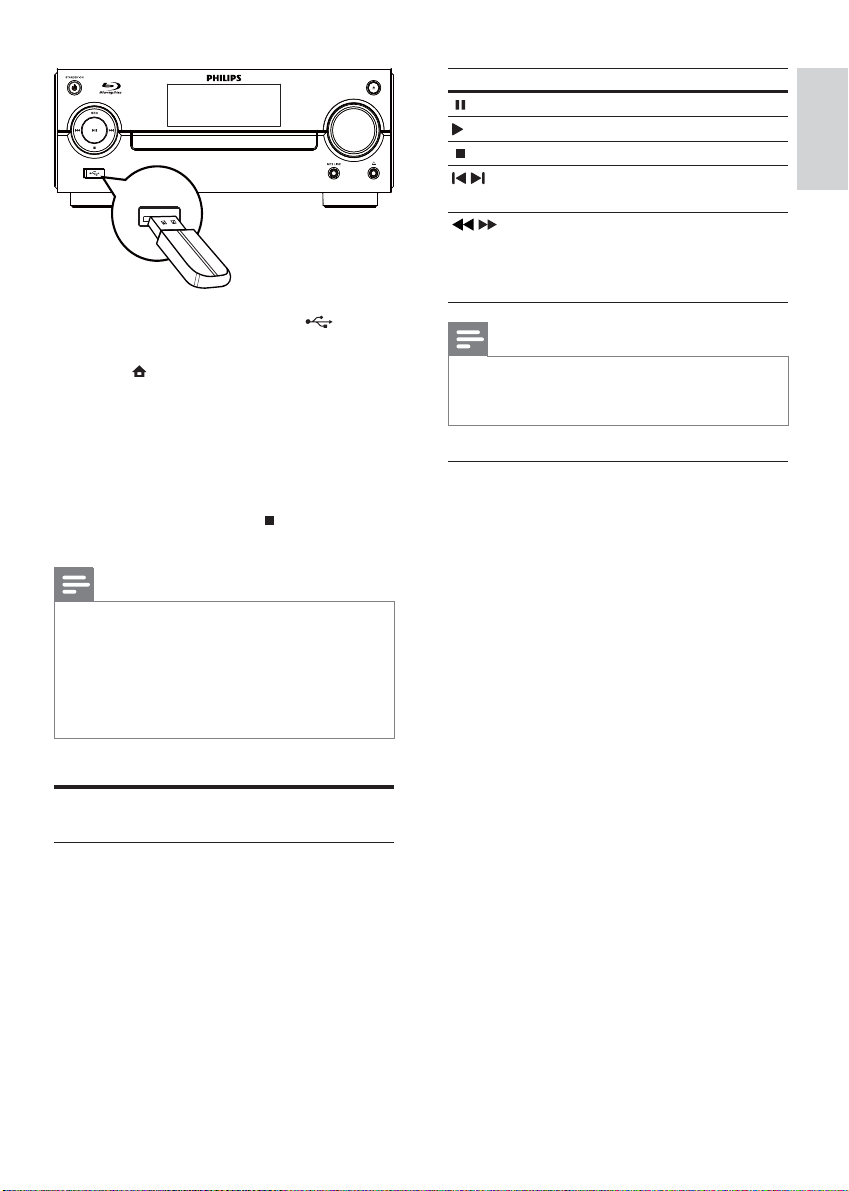

Connect to a USB flash drive.
h
Headphone socket.
i MP3 LINK
Connect to an external audio device.
j VOLUME
Adjust volume.• Adjust time.
k IR sensor
Detect signals from the remote • control. Always point the remote control at the IR sensor.
l
Open or close the disc • compartment.
m Display panel
8
EN
Remote control
  
 
 
 
a
Turn on this product or switch to the • standby mode. When EasyLink is enabled, press • and hold for at least three seconds to turn all connected HDMI CEC compliant devices to standby.
 
 
 
 
  
b OPEN/CLOSE
Open or close the disc compartment.
c RADIO
Switch to FM radio.
d DISC/TOP MENU
Switch to the disc source.
BD: Display the top menu.
DVD: Display the title menu.
e Color buttons
BD: Select tasks or options.
f
Access the home menu of this • product.
g DISC/POP-UP/MENU
BD: Access or exit the pop-up menu.
DVD: Access or exit the disc menu.
h OK
Confirm an entry or selection.
i
Navigate through the menus.
: Search forward or backward for
a radio station.
j
k
l
m
: Tune to a radio station.
BACK
Return to a previous display menu.
Star t or resume play.
/
Search backward or forward.
/
Skip to the previous or next title, • chapter, or track.
English
EN
9
n
Mute or restore volume.
o VOL +/-
Adjust volume.• Adjust time.
p Alphanumeric buttons
Select an item to play.• Enter numbers/letters/text.
q PROGRAM/CLOCK
Program radio stations.• Set the clock.• Display the set clock (unavailable in • the tuner mode).
r BONUSVIEW
Turn on or off the secondary video • in a small screen window during play (applicable only to a Blu-ray disc that supports the BONUSVIEW or Picture-In-Picture feature).
s LOUDNESS
Turn on or off automatic loudness • adjustment.
t MODE/DIM
Select repeat play modes.• Select shuffle play modes.• Select a brightness level for the • display panel on the main unit.
u HDMI
Select the video resolution of HDMI • output.
v SLEEP/TIMER
Set the sleep timer.• Set the alarm timer.
w SUBTITLE
Select a subtitle language on a disc.
x BASS
Adjust bass level.
y TREBLE
Adjust treble level.
z AUDIO
Select an audio language or channel • on a disc.
{
Stop play.• Move the paused picture one step • forward.
|
Pause play.
}
INFO
Display the current status or the disc • information. Display the ID3 information (if • available) of MP3 tracks.
~
OPTIONS
Access options for the current • activity or selection.
USB
Switch to the USB input source.
AUX/MP3 LINK
Switch to the AUX/MP3 Link input • source.
10
EN
3 Connect
Make the following connections to use this product.
Preparations
Place the apparatus near to the T V.
1 2 Place the front left and right speakers
at equal distance from the T V and at an angle of approximately 45 degrees from the listening position.
Analog stereo system• FM antenna• USB flash drive• Wired/Wireless network
Note
Refer to the type plate at the back or bot tom of the product for identification and supply ratings. Before you make or change any connections,
ensure that all the devices are disconnected from the power outlet.
Connect speakers
English
Note
To avoid magnetic interference or unwanted noise, never place this apparatus and speaker s too close to any radiation devices.
Basic connections:
Speakers• Video• Audio• Power
Optional connections:
Route audio to other devices
HDMI-compliant AV receiver/• amplifier Multi-channel AV amplifier/receiver• Digital AV amplifier/receiver
Note
Insert the stripped por tion of each speaker wire into the socket completely. For optimal sound, use the supplied speakers
only. Connect only speakers with impedance that is
the same or higher than the supplied speakers.
For the main unit side:
1 Match the type and colors of the speaker
cable connectors to the speaker input sockets on the back of the main unit.
2 Connect the speaker cables.
V DI
E
O
ANTENNA
O
U
T
LAN
DIGITAL AV OUT
Pr/Cr
Pb/Cb
~
AC
FM
COAXIAL
LR
AUX
OPTICAL
Y
DIGITAL AUDIO OUT
Wi-Fi
COMPONENT
IN
LINE OUT
LR
L
R
SPEAKER OUT
EN
11
For the speaker side:
b
1 Unscrew the speaker connectors. 2 For the left speaker, identify the speaker
cable that is connected to the left connectors on the main unit.
Option 1: Connect to the HDMI jack
LAN
DIGITAL AV OUT
~
AC
3 Inser t fully the red end of the speaker
cable into the red (+) connector.
HDMI
4 Screw the red (+) connector to secure
the cable.
5 Inser t fully the silver end of the speaker
cable into the black (-) connector.
6 Screw the black (-) connector to secure
the cable.
7 Repeat steps 2-6 for the right speaker.
ac
Connect video/audio cables
Select the best video connection that the TV can support.
Option 1: Connect to the HDMI jack (for an HDMI, DVI or HDCP-compliant TV).
Option 2: Connect to the component video jacks (for a standard TV or Progressive Scan TV).
Option 3: Connect to the composite video jack (for a standard TV ).
1 Connect an HDMI cable (not supplied)
to:
the HDMI jack on this product. the HDMI input jack on the TV.
Tip
If the TV has a DVI connector only, connect via an HDMI/DVI adaptor. Connect an audio cable for sound output. You can optimize the video output. Press the
HDMI button repeatedly to select the best resolution the T V can support . If this product connects to a TV compatible
with 1080p or 1080p/24Hz, Philips recommends HDMI category 2 cable, also known as High Speed HDMI cable, for optimal video and audio output. To play the digital video images of a BD -video
or DVD-video via an HDMI connection, it is necessary that both this product and the display device (or an AV receiver/amplifier) support a copyright protection system called HDCP (high-bandwidth digital content protection system). This type of connection provides best picture
quality.
V
OEDI
ANTENNA
TUO
Pr/Cr
Y
Pb/Cb
COMPONENT
FM
COAXIAL
LR
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
HDMI IN
12
EN
Option 2: Connect to the component video jacks
Option 3: Connect to the composite video jack
PbY
Pr
Pr/Cr
Pb/Cb
Y
COMPONENT
V
I
D
OE
O
LAN
DIGITAL AV OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
ANTENNA
U
T
FM
COAXIAL
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
L
R
SPEAKER OUT
AUDIO IN
LR
LR
1 Connect the component video cables
(not supplied) to:
the Y Pb/Cb Pr/Cr jacks on this product. the COMPONENT VIDEO input • jacks on the TV.

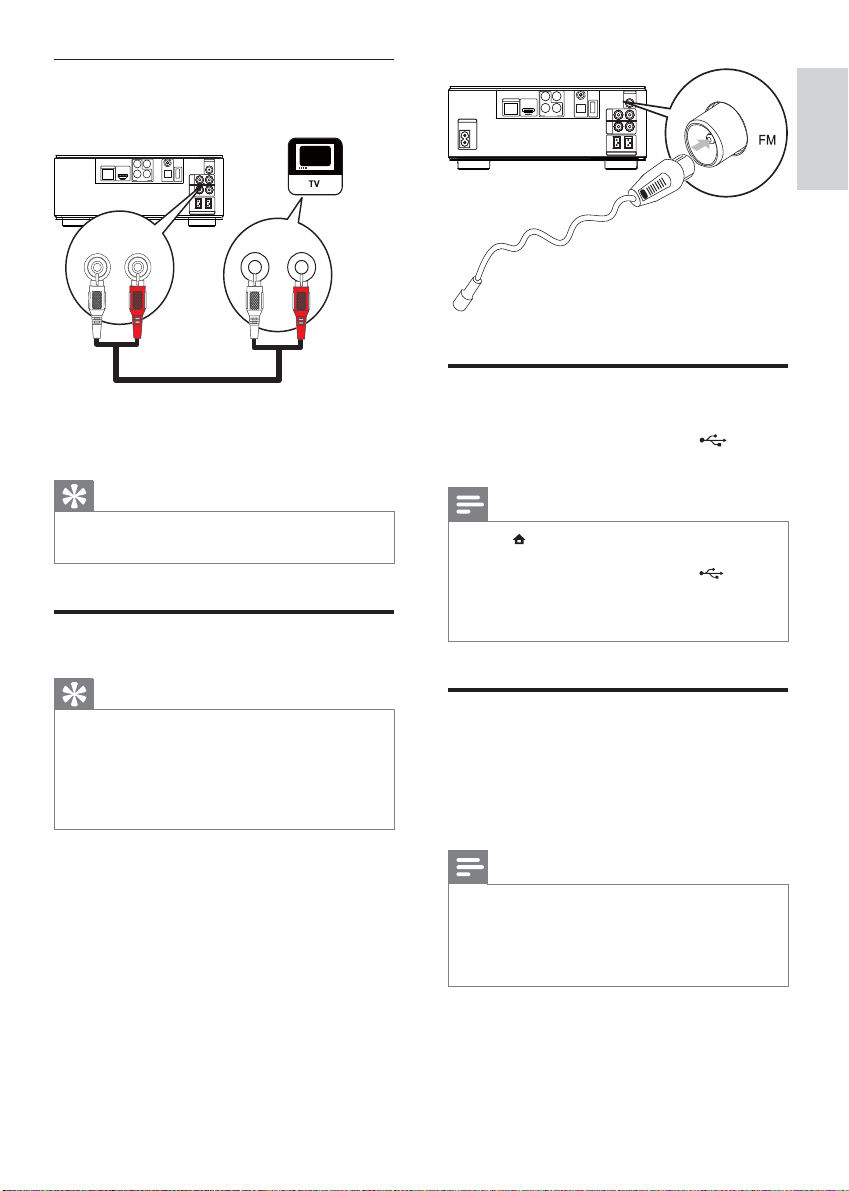

2 Connect the audio cables to:
the LINE OUT/AUDIO -L/R jacks on this product. the AUDIO input jacks on the T V.
AUDIO IN
VIDEO IN
VIDEO OUT
LINE OUT
V
I
D
E
O
ANTENNA
O U
T
LAN
DIGITAL AV OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
FM
COAXIAL
LR
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
1 Connect a composite video cable to:
the VIDEO jack on this product. the VIDEO input jack on the TV.
2 Connect the audio cables to:
the LINE OUT/AUDIO -L/R jacks on this product. the AUDIO input jacks on the T V.
Tip
The video input jack on the T V might be labeled as A /V IN, VIDEO IN, COMPOSITE or BASEBAND.
English
Tip
The component video input jack on the TV might be labeled as Y Pb Pr or YUV.
EN
13
Route audio to other devices
You can route the audio from this product to other devices.
Connect to an HDMI-compliant AV receiver/amplifier
HDMI
V
I
D
E
O O U
LAN
T
DIGITAL AV OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
ANTENNA
FM
COAXIAL
OPTICAL
DIGITAL AUDIO OUT
LR
AUX
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
1 Connect a coaxial cable (not supplied) to:
the COAXIAL jack on this product. the COAXIAL /DIGITAL input jack • on the device.
Connect to optical jack
V
I
D
OE
ANTENNA
O
U
T
LAN
DIGITAL AV OUT
OPTICAL
Pr/Cr
Y
Pb/Cb
COMPONENT
FM
COAXIAL
LR
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
OPTICAL
HDMI IN
1 Connect an HDMI cable (not supplied)
to:
the HDMI jack on this player. the HDMI jack input jack on the • device.
Tip
The HDMI connection provides best audio quality.
Connect to a digital AV amplifier/ receiver
Connect to coaxial jack
COAXIAL
COAXIAL
V
I
ED
O
ANTENNA
UO
T
LAN
DIGITAL AV OUT
Pr/Cr
Pb/Cb COMPONENT
FM
COAXIAL
LR
AUX
OPTICAL
Y
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
1 Connect an optical cable (not supplied)
to:
the OPTICAL jack on this product. the OPTICAL/DIGITAL input jack on • the device.
Connect an analogue stereo system
AUDIO IN
V
I
D
E
O
UO
T
LAN
DIGITAL AV OUT
LINE OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
ANTENNA
FM
COAXIAL
LR
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
1 Connect the audio cables to:
the LINE OUT/AUDIO -L/R jacks on this product.
the AUDIO input jacks on the • device.
14
EN
Connect audio from TV or other devices
DIV
E
O
ANTENNA
O
TU
LAN
DIGITAL AV OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
AUX IN
RL
FM
COAXIAL
LR
AUX
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
LR
L
R
SPEAKER OUT
LINE OUT
R
L
IV
OED
ANTENNA
TUO
LAN
DIGITAL AV OUT
COAXIAL
Pr/Cr
Pb/Cb
~
AC
COMPONENT
AUX
OPTICAL
Y
DIGITAL AUDIO OUT
Wi-Fi
IN
LINE OUT
R
SPEAKER OUT
FM
LR
LR
L
English
Use this product to play audio from the T V or other device such as a cable box.
Tip
Press AUX to select the audio output of your connection.
Connect FM antenna
Tip
For optimal reception, fully extend and adjust the position of the antenna. For bet ter FM stereo reception, connect an
outdoor FM antenna to the FM jack. The unit does not support MW radio
reception.
1 Connect the supplied FM wire antenna to
the FM socket on the unit.
Connect a USB device
1
Connect a USB device to the (USB)
jack on the front panel of this product.
Note
Press , and select [Browse USB] in the menu to access the content and play the files. Connect a USB device only to the
jack on
the front panel of this product. Philips does not guarantee compatibility with
all USB devices.
Connect a network
With a wired or wireless connection (see “Get star ted” > “Set up a network”), you can connect this product to the Internet for software update/BD Live.
Note
Internet access to Philips website for software update may not be allowed, depending on the router you use or the Internet Ser vice Provider’s policy. Contac t your Internet Service Provider for more information.
EN
15
Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back of the unit. Before connecting the AC power cord, ensure
you have completed all other connections.
4 Get started
Caution
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Note
The type plate is located on the bottom of the product.

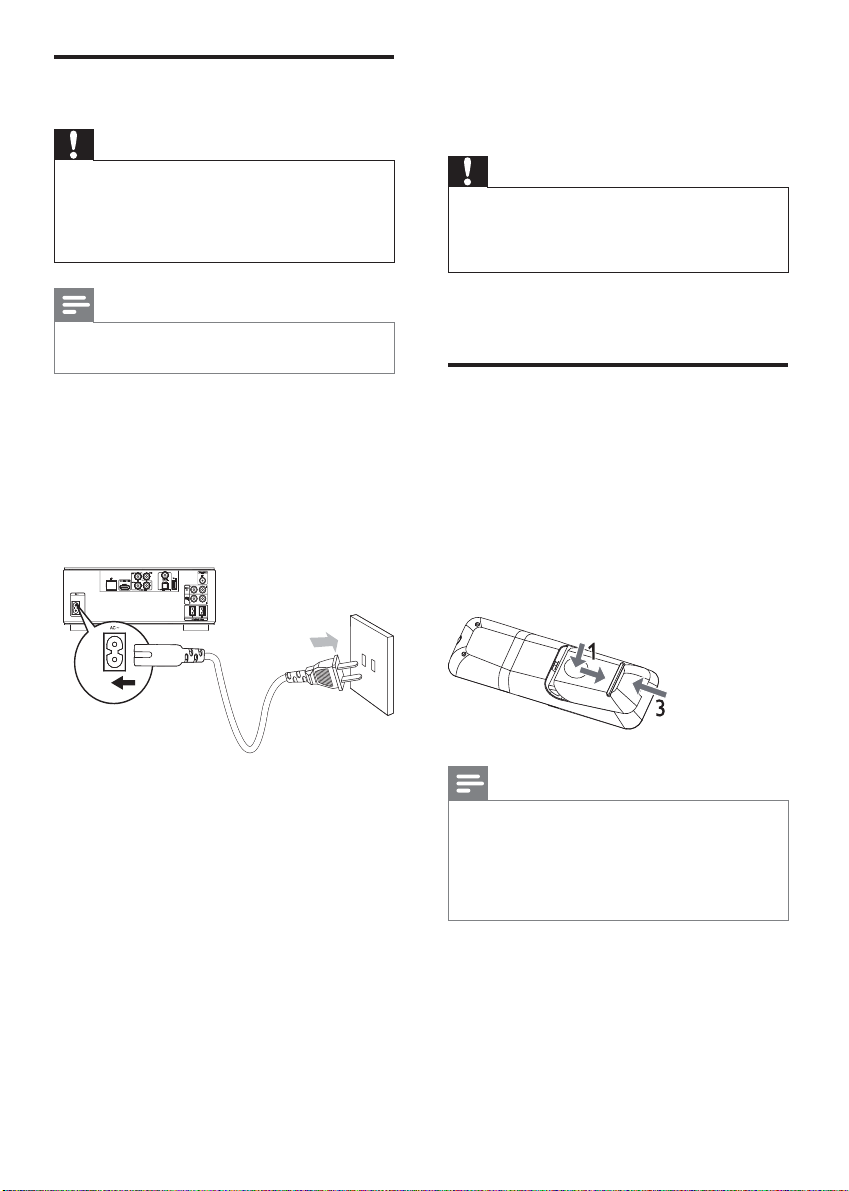

1 Connect the AC power cable to:
this product.• the wall socket.• This product is ready to be set up • for use.
Always follow the instructions in this chapter in sequence.
Prepare the remote control
1
Press and push the batter y compartment
to slide it open (see “1” in the illustration).
2 Inser t two AAA batteries with correct
polarity (+/-) as indicated.
3 Push and slide back the batter y
compar tment (see “3” in the illustration).
Note
If you are not going to use the remote control for a long time, remove the bat teries. Do not mix batteries (old and new or car bon
and alkaline, etc.). Batteries contain chemical subs tances, so they
should be disposed of properly.
16
EN
Set clock
Navigate a menu
In the standby mode, press and hold
1
PROGRAM/CLOCK to activate the clock
setting mode.
The hour digits are displayed and begin » to blink.
2 Press + VOL - to set the hour, then press
PROGRAM/CLOCK again.
The minute digits are displayed and » begin to blink.
3 Press + VOL - to set the minute, then
press PROGRAM/CLOCK to confirm the clock setting.
Find the TV input
Press to turn on this player.
1 2 Turn on the TV and switch to the video
input (refer to the T V user manual on how to select the A/V input).

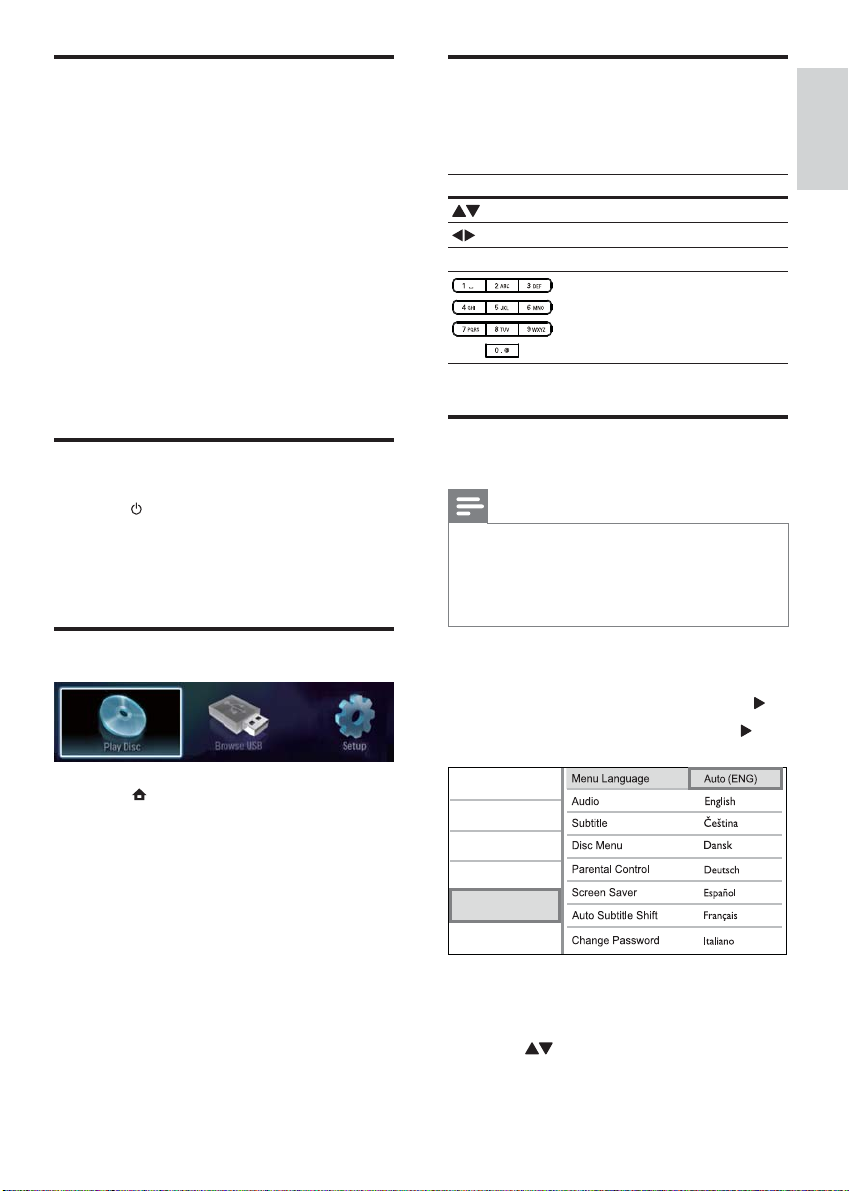

Use the Home menu
1 Press to display the home menu.
To start disc play, select [Play Disc]. To view the USB contents, select [Browse USB]. To access the setup menus, select [Setup].
When a menu is displayed, press the
1
buttons on the remote control to navigate.
Button Action
Move up or down. Move left or right.
OK Confirm a selection.
Enter numbers/ letters/text.
Select a menu display language
Note
If this product is connected to an HDMI CEC compliant TV, skip this setting. It switches automatically to the same OSD menu language as per your TV setting (if the language set on TV is suppor ted by this produc t).
1 In the Home menu, select [Setup] and
press OK.
2 Select [Preference Setup], and press . 3 Select [Menu Language], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
The language options may vary from • different regions.
4 Press to select a language, and press
OK.
English
EN
17
Set up a network

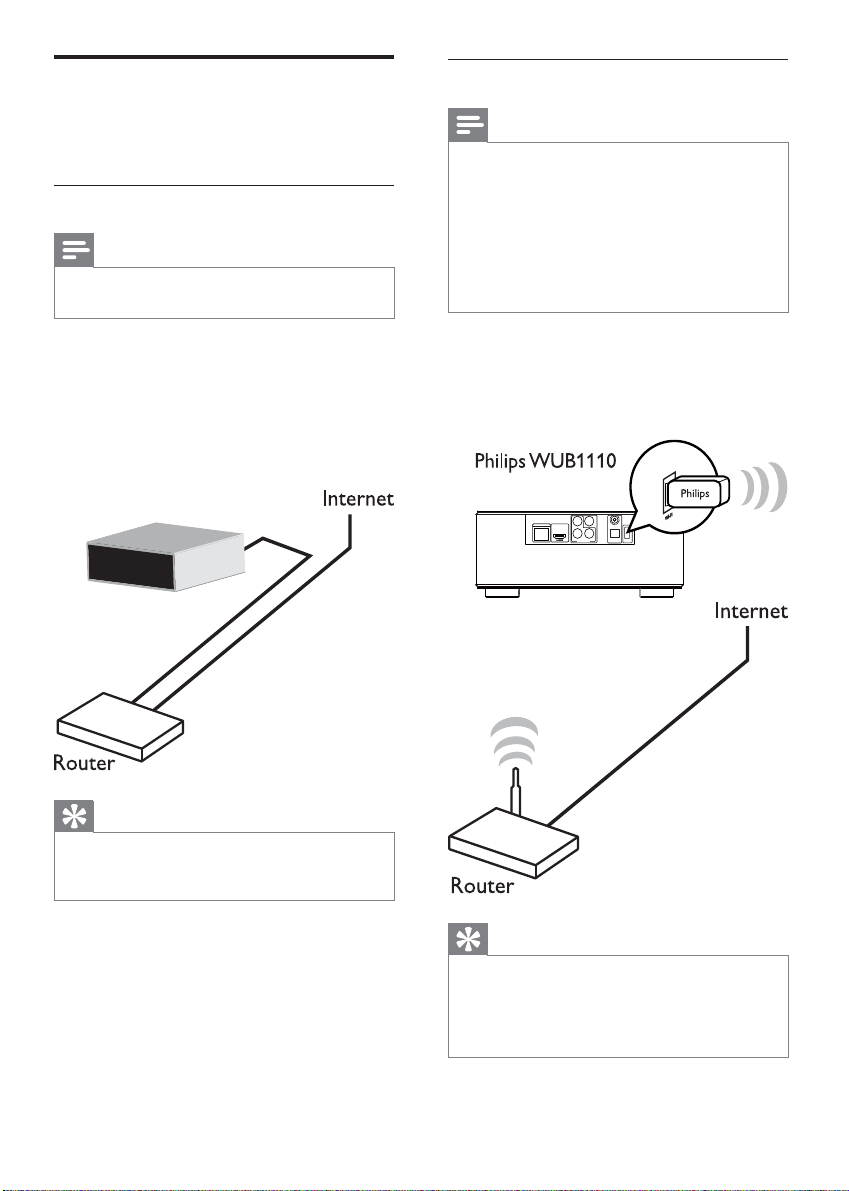

Set up a wireless network
You can connect this product to the Internet for software update/BD Live enjoyment.
Set up a wired network
Note
Ensure that the network cables are properly connected.
1 Connect a network cable (not supplied)
to:
the LAN por t on this product. the LAN por t on a router with • Internet connection.
2 Turn on this product and the router.
MBD3000
Note
For wireless connection, you need to use an optional Philips Wi-Fi USB adapter (named WUB 1110 ). The Wi-Fi USB Adapter ( WUB1110) is not
included. To purchase this adapter, visit shop. philips.com. If the Philips online shop is not available in your country, please contact Philips customer service. For contact details, go to www.philips.com/support.
1 Connect a Philips Wi-Fi USB adapter
(named WUB1110, sold separately) to the
Wi-Fi por t on the back of this product.
2 Turn on this product and the router.
IV
ED O
O
U T
LAN
DIGITAL AV OUT
Pr/Cr
Y
Pb/Cb
COMPONENT
MBD3000
ANTENNA
FM
COAXIAL
OPTICAL
DIGITAL AUDIO OUT
Wi-Fi
Tip
The wired networ k ensures the best performance for data transmission between the devices.
18
EN
Tip
The wireless per formance can vary due to bandwidth connection, network traffic and some environmental effects, such as surrounded by metal panel or heavy concrete, radio inter ference and coverage distance.
Install the network connection
For the first time you connect the network, install the network connection.
1 Set up a wired or wireless network. 2 Press to display the home menu. 3 Select [Setup] and press OK. 4 Select [Network Setup], and press . 5 Select [Network Installation], and press
OK.
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Network Installation
View Network Settings
View Wireless Settings
6 Follow the on-screen instructions to
complete the network installation.
After the network installation » completes, you can access the services: BD-Live and software updates.
Note
To enable the EasyLink feature, you must turn on the HDMI CEC oper ations on the TV and on other devices connected to TV. Refer to the TVs/devices manual for details.
One-touch play
1 Press (standby) to turn on this product.
The TV (if the TV supports one-touch » play) automatically turns on and switches to the correct video-in channel.
If a disc is loaded in this product, disc » play automatically starts.
One-touch standby
1 Press and hold (standby) for more than
3 seconds.
All the connected devices (if the » device supports one-touch standby) automatically switch to standby.
Map the devices to the audio inputs
English
Tip
You can check the status of the wired or wireless connection of this product (see “Adjust settings” > “Network Setup” >[View
Network Settings] or [View Wireless Settings]).
Use Philips EasyLink
This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control) protocol. You can use one single remote control to control EasyLink-compliant devices that are connected through HDMI connectors.
Note
Before you star t, ensure that the audio output of the HDMI TV and other HDMI devices have been connected to the audio input jacks on this product.
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
EasyLink
One Touch Play
One Touch Standby
System Audio Control
Audio Input Mapping
On
On
On
On
1 Press , select [Setup], then press OK. 2 Select [EasyLink Setup], then press .
EN
19
[One Touch Play] and [One Touch Standby] functions are turned on by default.
3 Select [System Audio Control] > [On]. 4 Read the on-screen instructions and
press OK to select [Continue].
The product scans and displays the » valid devices.
5 Press OK to select [Continue].
5 Play
Play a disc
Caution
Do not place any objects other than discs into the disc compartment.
Philips TV
Recorder
DVD player
AUX
MP3
Select a connected device on the lef t of the menu, then press .
6 Select the connector that is used for the
device, then press OK.
Repeat steps 6~7 to map other devices. »
7 Press to exit the menu.
Update audio mapping from connected devices
If you have already mapped audio from connected devices, you can use this procedure to update your mapping.
1 Press , select [Settings], then press OK. 2 Select [EasyLink Setup] > [Audio Input
Mapping], then press OK.
3 Select a connected device then press . 4 Select the connector that is used for the
device then press OK.
5 Repeat steps 4~5 to map other
connected devices.
Note
1 Press OPEN/CLOSE to open the disc
compartment.
2 Inser t a disc with its label facing up. 3 Press OPEN/CLOSE to close the disc
compar tment and start disc play.
To view disc play, turn on the TV to • the video input. To stop disc play, press
Note
Check disc/file formats supported (see “Your Blu-ray Micro System” > “ Playable media”). If the password entry menu is displayed, enter
the password before you can play the locked or restricted disc (see “Adjust settings” > “Preference Setup” > [Parental Control]). If you pause or stop a disc, the screen saver
appears after 10 minutes of inactivity. To deactivate the screen saver, press any button. After you pause or stop a disc and no button
is pressed within 5 minutes, this product automatically switches to standby.
.
Play from a USB device
Play or view media files on the following USB devices:
flash drive• memory card reader• HDD (This product can detect only a • portable hard disc drive with USB power peak current no more than 500mA .)
Philips does not guarantee interoperability with other HDMI CEC devices.
20
EN
VOLUME
BLU-RAY MICRO SYSTEM MBD3000
1 Connect a USB device to the (USB)
jack on the front panel of this product.
2 Press , and select [Browse USB], and
press OK.
A contents menu is displayed. »
3 Select a file to play, and press OK.
Play starts (see “Play video”, “Play » photo”, “Play music” for details).
To stop play, press • USB device.
Note
Philips does not guarantee compatibility with all USB devices. Not all digital cameras are supported.
Digital cameras that require PC programme installation are not supported. NTFS (New Technology File System) data
format is not suppor ted.
or remove the
Button Action
Pause play. Star t or resume play. Stop play.
/ Skip to a previous/next
title or chapter.
/ Search fast-backward
or fast-forward. Press repeatedly to change the search speed.
Note
For BD discs with Java application, availability of the play resume function depends on specific discs.
Change video play
1 Play a title. 2 Use the remote control to change the
play.
English
Play video
Control video play
1 Play a title. 2 Use the remote control to control the
play.
EN
21

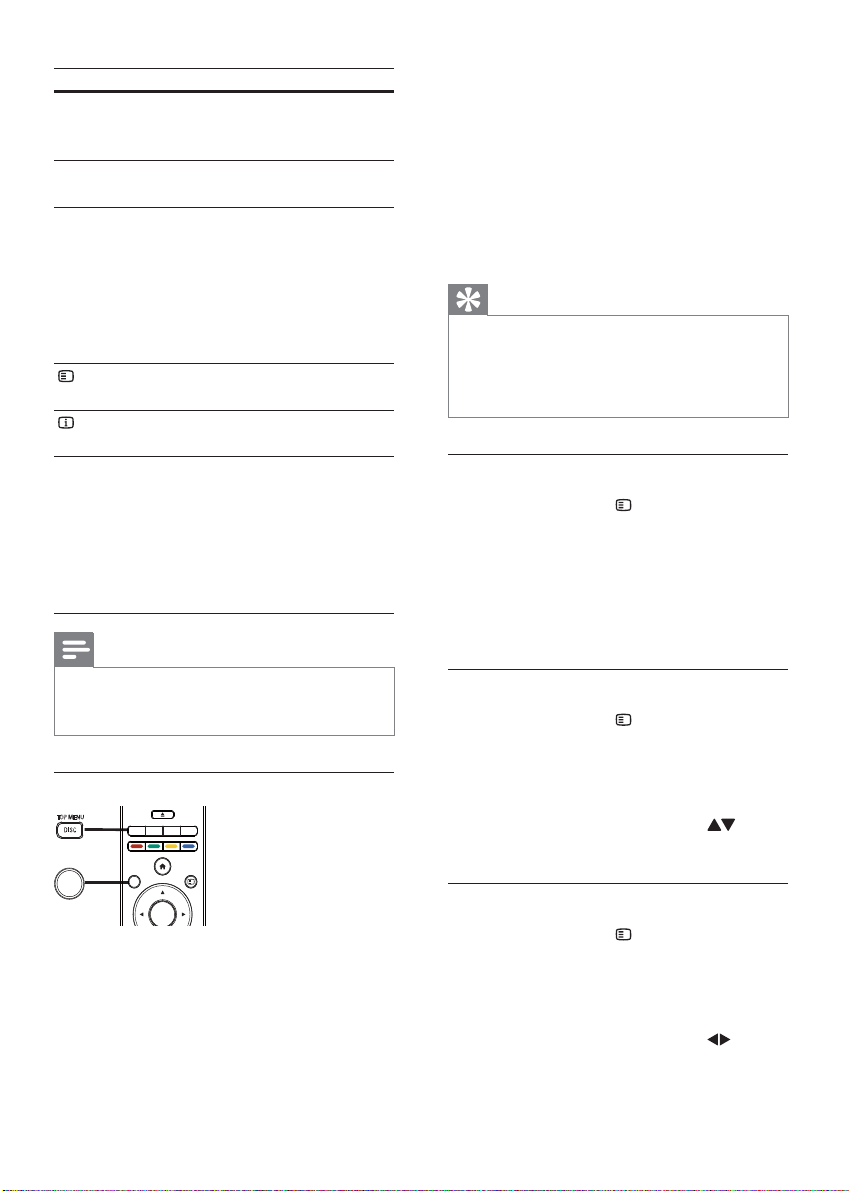

Button Action
OPEN/CLOSE
AUDIO Directly select an audio
language or channel on a disc.
SUBTITLE Directly select a subtitle
language on a disc.
MODE/DIM Directly select/turn off the
repeat or shuffle mode.
Repeat options may vary from the disc type. For VCDs, repeat play is only possible when the PBC mode is turned off.
OPTIONS Access the above mentioned
actions or more options.
INFO Display the current status or
disc information.
BONUSVIEW Turn on or off the
secondary video in a small screen window during play (applicable only to BD-
video that supports the BONUSVIEW or Picture­In-Picture feature).
Note
DVD-video disc
TOP MENU: display the root menu of a disc.
DISC MENU: display disc information and guide you through the available functions in the disc.
VCD/SVCD/DivX disc:
DISC MENU: display the content of the disc.
Tip
If the PBC setting is of f, the VCD/SVCD skips the menu and star ts play from the first title. To display the menu before play, turn on the PBC setting (see “Adjust settings” > [Preference
Setup] > [VCD PBC]).
Select a title/chapter
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Titles] or [Chapters] in the menu,
and press OK.
3 Select the title or chapter number, and
press OK.
Some operations may not work with some discs. See the infor mation accompanying the disc for details.
Display menu
TOP MENU
MENU
DISC/
POP-UP
BD-video disc
TOP MENU: stop video play and show
POP-UP MENU: access the BD-video
22
TOP MENU MP3 LINK
AUX
USBRADIO
DISC
MENU
OPTIONS
DISC/
POP-UP
OK
the disc menu. This feature is disc­dependent.
disc menu without interrupting disc play.
EN
Skip play to a specific time
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Time Search] in the menu, and
press OK.
3 Press the Navigation buttons ( ) to
change the time to skip to, and press OK.
Zoom in/out
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Zoom] in the menu, and press
OK.
3 Press the Navigation buttons ( )to
select a zoom factor, and press OK.
4 Press the Navigation buttons ( ) to
navigate in the zoomed picture.
To cancel zoom mode, press BACK to display the zoom factor bar, and press the Navigation buttons ( [x1] is selected.
) until the zoom factor
Repeat play for a specific section
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Repeat A-B] in the menu, and
press OK to set the star ting point.
3 Forward the video play, and press OK to
set the ending point.
Repeat play starts. »
To cancel repeat play mode, press OPTIONS , and select [Repeat A-B] and press OK.
Note
The marked section for repeat play is only possible within a track /title.
View video play from different camera angles
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Angle List] in the menu, and press
.
3 Select an angle option, and press OK.
Play changes to the selected angle. »
Note
Applicable only to discs that contain multi- angle scenes.
Manually shift subtitle display
You can manually adjust the subtitle position on the TV screen.
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Subtitle Shift] in the menu, and
press OK.
3 Press the Navigation buttons ( ) to
shift the subtitle, and press OK.
Tip
Subtitle shift is not suppor ted for DivX video with external subtitles.
Play BD-video
A Blu-ray video disc has a larger capacity and supports features such as high-definition videos, multi-channel surround sounds, interactive menus and so on.
1 Insert a BD-video disc. 2 Press , select [Play Disc] and press OK. 3 Play automatically star ts, or select a play
option in the menu and press OK.
During play, you can press DISC/TOP MENU to display additional information, features or content stored in the disc. During play, you can press DISC/ POP-UP/MENU to display the disc menu without interrupting disc play.
Enjoy BONUSVIEW
(Applicable only to a disc compatible with the BONUSVIEW or Picture-in-Picture feature) You can instantly view additional content (such as commentaries) in a small screen window.
1 Press BONUSVIEW to turn on the
secondary video window.
2 Press OPTIONS.
The play options menu is displayed. »
English
EN
23
3 Select [2nd Audio Language] or [2nd
Subtitle Language] in the menu, and press
.
4 Select the language to play, and press OK.
Enjoy BD-LIVE
(Applicable only to a disc that enables BD-Live bonus content. Ensure that this product is connected to the Internet.) Additional contents (such as movie trailers, subtitles, and son on) can be downloaded to the local storage of this product or a connected USB storage device. Special video data can be played while they are being downloaded. When the disc suppor ting BD-Live is played, this product or disc ID can be sent to the content provider via the Internet. The services and functions that can be provided vary from disc to disc.
Play DivX® video
DivX video is a digital media format that retains high quality despite a high rate of compression.
1 Inser t a disc or USB device that contains
the DivX videos.
2 Press , select [Play Disc] or [Browse
USB], and press OK.
A contents menu is displayed. »
3 Select a video folder, and press OK. 4 Select a title to play, and press OK. 5 Use the remote control to control the
play.
Button Action
AUDIO Select an audio language
or channel.
SUBTITLE Select a subtitle language.
Stop play.
Note
You can only play DivX videos that were rented or purchased with the DivX registration code of this player (see “Adjust Settings” > [Advanced Setup] > [DivX Code]). You can play DivX video files of up to 4GB.
This player can display up to 45 characters in the subtitle.
®
VOD
Play photo
Play photo as slideshow
You can play JPEG photos (files with .jpeg or .jpg extensions).
1 Inser t a disc or USB device that contains
the JPEG photos.
2 Press , select [Play Disc]or [Browse
USB], and press OK.
A contents menu is displayed. »
3 Select a photo folder, and press OK to
enter.
To select a photo, press the Navigation buttons. To enlarge the selected photo and • start slideshow, press OK.
4 Press to star t slideshow play.
Note
It may require longer time to display the disc content on the T V if there are a large number of songs/photos compiled onto one disc. This produc t can only display digital camera
pictures according to the JPEG-EXIF format, typically used by most digital cameras. It cannot display Motion JPEG, or pictures in formats other than JPEG, or sound clips associated with pictures. Folders/files that exceed the suppor ted limit of
this product cannot be displayed or played.
24
EN
Control photo play
1 Play a photo slideshow.
Press
OPTIONS to access play options, select an option, and press OK. During slideshow play, you may • also press horizontally/vertically. If the slideshow stops, press • continue play.
to flip a photo
to
Set a slideshow interval and animation
1 During play, press OPTIONS.
The play options menu is displayed. »
2 Select [Duration per slide] in the menu,
and press OK.
3 Select a duration, and press OK. 4 Select [Slide Animation] in the menu, and
press OK.
5 Select a type of animation effect, and
press OK.
Play a musical slideshow
Create a musical slideshow to play simultaneously MP3/WMA music files and JPEG photo files.
Note
To create a musical slideshow, you must store the MP3/WMA and JPEG files on the same disc or USB device.
1 Play MP3/WMA music. 2 Press BACK to return to the main menu. 3 Navigate to enter a photo folder, and
press OK to star t slideshow play.
Slideshow begins and continues till the » end of the photo folder.
Audio continues to play until the end » of the disc.
To stop the slideshow play, press• To stop the music play, press
.
again.
Play music
Control a track
1 Play a track. 2 Use the remote control to control the
play.
Button Action
Pause play. Star t or resume play. Stop play.
/ Skip to a previous/next
track. Select an item to play.
/ Search fast-backward
or fast-forward. Press repeatedly to change the search speed.
MODE/DIM Select or turn off repeat or
shuffle mode.
Play MP3/WMA music
MP3/WMA is a type of compressed audio file (files with .mp3, .wma extensions).
1 Inser t a disc or USB device that contains
the MP3/WMA music.
2 Press , select [Play Disc] or [Browse
USB], and then press OK.
A contents menu is displayed. »
3 Select a music folder, and press OK. 4 Select a file to play, and press OK.
To return to the main menu, press
BACK.
English
EN
25
Note
For disc recorded in multiple sessions, only the first session is played. For a WMA file that is protected by Digital
Rights Management (DRM), it cannot be played on this product. This produc t does not support MP3PRO audio
format. For any special character that is present in
the MP3 track name (ID3) or album name, it might not be displayed correctly on the screen because these characters are not supported. Folders/files that exceed the suppor ted limit of
this product cannot be displayed or played.
6 Adjust settings
Note
If the setup option is grayed out, it means the setting cannot be changed at the current state.
Video setup
Press .
1 2 Select [Setup], and press OK. 3 Select [Video Setup], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Standard
4 Select an option, then press OK. 5 Select a setting, then press OK.
To return to the previous menu, • press To exit the menu, press

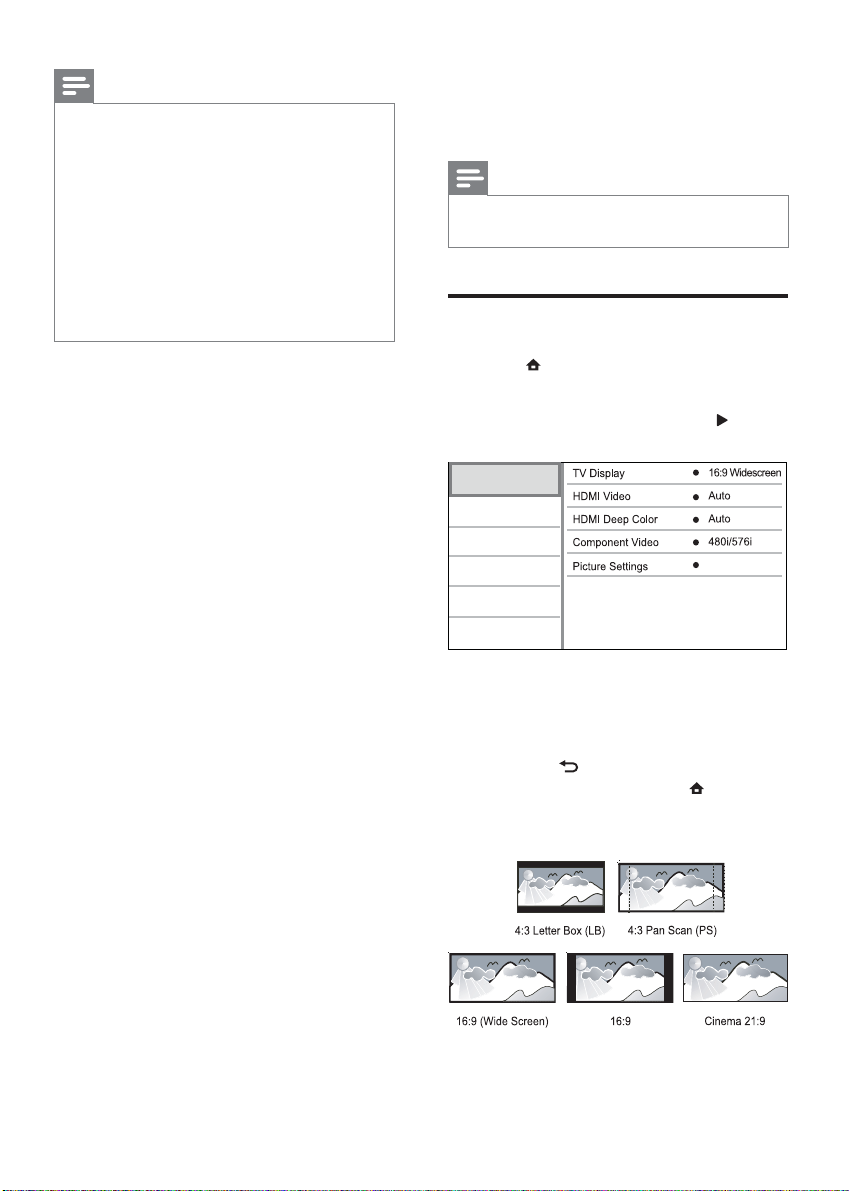

[TV Display]
Select a display format:
BACK.
.
26
EN
[4:3 Letterbox] – For 4:3 screen T V: wide-screen display with black bars on the top and bottom of the screen.
[4:3 Panscan] – For 4:3 screen TV: full­height display with the trimmed sides.
[16:9 Widescreen] – For wide-screen TV: display picture at ratio 16:9.
[16:9] – For 16:9 screen TV: display picture at ratio 4:3 for a disc with 4:3 ratio, with black bars on the left and right side of the screen.
[21:9 Cinema] – For wide-screen TV of display ratio 21:9.
Output 12 bit color that reduces the posterization effect.
[Off] - Output standard 8 bit color.
[Component Video]
Select a component video output resolution that is compatible with the TV display capability.
[480i/576i], [48 0p/576p], [720p], [1080i]
- Select a video resolution setting that is best suppor ted by the TV. See the TV manual for details.
Note
English
Note
If [4:3 Panscan] you have selected is not supported by the disc, the screen displays in the [4:3 Letterbox] format. Help text display is available in all modes,
except [21:9 Cinema]. For optimum viewing with Philips Cinema 21:9
TV, refer to the T V’s user manual.
[HDMI Video]
Select an HDMI video output resolution that is compatible with your TV display capability.
[Auto] - Detect and select the best supported video resolution automatically.
[Native] - Set to original video resolution.
[480i/576i], [48 0p/576p], [720p], [1080i], [1080p], [1080p/24Hz] - Select a video resolution setting that best is supported by the TV. See the TV manual for details.
Note
If a selected video resolution is not suppor ted with your TV and a blank screen appears, to recover picture display, wait for 10 seconds, or on the remote control press “731” (numeric buttons).
and then press
[HDMI Deep Color]
This feature is available only when the display device is connected by an HDMI cable, and when it supports deep color feature.
[Auto] - Enjoy vivid images in over a billion colors on Deep Color enabled TV.
[On] - Enjoy vivid images in over a billion colors on Deep Color enabled TV.
If the setting is not compatible with the T V, a blank screen appears. Wait for 10 seconds for auto recovery. Copy protected DVDs can only output
480p/576p or 480i/576i resolution.
[Picture Settings]
Select a predefined set of picture color settings.
[Standard] – Original color setting.
[Vivid] – Vibrant color setting.
[Cool] - Soft color setting.
[Action] – Sharp color setting. It enhances the details in the dark area. Ideal for action movies.
[Animation] – Contrast color setting. Ideal for animated pictures.
EN
27

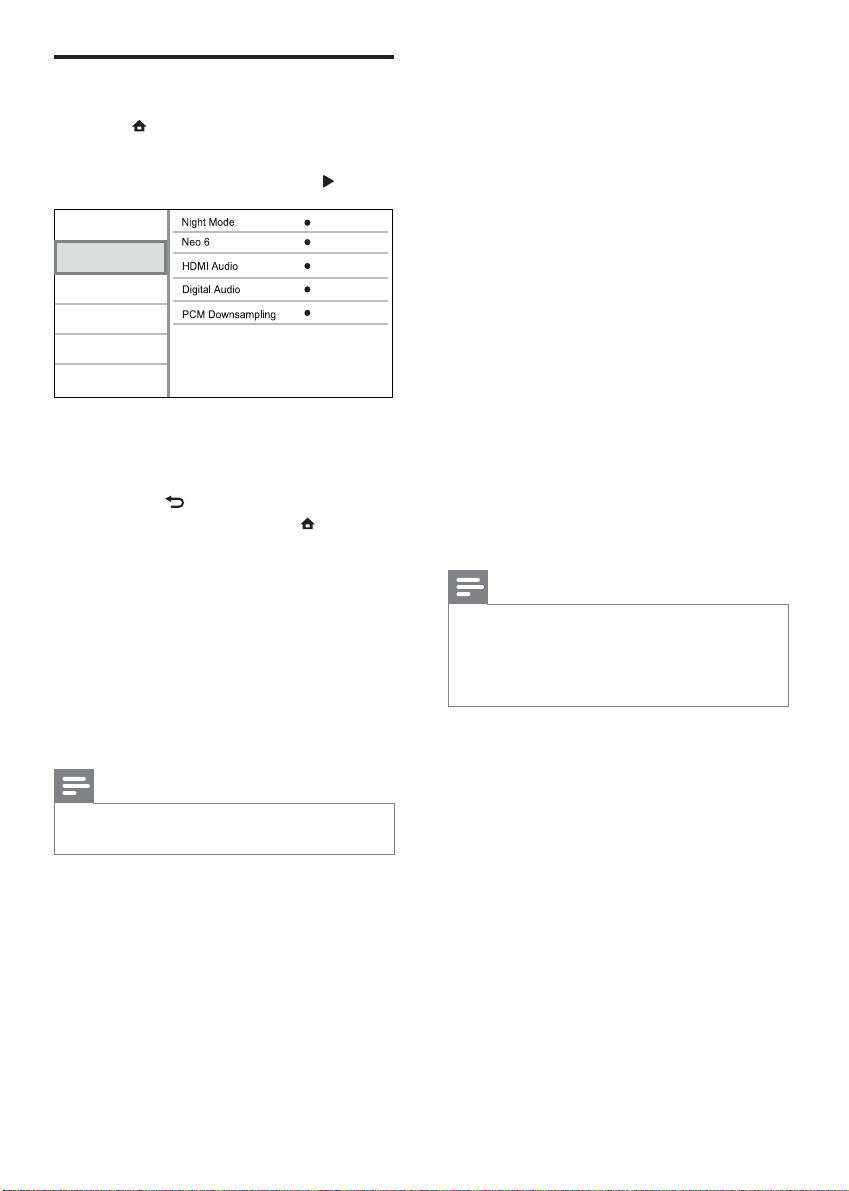

Audio setup
Press .
1 2 Select[Setup], and press OK. 3 Select [Audio Setup], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Off
Off
Auto
Auto
On
4 Select an option, and press OK. 5 Select a setting, and press OK.
To return to the previous menu, • press To exit the menu, press
[Night Mode]
Increase a soft sound level such as dialogue to make it easier to hear at a low volume, while simultaneously decreasing a loud sound level.
[Auto] - Detect and select a best sound level at a low volume. Applicable to tracks with Dolby TrueHD audio only.
[On] – For quiet viewing at night.
[Off] – For surround sound with a full dynamic range.
Note
Applicable only to Dolby encoded DVD -video or BD-video.
[Neo 6]
A post processing by DTS to generate a surround sound effect from 2 channel audio.
[Cinema] – Enable Neo 6 post processing to the cinema mode.
[Music] - Enable Neo 6 post processing to the music mode.
[Off] – Disable Neo 6 post processing.
BACK.
.
[HDMI Audio]
Select an HDMI audio output when you connect this product and the TV/audio device with an HDMI cable.
[Bitstream] – If the connected HDMI device supports the appropriate HD audio decoder, the original audio format on the disc is sent. Otherwise, LPCM is sent.
[Auto] – Detect and select the best supported audio format automatically.
[Digital Audio] Select an audio format for the sound output from the DIGITAL OUT jack (coaxial/optical).
[Auto] - Detect and select the best supported audio format automatically.
[PCM] - The audio device does not support multi-channel format. Audio is downmixed to two-channel sound.
[Bitstream] - Select the original audio to experience Dolby or DTS audio (BD­video special sound effect is disabled).
Note
Ensure that the audio format is suppor ted by the disc and the connected audio device (amplifier/receiver). When
[Bitstream] is selected, interactive
audio like button sound is muted.
[PCM Downsampling]
Set the sampling rate for PCM audio output from the DIGITAL OUT jack (coaxial/optical).
[On] - PCM audio is down-sampled at 48kHz.
[Off] - For BD or DVD recorded in LPCM without copyright protection, two-channel audio signals up to 96 kHz are output as LPCM signals with no conversion.
28
EN
Network setup
Press .
1 2 Select [Setup], and press OK. 3 Select [Network Setup], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Network Installation
View Network Settings
View Wireless Settings
4 Select an option, then press OK. 5 Select a setting, then press OK.
To return to the previous menu, • press To exit the menu, press
[Network Installation]
Install the network connection.
[View Network Settings]
Display the information for the current network status.
[View Wireless Settings]
Display the information for the current Wi-Fi status. If the current network is not set to a wireless connection, this feature is de-activated.
BACK.
.
EasyLink setup
Press .
1 2 Select [Setup], and press OK. 3 Select [EasyLink Setup], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
EasyLink
One Touch Play
One Touch Standby
System Audio Control
Audio Input Mapping
On
On
On
On
4 Select an option, and press OK. 5 Select a setting, and press OK.
To return to the previous menu, • press To exit the menu, press
[EasyLink]
This product supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control) protocol. You can use one single remote control to control all EasyLink­compliant devices that are connected through HDMI connectors.
[On] - Turn on EasyLink features.
[Off] - Disable EasyLink features.
[One Touch Play]
When you press this product, the TV (if the TV supports one-touch play) automatically turns on and switches to the video-in channel. Disc play starts if there is a disc in this product.
[On] - Turn on one-touch play feature.
[Off] - Disable one-touch play feature.
[One Touch Standby]
When you press and hold the connected HDMI CEC devices (if the device suppor ts one-touch standby) switch to standby mode simultaneously.
[On] - Turn on one-touch standby feature.
[Off] - Disable one-touch standby feature.
[System Audio Control]
When you play audio that is routed from the connected devices, this unit switches to the corresponding audio source automatically.
BACK.
.
(standby) to turn on
(standby), all
English
EN
29
[On] - Turns on System Audio Control. Then proceed to [Audio Input Mapping] to scan and map all the connected devices.
[Off] - Disables System Audio Control.
[Audio Input Mapping]
Updates audio input mapping if there are new devices connected.
Note
You must turn on the HDMI CEC operations on the T V/devices before you can enjoy the EasyLink controls. See the T V/devices manual for details. Philips does not guarantee 100%
interoper ability with all HDMI CEC compliant devices.
Preference setup
Press .
1 2 Select [Setup], and press OK. 3 Select [Preference Setup], and press .
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Menu Language
Audio
Subtitle
Disc Menu
Parental Control
Screen Saver
Auto Subtitle Shift
Change Password
Auto (ENG)
English (ENG)
Off
English (ENG)
Off
On
On
4 Select an option, then press OK. 5 Select a setting, then press OK.
To return to the previous menu, • press To exit the menu, press
[Menu Language]
Select an on-screen menu language.
BACK.
.
Note
If this product is connected to an HDMI CEC compliant TV using an HDMI cable, it switches automatically to the same menu display language as per your TV setting (if the language set on TV is suppor ted by this product).
[Audio]
Select an audio language for disc play.
[Subtitle]
Select a subtitle language for disc play.
[Disc Menu]
Select a language for disc menu.
Note
If the language you have set is not available on the disc, the disc uses its own default language. For some discs, the subtitle/audio language can
only be changed from the disc menu.
[Parental Control]
Restrict access to discs that are unsuitable for children. These types of discs must be recorded with ratings. To access, enter your last set password or ‘0000’.
Note
Rated discs above the level you set in [Parental Control] require a password to be played. The ratings are country-dependent. To allow
all discs to play, select ‘8’ for DVD-video and BD-Video. Some discs have r atings printed on them but
are not recorded with ratings. This function has no ef fect on such discs.
[Screen Saver]
Turn on or off the screen saver mode. It helps to protect the TV screen from being damaged due to over exposure to static image for being too long.
[On] - Set the screen saver active after 10 minutes of inactivity (for example, in the pause or stop mode)
[Off] - Disable screen saver mode.
30
EN
[Auto Subtitle Shift]
Turn on or off the automatic subtitle shift.
[On] - The subtitle position on the TV screen is automatically adjusted.
[Off] - Disable the automatic subtitle shift.
Note
This feature only works when [TV Display] is set to [21:9 Cinema].
[Change Password]
Set or change the password.
1) Press the Numeric buttons to enter the password or your last set password. If you forget the password, enter ‘0000’, then press OK.
2) Enter the new password.
3) Enter the same password again.
4) Move to [Confirm] in the menu and press OK.
[Display Panel]
Select a brightness level of the front panel display.
[Normal] - Normal brightness.
[Dim] - To dim display.
[VCD PBC]
Turn on or off the content menu of VCDs/ SVCDs with PBC (playback control) feature.
[On] - Display the index menu when you load a disc for play.
[Off] - Skip the menu and star t play from the first title.

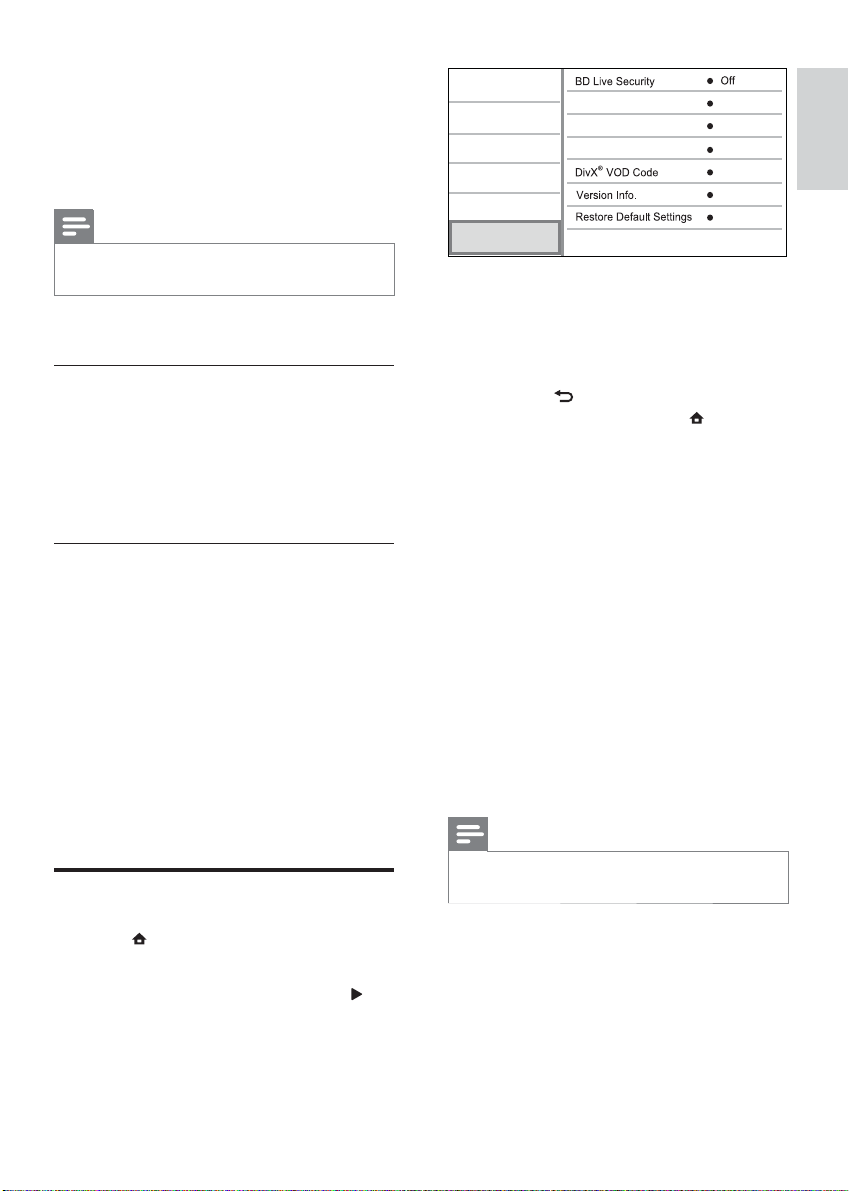

Video Setup
Audio Setup
Network Setup
EasyLink Setup
Preference Setup
Advanced Setup
Software Update
Clear Memory
Local Storage
4 Select an option, and press OK. 5 Select a setting, and press OK.
To return to the previous menu, • press
BACK .
To exit the menu, press
[BD-Live Security]
You can restrict internet access for BD-Live bonus contents which are available to certain Blu-ray discs.
[On] - Internet access is prohibited for all BD-Live contents.
[Off] - Internet access is permitted for all BD-Live contents.
[Software Update]
Update the software of this product (if a latest version is available on Philips website) to enhance the per formance of this product.
[USB] - Update software from the USB device which is connected to this product.
[Network] - Update software from the Internet.
Note
.
English
Advanced setup
Press .
1 2 Select [Setup], and press OK. 3 Select [Advanced Setup], and press .
For detailed software updating, see “Additional information” > “Update software”.
[Clear Memory]
If the internal memory of this product is not enough to download BD-Live bonus contents for a BD disc, reformat the local storage to clear all the contents.
EN
31
Note
When you clear the local storage, previous download of BD-Live bonus contents is no longer available.
Local Storage
[Local Storage]
Save the downloaded BD-Live bonus contents for a BD disc to the local memory of the product or an external USB storage device. [Internal] - Save to the local memory of the product. [External] - Save to an external USB storage device connected to the product.
®
[DivX
VOD Code]
Obtain the DivX deregistration code.
Tip
Use the DivX registration code of this product when you rent or purchase video from www. divx.com/vod. The DivX videos rented or purchased through the DivX On Demand) service can be played only on the device to which it is registered.
[Version Info.]
Display the software version and the MAC address of this player.
Tip
This information is needed for you to check if a latest sof tware version is available at the Philips website so that you can download and install on this player.
[Restore Default Settings]
Reset all the settings of this player to the factory settings, except for [Parental Control] setting.
®
registration code or the
®
VOD (Video
7 Tune to FM
radio stations
1 Ensure that you have connected and fully
extended the supplied FM antenna.
2 Press RADIO. 3 Press / or . 4 When the frequency indication starts to
change, release the button.
The FM tuner tunes to a station with » strong reception automatically.
5 Repeat steps 3-4 to tune to more
stations.
To tune to a weak station:
Press reception.
Program radio stations automatically
1 Press / to select a preset number to
2 Press and hold PROGRAM/CLOCK
repeatedly until you find optimal
Note
You can program a maximum of 40 preset radio stations.
start programming.
for 2 seconds to activate automatic programming.
» [AUTO] (auto) is displayed briefly.
All available stations are programmed » in the order of waveband reception strength.
The first programmed radio station is » broadcast automatically.
32
EN
Program radio stations manually
Note
You can program a maximum of 40 preset radio stations.
1 Tune to a radio station. 2 Press PROGRAM/CLOCK to activate
programming.
3 Press / to allocate a number from
1 to 40 to this radio station, then press PROGRAM/CLOCK to confirm.
The preset number and the frequency » of the preset station are displayed.
4 Repeat the above steps to program other
stations.
Note
8 Adjust volume
level and sound effect
Adjust volume level
During play, press VOL +/- to increase/
1
decrease the volume level.
Select a sound effect
Note
You cannot use different sound effec ts at the same time.
English
To overwrite a programmed station, store another station in its place.
Tune to a preset radio station
Press / to select a preset number
1
that you want.
Adjust bass level
1 During play, press BASS to enter bass
adjustment.
2 Press VOL +/- to adjust the bass level.
Adjust treble level
1 During play, press TREBLE to enter treble
adjustment.
2 Press VOL +/- to adjust the treble level.
Select automatic loudness control
The loudness feature enables the system to increase the treble and bass sound effect at low volume automatically (the higher the volume, the lower the treble and bass increase).
1 During play, press LOUDNESS to turn
on/off automatic loudness control.
33
EN
Mute sound
During play, press to mute/resume
1
sound.
9 Additional
Information
Listen through headphone
Plug a headphone into the socket on
1
the unit.
Adjust brightness of display panel
In standby mode, press MODE/DIM
1
repeatedly to select different levels of brightness for the display panel.
Set the alarm timer
Ensure that you have set the clock
1
correctly.
2 In standby mode, press and hold SLEEP/
TIMER.
The hour digits are displayed and begin » to blink.
3 Press + VOL - to set the hour, then press
SLEEP/TIMER again.
The minute digits are displayed and » begin to blink.
4 Press + VOL - to set the minute.
An alarm source icon (disc, tuner or » USB) begins to blink.
5 Press + VOL - to select an alarm source. 6 Press SLEEP/TIMER to confirm.
» [OFF] (off) begins to blink.
7 To activate the wake-up timer, press +
VOL - to select [ON] (on) while [OFF]
(off) is blinking.
A clock icon appears on the display. » To deactivate the alarm timer, select »
[OFF] (off) at step 6.
34
EN
Set the sleep timer
When the unit is turned on, press SLEEP/
1
TIMER repeatedly to select a set period
of time (in minutes).
The unit turns off automatically after » the set period of time.
Update software
For software updates to enhance performance, check the current software version of this product to compare with the latest software (if available) at the Philips website.
1 Press . 2 Select [Setup], and press OK. 3 Select [Advanced Setup] > [Version
Info.], and press OK.
Update software via network
1 Set up the internet connection (see “Get
started’ > “Set up a network”).
2 In the Home menu, select [Setup] >
[Advanced Setup] > [Software Update]
> [Network].
You are prompted to star t the » upgrading process if upgrade media is detected.
3 Follow the instructions on the TV screen
to confirm update operation.
Once software update is complete, this » product restarts automatically.
a Un-zip the download, and make
sure that the un-zipped folder is named “UPG”.
b Put the “UPG” folder in the root
directory.
3 Inser t the USB flash drive to the
(USB) jack on the front panel of this product.
4 In the Home menu, select [Setup] >
[Advanced Setup] > [Software Update] > [USB].
5 Follow the instructions on the TV screen
to confirm update operation.
Once software update is complete, this » product restarts automatically.
Note
Do not turn off the power or remove the USB flash drive when software updating is in progress to prevent possible damage of this product.
Care
Caution
Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.
Clean discs
Wipe the disc with a micro fibre cleaning cloth from the centre to the edge in a straight line movement.
English
Update software via USB
1 Go to www.philips.com/suppor t to check
if the latest software version is available for this product.
2 Download the software into a USB flash
drive:
EN
35
Specifications
Note
Specifications are subject to change without notice
Video
Laser type: Semiconductor• Disc diameter: 12cm/8cm• Video decoding: MPEG-1 / MPEG-2 / • Divx Video DAC: 12Bits• Signal system: PAL / NTSC• Video format: 4:3 / 16:9• Component video output: • 480i/576i,480p/576p, 720p, 1080i Video S/N: > 48dB• HDMI output: 480p, 576p, 720p, • 1080i,1080p, 1080p24 Audio DAC: 24Bits / 192kHz• Total Harmonic distor tion: < 0.1% • (1 kHz) Frequency response: • 4Hz - 20kHz (44.1kHz) 4Hz - 22kHz (48kHz) 4Hz - 24kHz (96kHz) S/N ratio: > 65dBA
Tuner ( F M )
Tuning range: 87.5 - 108MHz • Tuning grid: 50KHz
- Mono, 26dB S/N ratio: <22 dBf,
- Stereo, 46dB S/N ratio: >43 dBf Search selectivity: >28dBf • Total harmonic distor tion: <1% • Signal to noise ratio: >55dB
USB
Compatibility: Hi-Speed USB (2.0)• Class suppor t: UMS (USB Mass Storage • Class)
Main unit
Power supply rating: 220V~, 50 Hz• Power consumption: 50W• Power consumption in standby mode: • < 0.5 W
Dimensions (w x h x d): 277 x 98 x 247 • (mm) Net weight: 2.5 kg
Speakers
Speaker impedance: 8ohm• Speaker driver: 5”woofer+1”tweeter• Sensitivity: >80dB/m/W ± 4dB/m/W• Dimensions: (w x h x d): 160 x 255 x 2240 (mm) • Net weight: 3.5 kg
Accessories supplied
Remote control and batteries• Audio/Video cables• Power cable• FM wire antenna• Quick star t guide• User manual
Optional accessory
A wireless Philips USB adapter(named • WUB1110, sold separately)
Multimedia connections: Wi-Fi
802.11b/g/n Connectivity: Rear connection (USB)• Ambient temperature: 5 deg C to 40 • deg C. Dongle dimensions (W x H x D):
28.4 x 82 x 13.4 mm
Laser Specification
Laser Type:
BD Laser Diode: InGaN/AIGaN• DVD Laser Diode: InGaAIP• CD Laser Diode:A IGaAs
Wave length:
BD: 405 +5 nm/-5 nm• DVD: 650 +5nm/-10nm• CD: 790 +10nm/-20nm
Output power:
BD: Max. ratings: 20mW• DVD: Max. ratings: 7mW• CD: Max. ratings: 7mW
Laser Specification
Laser Type:
BD Laser Diode: InGaN/AIGaN• DVD Laser Diode: InGaAIP• CD Laser Diode:A IGaAs
36
EN
Wave length:
BD: 405 +5 nm/-5 nm• DVD: 650 +5nm/-10nm• CD: 790 +10nm/-20nm
Output power:
BD: Max. ratings: 20mW• DVD: Max. ratings: 7mW• CD: Max. ratings: 7mW
10 Troubleshooting
English
Warning
Risk of electric shock. Never remove the casing of the product.
To keep the warranty valid, never try to repair the product yourself. If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.
Main unit
No reaction to the remote control.
Connect this product to the power • outlet. Point the remote control at the IR sensor • located on the front panel of this product. Inser t the batteries correctly.• Inser t new batteries in the remote • control.
Timer does not work
Set the clock correctly. Switch on the timer.
Clock/timer setting erased
Power has been interrupted or the power cord has been disconnected. Reset the clock/timer.
No picture.
See TV manual for correct video input • selection. Change the TV channel until you see the Philips screen.
No picture on HDMI connection.
If this product is connected to an • unauthorized display device with an HDMI cable, the audio/video signal may not be output. Check if the HDMI cable is faulty. Replace • with a new HDMI cable.
EN
37
On the remote control, press and then press “731” (numeric buttons) to recover picture display.
No high-definition video signal on the TV.
Make sure that the disc contains high-• definition video. Make sure that the TV suppor ts high-• definition video.
Sound
No sound or poor sound
Adjust the volume. Disconnect the headphones. Check that the speakers are connected correctly. Check if the stripped speaker wires are clamped.
No sound on HDMI connection.
You may not hear any sound from the • HDMI output if the connected device is non-HDCP compliant or only DVI­compatible.
No secondary audio output for Picture-in­Picture feature.
When [Bitstream] under the [HDMI Audio] or [Digital Audio] menu is
selected, interactive sound like secondary sound for Picture-in-Picture feature is muted. Deselect [Bitstream].
Play
Disc cannot be played.
Ensure that the disc is correctly loaded.• Ensure that this product supports the • disc (see “Your Blu-ray Micro System” > “Playable media”). Ensure that this product supports the • region code of the DVD or BD. For DVD±RW or DVD±R, ensure that • the disc is finalized. Clean the disc.
Data files (JPEG, MP3, WMA) cannot be played or read.
Ensure that the data file was recorded in • the UDF, ISO9660 or JOLIET format. Ensure that the disc does not contain • more than 9,999 files for DVD, and 999 files for CD. Ensure that the JPEG file extension is.jpg, • .JPG, .jpeg or .JPEG. Ensure that the MP3/WMA file extension • is .mp3 or .MP3, and .wma or .WMA for windows Media™ Audio.
DivX video files cannot be played.
Ensure that the DivX video file is complete. Ensure that the file name extension is correct.
The contents of the USB flash drive cannot be read.
The USB flash drive format is not compatible with this product. The maximum size of memory supported is 160GB.
‘No entry’ or ‘x’ sign appears on the TV.
The operation is not possible.
EasyLink feature does not work.
Ensure that this product is connected • to the Philips brand EasyLink TV and the[EasyLink]in the menu is set to [On].
Unable to access BD-Live feature.
Check the network connection or ensure • that the network has been set up. Clear local storage, internal memory (if • any) or USB. Ensure that the BD disc suppor ts BD Live • feature.
Poor radio reception
Increase the distance between the apparatus and your TV or VCR. Fully ex tend the FM antenna. Connect an outdoor FM antenna instead.
38
EN
Network
Wireless network is not found or distorted.
Microwave ovens, DECT phones or other • wireless devices in your neighborhood might disturb the wireless network. Make sure that the firewalls in your • network allow access to the wireless connection of this product. If the wireless network does not work • properly in your home, try the wired network connection (see “Get started” > “Set up a network”).
11 Glossary
English
A
Aspect ratio
Aspect ratio refers to the width to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide T V is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.
AVCHD
AVCHD is a format (standard) for high definition video cameras that can be used to record and play high-resolution HD images.
B
Blu-ray Disc (BD)
Blu-ray Disc is a nex t generation optical video disc capable of storing five times more data than a conventional DVD. The large capacity makes it possible to benefit from the features such as high-definition videos, multichannel surround sound, interactive menus and so on.
BONUSVIEW
BonusView, also known as “Profile 1.1”. In addition to basic playback and interactive features, BonusView players introduced after 31st October, 2007 enables users to enjoy ‘Picture-in-Picture’ (PiP) and secondar y audio features (useful when playing games that use additional audio stream while the movie is playing) on compatible BonusView discs.
D
Digital Audio
Digital Audio is a sound signal that has been converted into numerical values. Digital sound can be transmitted through multiple channels. Analogue sound can only be transmitted through two channels.
39
EN
DivX Video-On-Demand
This DivX Certified registered in order to play DivX Video-on­Demand (VOD) content. To generate the registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX video.
Dolby Digital
A surround sound system developed by Dolby Laboratories that contains up to six channels of digital audio (front left and right, surround left and right, center and subwoofer.)
DTS
Digital Theatre Systems. A surround sound system for providing 5.1 channels of discrete digital audio in consumer electronics products and software content. It is not developed by Dolby Digital.
®
device must be
J
JPEG
A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their file extension ‘.jpg’ or ‘.jpeg.’
L
LAN (Local Area Network)
A group of linked devices in a company, school or home. Indicates the boundaries of a particular network.
Local storage
This storage area is used as destination for storing additional contents from BD-Live enabled BD-Video.
H
HDCP
High-bandwidth Digital Content Protection. This is a specification that provides a secure transmission of digital contents between different devices (to prevent unauthorized copyright.)
HDMI
High-Definition Multimedia Interface (HDMI) is a high-speed digital interface that can transmit uncompressed high definition video and digital multichannel audio. It delivers high quality picture and sound quality, completely free from noise. HDMI is fully backward­compatible with DVI. As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output.
40
EN
M
MP3
A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Exper ts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.
P
PBC
Playback Control. A system where you navigate through a Video CD/Super VCD with on-screen menus that are recorded onto the disc. You can enjoy interactive playback and search.
PCM
Pulse Code Modulation. A digital audio encoding system.
R
Region code
A system that allows discs to be played only in the region designated. This unit only plays discs that have compatible region codes. You can find the region code of your unit on the product label. Some discs are compatible with more than one region (or ALL regions.)
W
WMA
Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded with Windows Media player version 9 or Windows Media player for Windows XP. Files are recognized by their file extension ‘.wma .’
English
EN
41
© 2010 Koninklijke Philips Electronics N.V. All rights reserved. MBD3000_93_UM_V1.1
Loading...
